Digi5G & LTE Routers

Digi IX25 5G RedCap Industrial Cellular Router with Wi-Fi 6E, CBRS, FirstNet and 1-Year Digi 360 (IX25-RA-1G)

5G RedCapMPN IX25-RA-1G
  • Wi-Fi 6E
  • 1 Gb Ethernet
  • GPS/GNSS
  • 1 year included
$716.41$859.00Save $142.59

In stock · only 4 leftShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Digi IX25-RA-1G is a rugged 5G RedCap edge computing router with LTE Cat 4 fallback, built for industrial, utility and enterprise sites. It pairs worldwide cellular with Anterix, FirstNet Capable and CBRS band support. You also get Wi-Fi 6E, four Gigabit Ethernet ports, RS-232/485 serial, GPIOs and GNSS. Dual nano-SIM slots and an embedded Digi eSIM support carrier diversity. A 1-year Digi 360 solution covers Digi Remote Manager, warranty and customer care.

  • 5G RedCap with LTE Cat 4 fallback, plus Anterix (B106), FirstNet (B14) and CBRS (B48/n48) band support
  • Four Gigabit Ethernet ports configurable as WAN or LAN, RJ-50 RS-232/485 serial, two digital I/Os and USB 2.0
  • Dual nano-SIM slots plus a soldered-on Digi eSIM with eUICC (SGP.32) for remote carrier switching
  • Dual-band 2x2 MIMO Wi-Fi 6E (2.4, 5 and 6 GHz) and a GNSS receiver (GPS, GLONASS, BeiDou, Galileo)
  • 1.2 GHz quad-core ARM Cortex-A53, 1 GB RAM and 8 GB eMMC for Digi Containers and edge computing
  • C1D2 and ATEX Zone 2 rated, MIL-STD-810H tested, −40 °C to 75 °C operation, FIPS 140-3 security
  • Includes the 1-year Digi 360 solution with Digi Remote Manager, warranty and customer care
  • One router covers public 5G/LTE carriers plus Anterix, FirstNet and CBRS private networks, which simplifies stocking across projects

Digi IX25-RA-1G is the 5G RedCap, Wi-Fi 6E model of the Digi IX25 industrial cellular router family. It is a compact, all-in-one edge platform for SCADA, telemetry, predictive maintenance, machine control, branch failover, ATMs, kiosks, lottery terminals, unattended retail and digital signage. Digi builds it with Western cellular modules in TAA-compliant facilities.

The cellular side covers a broad set of 5G NR and 4G LTE bands, with LTE Cat 4 fallback. Band support includes B14 for FirstNet, B48/n48 for CBRS and B106 for Anterix, so one unit can serve public carriers and private networks. The router is approved by PTCRB, AT&T, T-Mobile and Verizon, is FirstNet Capable and is Anterix Active. Two nano-SIM holders and a soldered-on MFF2 Digi eSIM with eUICC (SGP.32) support remote carrier switching. Digi WAN Bonding and SureLink keep links resilient.

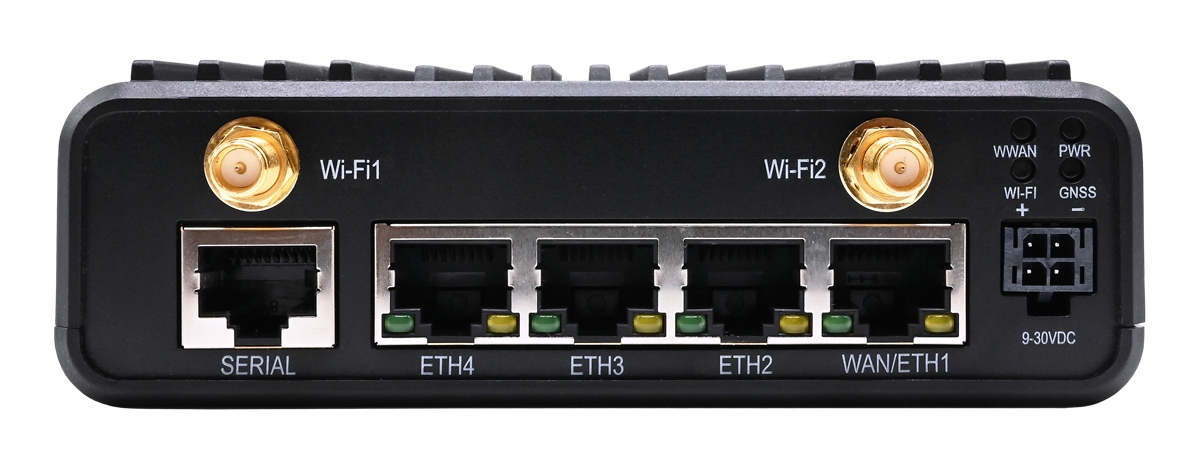

On site, the router provides: - Four auto-sensing 10/100/1000 RJ-45 ports, each configurable as WAN or LAN - An RJ-50 serial port, software-selectable between RS-232 and RS-485 - Two digital I/Os and USB 2.0 - A GNSS receiver covering GPS, GLONASS, BeiDou and Galileo - Dual-band 2x2 Wi-Fi 6E across 2.4, 5 and 6 GHz for local access or failover

A 1.2 GHz quad-core Cortex-A53 with 1 GB RAM and 8 GB eMMC runs Digi Containers and edge applications locally.

The IP30 enclosure is rated for Class 1 Div 2 and ATEX Zone 2 locations and tested to MIL-STD-810H. It operates from −40 °C to 75 °C. Power comes from 9–30 VDC, passive PoE or USB Type-C PD. Security includes FIPS 140-3, VPN, firewall, logging and authentication with license-free enterprise software. Management runs through the included Digi 360 solution with Digi Remote Manager.

Ideal for

  • SCADA, telemetry and predictive maintenance at utility, oil and gas and industrial sites
  • Private LTE/5G connectivity on Anterix, CBRS or FirstNet for smart grid and public safety
  • Branch failover for enterprise locations
  • ATMs, kiosks, lottery terminals, unattended retail and digital signage
  • Edge analytics and machine control using Digi Containers

Specifications

GNSS

Protocol
NMEA 4.11, TAIP
Connector
2x 50 Ω SMA (female center pin)
Technology
GNSS Gen 9, L1 LNA
Constellations
GPS L1, GLONASS G1, BeiDou B1, Galileo E1
Antenna Support
Passive 1.5–3 dBi or active 7.5–26 dB (3.3 V)

Wi-Fi

Connector
2x 50 Ω RP-SMA (male)
Technology
Wi-Fi 6E 2x2 MIMO, 2.4/5/6 GHz

Power

Power Input
9–30 VDC, passive PoE, USB-C PD
Power Connector
4-pin Molex or USB-C PD
Power Consumption
2.3 W idle (preliminary)

Compute

Processor
1.2 GHz quad-core ARM Cortex-A53
RAM Flash
1 GB DDR / 8 GB eMMC

General

MPN
IX25-RA-1G
UPC
663072955939
Brand
Digi International
Digi 360
1-year Digi 360 included
Product Family
Digi IX25 5G Industrial Cellular Router
Product Warranty
1-year
Model Description
5G RedCap with LTE Cat 4 fallback, Wi-Fi 6E, eSIM, worldwide

Package

Documents
Digi IX25 5G Datasheet
IN The Box
Digi IX25, DC power cable

Cellular

LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 (FirstNet), B17, B20, B25, B26, B28, B29, B30, B32, B38, B40, B41, B42, B43, B46, B48 (CBRS), B66, B71, B106 (Anterix)
SIM Slots
2x Nano-SIM + embedded Digi eSIM (eUICC)
Technology
5G RedCap / LTE Cat 4
NR 5G Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48 (CBRS), n66, n70, n71, n75, n77, n78, n79 (C-band)
SIM Security
SIM slot cover plate included
Antenna Connectors
3x 50 Ω SMA (female center pin)

Physical

Weight
590 g (1.3 lb)
Mounting
DIN rail or shelf
Enclosure
ABS/PC, IP30
Dimensions
146 x 118 x 38 mm (L x W x H)
Status Leds
PWR, WWAN, Wi-Fi, GNSS, Ethernet

Approvals

Cellular
PTCRB, AT&T, FirstNet Capable, T-Mobile, Verizon, Anterix Active
Environmental
ATEX Zone 2, C1D2, MIL-STD-810H
Safety Security
IEC 62368-1, CB scheme, FIPS 140-3
Emissions Immunity
FCC Part 15B, ISED, CE, RED, UKCA, RCM

Environmental

Relative Humidity
0–95% non-condensing
Storage Temperature
−40 °C to 85 °C
Hazardous Class1 Div2
complete
Operating Temperature
−40 °C to 75 °C

Wired Interfaces

I/O
2x digital I/O
USB
USB 2.0
Serial
1x RJ-50 RS-232/485
Ethernet
4x Gigabit Ethernet, WAN or LAN

Software Management

Local Management
WebUI (HTTPS), CLI (SSH, Serial)
Remote Management
Digi Remote Manager, SNMP v1/v2c/v3, SMS
Troubleshooting Tools
SFTP, SCP, PCAP for Wireshark, Syslog

Questions buyers ask

Does the IX25-RA-1G support private networks?

Yes. It supports Anterix (B106), CBRS (B48/n48), FirstNet (B14) and private 5G networking alongside public carriers.

What SIM options does it have?

It has two Nano-SIM (4FF) holders plus a soldered-on MFF2 Digi eSIM with eUICC (SGP.32) for remote carrier switching.

Is Wi-Fi included on this model?

Yes. The -1G model has dual-band 2x2 MIMO Wi-Fi 6E covering 2.4, 5 and 6 GHz, with two RP-SMA connectors.

How can it be powered?

It accepts 9–30 VDC via a 4-pin Molex connector, 9–30 VDC passive PoE, or USB Type-C Power Delivery. A DC power cable is in the box.

What does Digi 360 include?

The included 1-year Digi 360 solution covers Digi Remote Manager cloud management, product warranty and customer care.
