Digi IX30 LTE-Advanced Cat 7 Industrial Cellular Router with GNSS and 1-Year Digi 360 (IX30-00P7)

4G LTEMPN IX30-00P7
  • Dual SIM
  • 2–4 Ethernet ports
  • GPS/GNSS
  • Rugged
  • 1 year included
$725.08$869.00Save $143.92

In stockFree 2-day shipping

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

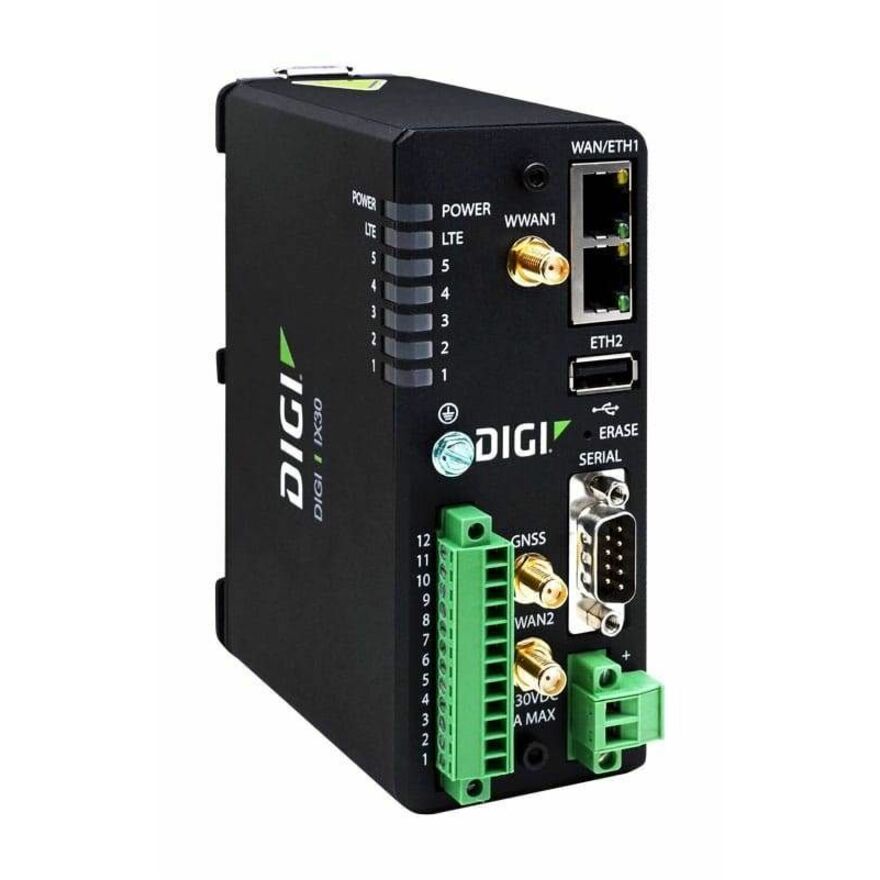

The Digi IX30-00P7 is an intelligent 4G LTE-Advanced Cat 7 industrial router for North American critical infrastructure. It is FirstNet Capable and supports CBRS, with 3G fallback. It connects controllers, meters and sensors through dual Ethernet, an RS-232/422/485 serial port, four digital and four analog I/Os, and USB. Dual SIM slots, GNSS and a DIN-rail aluminum enclosure rated for hazardous locations complete the platform. The package includes a 1-year Digi 360 solution with Digi Remote Manager.

  • FirstNet Capable LTE-Advanced Cat 7 for North America with CBRS (B48) support and WCDMA 3G fallback
  • Dual mini-SIM (2FF) slots with Digi SureLink; optional Digi eSIM accessory for remote carrier switching

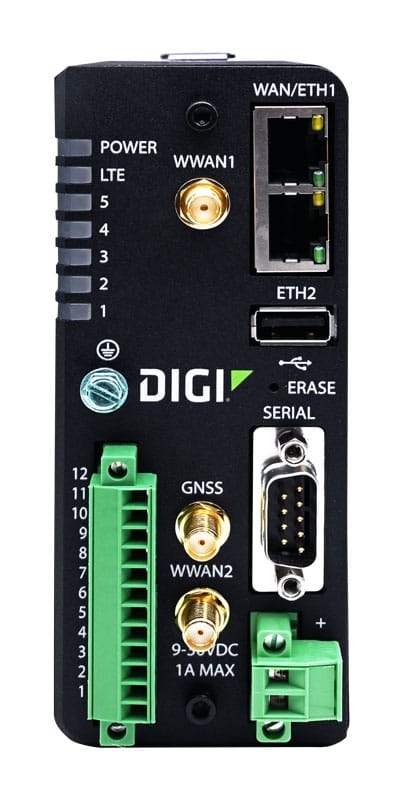

  • Two 10/100 Ethernet ports, DB-9 RS-232/422/485 serial and USB 2.0
  • Four digital I/Os (with pulse counter) and four analog I/Os (4–20 mA or 0–10 V, 12-bit)
  • GNSS receiver supporting GPS, GLONASS, BeiDou, Galileo and QZSS
  • Aluminum IP30 DIN-rail enclosure, Class 1 Div 2 and ATEX rated, −34 °C to 74 °C
  • Includes 1-year Digi 360 solution with Digi Remote Manager
  • Wire analog sensors, digital signals and serial devices directly to the router, with no separate I/O module needed

Digi IX30-00P7 is the North American LTE-Advanced Cat 7 model of the Digi IX30 industrial cellular router. It is designed to connect industrial controllers, process automation equipment and smart grid assets at remote or third-party sites. The router is FirstNet Capable and covers FDD bands including B14 for FirstNet and B71, TDD bands including B48 for CBRS, and WCDMA for 3G fallback. Cellular approvals include PTCRB, Verizon, T-Mobile and AT&T. Two mini-SIM (2FF) slots work with Digi SureLink and VRRP+ for a resilient connection. An optional Digi eSIM accessory adds remote carrier switching.

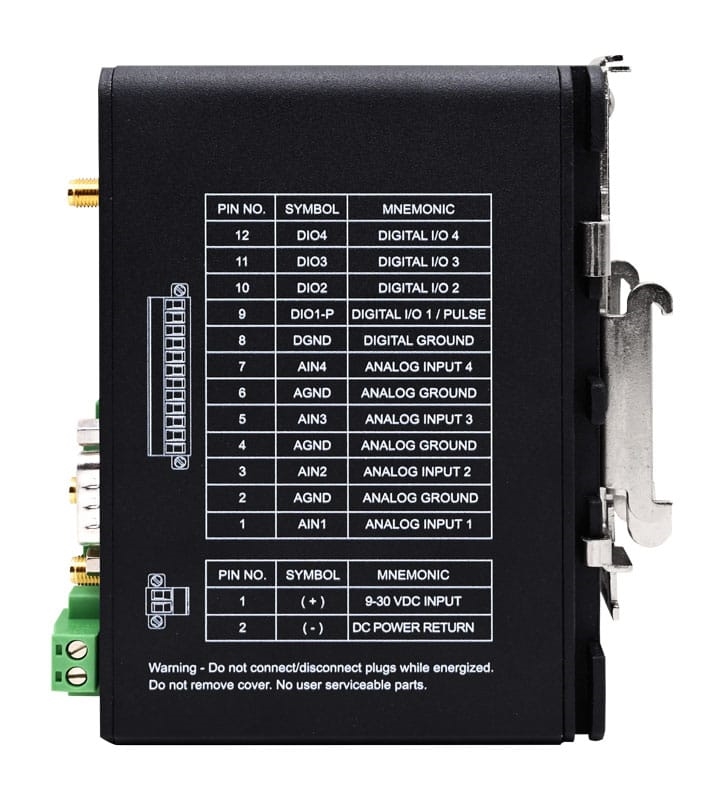

The router provides a full industrial I/O set: - Two 10/100 Ethernet ports and one USB 2.0 Type A port - A DB-9 DTE serial port supporting RS-232/422/485 with hardware and software flow control - A 12-pin terminal block with four software-selectable digital I/Os (including a pulse counter input) - Four analog I/Os, selectable between 4–20 mA and 0–10 V at 12-bit resolution

Modbus bridging links legacy equipment to IP networks. The dedicated GNSS receiver tracks GPS, GLONASS, BeiDou, Galileo and QZSS.

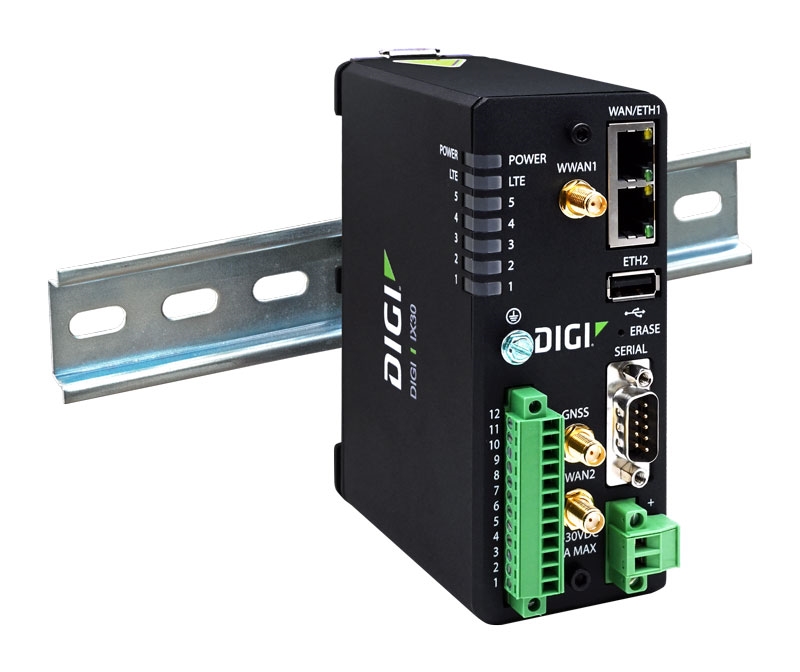

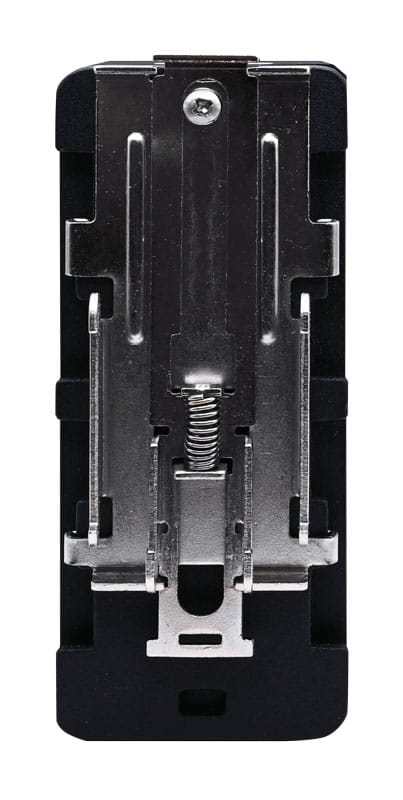

The aluminum IP30 enclosure mounts on DIN rail. It carries Class 1 Div 2, ATEX and IECEx approvals and operates from −34 °C to 74 °C. Power input is 9–30 VDC through a removable terminal block. A low-power mode draws about 1 W, which suits off-grid and solar sites.

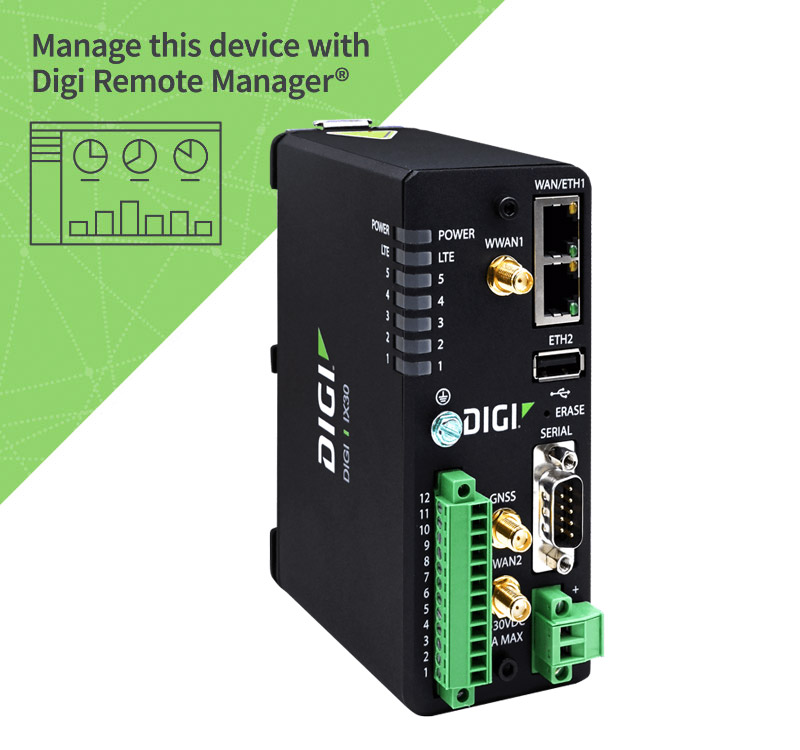

The IX30 hosts containerized applications for edge computing and includes license-free VPN, firewall, logging and authentication. The included Digi 360 solution provides Digi Remote Manager for mass configuration, monitoring and out-of-band console access. Accessories are not included; a power supply is required and sold separately.

Ideal for

  • Smart grid and utility substation monitoring
  • Remote data loggers, flow meters and sensing equipment
  • Building and process automation controllers
  • Traffic and obstruction lighting, IP cameras and access control
  • Private LTE and FirstNet deployments for critical infrastructure

Specifications

GNSS

Accuracy
Horizontal < 2 m (50%)
Protocol
NMEA 0183 V3.0
Constellations
GPS, GLONASS, BeiDou, Galileo, QZSS
Acquisition Time
Hot 1 s / warm 29 s / cold 32 s

Power

Power Input
9–30 VDC (18 W min source)
Power Connector
Removable terminal block
Power Consumption
1–3.5 W

General

MPN
IX30-00P7
UPC
663072967444
Brand
Digi International
Region
North America
Digi 360
1-year Digi 360
Accessories
Not included; power supply required
Product Family
Digi IX30 Industrial Cellular Router
Product Warranty
3-year

Package

Documents
Digi IX30 Datasheet
IN The Box
Digi IX30 router

Cellular

SIM Slots
2x mini-SIM (2FF)
Connectors
3x SMA (2 cellular, 1 GNSS)
Technology
LTE-A Cat 7, FirstNet Capable
Wcdma Bands
B2, B4, B5
SIM Security
Secured in cellular module
LTE Fdd Bands
B2, B4, B5, B7, B12, B13, B14, B25, B26, B66, B71
LTE Tdd Bands
B41, B42, B43, B48 (CBRS)

Physical

Weight
0.5 kg (1.1 lb)
Mounting
DIN rail
Enclosure
Aluminum, IP30
Dimensions
12.8 x 10 x 5.2 cm (L x W x H)
Status Leds
Signal (5), LTE, Power

Approvals

Iecex
IECEx US/UL/ExTR17.0077/00
Safety
C1D2, UL 62368-1, ATEX
Cellular
PTCRB, Verizon, T-Mobile, AT&T, FirstNet Capable
Environmental
RoHS3
Emissions Immunity
CE, RED, FCC Part 15B, ICES-003, AS/NZS CISPR 32

Interfaces

USB
1x USB 2.0 Type A
Serial
1x DB-9 RS-232/422/485
Ethernet
2x 10/100 Ethernet
Analog I/O
4x analog I/O, 12-bit
Digital I/O
4x digital I/O
I/O Connector
12-pin terminal block
Serial Signals
TXD, RXD, CTS, DTR, DCD, DSR, RI
Serial Flow Control
XON/OFF and hardware

Environmental

Relative Humidity
5–95% non-condensing
Ethernet Isolation
1.5 kV RMS
Storage Temperature
−40 °C to 85 °C
Hazardous Class1 Div2
complete
Operating Temperature
−34 °C to 74 °C
Serial Esd Protection
15 kV

Software Management

Local Management
Web UI, CLI
Remote Management
Digi Remote Manager, SNMP, SMS
Troubleshooting Tools
FTP/SFTP/SCP, PCAP, Syslog, NTP

Questions buyers ask

Is the IX30-00P7 a 5G router?

No. It is a 4G LTE-Advanced Cat 7 router with WCDMA 3G fallback, designed for North America.

Does it include a power supply or antennas?

No. Accessories are not included. A power supply is required, such as Digi 76002104 (industrial temperature) or 76002117 (commercial temperature). The recommended IX30 Accessory Kit 76002113 adds a PSU, antennas, a Cat 6 cable and a GPS antenna.

What I/O does it provide?

It provides four software-selectable digital I/Os with pulse counter input and four analog I/Os (4–20 mA or 0–10 V, 12-bit) on a 12-pin terminal block. It also has a DB-9 RS-232/422/485 serial port.

Can it be used in hazardous locations?

Yes. It is Class 1 Div 2 rated and carries ATEX and IECEx approvals.
