Panorama LPAM-7-27-S24-58-025 5G/4G 2x2 MIMO + Wi-Fi Low-Profile Antenna, 0.25 m Cables

The Panorama LPAM-7-27-S24-58-025 is a low-profile multifunction antenna from Panorama's L[G]AM-7-27-[X]24-58 family. It combines 2x2 MIMO cellular with a single dual-band Wi-Fi element in one compact, weatherproof housing, and is aimed at fixed M2M and IoT installations such as vending machines, payment terminals, smart meters and remote monitoring units.

The cellular elements cover 698–960 MHz at 2 dBi and 1710–3800 MHz at 5 dBi, spanning 2G, 3G, 4G LTE and 5G bands within that range. The Wi-Fi element covers 2.4 and 5 GHz. The pattern is omnidirectional, and Panorama rates the antenna to perform on or off a conductive surface, so it works on metal cabinets as well as plastic or composite enclosures.

This variant is built with very short 0.25 m integrated RG174 cables: two cellular leads with SMA male plugs and one Wi-Fi lead with a reverse-polarity SMA plug. The short leads are intended for installations where the router, modem or terminal sits directly behind the mounting panel, keeping cable loss to a minimum and avoiding excess coax inside the enclosure.

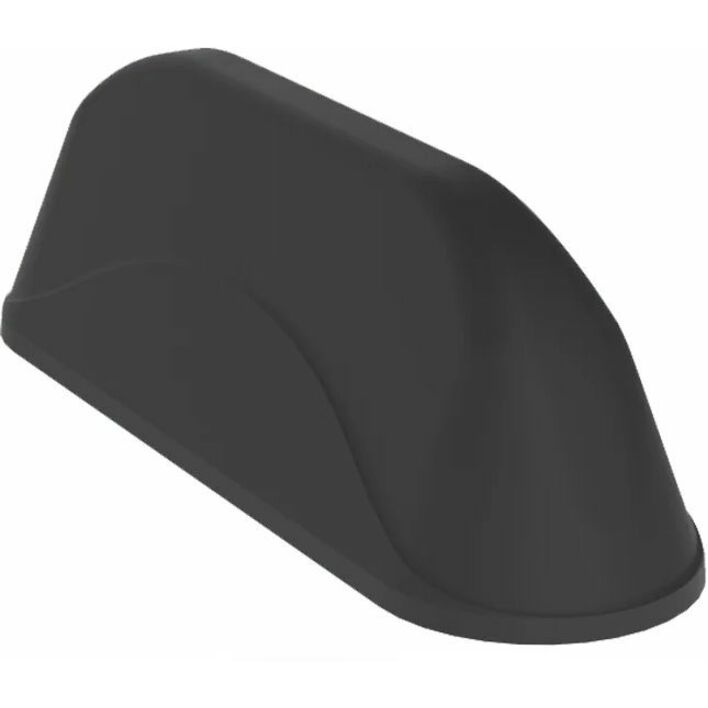

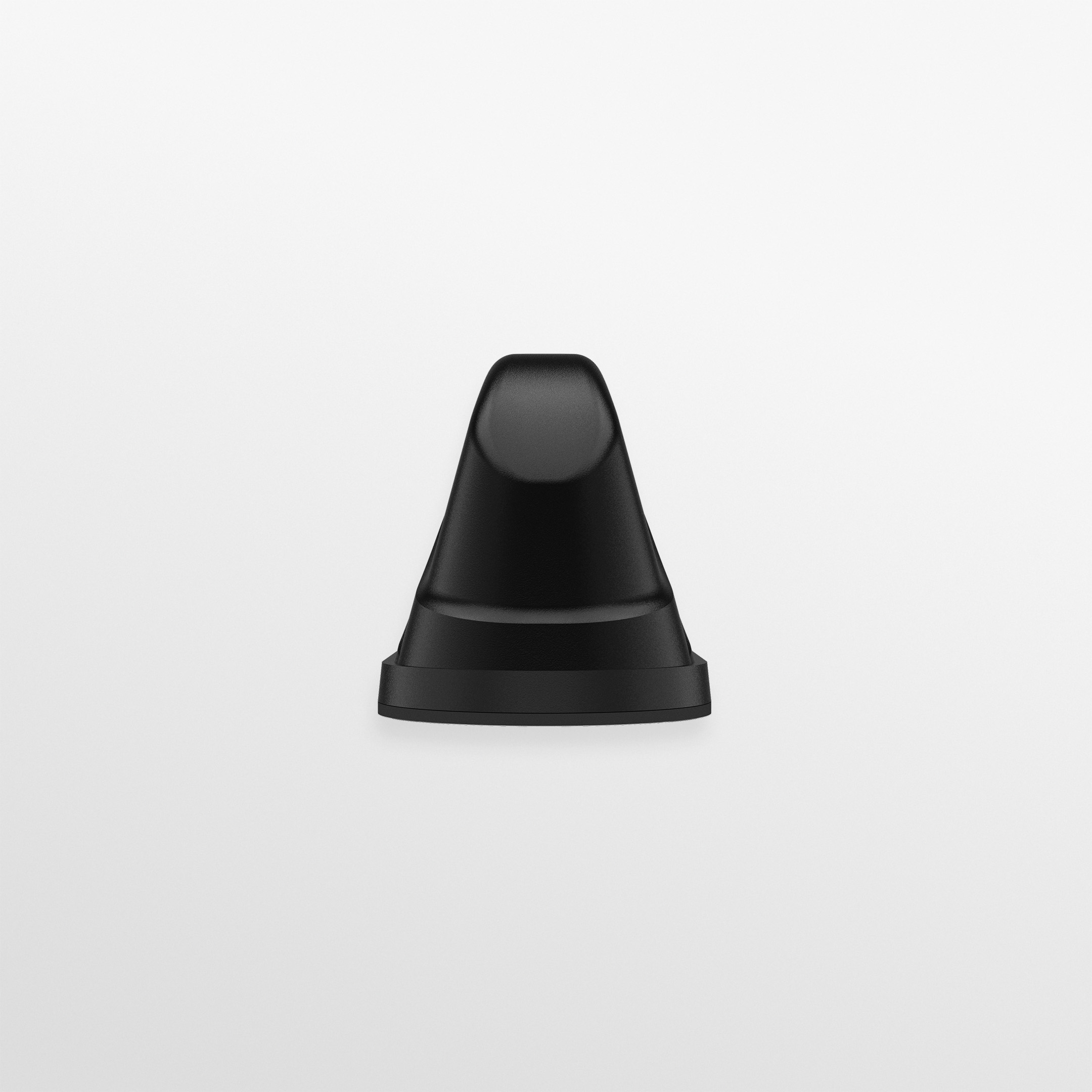

The black housing measures 150 x 44 x 50 mm, is IP66 rated and operates from -40°C to +80°C. It installs through a single hole with a small footprint and handles up to 25 W input power. Panorama's family datasheet and SW3-704 installation instructions are available for this antenna.
