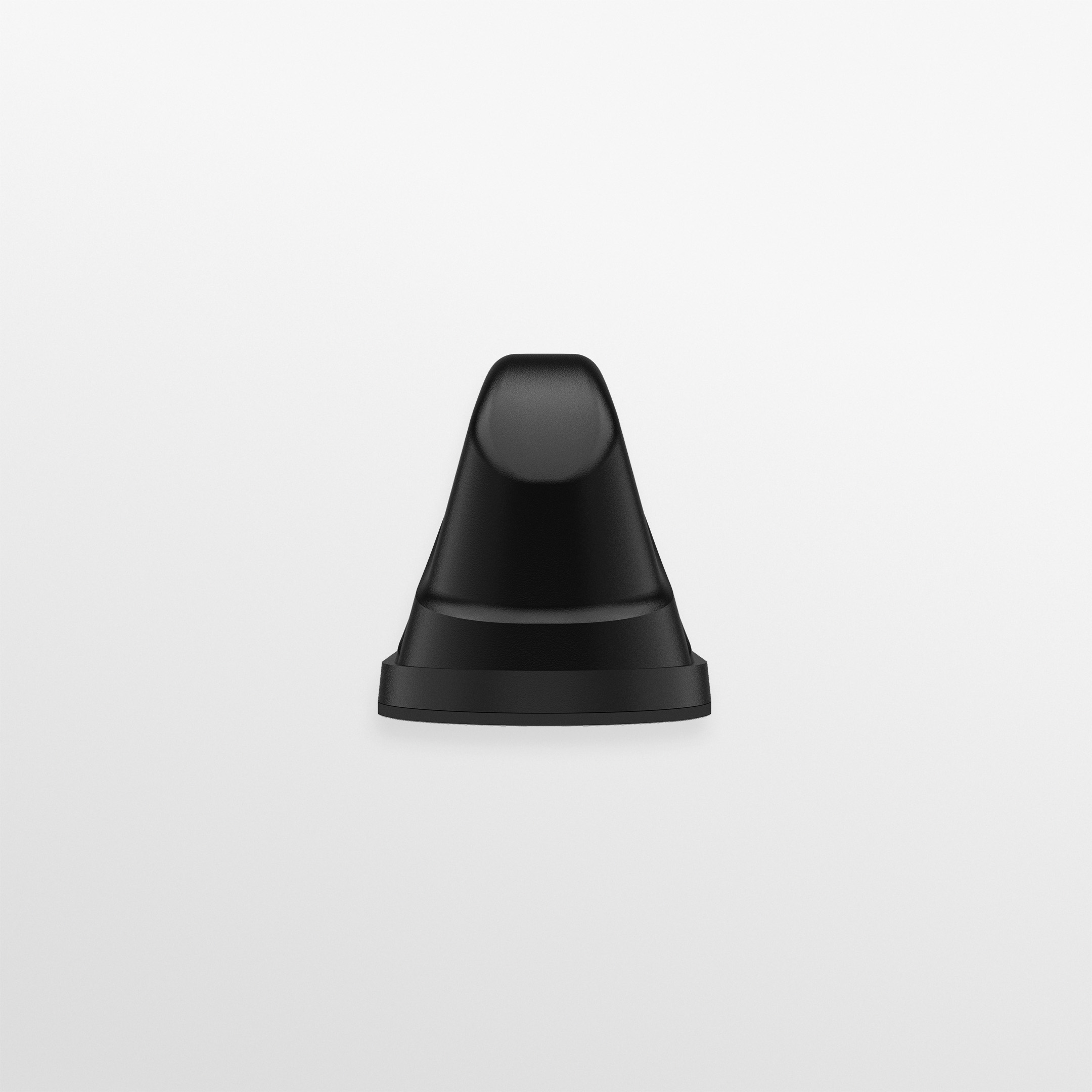

Panorama LPAM-7-27-S24-58-1 5G/4G 2x2 MIMO + Wi-Fi Low-Profile Antenna, 1 m Cables

5GMPN LPAM-7-27-S24-58-1
  • 2x2 MIMO
  • Wi-Fi
  • 3–5 dBi
  • Up to 1 m
$44.97$61.74Save $16.77

In stockShips from the US

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

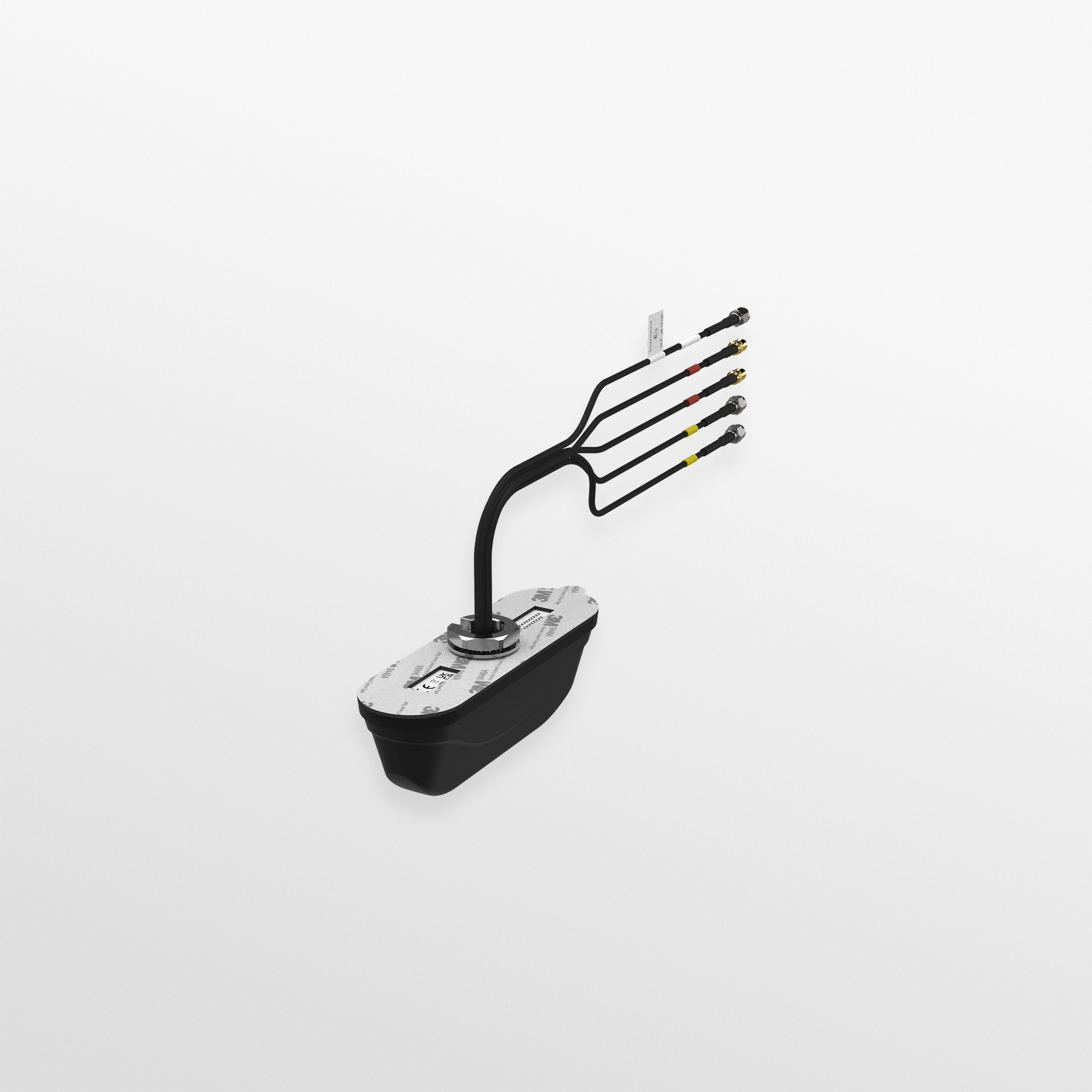

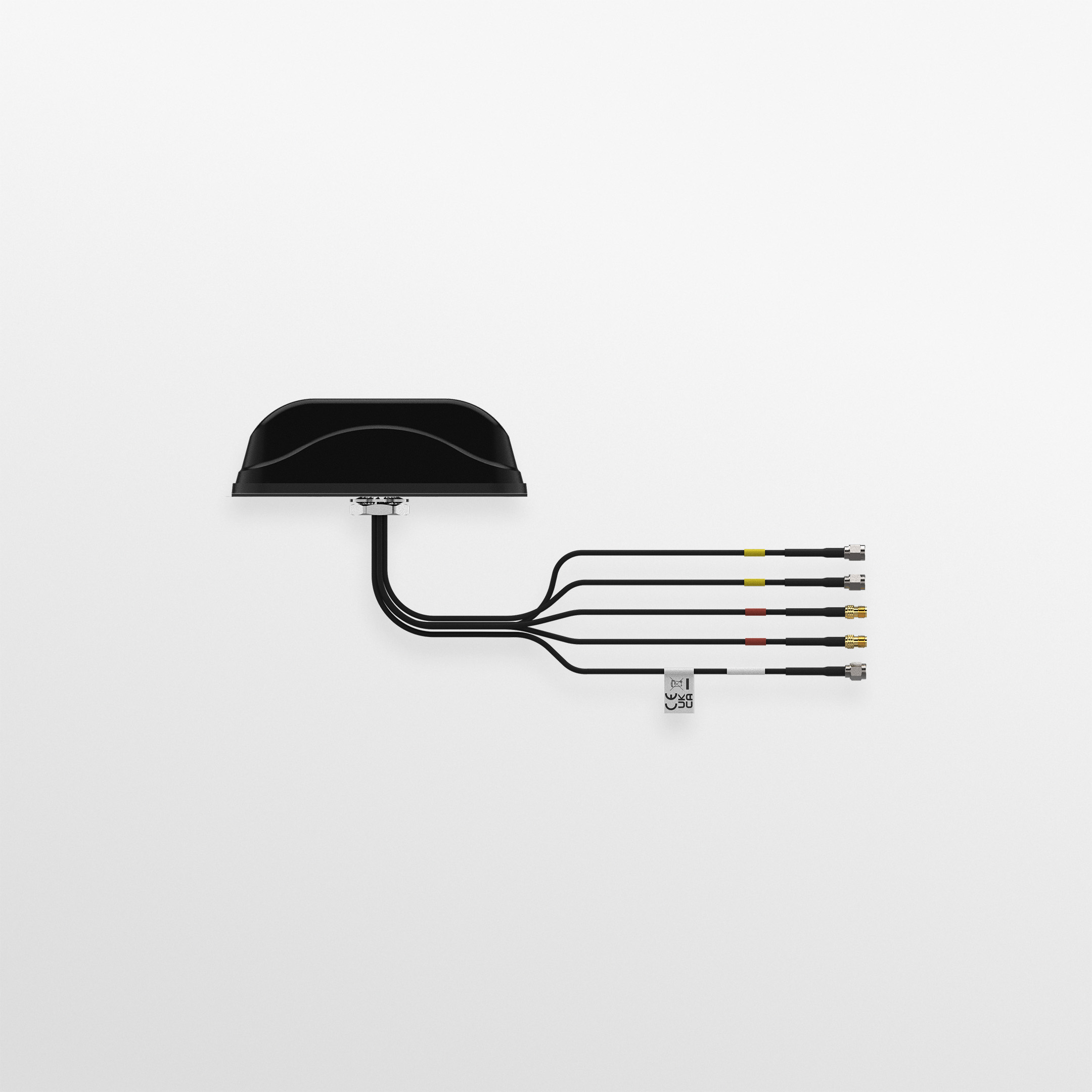

The Panorama LPAM-7-27-S24-58-1 is a compact, IP66 low-profile antenna that pairs 2x2 MIMO cellular coverage from 698 to 3800 MHz (2G/3G/4G/5G) with a single dual-band 2.4/5 GHz Wi-Fi element. It ships with 1 m RG174 cables terminated in SMA male and reverse-polarity SMA plugs, and suits vending machines, kiosks, payment terminals and fixed IoT gateways.

  • 2x2 MIMO cellular covering 698–960 MHz (2 dBi) and 1710–3800 MHz (5 dBi) for 2G/3G/4G/5G
  • Single dual-band 2.4/5 GHz Wi-Fi element
  • VSWR below 2:1 with an omnidirectional pattern
  • 1 m integrated RG174 cables with SMA (m) cellular and RP-SMA Wi-Fi plugs
  • IP66 weatherproof housing rated -40°C to +80°C
  • Single-hole panel mount; performs on or off a conductive surface
  • One compact antenna serves both cellular MIMO and Wi-Fi, reducing holes in the enclosure
  • 1 m leads reach equipment inside a typical cabinet with low cable loss

The Panorama LPAM-7-27-S24-58-1 is a low-profile multifunction antenna from Panorama's L[G]AM-7-27-[X]24-58 family. It combines 2x2 MIMO cellular with a single dual-band Wi-Fi element in one weatherproof housing, for fixed M2M and IoT deployments including vending machines, kiosks, payment terminals, smart metering and remote monitoring.

The cellular elements cover 698–960 MHz at 2 dBi and 1710–3800 MHz at 5 dBi, spanning 2G, 3G, 4G LTE and 5G bands within that range, with VSWR below 2:1. The Wi-Fi element covers 2.4 and 5 GHz. The pattern is omnidirectional, so no alignment is needed, and the antenna performs whether it is fitted to a metal cabinet or a non-metallic panel.

This variant has 1 m integrated RG174 cables: two cellular leads with SMA male plugs and one Wi-Fi lead with a reverse-polarity SMA plug. One metre gives enough reach to a router or terminal inside a typical enclosure while keeping coax loss low.

The black housing measures 150 x 44 x 50 mm, is IP66 rated and operates from -40°C to +80°C. It mounts through a single hole with a small footprint and handles up to 25 W input power. Panorama's family datasheet and SW3-704 installation instructions are available for this antenna.

Ideal for

  • Vending machines and unattended retail
  • Kiosks and payment terminals with cellular backhaul and Wi-Fi
  • Smart metering and remote monitoring enclosures
  • Fixed IoT gateways with SMA cellular and RP-SMA Wi-Fi ports

Specifications

GPS

Number OF GPS Elements
None (LPAM non-GNSS version)

Cable

Cable Type LTE
RG174
Cable Type Wi-Fi
RG174
Cable Length LTE
1 m
Cable Length Wi-Fi
1 m

General

MPN
LPAM-7-27-S24-58-1
Brand
Panorama Antennas
Variant
1 m cable variant of LPAM-7-27-S24-58 (no GNSS, single Wi-Fi)
Product Family
L[G]AM-7-27-[X]24-58 Multifunction MIMO Antenna

Package

Documents
L[G]AM-7-27-[X]24-58 Datasheet; SW3-704 A5 Installation Instructions
Shipping Weight
1.02 lb

Mounting

Mounting Methods
Single-hole panel mount
Mounting Type Fixed
Panel

Approvals

IP Rating
IP66

Electrical

Vswr
<2:1
Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
Single element, dual-band 2.4/5 GHz
Max Input Power
25 W
Cellular LTE Elements
2 x 2 MIMO
Frequency Range Gain Low Band
698–960 MHz | 2 dBi
Frequency Range Gain High Band
1710–3800 MHz | 5 dBi

Mechanical

Width
44 mm (1.73 in)
Colour
Black
Height
50 mm (1.97 in)
Length
150 mm (5.91 in)
Operating Temperature
-40°C to +80°C (-40°F to +176°F)

Technology

Technology
2G/3G/4G/5G cellular; dual-band Wi-Fi (single element)

Termination

Connector LTE
SMA male plug
Connector Wi-Fi
Reverse-polarity SMA plug
