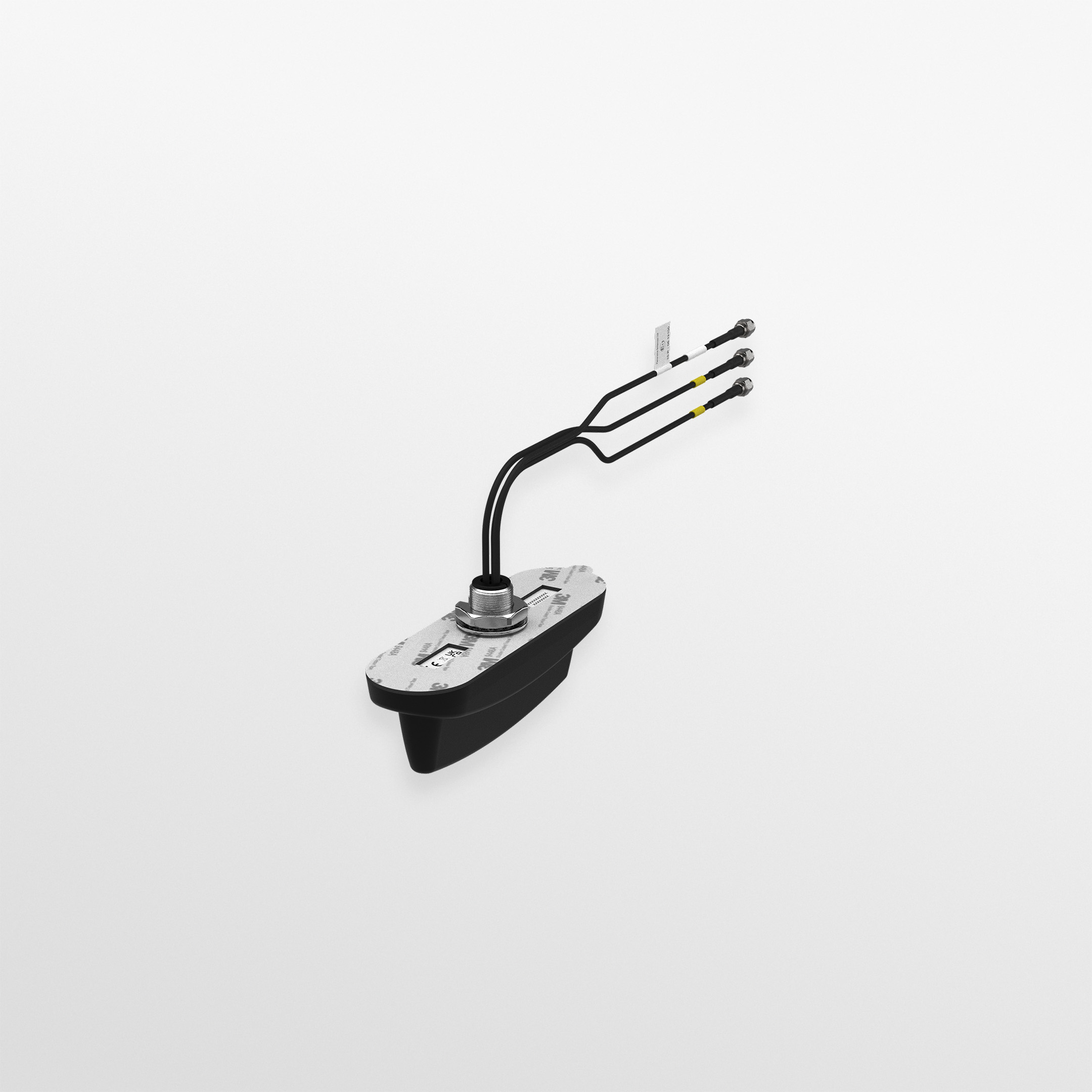

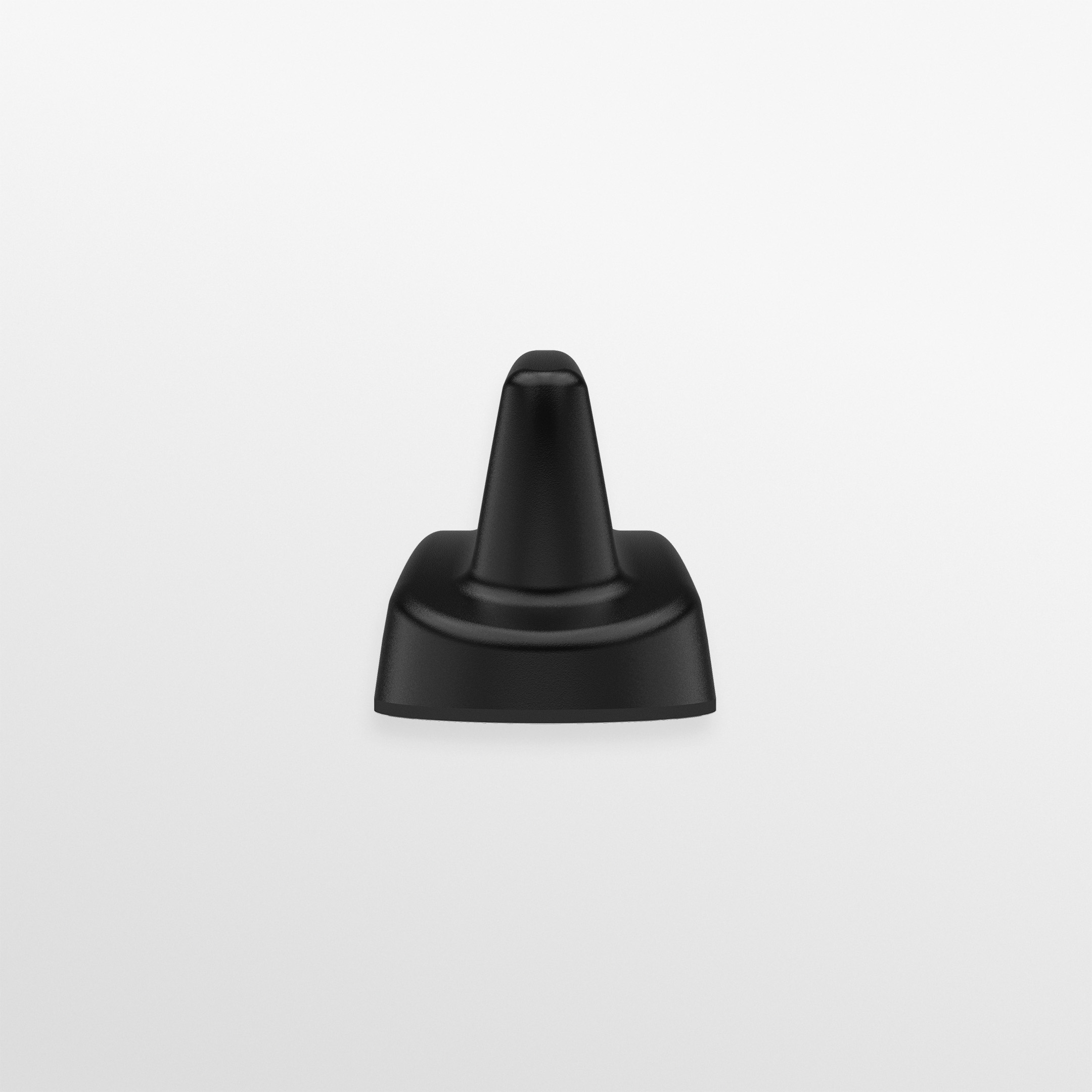

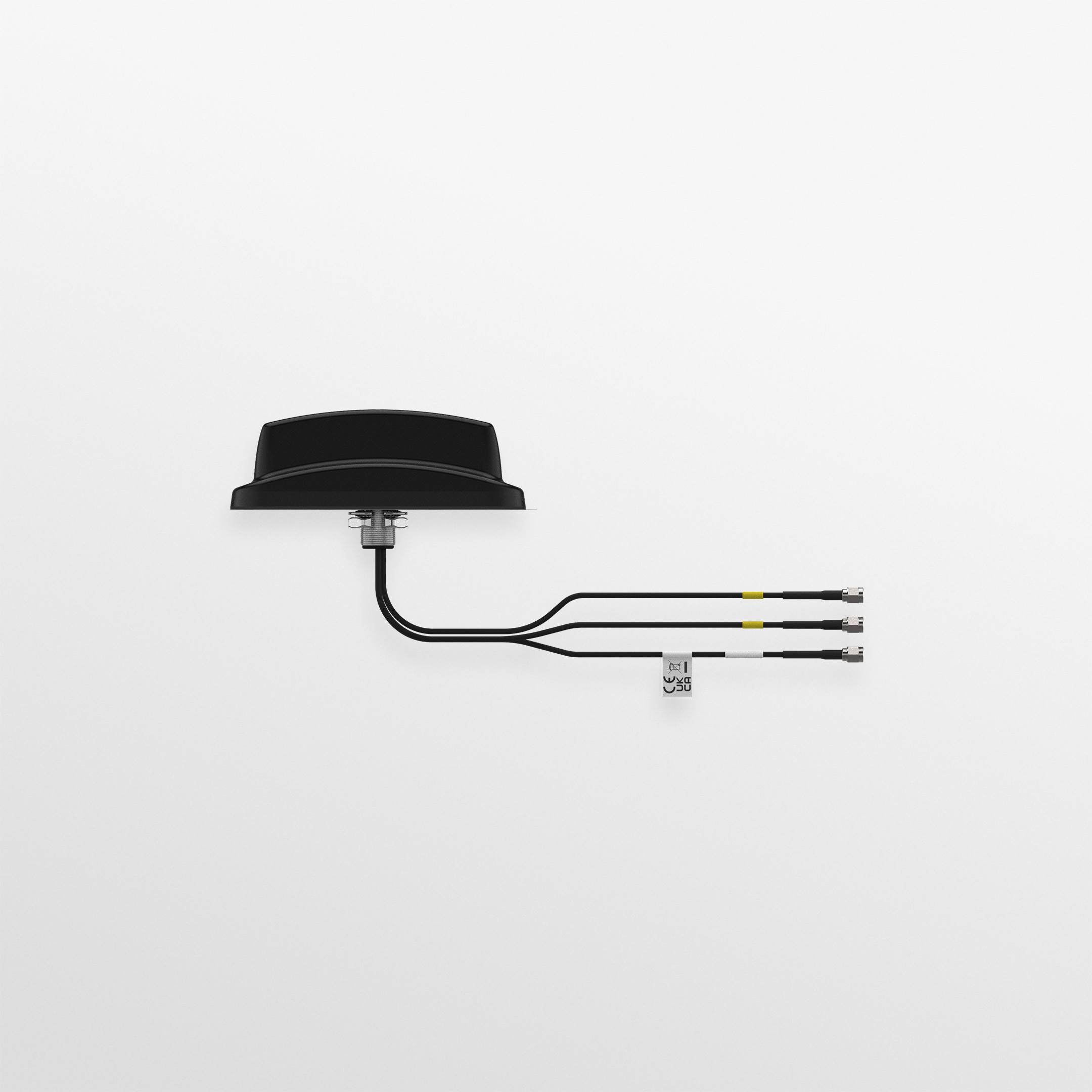

Panorama LPAM-BC3G-26-061RSP Compact Low-Profile 2x2 MIMO 4G LTE Antenna, 0.61 m RP-SMA Cables

4G LTEMPN LPAM-BC3G-26-061RSP
  • 2x2 MIMO
  • Up to 1 m
$34.68$48.00Save $13.32

In stock · only 2 leftShips from the US

1
Request a quote · volume, multi-site or with plans
Compare all 5 configurations

Datasheets & documents

Overview

The Panorama LPAM-BC3G-26-061RSP is a compact, weatherproof low-profile 2x2 MIMO cellular antenna covering 698–960 and 1710–3800 MHz. This variant has 0.61 m integrated RG174 cables terminated in reverse-polarity SMA plugs, for IoT and M2M equipment such as vending machines, smart meters and remote monitoring units. The IP66 housing mounts on a panel, wall or mast.

  • 2x2 MIMO cellular antenna covering 698–960 MHz and 1710–3800 MHz
  • Gain of 4.5 dBi (698–960/1710–2170 MHz) and 5 dBi (2500–3800 MHz)
  • 0.61 m integrated RG174 cables with reverse-polarity SMA plugs
  • Omnidirectional pattern; performs on or off a conductive surface
  • IP66 weatherproof housing rated -30°C to +70°C
  • Single-hole mount with sealing pad; panel, wall or mast mounting
  • Two isolated elements support the MIMO ports on LTE routers and modems for steadier throughput
  • Wide 698–3800 MHz coverage spans global low-band and mid-band cellular frequencies

The Panorama LPAM-BC3G-26-061RSP belongs to Panorama's LP[G]AM-BC3G-26 compact low-profile MIMO antenna range, designed to give IoT and M2M devices a two-element cellular antenna in a small, robust housing. The two elements are designed for effective isolation and correlation, supporting the 2x2 MIMO operation used by LTE routers, modems and gateways.

Coverage runs across 698–960 MHz and 1710–3800 MHz, with gain listed at 4.5 dBi for 698–960/1710–2170 MHz and 5 dBi for 2500–3800 MHz. Panorama lists 2G, 3G, 4G and 5G technology within that range. The pattern is omnidirectional, and the antenna can perform on or off a conductive surface, including non-conductive panels.

This variant is fitted with 0.61 m integrated RG174 cables terminated in reverse-polarity SMA plugs, for terminals and routers with RP-SMA cellular ports. It is the non-GNSS version; the LGAM models in the family add an active GPS/GNSS antenna.

The black housing measures 150 x 45 x 49 mm, carries an IP66 rating and operates from -30°C to +70°C. Installation uses a single-hole mounting bush and acrylic adhesive sealing pad for a secure, weatherproof fit, with panel, wall and mast mounting listed. Maximum input power is 20 W. Panorama's datasheet, SW3-704 installation instructions and IP certificate are available for this range.

Ideal for

  • Vending machines with RP-SMA cellular modems
  • Smart metering installations
  • Remote monitoring cabinets and telemetry units
  • Static M2M and IoT devices needing MIMO LTE

Specifications

GPS

Number OF GPS Elements
None (LPAM non-GNSS version)

Cable

Cable Type LTE
RG174
Cable Length LTE
0.61 m

General

MPN
LPAM-BC3G-26-061RSP
UPC
5055416012647
Brand
Panorama Antennas
Variant
0.61 m cable / reverse-polarity SMA variant of LPAM-BC3G-26
Product Family
LP[G]AM-BC3G-26 Compact Low Profile MIMO Antenna

Package

Documents
LP[G]AM-BC3G-26 Datasheet; SW3-704 A5 Installation Instructions; IP Certificate TL16100A
Shipping Weight
0.35 lb

Mounting

Mounting Methods
Single-hole bush with acrylic adhesive sealing pad
Mounting Type Fixed
Mast, panel, wall

Approvals

IP Rating
IP66

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
No
Max Input Power
20 W
Frequency Range Gain
698–960 MHz; 1710–2170 MHz | 4.5 dBi; 2500–3800 MHz | 5 dBi
Cellular LTE Elements
2 x 2 MIMO

Mechanical

Width
45 mm (1.77 in)
Colour
Black
Height
49 mm (1.93 in)
Length
150 mm (5.91 in)
Operating Temperature
-30°C to +70°C (-22°F to +158°F)

Technology

Technology
2G/3G/4G/5G cellular

Termination

Connector LTE
Reverse-polarity SMA plug

Questions buyers ask

What does 061RSP mean in the part number?

It indicates 0.61 m integrated cables terminated in reverse-polarity SMA plugs.

What frequencies does the antenna cover?

698–960 MHz and 1710–3800 MHz, with 4.5 dBi gain listed for 698–960/1710–2170 MHz and 5 dBi for 2500–3800 MHz.

Does it include Wi-Fi or GPS?

No. This is a cellular-only 2x2 MIMO antenna. Panorama's LGAM versions of the range add an active GPS/GNSS element.

How is it mounted?

It uses a single-hole mounting bush with an acrylic adhesive sealing pad, and Panorama lists panel, wall and mast mounting. It can be fitted on non-conductive panels.
