Panorama LPAM-BC3G-26-1SP Compact Low-Profile 2x2 MIMO 4G LTE Antenna, 1 m SMA Cables

The Panorama LPAM-BC3G-26-1SP is the 1 m, SMA-terminated, non-GNSS model in Panorama's LP[G]AM-BC3G-26 compact low-profile MIMO range. It gives IoT and M2M equipment a two-element cellular antenna in a small, robust housing, with the elements designed for effective isolation and correlation to support 2x2 MIMO on LTE routers, modems and gateways.

Coverage spans 698–960 MHz and 1710–3800 MHz, with gain listed at 4.5 dBi for 698–960/1710–2170 MHz and 5 dBi for 2500–3800 MHz. Panorama lists 2G, 3G, 4G and 5G technology within that range. The pattern is omnidirectional, and the antenna can perform on or off a conductive surface, so it can be fitted to non-conductive panels where required.

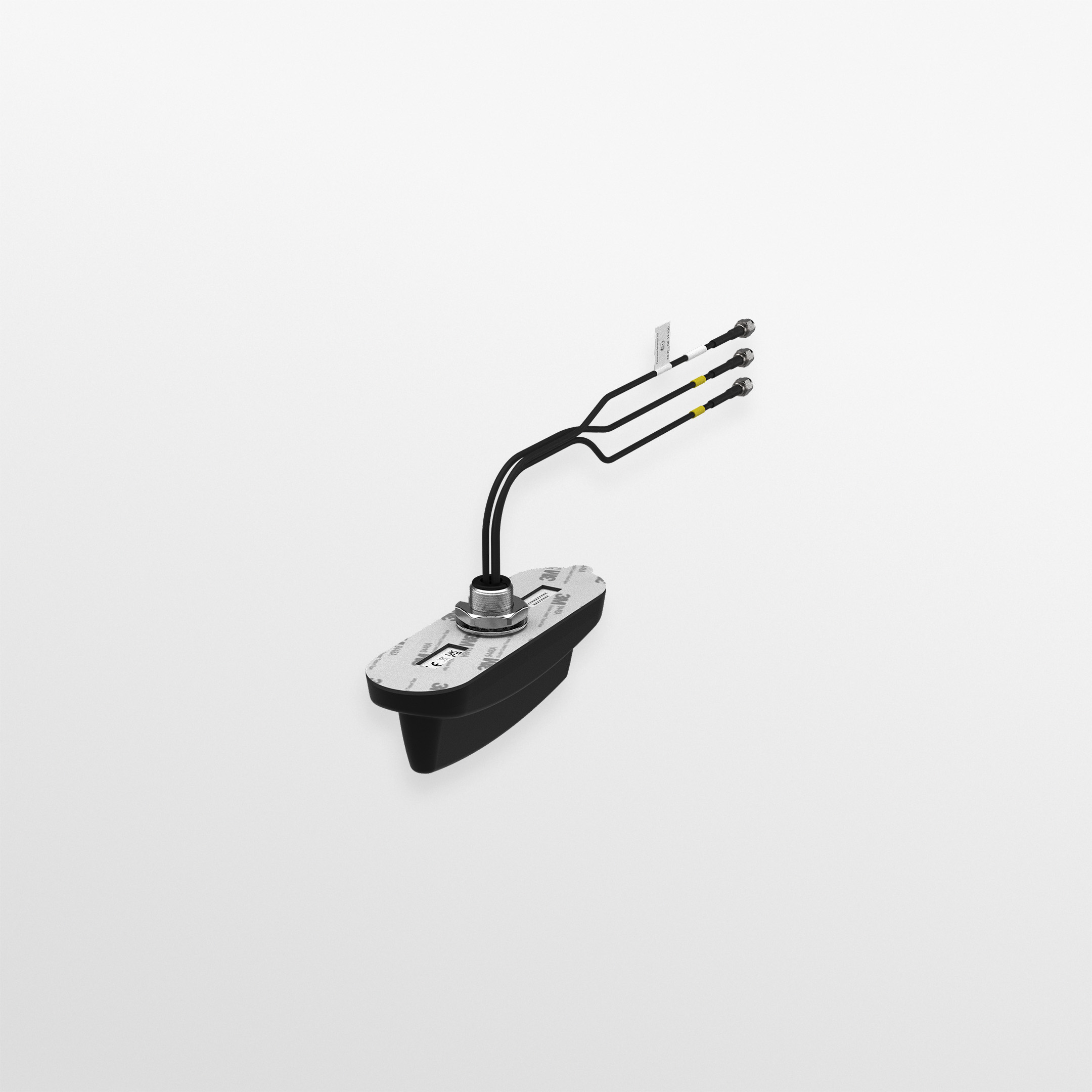

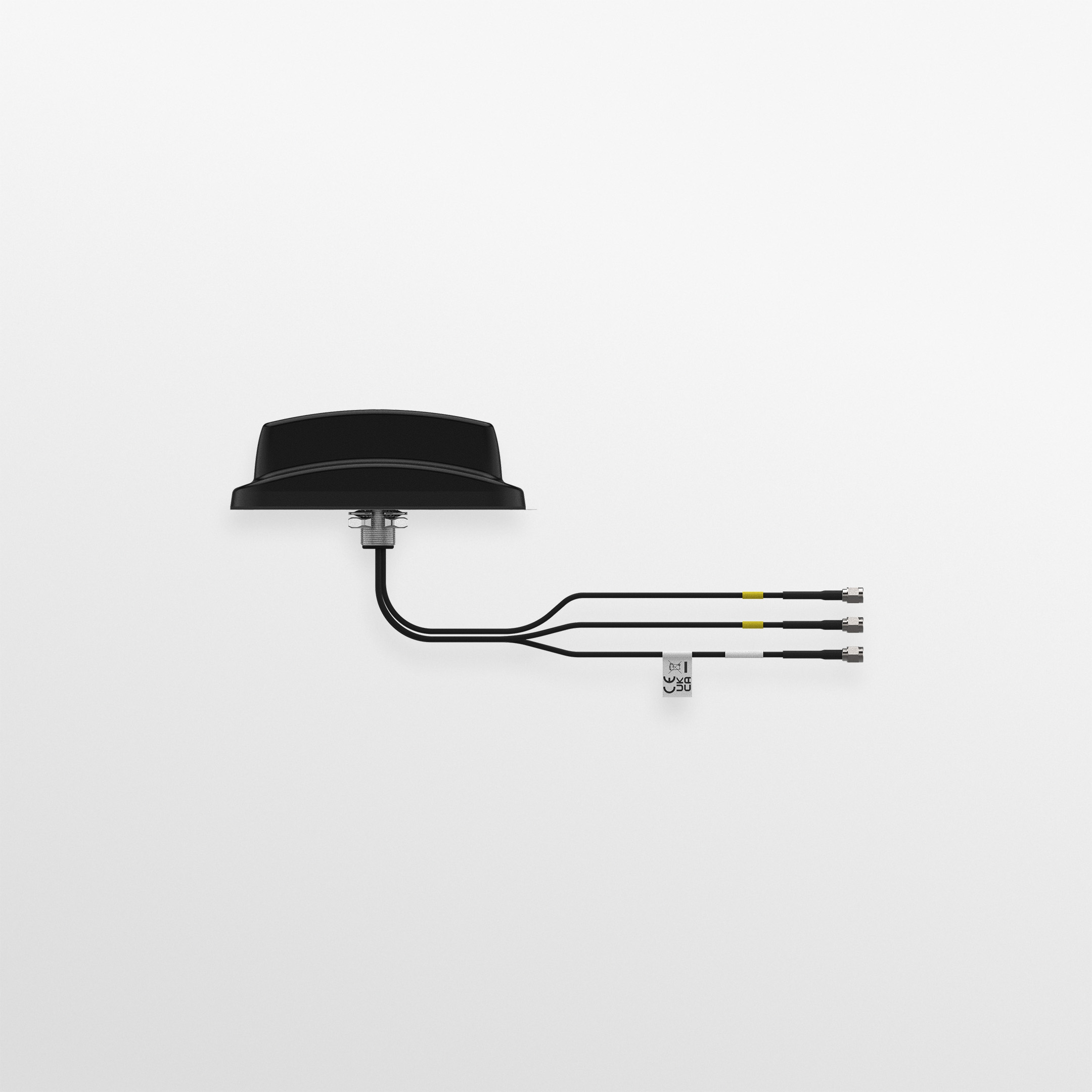

The two integrated 1 m RG174 cables end in SMA male plugs, giving plug-and-play connection to the many terminals and routers with standard SMA cellular ports. Installation is quick and weatherproof: a single-hole mounting bush and acrylic adhesive sealing pad secure the antenna, and Panorama lists panel, wall and mast mounting.

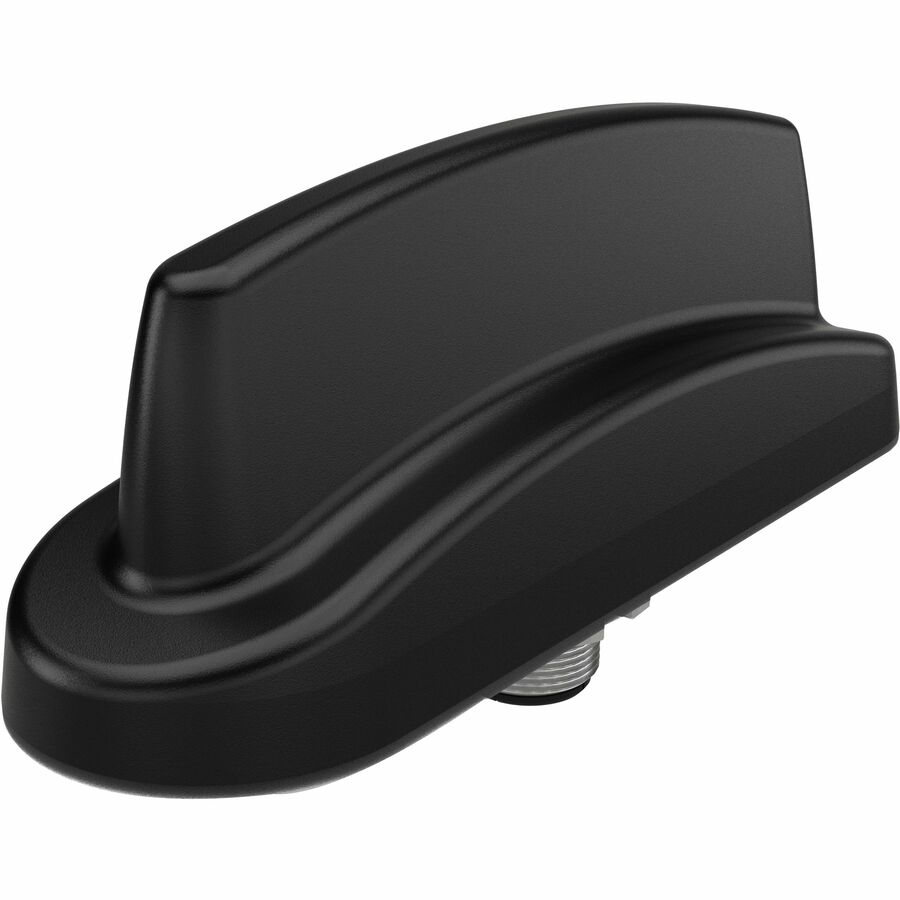

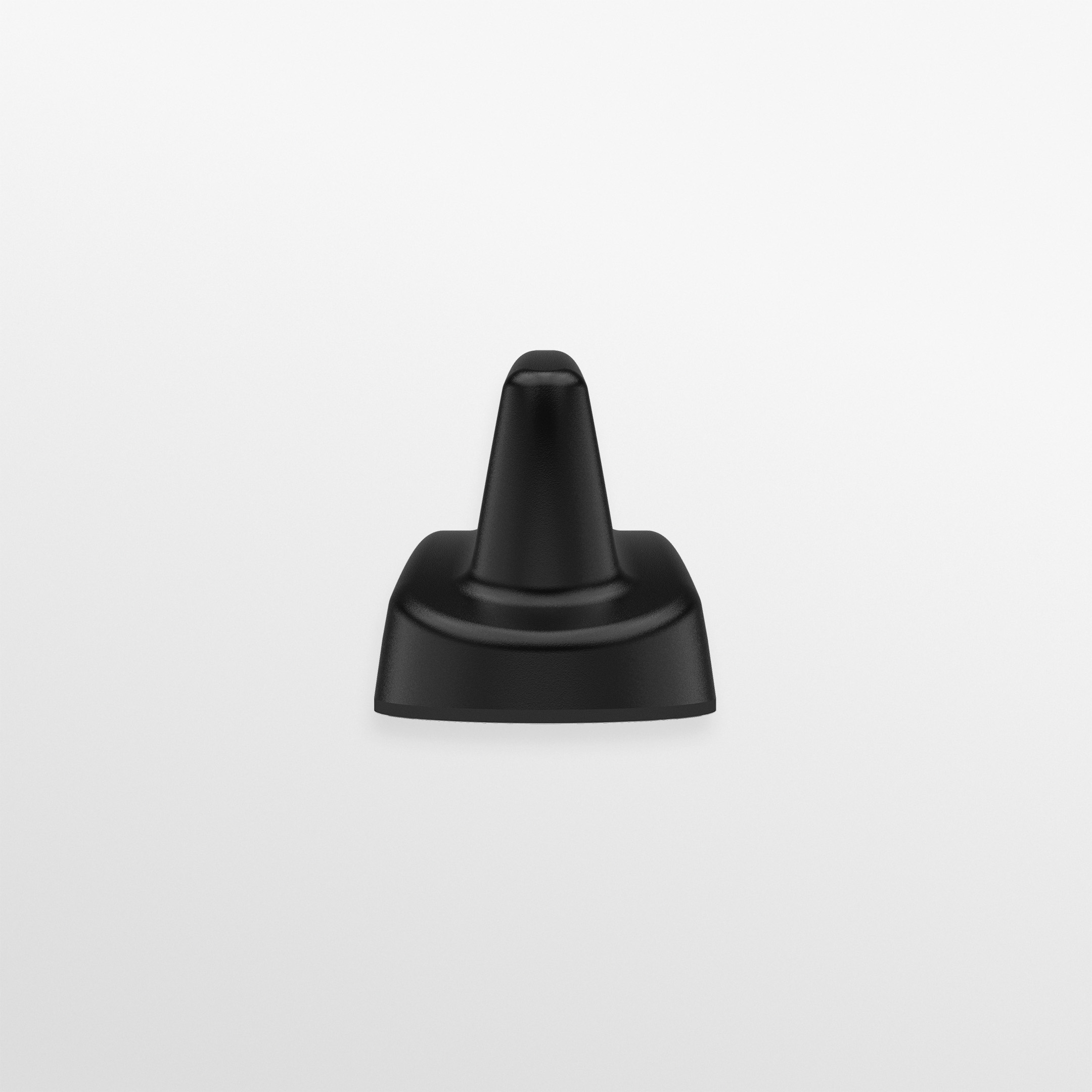

The black housing measures 150 x 45 x 49 mm, is IP66 rated and operates from -30°C to +70°C, with a maximum input power of 20 W. Typical applications include vending machines, smart metering, remote monitoring and static IoT devices. Panorama's datasheet, SW3-704 installation instructions and IP certificate are available for this range.
