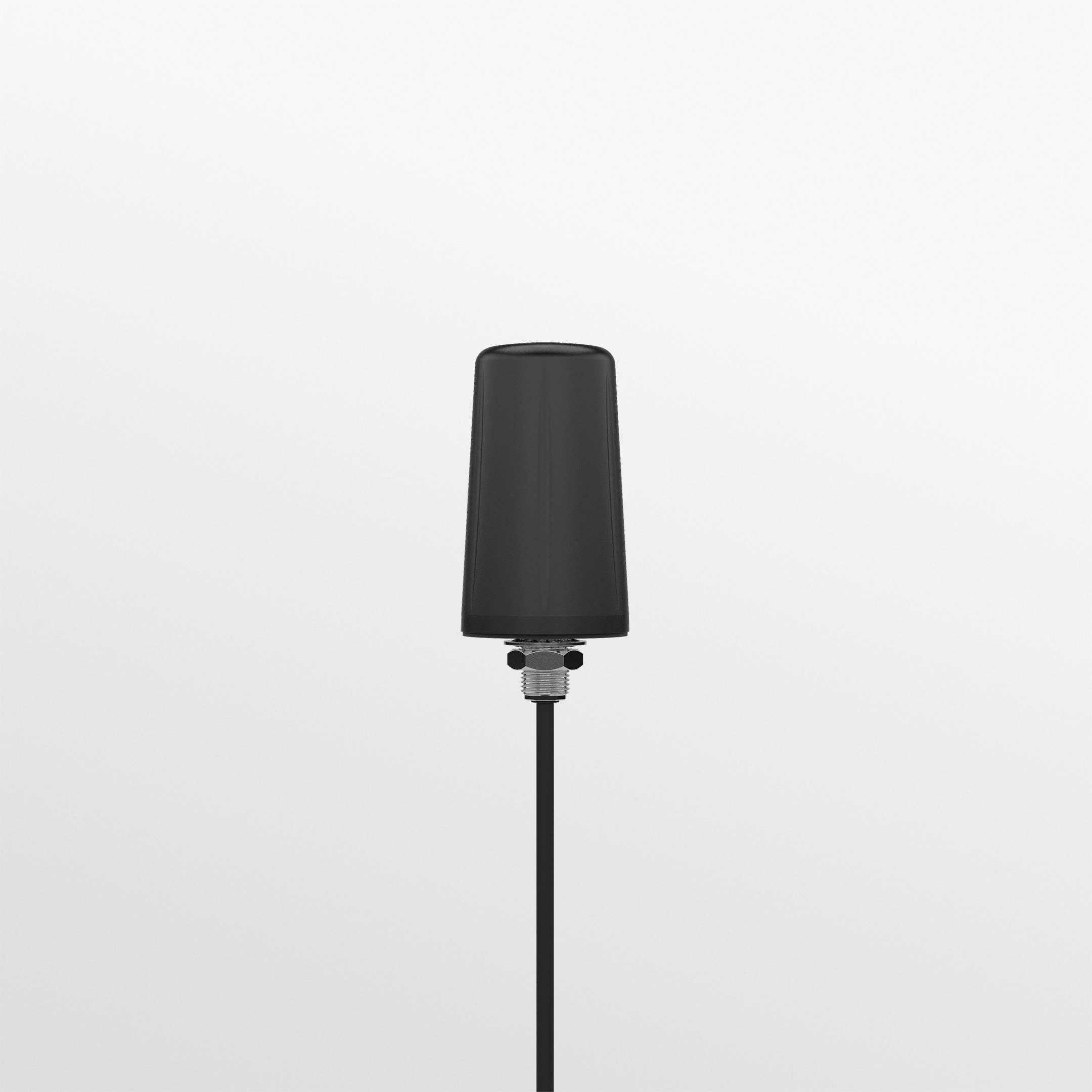

Panorama LPB-6-60-1SP Low Profile 5G/4G Omnidirectional Antenna, 617–6000 MHz, 1 m SMA Cable

The Panorama LPB-6-60-1SP is the 1 m cable version of Panorama's LPB-6-60 low-profile antenna, a cost-effective omnidirectional panel-mount antenna for 4G/3G/2G and 5G devices. A single wideband element covers 617–960 MHz and 1710–6000 MHz, and the antenna is Band 71 600 MHz ready. Gain rises with frequency: 3 dBi at 617–960 MHz, 4 dBi at 1710–2700 MHz, 8 dBi at 3400–3800 MHz and 9 dBi at 4900–6000 MHz. Maximum input power is 30 W.

The antenna measures 82 mm tall and 48 mm in diameter. It is IP66 rated for outdoor use and operates from -40 °C to +85 °C, which suits exposed industrial sites as well as domestic installations. It supports mast, panel and wall mounting. For best performance Panorama specifies a conductive ground plane of more than 300 mm (1 ft) in diameter. Alternatively, it can be bracket mounted using Panorama part number B4BE-6-60.

The integrated 5 mm double-shielded CS29 coaxial cable is 1 m long and terminates in an SMA male plug. The short length suits installations where the antenna mounts directly above or beside the modem or router. As a SISO antenna it feeds a single antenna port, so MIMO routers will need one antenna per port. Panorama publishes a datasheet and installation instructions (SW3-205) for the LPB-6-60.
