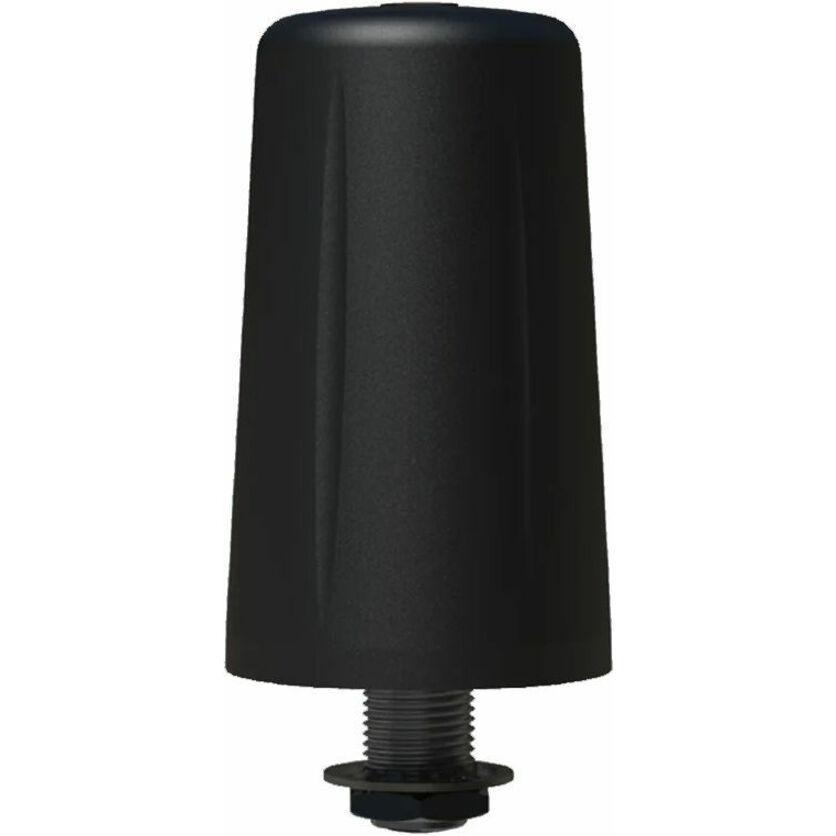

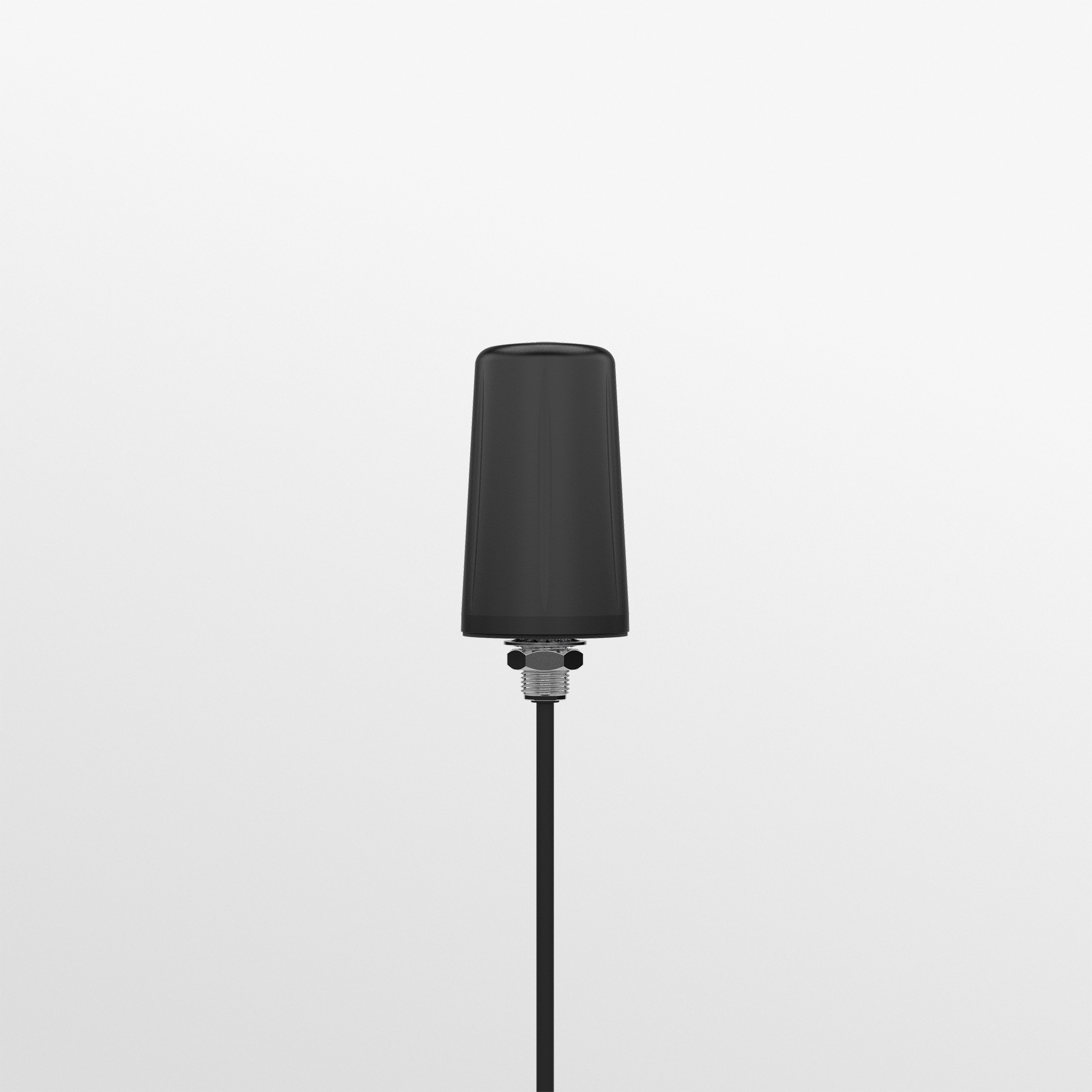

Panorama LPB-6-60-2SP Low Profile 5G/4G Omnidirectional Antenna, 617–6000 MHz, 2 m SMA Cable

5GMPN LPB-6-60-2SP
  • Single (SISO)
  • Under 3 dBi
  • 1–3 m
$21.38$29.33Save $7.95

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans
Compare all 4 configurations

Datasheets & documents

Overview

The Panorama LPB-6-60-2SP is a low-profile, single-element (SISO) omnidirectional antenna for 5G, 4G, 3G and 2G devices across 617–960 and 1710–6000 MHz, including Band 71 600 MHz. It is IP66 rated and operates from -40 °C to +85 °C, so it can be installed inside or outside an enclosure. An integrated 2 m double-shielded CS29 cable ends in an SMA (m) plug for direct connection to cellular modems, routers and M2M equipment.

  • Single-element (SISO) omnidirectional antenna for 2G/3G/4G/5G
  • Covers 617–960 / 1710–6000 MHz; Band 71 600 MHz ready
  • Gain: 3 dBi (617–960), 4 dBi (1710–2700), 8 dBi (3400–3800), 9 dBi (4900–6000 MHz)
  • Integrated 2 m (6.56 ft) double-shielded CS29 cable with SMA (m) plug
  • IP66 rated; -40 °C to +85 °C operating temperature
  • Low-profile 82 mm x 48 mm housing; mast, panel or wall mount
  • Covers 600 MHz Band 71 through 6 GHz, so one antenna fits LTE and sub-6 GHz 5G devices
  • Up to 8–9 dBi in the 3.4–3.8 GHz and 4.9–6 GHz ranges

The Panorama LPB-6-60-2SP is a cost-effective omnidirectional panel-mount antenna for 4G/3G/2G and 5G devices, suitable for external or internal installation. A single wideband element covers 617–960 MHz and 1710–6000 MHz, and the antenna is Band 71 600 MHz ready. Gain is 3 dBi at 617–960 MHz, 4 dBi at 1710–2700 MHz, 8 dBi at 3400–3800 MHz and 9 dBi at 4900–6000 MHz. Maximum input power is 30 W.

The low-profile housing is 82 mm tall and 48 mm in diameter. It is IP66 rated for outdoor use and operates from -40 °C to +85 °C. Panorama positions the LPB-6-60 for industrial and domestic environments, with applications in the utility sector, smart metering, vending machines and kiosks. It supports mast, panel and wall mounting. A conductive ground plane greater than 300 mm (1 ft) in diameter gives optimal performance. Where no ground plane is available, the antenna can be bracket mounted using Panorama part number B4BE-6-60.

The 2SP version includes an integrated 2 m (6.56 ft) length of 5 mm double-shielded CS29 coaxial cable terminated in an SMA male plug. That length lets you mount the antenna on a cabinet roof or wall while the router stays inside. As a SISO antenna it serves one antenna port. Panorama publishes a datasheet and installation instructions (SW3-205) for the LPB-6-60.

Ideal for

  • Utility sector and smart metering
  • Vending machines and kiosks
  • External or internal antenna for cellular routers and modems
  • Industrial M2M connectivity

Specifications

GPS

Number OF GPS Elements
None

Cable

Cable Type LTE
CS29, 5 mm double-shielded coaxial
Cable Length LTE
2 m (6.56 ft)
Cable Length Range Family
Family options: 2 m (6.56 ft) to 5 m (16.4 ft)

General

MPN
LPB-6-60-2SP
Brand
Panorama Antennas
Product Family
LPB-6-60 Low Profile Antenna 5G/4G/3G/2G

Package

UPC
5055416035080
Shipping Weight
0.50 lb

Mounting

Mounting Methods
Mast, panel, wall
Mounting Type Fixed
Mast, panel, wall

Approvals

IP Rating
IP66

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
No
Max Input Power
30 W
Gain 617 960 MHz
3 dBi
Gain 1710 2700 MHz
4 dBi
Gain 3400 3800 MHz
8 dBi
Gain 4900 6000 MHz
9 dBi
Cellular LTE Elements
SISO (single element)

Mechanical

Colour
Black
Height
82 mm (3.23 in)
Diameter
48 mm (1.89 in)
Ground Plane
Conductive ground plane >300 mm (1 ft) diameter for optimal performance, or bracket B4BE-6-60
Operating Temperature
-40 °C to +85 °C (-40 °F to +185 °F)

Technology

Technology
2G/3G/4G/5G; Band 71 600 MHz ready

Termination

Connector LTE
SMA male plug

Questions buyers ask

Which cellular technologies does the LPB-6-60-2SP support?

Panorama specifies it for 2G, 3G, 4G and 5G devices across 617–960 MHz and 1710–6000 MHz, and it is Band 71 600 MHz ready.

Can it be used indoors and outdoors?

Yes. It is suitable for external or internal installation. It is IP66 rated and operates from -40 °C to +85 °C.

What mounting options are available?

It supports mast, panel and wall mounting. A conductive ground plane over 300 mm (1 ft) in diameter gives optimal performance, or you can use Panorama bracket part number B4BE-6-60.

How many connectors does it have?

It is a single-element SISO antenna with one integrated 2 m CS29 cable terminated in an SMA male plug.
