Zyxel Nebula LTE7461-M602 4G LTE-A Cat 6 Outdoor Router with PoE and IP68 Enclosure

4G LTEMPN LTE7461N
  • 1 × 1 Gb Ethernet
  • PoE powered
$399.99$564.99Save $165

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

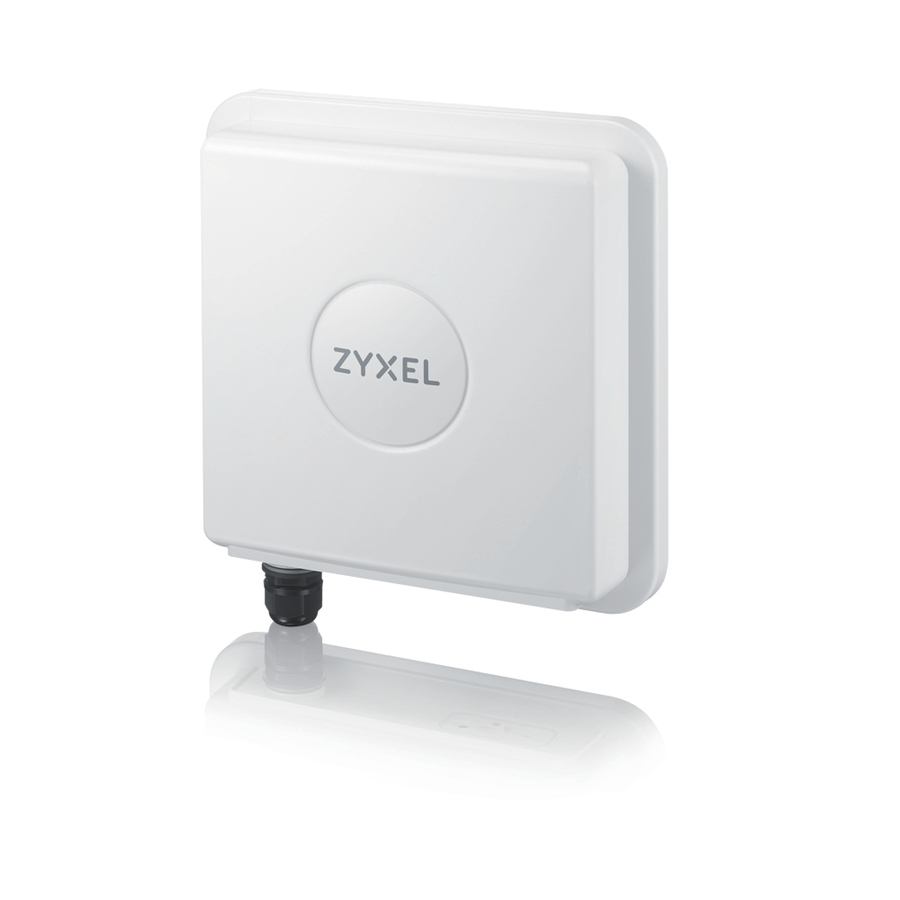

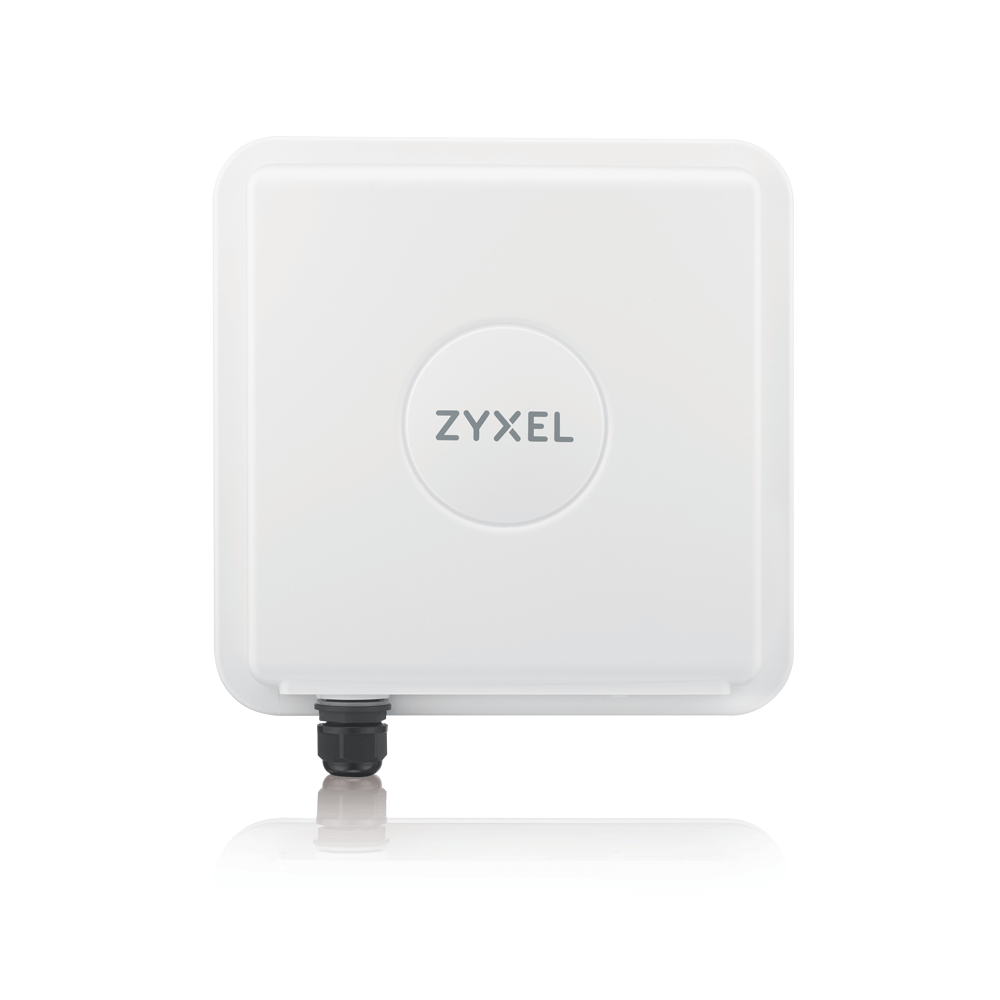

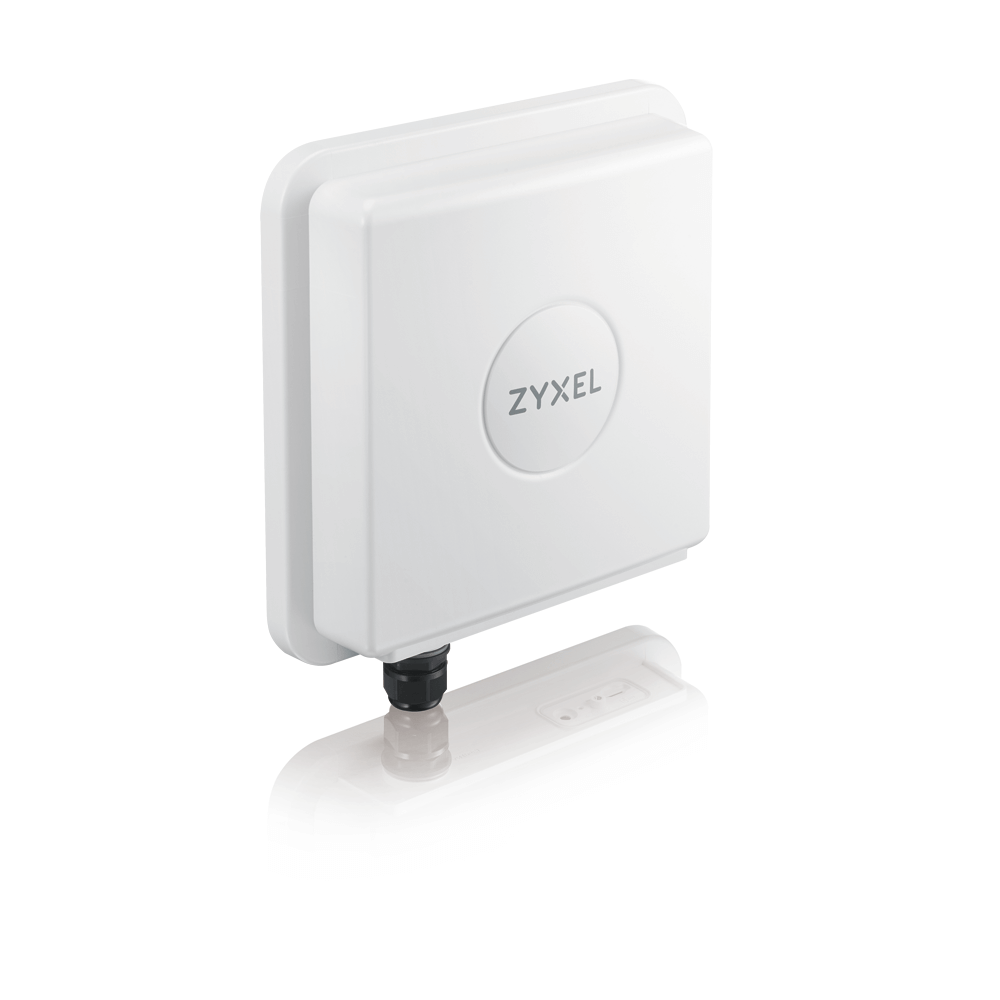

The Zyxel Nebula LTE7461-M602 (LTE7461N) is an IP68-rated outdoor 4G LTE-Advanced Cat 6 router for sites where fixed-line broadband is weak or unavailable. Two embedded directional antennas of up to 8 dBi per element in a 2x2 MIMO arrangement deliver downloads of up to 300 Mbps. A single Gigabit PoE port powers the unit and connects it to your network. It works in bridge or router mode and is managed from the Nebula cloud platform, with AT&T and Verizon certification.

  • 3GPP LTE-Advanced Cat 6 with 2DL carrier aggregation: up to 300 Mbps down / 50 Mbps up
  • Two embedded directional antennas up to 8 dBi per element, 2x2 MIMO
  • IP68 enclosure, Level 12 wind resistance, K.21 6 kV lightning protection, -40°C to 60°C operation
  • Single Gigabit RJ-45 LAN port with IEEE 802.3af/at PoE PD power (PoE injector included)
  • Bridge and router modes for primary internet or fixed-line failover
  • Nebula cloud management plus web GUI, CLI/SSH and Nebula Mobile App
  • FCC/IC/AT&T/Verizon certified
  • Brings LTE broadband to rural or hard-to-wire sites without trenching a fixed line

The Zyxel Nebula LTE7461-M602 is a 3GPP Category 6 LTE-Advanced router with carrier aggregation, built to mount outdoors on a wall or pole. It suits suburban and rural sites, public spots, homes and offices where running a fixed line is difficult. It can serve as the primary internet connection or as a backup WAN that takes over when the fixed line drops. This part number is the Nebula cloud-managed version. Zyxel reserves Nebula cloud management for this model and does not offer it on the on-premise LTE7461-M602.

The radio covers LTE bands 2/4/5/7/12/13/25/26/29/66 with WCDMA bands 2/4/5, peaking at 300 Mbps down and 50 Mbps up on LTE-FDD. Two embedded directional antennas of up to 8 dBi per element (2x2 MIMO) help hold signal in fringe areas. Installation needs no electrician. Connect a phone or tablet to the router's 2.4 GHz management Wi-Fi and use the free Zyxel Air app to find the best signal spot. The unit then runs from a single IEEE 802.3af/at PoE cable, and a Gigabit PoE injector is included.

The enclosure is rated IP68 against dust and water, withstands Level 12 hurricane-force winds (132 km/h), carries K.21 enhanced-mode 6 kV lightning protection and operates from -40°C to 60°C. For IT teams, Nebula provides remote configuration, monitoring and firmware upgrades over the cellular link, which avoids common NAT issues. The Nebula Mobile App registers a device from its QR code. Local tools include the web GUI, CLI/SSH with key access, SPI firewall with DoS detection, URL filtering, bandwidth management and TR-143 remote throughput testing.

Zyxel publishes a datasheet, quick start guide, user's guide and certification document for this model.

Ideal for

  • Primary broadband for rural or suburban homes and offices without a usable fixed line
  • Automatic LTE failover for a branch office when the wired connection drops
  • Rapid internet deployment at public spots, pop-up sites and temporary locations
  • LTE connectivity for IoT devices in warehouses and factories
  • Managed service provider fleets administered centrally through Nebula

Specifications

Power

Power Interface
Standard IEEE 802.3af/at PoE PD support compatible
Power Consumption
13 W (peak) at PoE

General

MPN
LTE7461N
UPC
760559130176
Brand
Zyxel
Model
Nebula LTE7461-M602
Product Type
4G LTE-A Outdoor Router

Routing

Modes
Supports bridge/router modes
Dynamic Dns
Supports dynamic DNS for first APN
Bridge Remote Management
Supports remote management under bridge mode

Physical

Weight
1100 g (2.43 lb)
Mounting
Wall and pole mounting
Dimensions
254 x 255 x 58 mm (9.99 x 10.03 x 2.28 in) WxDxH
Package Weight
3050 g (6.72 lb)
Package Dimensions
420 x 280 x 108 mm (16.54 x 11.02 x 4.25 in) WxDxH

Management

Tr143
Supports remote throughput testing (TR-143)
Cli Ssh
CLI/SSH (local and remote SSH access)
Pin Puk
PIN/PUK management
Ssh Key
Supports SSH with key access
Upnp Igd
Supports UPnP IGD
Band Pilot
LTE Band Pilot System management compatible
Mobile App
Supports mobile app (iOS and Android)
Apn Management
APN management
Band Selection
Operating frequency band selection
Device Management
Local/remote device management and firmware upgrade via Nebula Cloud and Web GUI
Network Selection
Network selection
Network Preference
Network preference
Bandwidth Management
Supports bandwidth management

IP Firewall

Spi
Supports SPI
IP Filter
Filters LAN IP address
Mac Filter
Filters LAN MAC address
Url Filter
Filters URLs
Dos Detection
DoS attack detection
Firewall Toggle
Firewall can be enabled or disabled via GUI
Application Firewall
Application-level firewall

Certification

Certifications
FCC / IC / AT&T / Verizon

Environmental

Wind Resistance
Withstands hurricane-level wind speed, Level 12 (132 km/h)
Storage Humidity
5% to 95% (non-condensing)
Ingress Protection
IP68
Operating Humidity
5% to 95% (non-condensing)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Lightning Protection
K.21 enhanced mode, 6 kV
Operating Temperature
-40°C to 60°C (-40°F to 140°F)

IP Networking

Alg
Supports ALG
Dmz
Supports DMZ
Icmp
ICMP supported
IP Stack
Supports IPv4/IPv6 dual-stack (NDP IPv6)
Nat Napt
Supports NAT/NAPT
Dhcp Server
DHCP server
Port Forwarding
Supports port forwarding/triggering
VPN Passthrough
VPN passthrough

LTE Interface

Antennas
2 embedded directional antennas up to 8 dBi/element (2x2 MIMO)
Category
Standard-compliant: 3GPP UE Category 6
Max Eirp
Max EIRP 30 dBm
LTE Bands
2/4/5/7/12/13/25/26/29/66
Peak Uplink
LTE-FDD: max 50 Mbps (UL)
Wcdma Bands
2/4/5
DL Modulation
QPSK, 16-QAM, 64-QAM
Peak Downlink
LTE-FDD: max 300 Mbps (DL)
UL Modulation
QPSK and 16-QAM
Carrier Aggregation
2 DL CA: B2+B2/B5/B12/B13/B26/B29; B4+B4/B5/B12/B13/B26/B29; B7+B5/B7/B12/B13/B26/B29; B25+B5/B12/B13/B25/B26/B29; B66+B5/B12/B13/B26/B29/B66 (B29 secondary only)

Wi-Fi Management

Purpose
For local management purpose only
Antennas
2x2 embedded antennas
Standard
802.11 n/g/b, 2.4 GHz
Hidden Ssid
Hidden SSID
Mac Filtering
MAC address filtering

Package Contents

Contents
Gigabit PoE injector with LED indicator, Ethernet cable, power cord, cable gland, quick start guide, wall/pole mounting kit

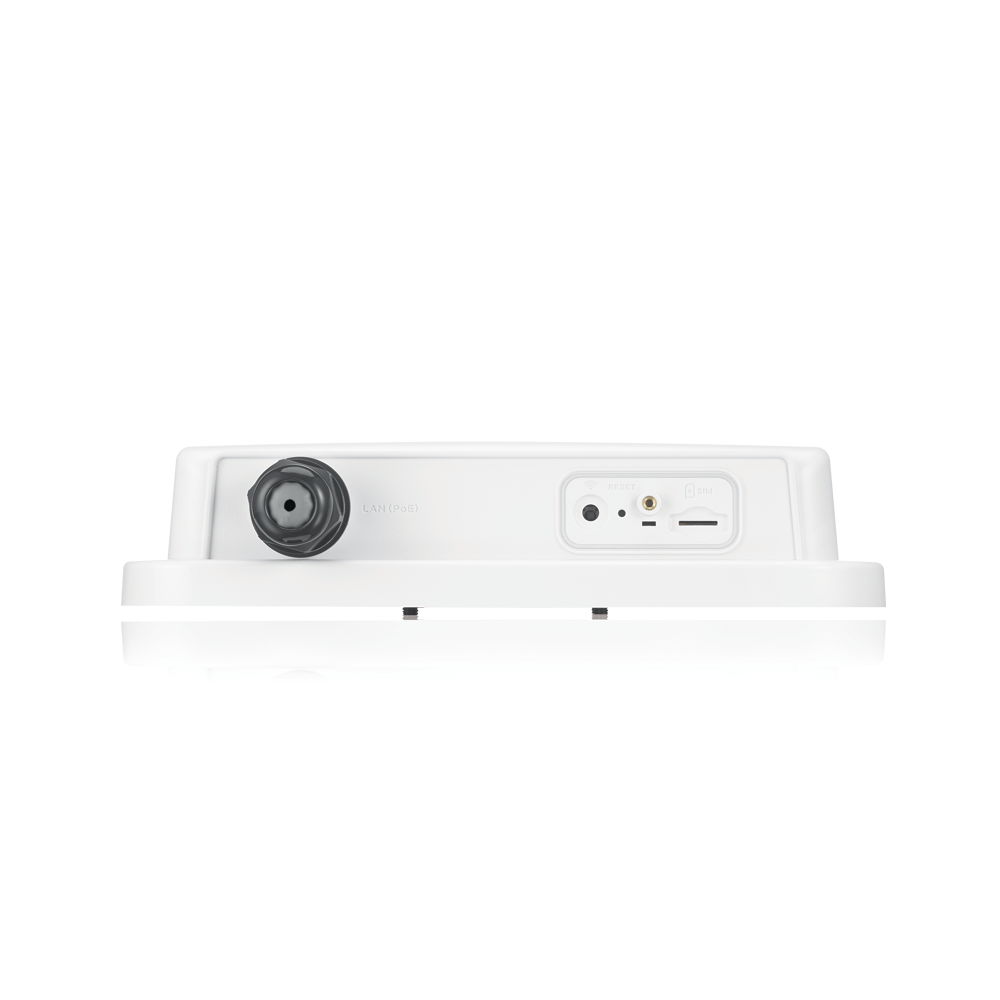

Hardware Interface

LAN
One GbE RJ-45 PoE LAN port
LED
One tri-color LED for power, internet and Wi-Fi status
SIM Slot
One 3FF micro SIM card slot
Reset Button
One Reset & Reboot default button
Wi-Fi Wps Button
One Wi-Fi On/Off and WPS button

Questions buyers ask

Is the Zyxel LTE7461N a 5G router?

No. It is a 4G LTE-Advanced Category 6 router with carrier aggregation, rated for up to 300 Mbps download and 50 Mbps upload on LTE-FDD.

How is the router powered?

It is powered over its single Gigabit RJ-45 port using IEEE 802.3af/at PoE. A Gigabit PoE injector, Ethernet cable and power cord are included, and peak consumption is 13 W.

Can I use the Wi-Fi to connect my devices?

No. The 2.4 GHz Wi-Fi is for local management only, such as setup with the Zyxel Air app. Client devices connect through the Gigabit LAN port to your switch or router.

Which carriers is it certified for?

Zyxel lists FCC, IC, AT&T and Verizon certification. It supports LTE bands 2/4/5/7/12/13/25/26/29/66 and WCDMA bands 2/4/5.

Does it support Nebula cloud management?

Yes. This is the Nebula LTE7461-M602 version, which supports remote configuration, monitoring and firmware upgrades through the Nebula Cloud platform and the Nebula Mobile App.
