NetgearMobile Hotspots

Netgear Nighthawk M6 Pro 5G mmWave Mobile Router with Wi-Fi 6E for T-Mobile (MR6520)

5G mmWaveMPN MR6520G-111PAS
  • Wi-Fi 6E
$650.00$827.57Save $177.57

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Netgear Nighthawk M6 Pro (MR6520G-111PAS) is the T-Mobile version of NETGEAR's Nighthawk M6 Pro 5G mobile router. It is powered by the Qualcomm Snapdragon X65 (SDX65) and supports 5G mmWave (bands 260/261), 5G Sub-6 with C-band and LTE CAT 20. It shares the connection over Wi-Fi 6E AXE3600 (2.4/5/6 GHz) with up to 32 devices across up to 2,000 sq ft. A 2.5Gbps Ethernet port, two TS-9 antenna ports and a 2.8-inch touch screen let it serve as either a pocket hotspot or a fixed wireless office gateway.

  • 5G mmWave (8CC, 800 MHz; bands 260/261) and 5G Sub-6 (3CC, 200 MHz) with C-band on the Qualcomm SDX65
  • LTE CAT 20 fallback with LTE Advanced Pro, 4x4 MIMO and 256-QAM, plus up to 10x carrier aggregation
  • Wi-Fi 6E AXE3600 on 2.4/5/6 GHz, 2x2 MIMO, for up to 32 devices and up to 2,000 sq ft
  • 2.5Gbps Ethernet port for Fixed Wireless Access (enabled with the battery removed)
  • Two TS-9 RF ports for external 5G/4G antennas

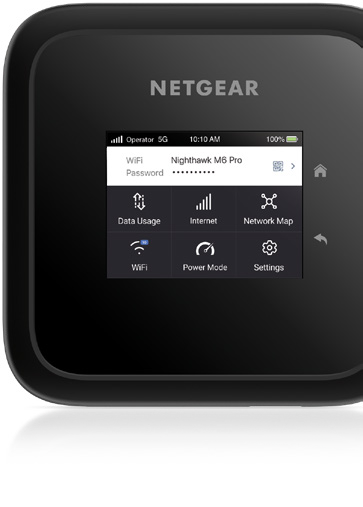

  • 2.8-inch color touch LCD with data usage meter, plus the NETGEAR Mobile app
  • GPS support and Mobile Device Management platform compatibility
  • mmWave support can deliver very high throughput where T-Mobile has high-band 5G coverage

The Nighthawk M6 Pro MR6520 is built for business users who want office-grade 5G in a pocketable device, from frequent executive travelers to first responders and service technicians. This SKU is NETGEAR's T-Mobile model. It supports 5G mmWave (8CC, 800 MHz) on bands 260/261, 5G Sub-6 (3CC, 200 MHz) with C-band, and LTE CAT 20 fallback with LTE Advanced Pro, 4x4 MIMO and 256-QAM. Carrier aggregation reaches up to 10x across LTE plus mmWave, 7x across LTE plus Sub-6 and 5x on LTE alone.

Wi-Fi 6E (802.11axe, 2x2 MIMO) operates on 2.4, 5 and 6 GHz with dual-band concurrent operation and is rated AXE3600. It delivers 2900 Mbps on 5 GHz or 6 GHz, and 3600 Mbps aggregate on 2.4+5 GHz or 2.4+6 GHz. The 5+6 GHz combination is not supported. Up to 32 devices can connect across up to 2,000 sq ft.

For a fixed installation, remove the battery and run the M6 Pro on the AC adapter. This enables the 2.5Gbps Ethernet port, which only works with the battery removed, so you can feed an office router, a NETGEAR Pro WiFi access point or a range extender. When wired broadband drops, it switches to the T-Mobile 5G/4G network. Two TS-9 RF ports accept external 5G/4G antennas, and GPS is supported.

The 2.8-inch color touch screen and the NETGEAR Mobile app handle data usage, credentials and settings. NETGEAR's Mobile Device Management platform adds fleet reporting, bulk onboarding and centralized profiles. Security includes WPA/WPA2/WPA3 Personal, guest separation, VPN passthrough, filtering, port controls, SIM PIN/PUK, and Wi-Fi and Ethernet offloading. The box includes the router and battery, a USB Type-C cable, an AC adapter and a quick start guide. NETGEAR publishes a data sheet and installation guide.

Ideal for

  • Executive and business travel needing a private, high-speed 5G network
  • Fixed wireless primary internet for a small office over 2.5Gbps Ethernet
  • Automatic T-Mobile 5G/4G failover when fiber, DSL or cable drops
  • Field service and first-responder teams sharing one connection across up to 32 devices
  • In-building or fringe sites using external antennas on the TS-9 ports

Specifications

Wi-Fi

Coverage
Up to 2,000 sq ft
Standard
Wi-Fi 6E (802.11axe), 2x2 MIMO, 2.4/5/6 GHz
Max Devices
Up to 32 devices
Default Band
5 GHz only by default (to extend battery life)
Max Throughput Phy
AXE3600: 5 GHz/6 GHz 2900 Mbps; 2.4 GHz 700 Mbps; 2.4+5 GHz 3600 Mbps; 2.4+6 GHz 3600 Mbps; 5+6 GHz not supported

Battery

Battery
5040mAh battery (W20); 5400mAh battery (W20b)

Display

Data Usage Meter
Data usage meter
External Display
2.8-inch color touch LCD panel

General

MPN
MR6520G-111PAS
UPC
606449168631
Brand
Netgear
Model
MR6520
Carrier
T-Mobile (datasheet D-MR6520-TMobile)
Product
Nighthawk M6 Pro Mobile Router
Manufacturer
NETGEAR

Cellular

5G
5G mmWave (8CC, 800 MHz), 5G Sub-6 (3CC, 200 MHz), C-band support, LTE fallback
GPS
GPS supported
LTE
LTE CAT 20, LTE Advanced Pro, 4x4 MIMO, 256-QAM
Chipset
Qualcomm SDX65 (Snapdragon X65)
LTE Bands
1/2/3/4/5/7/12/13/14/25/26/28/29/30/40/41/46/48/66/71
Technology
LTE CAT 20
5G Sub6 Bands
2/5/7/2/14/25/29/30/38/41/48/66/71/77/78 (as printed in the NETGEAR datasheet)
5G Mmwave Bands
260/261
Carrier Aggregation
Up to 10x CA (LTE + mmWave); 7x (LTE + Sub-6); 5x (LTE)

Physical

Weight
256 g (0.56 lb) with battery
Dimensions
105 x 105 x 21.5 mm (4.14 x 4.14 x 0.85 in)

Security

Features
Guest Wi-Fi separation, WPS (2.4/5/6 GHz, PIN, PBC) with on/off control, Wi-Fi and SSID broadcast on/off, VPN passthrough, MAC and website filtering, port forwarding and filtering, password-protected web admin, session timeout, Wi-Fi and Ethernet offloading
SIM Security
PIN1, PIN2, PUK
Wi-Fi Security
WPA / WPA2 / WPA3 Personal

Warranty

Warranty
NETGEAR limited warranty (authorized reseller purchases)

External Ports

USB
One (1) USB Type-C
Antenna
Two (2) TS9 RF ports for external 5G/4G antennas
Ethernet
One (1) 2.5 Gbps Ethernet (disabled by default; can only be enabled with the battery removed)

Package Contents

IN The Box
Nighthawk M6 Pro router and battery, quick start guide, USB Type-C cable, AC adapter
Shipping Weight
1.16 lb

Questions buyers ask

Which carrier is this Nighthawk M6 Pro for?

The MR6520 data sheet identifies this model as the T-Mobile version, and its failover feature uses the T-Mobile 5G/4G network.

Does the M6 Pro support mmWave 5G?

Yes. It supports 5G mmWave on bands 260/261 (8CC, 800 MHz) in addition to 5G Sub-6 with C-band and LTE CAT 20.

How do I use the 2.5Gbps Ethernet port?

The Ethernet port is disabled by default and can only be enabled with the battery removed. Run the router on the included AC adapter in Fixed Wireless Access mode, then connect it to your office router or access point.

Can I use the 5 GHz and 6 GHz bands at the same time?

No. The M6 Pro runs dual-band concurrent on 2.4+5 GHz or 2.4+6 GHz, each up to 3600 Mbps aggregate. The 5+6 GHz combination is not supported.

Can I add an external antenna?

Yes. Two TS-9 RF ports accept external 5G/4G antennas.
