Lantronix NTC-201-01-01 Worldwide 4G LTE Cat 1bis Industrial IoT Router

LTE Cat 1MPN NTC-201-01-01
$169.38

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Lantronix NTC-201-01-01 is a compact industrial IoT router built around LTE Cat 1bis and a single worldwide SKU. It covers 21 LTE bands and carries FCC, ISED, CE, RCM and PTCRB certifications plus AT&T and Verizon approvals. It runs on one antenna and one Ethernet port, supports Percepxion cloud management and a Linux SDK, and fits in an IP40 enclosure with wall and DIN rail mounting. It suits vending, access control, digital signage, traffic and surveillance deployments.

  • Single worldwide SKU covering 21 LTE bands with FCC, ISED, CE, RCM, PTCRB, AT&T and Verizon approvals
  • LTE FDD Cat 1bis (3GPP Rel 13), up to 10 Mbps down / 5 Mbps up, on a single SMA antenna
  • Percepxion cloud management with zero-touch provisioning and remote fleet monitoring
  • Linux OS with SDK (ANSI C, Shell, LUA) on a 1 GHz ARM Cortex A8, 256 MB RAM, 512 MB flash
  • IPSec (up to 5 tunnels), OpenVPN and GRE VPN, plus a DoS-protection firewall
  • IP40 enclosure, -30°C to +70°C operation, 8-40 V DC input, wall and DIN rail mounting
  • 2-year limited warranty
  • Stock one part number for deployments in North America, Europe and Asia-Pacific

The Lantronix NTC-201-01-01 is a small, managed LTE Cat 1bis router for industrial IoT fleets. It is designed for teams that want one hardware SKU for every region. It covers LTE bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 25, 26, 28, 34, 38, 39, 40, 41 and 66. Certifications and approvals include FCC, ISED, CE, RCM, PTCRB, AT&T and Verizon. Cat 1bis is 3GPP Release 13 compliant, delivers up to 10 Mbps down and 5 Mbps up, and works from a single SMA antenna connector. That throughput suits telemetry, control traffic and camera or signage backhaul at modest bitrates. Lantronix also highlights its NDAA-compliant, diversified supply chain.

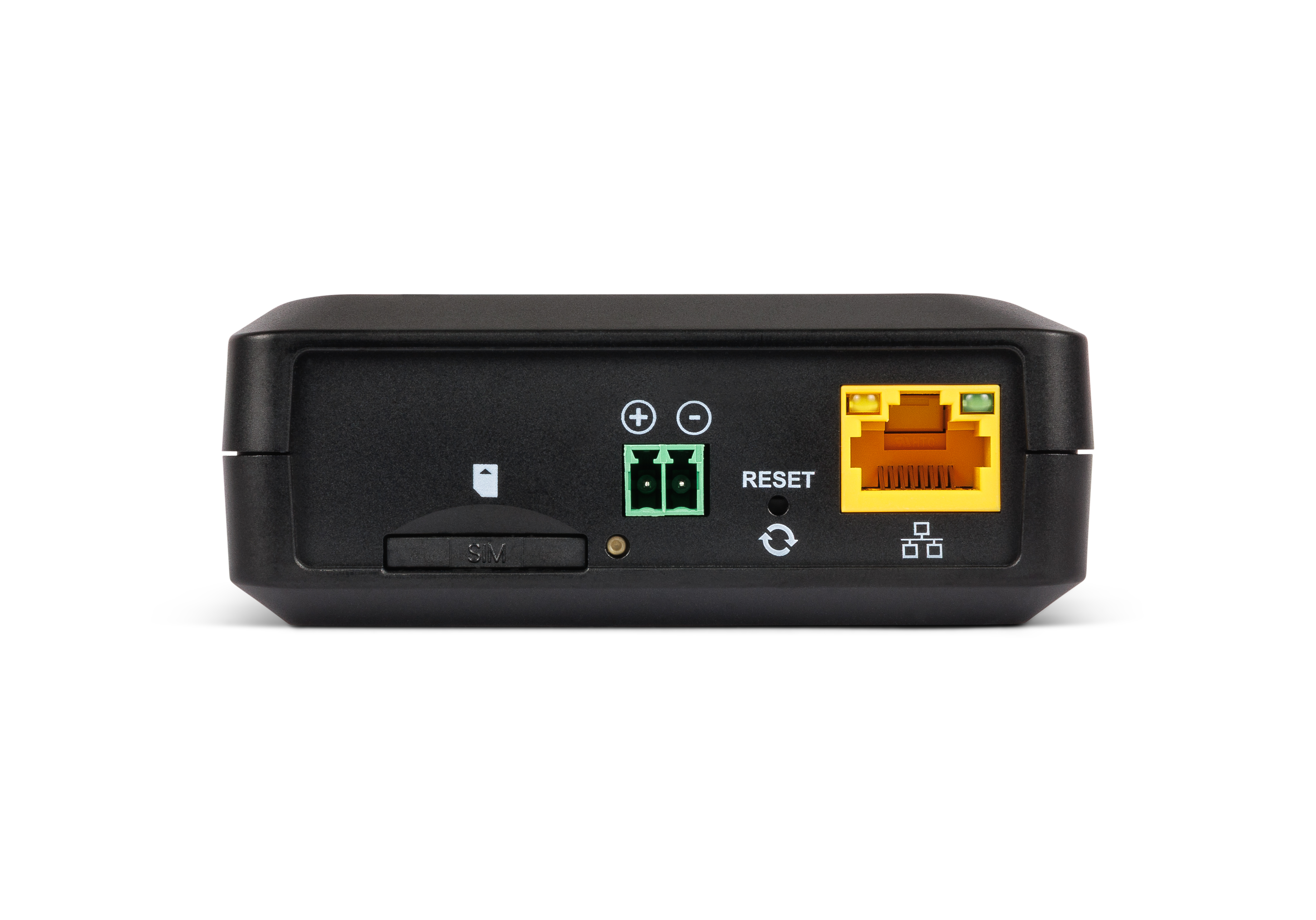

The router has one 100Base-T Ethernet port, a 2FF SIM slot and an optional soldered-down MFF2 SIM. For networking, it supports static routing, VRRP failover, a DoS-protection firewall, full DHCP server options, and up to 6 APN profiles. Remote sites connect back over IPSec (up to 5 tunnels), OpenVPN or GRE.

Management is a core strength. Percepxion provides zero-touch provisioning, fleet monitoring and lifecycle firmware updates. The router also supports HTTPS, SSH, SNMP v1/v2/v3, TR-069, LWM2M, MQTT/s with TLS 1.3, and secure SMS commands. A 1 GHz ARM Cortex A8 with 256 MB of RAM and 512 MB of flash runs the Linux OS. The SDK supports C, Shell and LUA, so custom applications can run at the edge without a separate industrial PC.

The router operates from -30°C to +70°C, takes 8-40 V DC through a screw terminal block, and measures 105 x 88 x 35 mm. It carries a 2-year limited warranty. Lantronix publishes a product brief, quick start guide, user guide and software developer guide.

Ideal for

  • Vending and ticketing machine connectivity
  • Access control and smart building systems
  • Digital signage backhaul
  • Traffic light control and surveillance camera links
  • Global IoT rollouts standardised on a single hardware SKU

Specifications

VPN

Gre
GRE tunnelling
Ipsec
IPSec tunnel termination (up to 5 tunnels)
Openvpn
OpenVPN (client, server, P2P)

Power

DC Input
8-40 V DC
Power Input
2-way termination block receptacle, screw-type field terminable plug included
Recommended Supply
12 V 1.5 A via terminal block

General

MPN
NTC-201-01-01
UPC
783384260344
Brand
Lantronix
Region
Worldwide
Series
NTC-201 Series
Product Type
4G LTE Cat 1bis Industrial IoT Router
Certifications
FCC, ISED, CE, RCM, PTCRB, AT&T, Verizon

Cellular

Packet Data
Profile managed packet data connections
Apn Profiles
Up to 6 APN configurations
SIM Security
SIM security (PIN configuration, enable/disable)
Band Selection
Automatic and manual band selection
SIM Management
SIM management
Profile Routing
Profile routing
Operator Selection
Automatic and manual operator selection

Physical

Dimensions
105 mm (L) x 88 mm (W) x 35 mm (H), excluding antennas
Wall Mount
Wall mount in multiple orientations via bracket
Din Rail Mount
DIN rail via mounting bracket (TH 35 IEC60715)
Dimensions With Bracket
111 mm (L) x 96 mm (W) x 40 mm (H) with mounting bracket

Warranty

Warranty
2-year limited warranty

Interfaces

Ethernet
1 x 100Base-T Ethernet RJ45 port
Reset Button
Recessed reset: reboot, reboot into recovery mode, factory reset

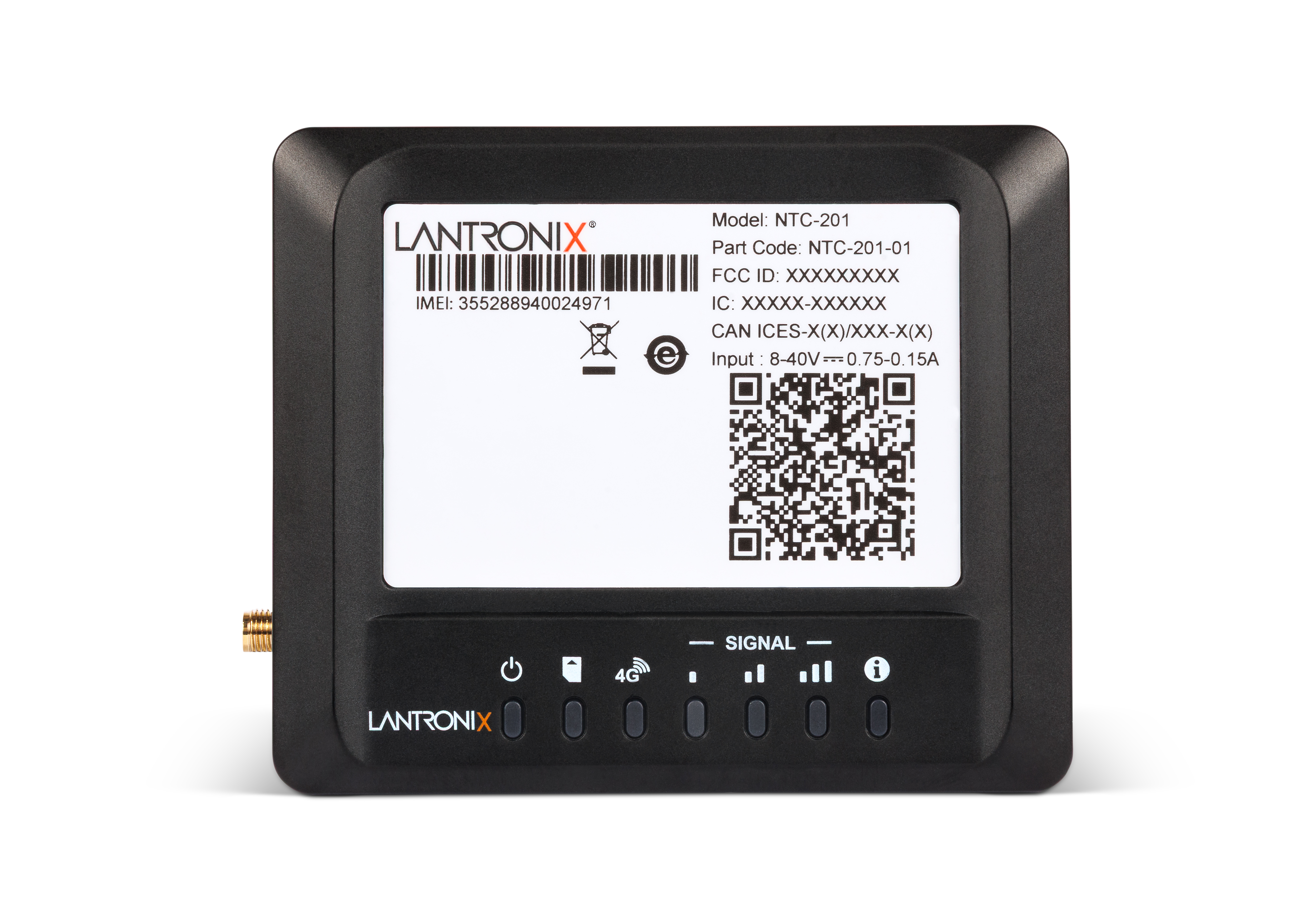

LED Indicators
1 x Power, 1 x SIM, 1 x 4G, 3 x Signal strength, 1 x Custom

Environmental

Enclosure Rating
IP40 rated
Operating Humidity
0-95%
Storage Temperature
-40°C to +85°C
Operating Temperature
-30°C to +70°C

Cellular Bands

LTE Bands
LTE Cat 1bis: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B34, B38, B39, B40, B41, B66

Device Category

Uplink
Up to 5 Mbps uplink
Downlink
Up to 10 Mbps downlink
LTE Category
LTE FDD Cat 1bis, 3GPP Rel 13 compliant
Antenna Connectors

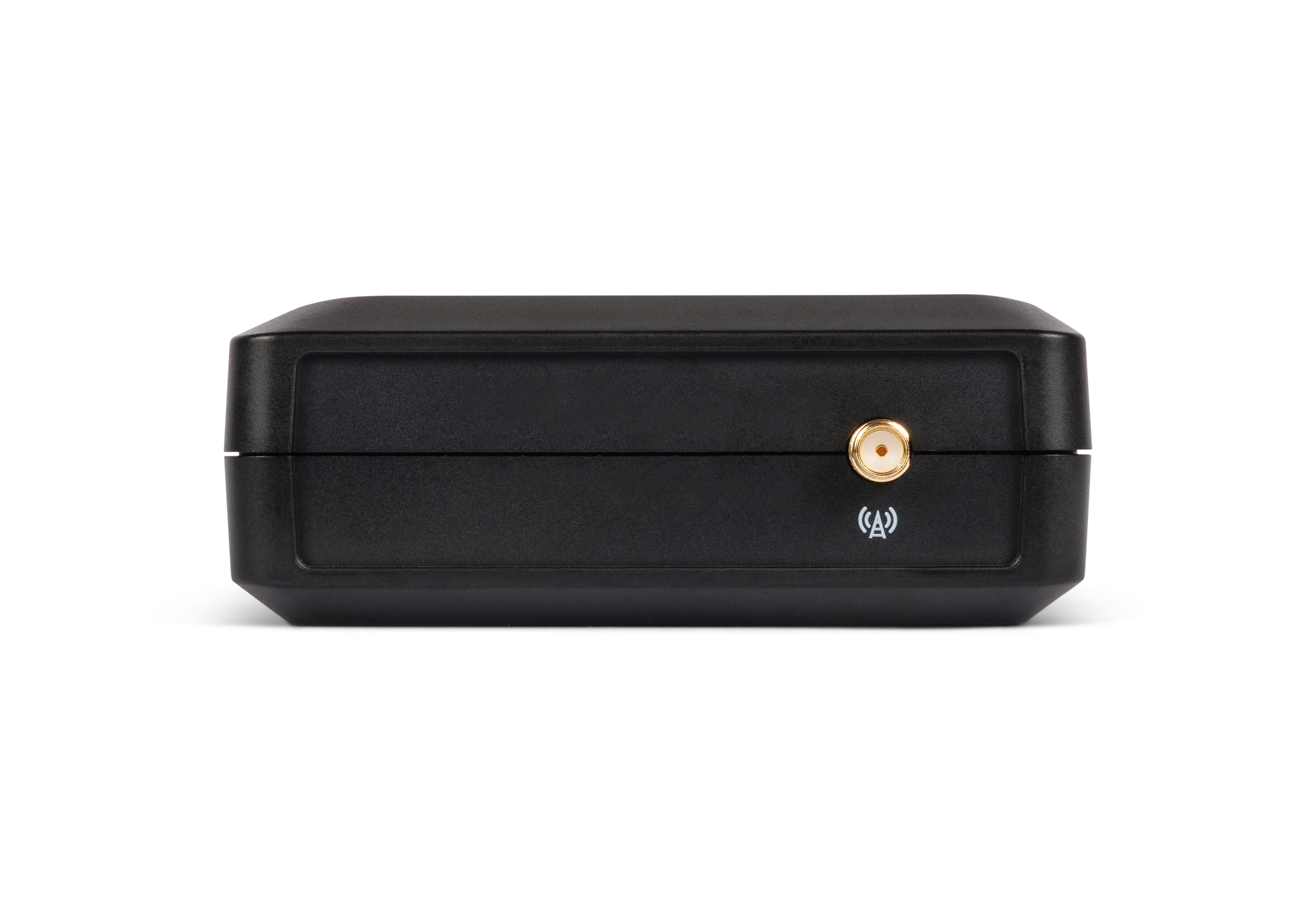

1 x SMA antenna connector

Network Routing

Vrrp
VRRP for redundant router failover
Routing
Static routing, port forwarding and DMZ
Firewall
Firewall to protect against DoS attacks
Dhcp List
DHCP list display in Web-UI
Custom Dns
Custom DNS server definitions
Dhcp Relay
DHCP relay
Dhcp Server
DHCP server with address reservation by MAC
Dynamic Dns
Dynamic DNS
Dhcp Options
Advanced DHCP options 42 (NTP), 66 (TFTP), 150, 160

SIM Card Support

SIM Slot
1 x SIM slot, Mini USIM/SIM (2FF)
Embedded SIM Option
Optional soldered-down SIM (ETSI MFF2 DFN-8 USIM)

Processor Storage

RAM
256 MB RAM
Flash
512 MB flash storage
Processor
1 GHz ARM Cortex A8

Firmware Management

SMS Triggered
SMS-triggered firmware upgrade from HTTPS
Multiple Images
Multiple firmware image storage and dynamic install
Upgrade Methods
Local via LAN or over-the-air via HTTPS, SNMP, TR-069, LWM2M

Optional Accessories

Antenna
NANT-00001-000 LTE antenna
Power Supply
PSU-0250 12VDC 2.5A 30W supply, UK/US/EU/AU plugs

Software Development Kit

API
API libraries to the Runtime Database for monitoring, config and control
Languages
ANSI C, Shell script and LUA
Custom Apps
Develop and install custom applications
Environment
Open Linux standard development environment
Package Manager
Package manager in Web-UI

Administration Configuration

Cli
SSH command line interface
Ntp
NTP server support
Logs
Diagnostic log viewer (remote/local), system status and security logs
Snmp
SNMP v1/v2/v3 with cellular MIB, config and firmware download
Web UI
Secure web UI (HTTPS)
SMS Control
SMS diagnostics and control with sender whitelisting, passwords and acknowledgements
SMS Over Sgs
SMS over SGs support
Config Backup
Password-protected config backup/restore and device cloning
Ping Watchdog
Ping monitor watchdog
Cloud Protocols
TR-069, MQTT/s, TLS 1.3
Cloud Management
Percepxion cloud-based monitoring, management and data insights
Device Management
LWM2M and TR-069 client for remote config, backup/restore, firmware

Questions buyers ask

Can the NTC-201-01-01 be used in the US and abroad?

Yes. It is a single worldwide SKU covering 21 LTE bands, with FCC, ISED, CE, RCM and PTCRB certifications and AT&T and Verizon approvals.

How fast is LTE Cat 1bis?

The NTC-201 supports up to 10 Mbps downlink and 5 Mbps uplink. That suits telemetry, control and moderate-bandwidth IoT traffic.

How many antennas does it need?

It has one SMA antenna connector. Lantronix offers the NANT-00001-000 LTE antenna as an optional accessory.

How is the router managed remotely?

You can manage it through Lantronix Percepxion, the HTTPS web UI, SSH, SNMP v1/v2/v3, TR-069, LWM2M or secure SMS commands. Firmware can be updated over the air.

What power input does it accept?

It accepts 8-40 V DC through a 2-way screw terminal block, with 12 V 1.5 A recommended. The PSU-0250 power supply is available as an option.
