Lantronix NTC-225 4G LTE Cat 1 Industrial IoT Router for Verizon (USA)

LTE Cat 1MPN NTC-225-01-01
  • 1 × 100 Mb Ethernet
  • GPS/GNSS
$249.62

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

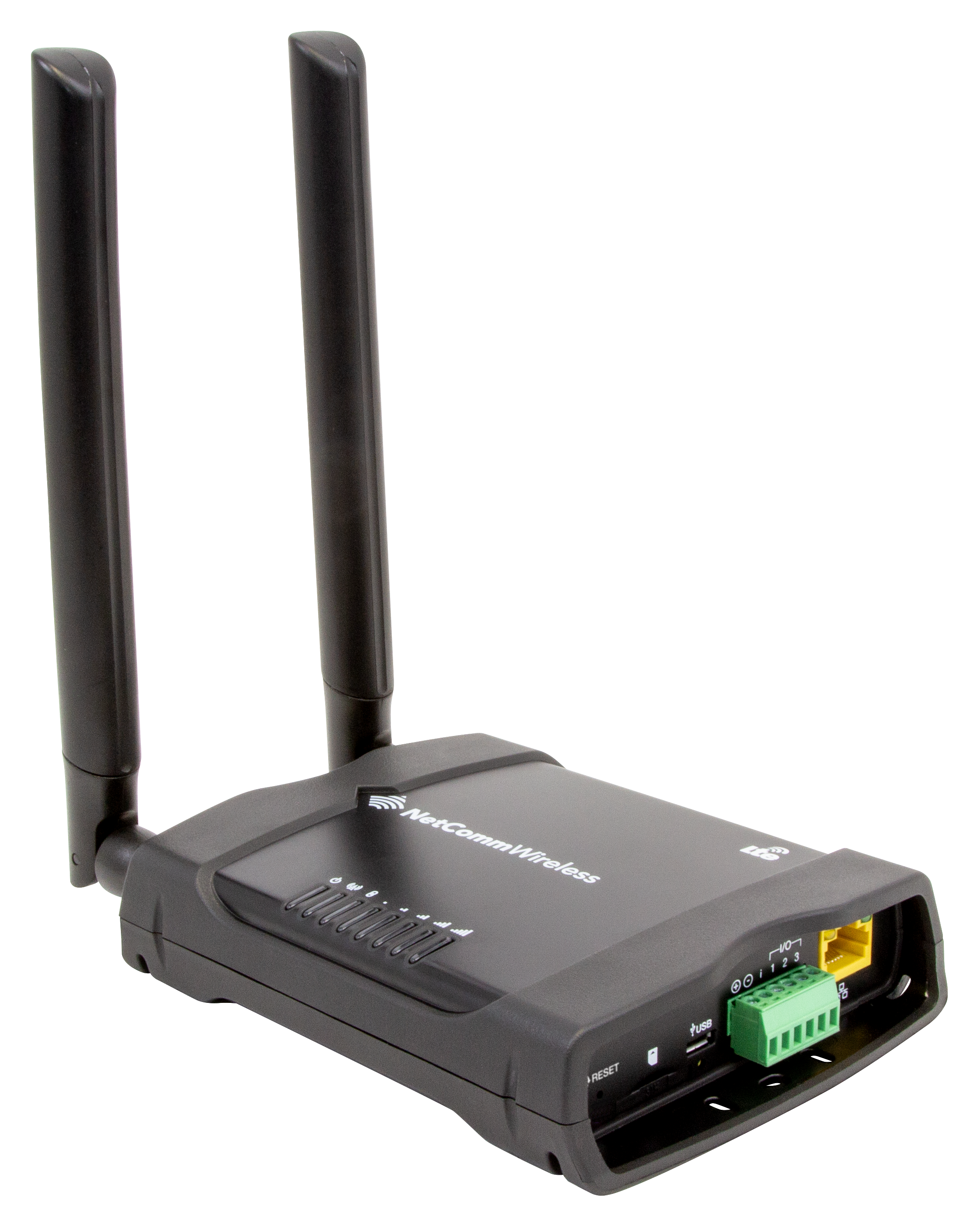

The Lantronix NTC-225 is the USA Verizon variant of the NTC-220 Series 4G LTE Cat 1 industrial IoT router, covering LTE bands B4 and B13. It pairs a 100Base-T Ethernet port and a software-selectable RS232/RS485/RS422 serial port with configurable I/O, ignition sensing, multi-constellation GNSS and a Linux SDK. Its IP41 enclosure is rated from -40°C to +70°C, suiting vehicles and remote sites on the Verizon network.

  • 4G LTE Cat 1 on Verizon bands B4 and B13 (USA)
  • 1 x 100Base-T Ethernet plus DB-9 serial port, software selectable between RS232 and RS485/RS422
  • 3 multipurpose I/O pins, dedicated ignition input and Micro USB 2.0 OTG port
  • GNSS with GPS, GLONASS, BeiDou, Galileo and QZSS; Dual SIM listed for this variant
  • IPSec (up to 5 tunnels), OpenVPN, GRE, PPTP and VRRP failover
  • Linux-based Lantronix OS with SDK for custom C, Shell and LUA applications
  • 8-40V DC input, -40°C to +70°C operation, IP41 enclosure; FCC certificate published
  • Standardise machine connectivity on Verizon with a router built specifically for its LTE bands

The Lantronix NTC-225 (MPN NTC-225-01-01) is the USA Verizon model of the NTC-220 Series, the 4G LTE Category 1 industrial IoT router line formerly known as NetComm Industrial IoT. It operates on LTE bands B4 and B13. Lantronix lists GNSS, Dual SIM and SDK support for this variant and publishes an FCC certificate for the NTC-225. It is built for organisations standardising machine connectivity on Verizon across fleets, utilities and distributed sites.

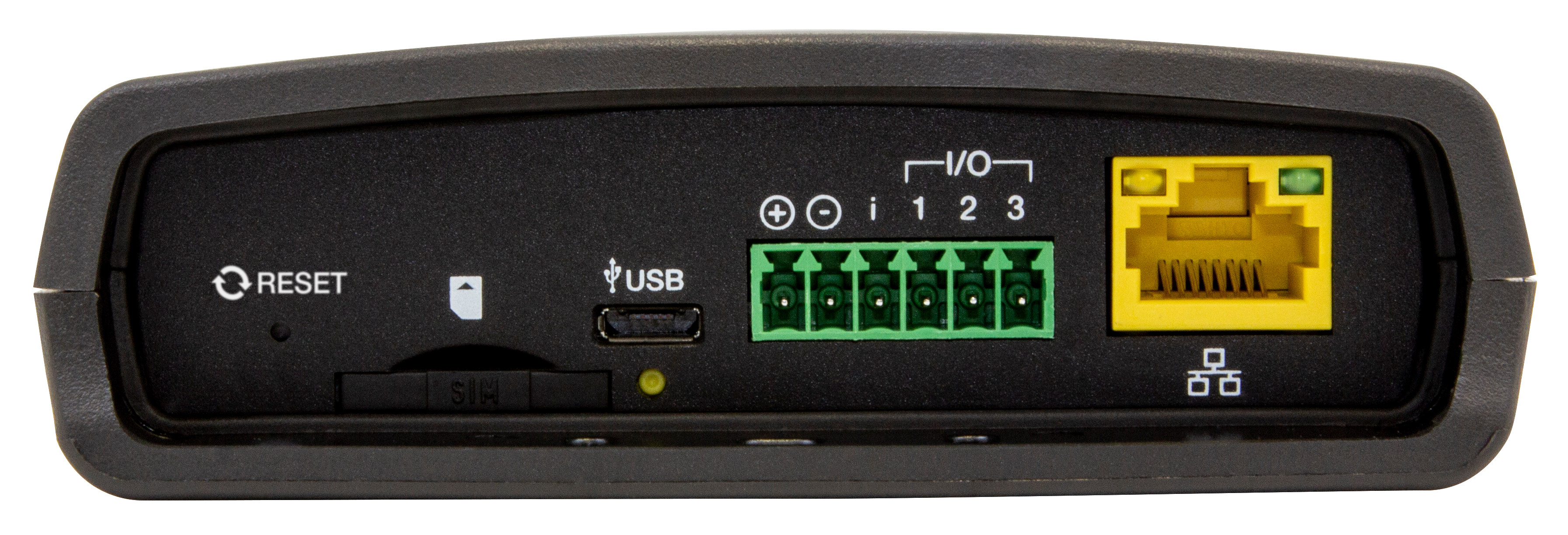

The interface set targets industrial equipment. It has one 100Base-T Ethernet port and a DB-9 female DCE serial port, selectable in software between 9-wire RS232 and RS485/RS422. The I/O terminal block delivers: • Three multipurpose I/O pins with NAMUR sensor input • 0-30V analogue input and digital input • Open collector output • A dedicated ignition input

The Modbus TCP/IP gateway supports up to 247 slaves, and the Data Stream Manager maps serial, SMS and USB ports. Together they let the NTC-225 move data from legacy devices without extra hardware. A Micro USB 2.0 OTG port adds local storage.

Built-in GNSS covers GPS, GLONASS, BeiDou, Galileo and QZSS, and odometer reading is exposed via the web UI, CLI and SDK. The 8-40V DC input carries ISO7637 vehicle protection. IPSec (up to 5 tunnels), OpenVPN, GRE and PPTP secure the link, with VRRP for failover.

Management runs over HTTPS, SSH, SNMP v1/v2/v3, TR-069, LWM2M and SMS, including over-the-air firmware upgrades and multiple stored firmware images. Developers can build C, Shell or LUA applications with the Lantronix SDK. Lantronix provides a product brief, user guide, quick start guide and software developer guide for the series.

Ideal for

  • Verizon-connected fleet and mobile equipment tracking
  • Serial and Modbus SCADA backhaul for water, wastewater and energy sites
  • Remote kiosks, digital signage and smart city controllers
  • Alarm, security and access-control panels needing a secure LTE path
  • Unattended industrial monitoring in outdoor cabinets

Specifications

VPN

Gre
GRE Tunnelling
Pptp
PPTP Client
Ipsec
IPSec tunnel termination (up to 5 tunnels)
Openvpn
OpenVPN (Client, Server and P2P)

GNSS

Constellations
GPS, GLONASS, BeiDou, Galileo, QZSS

General

MPN
NTC-225-01-01
UPC
9317773019209
Brand
Lantronix
Model
NTC-225 – USA (Verizon)
Region
USA – Verizon network
Series
NTC-220 Series 4G LTE IIoT Router
Part Features
GNSS, Dual SIM, SDK Support

Package

Shipping Weight
1.50 lb

Cellular

Odometer
Odometer reading available via Web-UI, CLI and SDK
LTE Bands
LTE Cat-1: B4, B13
Nat Disable
NAT Disable for framed route configuration
Packet Data
Profile managed packet data connections
LTE Category
4G LTE Category 1
SIM Security
SIM Security Management (PIN configuration, enable and disable)
Band Selection
Automatic and manual cellular band selection
Operator Selection
Automatic and manual operator selection
Transparent Bridge
Transparent bridge mode using PPPoE to forward the public WAN IP to a downstream device

Enclosure

IP Rating
IP41 rated

Interfaces

USB
1 x Micro USB 2.0 OTG with 0.5A supply capability
Output
Open collector output
Serial

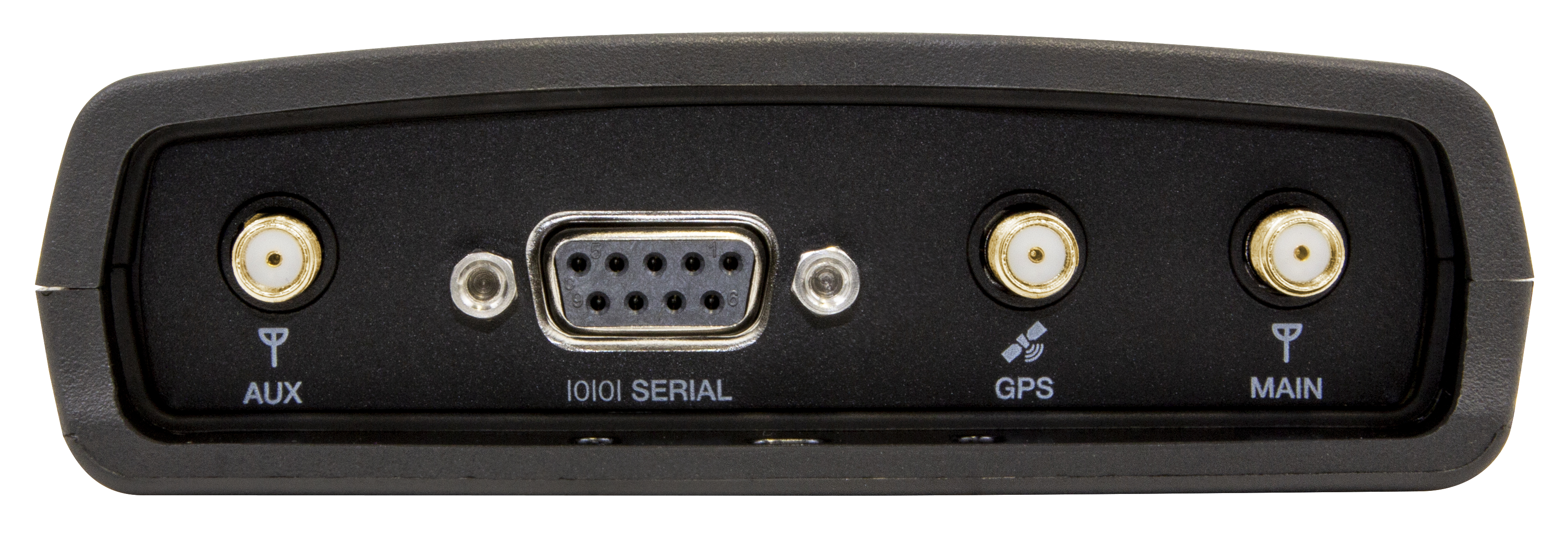

1 x DB-9 female DCE serial port, 9-wire RS232 or RS485/RS422 (software selectable)
I/O Pins
3 x Multipurpose I/O pins (terminal block)
Ethernet
1 x 100Base-T Ethernet RJ45 port
Namur Input
NAMUR (EN 60947-5-6 / IEC 60947-5-6) compatible sensor input
Reset Button
reboot, reboot into recovery mode, reset to factory defaults
Digital Input
Digital input (measurement of voltage above/below threshold)
Analogue Input
Analogue 0V to 30V input
Ignition Input
1 x Ignition digital input
Rs485 Termination
Software controlled termination resistors for RS485

Power Supply

Input Voltage
8-40V DC
Terminal Block
Field terminable screw-type terminal block included
Power Connector
Power input via 6-way termination block receptacle
Power Consumption
6W
Recommended Supply
12V 1.5A DC via terminal block
Vehicle Protection
Vehicle compatible protection on DC input (ISO7637)
Ignition I/O Connector
Dedicated ignition input and 3 x I/O on 6-way connector

Environmental

Operating Humidity
0% to 95%
Storage Temperature
-40°C to +85°C
Operating Temperature
-40°C to +70°C

LED Indicators

Leds
8 x tri-color LEDs
LED Functions
Power, Network, GPS/customizable LED and 5 x Signal Strength
Status Display
Shows connection status, connected network type and connection errors

Network Routing

Vrrp
VRRP for redundant router failover
Routing
Static Routing, RIP (v1/v2), Port Forwarding and DMZ
Dhcp List
DHCP list display in Web-UI
Custom Dns
Custom DNS server definitions
Dhcp Relay
DHCP Relay
Dhcp Server
DHCP Server including address reservation by MAC address
Dynamic Dns
Dynamic DNS
Dhcp Options
Advanced DHCP options (42 NTP, 66 TFTP, 150, 160)
Modbus Frames
Modbus RTU/ASCII frames support
Modbus Gateway
Modbus Server TCP/IP Gateway and Client TCP/IP Agent, up to 247 slaves
Data Stream Manager
Data Stream Manager maps input/output ports (Serial, SMS, USB) with per-tunnel translation

Peak Data Speed

Edge
Max 236.8 Kbps (DL) / Max 236.8 Kbps (UL)
Gprs
Max 85.6 Kbps (DL) / Max 85.6 Kbps (UL)
Umts
Max 384 Kbps (DL) / Max 384 Kbps (UL)
LTE Fdd
Max 10 Mbps (DL) / Max 5 Mbps (UL)
LTE Tdd
Max 8.96 Mbps (DL) / Max 3.1 Mbps (UL)
Speed Note
Peak data speeds are model dependent
DC Hspa Plus
Max 42 Mbps (DL) / Max 5.76 Mbps (UL)

SIM Card Reader

SIM Slots
1 x SIM card slot
SIM Format
Mini USIM/SIM format (2FF)
Soldered SIM
Optional soldered-down SIM (ETSI MFF2 DFN-8 USIM)

Antenna Connectors

GPS Connector
1 x SMA connector for GPS
Cellular Connectors
2 x SMA for 4G/3G/2G (1 x Main, 1 x RX Diversity)

Firmware Management

Multiple Images
Multiple firmware images stored with dynamic install
Upgrade Methods
Local via LAN or Over-The-Air (HTTPS, SNMP, TR-069, LWM2M)
SMS Triggered Upgrade
SMS-triggered firmware download and install from HTTPS

Processor And Storage

RAM
256 MB RAM
Flash
512 MB flash storage
Processor
1 GHz ARM Cortex A8

Antenna Specifications

Vswr
VSWR < 3.0:1
Height
201 mm
Maximum Gain
4.71 dBi (NANT-00001) / 3.24 dBi (NANT-00006)
Frequency Range
698-2700 MHz
Radome Diameter
17 mm

SMS Diagnostics Control

Commands
Execute commands via SMS
Security
Secure SMS management with sender whitelisting and passwords
Status Query
Query status via SMS
Acknowledgements
SMS acknowledgement replies
Remote Configuration
Configure device remotely via SMS

Software Development Kit

API
API to internal Runtime Database for monitoring, configuration and control
Languages
ANSI C, Shell script and LUA
Environment
Open Linux standard development environment
Package Manager
Package manager built into Web-UI
Custom Applications
Develop and install custom software applications

Dimensions Weight Mounting

Weight
221 g (254 g with bracket)
Dimensions
143 mm (L) x 107 mm (W) x 34 mm (D), excluding antenna
Wall Mount
Wall mount in multiple orientations
Din Rail Mount
DIN rail mount via included plastic bracket (TH 35 IEC60715)

Administration Configuration

Cli
SSH Command Line Interface
Ntp
NTP server support for system clock sync
Snmp
SNMP v1/v2/v3 with cellular MIB, config and firmware download
TR 069
TR-069 Client for configuration, backup/restore and firmware upgrade
Web UI
Secure web-based UI (HTTPS)
SMS Client
SMS Client with inbox and outbox
System Logs
System Status and Security Logs
Config Backup
Password-protected configuration backup/restore and device cloning
Ping Watchdog
Ping monitor watchdog (resets connection on repeated ping failure)
Diagnostic Logs
Diagnostic Log Viewer (remote and local)
Onboard User Guide
Device User Guide stored on the device

Documentation Certifications

Documents
NTC-220 Series Product Brief, User Guide, Quick Start Guide and Software Developer Guide
Certifications
FCC certificate (NTC-225), CB certificate, RoHS and REACH

Questions buyers ask

Is the NTC-225 for Verizon?

Yes. The NTC-225 is Lantronix's USA Verizon variant of the NTC-220 Series, supporting LTE Cat 1 bands B4 and B13. For AT&T or T-Mobile, the NTC-224 is the matching model.

Does the NTC-225 support two SIMs?

Lantronix lists Dual SIM among the NTC-225's features. The SIM reader provides one Mini (2FF) SIM slot, with an optional soldered-down ETSI MFF2 SIM.

What industrial protocols does it handle?

It supports Modbus RTU/ASCII, a Modbus TCP/IP gateway and client agent for up to 247 slaves, and a Data Stream Manager. The Data Stream Manager maps serial, SMS and USB ports to network tunnels.

What VPN options are available?

It terminates up to 5 IPSec tunnels. It also supports OpenVPN client, server and P2P, GRE tunnelling and a PPTP client, with VRRP for redundant router failover.

What environments can it operate in?

It operates from -40°C to +70°C with 0% to 95% humidity in an IP41-rated enclosure. It runs on 8-40V DC with ISO7637 vehicle protection.
