Lantronix NTC-501 North America 5G Sub-6 Industrial IoT Router with 2.5GbE

5GMPN NTC-501-01-01
  • 1 × 2.5 Gb+ Ethernet
$399.44

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

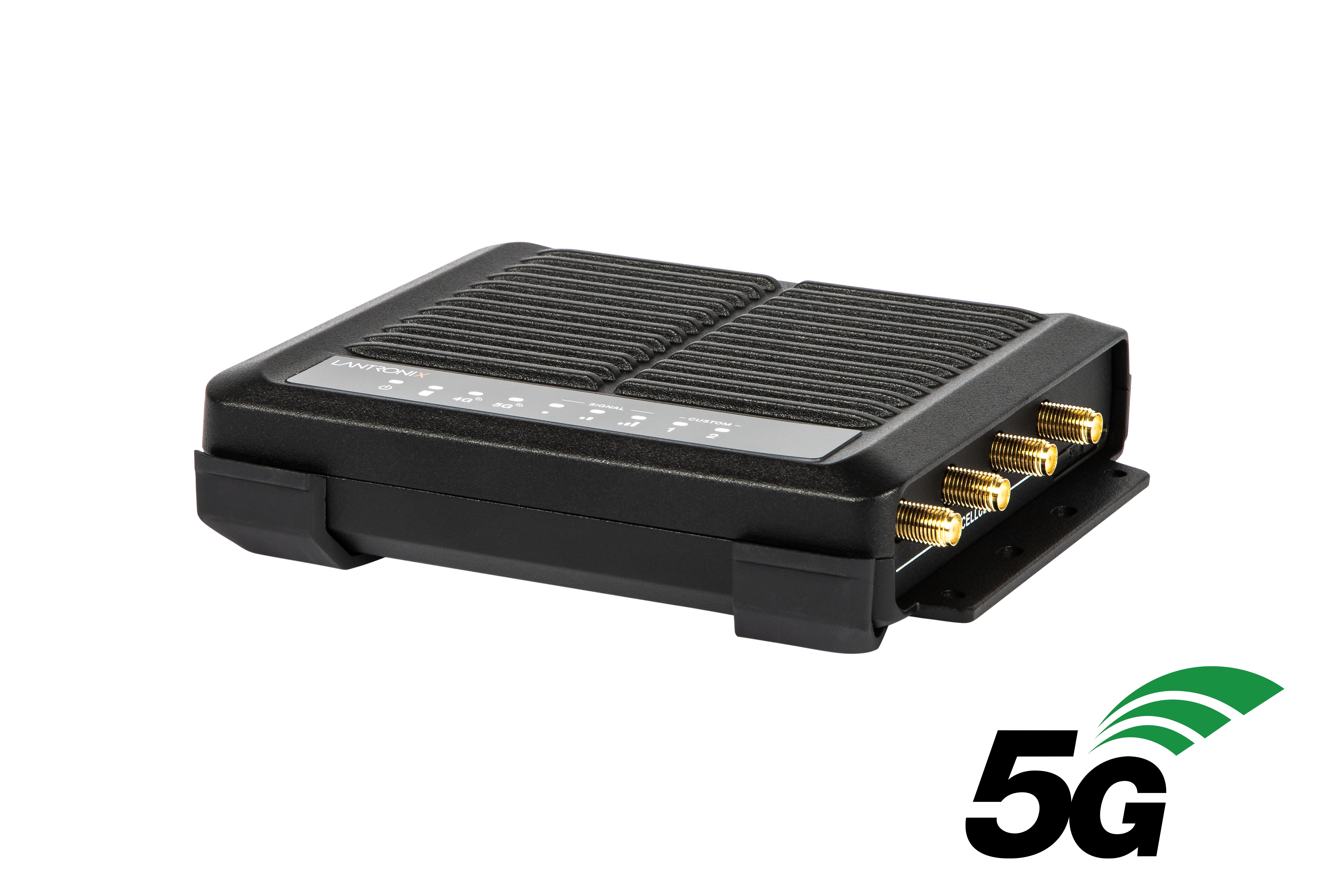

The Lantronix NTC-501 is the North America model of the NTC-500 Series 5G industrial IoT router. It supports 3GPP Release 16 5G in both Standalone and Non-Standalone modes, with dynamic slicing, 4G LTE failover and CBRS band n48 for private networks. The router has a 2.5 Gbps LAN port and four SMA antenna connectors in a compact IP41 metal enclosure. It runs on 8-40V DC and operates from -30°C to +70°C. FCC, ISED and PTCRB certified.

  • 3GPP Release 16 5G NR sub-6 with SA and NSA modes, eMBB and uRLLC, and failover to 4G LTE
  • North America band set: 17 5G NR bands including n48 (CBRS), n71 and n77, plus 20 LTE bands
  • Theoretical peak 2.5 Gbps DL (5G NSA), 900 Mbps UL (5G SA); LTE Cat 19 DL / Cat 18 UL
  • 1 x 2.5 Gbps LAN port and 4 x SMA connectors for external cellular antennas
  • 5G Dynamic Slicing, 5G/LTE cell lock, up to 6 APNs and up to 8 bearers and traffic classes
  • IPSec (up to 5 tunnels), GRE, OpenVPN, VLANs, VRRP and IPS firewall
  • Rugged IP41 metal enclosure, -30°C to +70°C operation, 8-40V DC input
  • Deploy on major North American networks with FCC, ISED and PTCRB certification plus AT&T, Bell, T-Mobile and US Cellular approvals

The Lantronix NTC-501 (part number NTC-501-01-01) is the North American variant of the NTC-500 Series, a rugged 5G router for Ethernet-based industrial, transportation and smart-city applications. Lantronix lists it for AT&T, Verizon, T-Mobile, Bell and UScellular networks. It carries FCC, ISED and PTCRB certification, along with AT&T, Bell, T-Mobile and US Cellular approvals. It covers 5G NR bands n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n71, n77 and n78, plus 20 LTE bands.

The router is built on 3GPP Release 16 and supports eMBB and uRLLC. It runs in 5G SA and NSA modes with failover to 4G. Theoretical peak speeds are 2.4 Gbps down / 900 Mbps up on 5G SA, 2.5 Gbps / 550 Mbps on 5G NSA and 1.6 Gbps / 200 Mbps on LTE Cat 19/18. 5G Dynamic Slicing, cell lock, up to 6 APNs and up to 8 bearers and traffic classes give carriers and integrators fine control over quality of service. Support for n48 CBRS makes the NTC-501 a practical choice for private 5G networks in industrial, mining and construction sites.

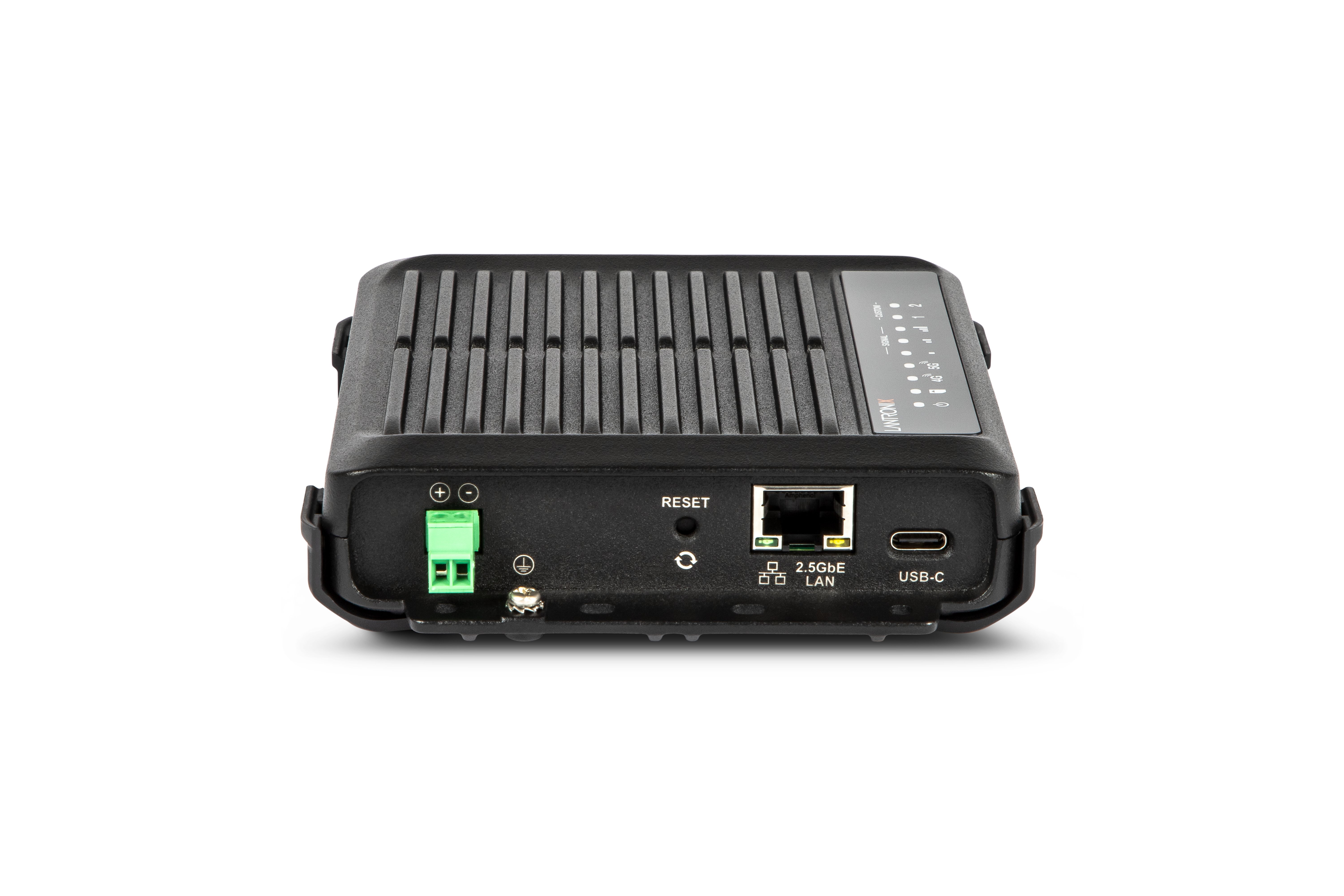

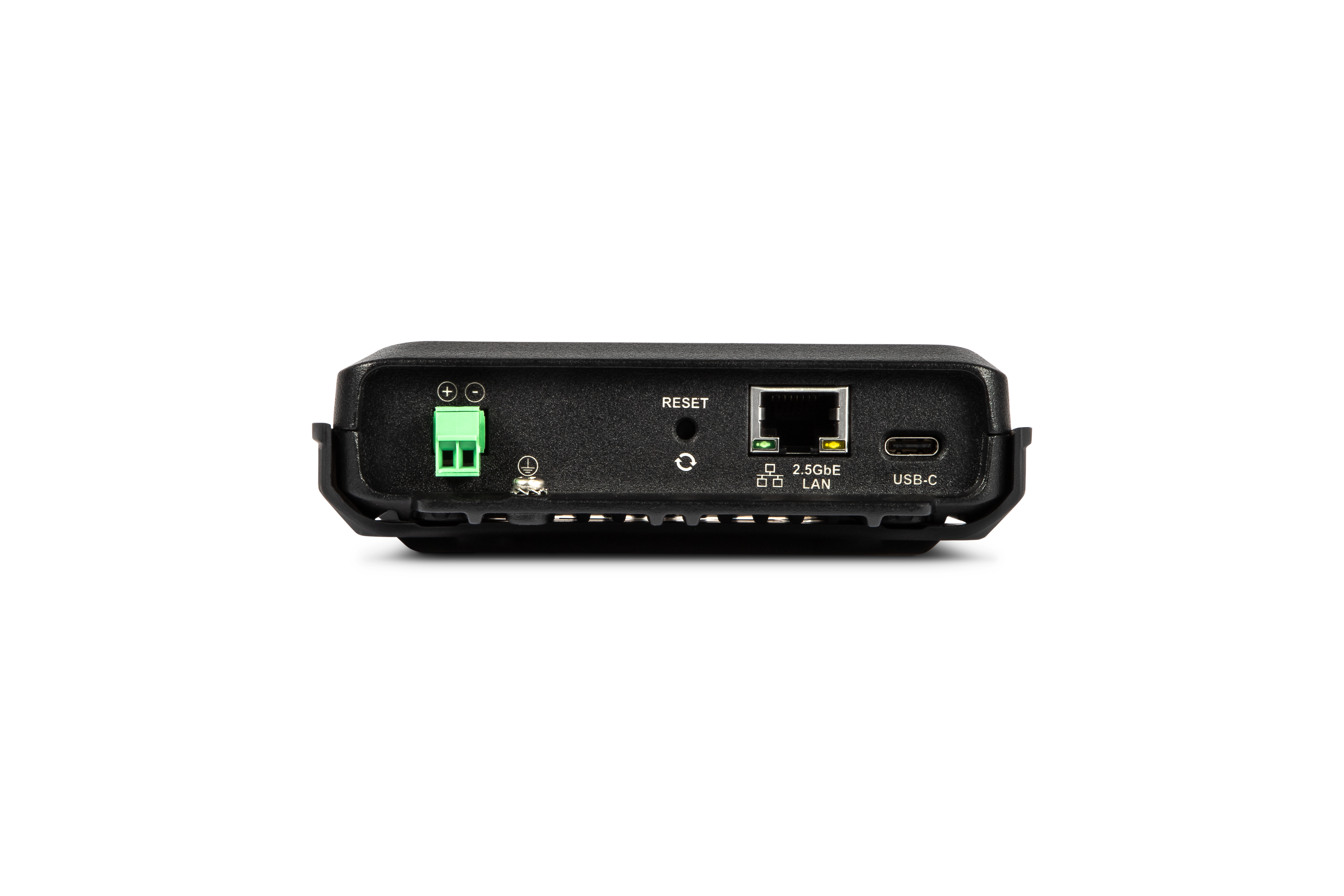

On the wired side, a single 2.5 Gbps LAN port carries that throughput to downstream equipment. Four SMA connectors accept external cellular antennas. Routing covers static, RIP v2, VRRP failover, VLAN management and an IPS firewall against DoS attacks. VPN options are IPSec (up to 5 tunnels), GRE and OpenVPN.

You can manage the router through HTTPS web UI, SSH, SNMP v3, TR-069, LWM2M and SMS. MQTT reporting to Microsoft Azure and AWS, Cumulocity support and Percepxion readiness cover cloud and fleet management. The metal enclosure measures 143.5 x 110.5 x 30 mm and weighs 445 g. It takes 8-40V DC through a terminal block and mounts on a wall or on a DIN rail using the included bracket. Lantronix specifies a 2-year warranty.

Ideal for

  • Private 5G networks on CBRS (n48) in factories, mines and construction sites
  • Primary or failover 5G WAN for industrial automation and SCADA networks
  • Traffic control, digital signage and smart-city cabinets
  • Transportation and in-vehicle Ethernet connectivity
  • Enterprise branch or kiosk connectivity that needs slicing-based QoS

Specifications

VPN

Gre
GRE tunnelling
Ipsec
IPSec tunnel termination (up to 5 tunnels)
Openvpn
OpenVPN (client, server and P2P)

Power

DC Input
8-40V DC
Input Connector
Power input via 2-way termination block receptacle
Recommended Supply
Recommended DC supply via terminal block: 12V 1.5A
Field Terminal Block
Field-terminable screw-type terminal block included

General

MPN
NTC-501-01-01
UPC
9317773021981
Brand
Lantronix
Model
NTC-501 – North America (AT&T, Verizon, T-Mobile, Bell, USCellular)
Region
North America
Series
NTC-500 Series 5G Industrial IoT Router
Warranty
2 years
Certifications
FCC, ISED, PTCRB; AT&T, Bell, T-Mobile, US Cellular approvals
Management Platform
Percepxion ready

Package

Contents
1 x NTC-501 router, 1 x two-way terminal block, 1 x 1 m Ethernet cable, 1 x DIN rail mounting bracket, 1 x welcome card

Cellular

Bearers
Up to 8 bearers and traffic classes
Cell Lock
5G and LTE cell lock
Packet Data
Profile managed packet data connections
SIM Security
SIM security management (PIN configuration, enable and disable)
SIM Switching
Configurable automatic SIM switching between external and optional internal SIM
Band Selection
Automatic and manual cellular band selection
IP Passthrough
Data profile IP passthrough
Profile Routing
Profile routing
Apn Configurations
Up to 6 APN configurations
Operator Selection
Automatic and manual operator selection

Physical

Weight
445 g
Dimensions
143.5 mm (D) x 110.5 mm (W) x 30 mm (H), excluding antennas
Wall Mount
Wall mount in multiple orientations via embedded mounting holes
Din Rail Mount
DIN rail mount via plastic bracket included

Enclosure

IP Rating
IP41 rated, industrial-grade metal enclosure

Interfaces

LAN
1 x 2.5 Gbps LAN port
USB
1 x USB-C port (debug port)

SMS Control

Security
Secure SMS management using sender whitelisting and password management
SMS Client
SMS client (send/receive) with inbox and outbox
SMS Over Sgs
SMS over SGs supported
Status Queries
Query status via SMS (signal strength, WAN IP, uptime and more)
Remote Commands
Execute commands via SMS (reboot, reset to defaults, go offline and more)
Acknowledgements
SMS acknowledgement replies for queries and commands
Remote Configuration
Configure via SMS (APN, authentication settings and more)

Environmental

Operating Humidity
0-95%
Storage Temperature
-30°C to +85°C
Operating Temperature
-30°C to +70°C

Administration

Ntp
NTP server support for system clock sync
Mqtt
MQTT client for data reporting to Microsoft Azure and AWS
Snmp
SNMP v3 including cellular-specific MIB, config and firmware download
Web UI
Secure web-based user interface (HTTPS) for full status and configuration
Ssh Cli
SSH command line interface
Cumulocity
Cumulocity support
Field Test
Field test information for LTE and 5G
System Logs
System status and security logs
Tr069 Lwm2m
TR-069 and LWM2M for remote configuration, backup/restore and firmware upgrade
Config Backup
Password-protected configuration backup/restore for cloning
Ping Watchdog
Ping monitor watchdog (resets connection on repeated ping failure)
Site Location
Site and location settings
Diagnostic Logs
Diagnostic log viewer (remote and local)

Cellular Bands

NR Bands
5G NR (Rel. 16 Sub-6): n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n71, n77, n78
LTE Bands
4G LTE: B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B38, B41, B42, B43, B46, B48, B66, B71

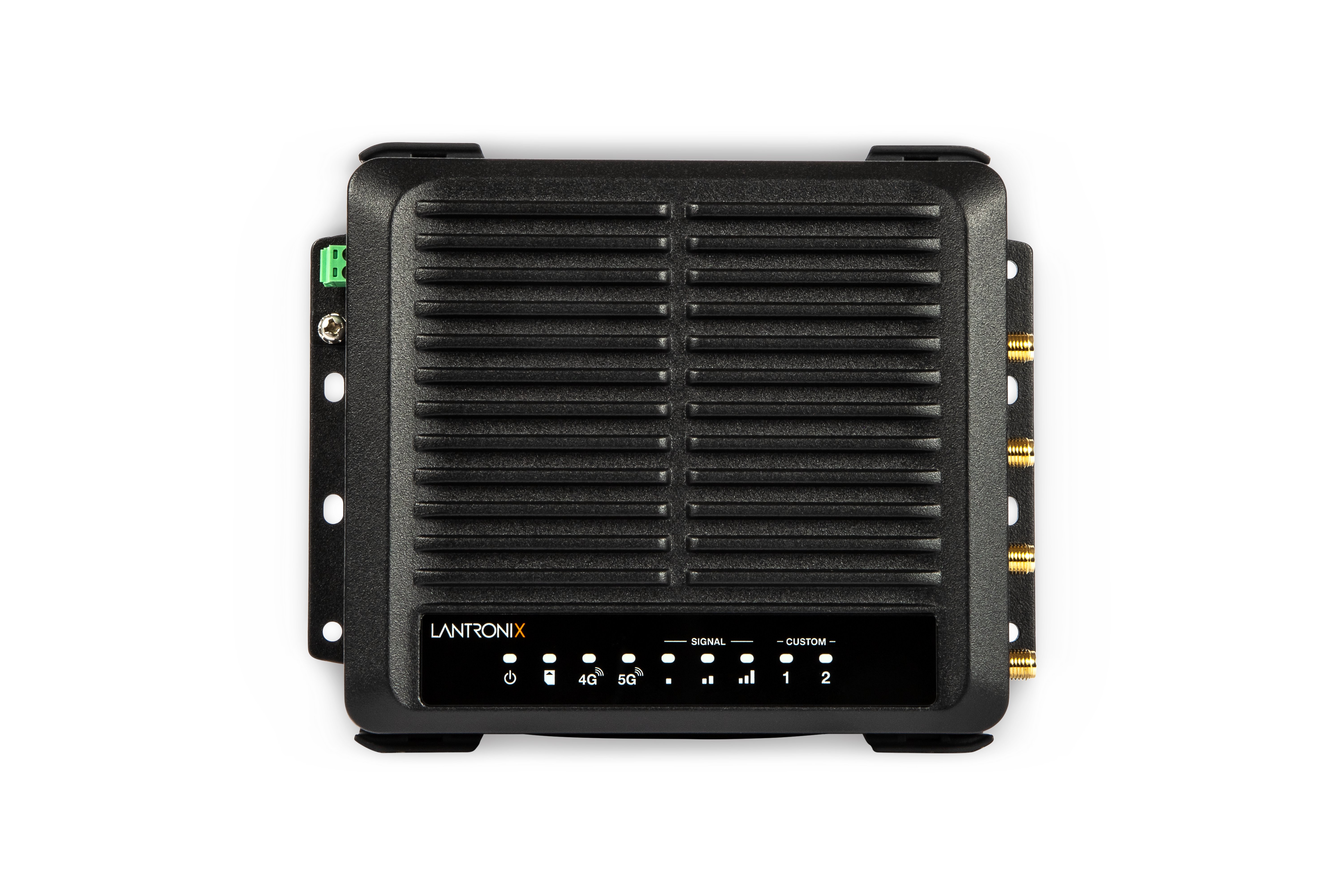

LED Indicators

SIM
1 x SIM
Power
1 x Power
Custom
2 x Custom indicators
LED 4G
1 x 4G
LED 5G
1 x 5G
Signal Strength
3 x Signal strength

Device Category

NR Uplink
MIMO 2x2 single carrier up to 100 MHz, 256QAM
LTE Uplink
Cat 18, 2CA single TX, 256QAM
Technology
5G NR 3GPP Release 16, eMBB & uRLLC; SA/NSA with failover to 4G
NR Downlink
MIMO 4x4 dual carrier up to 120 MHz, 256QAM
LTE Downlink
Cat 19, 5CA MIMO 4x4, 256QAM

SIM Card Reader

SIM Slot
1 x Mini USIM/SIM format (2FF) SIM card slot
Embedded SIM
Optional soldered-down SIM (ETSI MFF2 DFN-8 USIM)

Peak Data Speeds

LTE
1.6 Gbps (DL) / 200 Mbps (UL), theoretical
NR SA Sub6
2.4 Gbps (DL) / 900 Mbps (UL), theoretical
NR Nsa Sub6
2.5 Gbps (DL) / 550 Mbps (UL), theoretical

Antenna Connectors

Cellular Sma

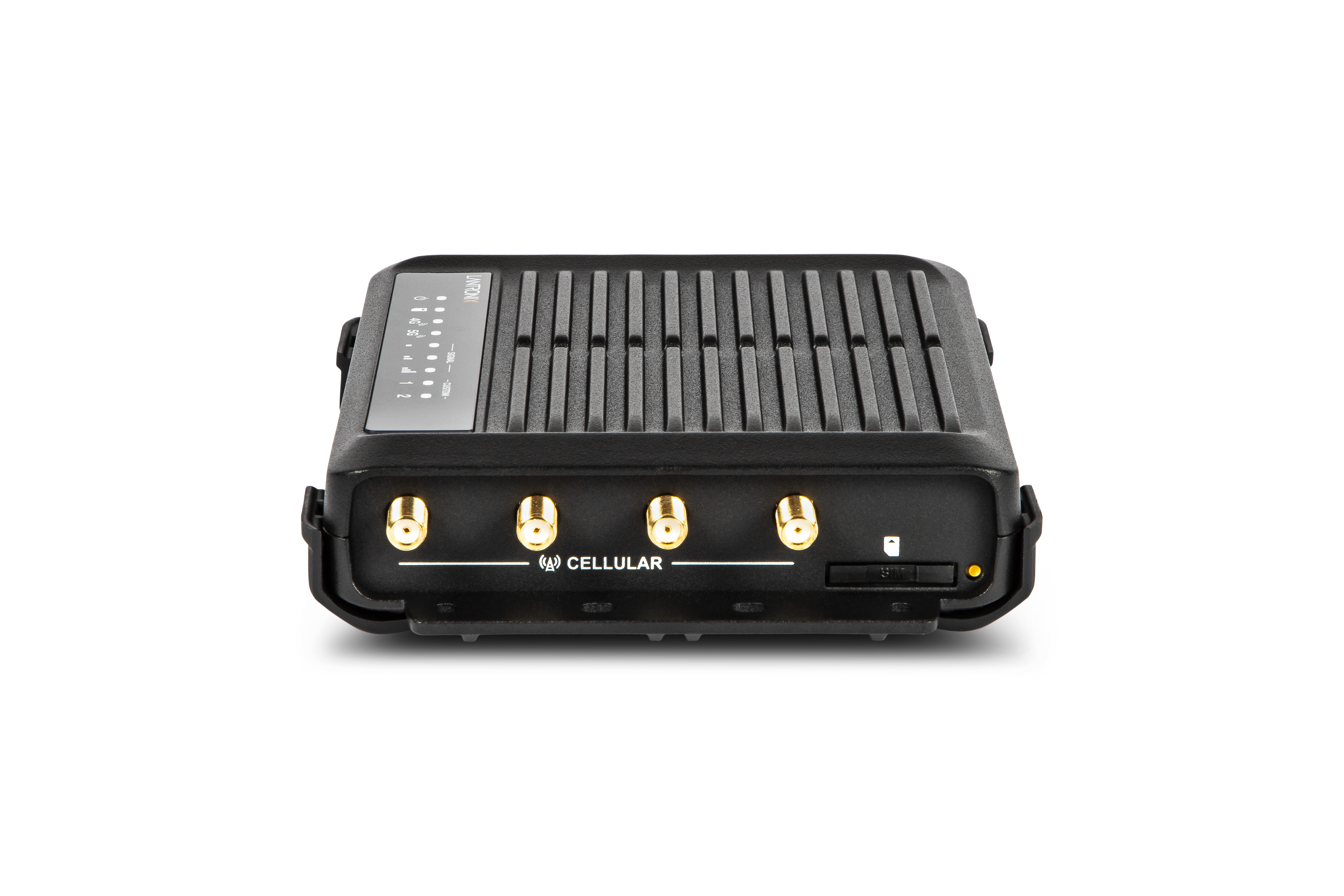

4 x SMA cellular ports for external cellular antennas

Firmware Management

SMS Triggered
SMS-triggered firmware upgrade (download and install from HTTPS)
Upgrade Methods
Firmware upgrade locally via LAN or over-the-air (HTTPS, SNMP, TR-069, LWM2M)

Network And Routing

Vlan
VLAN management
Vrrp
VRRP for redundant router failover
Routing
Static routing, RIP (v2), port forwarding and DMZ
Dhcp List
DHCP list display in Web-UI
Custom Dns
Custom DNS server definitions
Dhcp Relay
DHCP relay
Dhcp Server
DHCP server including address reservation by MAC address
Dynamic Dns
Dynamic DNS
Dhcp Options
Advanced DHCP options (Option 42 NTP, Option 66 TFTP)
Ips Firewall
IPS firewall to protect against DoS attacks
Network Slicing
5G Dynamic Slicing
Service Assurance
Network service assurance

Questions buyers ask

Which carriers is the NTC-501 intended for?

Lantronix lists the NTC-501 as its North America model for AT&T, Verizon, T-Mobile, Bell and UScellular. It holds FCC, ISED and PTCRB certification plus AT&T, Bell, T-Mobile and US Cellular approvals.

Does it support 5G Standalone?

Yes. It supports 3GPP Release 16 5G in both Standalone (SA) and Non-Standalone (NSA) modes, with 5G Dynamic Slicing and failover to 4G LTE.

Can I use it on a private CBRS network?

Yes. The NTC-501 supports band n48 (CBRS), and Lantronix positions the NTC-500 Series for private 5G networks in industrial, mining and construction settings.

What is in the box?

The box contains the router, a two-way terminal block, a 1 m Ethernet cable, a DIN rail mounting bracket and a welcome card. The router has four SMA ports for external cellular antennas.

What power does it need?

It accepts 8-40V DC through a 2-way terminal block. Lantronix recommends a 12V 1.5A supply.
