Lantronix NTC-551 5G Industrial IoT Gateway Router with Wi-Fi 6 (North America)

5GMPN NTC-551-01-01
  • Wi-Fi 6
  • 5+ × 2.5 Gb+ Ethernet
  • GPS/GNSS
$599.77

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Lantronix NTC-551-01-01 is the North American variant of the NTC-550 Series ruggedized 5G Industrial IoT Gateway. It pairs a 3GPP Release 16 sub-6 GHz 5G modem (SA and NSA, with fallback to 4G LTE) with Wi-Fi 6, one 2.5 Gbps WAN/LAN port and four 1 Gbps LAN ports. A configurable RS232/RS422/RS485 serial port, GPIOs, ignition sensing and GNSS suit it to factories, utilities, surveillance and vehicles. Private 5G support includes CBRS band n48.

  • 3GPP Release 16 5G NR sub-6 GHz with SA, NSA and Dynamic 5G Slicing, with fallback to 4G LTE
  • North American bands: 17 5G NR bands including CBRS n48 and 20 LTE bands

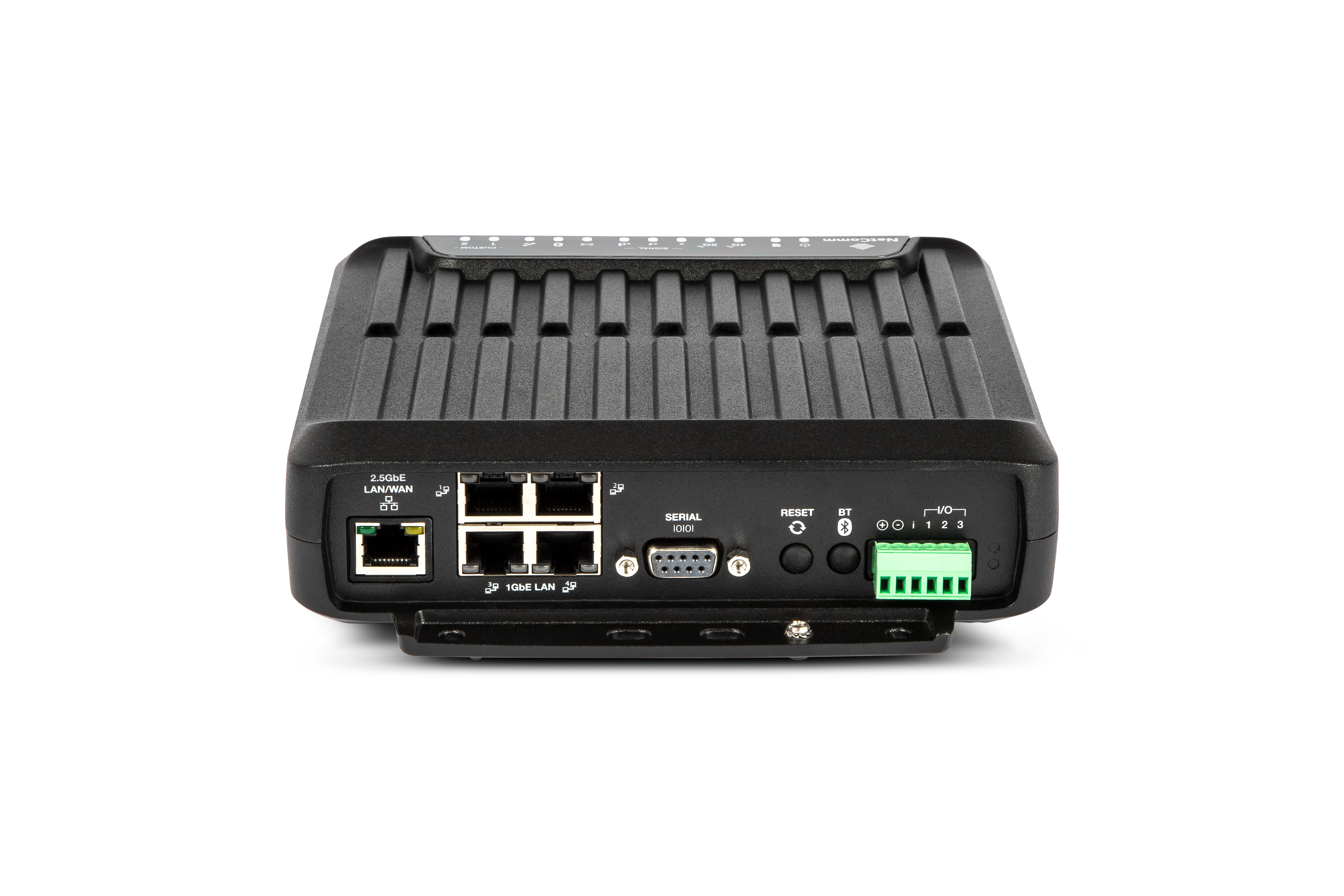

  • 1 x 2.5 Gbps LAN/WAN port and 4 x 1 Gbps LAN ports
  • Dual-band Wi-Fi 6 (802.11ax) with 2x2 MU-MIMO, WPA3 and AP, STA or AP + STA modes
  • Configurable RS232/RS422/RS485 serial port, 3 GPIOs, ignition sensing, USB-C and microSD
  • FAKRA antenna connectors: 4 cellular, 1 GPS, 2 Wi-Fi; GPS and GLONASS positioning
  • IP41 metal enclosure rated -30°C to +70°C with wall and DIN rail mounting
  • Peak 5G SA speeds of 2.4 Gbps down and 900 Mbps up support video surveillance and high-volume site data

The Lantronix NTC-551-01-01 is the North America model of the NTC-550 Series, a rugged Industrial IoT Gateway built for smart factories, industrial automation, remote monitoring, security and surveillance, and in-vehicle connectivity. Its 3GPP Release 16 sub-6 GHz 5G modem supports Standalone and Non-Standalone operation, Dynamic 5G Slicing and fallback to 4G LTE, with peak speeds of up to 2.4 Gbps down and 900 Mbps up on 5G SA. The North American band set covers 17 5G NR bands, including n41, n71, n77 and CBRS n48 for private 5G networks, plus 20 LTE bands.

On the wired side it provides one 2.5 Gbps LAN/WAN port and four 1 Gbps LAN ports, alongside dual-band Wi-Fi 6 (802.11ax) with 2x2 MU-MIMO and WPA3. Industrial interfaces include a configurable RS232/RS422/RS485 serial port, three configurable GPIOs, ignition sensing, USB-C and a microSD slot. Modbus TCP and RTU/ASCII gateway functions and a Data Stream Manager bridge serial equipment to IP networks.

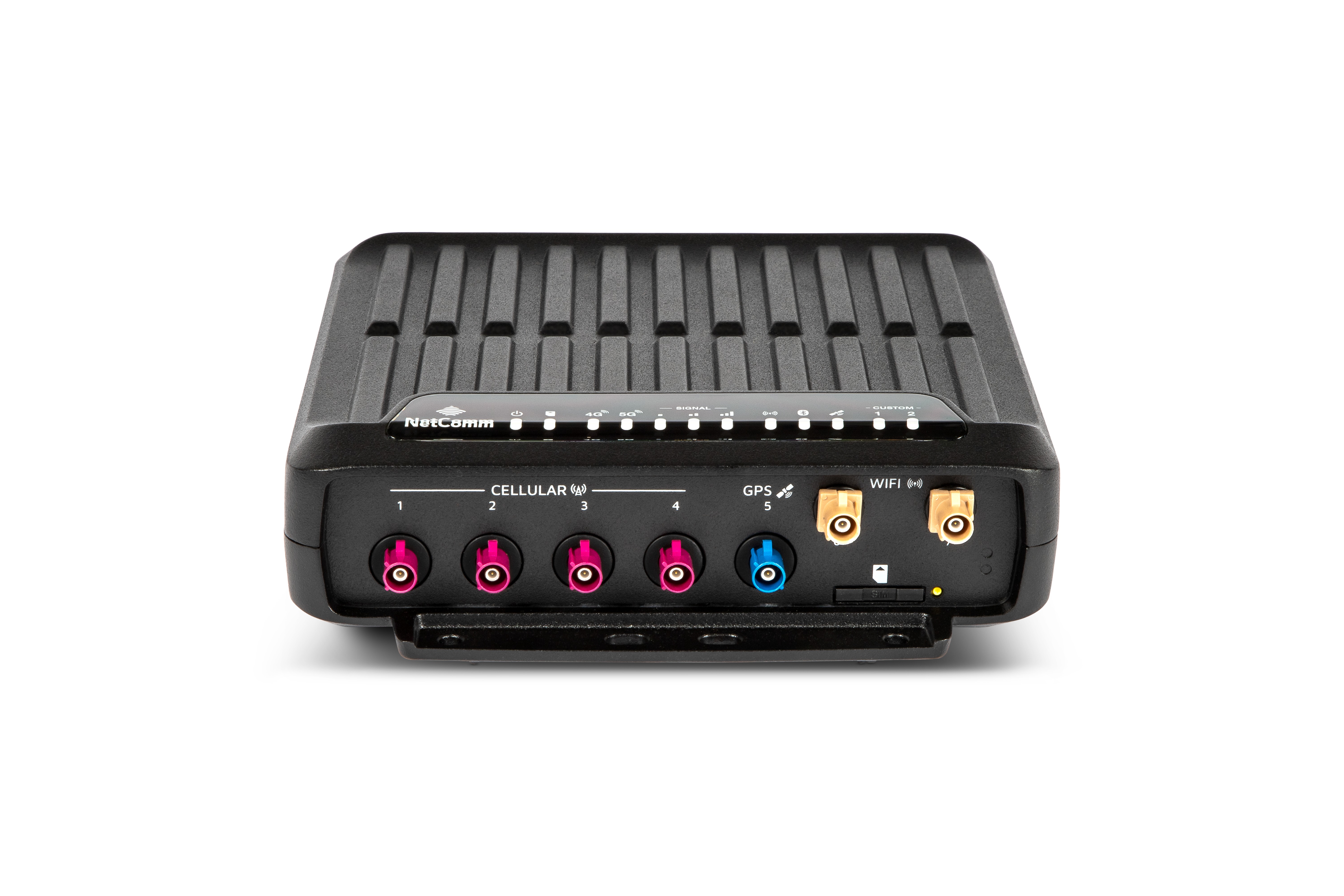

All antennas attach through FAKRA connectors: four cellular, one active GPS and two Wi-Fi, giving secure, vibration-resistant, click-in connections. A metal IP41-rated enclosure operates from -30°C to +70°C and mounts on a wall in multiple orientations or on a DIN rail using the clips in the box. For vehicles, a low-power deep sleep mode draws less than 5 mA at 12 V.

Remote management is built in: Percepxion ready, with TR-069, LWM2M, SNMP v3, MQTT to Azure and AWS, Cumulocity support, SSH CLI, HTTPS web UI and SMS control. Routing features include VRRP, WAN failover across cellular, Ethernet and Wi-Fi client, VLANs, an IPS firewall, and IPSec (up to 5 tunnels), GRE and OpenVPN. Lantronix backs the NTC-550 Series with a 2-year warranty.

Ideal for

  • Smart factory and industrial automation connectivity for PLCs, sensors and Modbus equipment
  • Private 5G deployments on CBRS band n48 in energy, logistics and industrial sites
  • Security and surveillance backhaul for remote cameras and facilities
  • In-vehicle Wi-Fi and connectivity for fleet and transportation systems
  • Remote monitoring of utility, energy and warehousing assets

Specifications

GPS

GNSS Systems
GPS, GLONASS

VPN

Gre
GRE Tunnelling
Ipsec
IPSec Tunnel Termination (up to 5 tunnels)
Openvpn
OpenVPN (Client, Server, P2P)

Wi-Fi

MIMO
2x2 Multi-User MIMO
Frequency
2.4 GHz / 5 GHz
Encryption
WPA3
Modulation
CCK/BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM
Wlan Protocol
Wi-Fi 6 (IEEE 802.11a/b/g/n/ac/ax)
Operating Mode
AP, STA, AP + STA
Channel Bandwidth 5ghz
20/40/80 MHz at 5 GHz
Dual Band Simultaneous
Dual Band Simultaneous (DBS)
Channel Bandwidth 2 4ghz
20/40 MHz at 2.4 GHz

Power

Deep Sleep
<5 mA at 12 V

General

MPN
NTC-551-01-01
UPC
9317773021967
Brand
Lantronix
Model
NTC-551
Region
North America
Series
NTC-550 Series
Product Type
5G Industrial IoT Gateway
Management Platform
Percepxion Ready

Package

Router
1 x NTC-551 Router
Din Rail Kit
1 x DIN Rail Mounting Kit
Welcome Card
1 x Welcome Card
Ethernet Cable
1 x 1 m Ethernet Cable
Terminal Block
1 x Six-Way Terminal Block

Cellular

Cell Lock
5G and LTE Cell Lock
Packet Data
Profile Managed Packet Data Connections
SIM Security
SIM PIN Management
SIM Switching
Automatic SIM Switching (External/Internal)
Band Selection
Automatic/Manual Band Selection
IP Passthrough
Data Profile IP Passthrough
Profile Routing
Profile Routing
Apn Configurations
Up to 6 APN Configurations
Operator Selection
Automatic/Manual Operator Selection
Bearers Traffic Classes
Up to 8 Bearers and Traffic Classes

Physical

Weight
1.050 kg
Dimensions
193.3 x 175 x 51.7 mm (excluding antennas)
Wall Mount
Wall Mount, Multiple Orientations
Din Rail Mount
DIN Rail Mount (Clips Included)
Shipping Weight
2.32 lb

Warranty

Warranty
2 Years

Interfaces

USB
1 x USB-C Port
Gpio
3 x Configurable GPIOs
Serial
1 x Configurable Serial Port (RS232/RS422/RS485)
Microsd
1 x microSD Card Slot
LAN Ports
4 x 1 Gbps LAN Ports
LAN WAN Port
1 x 2.5 Gbps LAN/WAN Port
Ignition Sensing
1 x Ignition Sensing Port

Environmental

Enclosure Rating
IP41 Rated Metal Enclosure
Operating Humidity
0-95%
Storage Temperature
-30°C to +85°C
Operating Temperature
-30°C to +70°C
Environmental Documentation
RoHS and REACH Environmental Certs

Administration

Ntp
NTP Time Sync
Mqtt
MQTT Client (Azure, AWS)
Snmp
SNMP v3 with Cellular MIB
Web UI
HTTPS Web UI
Ssh Cli
SSH CLI
Cumulocity
Cumulocity Support
Field Test
LTE and 5G Field Test Info
SMS Client
SMS Client with Inbox/Outbox
System Logs
System Status and Security Logs
Tr069 Lwm2m
TR-069 and LWM2M
SMS Commands
SMS Commands (Reboot, Reset)
SMS Over Sgs
SMS over SGs
SMS Security
SMS Whitelisting and Password Security
Ping Watchdog
Ping Monitor Watchdog
Site Location
Site and Location Settings
Diagnostic Log
Remote and Local Diagnostic Log
SMS Diagnostics
SMS Diagnostics and Control
SMS Status Query
SMS Status Queries
SMS Remote Config
SMS Remote Configuration
SMS Acknowledgement
SMS Acknowledgement Replies
Config Backup Restore
Password-Protected Config Backup/Restore and Cloning

Cellular Bands

5G Release
3GPP Rel 16 Sub-6, SA/NSA
5G NR Bands
n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n71, n77, n78
4G LTE Bands
B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B38, B41, B42, B43, B46, B48, B66, B71

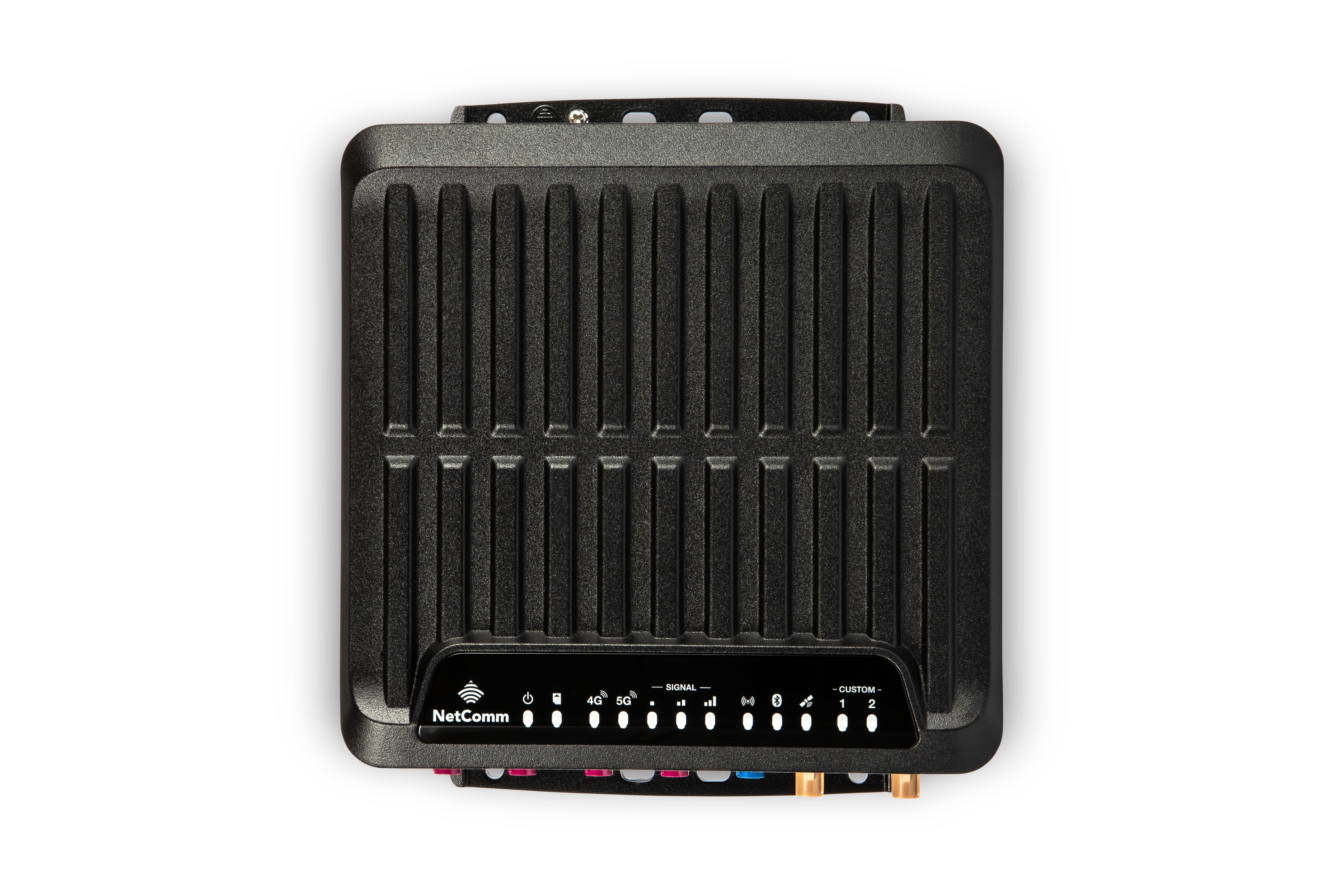

LED Indicators

4G
1 x 4G
5G
1 x 5G
GPS
1 x GPS
SIM
1 x SIM
Wi-Fi
1 x Wi-Fi
Power
1 x Power
Custom
2 x Custom Indicators
Bluetooth
1 x Bluetooth
Signal Strength
3 x Signal Strength

Device Category

LTE Uplink
Cat 18, 2CA Single TX, 256QAM
5G NR Uplink
MIMO 2x2 Single Carrier up to 100MHz, 256QAM
LTE Downlink
Cat 19, 5CA MIMO 4x4, 256QAM
5G NR Downlink
MIMO 4x4 Dual Carrier up to 120MHz, 256QAM

Network Routing

Vlan
VLAN Management
Vrrp
VRRP Redundant Router Failover
Routing
Static Routing, RIP v2, Port Forwarding, DMZ
Firewall
IPS Firewall (DoS Protection)
Dhcp List
DHCP List in Web UI
5G Slicing
5G Dynamic Slicing
Custom Dns
Custom DNS Servers
Dhcp Server
DHCP Server with MAC Reservation
Dynamic Dns
Dynamic DNS
Dhcp Options
DHCP Options 42 (NTP) and 66 (TFTP)
WAN Failover
Cellular, Ethernet, Wi-Fi Client
Modbus Frames
Modbus RTU/ASCII
Modbus Gateway
Modbus TCP/IP and Serial Gateway
Service Assurance
Network Service Assurance
Data Stream Manager
Data Stream Manager

SIM Card Reader

SIM Slot
1 x Mini SIM (2FF) Slot
Embedded SIM
Optional Soldered-Down MFF2 SIM

Peak Data Speeds

4G LTE
1.6 Gbps DL / 200 Mbps UL
5G NR SA Sub6
2.4 Gbps DL / 900 Mbps UL
5G NR Nsa Sub6
2.5 Gbps DL / 550 Mbps UL

Antenna Connectors

GPS
1x GPS (Signal Blue) for active external antenna
Wi-Fi
2x Wi-Fi (Beige) for external Wi-Fi antennas
Cellular
4x Cellular (Claret Violet) for external cellular antennas
Connector Type
FAKRA Connectors

Firmware Management

Firmware Upgrade
Local or OTA Firmware Upgrade (HTTPS, SNMP, TR-069, LWM2M)
SMS Triggered Upgrade
SMS-Triggered Firmware Upgrade

Questions buyers ask

Which region is the NTC-551-01-01 designed for?

It is the North America variant of the NTC-550 Series, with 5G NR bands n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n71, n77, n78 and 20 LTE bands.

Does it support private 5G networks?

Yes. Lantronix positions the NTC-550 Series for private 5G networks, and the NTC-551 supports CBRS band n48 for the USA.

What wired and industrial interfaces does it have?

One 2.5 Gbps LAN/WAN port, four 1 Gbps LAN ports, USB-C, a configurable RS232/RS422/RS485 serial port, three configurable GPIOs, an ignition sensing port and a microSD slot.

How are antennas connected?

Through FAKRA connectors: four for external cellular antennas, one for an active external GPS antenna and two for external Wi-Fi antennas.

What comes in the box?

The router, a six-way terminal block, a 1 m Ethernet cable, a DIN rail mounting kit and a welcome card.
