Lantronix NTC-552 5G Industrial IoT Gateway Router with Wi-Fi 6 (EMEA, APAC excl. Japan & China)

5GMPN NTC-552-01-01
  • Wi-Fi 6
  • 5+ × 2.5 Gb+ Ethernet
  • GPS/GNSS
$599.77

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Lantronix NTC-552-01-01 is the EMEA and APAC (excluding Japan and China) variant of the NTC-550 Series ruggedized 5G Industrial IoT Gateway. It is built for international band plans rather than North American networks. A 3GPP Release 16 sub-6 GHz 5G modem with SA, NSA and fallback to 4G LTE is paired with Wi-Fi 6, one 2.5 Gbps WAN/LAN port, four 1 Gbps LAN ports, a multi-standard serial port, GPIOs, ignition sensing and GNSS.

  • 3GPP Release 16 5G NR sub-6 GHz with SA, NSA and Dynamic 5G Slicing, with fallback to 4G LTE
  • EMEA and APAC (excl. Japan and China) bands: 14 5G NR bands including n77/n78 and 13 LTE bands

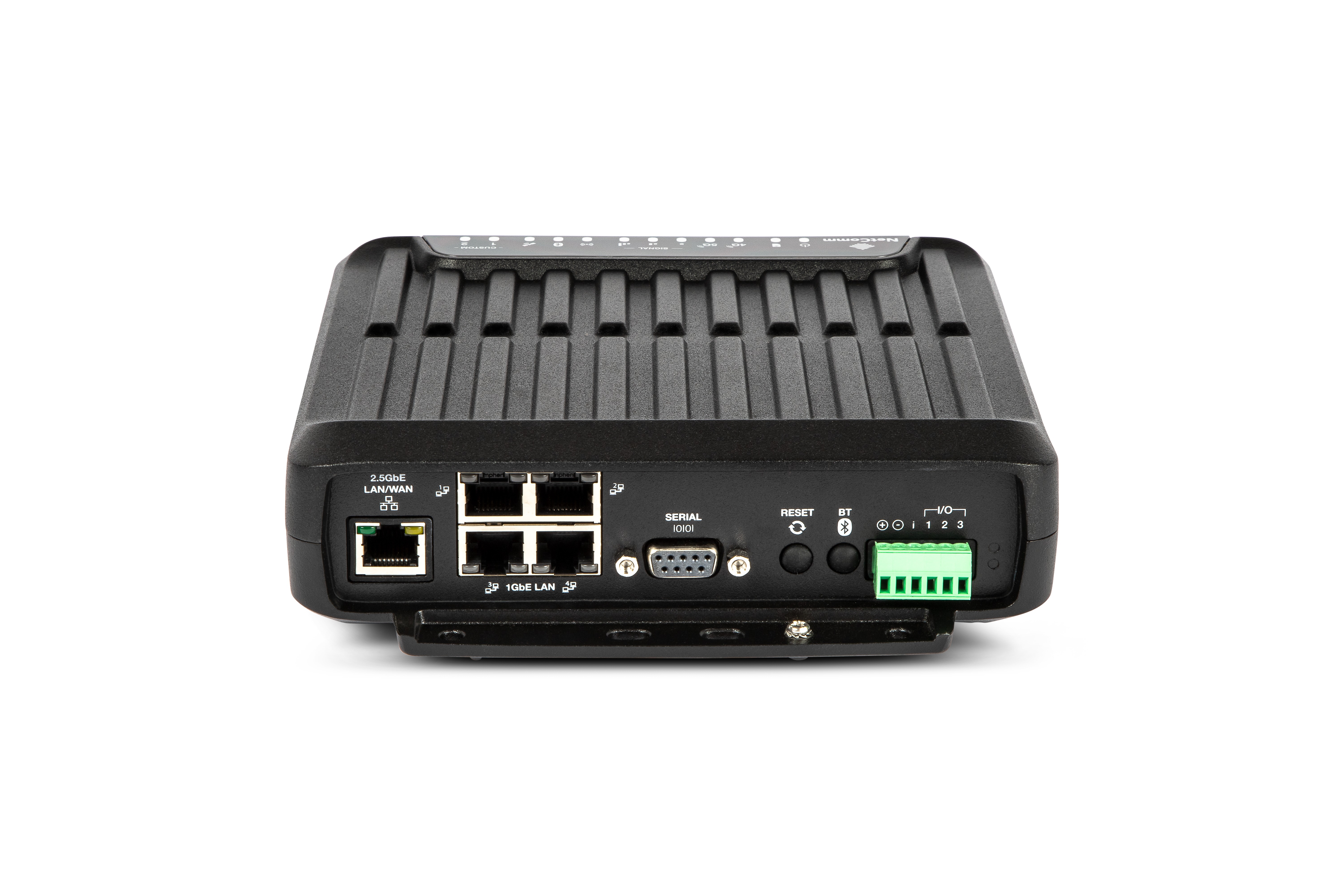

  • 1 x 2.5 Gbps LAN/WAN port and 4 x 1 Gbps LAN ports
  • Dual-band Wi-Fi 6 (802.11ax) with 2x2 MU-MIMO, WPA3 and AP, STA or AP + STA modes
  • Configurable RS232/RS422/RS485 serial port, 3 GPIOs, ignition sensing, USB-C and microSD

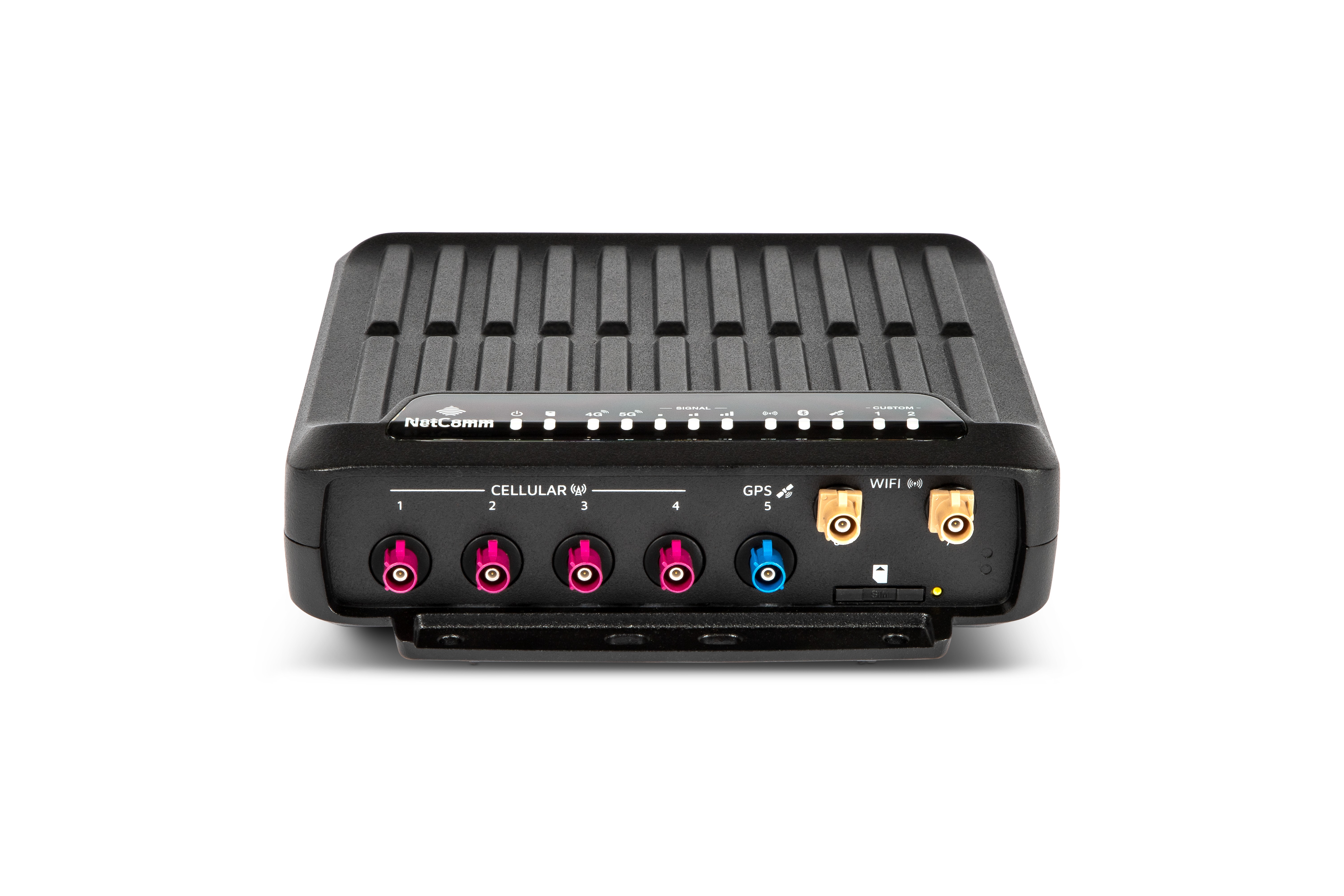

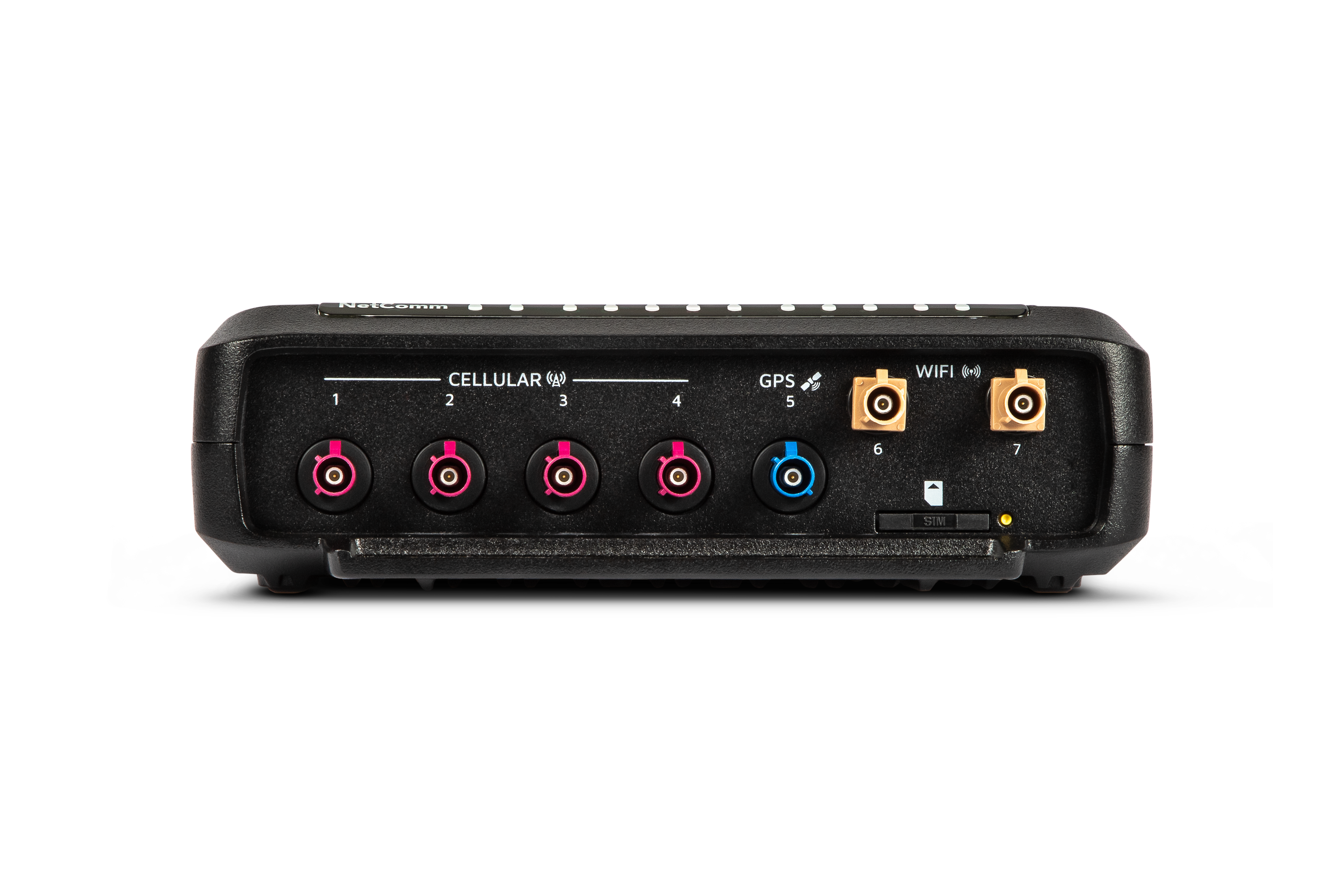

  • FAKRA antenna connectors: 4 cellular, 1 GPS, 2 Wi-Fi; GPS and GLONASS positioning
  • IP41 metal enclosure rated -30°C to +70°C with wall and DIN rail mounting
  • Band support matched to EMEA and APAC networks for international sites and projects

The Lantronix NTC-552-01-01 is the NTC-550 Series Industrial IoT Gateway configured for EMEA and APAC markets, excluding Japan and China. Its band set, 5G NR n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n76, n77, n78 and 13 LTE bands, targets networks outside North America. For US deployments, the North American model is the NTC-551-01-01.

The 3GPP Release 16 sub-6 GHz 5G modem supports Standalone and Non-Standalone operation and Dynamic 5G Slicing, with fallback to 4G LTE and peak speeds of up to 2.4 Gbps down and 900 Mbps up on 5G SA. Bands n77 and n78 support private 5G networks in industrial, energy and logistics settings. Wired connectivity includes one 2.5 Gbps LAN/WAN port and four 1 Gbps LAN ports, alongside dual-band Wi-Fi 6 with 2x2 MU-MIMO and WPA3.

For industrial and vehicle integration, the gateway provides a configurable RS232/RS422/RS485 serial port, three GPIOs, ignition sensing, USB-C, microSD, GPS and GLONASS, and Modbus TCP and RTU/ASCII gateway functions. All antennas connect through vibration-resistant FAKRA connectors: four cellular, one active GPS and two Wi-Fi. The IP41 metal enclosure operates from -30°C to +70°C and mounts on a wall or DIN rail, and a deep sleep mode draws less than 5 mA at 12 V.

Remote management covers Percepxion, TR-069, LWM2M, SNMP v3, MQTT to Azure and AWS, Cumulocity, SSH, HTTPS and SMS. Routing includes VRRP, multi-WAN failover, VLANs, an IPS firewall, and IPSec (up to 5 tunnels), GRE and OpenVPN. Lantronix publishes CE, UKCA and RCM declarations for the NTC-552 and backs the series with a 2-year warranty.

Ideal for

  • Industrial automation and smart factory connectivity at EMEA and APAC sites
  • Private 5G networks on n77/n78 in energy, logistics and manufacturing
  • Security and surveillance backhaul for remote facilities outside North America
  • In-vehicle Wi-Fi and telematics connectivity for transport fleets
  • Remote monitoring of utility and warehousing assets

Specifications

GPS

GNSS Systems
GPS, GLONASS

VPN

Gre
GRE Tunnelling
Ipsec
IPSec Tunnel Termination (up to 5 tunnels)
Openvpn
OpenVPN (Client, Server, P2P)

Wi-Fi

MIMO
2x2 Multi-User MIMO
Frequency
2.4 GHz / 5 GHz
Encryption
WPA3
Modulation
CCK/BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM
Wlan Protocol
Wi-Fi 6 (IEEE 802.11a/b/g/n/ac/ax)
Operating Mode
AP, STA, AP + STA
Channel Bandwidth 5ghz
20/40/80 MHz at 5 GHz
Dual Band Simultaneous
Dual Band Simultaneous (DBS)
Channel Bandwidth 2 4ghz
20/40 MHz at 2.4 GHz

Power

Deep Sleep
<5 mA at 12 V

General

MPN
NTC-552-01-01
UPC
9317773021974
Brand
Lantronix
Model
NTC-552
Region
EMEA, APAC (excl. Japan & China)
Series
NTC-550 Series
Product Type
5G Industrial IoT Gateway
Management Platform
Percepxion Ready

Package

Router
1 x NTC-552 Router
Din Rail Kit
1 x DIN Rail Mounting Kit
Welcome Card
1 x Welcome Card
Ethernet Cable
1 x 1 m Ethernet Cable
Terminal Block
1 x Six-Way Terminal Block

Cellular

Cell Lock
5G and LTE Cell Lock
Packet Data
Profile Managed Packet Data Connections
SIM Security
SIM PIN Management
SIM Switching
Automatic SIM Switching (External/Internal)
Band Selection
Automatic/Manual Band Selection
IP Passthrough
Data Profile IP Passthrough
Profile Routing
Profile Routing
Apn Configurations
Up to 6 APN Configurations
Operator Selection
Automatic/Manual Operator Selection
Bearers Traffic Classes
Up to 8 Bearers and Traffic Classes

Physical

Weight
1.050 kg
Dimensions
193.3 x 175 x 51.7 mm (excluding antennas)
Wall Mount
Wall Mount, Multiple Orientations
Din Rail Mount
DIN Rail Mount (Clips Included)
Shipping Weight
2.32 lb

Warranty

Warranty
2 Years

Interfaces

USB
1 x USB-C Port
Gpio
3 x Configurable GPIOs
Serial
1 x Configurable Serial Port (RS232/RS422/RS485)
Microsd
1 x microSD Card Slot
LAN Ports
4 x 1 Gbps LAN Ports
LAN WAN Port
1 x 2.5 Gbps LAN/WAN Port
Ignition Sensing
1 x Ignition Sensing Port

Environmental

Enclosure Rating
IP41 Rated Metal Enclosure
Operating Humidity
0-95%
Storage Temperature
-30°C to +85°C
Operating Temperature
-30°C to +70°C

Administration

Ntp
NTP Time Sync
Mqtt
MQTT Client (Azure, AWS)
Snmp
SNMP v3 with Cellular MIB
Web UI
HTTPS Web UI
Ssh Cli
SSH CLI
Cumulocity
Cumulocity Support
Field Test
LTE and 5G Field Test Info
SMS Client
SMS Client with Inbox/Outbox
System Logs
System Status and Security Logs
Tr069 Lwm2m
TR-069 and LWM2M
SMS Commands
SMS Commands (Reboot, Reset)
SMS Over Sgs
SMS over SGs
SMS Security
SMS Whitelisting and Password Security
Ping Watchdog
Ping Monitor Watchdog
Site Location
Site and Location Settings
Diagnostic Log
Remote and Local Diagnostic Log
SMS Diagnostics
SMS Diagnostics and Control
SMS Status Query
SMS Status Queries
SMS Remote Config
SMS Remote Configuration
SMS Acknowledgement
SMS Acknowledgement Replies
Config Backup Restore
Password-Protected Config Backup/Restore and Cloning

Cellular Bands

5G Release
3GPP Rel 16 Sub-6, SA/NSA
5G NR Bands
n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n76, n77, n78
4G LTE Bands
B1, B3, B5, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43

Certifications

Declarations
CE, UKCA and RCM Declarations
Environmental
RoHS and REACH Environmental Certs

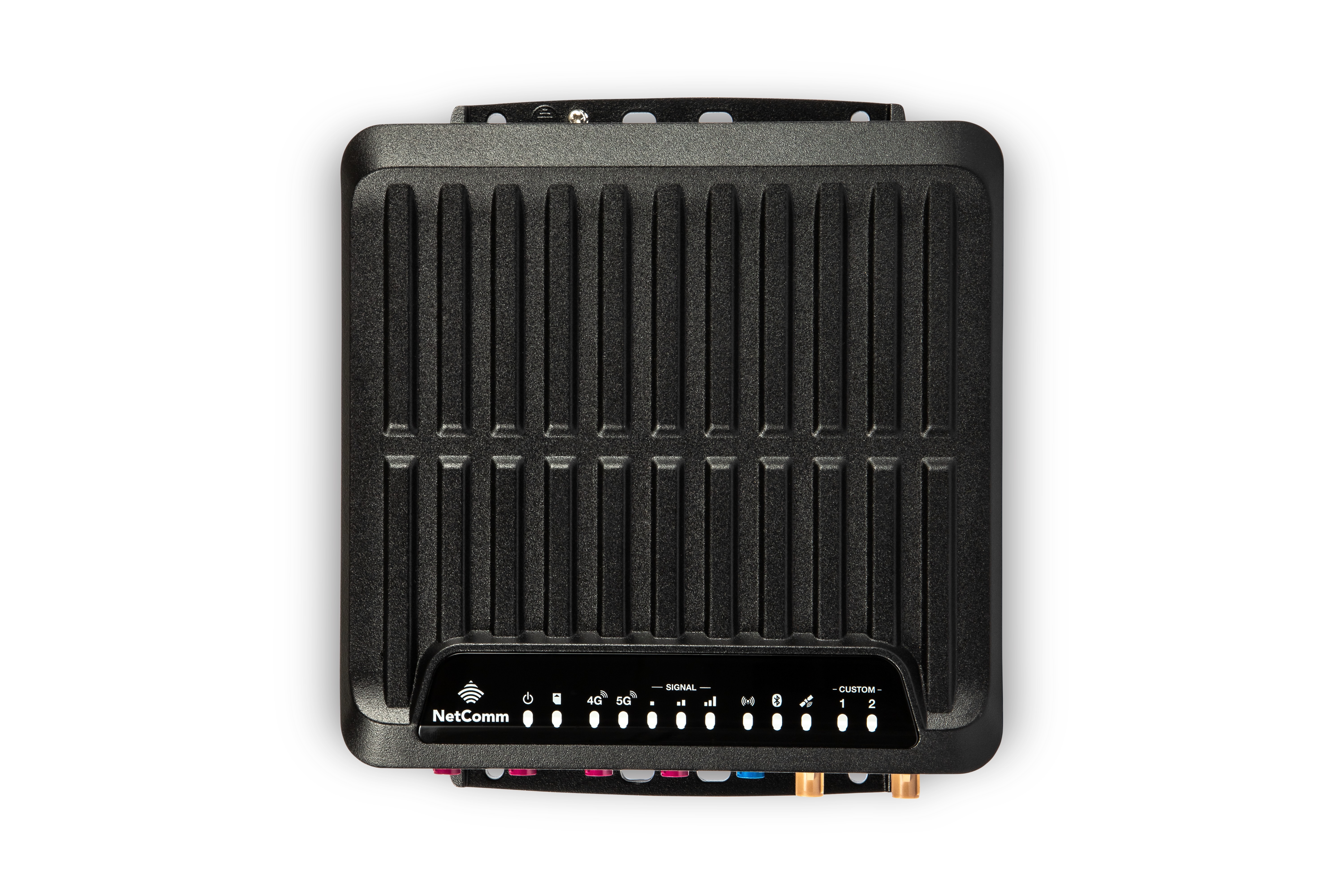

LED Indicators

4G
1 x 4G
5G
1 x 5G
GPS
1 x GPS
SIM
1 x SIM
Wi-Fi
1 x Wi-Fi
Power
1 x Power
Custom
2 x Custom Indicators
Bluetooth
1 x Bluetooth
Signal Strength
3 x Signal Strength

Device Category

LTE Uplink
Cat 18, 2CA Single TX, 256QAM
5G NR Uplink
MIMO 2x2 Single Carrier up to 100MHz, 256QAM
LTE Downlink
Cat 19, 5CA MIMO 4x4, 256QAM
5G NR Downlink
MIMO 4x4 Dual Carrier up to 120MHz, 256QAM

Network Routing

Vlan
VLAN Management
Vrrp
VRRP Redundant Router Failover
Routing
Static Routing, RIP v2, Port Forwarding, DMZ
Firewall
IPS Firewall (DoS Protection)
Dhcp List
DHCP List in Web UI
5G Slicing
5G Dynamic Slicing
Custom Dns
Custom DNS Servers
Dhcp Server
DHCP Server with MAC Reservation
Dynamic Dns
Dynamic DNS
Dhcp Options
DHCP Options 42 (NTP) and 66 (TFTP)
WAN Failover
Cellular, Ethernet, Wi-Fi Client
Modbus Frames
Modbus RTU/ASCII
Modbus Gateway
Modbus TCP/IP and Serial Gateway
Service Assurance
Network Service Assurance
Data Stream Manager
Data Stream Manager

SIM Card Reader

SIM Slot
1 x Mini SIM (2FF) Slot
Embedded SIM
Optional Soldered-Down MFF2 SIM

Peak Data Speeds

4G LTE
1.6 Gbps DL / 200 Mbps UL
5G NR SA Sub6
2.4 Gbps DL / 900 Mbps UL
5G NR Nsa Sub6
2.5 Gbps DL / 550 Mbps UL

Antenna Connectors

GPS
1x GPS (Signal Blue) for active external antenna
Wi-Fi
2x Wi-Fi (Beige) for external Wi-Fi antennas
Cellular
4x Cellular (Claret Violet) for external cellular antennas
Connector Type
FAKRA Connectors

Firmware Management

Firmware Upgrade
Local or OTA Firmware Upgrade (HTTPS, SNMP, TR-069, LWM2M)
SMS Triggered Upgrade
SMS-Triggered Firmware Upgrade

Questions buyers ask

Can the NTC-552-01-01 be used in the United States?

The NTC-552 is the EMEA and APAC (excluding Japan and China) variant, with bands chosen for those markets. The NTC-551-01-01 is the North American model.

Which 5G and LTE bands does it support?

5G NR n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n76, n77, n78 and LTE B1, B3, B5, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43.

Does it support private 5G?

Yes. Lantronix positions the NTC-550 Series for private 5G networks, with n77 and n78 support for ANZ, EMEA and LATAM deployments.

What certifications are documented?

Lantronix publishes CE, UKCA and RCM declarations for the NTC-552, plus RoHS and REACH environmental documentation for the NTC-550 Series.

How is it mounted?

It wall-mounts in multiple orientations using embedded mounting holes or attaches to a DIN rail with the clips included in the box.
