Parsec Australian Shepherd PTA9AS4L4WD15B 9-in-1 5G Vehicle Antenna with 4x4 MIMO Cellular, 4x4 Wi-Fi and L1/L5 GPS

5GMPN PTA9AS4L4WD15B
  • 4x4 MIMO
  • GNSS
  • Wi-Fi
  • 3–5 m
$483.48$616.69Save $133.21

In stockShips from the US

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

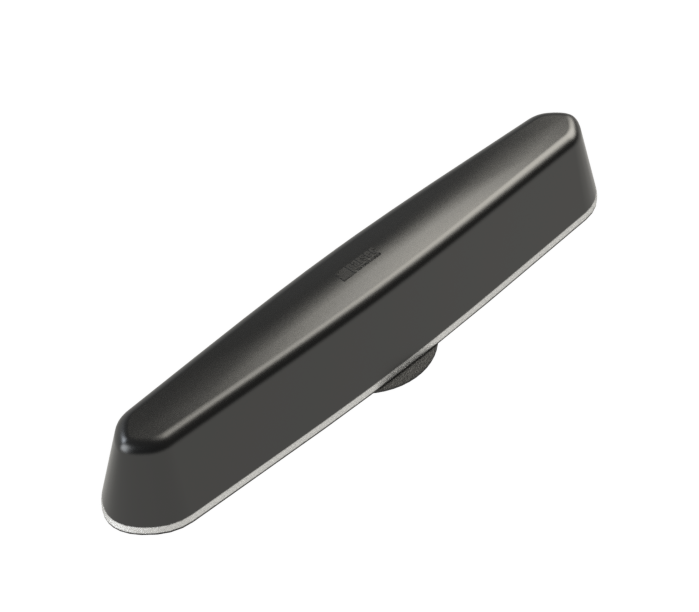

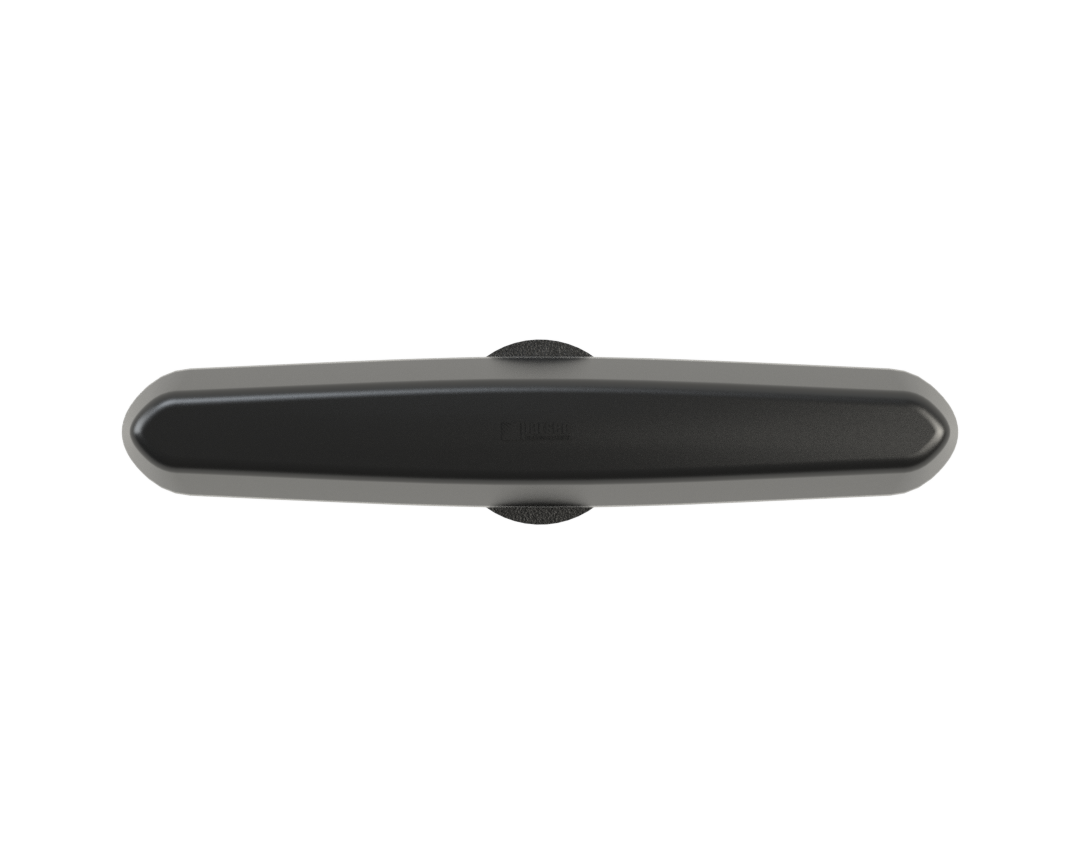

The Parsec Australian Shepherd PTA9AS4L4WD15B is the flagship 9:1 configuration of Parsec's low-profile 5G vehicle antenna. It packs four 4G/5G cellular elements for 4x4 MIMO, four Wi-Fi elements for 4x4 MIMO Wi-Fi and an L1/L5 dual-band GPS element into one IP67 housing. It installs through a single 1.5 in hole and has 15 ft cables and a black radome.

  • 9:1 configuration: four 4G/5G cellular elements, four Wi-Fi elements and one L1/L5 dual-band GPS element
  • 4x4 MIMO cellular across 617-894, 1710-2700, 3400-4000 and 5150-5925 MHz, or two simultaneous modems
  • 4x4 MIMO Wi-Fi across 2400-2483.5 and 4900-5900 MHz with 10 dBi peak gain
  • L1/L5 dual-band GPS with 28/26 dBic combined antenna and preamp gain
  • North American coverage including B14, B71, n41, n71, n77, CBRS and LAA

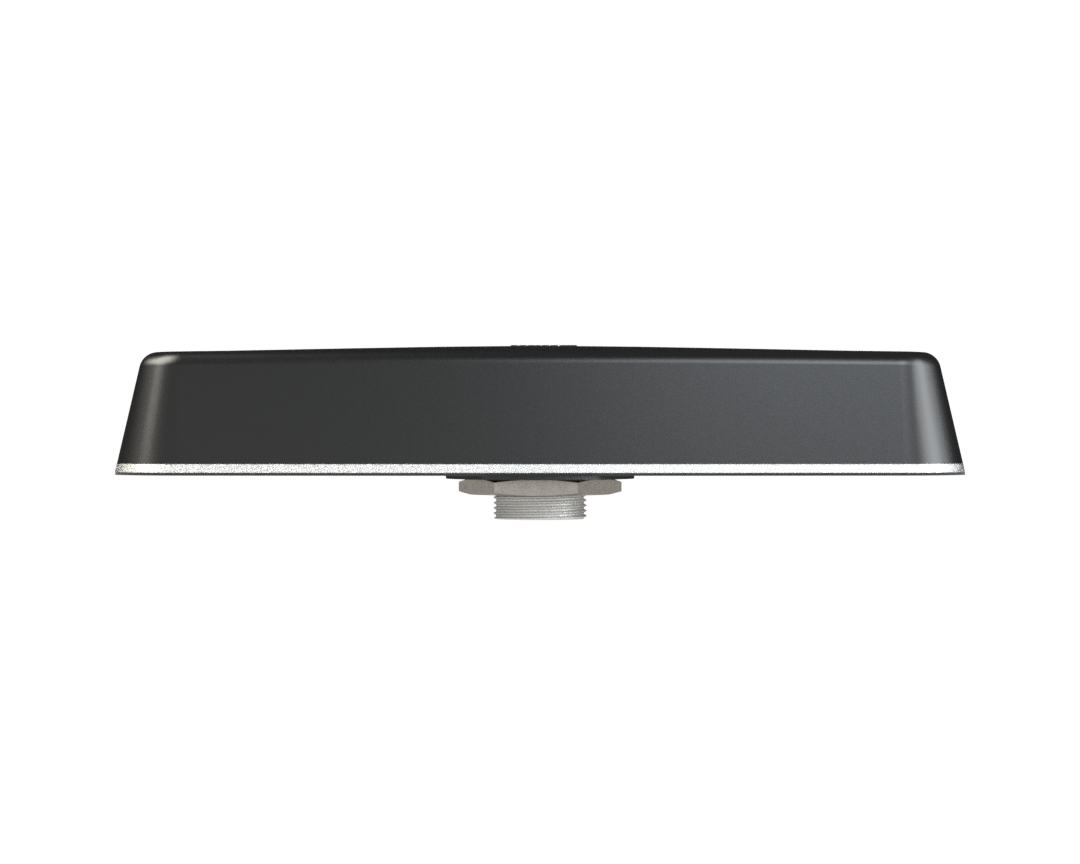

  • IP67, -40 °C to 85 °C, low-profile 13.5 x 2.45 x 2.01 in housing on a single 1.5 in hole
  • Nine 15 ft LSR200/LSR100 leads with SMA(M) and RP-SMA(M) connectors
  • Full 4x4 MIMO on both cellular and Wi-Fi gets the most from high-end 5G mobile routers

Parsec describes the Australian Shepherd as its best covert low-profile, high-performance 5G antenna. The PTA9AS4L4WD15B is the full 9:1 build, made for public safety and fleet vehicles running high-end mobile routers. The narrow, aerodynamic housing fits between roof ridges and pairs with modern low-profile police light bars without adding wind noise.

The four cellular elements cover 617-894, 1710-2700, 3400-4000 and 5150-5925 MHz. They support either full 4x4 MIMO on one modem or two cellular modems running simultaneously. North American coverage includes FirstNet B14, B71, n41, n71, n77, CBRS (B48/n48) and LAA (B46). Peak cellular gain reaches 7 dBi, and radiated efficiency is up to 70% in the 1710-2700 MHz range. The four Wi-Fi elements cover 2400-2483.5 and 4900-5900 MHz with 10 dBi peak gain for 4x4 MIMO Wi-Fi inside and around the vehicle.

This configuration uses Parsec's L1/L5 dual-band GPS element, which the family offers only in the 9:1 and 13:1 builds. Combined antenna and preamp gain is 28 dBic on L1 (1563-1587 MHz) and 26 dBic on L5 (1164-1189 MHz), with RHCP polarization. It suits routers and telematics units that use dual-band GNSS.

The antenna is IP67 rated, uses a UV-stabilised plastic radome and seals with an adhesive gasket. It operates from -40 °C to 85 °C, and Parsec states every unit is 100% tested. It includes nine 15 ft leads: LSR200 for cellular and Wi-Fi, and LSR100 for GPS. Cellular and GPS leads end in SMA(M) and Wi-Fi leads in RP-SMA(M). Parsec's datasheet and installation guide cover mounting and dimensions.

Ideal for

  • Police, fire and ambulance vehicles running 4x4 MIMO 5G routers on FirstNet or commercial networks
  • Dual-modem vehicle routers that need carrier failover
  • Fleet vehicles and city buses with 4x4 Wi-Fi and dual-band GNSS tracking
  • Remote surveillance and mobile broadband deployments

Specifications

GNSS

Polarization
RHCP
Preamp Current
< 45 mA
Preamp Voltage
3 to 5 V
Antenna Preamp Gain L1
28 dBic
Antenna Preamp Gain L5
26 dBic

General

MPN
PTA9AS4L4WD15B
UPC
810226420861
Brand
Parsec
Color
Black
Family
Australian Shepherd PTA Series
Categories
Mobile, Public Safety, 5G
Antenna Pattern
Omni-Directional

Package

Shipping Weight
3.50 lb

Isolation

Cell 617 663 MHz
Cellular 617-663 MHz: 6 dB
Cell 663 798 MHz
Cellular 663-798 MHz: 6 dB
Cell 798 894 MHz
Cellular 798-894 MHz: 7 dB
Cell 1710 2700 MHz
Cellular 1710-2700 MHz: 10 dB
Cell 3400 4000 MHz
Cellular 3400-4000 MHz: 18 dB
Cell 5150 5925 MHz
Cellular 5150-5925 MHz: 23 dB
Wi-Fi 2400 2483 MHz
Wi-Fi 2400-2483.5 MHz: 11 dB
Wi-Fi 4900 5900 MHz
17 dB

Peak Gain

Cell 617 663 MHz
Cellular 617-663 MHz: 3.5 dBi
Cell 663 798 MHz
Cellular 663-798 MHz: 5.5 dBi
Cell 798 894 MHz
Cellular 798-894 MHz: 4 dBi
Cell 1710 2700 MHz
Cellular 1710-2700 MHz: 6.5 dBi
Cell 3400 4000 MHz
Cellular 3400-4000 MHz: 7 dBi
Cell 5150 5925 MHz
Cellular 5150-5925 MHz: 6 dBi
Wi-Fi 2400 2483 MHz
Wi-Fi 2400-2483.5 MHz: 10 dBi
Wi-Fi 4900 5900 MHz
10 dBi

Mechanical

Width
2.45 in
Height
2.01 in
Length
13.5 in
Mounting
Single 1.5 in hole
Mount Type
Mobile Roof/Direct Mount
Radome Material
Plastic with UV Additive
Mounting Accessories Available
Pole Mount, Mag Mount, Suction Mount

Frequencies

Wi-Fi
2400-2483.5, 4900-5900 MHz
GPS L1
1563-1587 MHz
GPS L5
1164-1189 MHz
Cellular 4G 5G
4G/5G Cellular: 617-894, 1710-2700, 3400-4000, 5150-5925 MHz

LTE 5G Bands

Emea LTE
B1, B3, B7, B20, B28, B42, B43, B46
Emea 5G NR
n1, n3, n28, n77, n78
North America LTE
B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66, B71
North America 5G NR
n2, n5, n12, n25, n26, n41, n48, n66, n71, n77

Configuration

GPS Element
L1/L5 Dual Band GPS
Configuration
9:1
Wi-Fi Elements
4
Antennas Included
Cellular, Wi-Fi, GPS
Cellular Elements
Cellular (4G/5G) Elements: 4

Environmental

Ingress Protection
IP67 Waterproof
Operating Temperature
-40 °C to 85 °C

Connectors Cables

GPS Cable
LSR100
Wi-Fi Cable
LSR200
Cable Count
Cables: 9
Cable Length
15 ft
GPS Connector
SMA(M)
Cellular Cable
LSR200
Wi-Fi Connector
RP-SMA(M)
Cellular Connector
SMA(M)

Electrical General

Polarization
Linear
Max Input Power
5 W
Test Conditions
2 ft x 2 ft external ground plane; isolation and return loss exclude cable loss

Return Loss 50 Ohm

Cell 617 663 MHz
Cellular 617-663 MHz: 6 dB
Cell 663 798 MHz
Cellular 663-798 MHz: 10 dB
Cell 798 894 MHz
Cellular 798-894 MHz: 6 dB
Cell 1710 2700 MHz
Cellular 1710-2700 MHz: 7 dB
Cell 3400 4000 MHz
Cellular 3400-4000 MHz: 10 dB
Cell 5150 5925 MHz
Cellular 5150-5925 MHz: 6 dB
Wi-Fi 2400 2483 MHz
Wi-Fi 2400-2483.5 MHz: 8 dB
Wi-Fi 4900 5900 MHz
10 dB

Radiated Efficiency

Cell 617 663 MHz
Cellular 617-663 MHz: 40%
Cell 663 798 MHz
Cellular 663-798 MHz: 60%
Cell 798 894 MHz
Cellular 798-894 MHz: 50%
Cell 1710 2700 MHz
Cellular 1710-2700 MHz: 70%
Cell 3400 4000 MHz
Cellular 3400-4000 MHz: 65%
Cell 5150 5925 MHz
Cellular 5150-5925 MHz: 45%
Wi-Fi 2400 2483 MHz
Wi-Fi 2400-2483.5 MHz: 60%
Wi-Fi 4900 5900 MHz
60%

Questions buyers ask

What does the 9:1 configuration include?

It includes four 4G/5G cellular elements, four Wi-Fi elements and one L1/L5 dual-band GPS element, each on its own 15 ft cable.

Can it run two cellular modems?

Yes. The four cellular ports support full 4x4 MIMO on one modem or two cellular modems running simultaneously.

What GPS performance does it offer?

The dual-band element covers L1 (1563-1587 MHz) and L5 (1164-1189 MHz). Combined antenna and preamp gain is 28 dBic on L1 and 26 dBic on L5, with RHCP polarization and a 3 to 5 V preamp.

Which 5G bands does it cover in North America?

It covers n2, n5, n12, n25, n26, n41, n48, n66, n71 and n77. It also covers LTE bands including B14, B46, B48 and B71.

How is it mounted?

It mounts on the vehicle roof through a single 1.5 in hole and seals with an adhesive gasket. Pole, magnetic and suction accessories are available, and Parsec provides an installation guide.
