Parsec Australian Shepherd PTA9AS4L4WG15B 9:1 5G Low-Profile Vehicle Antenna, 4x4 Cellular, 4x4 Wi-Fi, GPS

5GMPN PTA9AS4L4WG15B
  • 4x4 MIMO
  • GNSS
  • Wi-Fi
  • 9 dBi and up
  • 3–5 m
$483.48$616.69Save $133.21

In stock · only 9 leftShips from the US

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

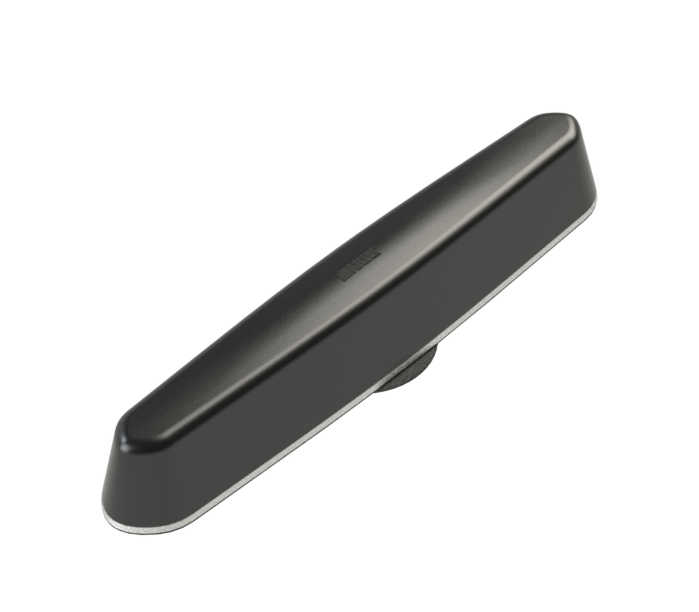

The Parsec Australian Shepherd PTA9AS4L4WG15B is a low-profile 9:1 vehicle roof antenna for fleets and first responders. One black IP67 housing holds four 4G/5G cellular elements, four Wi-Fi elements and an L1 GPS element. Cellular coverage spans 617 MHz to 5925 MHz, including CBRS and LAA. It installs through a single 1.5-inch hole, and each element comes with a 15 ft low-loss cable.

  • 9:1 configuration: 4 cellular, 4 Wi-Fi and 1 L1 GPS element in one housing
  • 4G/5G cellular coverage from 617 MHz to 5925 MHz, including CBRS and LAA
  • 4x4 MIMO cellular for one modem, or split operation for two modems running at the same time
  • 4x4 MIMO Wi-Fi covering 2.4 GHz and 4.9–5.9 GHz with 10 dBi peak gain

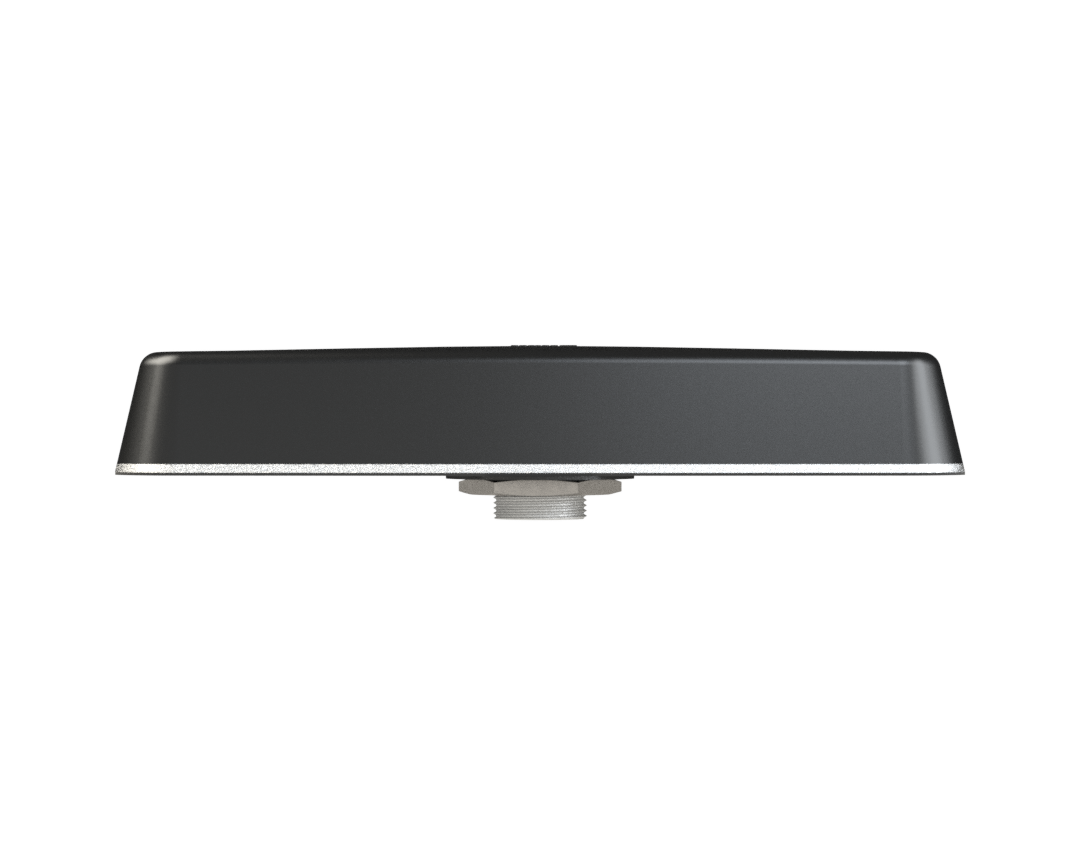

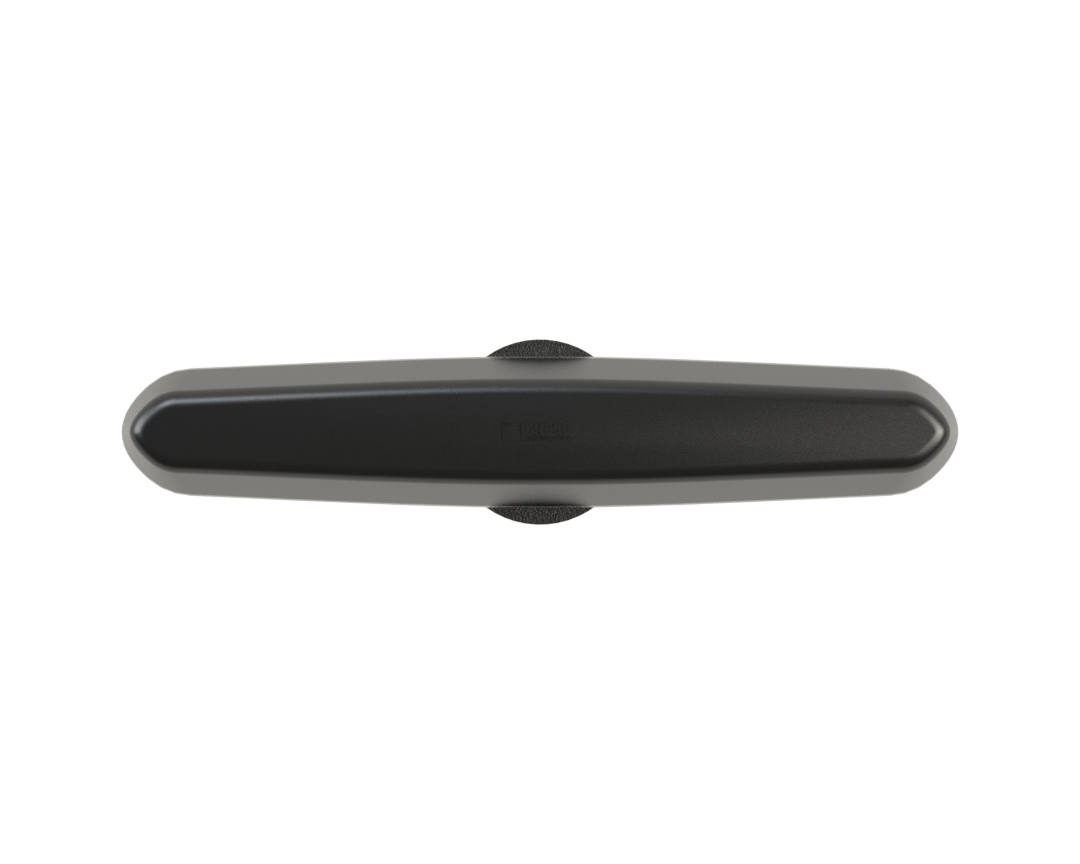

  • Low-profile housing, 2.01 in high by 2.45 in wide, installs through a single 1.5 in hole
  • IP67 rating, -40 °C to 85 °C operating temperature, UV-stabilised plastic radome
  • 15 ft cables with SMA(M) cellular/GPS and RP-SMA(M) Wi-Fi connectors
  • Cellular, Wi-Fi and GPS share one roof penetration instead of three or more antennas

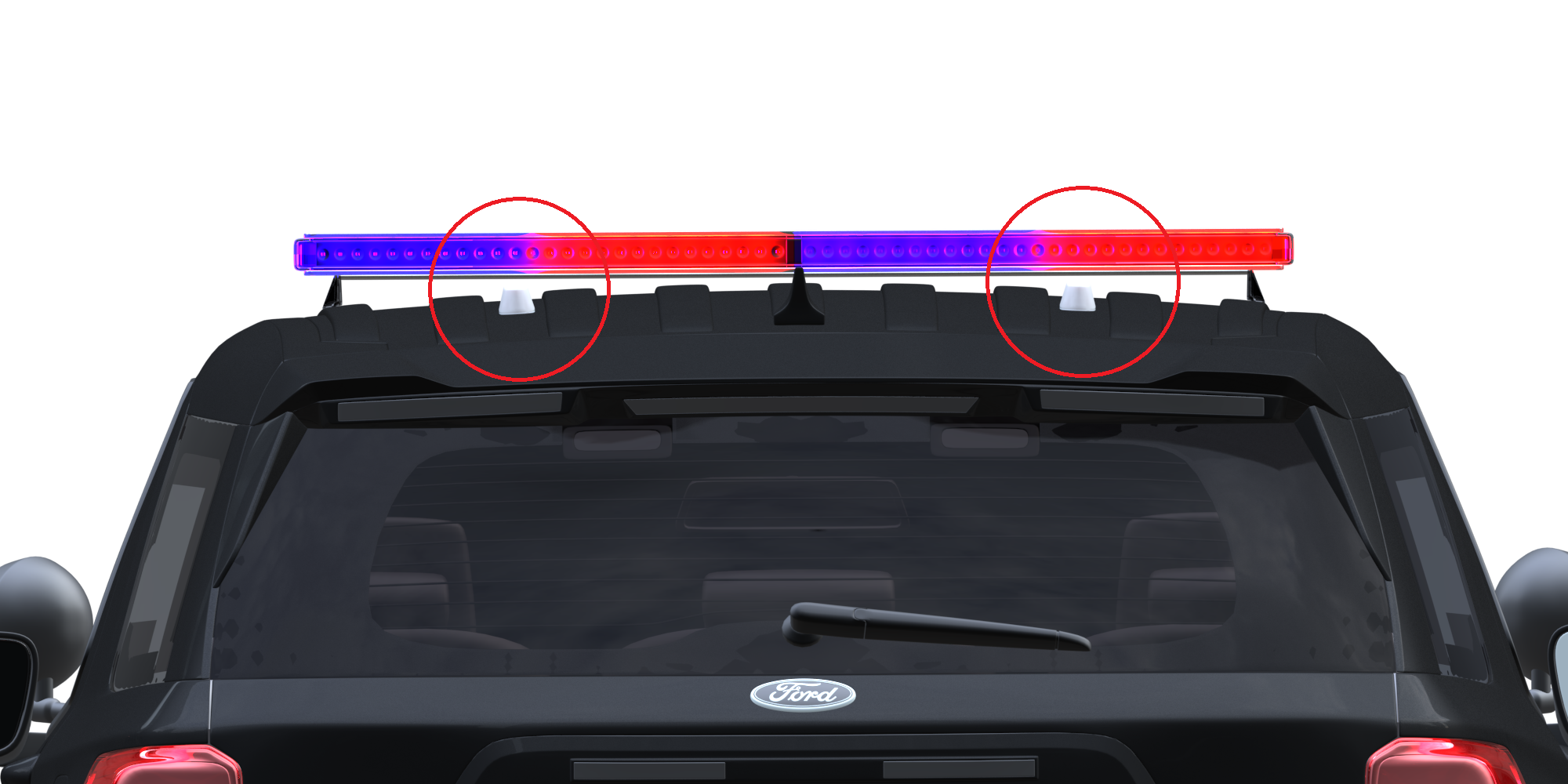

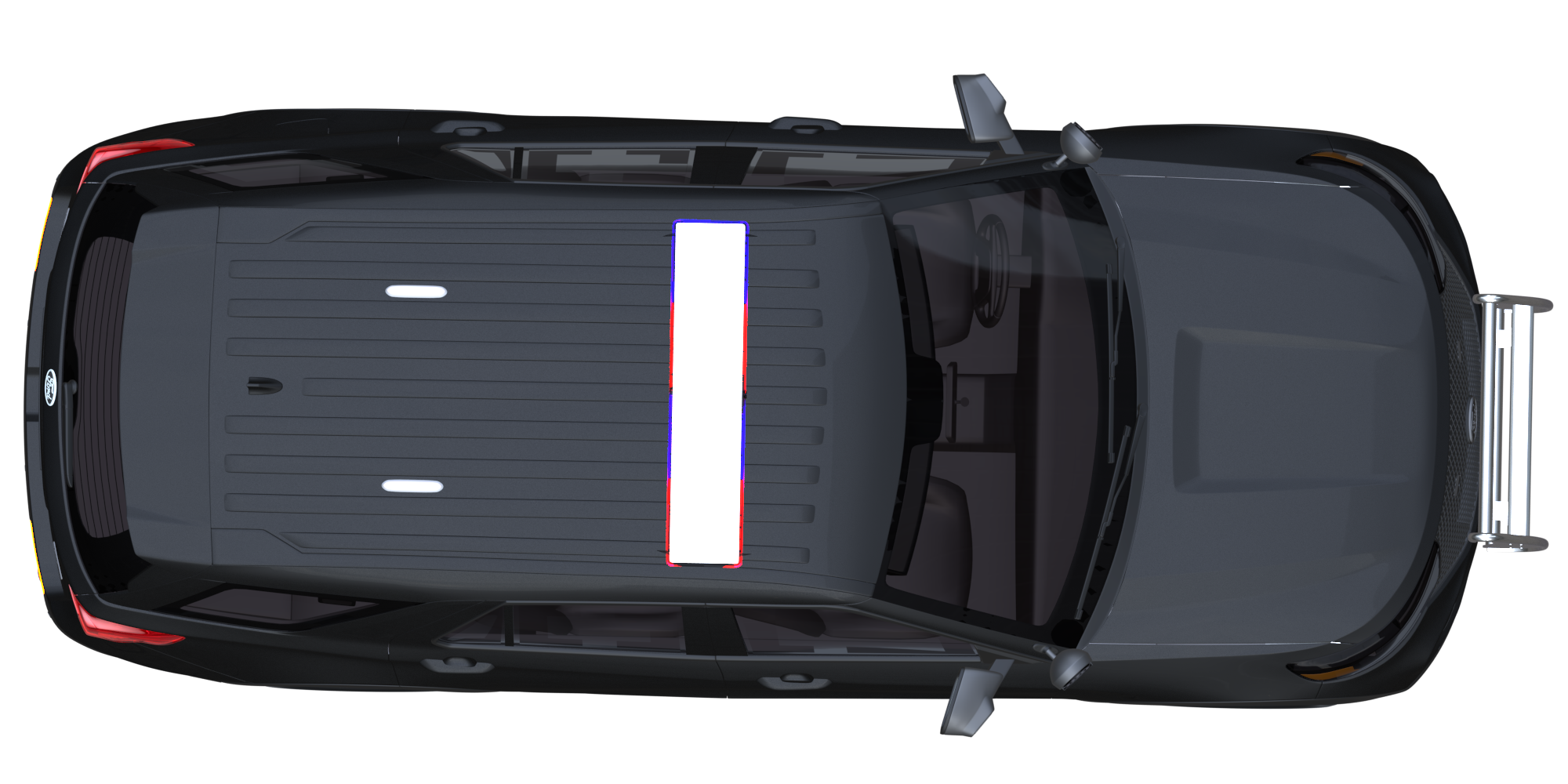

The Australian Shepherd PTA9AS4L4WG15B is Parsec's compact all-in-one 9:1 antenna for vehicles that need full 5G cellular, in-vehicle Wi-Fi and GPS positioning from one roof penetration. It is built for ambulances, police and fire vehicles, fleet trucks, city buses and remote surveillance units. The housing is 2.01 inches tall and 2.45 inches wide, so it fits between rooftop ridges and alongside low-profile LED light bars. Parsec also designed it to be aerodynamic to limit noise around and inside the vehicle.

Four cellular elements cover 617–894 MHz, 1710–2700 MHz, 3400–4000 MHz and 5150–5925 MHz. That range includes the common North American LTE and 5G NR bands, CBRS (B48/n48) and LAA (B46). The antenna can run as full 4x4 MIMO to a single modem or split to support two cellular modems at the same time. Four Wi-Fi elements cover 2400–2483.5 MHz and 4900–5900 MHz, with peak gain of 10 dBi. An L1 GPS element (1575.42 MHz) provides RHCP positioning signal to the router.

The antenna is rated IP67 and operates from -40 °C to 85 °C. It uses a plastic radome with UV additive and seals to the roof with an adhesive gasket. Parsec states that every unit is 100% tested. Cellular and GPS leads terminate in SMA(M) connectors and Wi-Fi leads in RP-SMA(M), on 15 ft LSR200 (cellular and Wi-Fi) and LSR100 (GPS) cable.

The standard mount is a direct roof mount. Pole, magnetic and suction mounting accessories are available separately. Parsec publishes a datasheet and an installation guide for the Australian Shepherd series.

Ideal for

  • Police, fire and EMS vehicles running 5G routers with in-vehicle Wi-Fi and GPS
  • Transit buses and fleet trucks needing cellular backhaul and passenger or crew Wi-Fi
  • Dual-modem vehicle routers that need carrier redundancy
  • Mobile surveillance trailers and remote monitoring units
  • FirstNet and emergency communications deployments

Specifications

GNSS

GPS Type
L1 GPS
Polarization
RHCP
Preamp Current
< 45 mA
Preamp Voltage
3–5 V
Antenna Preamp Gain L1
28 dBic (L1)

Bands

Emea
B1, B3, B7, B20, B28, B42, B43, B46, n1, n3, n28, n77, n78
North America LTE
LTE B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66, B71
North America 5G NR
5G NR n2, n5, n12, n25, n26, n41, n48, n66, n71, n77

General

MPN
PTA9AS4L4WG15B
Brand
Parsec
Color
Black radome
Categories
Mobile, Public Safety, 5G
Configuration
9:1 (4 Cell, 4 Wi-Fi, L1 GPS)
Product Family
Australian Shepherd PTA Series
Antenna Pattern
Omni-directional
Antennas Included
Cellular, Wi-Fi and GPS

Mechanical

Width
2.45 in
Height
2.01 in
Length
13.5 in
Mount Type
Mobile roof / direct mount
Mounting Hole
Single 1.5 in hole
Radome Material
Plastic with UV additive
Shipping Weight
4.55 lb shipping weight
Mounting Accessories Available
Pole, magnetic, suction (sold separately)

Frequencies

GPS
L1 GPS 1575.42 MHz
Wi-Fi
2400–2483.5 / 4900–5900 MHz
Cellular 4G 5G
617–894 / 1710–2700 / 3400–4000 / 5150–5925 MHz

Environmental

Ingress Protection
IP67 waterproof
Operating Temperature
-40 °C to 85 °C

Electrical Wi-Fi

Isolation 2400 2483
11 dB (2400–2483.5 MHz)
Isolation 4900 5900
17 dB (4900–5900 MHz)
Peak Gain 2400 2483
10 dBi (2400–2483.5 MHz)
Peak Gain 4900 5900
10 dBi (4900–5900 MHz)
Efficiency 2400 2483
60% (2400–2483.5 MHz)
Efficiency 4900 5900
60% (4900–5900 MHz)
Return Loss 2400 2483
8 dB (2400–2483.5 MHz)
Return Loss 4900 5900
10 dB (4900–5900 MHz)

Connectors Cables

GPS Cable
LSR100
Wi-Fi Cable
LSR200
Cable Length
15 ft
GPS Connector
SMA male
Cellular Cable
LSR200
Wi-Fi Connector
RP-SMA male
Cellular Connector
SMA male

Electrical General

Test Note
Excludes cable loss; 2 ft x 2 ft ground plane
Polarization
Linear (cellular, Wi-Fi)
Max Input Power
5 W (cellular, Wi-Fi)

Electrical Cellular

Isolation 617 663
6 dB (617–663 MHz)
Isolation 663 798
6 dB (663–798 MHz)
Isolation 798 894
7 dB (798–894 MHz)
Peak Gain 617 663
3.5 dBi (617–663 MHz)
Peak Gain 663 798
5.5 dBi (663–798 MHz)
Peak Gain 798 894
4 dBi (798–894 MHz)
Efficiency 617 663
40% (617–663 MHz)
Efficiency 663 798
60% (663–798 MHz)
Efficiency 798 894
50% (798–894 MHz)
Isolation 1710 2700
10 dB (1710–2700 MHz)
Isolation 3400 4000
18 dB (3400–4000 MHz)
Isolation 5150 5925
23 dB (5150–5925 MHz)
Peak Gain 1710 2700
6.5 dBi (1710–2700 MHz)
Peak Gain 3400 4000
7 dBi (3400–4000 MHz)
Peak Gain 5150 5925
6 dBi (5150–5925 MHz)
Return Loss 617 663
6 dB (617–663 MHz)
Return Loss 663 798
10 dB (663–798 MHz)
Return Loss 798 894
6 dB (798–894 MHz)
Efficiency 1710 2700
70% (1710–2700 MHz)
Efficiency 3400 4000
65% (3400–4000 MHz)
Efficiency 5150 5925
45% (5150–5925 MHz)
Return Loss 1710 2700
7 dB (1710–2700 MHz)
Return Loss 3400 4000
10 dB (3400–4000 MHz)
Return Loss 5150 5925
6 dB (5150–5925 MHz)

Questions buyers ask

What elements does the PTA9AS4L4WG15B include?

Four 4G/5G cellular elements, four Wi-Fi elements and one L1 GPS element, for a 9:1 configuration. This SKU has no Bluetooth element.

Can it connect to a router with two cellular modems?

Yes. Parsec states that the four cellular elements can serve two cellular modems running at the same time, or deliver full 4x4 MIMO to a single modem.

What connectors and cables does it use?

Cellular and GPS leads end in SMA male connectors, and Wi-Fi leads end in RP-SMA male. All leads are 15 ft long: LSR200 for cellular and Wi-Fi, LSR100 for GPS.

How is it installed?

It is a direct roof mount that needs a single 1.5-inch hole and seals with an adhesive gasket. Pole, magnetic and suction mounting accessories are available separately. An installation guide is published for the series.

Is it suitable for outdoor, all-weather use?

Yes. It is IP67 rated, uses a UV-stabilised plastic radome and operates from -40 °C to 85 °C.
