HPE5G & LTE Routers

HPE Aruba Networking 9004-LTE (US) 4-Port Gigabit Branch Gateway

4G LTEMPN R3V91A
  • 2–4 × 1 Gb Ethernet
$2,275.33$2,848.00Save $572.67

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

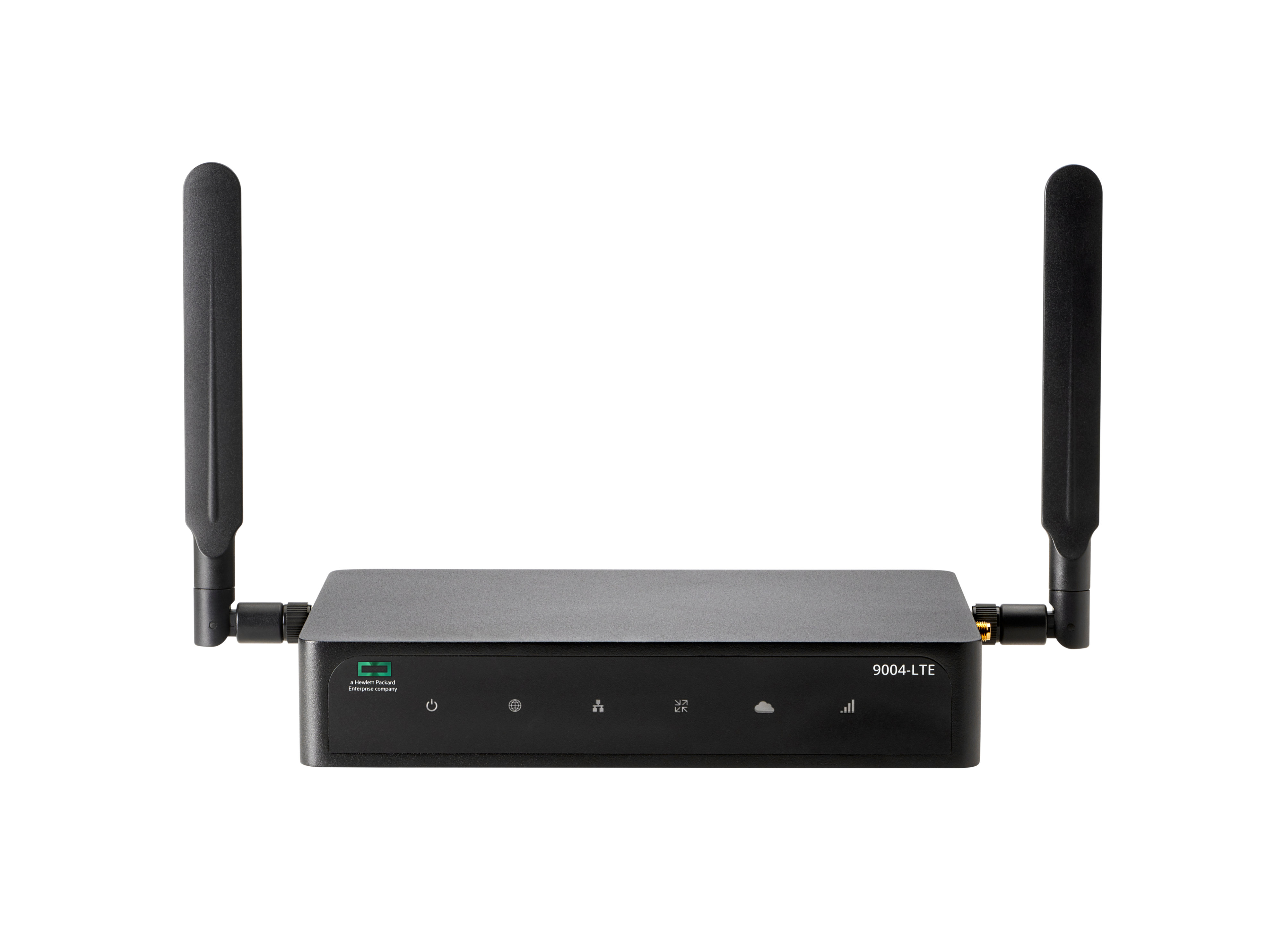

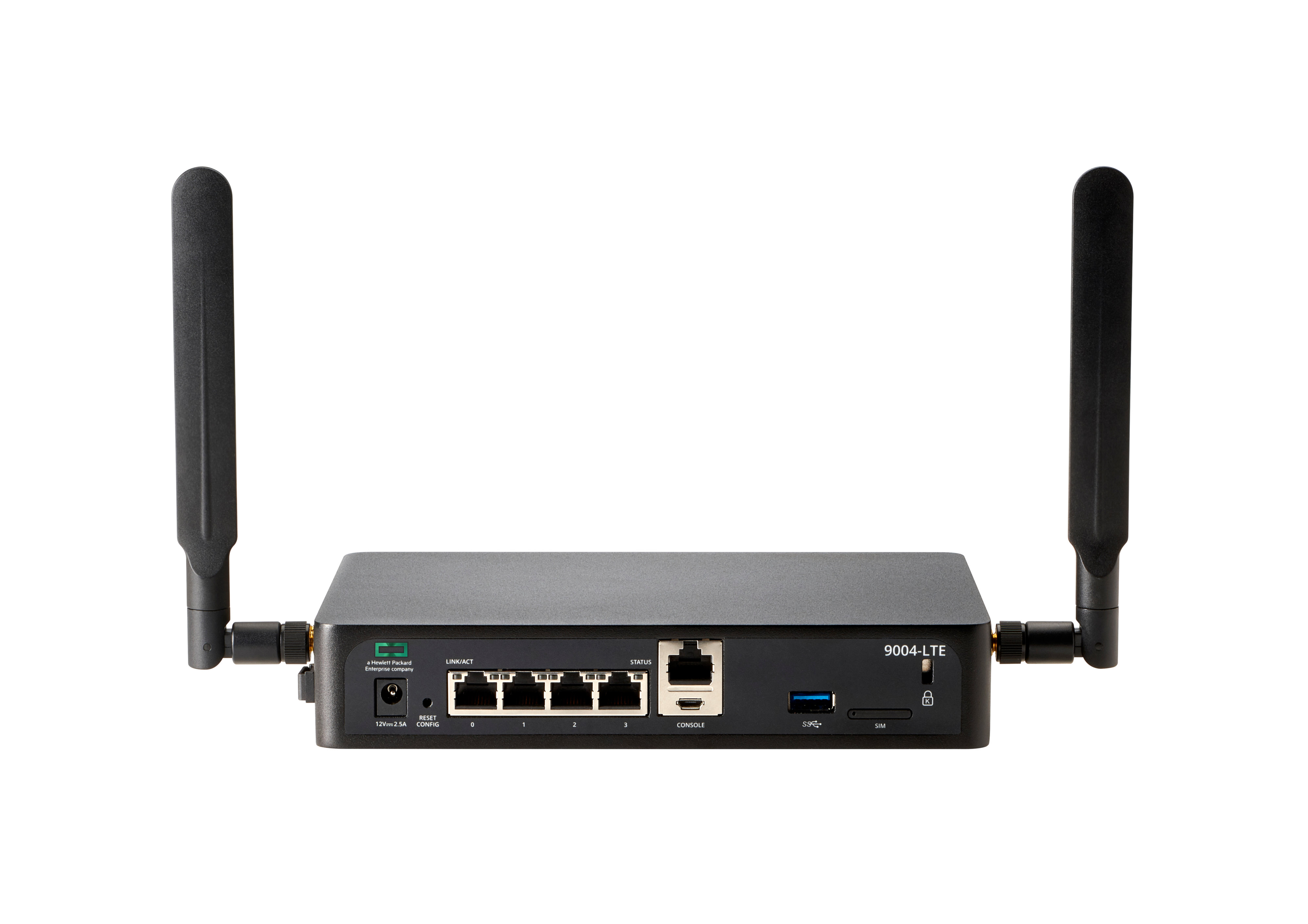

The HPE Aruba Networking 9004-LTE (US), part number R3V91A, is a compact, fanless branch gateway with an integrated Cat 12 LTE module for primary or backup WAN. It provides four 100/1000BASE-T ports and supports up to 2,048 clients and 32 access points with up to 6 Gbps of firewall throughput. It runs as an SD-Branch gateway or a wireless mobility controller under HPE Aruba Networking Central. This is the US-only model.

  • Integrated Cat 12 LTE module for dedicated or redundant WAN uplink (US model)
  • 4 x 100/1000BASE-T Ethernet ports
  • Up to 2,048 clients, 32 APs and 6 Gbps firewall throughput
  • Layer 4-7 stateful policy enforcement firewall with Dynamic Segmentation
  • Deep packet inspection for more than 3,800 applications; IDS/IPS in SD-WAN mode
  • Cloud management through HPE Aruba Networking Central with zero-touch provisioning
  • Fanless desktop design with optional rack-mount tray; IoT radio with BLE support
  • Built-in LTE keeps branch operations running when the wired circuit fails, with no separate modem to manage

The 9004-LTE is the LTE-equipped member of the HPE Aruba Networking 9000 Series. It is built for small enterprise branches and small campuses that want routing, SD-WAN, security and wireless control in one cloud-managed box. R3V91A is the US model; R3V90A is the rest-of-world version. Its integrated Cat 12 LTE module can serve as a dedicated WAN uplink or as a redundant link for business continuity, and LTE operations are managed through HPE Aruba Networking Central.

The gateway supports up to 2,048 users or client devices and up to 32 access points, with up to 6 Gbps of firewall throughput. A built-in Layer 4-7 stateful policy enforcement firewall applies consistent user, device and application awareness across WLAN, LAN and WAN. Dynamic Segmentation assigns role-based policies automatically, replacing hand-built VLANs, ACLs and subnets. Deep packet inspection covers more than 3,800 applications. In SD-WAN mode, the gateway adds role- and identity-based IDS/IPS, dynamic traffic steering, per-uplink visibility and one-click integration with third-party cloud security. As a mobility controller, it provides WLAN and LAN services with live upgrades; that mode cannot run at the same time as SD-WAN.

Deployment is designed for sites with little or no local IT. Zero-touch provisioning and a mobile installer app let on-site staff onboard the gateway while central IT confirms location, licensing and status. The gateway supports N+1 or NxN redundancy and clustering for high availability. It also includes an IoT radio with BLE support. WLAN and SD-WAN deployments use HPE Aruba Networking Central subscription licences.

The unit is a fanless desktop design with an optional rack-mount tray. It runs from a 12 V DC, 2.5 A adapter and draws a maximum of 25 W with USB. Hardware carries a 1-year parts and labor warranty, and gateway software carries 90 days; both can be extended with a support contract.

Ideal for

  • SD-Branch gateway for retail stores, clinics and small offices
  • LTE backup WAN for branches that need business continuity
  • Primary LTE uplink for pop-up or temporary sites
  • Wireless mobility controller for up to 32 APs at a small campus
  • Zero-touch rollouts across distributed enterprises with few local IT staff

Specifications

Power

Input Voltage
12 V DC, 2.5 A AC-to-DC power adapter
Power Consumption
25 W maximum (with USB)

General

MPN
R3V91A
UPC
190017407128
Brand
HPE Aruba Networking
Model
9004-LTE (US) Branch Gateway
Region
US model (R3V90A is the RW model)
Product Name
9004 (US) 4-Port GbE Branch Gateway, 2K Clients - Cat 12 LTE

Network

USB
USB 3.0 ports
Ports
4 x 100/1000BASE-T
Iot Radio
IoT radio supporting BLE
Max Clients
Up to 2,048 users or client devices
Max Access Points
Up to 32 APs
Firewall Throughput
Up to 6 Gbps
Application Visibility
DPI for over 3,800 applications

Cellular

LTE Role
Dedicated or redundant WAN uplink
LTE Category
LTE Cat 12
Radio Coverage
Integrated LTE radio

Physical

Depth
6 in
Height
1.5 in
Mounting
Fanless desktop; optional rack-mount tray

Software

Security
Stateful L4-7 firewall, Dynamic Segmentation, IDS/IPS in SD-WAN mode
Management
HPE Aruba Networking Central (subscription licences)
Deployment Modes
SD-Branch gateway or mobility controller (not simultaneously with SD-WAN)
High Availability
N+1/NxN redundancy, clustering, live upgrades

Warranty

Hardware
1-year parts/labor, extendable with support contract
Software
WLAN gateway software 90 days, extendable with support contract

Regulatory

Telco
Common Language Equipment Identifier (CLEI) Code
Safety
UL/CSA/EN/IEC 60950-1 2nd Ed., EN 60950:2005, EN/IEC 62368-1 2nd Ed., NOM
Wireless
FCC/ISED, RED 2014/53/EU
Emissions
FCC Part 15 Class B, CISPR32/EN55032/ICES-003 Class B, EN61000-3-2/-3, EN55024, EN301 489-1/-17/-52, KN32/KN35, KN301 489-1/-17/-52, CNS13438 Class B
Certifications
FCC/ISED, RED 2014/53/EU, MIC, NCC, ANATEL, COFTEL, CCC

Questions buyers ask

What is the difference between R3V91A and R3V90A?

Both are the 9004-LTE branch gateway. R3V91A is the US model and R3V90A is the rest-of-world model.

Can the LTE connection be used as a primary WAN?

Yes. The integrated Cat 12 LTE module can serve as a dedicated WAN uplink or as a redundant backup link, managed through HPE Aruba Networking Central.

How many clients and access points does it support?

Up to 2,048 users or client devices and up to 32 access points, with up to 6 Gbps of firewall throughput.

Does it require licences?

WLAN and SD-WAN deployments use HPE Aruba Networking Central subscription licences.

Can it run as a mobility controller and an SD-WAN gateway at the same time?

No. It can be deployed as either an SD-Branch/SD-WAN gateway or a mobility controller, but not both at once.
