Taoglas Raptor X RAPX.4.4C.5M.S2.B 4-in-1 5G/4G MIMO Screw-Mount Antenna, 5m SMA Male

5GMPN RAPX.4.4C.5M.S2.B
  • 4x4 MIMO
  • 3–5 m
$159.52$189.90Save $30.38

In stockShips from the US

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

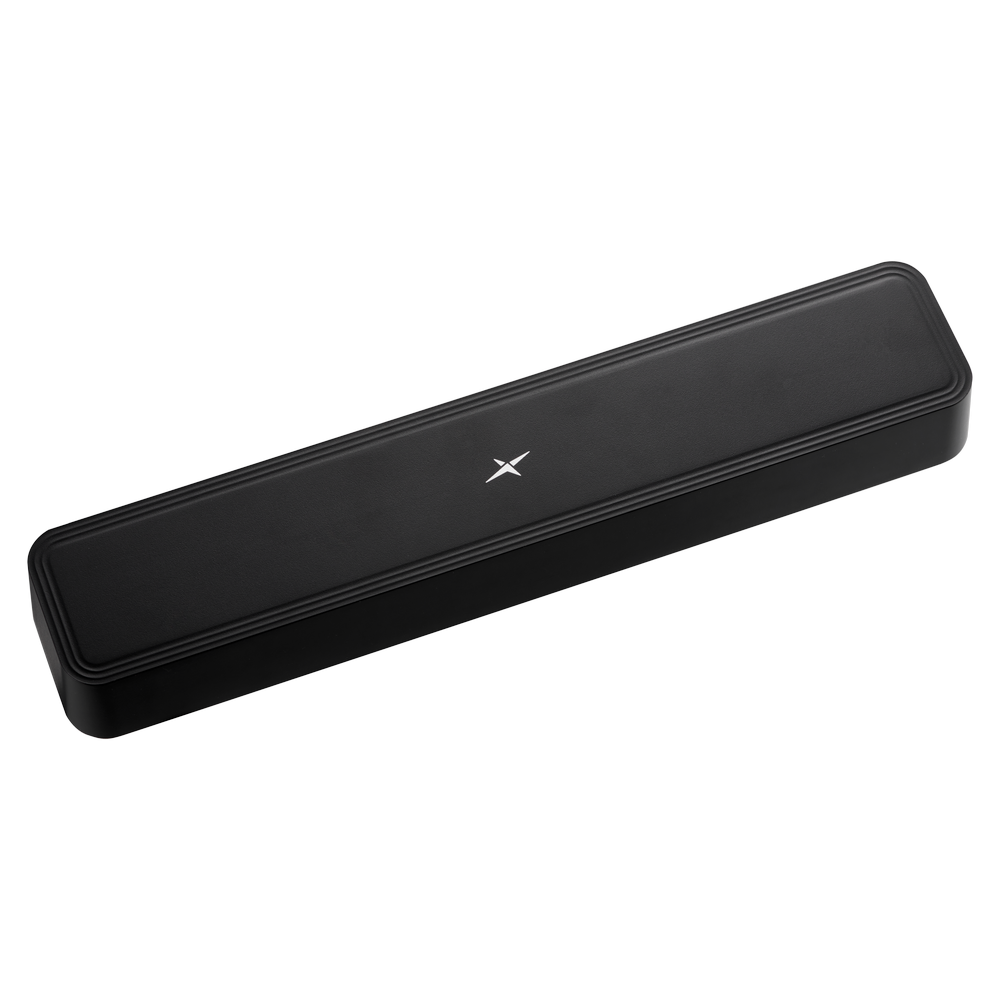

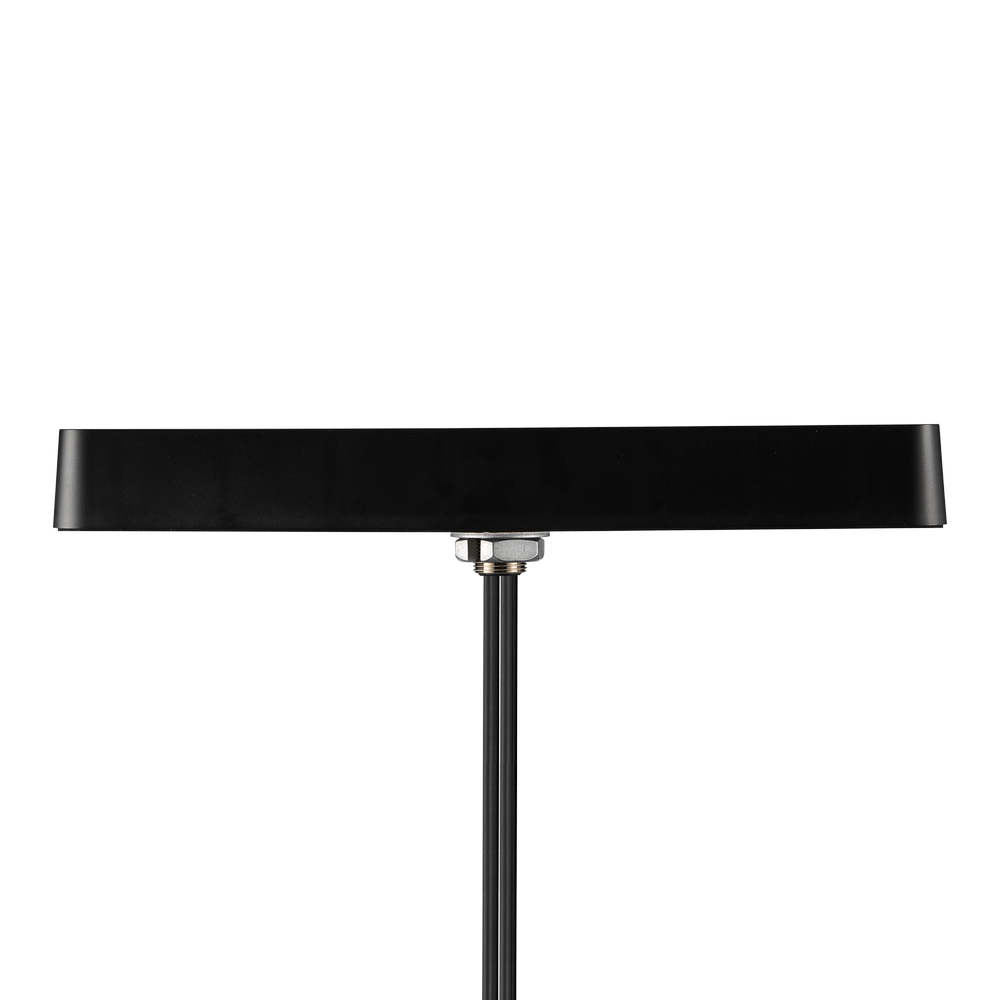

The Taoglas Raptor X RAPX.4.4C.5M.S2.B is a 4-in-1 permanent screw-mount antenna with four 5G/4G MIMO elements covering 617MHz to 6GHz, built for 4x4 cellular routers and gateways. Its 350 x 70 x 40mm enclosure is IP67 and IP69K waterproof and IK10 impact rated. This variant has four 5m TGC-200 leads with SMA male connectors, a mid-length run for rooftop-to-cabinet and vehicle installs.

  • 4-in-1 antenna with 4x 5G/4G MIMO elements
  • Covers 617MHz to 5925MHz, worldwide 5G/4G bands with 3G/2G fallback
  • Includes 5G NR n77, n78, n79 and Band 48 with up to 7.74dBi peak gain
  • IP67 and IP69K waterproof, IK10 impact-rated 350 x 70 x 40mm housing
  • Permanent screw mount, -40°C to +85°C operating range
  • 5m TGC-200 leads with four SMA male connectors
  • Connect a 4x4 MIMO 5G router to one antenna instead of four
  • Keep full-band coverage from 600MHz to 5.9GHz on every lead

The Raptor X MA890 houses four 5G MIMO antennas in a single compact enclosure, for routers and gateways that use four cellular antenna ports to increase throughput. Taoglas designed it for digital signage, transportation and autonomous vehicles, private 5G networks, and public safety and first-responder deployments.

Every element covers 617MHz to 5925MHz, including worldwide 5G/4G bands with 3G and 2G fallback. Coverage includes Band 71; bands 12, 13, 14, 17, 28 and 29; bands 5, 8, 18, 19, 20, 26 and 27 with NB-IoT and Cat-M; 1427-1518MHz; 1710-2200MHz; bands 7, 30, 38, 40 and 41; and 3300-5000MHz for bands 22, 42, 48, n77, n78 and n79. It extends to 5150-5925MHz. Peak gain reaches up to 7.74dBi in the 3.3-5GHz range, and maximum input power is 2W to 10W.

The IK10 impact-rated, IP67 and IP69K waterproof housing is made for locations exposed to rain and physical knocks, such as bus shelters and the tops of digital displays. It operates from -40°C to +85°C.

RAPX.4.4C.5M.S2.B is a cable and connector variant of the standard MA890.A.BIVW.001. It uses four 5m TGC-200 leads terminated in SMA male connectors, which gives enough reach to route from a roof or pole to a cabinet or equipment bay. The Taoglas MA890.A.BIVW.001 datasheet documents the full electrical performance.

Ideal for

  • Transit and autonomous vehicle roof installs routed to an equipment bay
  • Digital signage and kiosks with 4x4 MIMO 5G routers
  • Private 5G network endpoints
  • Public safety and first-responder deployments
  • Pole or rooftop mounts feeding a nearby cabinet

Specifications

Cabling

Cable Type
TGC-200
Connectors
4x SMA male
Cable Length
5 m

General

MPN
RAPX.4.4C.5M.S2.B
Brand
Taoglas
Elements
4x 5G/4G MIMO
Technology
External combination antenna
Product Name
Raptor X MA890 4-in-1 5G/4G MIMO Antenna
Standard Model
Variant of standard model MA890.A.BIVW.001

Compliance

Environmental Compliance
RoHS and REACH compliant

Mechanical

Weight
950 g
Dimensions
350 x 70 x 40 mm
Enclosure Impact Rating
IK10

Environmental

Temperature Range
-40°C to +85°C
Waterproof Rating
IP67 and IP69K

LTE Electrical

Band 71
36.4-49.8%, up to 2.25 dBi
Impedance
50 Ω
698 824mhz
35.4-50.3%, up to 2.94 dBi
824 960mhz
4G/3G/NB-IoT/Cat M 824-960 MHz (B5/8/18/19/20/26/27): 37.5-50.8%, up to 2.64 dBi
1427 1518mhz
24.5-27.9%, up to 1.21 dBi
1710 2200mhz
4G/3G 1710-2200 MHz (B1/2/3/4/9/23/25/35/39): 42.5-53.7%, up to 5.63 dBi
2300 2690mhz
45.2-56.8%, up to 6.97 dBi
3300 5000mhz
5G NR/4G 3300-5000 MHz (B22/42/48/n77/n78/n79): 55.6-58.9%, up to 7.74 dBi
5150 5925mhz
40.1-48.9%, up to 6.48 dBi
Polarization
Linear
Test Condition
Tested with 0.3 m of cable
Max Input Power
2W to 10W
Radiation Pattern
Omnidirectional

Product Attributes

Rohs
Yes
Vswr
<2
Width
70 mm
Height
40 mm
Length
350 mm
Weight
455 g
Gain Max
4.6 dBi
Impedance
50 Ω
IP Rating
IP67
Polarization
Linear
Mounting Style
Screw
Frequency Range
600 - 6000 MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C

Questions buyers ask

What cable does the RAPX.4.4C.5M.S2.B use?

Four 5m TGC-200 leads, one per MIMO element, each ending in an SMA male connector.

Does it cover 5G mid-band and C-band?

Yes. All four elements cover 3300-5000MHz, including bands 22, 42, 48, n77, n78 and n79, with up to 7.74dBi peak gain.

Does it support low-band LTE?

Yes. Coverage starts at 617MHz, including Band 71, bands 12, 13, 14, 17, 28 and 29, and bands 5, 8, 18, 19, 20, 26 and 27.

Is it suitable for outdoor mounting?

Yes. The housing is IP67 and IP69K waterproof, IK10 impact rated, and operates from -40°C to +85°C.
