Teltonika RUT361 Industrial 4G LTE Cat 6 Router with Wi-Fi, North America Version (RUT361200800)

4G LTEMPN RUT361200800

100 Mb Ethernet

$275.00$289.00Save $14

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

Request a quote · volume, multi-site or with plans

30-day returns on unopened devices
Secure checkout · pay by card
Data plans with no contract · cancel anytime

Datasheets & documents

Highlights

Overview

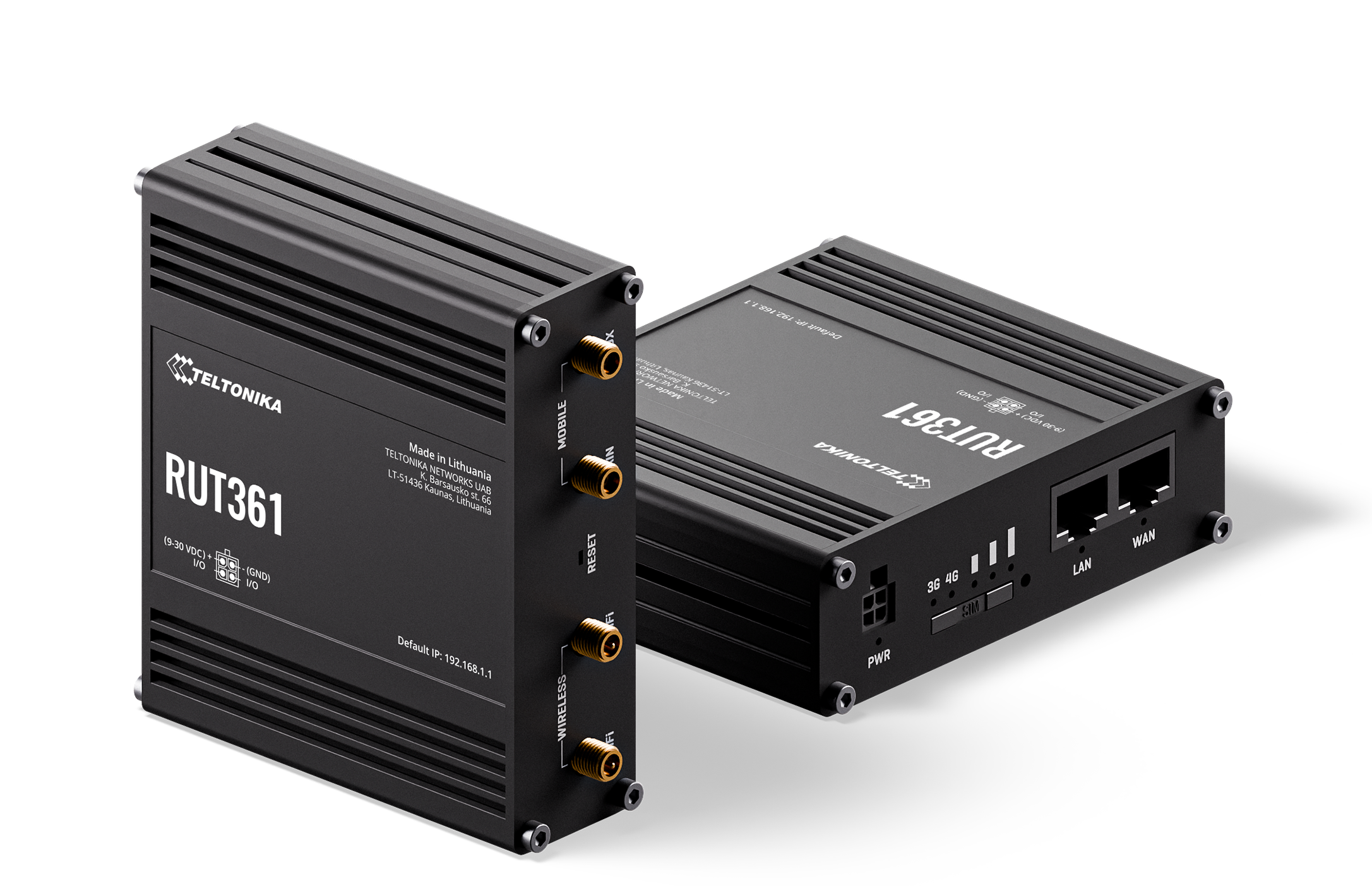

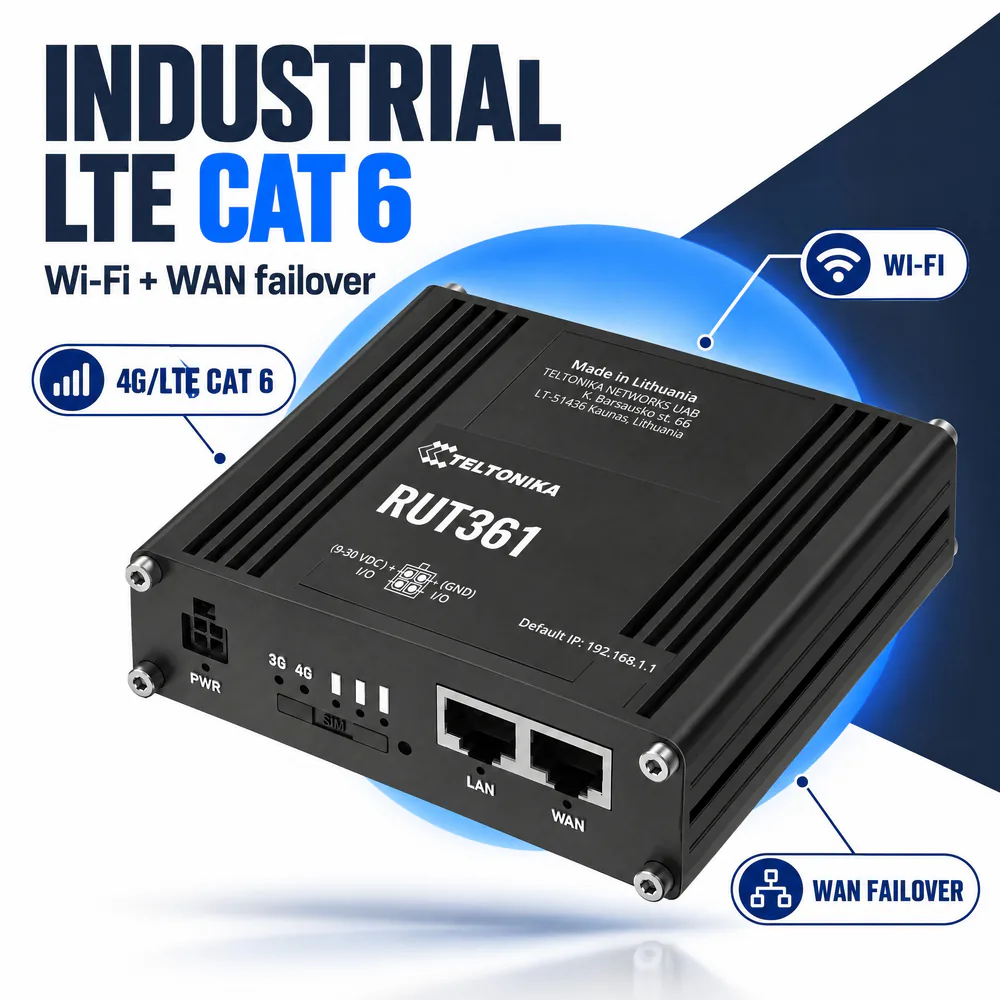

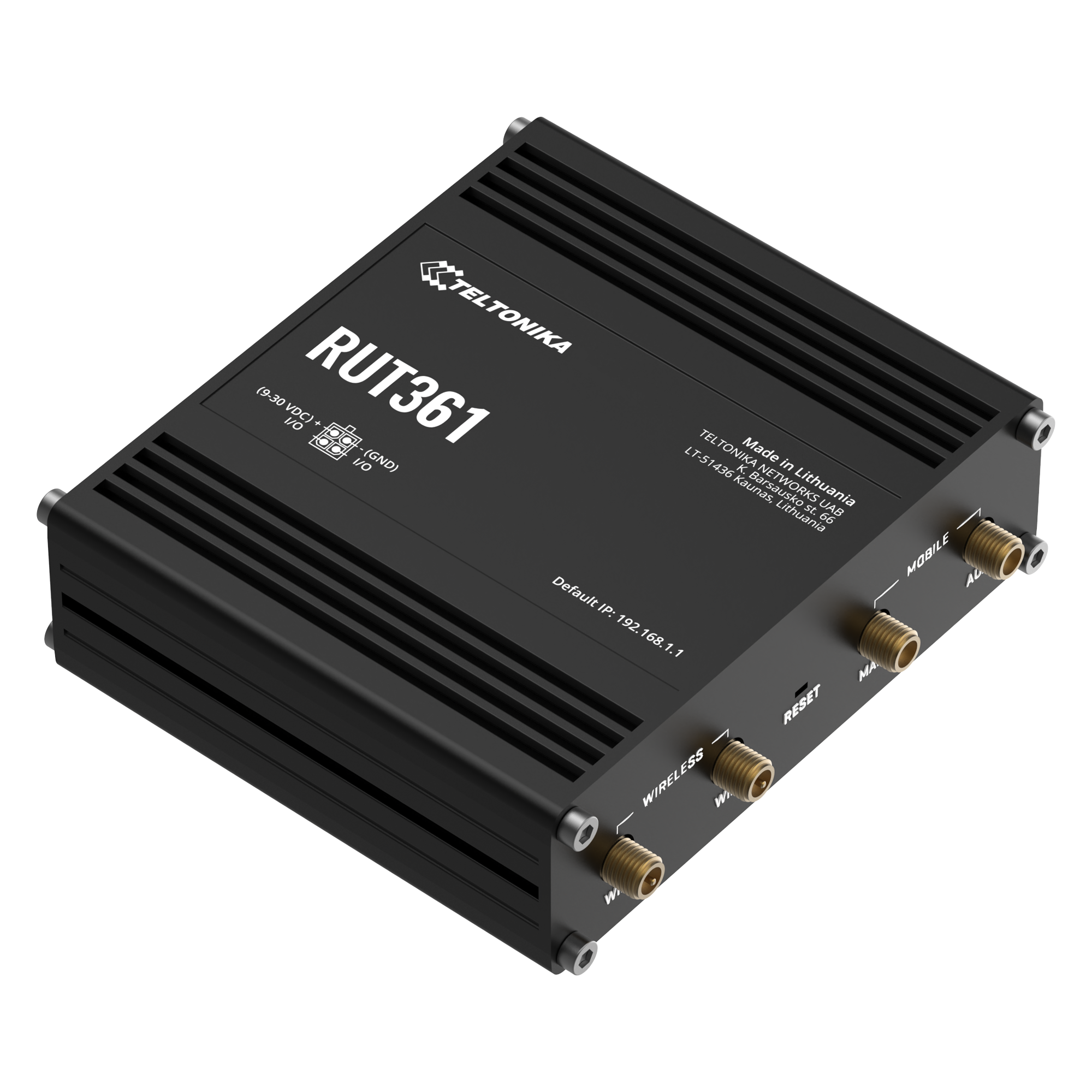

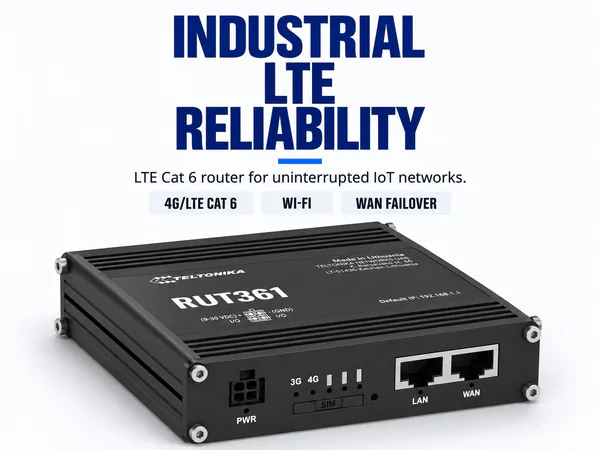

The Teltonika RUT361 is an industrial LTE Cat 6 router that reaches up to 300 Mbps downlink with carrier aggregation. It is built for IoT and M2M networks that cannot afford downtime. Order code RUT361200800 is the North America hardware version, covering bands including B2, B4, B5, B12, B13, B14, B66 and B71. It ships in the standard package with an 18 W US power supply, two LTE antennas and two Wi-Fi antennas for its 2x2 MIMO 802.11b/g/n access point.

The Teltonika RUT361 is a robust cellular router for IoT applications that need uninterrupted connectivity in challenging environments. Order code RUT361200800 is the North America hardware version, supplied in the standard package with a US power supply. Teltonika lists PTCRB, AT&T and Verizon among its operator approvals.

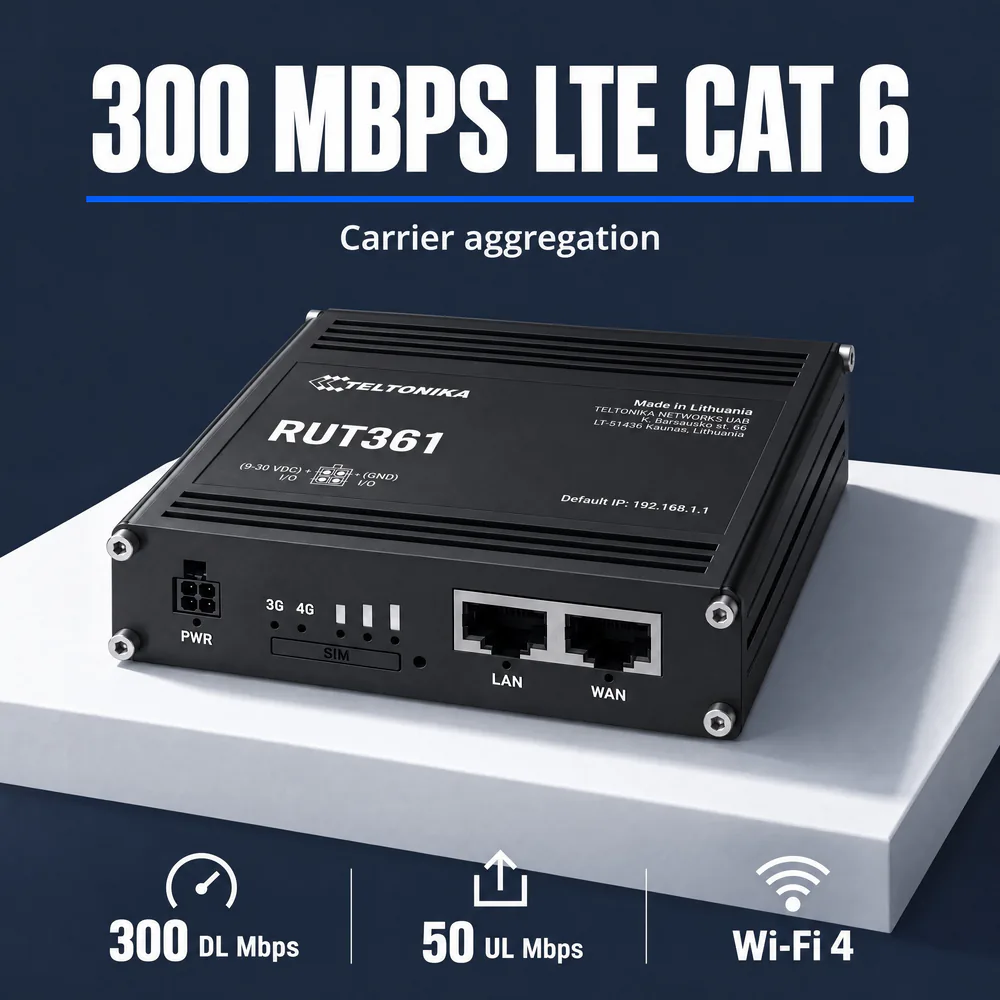

Its LTE Cat 6 module, 3GPP Release 12, supports carrier aggregation for up to 300 Mbps downlink and 50 Mbps uplink. This version covers LTE-FDD bands B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66 and B71, plus LTE-TDD B41 and B48. Two SMA connectors serve the included LTE antennas, and the status page reports a carrier aggregation indicator alongside RSRP, RSRQ and SINR. Two RP-SMA Wi-Fi antennas drive a 2x2 MIMO 802.11b/g/n access point for up to 50 users, and the router can also run as a Wi-Fi client. One WAN and one LAN 10/100 Mbps port handle wired links. Mobile, wired, Wi-Fi WAN and VRRP connections can each act as an automatic failover, with load balancing across WANs.

RutOS provides firewalling, VLANs, 802.1x, a captive-portal hotspot, and BGP, OSPF, RIP and EIGRP routing. VPN support includes OpenVPN, IPsec, WireGuard, ZeroTier, DMVPN, GRE, L2TP, SSTP and Tinc. Industrial integration covers Modbus TCP, MQTT, BACnet/IP, OPC UA, DNP3 and DLMS, with data delivery to AWS IoT Core, Azure IoT Hub, Cumulocity and ThingWorx. Up to two configurable digital I/O on the power connector can trigger email, SMS or RMS events.

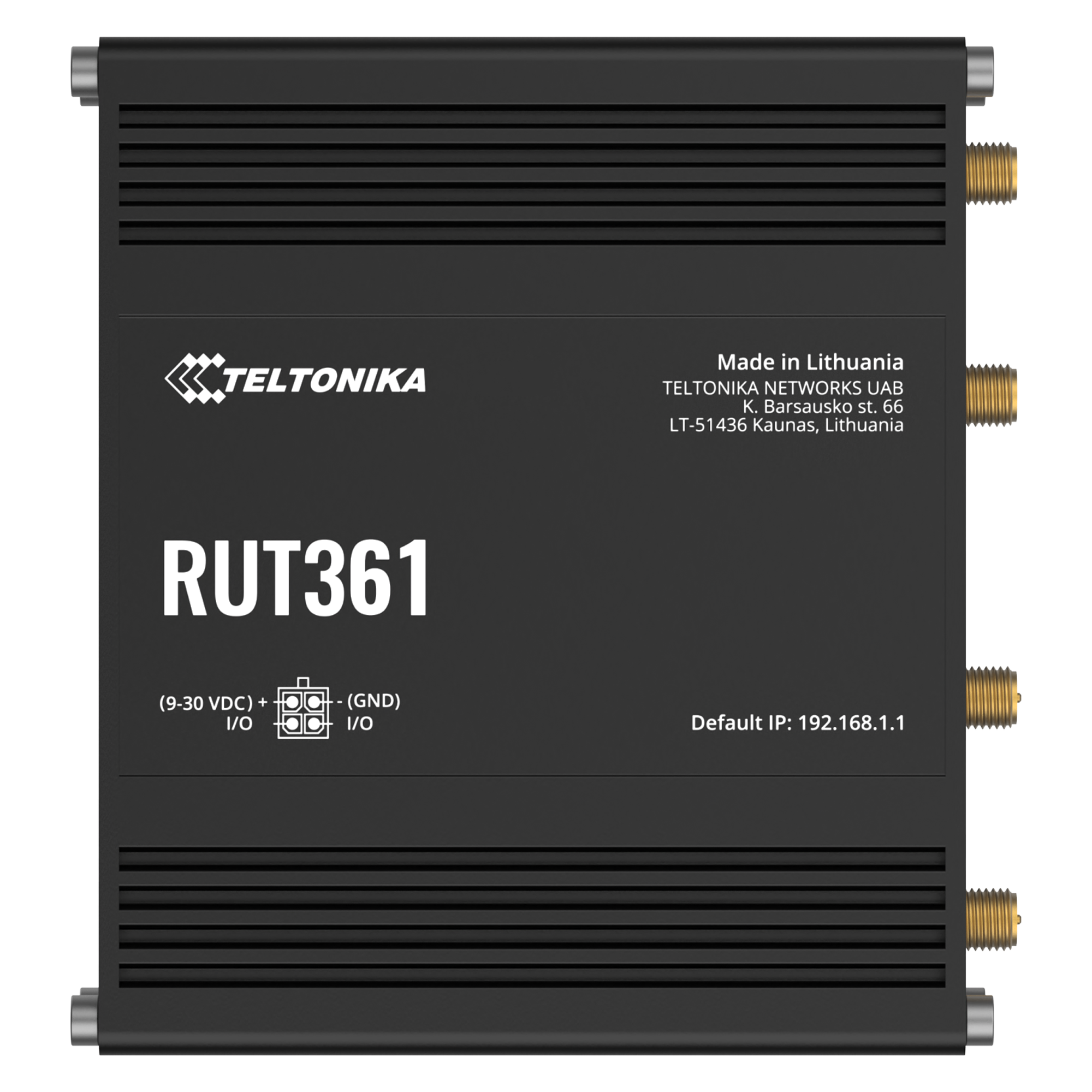

The anodised aluminium housing measures 100 x 30 x 85 mm and weighs 243 g. The router operates from -40 °C to 75 °C and is rated IP30. It runs on 9 to 30 VDC and draws under 4.7 W at maximum. DIN rail, wall and flat-surface mounting are available with an additional kit.

Ideal for

Primary or failover LTE WAN for retail stores, branch offices and kiosks in North America
Industrial telemetry and SCADA links using Modbus TCP, DNP3, MQTT or OPC UA
Building management connectivity over BACnet/IP for HVAC and energy systems
Utility metering backhaul with DLMS client support
Remote camera, signage and field equipment sites needing Cat 6 throughput and VPN access

Specifications

RF

Standards: EN 300 328, EN 301 908-1/-2/-13

API

Teltonika Networks Web API: Teltonika Networks Web API (beta)
Teltonika Networks Web API Beta Support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

VPN

Gre: GRE tunnel, GRE over IPsec
Sstp: SSTP client
Tinc: Tinc client and server with encryption, authentication and compression
Dmvpn: Scalable IPsec VPNs, Phase 2 and 3, Dual Hub
Ipsec: XFRM, IKEv1, IKEv2, 14 encryption methods (3DES, DES, AES128/192/256, AES-GCM variants)
Openvpn: Multiple clients and a server simultaneously, 27 encryption methods
Stunnel: TLS encryption proxy for existing clients and servers
Zerotier: ZeroTier VPN client
Pptp L2tp: Simultaneous client/server, L2TPv3, L2TP over IPsec
Wireguard: WireGuard client and server
Openvpn Encryption: 27 ciphers including DES, 3DES, Blowfish, CAST5, RC2 and AES-128/192/256 in CBC, CFB, OFB and GCM modes

Dnp3

Supported Modes: Station, Outstation
Supported Connection: TCP

Other

Operator: PTCRB, AT&T, Verizon

Power

Connector: 4-pin industrial DC power socket
PoE Passive: Passive PoE optional on different hardware
Power Consumption: Idle < 2.4 W, max < 4.7 W
Input Voltage Range: 9-30 VDC, reverse polarity and surge/transient protection

Bacnet

Supported Modes: Router
Configuration Options: Multiple BACnet/IP interfaces, network number assignment, preconfigured BDT entries for BBMD
Supported Connection Types: IP

Mobile

Apn: Auto APN
SMS: SMS status and configuration, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, autoreply, SMPP
Ussd: Send and read USSD messages
Bridge: Bridge between mobile ISP and LAN device
Status: IMSI, ICCID, operator, network type, CA indicator, band, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data usage, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
Passthrough: Mobile WAN IP passed to LAN device
3gpp Release: Release 12
Multiple Pdn: Different PDNs for multiple network access and services
Mobile Module: 4G LTE Cat 6 up to 300/50 Mbps; 3G up to 42/5.76 Mbps
Band Management: Band lock, used band status display
Block Allow List: Operator block/allow list by country or operator
SIM Pin Code Management: Set, change or disable SIM PIN

Modbus

Supported Modes: Server, Client
Custom Registers: Custom register block requests read/write to a file on the router
Supported Data Formats: 8-bit INT/UINT; 16-bit INT/UINT; 32-bit float/INT/UINT (ABCD, DCBA, CDAB, BADC); HEX; ASCII
Supported Connection Types: TCP

Opc UA

Supported Modes: Client, Server
Supported Connection Types: TCP

Safety

Standards: CE (EN 62368-1, EN IEC 62232, EN 50385), RCM, CB
Ordinary Locations Standards: CE (EN IEC 62368-1, EN IEC 62311, EN 50665), RCM, CB

General

MPN: RUT361200800
UPC: 4779051843213
Brand: Teltonika Networks
Model: RUT361
Package: Standard package with US PSU
Hardware Version: RUT361 2***** / North America

Network

Ddns: More than 77 providers, others configurable manually
Dhcp: Static/dynamic allocation, DHCP relay, server configuration, static leases with MAC wildcards
Sshfs: Mount remote file system via SSH
Hotspot: Captive portal, internal/external RADIUS, MAC auth, SMS and SSO authentication, landing pages, walled garden, user groups and limits, 9 customisable themes
Routing: Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based routing
Firewall: Port forward, traffic rules, custom rules, TTL target customisation
Dns Over Https: DNS over HTTPS proxy
Load Balancing: Balance traffic over multiple WAN connections

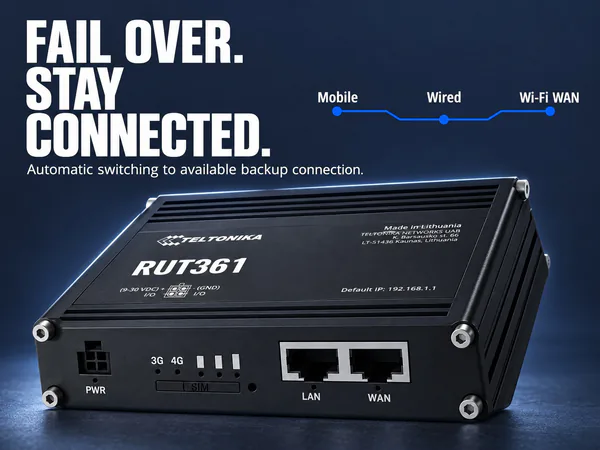

Network Backup: VRRP, Wired, Wi-Fi WAN, Mobile, each usable as automatic failover
Port Management: View, enable/disable ports, auto-configuration, speed settings
Network Topology: Visual network topology map
Network Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP(S), SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
Traffic Management: Real-time monitoring, signal charts, usage history
Firewall Status Page: Firewall statistics, rules and rule counters
Connection Monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP link inspection
Voip Passthrough Support: H.323 and SIP-ALG NAT helpers
Qos Smart Queue Management: Priority queuing by source/destination, service, protocol or port; WMM, 802.11e

Package

Contents: RUT361, 18 W US PSU, 2 x LTE antennas, 2 x Wi-Fi antennas, 1.5 m Ethernet cable, SIM adapter kit, Quick Start Guide
Shipping Weight: 1.40 lb

Ethernet

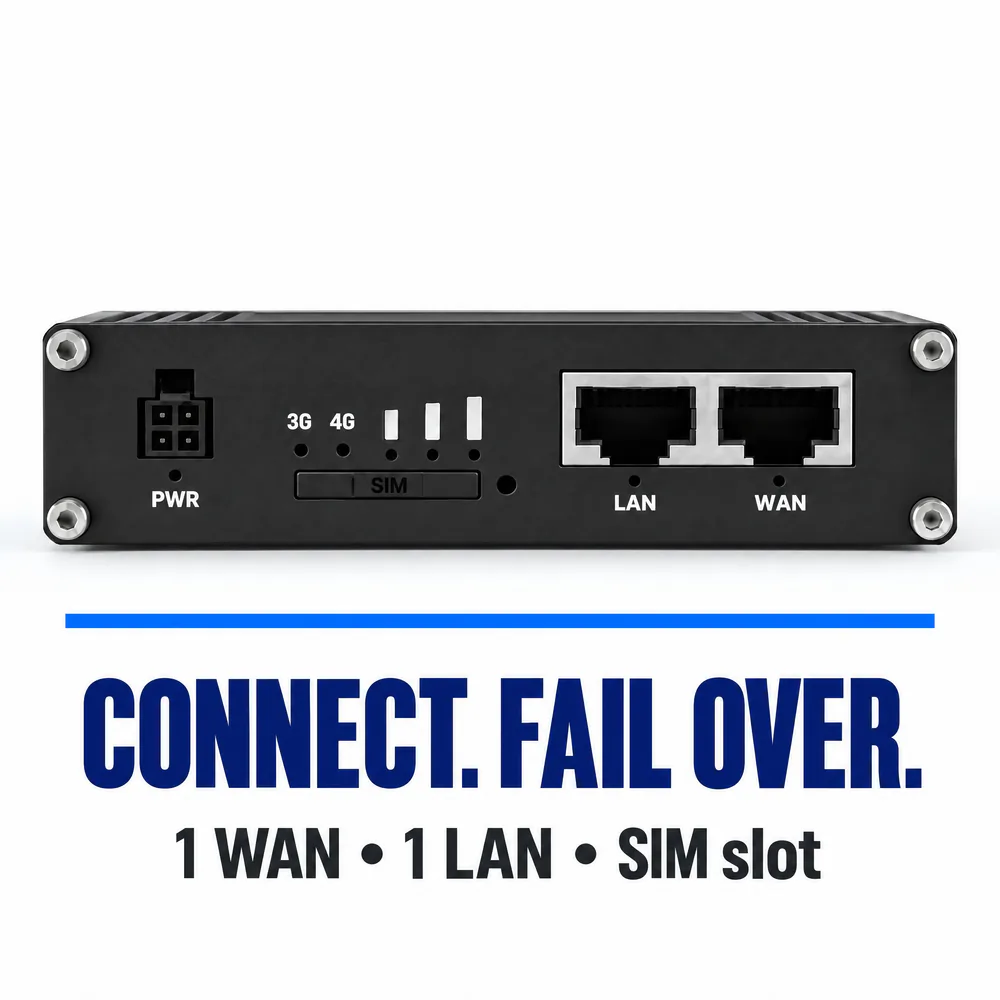

LAN: 1 x LAN 10/100 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX crossover
WAN: 1 x WAN 10/100 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX

Security

Vlan: Port and tag-based VLAN separation
802 1x: Port-based network access control server
Firewall: Preconfigured rules via WebUI, unlimited CLI configuration, DMZ, NAT, NAT-T, NAT64
Web Filter: Website block list and allow list
Access Control: Access control for SSH, Web interface, CLI and Telnet
Authentication: PSK, digital and X.509 certificates, TACACS+, internal/external RADIUS, login attempt blocking, password generator
Attack Prevention: DDoS prevention (SYN flood, SSH, HTTP/HTTPS) and port scan prevention
Certificate Manager: Create CA, server, client, Let's Encrypt and SCEP certificates
Mobile Quota Control: Mobile data limit, period, start time, warning limit, phone number

Wireless

Ssid Essid: SSID stealth mode, MAC-based access control
Travelmate: Forward hotspot landing page to connected device
Wi-Fi Users: Up to 50 simultaneous connections
Wi-Fi Security: WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, client separation, EAP-TLS, 802.11w PMF
Wireless Mode: 802.11b/g/n (Wi-Fi 4), 2x2 MIMO, AP and STA modes
Wireless Mac Filter: Allowlist, blocklist
Wireless QR Code Generator: QR code for password-free network join
Wireless Connectivity Features: 802.11s mesh, 802.11r fast roaming, 802.11v, 802.11k

Dlms Cosem

Dlms Support: DLMS utility meter data exchange
Supported Modes: Client
Supported Connection Types: TCP

Input Output

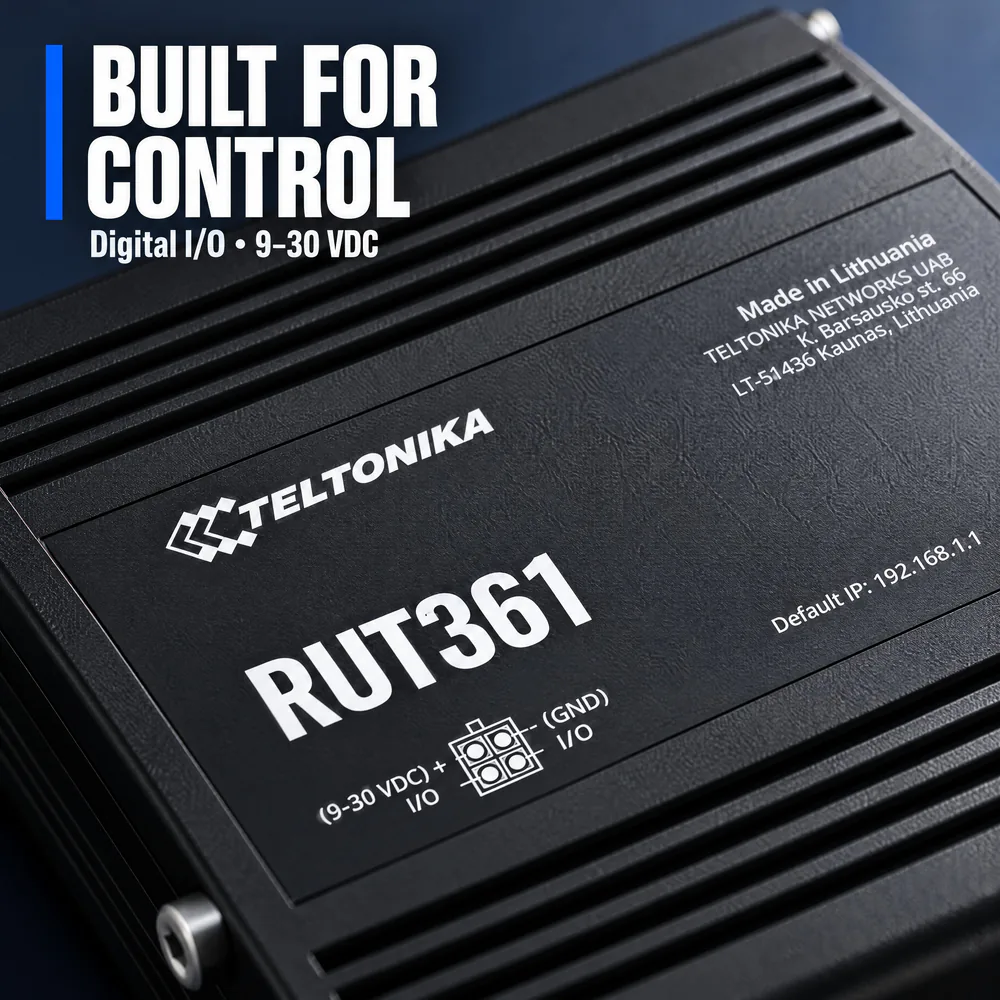

Input: Up to 2 x configurable digital inputs (shared), 0-6 V low, 8-30 V high
Events: Email, RMS, SMS
Output: Up to 2 x configurable open collector outputs (shared), max 30 V, 300 mA
I/O Juggler: I/O conditions trigger events

Mqtt Gateway

Modbus Mqtt Gateway: Send commands to and receive data from Modbus server via MQTT broker

Iot Platforms

Thingworx: Monitors WAN type and IP, operator, signal strength, network type
Aws Iot Core: AWS cloud interaction with AWS Jobs support
Azure Iot Hub: Data to Server integration, Direct method RutOS API calls, zero-touch provisioning via DPS
Cumulocity Cloud OF Things: Monitors device, WAN, cell ID, ICCID, IMEI, operator, signal; reboot and firmware upgrade actions

Classification

Hts: 8517.62.00
HS Code: 851762

Data TO Server

Protocol: HTTP(S), MQTT, Azure MQTT
Data TO Server: Collect parameters from multiple sources and protocols and send to one server; custom Lua scripting

Frequency Bands

LTE Fdd: B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71
LTE Tdd: B41, B48

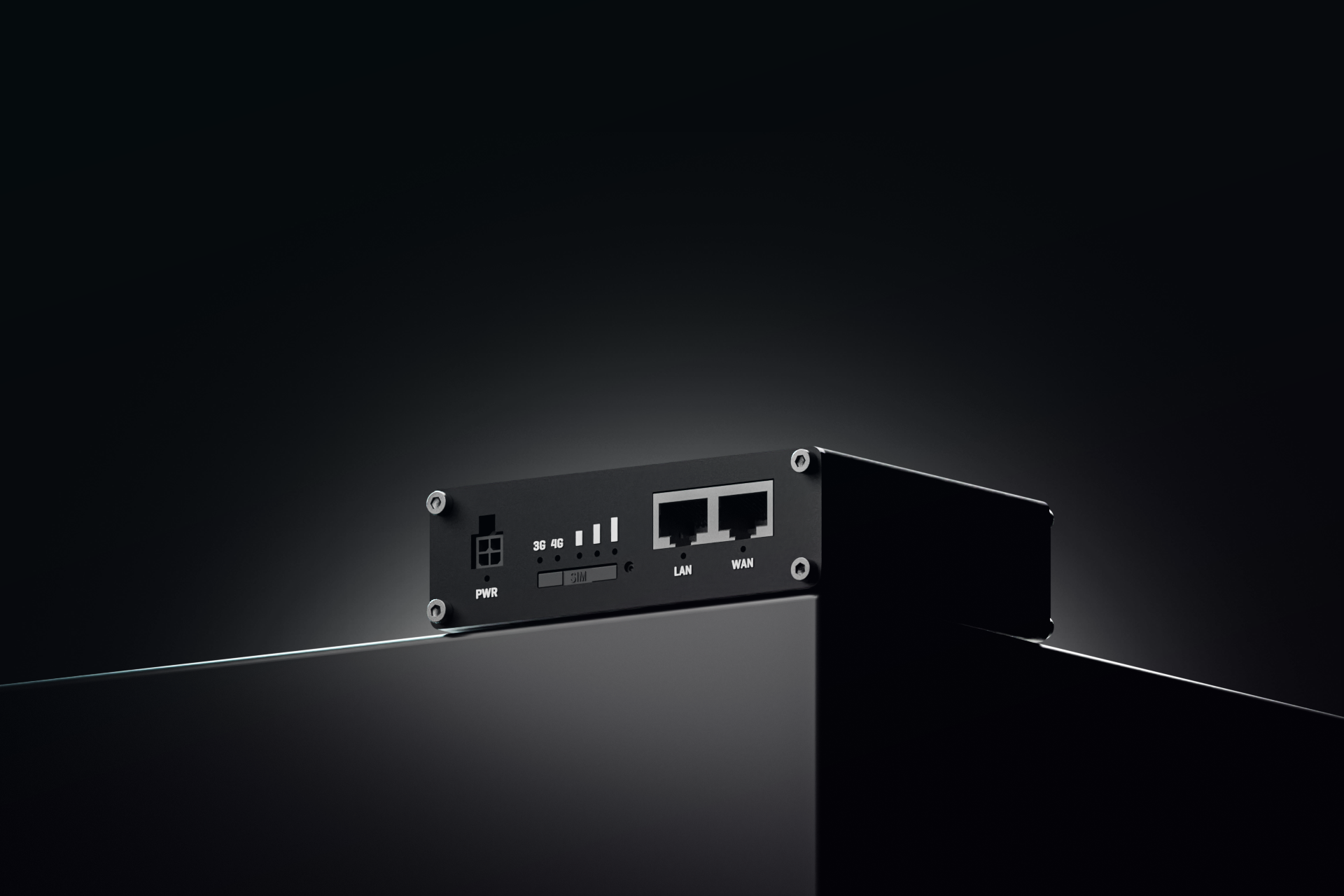

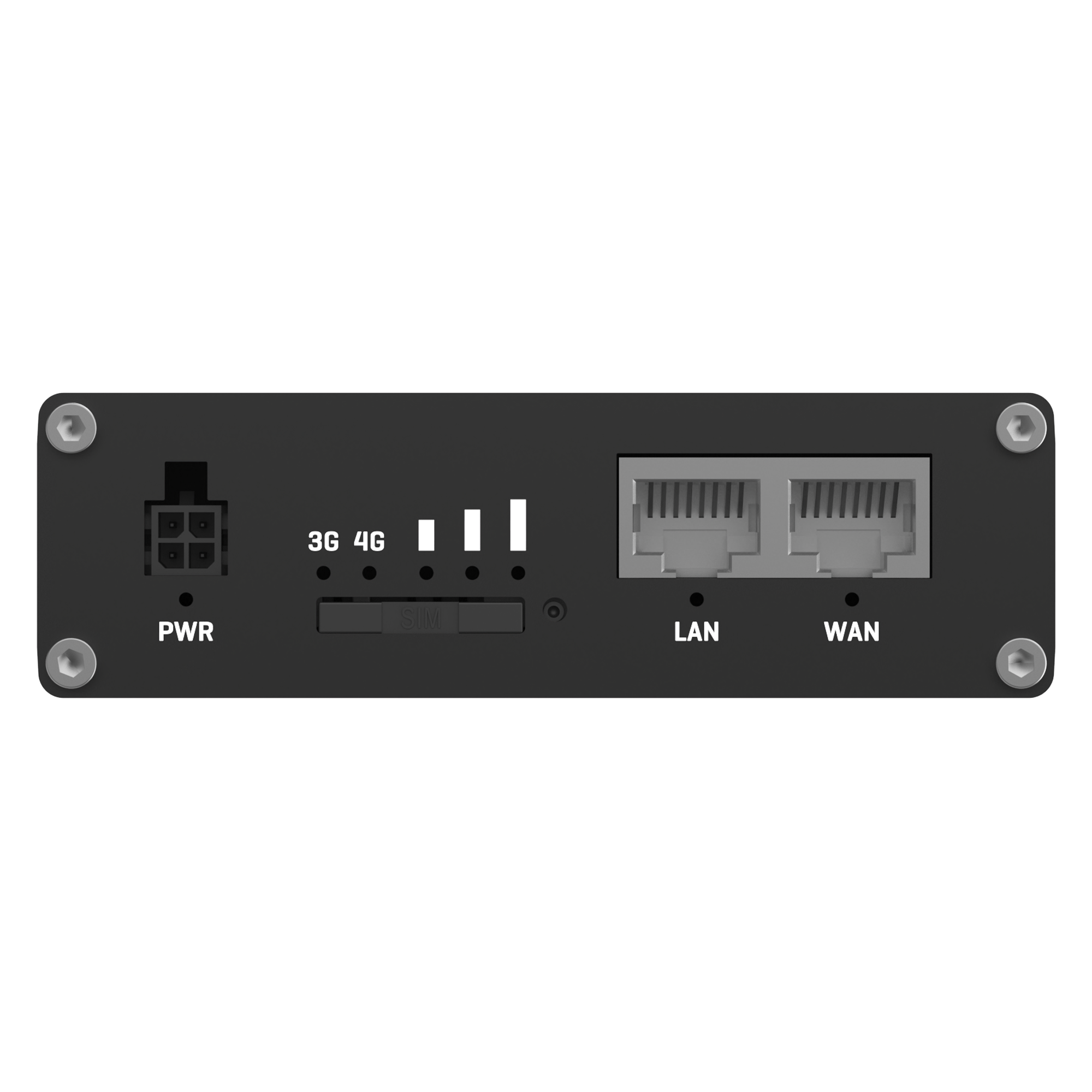

Physical Interfaces

Ios: 2 x configurable digital I/O on 4-pin power connector
SIM: 1 x Mini SIM (2FF), 1.8 V/3 V, external holder
Power: 1 x 4-pin power connector
Reset: Reboot / user default / factory reset button

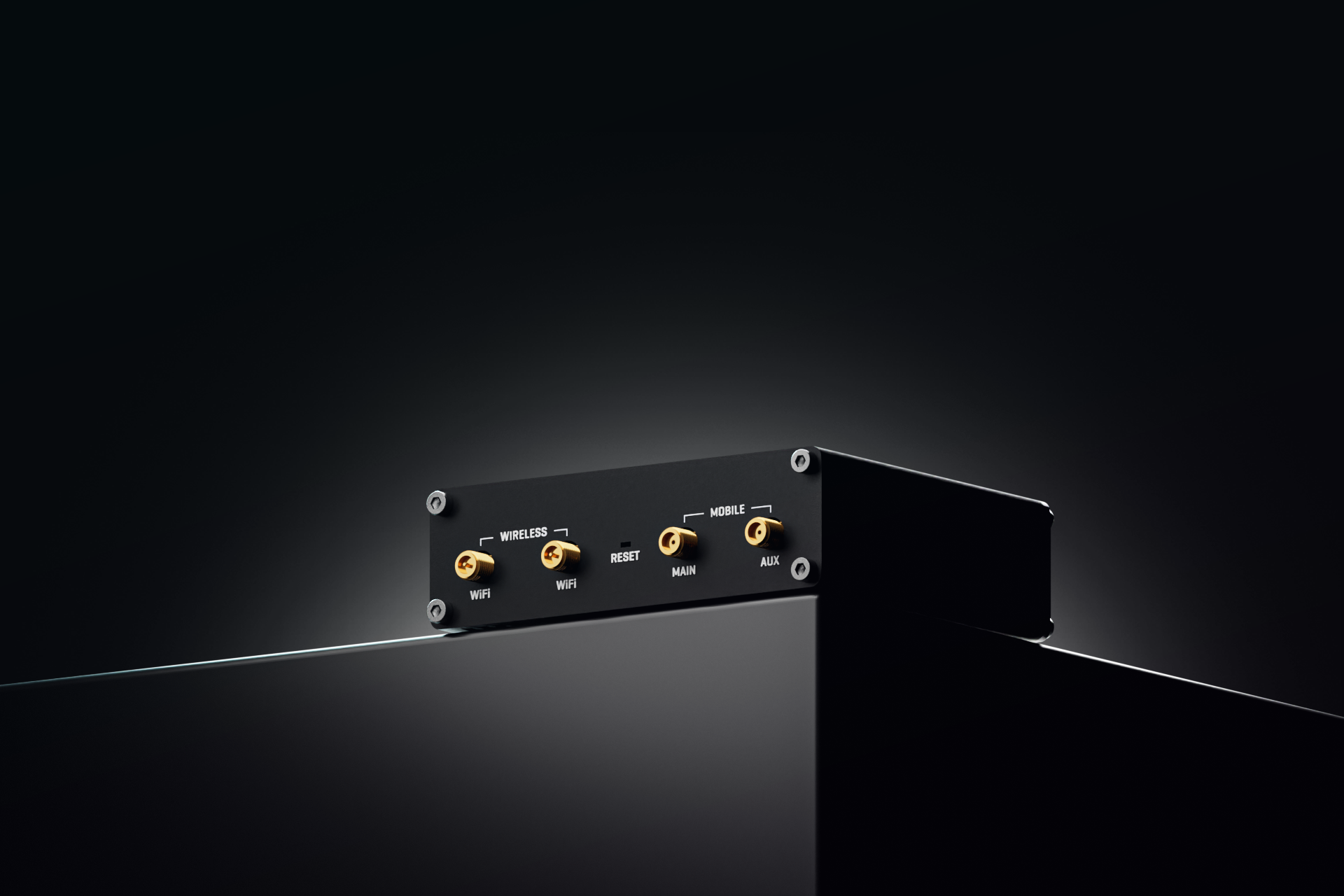

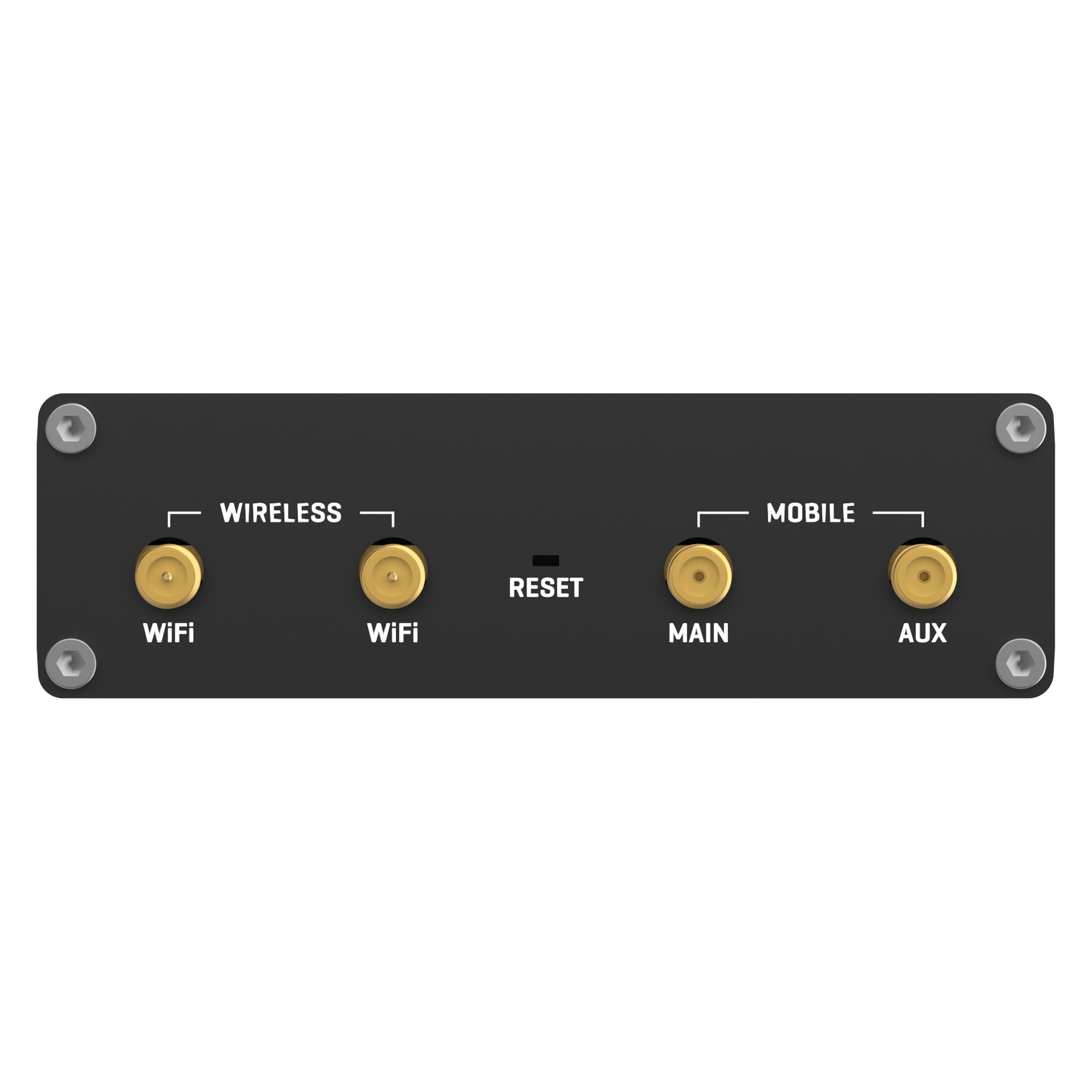

Antennas: 2 x SMA (LTE), 2 x RP-SMA (Wi-Fi)
Ethernet: 2 x RJ45, 10/100 Mbps
Status Leds: 2 x connection type, 3 x signal strength, 2 x Ethernet, 1 x power LED

Monitoring Management

Rms: Teltonika Remote Management System (RMS)
SMS: SMS status and configuration
Ssh: SSH v1, v2
Call: Reboot, status, mobile data on/off, output on/off, answer/hang-up timer, Wi-Fi on/off
Fota: Firmware update from server, automatic notification
Mqtt: MQTT broker, MQTT publisher
Snmp: SNMP v1/v2/v3, SNMP Trap, brute force protection
Modbus: Modbus TCP status/control
TR 069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
Web UI: HTTP/HTTPS WebUI with status, configuration, FW update, CLI, troubleshooting, event/system/kernel logs
Json Rpc: Management API over HTTP/HTTPS

Operating Environment

Operating Humidity: 10% to 90% non-condensing
Operating Temperature: -40 °C to 75 °C
Ingress Protection Rating: IP30

Emc Emissions Immunity

CS: EN 61000-4-6:2014
Dip: EN IEC 61000-4-11:2020
Eft: EN 61000-4-4:2012
Esd: EN 61000-4-2:2009
Standards: EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 301 489-1/-17/-52
Radiated Immunity: EN IEC 61000-4-3:2020
Surge Immunity AC Mains Power Port: EN 61000-4-5:2014 + A1:2017

Firmware Configuration

Rms: Bulk FW/configuration updates
Fota: Update FW
Web UI: FW update from file or server, configuration profiles and backup
Keep Settings: Update FW without losing configuration
Factory Settings Reset: Full factory reset to default configuration

Firmware Customisation

Package Manager: Install additional software packages
Operating System: RutOS (OpenWrt-based Linux OS)
Development Tools: SDK package with build environment
Gpl Customization: Custom branded firmware and WebUI
Supported Languages: Busybox shell, Lua, C, C++

Physical Specification

Weight: 243 g
Casing Material: Anodised aluminium housing and panels
Dimensions W H D: 100 x 30 x 85 mm
Mounting Options: DIN rail, wall, flat surface (additional kit required)

System Characteristics

CPU: Mediatek 580 MHz MIPS 24KEc
RAM: 128 MB DDR2
Flash Storage: 16 MB serial NOR flash

Regulatory Type Approvals

Regulatory: CE, UKCA, FCC, IC, RCM, CB, WEEE, RoHS, REACH, MTCTE

Questions buyers ask

How fast is the RUT361?

Its LTE Cat 6 module supports up to 300 Mbps downlink with carrier aggregation and up to 50 Mbps uplink. It is built to 3GPP Release 12.

Which LTE bands does the North America version cover?

RUT361200800 supports LTE-FDD B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66 and B71, plus LTE-TDD B41 and B48.

Which operator approvals does Teltonika list for this version?

Teltonika lists PTCRB, AT&T and Verizon for the RUT361 North America version.

How is the RUT361 powered?

It runs on 9 to 30 VDC through a 4-pin industrial power connector, and an 18 W US power supply is included. Power draw is under 2.4 W at idle and under 4.7 W at maximum.

Does it have digital I/O?

Yes. It offers up to two configurable digital inputs or outputs, shared on the 4-pin power connector. They can trigger email, SMS or RMS events through the I/O juggler.
