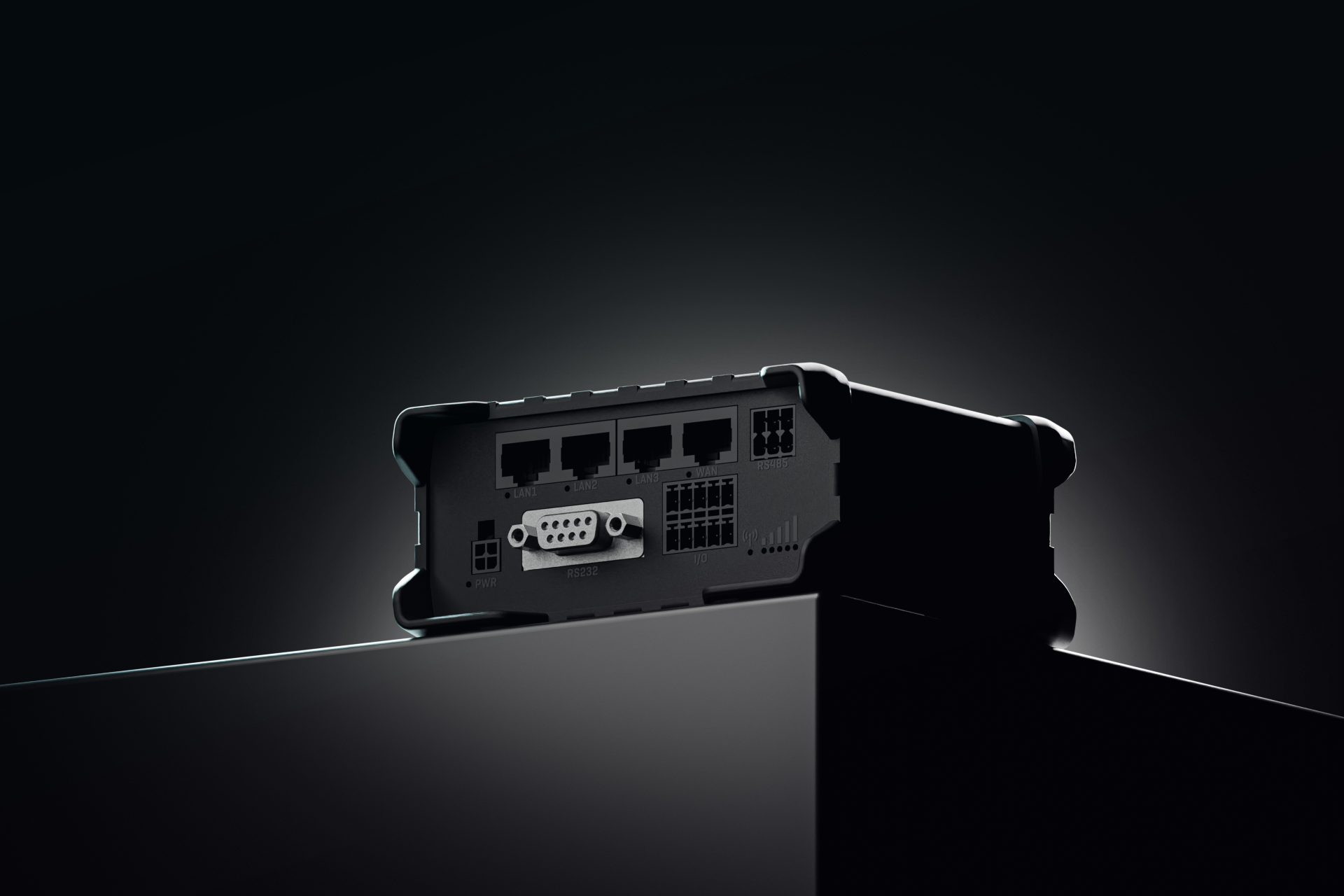

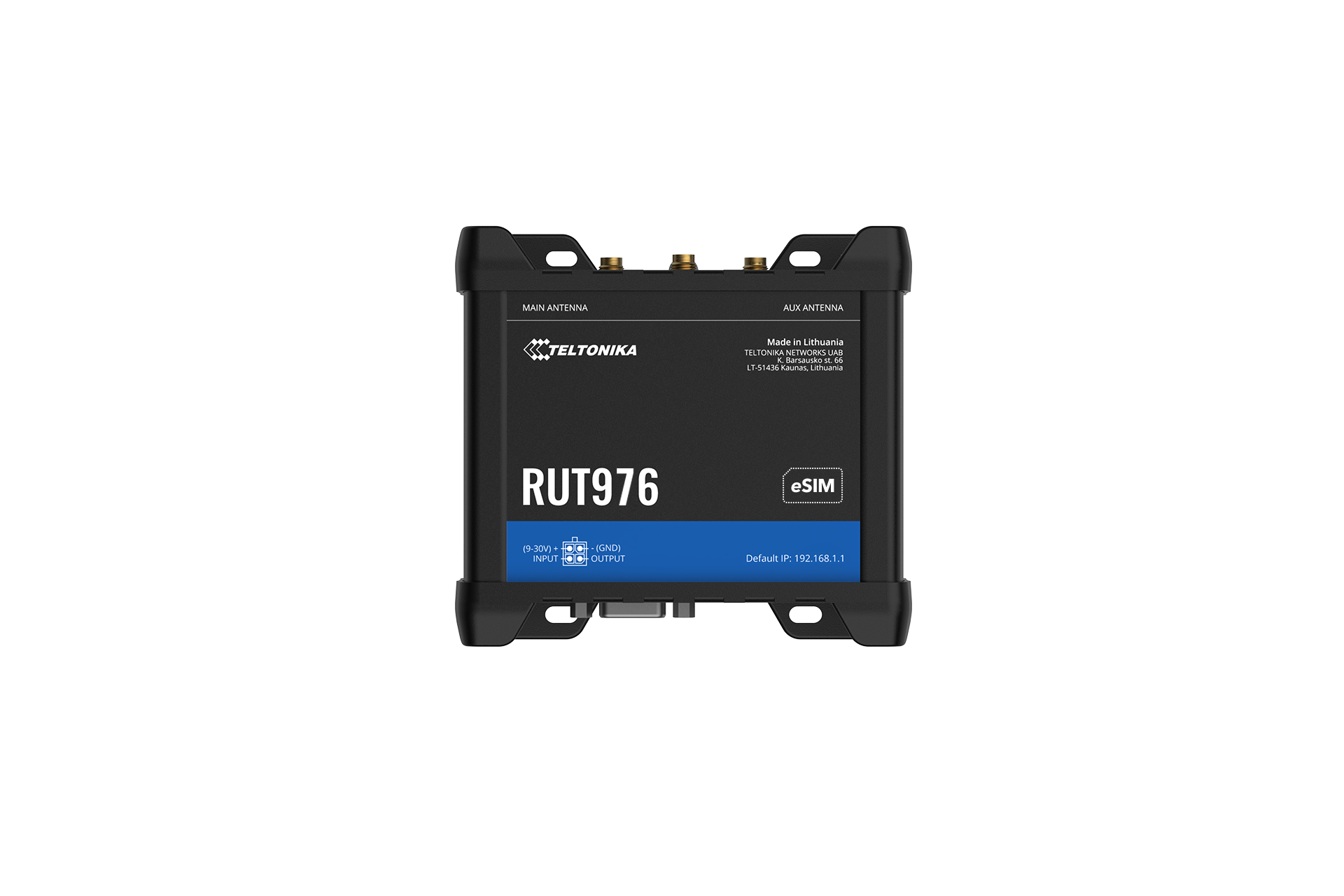

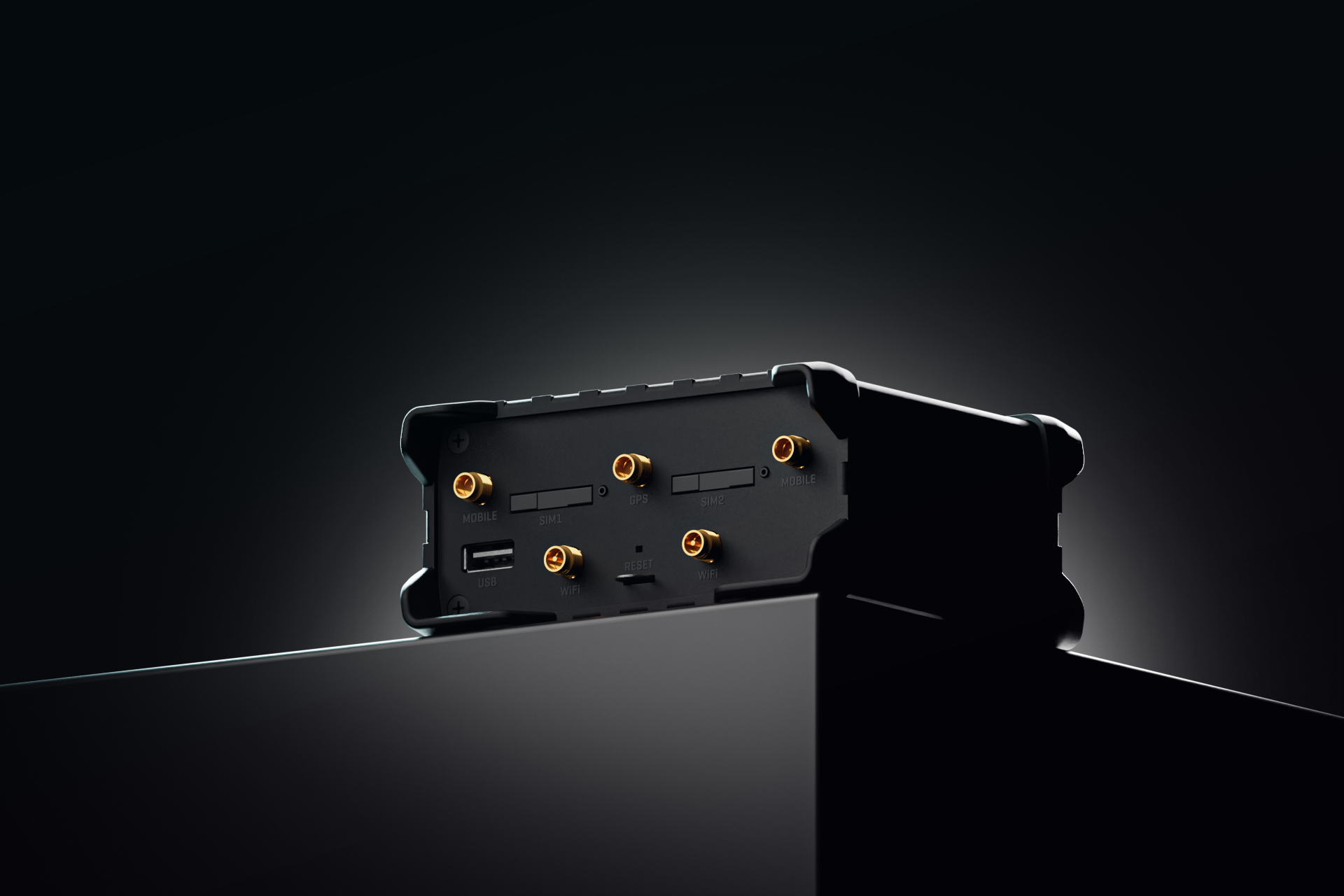

Teltonika RUT976 — REDCAP 5G ROUTER

5G RedCapMPN RUT976020000
$292.58$399.00Save $106.42

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Overview

RUT976 — REDCAP 5G ROUTER

  • REDCAP 5G: Low latency, high capacity, affordable pricing
  • FUTURE-PROOFING: Backward compatible with 4G LTE Cat 4
  • DUAL-SIM: With auto-failover, backup WAN and other switching scenarios
  • MULTIPLE INTERFACES: Ethernet, RS232, RS485, & multiple I/Os
  • RedCap 5G
  • Dual-SIM
  • Ethernet, RS232, RS485, & I/Os

The RUT976 is an industrial Redcap 5G router supporting SA architecture, carving a balanced niche between traditional 4G and full-capacity 5G. This 5G router can wirelessly support up to 100 end devices and features the low latency of 5G—at affordable pricing. In case of limited 5G coverage, the RUT976 is backward compatible with 4G LTE Cat 4. It also boasts dual SIM slots with auto-failover, Wi-Fi, GNSS, a wide range of interfaces, including four 10/100 RJ45 slots, RS232, RS485, and multiple I/Os, and numerous other brilliant features for expert professional deployment. Every RUT976 runs RutOS and is fully compatible with Teltonika RMS for remote access, monitoring, mass configuration, and firmware management. As an authorized Teltonika Networks partner we supply genuine hardware with the full manufacturer warranty, US-based support, and volume pricing for rollouts.

Specifications

RF

Standards
CE/UKCA: Draft EN 301 908-25 V15.1.1_0.0.21 EN 300 328 V2.2.2 EN 303 413 V1.2.1 EN 301 908-1 V15.2.1 EN 301 908-13 V13.2.1 RCM: AS/NZS 4268:2017+A1:2021 AS/CA S042.1:2022 AS/CA S042.4:2022 AS/CA S042.5:2022+A1:2022
Standards (Wi-Fi 2.4 GHz, 5 GHz)
FCC: 47 CFR Part 15 Subpart C - § 15.247, Subpart E - § 15.407 IC (ISED): RSS-247 Issue 3 (August 2023) RSS-Gen Issue 5 (April 2018) Amendment 2 (February 2021)

API

Teltonika Networks Web API (beta) Support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

USB

Data Rate
USB 2.0
Applications
Samba share, USB-to-serial
Storage Formats
FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
External Devices
Possibility to connect external HDD, flash drive, printer, USB-serial adapter

VPN

GRE
GRE tunnel, GRE tunnel over IPsec support
SSTP
SSTP client instance support
Tinc
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
DMVPN
Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
IPsec
XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
OpenVPN
Multiple clients and a server can run simultaneously, 27 encryption methods
Stunnel
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
ZeroTier
ZeroTier VPN client support
WireGuard
WireGuard VPN client and server support
PPTP, L2TP
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
OpenVPN Encryption
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

DNP3

Supported Modes
TCP Master, DNP3 Outstation
Supported Connection Types
RS232, RS485, TCP, USB

Power

Connector
4-pin industrial DC power socket
PoE (passive)
Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power Consumption
Idle: < 3 W, Max: < 7 W
Input Voltage Range
9 - 30 VDC, reverse polarity protection, voltage surge/transient protection

BacNET

Supported Modes
Router
Configuration Options
Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)
Supported Connection Types
IP, RTU(RS485, USB)

MODBUS

Supported Modes
Server, Client
Custom Registers
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported Data Formats
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
Supported Connection Types
RTU (RS232, RS485), TCP, USB

Mobile

APN
Auto APN
SMS
SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD
Supports sending and reading Unstructured Supplementary Service Data messages
‎
*Feature availability varies by order code
ESIM*
Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
Status
IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
Passthrough
Router assigns its mobile WAN IP address to another device on LAN
SIM Switch*
Dual SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
3GPP Release
Release 17 RedCap
Mobile Module
5G Sub-6Ghz SA 223 Mbps DL , 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL
Band Management
Band lock, Used band status display
Block/Allow List
Operator block/allow list (by country or separate operators)
SIM PIN Code Management
SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
SIM Idle Protection Service
Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked

OPC UA

Supported Modes
Client, Server
Supported Connection Types
TCP

Safety

Standards
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020 CB: IEC 62368-1:2018 RCM: AS/NZS 62368.1:2022

Serial

RS232
DB9 connector, RS232 (with RTS, CTS flow control)
RS485
RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate
Serial Functions
Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

Network

DDNS
Supported >77 service providers, others can be configured manually
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
SSHFS
Possibility to mount remote file system via SSH protocol
Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Firewall
Port forward, traffic rules, custom rules
DNS Over HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Load Balancing
Balance Internet traffic over multiple WAN connections
Network Backup
Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Port Mirroring
Mirroring network traffic on Ethernet ports for monitoring and analysis
Port Management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network Topology
Visual representation of your network, showing which devices are connected to which other devices
Network Protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on Lan (WOL), VXLAN
Firewall Status Page
View all your Firewall statistics, rules, and rule counters
Connection Monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
VoIP Passthrough Support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

SD CARD

Capacity
Up to 2 TB
Applications
Samba share, Storage Memory Expansion, DLNA
Physical Size
Micro SD (internal)
Storage Formats
FAT32, NTFS, ext2, ext3, ext4

Ethernet

LAN
3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
WAN
1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

Security

VLAN
Port and tag-based VLAN separation
802.1x
Port-based network access control server
Firewall
Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
WEB Filter
Block list for blocking out unwanted websites, allow list for specifying allowed sites only
Access Control
Flexible access control of SSH, Web interface, CLI and Telnet
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Attack Prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
Certificate Manager
Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates
Mobile Quota Control
Mobile data limit, customizable period, start time, warning limit, phone number

Wireless

SSID/ESSID
SSID stealth mode and access control based on MAC address
TravelMate
Forward Wi-Fi hotspot landing page to a subsequent connected device
Wi-Fi Users
Up to 100 simultaneous connections
Wireless Mode
802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi Security
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
Wireless MAC Filter
Allowlist, blocklist
Wireless QR Code Generator
Once scanned, a user will automatically enter your network without needing to input login information
Wireless Connectivity Features
Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)

DLMS/COSEM

DLMS Support
DLMS - standard protocol for utility meter data exchange
Supported Modes
Client
Supported Connection Types
RS232, RS485, TCP

RF Exposure

Standards
FCC: 47 CFR - § 2.1091 47 CFR - §1.1310 KDB 447498 D04 Interim General RF Exposure Guidance v01 IC (ISED): RSS-102 Issue 6 (December 2023)

Input/Output

Input
1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V; with 4-20 mA capability), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
Events
Email, RMS, SMS
Output
1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
I/O Juggler
Allows to set certain I/O conditions to initiate event

MQTT Gateway

Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker

IoT Platforms

ThingWorx
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
AWS IoT Core
Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality
Azure IoT Hub
Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
Cumulocity - Cloud OF Things
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Data TO Server

Protocol
HTTP(S), MQTT, Azure MQTT
Data TO Server
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

Location Tracking

GNSS
GPS, GLONASS, BeiDou, Galileo and QZSS
NMEA
NMEA 0183
NTRIP
NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Geofencing
Configurable multiple geofence zones
Coordinates
GNSS coordinates via WebUI, SMS, TAVL, RMS
Server Software
Supported server software TAVL, RMS

Physical Interfaces

SIM
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)
USB
1 x USB A port for external devices
Power
1 x 4-pin power connector
RS232
1 x DB9 socket
RS485
1 x 6-pin industrial socket
Reset
Reboot/User default reset/Factory reset button
I/O’s
2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector
Antennas
2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
Ethernet
4 x RJ45 ports, 10/100 Mbps
Status LEDs
1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
Input/output
1 x 10-pin industrial socket for inputs/outputs

Operating Environment

Operating Humidity
10% to 90% non-condensing
Operating Temperature
-40 °C to 75 °C
Ingress Protection Rating
IP30

FIRMWARE CUSTOMISATION

Package Manager
The Package Manager is a service used to install additional software on the device
Operating System
RutOS (OpenWrt based Linux OS)
Development Tools
SDK package with build environment provided
GPL Customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Supported Languages
Busybox shell, Lua, C, C++

Firmware/Configuration

RMS
Update FW/configuration for multiple devices at once
FOTA
Update FW
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
Keep Settings
Update FW without losing current configuration
Factory Settings Reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Physical Specification

Weight
295 g
Casing Material
Aluminium housing, plastic panels
Mounting Options
DIN rail, wall mount, flat surface (all require additional kit)
Dimensions (W X H X D)
110 x 50 x 100 mm

System Characteristics

CPU
Mediatek, 580 MHz, MIPS 24KEc
RAM
128 MB, DDR2
FLASH Storage
32 MB, NOR Flash

Monitoring & Management

RMS
Teltonika Remote Management System (RMS)
SMS
SMS status, SMS configuration
SSH
SSH (v1, v2)
Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
FOTA
Firmware update from server, automatic notification
MQTT
MQTT Broker, MQTT publisher
SNMP
SNMP (v1, v2, v3), SNMP Trap, Brute force protection
Email
Receive email message status alerts of various services
TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
JSON-RPC
Management API over HTTP/HTTPS

EMC Emissions & Immunity

CS
EN 61000-4-6:2014
DIP
EN 61000-4-11:2020
EFT
EN 61000-4-4: 2012
ESD
EN 61000-4-2: 2009
Standards
CE/UKCA: EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2:2019 + A1:2021 + A2:2024 EN 61000-3-3:2013 + A1:2019 + A2:2021 EN 301 489-1 V2.2.3 EN 301 489-17 V3.3.1 EN 301 489-19 V2.2.1 EN 301 489-52 V1.2.1 FCC/ISED(IC): 47 CFR Part 15 Subpart B ICES-003: Issue 7 (October 2020) RCM: AS/NZS CISPR 32:2015 + A1
Radiated Immunity
EN IEC 61000-4-3:2020
Surge Immunity (AC Mains Power Port)
EN 61000-4-5: 2014 + A1:2017

Regulatory & Type Approvals

Regulatory
CE, UKCA, FCC, IC (ISED), RCM, CB, WEEE, MTCTE

Questions buyers ask

What connectivity does the RUT976 support?

The RUT976 supports 5G Sub-6Ghz SA 223 Mbps DL , 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL.

Which positioning systems does the RUT976 use?

GPS, GLONASS, BeiDou, Galileo and QZSS.

Can the RUT976 handle harsh environments?

Yes — its rated operating range is IP30.

How is the RUT976 powered?

Idle: < 3 W, Max: < 7 W.

Does the RUT976 work with Teltonika RMS?

Yes. Every Teltonika Networks device we sell integrates with Teltonika RMS for remote management, monitoring, and configuration — see /products/rms for details.

Where is the RUT976 documentation?

Teltonika's wiki knowledge base carries the full datasheet, configuration guides, and firmware for the RUT976 — linked under Documents on this page.

Antennas & accessories for Teltonika

More 5G & LTE Routers
