Teltonika5G & LTE Routers

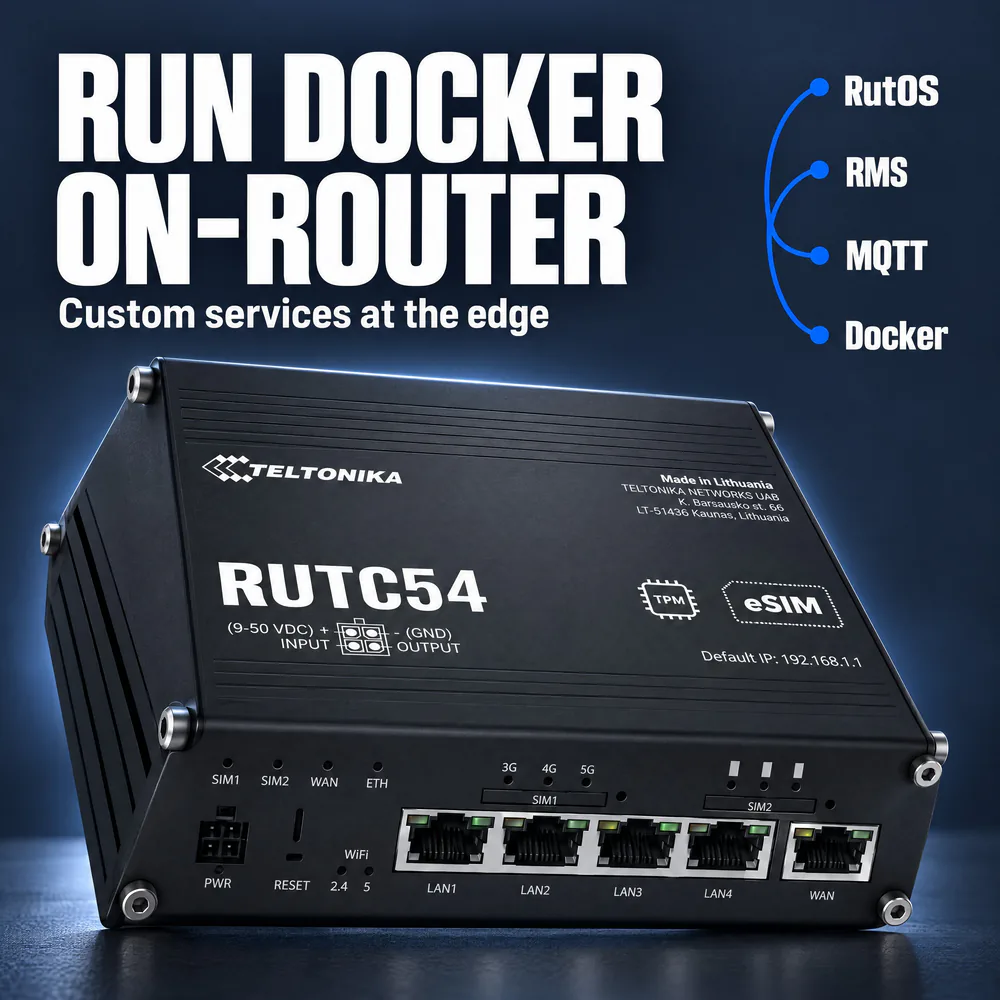

Teltonika RUTC54 Global 5G Edge Router with Wi-Fi 6, Dual SIM & eSIM (North America, EMEA, APAC)

5GMPN RUTC54000000
  • Dual SIM
  • eSIM
  • 5+ Ethernet ports
$759.00$799.00Save $40

In stock · only 5 leftShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Highlights

Overview

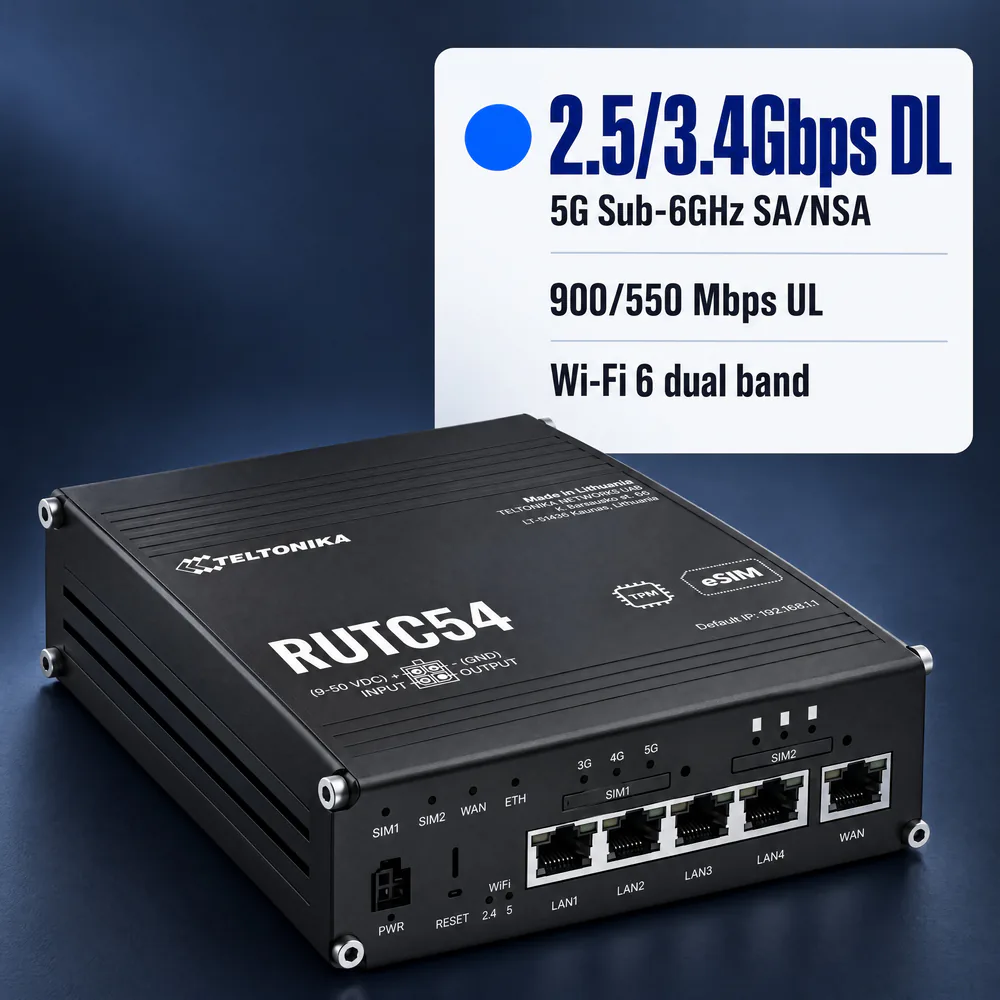

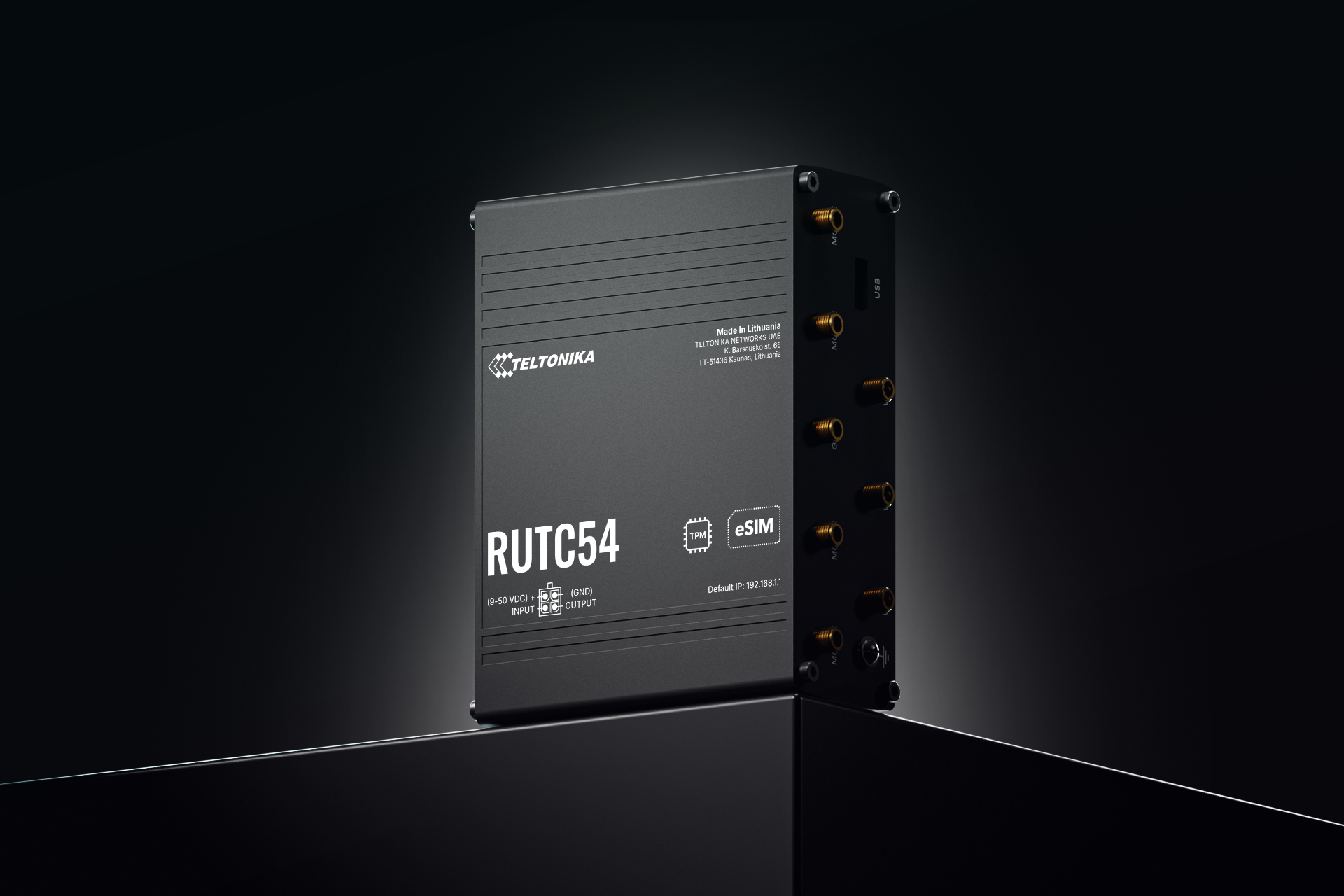

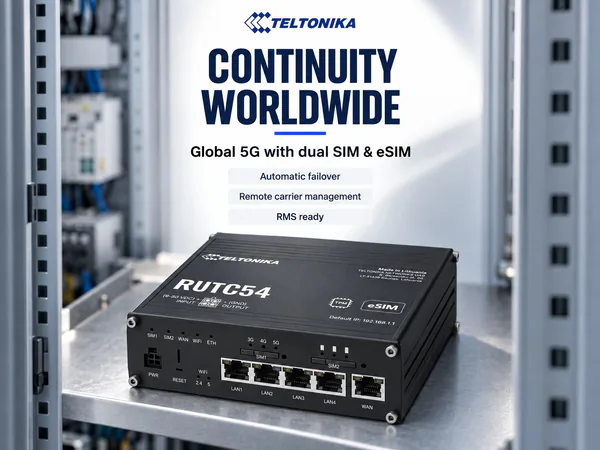

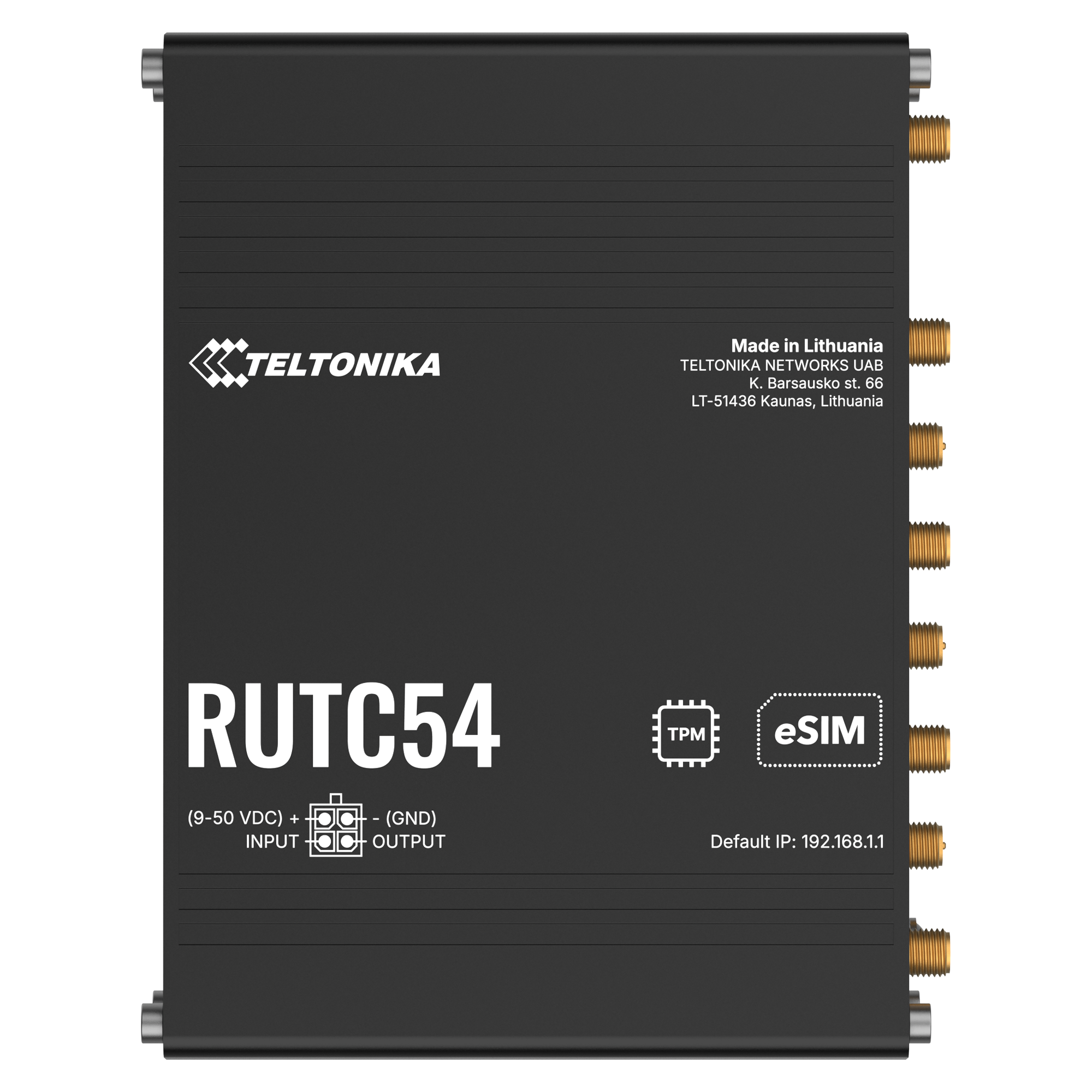

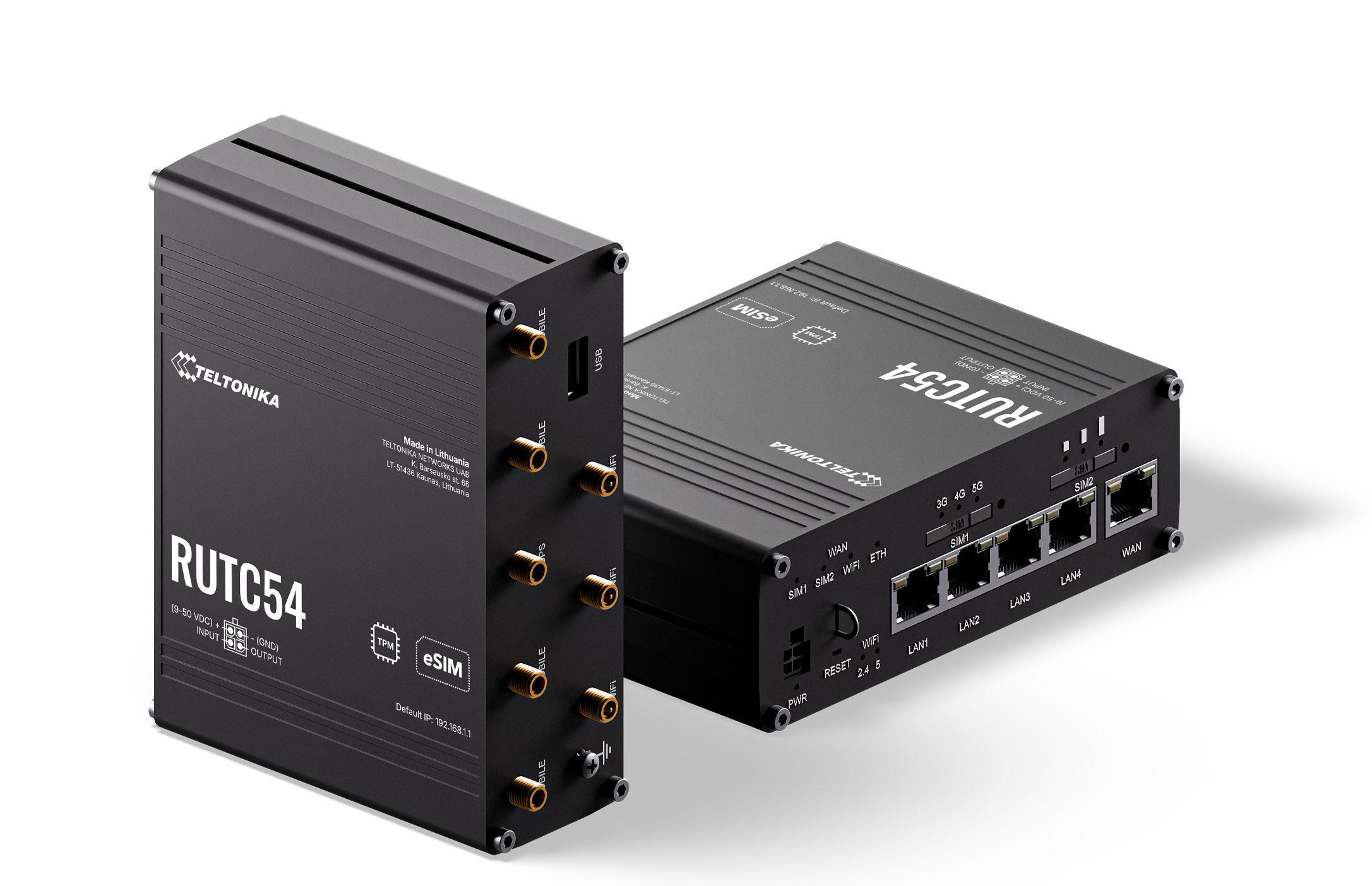

The Teltonika RUTC54 is a global 5G edge router built around a Telit FN990A28 Sub-6 GHz modem (SA/NSA, up to 3.4 Gbps downlink) for North America, EMEA and APAC. It pairs dual SIM slots and an eSIM with automatic failover, dual-band Wi-Fi 6 for up to 512 users, five gigabit Ethernet ports, GNSS and a TPM 2.0 module. It runs RutOS with Docker support and is managed centrally through Teltonika RMS. This SKU (RUTC54000000) ships in the standard package with a US 24 W power supply and a full antenna set.

The Teltonika RUTC54 is a 5G router for edge computing, designed for organisations that run connectivity across many sites and need it to stay up without sending an engineer. Its Telit FN990A28 global 5G modem supports Sub-6 GHz 5G in SA and NSA modes with 4x4 MIMO, up to 3.4 Gbps downlink and 900 Mbps uplink, and falls back to LTE Cat 19 and 3G. This hardware version covers North America, EMEA and APAC across a wide band list, including n41, n71 and n77 on 5G, and B12, B13, B14, B66 and B71 on LTE.

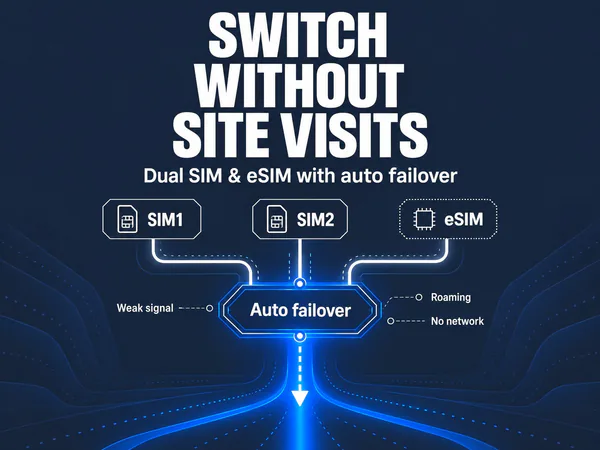

Continuity comes from two Mini SIM slots plus an eSIM holding up to seven profiles. The router switches automatically on weak signal, data or SMS limits, roaming, network denial, connection failure and more, and SIM idle protection keeps the backup SIM active. Wired WAN, Wi-Fi WAN and mobile links can each act as automatic failover, or be load balanced. Eco-system extras include band lock, multiple PDN, IP passthrough and framed routing behind the 5G UE.

On the LAN side, dual-band Wi-Fi 6 with MU-MIMO reaches 2402 Mbps on 5 GHz and supports up to 512 simultaneous connections, alongside one gigabit WAN and four gigabit LAN ports. Docker containers run directly on the router, and industrial protocols such as Modbus, OPC UA, BACnet, DNP3 and DLMS/COSEM are built in, as are GNSS positioning with geofencing, a digital input and output, and a USB port.

Security and management are thorough: TPM 2.0, 802.1x, VLANs, attack prevention and an extensive VPN suite including IPsec, OpenVPN, WireGuard, DMVPN, ZeroTier and Tailscale. RMS remote management, zero-touch deployment, SNMP, TR-069 and a Web API make the RUTC54 a fit for centrally managed industrial and distributed networks. It operates from -40 °C to 75 °C on 9-50 VDC or passive PoE.

Ideal for

  • Primary or failover 5G WAN for branch offices, retail stores and distributed business sites
  • Industrial and utility sites collecting Modbus, OPC UA, DNP3, BACnet or DLMS data and forwarding it to cloud platforms
  • Edge computing deployments running Docker containers close to the equipment they serve
  • Multinational fleets needing one router model across North America, EMEA and APAC with remote carrier switching via eSIM
  • Managed Wi-Fi 6 and captive-portal guest networks at venues, depots and temporary sites

Specifications

API

Web API
Teltonika Networks Web API (beta)
Teltonika Networks Web API Beta Support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

USB

Data Rate
USB 2.0
Applications
Samba share, USB-to-serial
Storage Formats
FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
External Devices
External HDD, flash drive, printer, USB-serial adapter

VPN

Gre
GRE, GRE over IPsec
Eoip
EoIP tunnelling
Sstp
SSTP client
Tinc
Tinc client and server
Dmvpn
DMVPN Phase 2 and 3, Dual Hub
Ipsec
XFRM, IKEv1, IKEv2, 14 encryption methods (3DES, DES, AES128/192/256, AES-GCM8/12/16 variants)
Netbird
NetBird support
Openvpn
Multiple clients and server simultaneously, 27 encryption methods
Stunnel
TLS encryption proxy for existing clients and servers
Zerotier
ZeroTier client
Pptp L2tp
Simultaneous client/server, L2TPv3, L2TP over IPsec
Tailscale
Tailscale (WireGuard-based) support
Wireguard
WireGuard client and server
Openconnect
OpenConnect SSL VPN client
Openvpn Encryption
27 ciphers from DES-CBC 64 to AES-256-CBC 256, including AES-128/192/256-GCM

Dnp3

Supported Modes
Station, Outstation
Supported Connection
TCP, USB

Power

Connector
4-pin industrial DC socket
PoE Passive
Passive PoE on LAN1, Mode B, 9-50 VDC (not 802.3af/at/bt)
Power Consumption
Idle < 5 W, Max < 16 W
Input Voltage Range
9-50 VDC, reverse polarity protection, surge protection >51 VDC 10us max

Bacnet

Supported Modes
Router
Configuration Options
Multiple BACnet/IP interfaces, network number assignment, preconfigured BBMD BDT entries
Supported Connection Types
IP, RTU (USB)

Docker

Docker Support
Docker containers on-device

Mobile

Apn
Auto APN
SMS
SMS status, configuration, email to SMS, SMS to email, SMS to HTTP, SMS to SMS, scheduled SMS, autoreply, SMPP
eSIM
Consumer eSIM, up to 7 profiles; data plans not included
Ussd
Send and read USSD messages
Bridge
Bridge between mobile ISP and LAN device
Status
IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SIM Switch
Dual SIM and eSIM, auto-switch on weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Passthrough
Mobile WAN IP passthrough to LAN device
3gpp Release
Release 16
Multiple Pdn
Different PDNs for multiple network access and services
Mobile Module
5G Sub-6 GHz SA/NSA 2.5/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); LTE Cat 19 1.6 Gbps DL, LTE Cat 18 211 Mbps UL; 3G 42 Mbps DL, 5.7 Mbps UL
Framed Routing
IP network behind 5G UE
Band Management
Band lock, used band status display
Block Allow List
Operator block/allow list by country or operator
SIM Pin Management
Set, change or disable SIM PIN
SIM Idle Protection
Periodic switch to unused SIM to prevent blocking
SIM Pin Code Management
SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
SIM Idle Protection Service
Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked

Modbus

Supported Modes
Server, Client
Custom Registers
Custom Modbus TCP register blocks
Supported Data Formats
8/16/32-bit INT, UINT, float (multiple byte orders), HEX, ASCII
Supported Connection Types
TCP, USB

Opc UA

Supported Modes
Client, Server
Supported Connection Types
TCP

General

MPN
RUTC54000000
UPC
4779051848614
Brand
Teltonika Networks
Model
RUTC54
Modem
Telit FN990A28
HS Code
851762
Hts Code
8517.62.00
Product Type
Global 5G edge router
Package Variant
Standard package with US PSU
Shipping Weight
6.73 lb
Hardware Version
RUTC54 0***** / North America, EMEA, APAC

Network

Ddns
77+ DDNS providers, others configurable manually
Dhcp
Static/dynamic allocation, DHCP relay, server configuration, static leases with MAC wildcards
Sshfs
Mount remote file system via SSH
Hotspot
Captive portal, internal/external RADIUS, RADIUS MAC auth, SMS authorisation, SSO, landing pages, walled garden, user scripts, URL parameters, user groups and limits, user management, 9 customisable themes plus custom theme upload/download
Qos Sqm
Priority queuing by source/destination, service, protocol or port; WMM, 802.11e
Routing
Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based routing
Firewall
Port forward, traffic rules, custom rules, TTL target customisation
Hotspot 2 0
Hotspot 2.0 support
Vrf Support
Initial VRF support
Dns Over Https
DNS over HTTPS proxy
Load Balancing
Load balancing across multiple WANs
Network Backup
Wi-Fi WAN, mobile, VRRP, wired automatic failover
Port Mirroring
Ethernet port mirroring
Port Management
Enable/disable ports, auto-configuration, speed control
Network Topology
Visual network topology
Voip Passthrough
H.323 and SIP-ALG NAT helpers
Network Protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
Traffic Management
Real-time monitoring, wireless signal charts, traffic usage history
Firewall Status Page
Firewall statistics, rules and rule counters
Connection Monitoring
Ping reboot, wget reboot, periodic reboot, LCP and ICMP link inspection

Package

Router
RUTC54 router
SIM Adapter
SIM adapter kit
GNSS Antenna
1 x GNSS antenna (adhesive, SMA male, 3 m cable)
Power Supply
US 24 W power supply
Documentation
Quick Start Guide
Wi-Fi Antennas
3 x Wi-Fi antennas (magnetic, RP-SMA male, 1.5 m cable)
Ethernet Cable
Ethernet cable (1.5 m)
Mobile Antennas
4 x 5G mobile antennas (swivel, SMA male)

Ethernet

LAN
4 x 10/100/1000 Mbps LAN, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
WAN
1 x 10/100/1000 Mbps WAN, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX

Security

Tpm
TPM 2.0
Vlan
Port and tag-based VLAN
802 1x
802.1x port-based access control client
Firewall
Preconfigured WebUI rules, unlimited CLI configuration, DMZ, NAT, NAT-T, NAT64
Web Filter
Website block list and allow list
Access Control
Access control for SSH, web UI, CLI and Telnet
Authentication
PSK, digital and X.509 certificates, TACACS+, internal/external RADIUS, IP and login attempt blocking, time-based login blocking, random password generator
Attack Prevention
DDoS prevention (SYN flood, SSH, HTTP/HTTPS), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL, FIN)
Certificate Manager
CA, server, client, Let's Encrypt, SCEP certificates
Mobile Quota Control
Mobile data limit, period, start time, warning limit, phone number

Wireless

Ssid Essid
SSID stealth mode, MAC-based access control
Travelmate
Forward hotspot landing page to connected device
Wi-Fi Users
Up to 512 simultaneous connections
Wi-Fi Security
WPA2-Enterprise PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, auto-cipher, client separation, EAP-TLS (PKCS#12), disable auto-reconnect, 802.11w PMF
Wireless Mode
Wi-Fi 6 dual band MU-MIMO, up to 2402 Mbps (5 GHz), 576 Mbps (2.4 GHz)
Wireless Mac Filter
Allowlist, blocklist
Wireless QR Code Generator
QR code network join without entering credentials
Wireless Connectivity Features
802.11s mesh, 802.11r fast roaming, Relayd, 802.11v, 802.11k

Dlms Cosem

Dlms Support
DLMS utility meter data exchange
Supported Modes
Client
Supported Connection Types
TCP

Regulatory

RF Standards
EN 300 328, EN 303 413, EN 300 440, EN 301 893, EN 301 908-1/-2/-13, Draft EN 301 908-25
Safety Standards
CE: IEC 62311:2020; RCM: AS/NZS 62368.1:2022; CB: EN IEC 62368-1:2020+A11:2020

Frequencies

3g Bands
B1, B2, B4, B5, B6, B8, B19
5G NR Bands
n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n75, n77, n78, n79
4G LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

Input Output

Input
1 x DI: 0-6 V low, 8-30 V high
Events
Email, RMS, SMS
Output
1 x DO open collector, max 30 V, 300 mA
I/O Juggler
I/O condition-based events

Mqtt Gateway

Modbus Mqtt Gateway
Modbus commands and data via MQTT broker

Site Manager

Functionalities
Central management of Teltonika TAP access points and managed switches: pairing, grouping, FOTA, monitoring, reboot scheduling, SSID and VLAN configuration
Supported Modes
Manager

Iot Platforms

Thingworx
ThingWorx monitoring
Cumulocity
Cumulocity - Cloud of Things monitoring, reboot and firmware upgrade
Aws Iot Core
AWS IoT Core with Jobs support
Azure Iot Hub
Azure IoT Hub with direct methods and DPS zero-touch provisioning

Data TO Server

Protocol
HTTP(S), MQTT, Azure MQTT
Data TO Server
Multi-source data aggregation to one server, custom Lua scripting

Location Tracking

GNSS
GPS, GLONASS, BeiDou, Galileo, QZSS
Nmea
NMEA 0183
Ntrip
NTRIP
Geofencing
Multiple geofence zones
Coordinates
Coordinates via WebUI, SMS, TAVL, RMS
Server Software
TAVL, RMS

Physical Interfaces

I/O
1 x DI, 1 x DO on 4-pin power connector
SIM
2 x Mini SIM (2FF), 1.8 V/3 V
USB
1 x USB A
Other
1 x grounding screw
Power
1 x 4-pin power connector
Reset
Reboot/user default/factory reset button

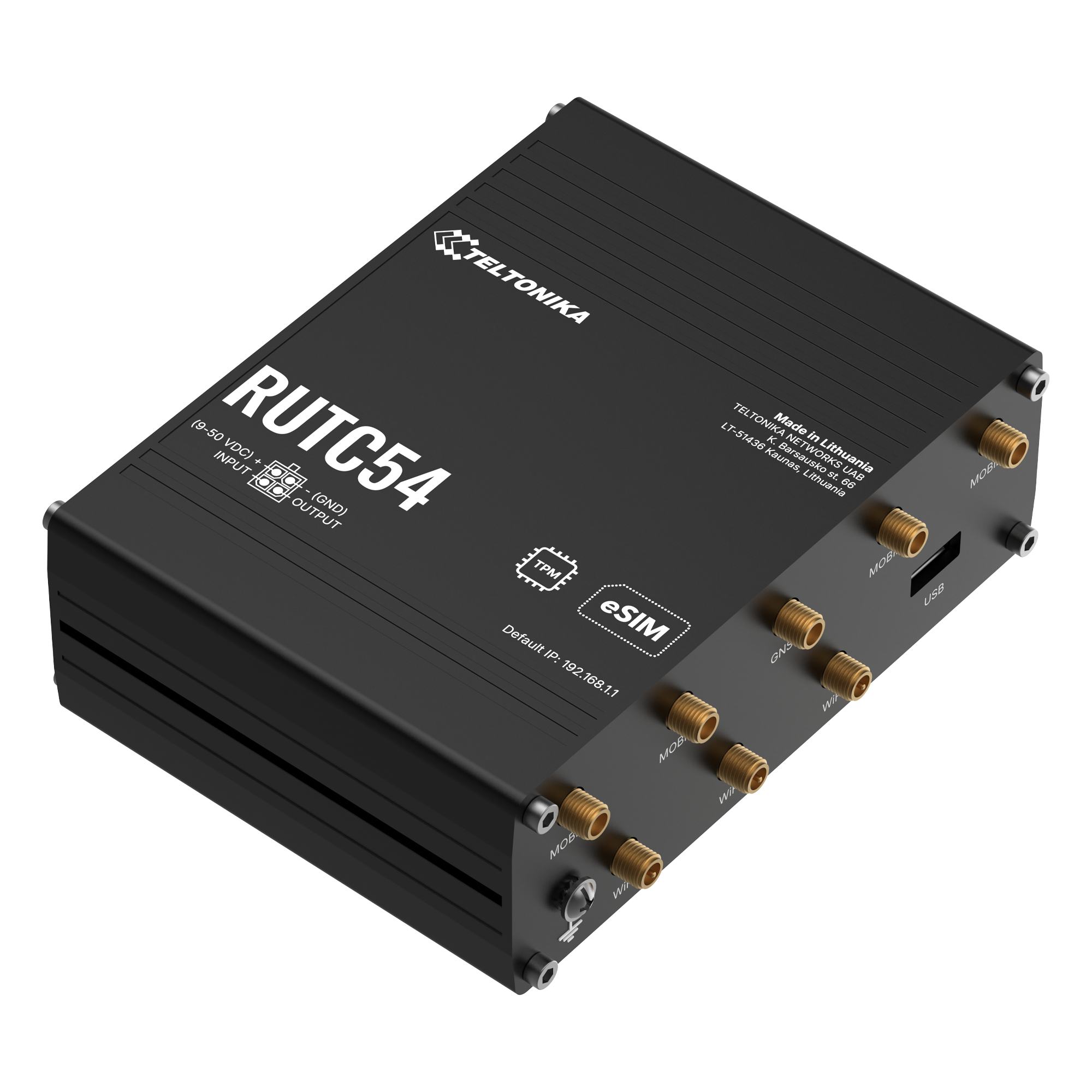

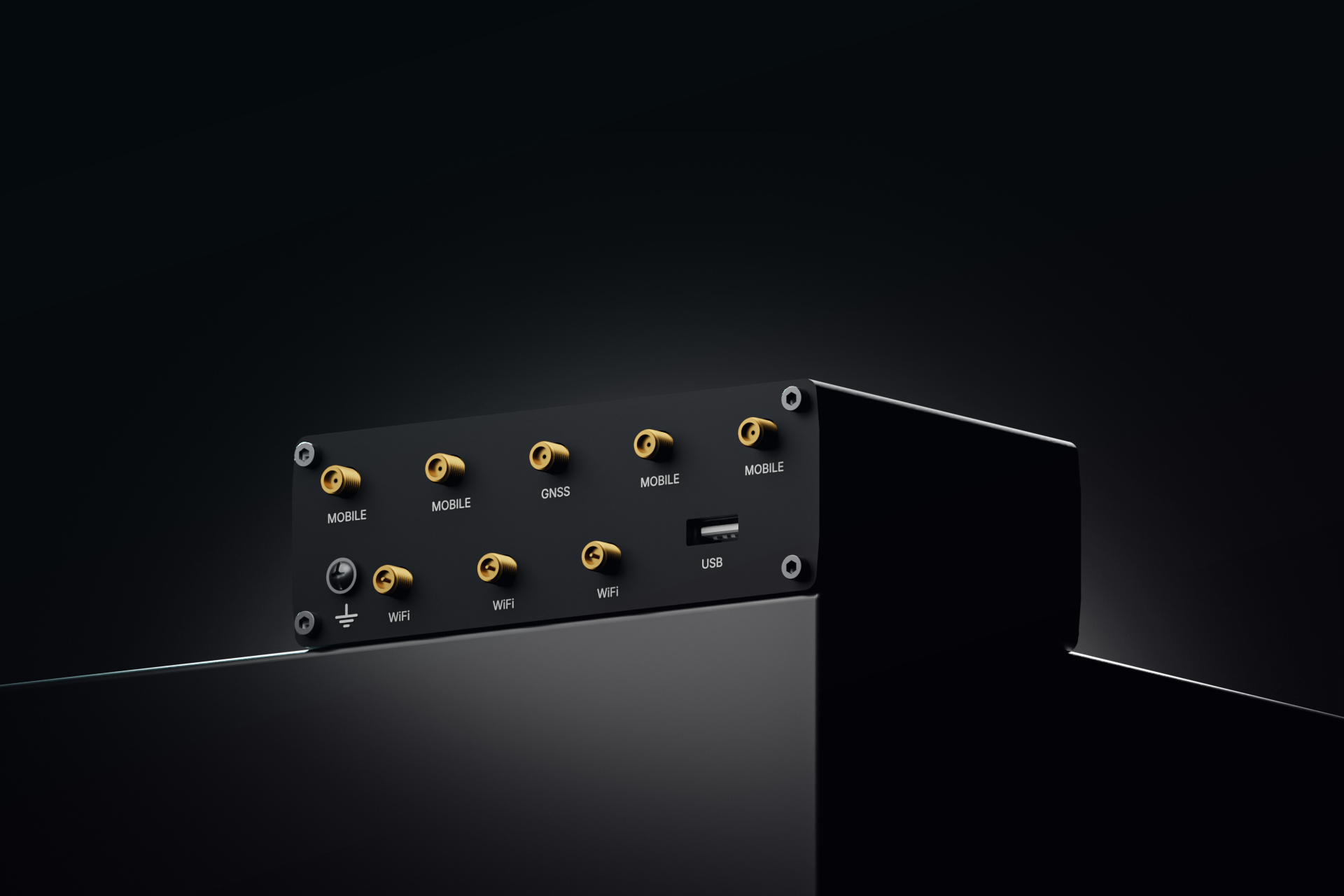

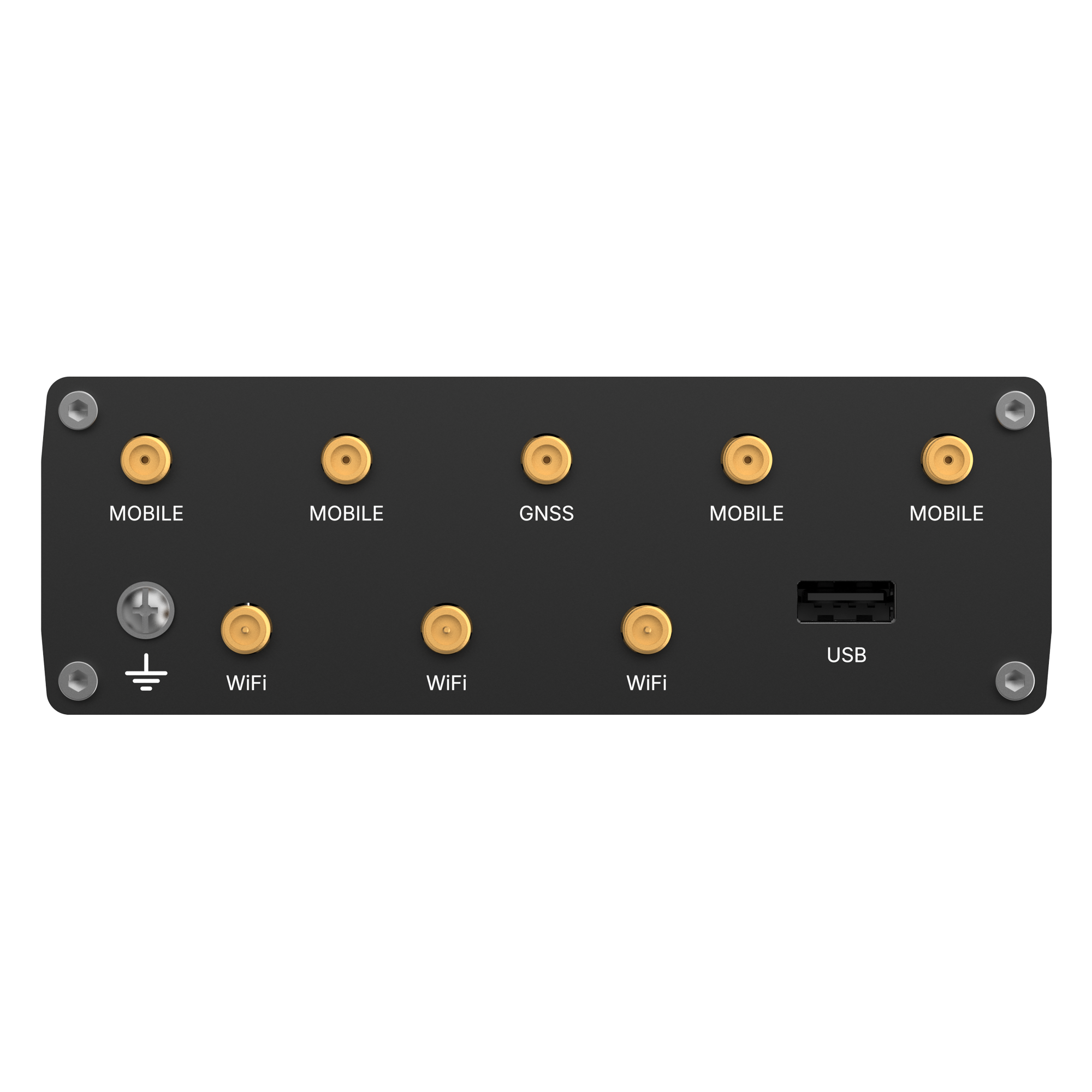

Antennas
4 x SMA mobile, 3 x RP-SMA Wi-Fi, 1 x SMA GNSS

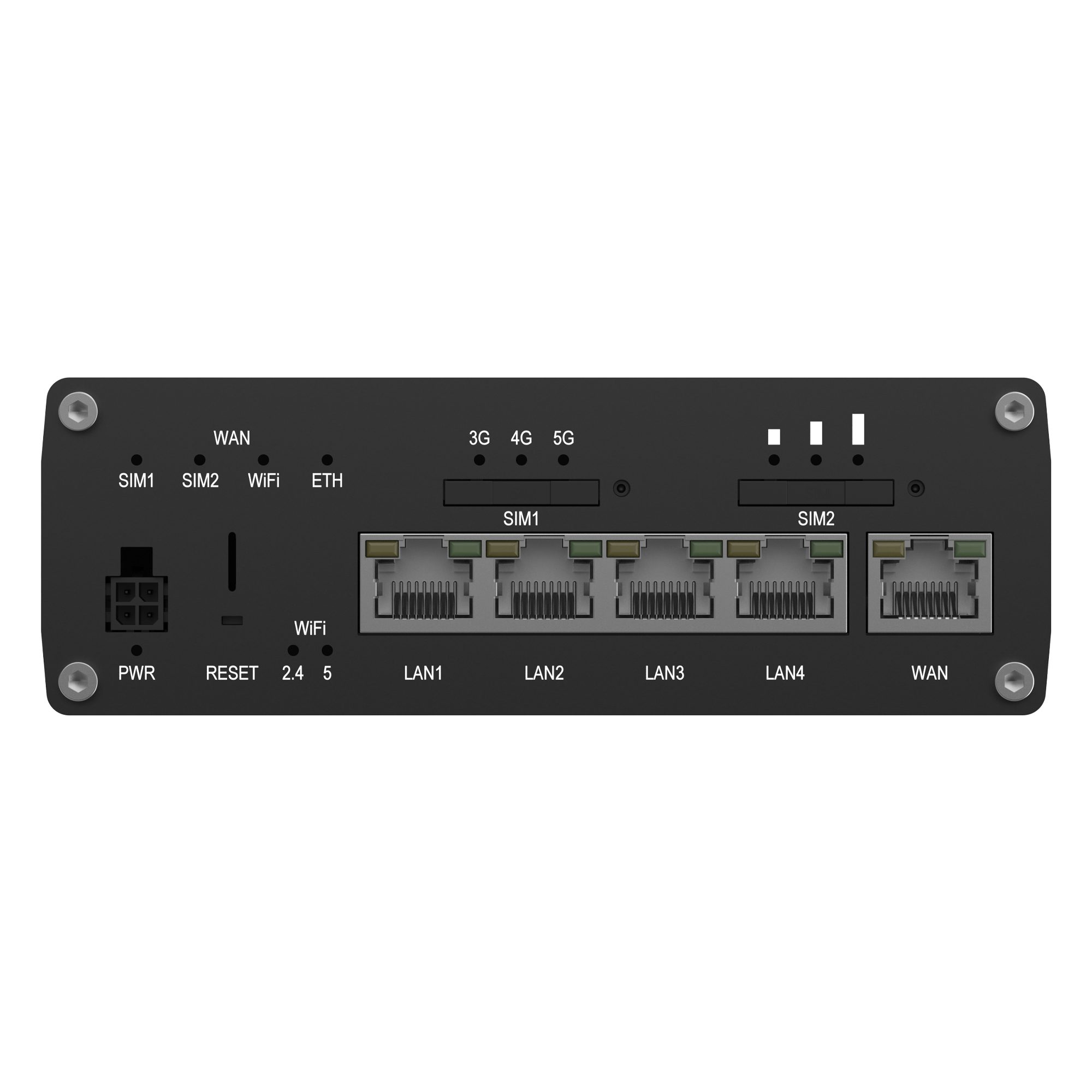

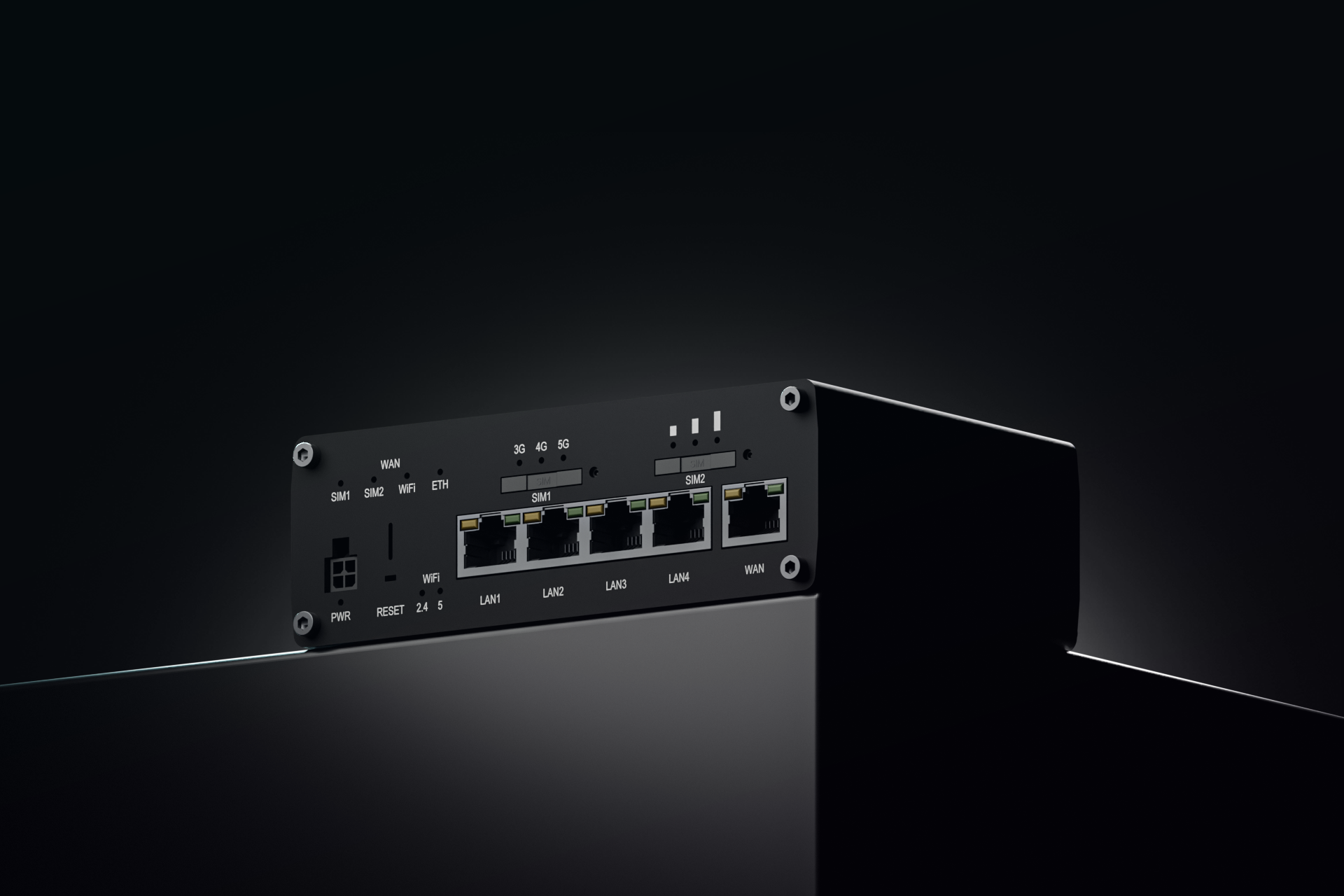

Ethernet
5 x RJ45, 10/100/1000 Mbps
Status Leds
4 x WAN type, 3 x mobile type, 3 x mobile strength, 10 x Ethernet status, 1 x power, 2 x Wi-Fi

Monitoring Management

Rms
Teltonika Remote Management System (RMS)
SMS
SMS status, configuration
Ssh
SSH v1, v2
Call
reboot, status, mobile data, output, Wi-Fi on/off
Fota
Firmware update from server, automatic notification
Mqtt
MQTT broker, publisher
Snmp
SNMP v1/v2/v3, traps, brute force protection
Email
Email status alerts
Modbus
MODBUS TCP status/control
TR 069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
Web UI
HTTP/HTTPS WebUI with status, configuration, FW update, CLI, troubleshooting, logs and Internet status
Json Rpc
JSON-RPC management API over HTTP/HTTPS

Operating Environment

Ingress Protection
IP30
Operating Humidity
10% to 90% non-condensing
Operating Temperature
-40 °C to 75 °C

Emc Emissions Immunity

Standards
EN 55032:2015 + A11:2020 + A1:2020; EN 55035:2017 + A11:2020; EN 61000-3-3:2013 + A1:2019 + A2:2021; EN IEC 61000-3-2:2019 + A1:2021; EN 301 489-1 V2.2.3; EN 301 489-3 V2.3.2; EN 301 489-17 V3.2.4; EN 301 489-19 V2.2.1; EN 301 489-52 V1.2.1

Firmware Configuration

Rms
Update FW/configuration for multiple devices at once
Fota
Update FW
Web UI
Update FW from file, check FW on server, configuration profiles, configuration backup
Keep Settings
Update FW without losing current configuration
Factory Settings Reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customisation

Package Manager
The Package Manager is a service used to install additional software on the device
Operating System
RutOS (OpenWrt based Linux OS)
Development Tools
SDK package with build environment provided
Gpl Customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Supported Languages
Busybox shell, Lua, C, C++

Physical Specification

Weight
500 g
Casing Material
Anodised aluminium housing and panels
Mounting Options
DIN rail, wall mount, flat surface (all require additional kit)
Dimensions W X H X D
132 x 44.2 x 104 mm

System Characteristics

CPU
Mediatek, 1.3 GHz, Dual-core ARM Cortex A53
RAM
1 GB, DDR4
Flash Storage
16 MB serial NOR flash, 8 GB eMMC Flash

Regulatory Type Approvals

Operator
PTCRB, VERIZON, AT&T, T-mobile
Regulatory
CE, UKCA, CB, RCM, R-NZ, WEEE, EAC, UCRF, FCC, IC

Questions buyers ask

Which regions does the RUTC54000000 support?

This hardware version is built for North America, EMEA and APAC. It supports 5G NR bands including n2, n5, n41, n66, n71 and n77, LTE bands including B2, B4, B12, B13, B14, B66 and B71, plus 3G fallback. This SKU ships with a US 24 W power supply.

Does the eSIM include a data plan?

No. The RUTC54 supports a consumer-type eSIM with profile download and removal and up to 7 profiles, but no data plan is included. You add eSIM profiles or physical SIMs from your chosen carrier.

How does SIM failover work on the RUTC54?

The router has two Mini SIM slots and an eSIM. It can switch automatically on weak signal, data limit, SMS limit, roaming, no network, network denied or data connection failure, and SIM idle protection periodically uses the backup SIM so it stays active. Wired and Wi-Fi WAN can also serve as automatic failover.

Can I run my own applications on the router?

Yes. RutOS supports Docker containers, so you can run isolated applications and microservices directly on the RUTC54. Custom Lua scripting, a Web API and JSON-RPC are also available.

What is included in the box?

The standard package includes the RUTC54 router, a US 24 W power supply, four 5G mobile antennas, three magnetic-mount Wi-Fi antennas, one adhesive GNSS antenna, a 1.5 m Ethernet cable, a SIM adapter kit and a Quick Start Guide.

Antennas & accessories for Teltonika

More 5G & LTE Routers
