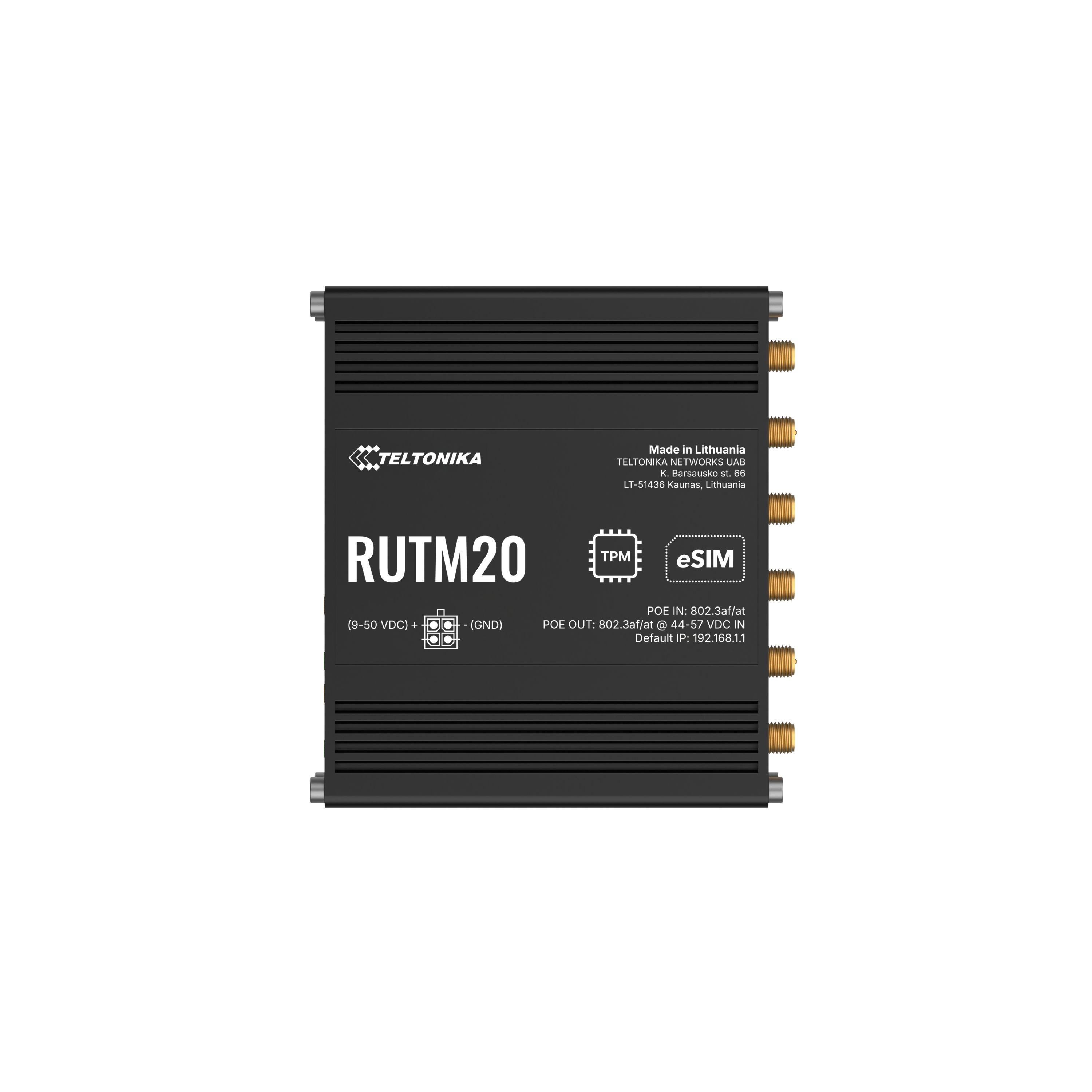

Teltonika RUTM20 Compact 5G Router with Telit FN990A28 Modem, Dual SIM, eSIM and PoE In/Out

5GMPN RUTM20100300

Dual SIM
eSIM
2–4 Ethernet ports

$503.00$529.00Save $26

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

Request a quote · volume, multi-site or with plans

30-day returns on unopened devices
Secure checkout · pay by card
Data plans with no contract · cancel anytime

Datasheets & documents

Highlights

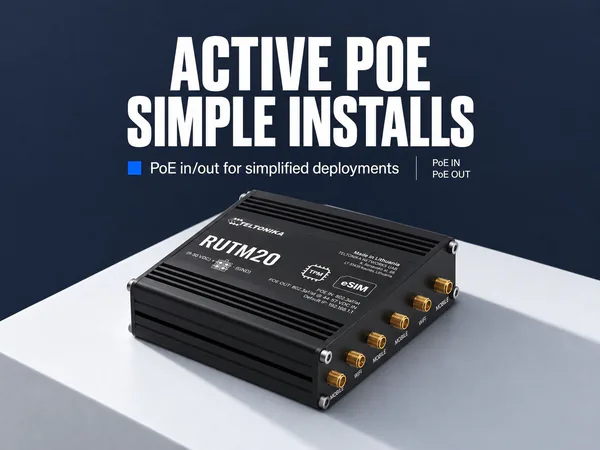

ACTIVE POE, SIMPLE INSTALLS — PoE in/out for simplified deployments — PoE IN | PoE OUT — TELTONIKA — RUTM20 — 9-50 VDC — GND — TPM — eSIM — PoE OUT: 802.3af — PoE IN: 802.3af/at — Default IP: 192.168.1.1 — black router on white pedestal

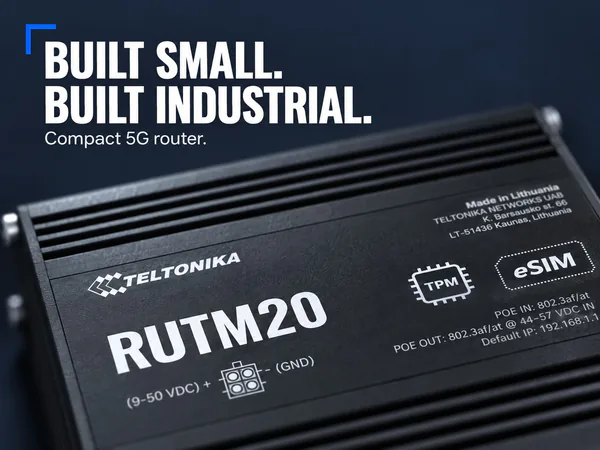

BUILT SMALL. BUILT INDUSTRIAL. — Compact 5G router — TELTONIKA, RUTM20, (9-50 VDC) + - (GND), Made in Lithuania, TELTONIKA NETWORKS UAB, K. Barsausko st. 66, LT-51436 Kaunas, Lithuania, TPM, eSIM, POE OUT: 802.3af/at @ 44-57 VDC IN, POE IN: 802.3af/at — Black industrial router in close-up view

Overview

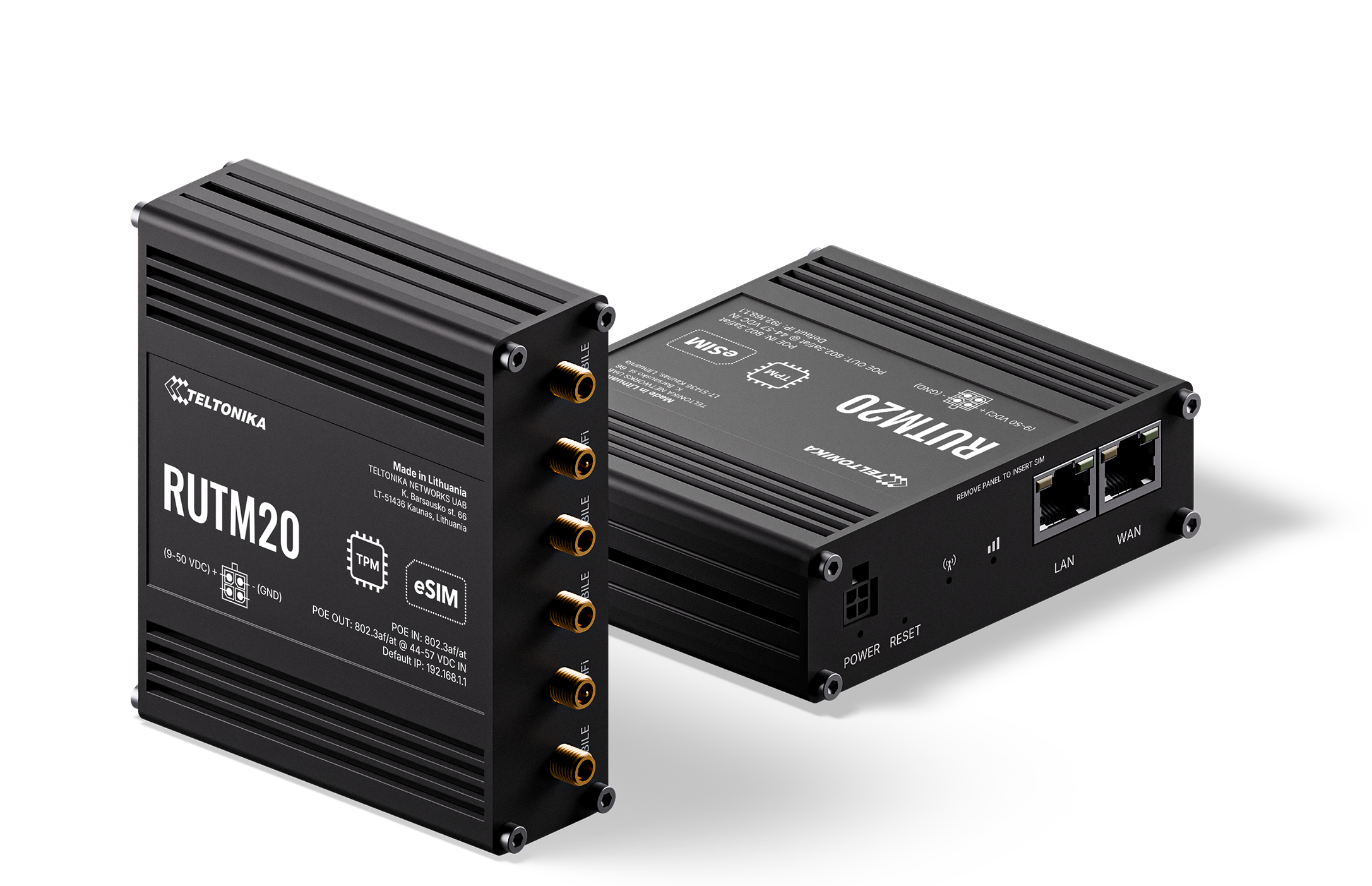

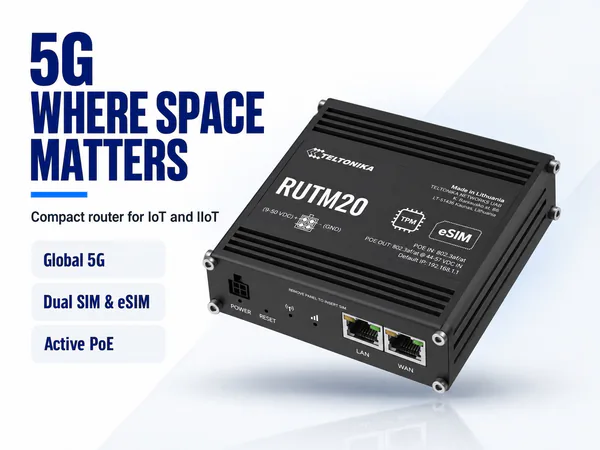

The Teltonika RUTM20 is an ultra-compact 5G router for space-limited IoT and IIoT installs such as POS, surveillance and transport. This Global hardware version (RUTM20100300) uses a Telit FN990A28 5G modem covering North American, EMEA and APAC bands. It pairs two Mini SIM slots with an eSIM for automatic failover and remote carrier switching. It adds PoE input and output for single-cable installs, dual-band Wi-Fi 5 and two gigabit Ethernet ports, and ships with a US power supply and antennas.

The Teltonika RUTM20 brings 5G to deployments where size and cost matter. At 100 x 30 x 93.7 mm and 319 g in an anodised aluminium housing, it fits into point-of-sale counters, camera enclosures, kiosks and vehicles. This SKU, RUTM20100300, is the Global hardware version built around a Telit FN990A28 modem with North American, EMEA and APAC band support. It comes in the standard package with a US power supply, four 5G mobile antennas and two Wi-Fi antennas.

The cellular side is 5G Sub-6 GHz SA/NSA (3GPP Release 16) with up to 3.4 Gbps downlink over 4x4 MIMO and up to 900 Mbps uplink. It falls back to LTE Cat 19 (1.6 Gbps downlink) and 3G. Two Mini SIM (2FF) slots and an eSIM holding up to seven profiles support automatic switching on weak signal, data or SMS limits, roaming, no network, network denial or data connection failure. You can change carriers remotely instead of sending someone to site. The eSIM does not include data plans.

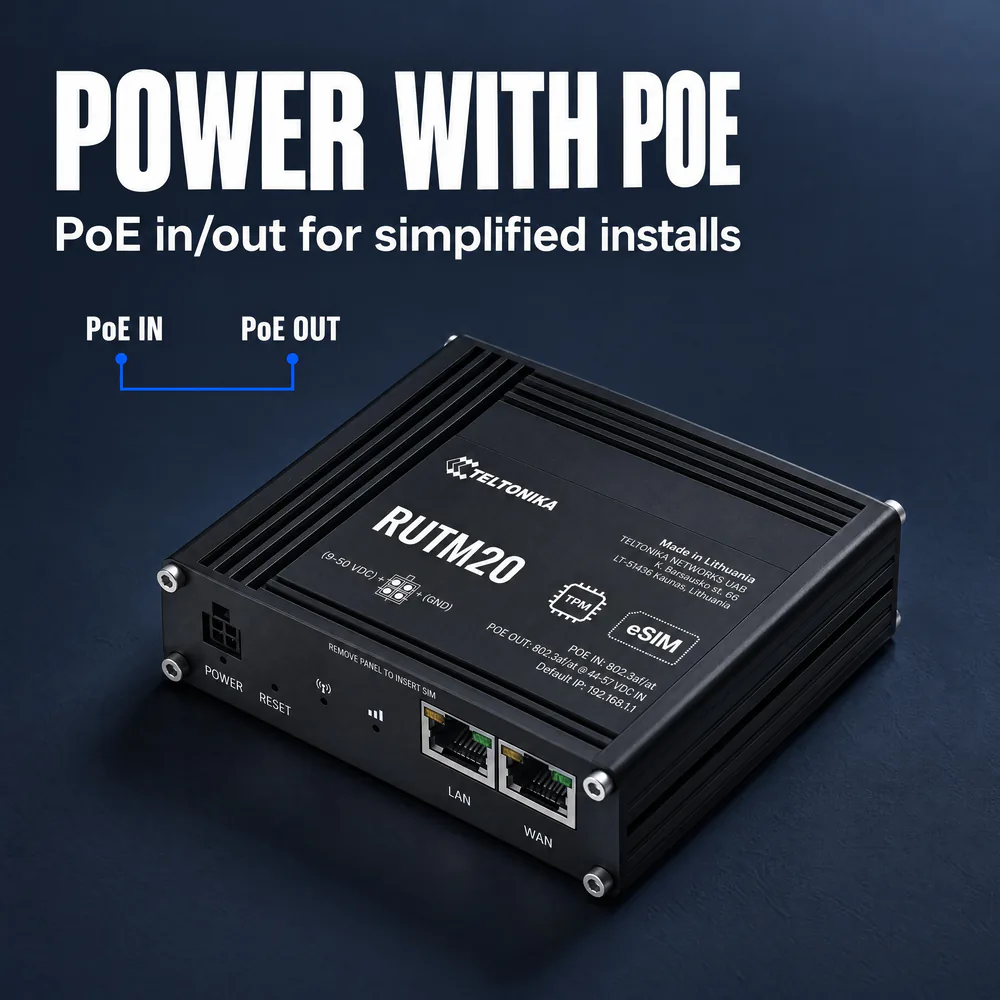

Installation is straightforward. The WAN port accepts 802.3af/at or passive PoE (18–50 VDC), and the LAN port supplies 802.3af/at PoE out at up to 30 W, so one cable can power both the router and a camera or access point. The router also runs from 9–50 VDC through a 4-pin industrial connector. It operates from -40 °C to 75 °C, and dual-band Wi-Fi 5 supports up to 150 users.

RutOS, Teltonika's OpenWrt-based operating system, provides the software stack. It covers BGP and OSPF routing, WireGuard, OpenVPN, IPsec, Tailscale and ZeroTier VPNs, and TPM 2.0 security. Industrial protocols include Modbus, BACnet, OPC UA, DNP3 and DLMS. Fleets can be managed centrally through Teltonika RMS.

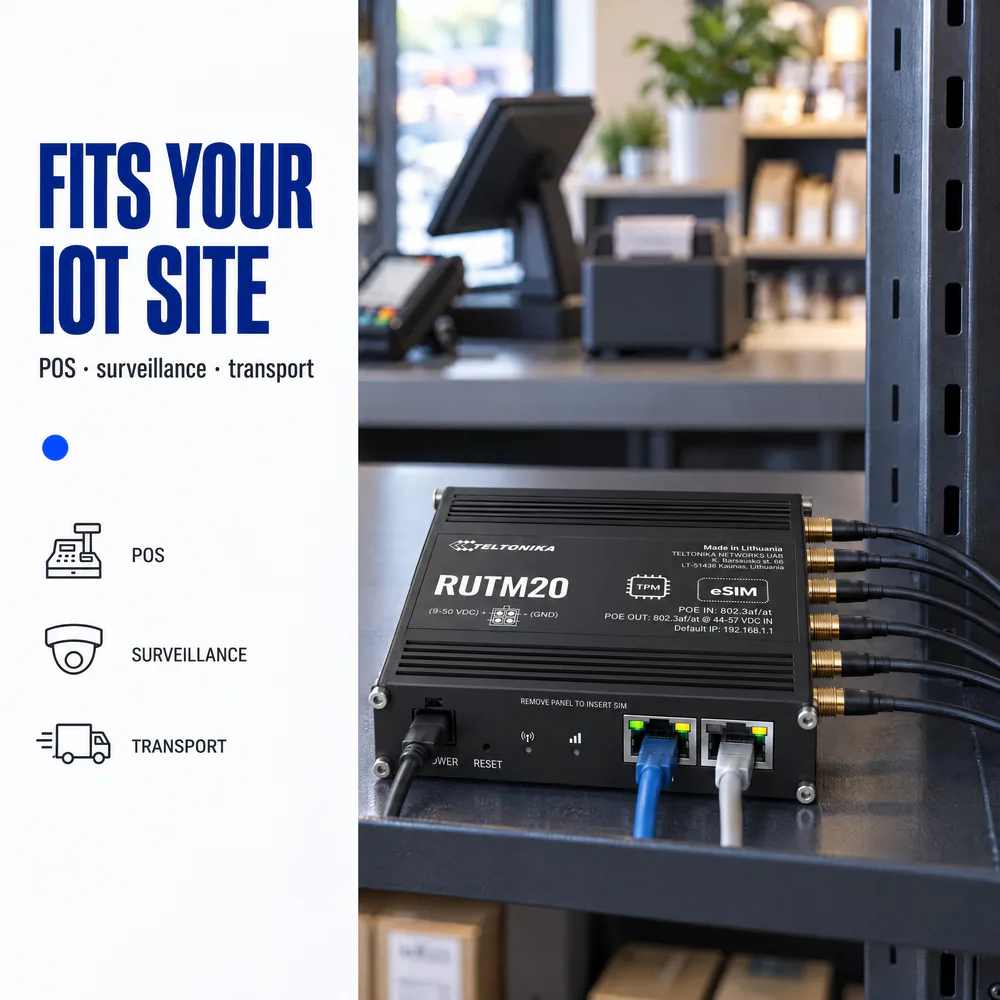

Ideal for

5G primary or backup connectivity for point-of-sale terminals and retail kiosks
Single-cable PoE installs powering IP surveillance cameras at remote sites
In-vehicle and transport connectivity where enclosure space is limited
Industrial IoT gateways bridging Modbus, BACnet, OPC UA, DNP3 or DLMS equipment to the cloud
Multi-country IoT fleets using eSIM profiles for remote carrier switching

Specifications

API

Teltonika Web API: Web API (beta): Configurable endpoints to read or change data
Teltonika Networks Web API Beta Support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

VPN

Gre: GRE tunnel, GRE over IPsec
Sstp: Client
Tinc: Client and server
Dmvpn: Phase 2 and 3, dual hub
Ipsec: XFRM, IKEv1, IKEv2, 14 encryption methods
Openvpn: Multiple clients and server simultaneously, 27 encryption methods
Stunnel: TLS encryption proxy
Zerotier: Client
Pptp L2tp: Simultaneous client/server, L2TPv3, L2TP over IPsec
Tailscale: WireGuard-based point-to-point connections
Wireguard: Client and server
Openvpn Encryption: 27 methods including DES, 3DES, Blowfish, CAST5, RC2 and AES-128/192/256 (CBC, CFB, OFB, GCM)

Dnp3

Supported Modes: Station, Outstation
Supported Connection: TCP

Power

Connector: 4-pin industrial DC power socket
PoE Passive: Passive PoE: WAN port, Mode A and B, 18–50 VDC
Power Consumption: Idle < 4.5 W, Max < 8.5 W
Input Voltage Range: 9–50 VDC, reverse polarity and surge/transient protection

Bacnet

Supported Modes: Router
Configuration Options: Multiple BACnet/IP interfaces, network number assignment, BBMD BDT entries
Supported Connection Types: IP

Mobile

Apn: Auto APN
SMS: Status, configuration, Email to SMS, SMS to Email/HTTP/SMS, scheduled SMS, autoreply, SMPP

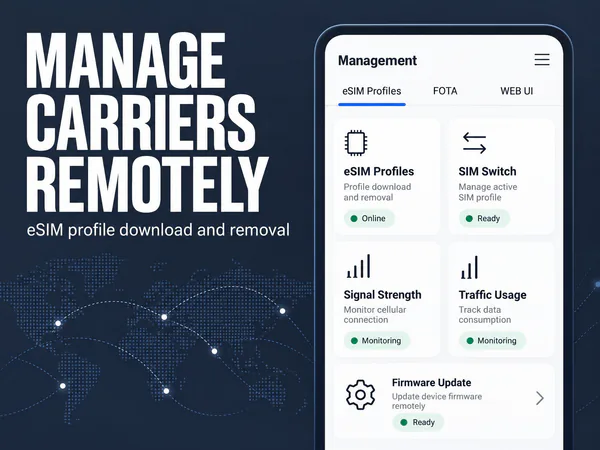

eSIM: Consumer type, up to 7 profiles, download/removal operations; data plans not included
Ussd: Send and read USSD messages
Bridge: Direct bridge between mobile ISP and LAN device
Status: IMSI, ICCID, operator, network type, CA indicator, bandwidth, band, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data usage, LAC, TAC, cell ID, ARFCN/UARFCN/EARFCN, MCC, MNC
SIM Switch: 2 x 2FF SIM + 1 x eSIM; auto-switch on weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
Passthrough: Mobile WAN IP assigned to LAN device
3gpp Release: Release 16
Multiple Pdn: Different PDNs for multiple network access and services
Mobile Module: 5G Sub-6GHz SA/NSA 2.5/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); LTE Cat 19 1.6 Gbps DL / Cat 18 211 Mbps UL; 3G 42/5.7 Mbps
Framed Routing: IP network behind 5G UE
Band Management: Band lock, used band status display
Block Allow List: Operator list by country or individual operator
SIM Pin Management: Set, change or disable PIN
SIM Idle Protection: Periodic switch to unused SIM to keep it active
SIM Pin Code Management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
SIM Idle Protection Service: Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked

Modbus

Supported Modes: Server, Client
Custom Registers: File-backed Modbus TCP register blocks
Supported Data Formats: 8/16/32-bit INT, UINT, float (multiple byte orders), HEX, ASCII
Supported Connection Types: TCP

Opc UA

Supported Modes: Client, Server
Supported Connection Types: TCP

PoE IN

PoE Passive: Passive PoE: Mode A and B, 18–50 VDC
PoE IN Ports: 1 (WAN)
PoE Standards: 802.3af/at, Alternative A and B

System

CPU: MediaTek dual-core 880 MHz MIPS1004Kc
RAM: 256 MB DDR3
Flash Storage: 16 MB NOR + 256 MB NAND

General

MPN: RUTM20100300
UPC: 4779051848034
Brand: Teltonika Networks
Model: RUTM20
Modem: Telit FN990A28 (global)
HS Code: 851762
Hts Code: 8517.62.00
Band Regions: North America, EMEA, APAC
Package Version: Standard package with US PSU
Shipping Weight: 1.20 lb
Hardware Version: RUTM20 1***** / Global

Network

Ddns: >77 service providers, others configurable manually
Dhcp: Static/dynamic allocation, relay, server configuration, static leases with MAC wildcards
Sshfs: Mount remote file system via SSH
Hotspot: Captive portal, RADIUS, SMS and SSO authentication, landing pages, walled garden, user groups and limits, 9 customisable themes
Qos Sqm: Priority queuing by source/destination, service, protocol or port; WMM, 802.11e
Routing: Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy based
Firewall: Port forward, traffic rules, custom rules, TTL target customisation
Hotspot 2 0: Secure, automatic connection to trusted Wi-Fi networks
Vrf Support: Initial VRF support
Dns Over Https: Secure DNS proxy
Load Balancing: Across multiple WAN connections
Network Backup: Wi-Fi WAN, mobile, VRRP, wired automatic failover
Port Management: Enable/disable ports, auto-configuration, speed settings
Network Topology: Visual map of connected devices
Voip Passthrough: H.323 and SIP-alg NAT helpers
Network Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP(S), SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL
Traffic Management: Real-time monitoring, signal charts, usage history
Firewall Status Page: Statistics, rules and rule counters
Connection Monitoring: Ping reboot, Wget reboot, periodic reboot, LCP and ICMP link inspection

Package

Contents: In the Box: RUTM20, 18 W US PSU, 4 x 5G SMA antennas, 2 x Wi-Fi RP-SMA antennas, 1.5 m Ethernet cable, SIM adapter kit, hex key, QSG

PoE Out

PoE Out Ports: 1 (LAN)
PoE Standards: 802.3af/at, Alternative A
PoE Max Power Per Port: 30 W max (output class depends on power input)
PoE Max Power Per Port AT Pse: 30 W Max, please refer to the information below; Active PoE output Power input; 802.3at/802.3af 4-pin connector > 44V; or; Passive PoE input voltage > 44V; 802.3af Active PoE 802.3at used for power input; N/A Active PoE 802.3af used for power input

Ethernet

LAN: 1 x 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
WAN: 1 x 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX

Physical

Weight: 319 g
Casing Material: Anodised aluminium housing and panels
Dimensions W H D: Dimensions (W x H x D): 100 x 30 x 93.7 mm
Mounting Options: DIN rail, wall, flat surface (additional kit required)

Security

Tpm: TPM 2.0
Vlan: Port and tag-based separation
802 1x: Client and server
Firewall: WebUI presets, unlimited CLI configuration, DMZ, NAT, NAT-T, NAT64
Web Filter: Website block list and allow list
Access Control: SSH, Web UI, CLI and Telnet
Authentication: PSK, X.509 certificates, TACACS+, RADIUS, login attempt blocking, password generator
Attack Prevention: DDoS and port scan prevention
Certificate Manager: CA, server, client, Let's Encrypt, SCEP
Mobile Quota Control: Custom SIM data limits

Wireless

Ssid Essid: Stealth mode, MAC-based access control
Travelmate: Forwards hotspot landing page to connected device
Wi-Fi Users: Up to 150 simultaneous connections
Wi-Fi Security: WPA2-Enterprise PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, client separation, EAP-TLS, 802.11w PMF
Wireless Mode: 802.11b/g/n/ac Wave 2 (Wi-Fi 5), up to 867 Mbps, dual band, MU-MIMO, 802.11r, AP and STA
Wireless Mac Filter: Allowlist, blocklist
Wireless QR Code Generator: Join the network by scanning a QR code
Wireless Connectivity Features: Mesh (802.11s), fast roaming (802.11r), Relayd, 802.11v, 802.11k

Dlms Cosem

Dlms Support: Utility meter data exchange
Supported Modes: Client
Supported Connection Types: TCP

Frequencies

3g: B1, B2, B4, B5 (B6, B19), B8
Note: bands marked * are disabled by default
4G LTE: B1, B2 (B25), B3, B4 (B66), B26 (B5, B18, B19), B7, B8, B12 (B17), B13, B14, B20, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46 (SDL), B48, B71
5G NR SA Nsa: n1, n2, n3, n5, n7, n8, n12*, n13*, n14*, n18*, n20, n25, n26*, n28, n29* (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76* (SDL), n77, n78, n79

Mqtt Gateway

Modbus Mqtt Gateway: Modbus server access via MQTT broker

Site Manager

Functionalities: Central management of TAP access points and Teltonika managed switches (pairing, grouping, FOTA, monitoring, reboot scheduling, SSID and VLAN configuration)
Supported Modes: Manager

Iot Platforms

Thingworx: WAN and mobile status monitoring
Cumulocity: Device and mobile monitoring, reboot and firmware upgrade
Aws Iot Core: Cloud integration with Jobs support
Azure Iot Hub: Data to Server, Direct methods, zero-touch provisioning via DPS
Cumulocity Cloud OF Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Data TO Server

Protocol: HTTP(S), MQTT, Azure MQTT
Data TO Server: Multi-source data aggregation, custom Lua scripting

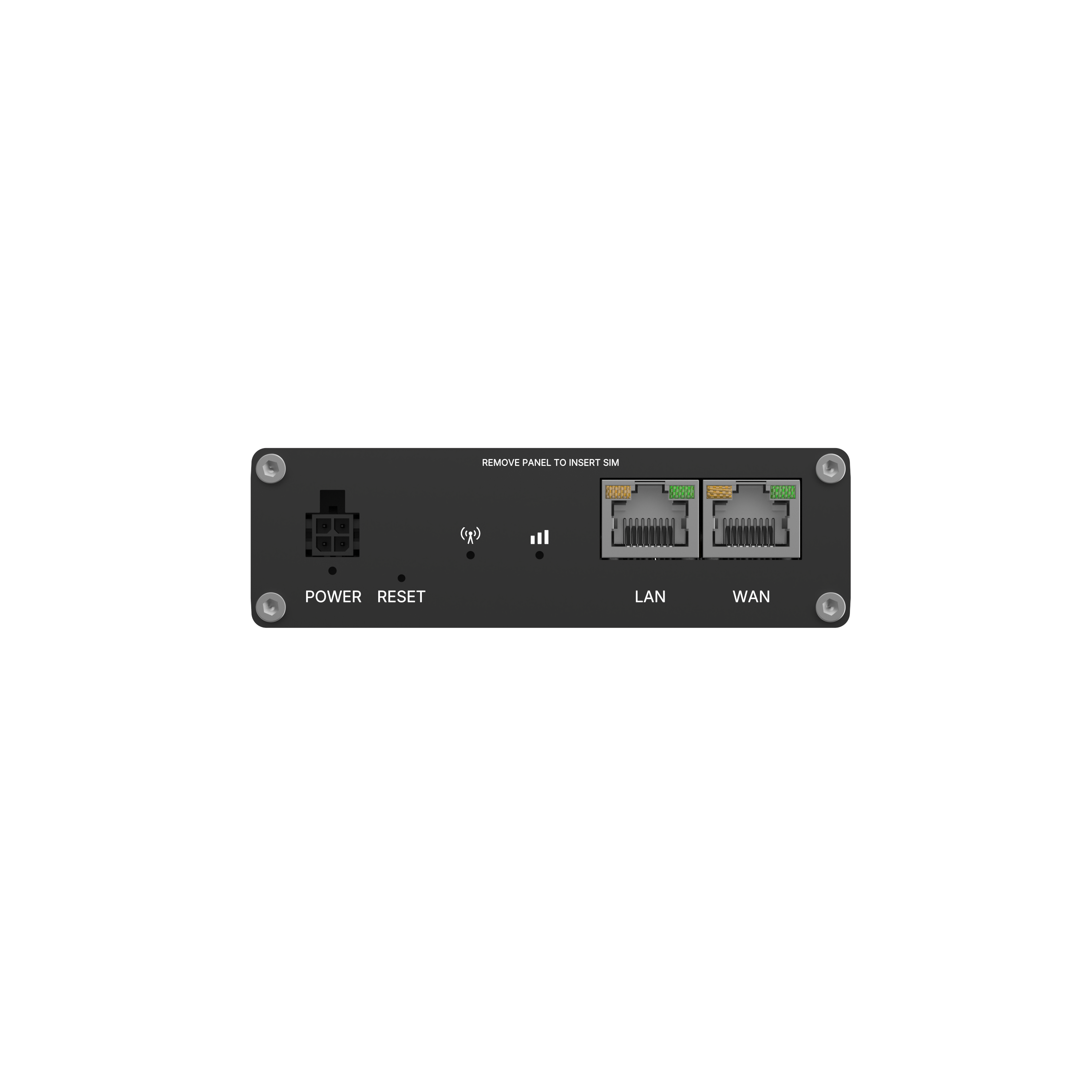

Physical Interfaces

SIM: 2 x Mini SIM (2FF), 1.8 V/3 V, internal holder
Power: 1 x 4-pin connector
Reset: Reboot / user default / factory reset button

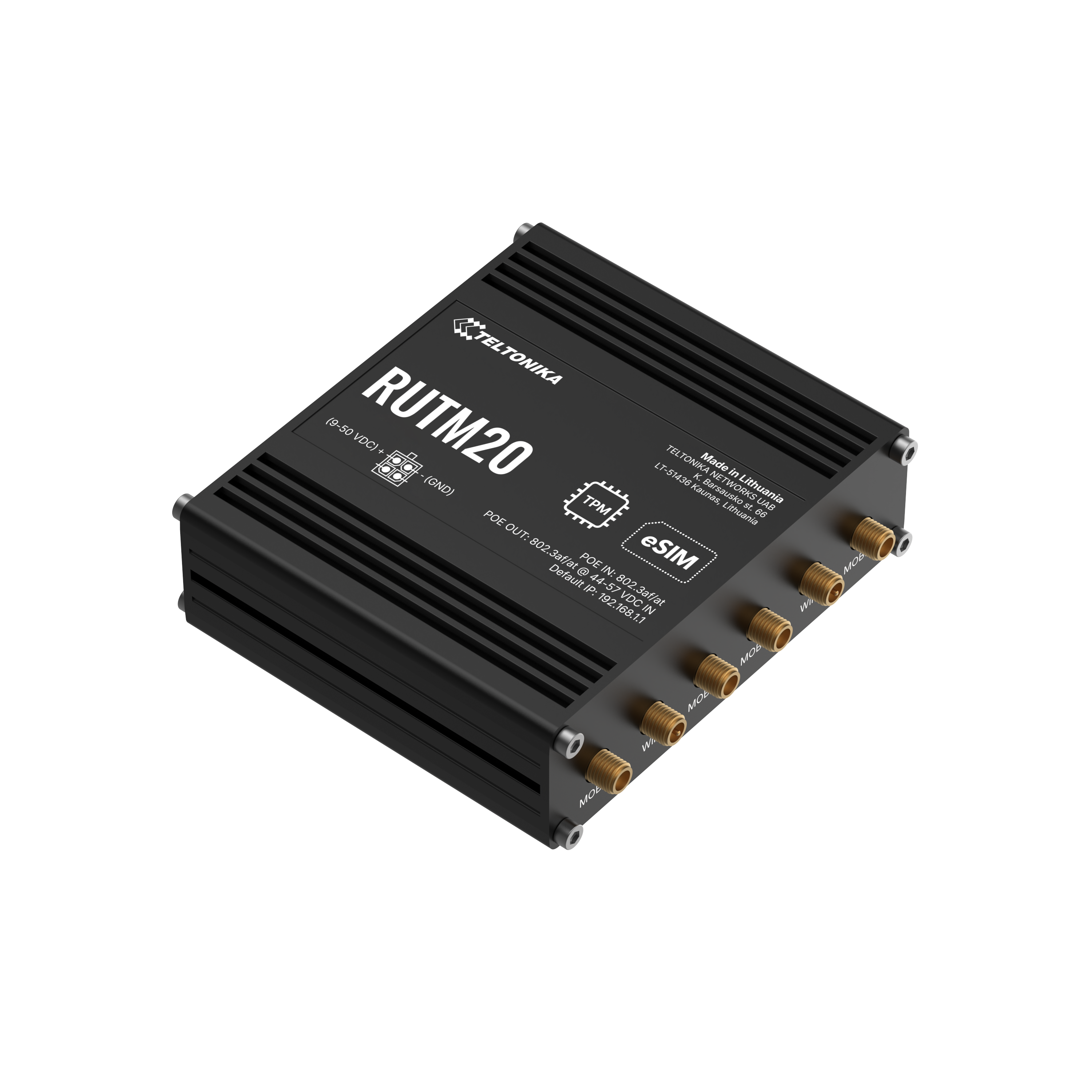

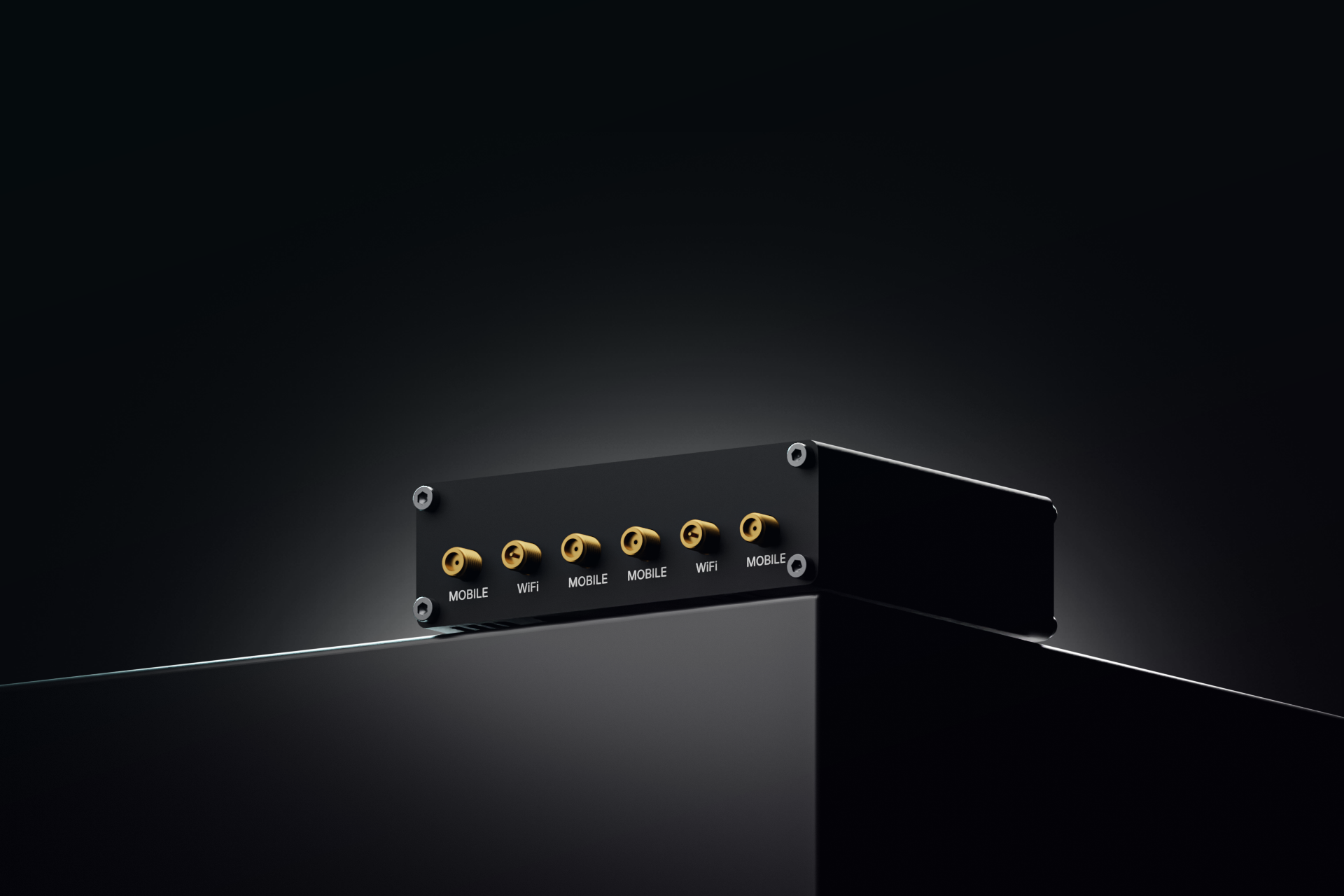

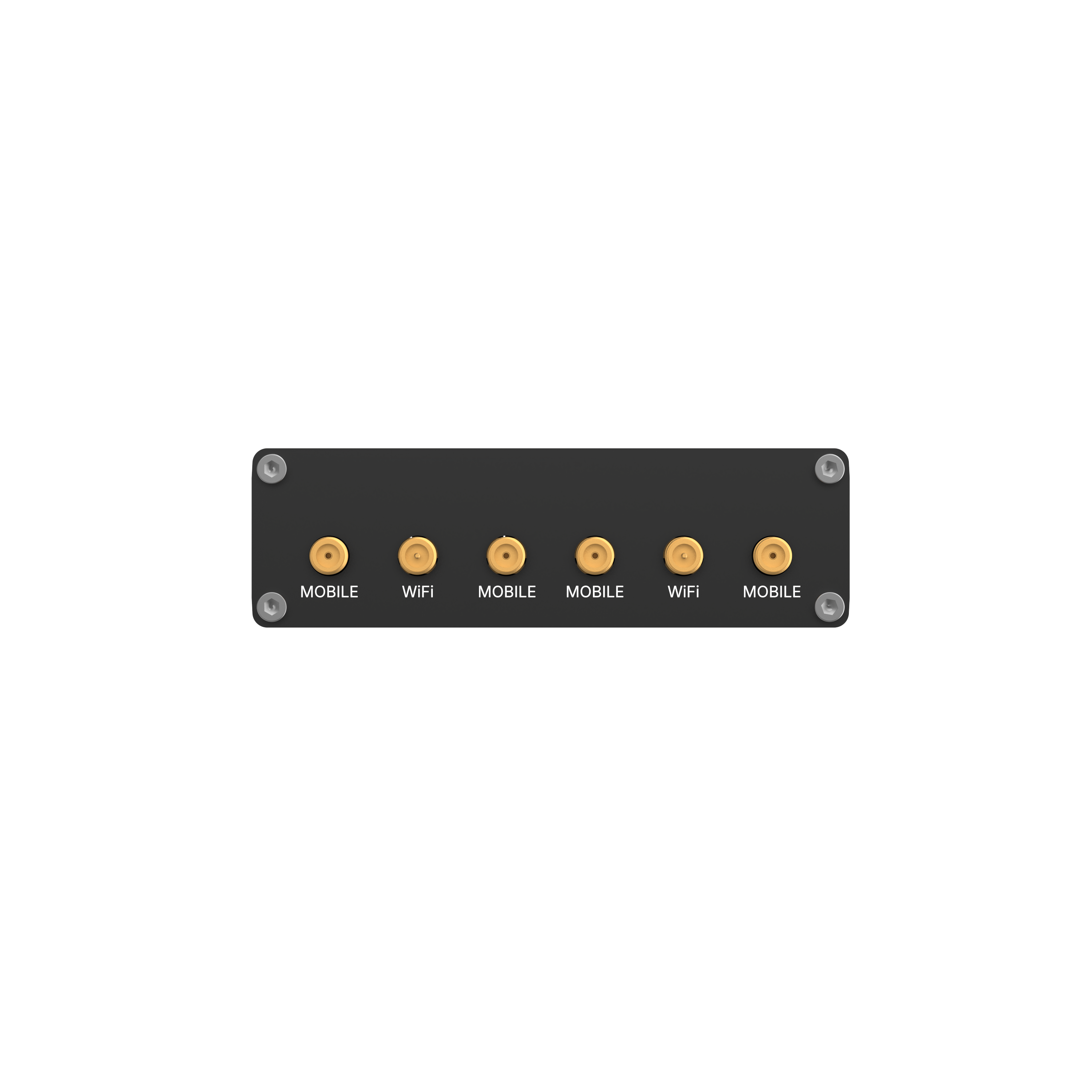

Antennas: 4 x SMA (mobile), 2 x RP-SMA (Wi-Fi)
Ethernet: 2 x RJ45, 10/100/1000 Mbps
Status Leds: Mobile type (RGB), mobile strength (RGB), 4 x LAN, power

Monitoring Management

Rms: Teltonika Remote Management System
SMS: Status, configuration
Ssh: v1, v2
Call: Reboot, status, mobile data, output and Wi-Fi control
Fota: Server updates with automatic notification
Mqtt: Broker, publisher
Snmp: v1, v2, v3, traps, brute force protection
Email: Service status alerts
Modbus: TCP status/control
TR 069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
Web UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshooting, logs, Internet status
Json Rpc: Management API over HTTP/HTTPS

Operating Environment

Ingress Protection: IP30
Operating Humidity: 10% to 90% non-condensing
Operating Temperature: -40 °C to 75 °C

Firmware Configuration

Rms: Bulk FW/configuration updates
Fota: Firmware update
Web UI: FW from file or server, configuration profiles, backup
Keep Settings: Update FW without losing configuration
Factory Settings Reset: Factory Reset: Restores all default settings

Firmware Customisation

Package Manager: Install additional software
Operating System: RutOS (OpenWrt-based Linux)
Development Tools: SDK with build environment
Gpl Customization: Custom branded firmware and web UI
Supported Languages: Busybox shell, Lua, C, C++

Regulatory Type Approvals

Regulatory: CE, UKCA, CB, RCM, FCC, WEEE, PTCRB

Questions buyers ask

Does the RUTM20100300 support US carrier bands?

Yes. This Global hardware version covers 5G bands including n2, n5, n25, n41, n66, n71 and n77, plus LTE bands such as B2, B4, B5, B12, B13, B14, B66 and B71. It ships with a US power supply. Note that 5G bands n12, n13, n14, n18, n26, n29 and n76 are disabled by default.

Does the eSIM come with a data plan?

No. The consumer-type eSIM supports downloading and removing up to seven carrier profiles, but data plans are not included.

Can the RUTM20 be powered over Ethernet?

Yes. The WAN port accepts 802.3af/at PoE or passive PoE from 18–50 VDC. The LAN port can also supply 802.3af/at PoE out at up to 30 W, depending on how the router itself is powered.

How fast is the cellular connection?

The modem supports 5G Sub-6 GHz SA/NSA with up to 3.4 Gbps downlink over 4x4 MIMO and up to 900 Mbps uplink. It falls back to LTE Cat 19 with 1.6 Gbps downlink, and to 3G.

What is included in the box?

The package contains the router, an 18 W US power supply, four 5G SMA antennas, two Wi-Fi RP-SMA antennas, a 1.5 m Ethernet cable, a SIM adapter kit, a hex key and a quick start guide. DIN rail and wall mounting require an additional kit.
