Teltonika RUTM50 5G Industrial Router with Dual SIM, Wi-Fi 5 and 5 Gigabit Ethernet Ports – North America

5GMPN RUTM50000000

Wi-Fi 5
Dual SIM
5+ × 1 Gb Ethernet
GPS/GNSS

$549.49$629.00Save $79.51

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

Request a quote · volume, multi-site or with plans

30-day returns on unopened devices
Secure checkout · pay by card
Data plans with no contract · cancel anytime

Ask Polaris AI

Datasheets & documents

Highlights

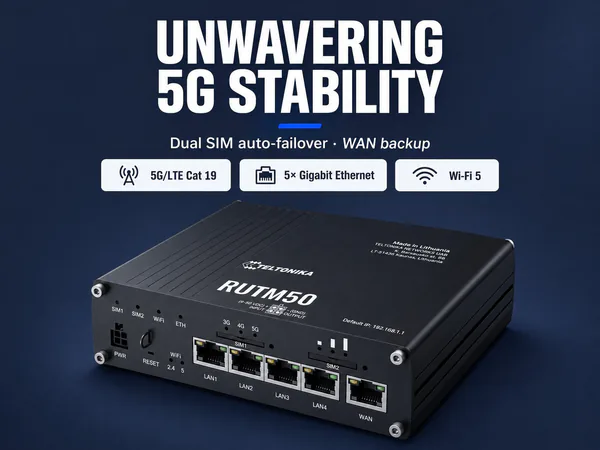

UNWAVERING 5G STABILITY — Dual SIM auto -failover · WAN backup — 5G/LTE Cat 19, 5× Gigabit Ethernet, Wi‑Fi 5 — TELTONIKA, RUTM50, Default IP: 192.168.1.1, SIM1, SIM2, WAN, WiFi, ETH, 3G, 4G, 5G, PWR, RESET, LAN1–4 — Black industrial router angled with ports

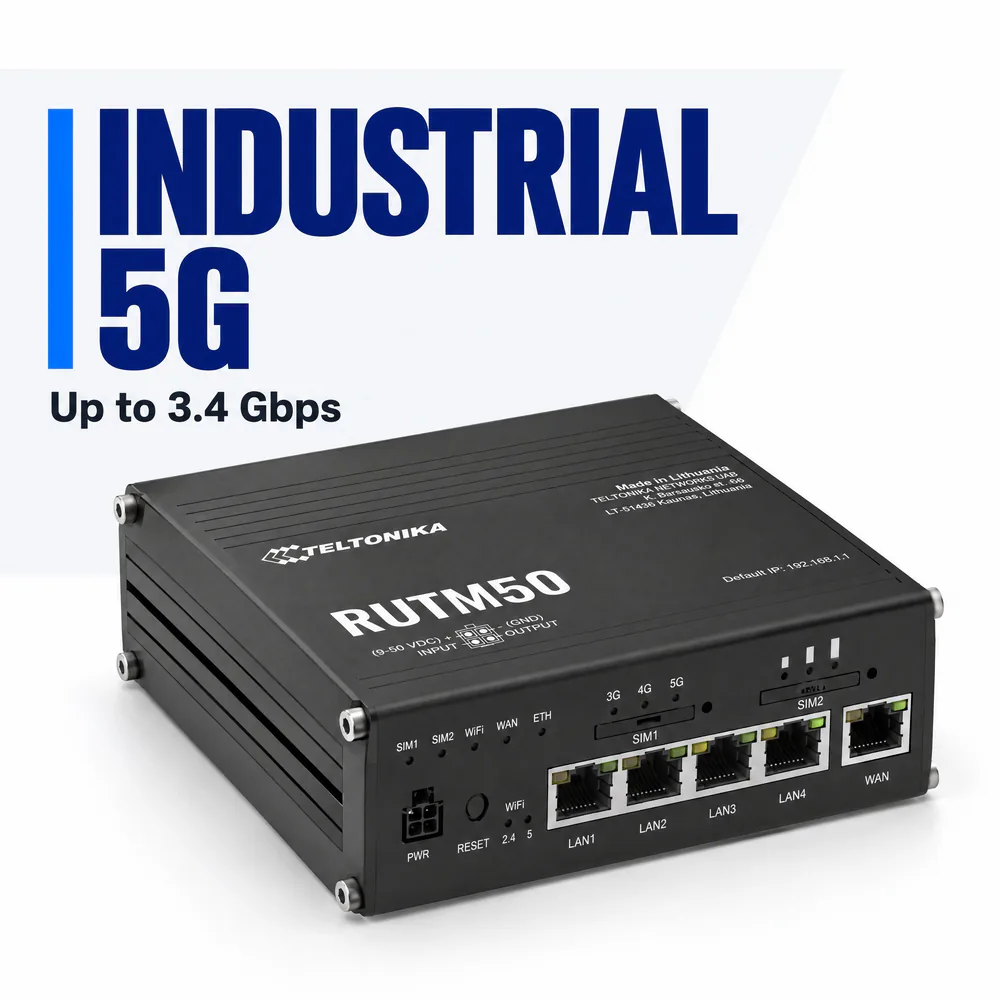

HEADLINE PERFORMANCE — 3.4 Gbps, 5G DL — 5, Gigabit Ethernet ports — 2, SIM cards — 150, Wi-Fi users

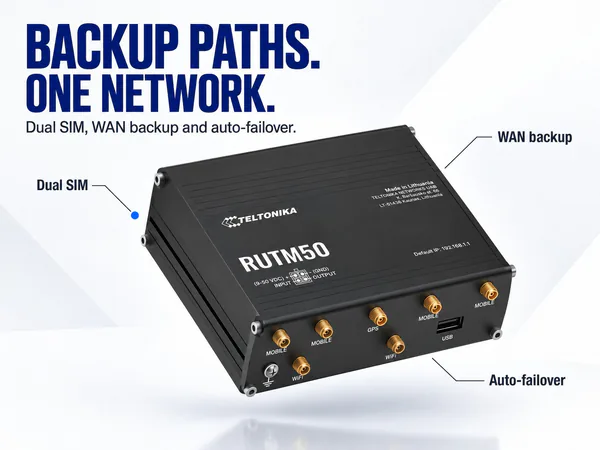

BACKUP PATHS. ONE NETWORK. — Dual SIM, WAN backup and auto-failover. — Dual SIM, WAN backup, Auto-failover — TELTONIKA, RUTM50, (3-50 VDC) INPUT, (GND) OUTPUT, Made in Lithuania, Default IP: 192.168.1.1, MOBILE, MOBILE, USB, GPS, WIFI, MOBILE, WIFI, WIFI — Black router with gold connectors

SPEAKS INDUSTRIAL — Modbus · MQTT · OPC UA — Modbus — MQTT — OPC UA

Overview

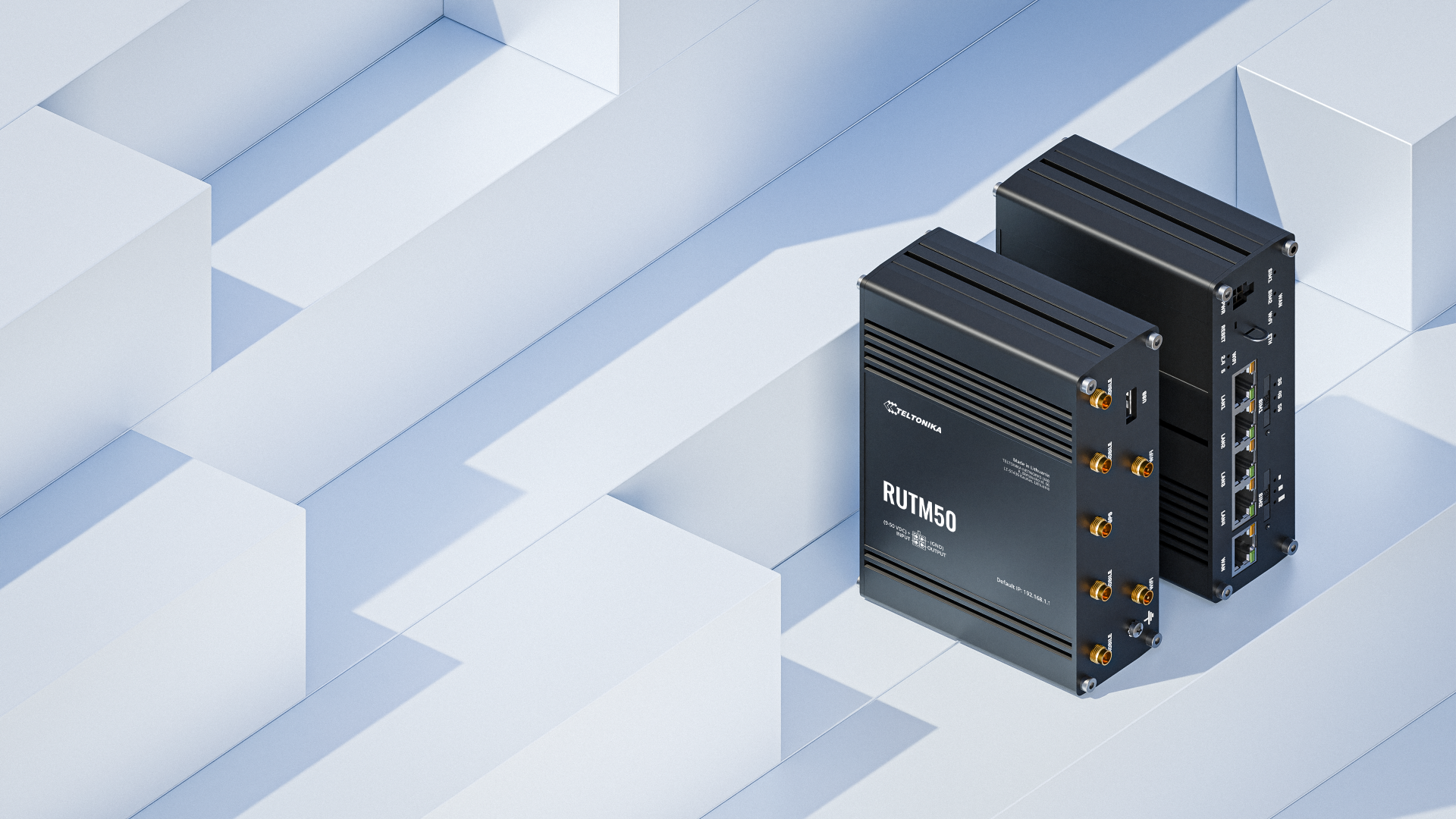

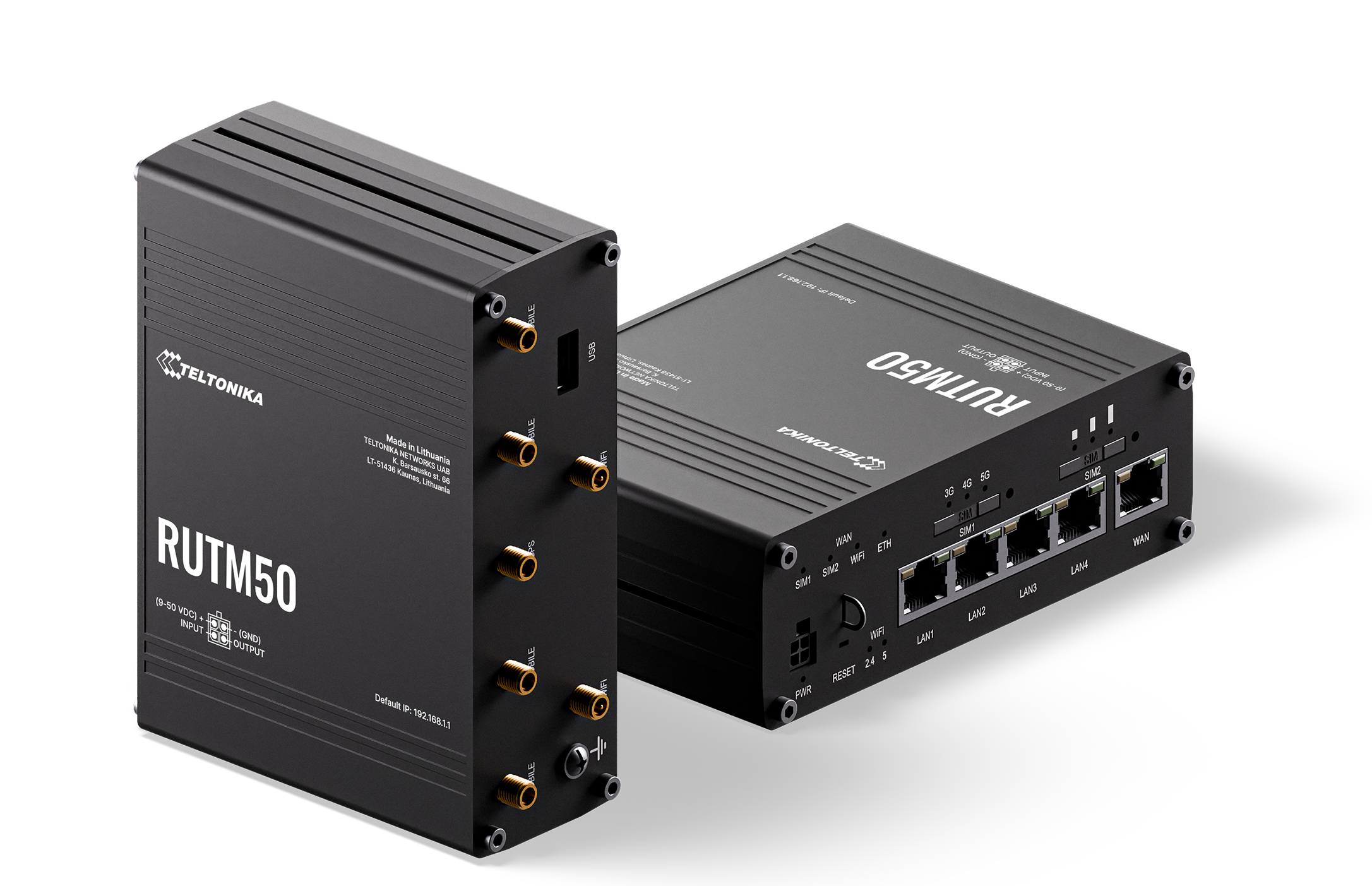

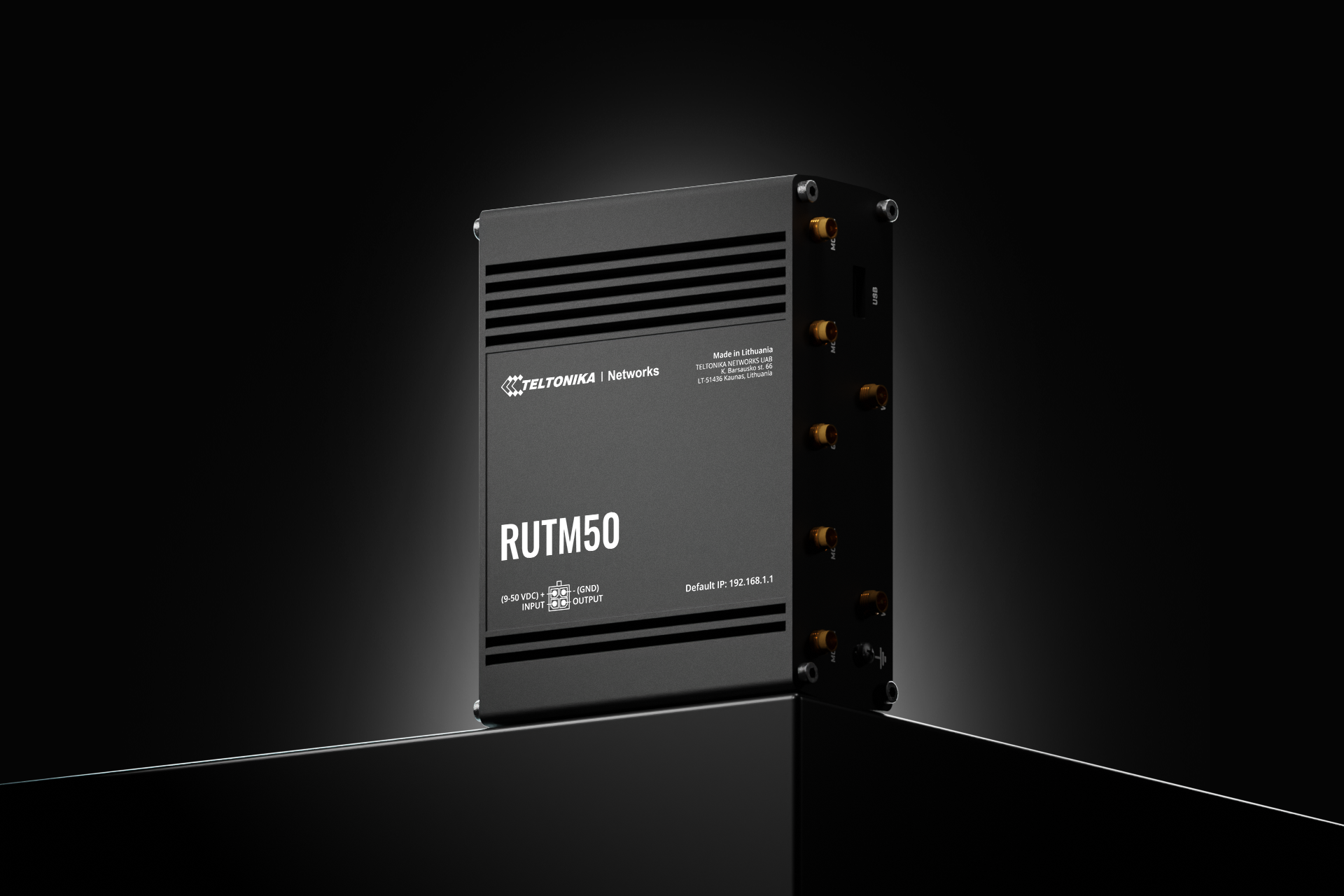

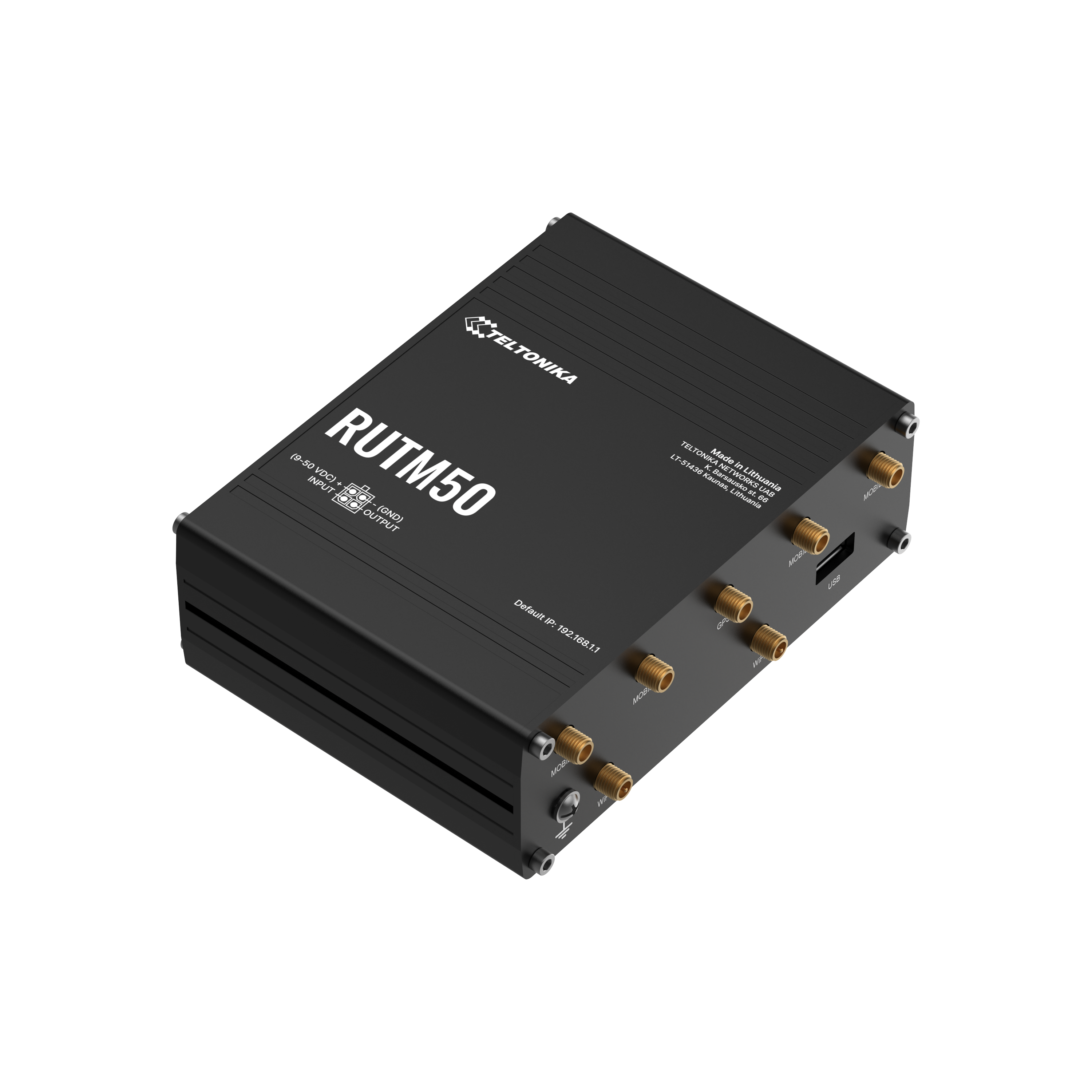

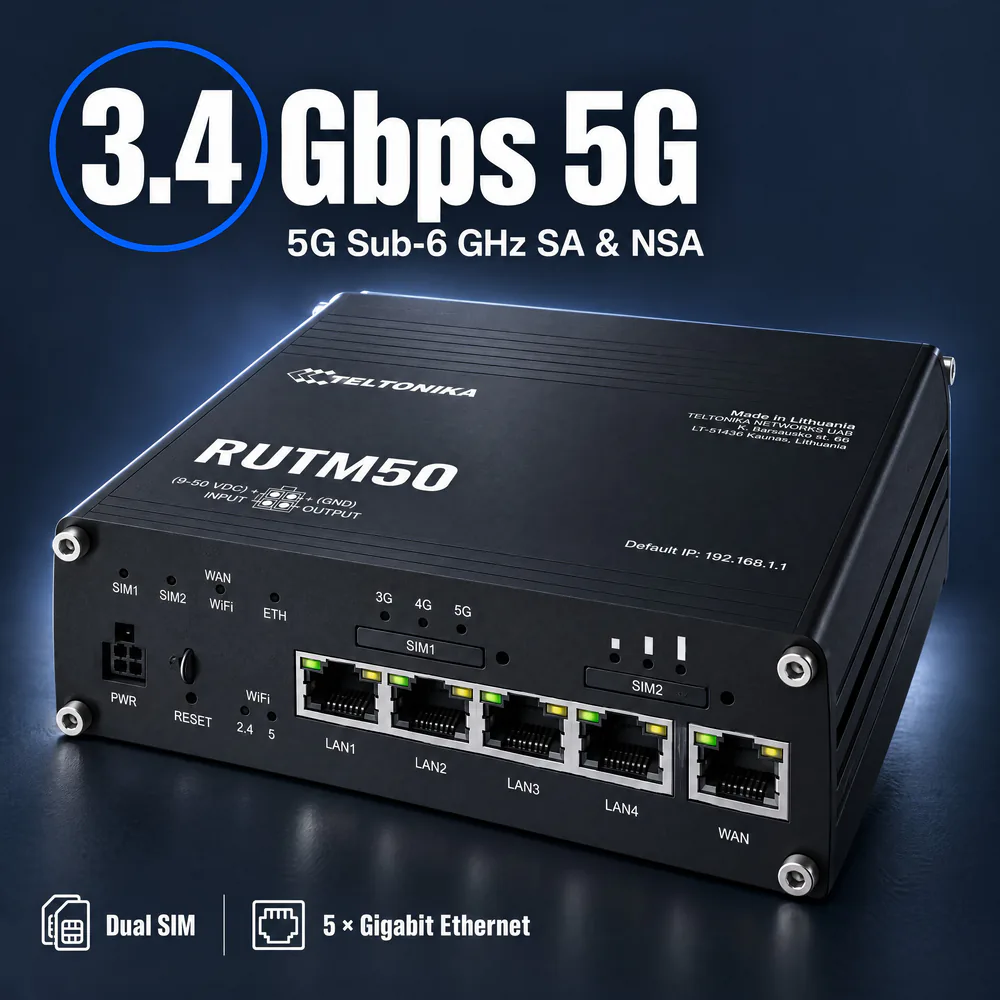

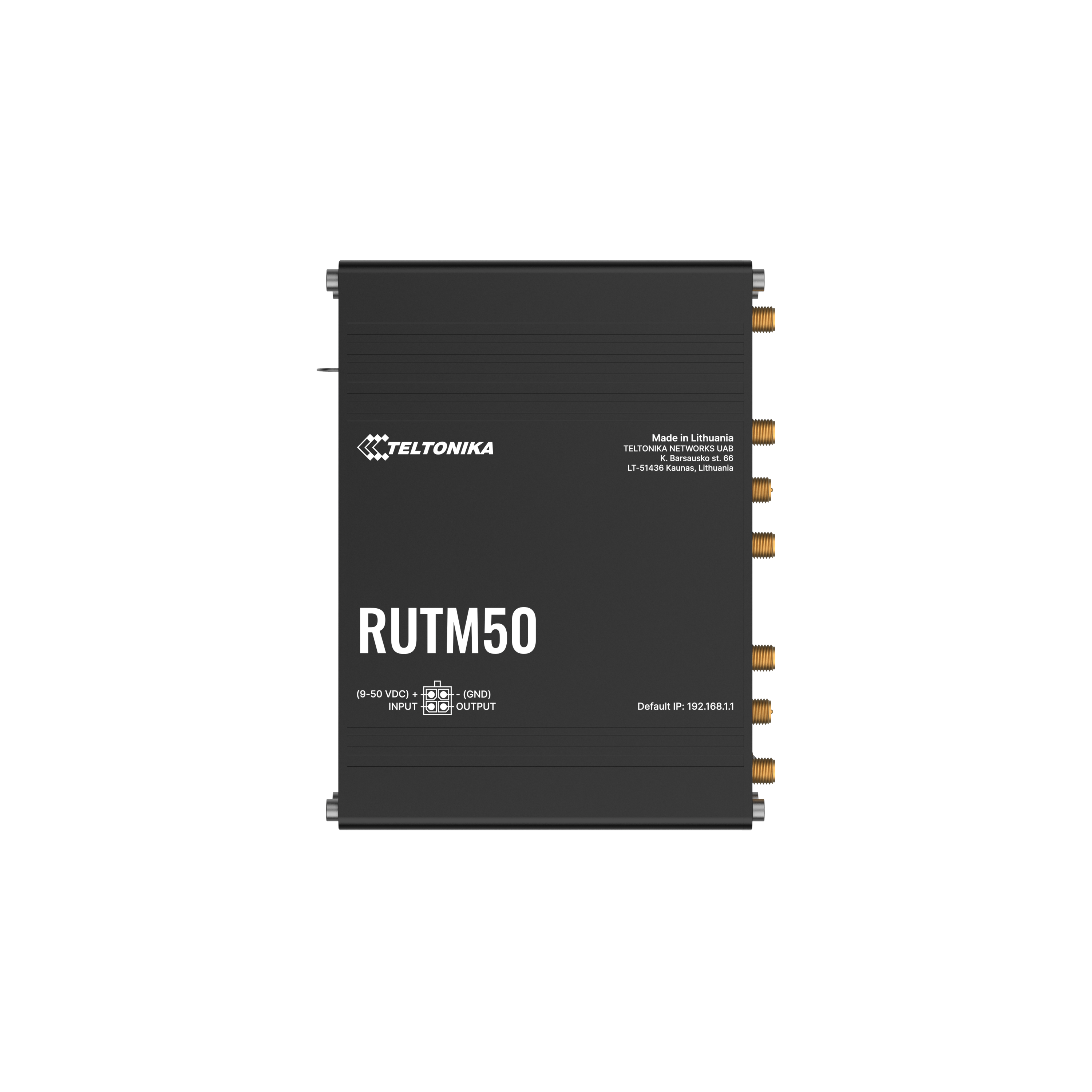

The Teltonika RUTM50 (RUTM50000000) is a compact industrial 5G router built for the U.S. and Canadian markets. It supports 5G SA and NSA downloads of up to 3.4 Gbps and falls back to 4G LTE Cat 19/18. Dual SIM auto-failover, five Gigabit Ethernet ports, dual-band Wi-Fi 5, GNSS and a 9–50 VDC industrial power input suit branch, field and IoT deployments. Industrial protocols include Modbus, MQTT, OPC UA, BACnet, DNP3 and DLMS. This standard package includes an 18 W US power supply and a full antenna set.

The Teltonika RUTM50 is an industrial 5G router for the U.S. and Canadian markets. It suits IT teams, integrators and field-operations leads who need a fast, resilient cellular WAN in a compact, rugged enclosure. Its 3GPP Release 16 Sub-6 GHz module supports both 5G SA and NSA with up to 3.4 Gbps downlink using 4x4 MIMO. It falls back to 4G LTE Cat 19 (1.6 Gbps downlink) and Cat 18 (200 Mbps uplink). North American band coverage includes n2, n5, n12, n14, n41, n66, n71, n77 and more, plus LTE B2 through B71 and the TDD bands B38–B48.

For uptime, two Mini SIM slots switch automatically on weak signal, data limits, roaming, network denial or connection failure. Wired, mobile, Wi-Fi WAN and VRRP links can each act as automatic failover, and load balancing spreads traffic across multiple WANs. The router has one Gigabit WAN port and four Gigabit LAN ports. Dual-band 802.11ac Wave 2 Wi-Fi supports up to 150 users with mesh and fast roaming. A GNSS receiver adds GPS, GLONASS, BeiDou, Galileo and QZSS positioning with geofencing.

RutOS, an OpenWrt-based Linux OS, provides BGP, OSPF, EIGRP and policy-based routing. VPN options include WireGuard, OpenVPN, IPsec, DMVPN, ZeroTier and Tailscale. Industrial and IoT integration covers Modbus TCP, MQTT, OPC UA, BACnet, DNP3, DLMS/COSEM, AWS IoT Core, Azure IoT Hub and Cumulocity. Fleets can be managed centrally through Teltonika RMS, TR-069, SNMP or the JSON-RPC API.

The hardware is built for harsh sites. It operates from -40 °C to 75 °C, is rated IP30, and accepts 9–50 VDC through a 4-pin industrial connector or passive PoE on LAN1. The standard package includes an 18 W US power supply, four swivel mobile antennas, two magnetic Wi-Fi antennas, an adhesive GNSS antenna, an Ethernet cable, a SIM adapter kit and a Quick Start Guide. A datasheet and product flyer are available for this model.

Ideal for

Primary or backup 5G WAN for retail stores, branch offices and pop-up sites
Industrial IoT gateway linking PLCs, meters and building systems via Modbus, OPC UA, BACnet, DNP3 and DLMS
Mobile and portable deployments such as field-operations vehicles, construction sites and event connectivity with GNSS tracking
Remote utility, energy and infrastructure sites operating in -40 °C to 75 °C conditions
Centrally managed router fleets using Teltonika RMS, TR-069 or SNMP

Specifications

USB

Data Rate: USB 2.0
Applications: Samba share, USB-to-serial
Storage Formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
External Devices: HDD, flash drive, modem, printer, USB-serial adapter

VPN

Gre: GRE tunnel, GRE over IPsec
Sstp: Client
Tinc: Client and server
Dmvpn: Phase 2, Phase 3, Dual Hub
Ipsec: XFRM, IKEv1, IKEv2, 14 encryption methods
Openvpn: Multiple clients and server simultaneously, 27 encryption methods
Stunnel: TLS encryption proxy
Zerotier: Client
Pptp L2tp: Client/server simultaneously, L2TPv3, L2TP over IPsec
Tailscale: Supported
Wireguard: Client and server
Openvpn Encryption: DES, 3DES, DESX, BF, RC2, CAST5 and AES-128/192/256 (CBC, CFB, CFB1, CFB8, OFB, GCM)

Dnp3

Supported Modes: Station, Outstation
Supported Connection: TCP, USB

Power

Connector: 4-pin industrial DC power socket
PoE Passive: Via LAN1, Mode B, 9–50 VDC, not IEEE 802.3af/at/bt compatible
Power Consumption: Idle <5 W, max <11.5 W
Input Voltage Range: 9–50 VDC, reverse polarity protection, surge protection >51 VDC 10 µs max

Bacnet

Supported Modes: Router
Configuration Options: Multiple BACnet/IP interfaces, network numbers, BBMD BDT entries
Supported Connection Types: IP, RTU (RS485, USB)

Mobile

Apn: Auto APN
SMS: Status, configuration, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, autoreply, SMPP
Ussd: Send and read USSD messages
Bridge: Direct connection between mobile ISP and LAN device
Status: IMSI, ICCID, operator, network type, CA indicator, bandwidth, band, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SIM Switch: 2 SIM cards with auto-switch on weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Passthrough: Mobile WAN IP assigned to a LAN device
3gpp Release: Release 16
Multiple Pdn: Different PDNs for multiple network access and services
Mobile Module: 5G Sub-6 GHz SA/NSA up to 3.4 Gbps DL (4x4 MIMO); 4G LTE DL Cat 19 1.6 Gbps, UL Cat 18 200 Mbps
Framed Routing: Supports an IP network behind 5G UE
Band Management: Band lock, used band status display
Block Allow List: Operator block/allow list by country or operator
SIM Pin Management: SIM PIN Code Management: Set, change or disable SIM PIN
SIM Idle Protection: Periodic data connection on unused SIM to prevent blocking
SIM Pin Code Management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
SIM Idle Protection Service: Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked

Modbus

Supported Modes: Server, Client
Custom Registers: Modbus TCP custom register blocks
Supported Data Formats: 8/16/32-bit INT, UINT, float (all byte orders), HEX, ASCII
Supported Connection Types: TCP, USB

Opc UA

Supported Modes: Client, Server
Supported Connection Types: TCP

Safety

Standards: UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

General

MPN: RUTM50000000
UPC: 4779051840540
Brand: Teltonika Networks
Model: RUTM50
Market: U.S. and Canada
HS Code: 851762
Package: Standard package with US PSU
Hts Code: 8517.62.00
Hardware Version: RUTM50 0***** / North America

Network

Ddns: >77 providers, others configurable manually
Dhcp: Static/dynamic allocation, relay, server configuration, static leases with MAC wildcards
Sshfs: Mount remote file system via SSH
Hotspot: Captive portal, RADIUS, SMS and SSO authentication, landing pages, walled garden, user groups and limits, 9 customisable themes
Qos Sqm: Priority queuing by source/destination, service, protocol or port, WMM, 802.11e
Routing: Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based
Firewall: Port forward, traffic rules, custom rules, TTL target customisation
Vrf Support: Initial VRF support
Dns Over Https: Proxy for secure DNS resolution
Load Balancing: Across multiple WAN connections
Network Backup: Wi-Fi WAN, mobile, VRRP, wired automatic failover
Port Management: Enable/disable ports, auto-configuration, speed control
Network Topology: Visual map of connected devices
Voip Passthrough: H.323 and SIP-ALG NAT helpers
Network Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP(S), SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
Traffic Management: Real-time monitoring, signal charts, usage history
Firewall Status Page: Statistics, rules and rule counters
Connection Monitoring: Ping reboot, Wget reboot, periodic reboot, LCP and ICMP link inspection

Package

Contents: In the Box: RUTM50 router, 18 W PSU, 4 mobile antennas, 2 magnetic Wi-Fi antennas, adhesive GNSS antenna, 1.5 m Ethernet cable, SIM adapter kit, Quick Start Guide
Power Supply: 18 W US PSU
Shipping Weight: 2.32 lb

Ethernet

LAN: 4 x 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
WAN: 1 x 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX

Security

Vlan: Port and tag-based separation
802 1x: Port-based network access control client
Firewall: WebUI presets, unlimited CLI rules, DMZ, NAT, NAT-T, NAT64
Web Filter: Block list, allow list
Access Control: SSH, Web UI, CLI and Telnet
Authentication: PSK, digital/X.509 certificates, TACACS+, internal/external RADIUS, login attempt blocking, password generator
Attack Prevention: DDoS (SYN flood, SSH, HTTP/HTTPS) and port scan prevention
Certificate Manager: CA, server, client, Let's Encrypt, SCEP
Mobile Quota Control: Data limit, period, start time, warning limit, phone number

Wireless

Ssid Essid: Stealth mode, MAC-based access control
Travelmate: Forwards Wi-Fi hotspot landing page to a connected device
Wi-Fi Users: Up to 150 simultaneous connections
Wi-Fi Security: WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, client separation, EAP-TLS, 802.11w PMF
Wireless Mode: 802.11b/g/n/ac Wave 2 (Wi-Fi 5), up to 867 Mbps, dual band, MU-MIMO
Wireless Mac Filter: Allowlist, blocklist
Wireless QR Code Generator: Scan to join the network
Wireless Connectivity Features: Mesh (802.11s), fast roaming (802.11r), Relayd, 802.11v, 802.11k

Dlms Cosem

Dlms Support: Utility meter data exchange
Supported Modes: Client
Supported Connection Types: TCP

Regulatory

Safety: UL 62368-1, CSA C22.2 No. 62368-1:19
RF Exposure: 47 CFR §2.1091, KDB 447498 D04, RSS-102 Issue 5
RF Standards Wi-Fi: FCC Part 15 §15.247, §15.407; RSS-247, RSS-Gen; KDB 905462 D02, D04
RF Standards 4G 5G: FCC 47 CFR Parts 2, 22, 24, 27, 90, 96; ISED RSS-130/132/133/139/140/192/195/197/199, RSS-Gen; SRSP-503/510/513/516/517/518/520

Frequencies

5G NR SA: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77, n78
5G NR Nsa: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77, n78
4G LTE Fdd: B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B66, B71
4G LTE Tdd: B38, B41, B42, B43, B48
5G DL 4x4 MIMO: n2, n5, n7, n12, n13*, n14, n25, n26*, n29, n30, n38, n41, n48, n66, n70, n71, n77, n78

Input Output

Input: 1 x digital input (0–6 V low, 8–50 V high)
Events: Email, RMS, SMS
Output: 1 x open collector digital output, max 50 V, 300 mA
I/O Juggler: Condition-based event triggers

Mqtt Gateway

Modbus Mqtt Gateway: Modbus server access via MQTT broker

Site Manager

Functionalities: Central management of Teltonika TAP access points and managed switches (pairing, grouping, FOTA, monitoring, reboot scheduling, SSID and VLAN configuration)
Supported Modes: Manager

Iot Platforms

Thingworx: WAN and mobile status monitoring
Cumulocity: Device and mobile monitoring, reboot and firmware upgrade
Aws Iot Core: Supported, including AWS Jobs
Azure Iot Hub: Data to Server, Direct methods, zero-touch provisioning via DPS
Cumulocity Cloud OF Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Data TO Server

Protocol: HTTP(S), MQTT, Azure MQTT
Data TO Server: Multi-source parameter collection, custom Lua scripting

Location Tracking

GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
Nmea: NMEA 0183
Ntrip: Supported
Geofencing: Multiple configurable zones
Coordinates: Via WebUI, SMS, TAVL, RMS
Server Software: TAVL, RMS

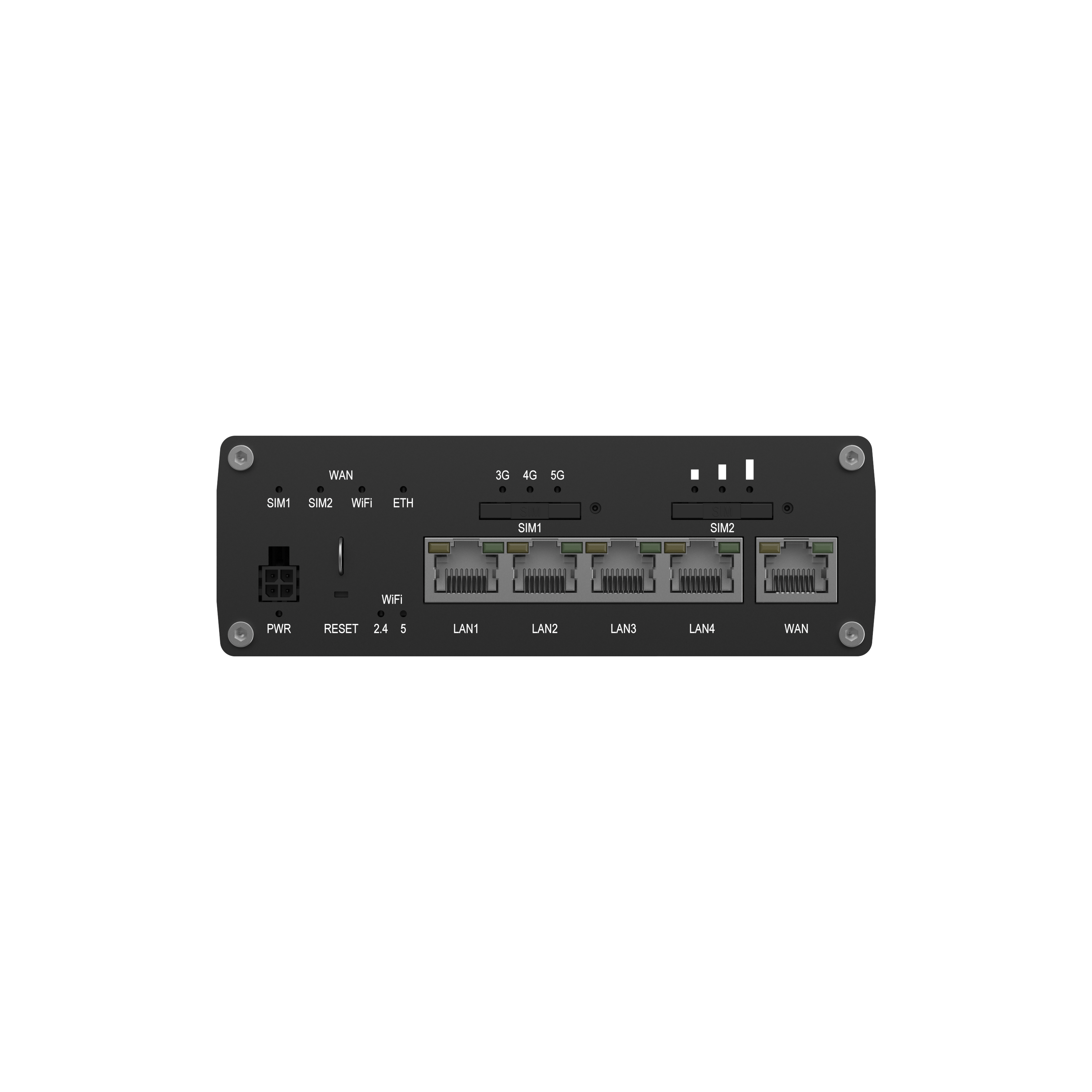

Physical Interfaces

Ios: 1 x digital input, 1 x digital output on 4-pin power connector
SIM: 2 x Mini SIM (2FF) slots, 1.8 V/3 V
USB: 1 x USB-A
Other: 1 x grounding screw
Power: 1 x 4-pin power connector
Reset: Reboot / user default / factory reset button

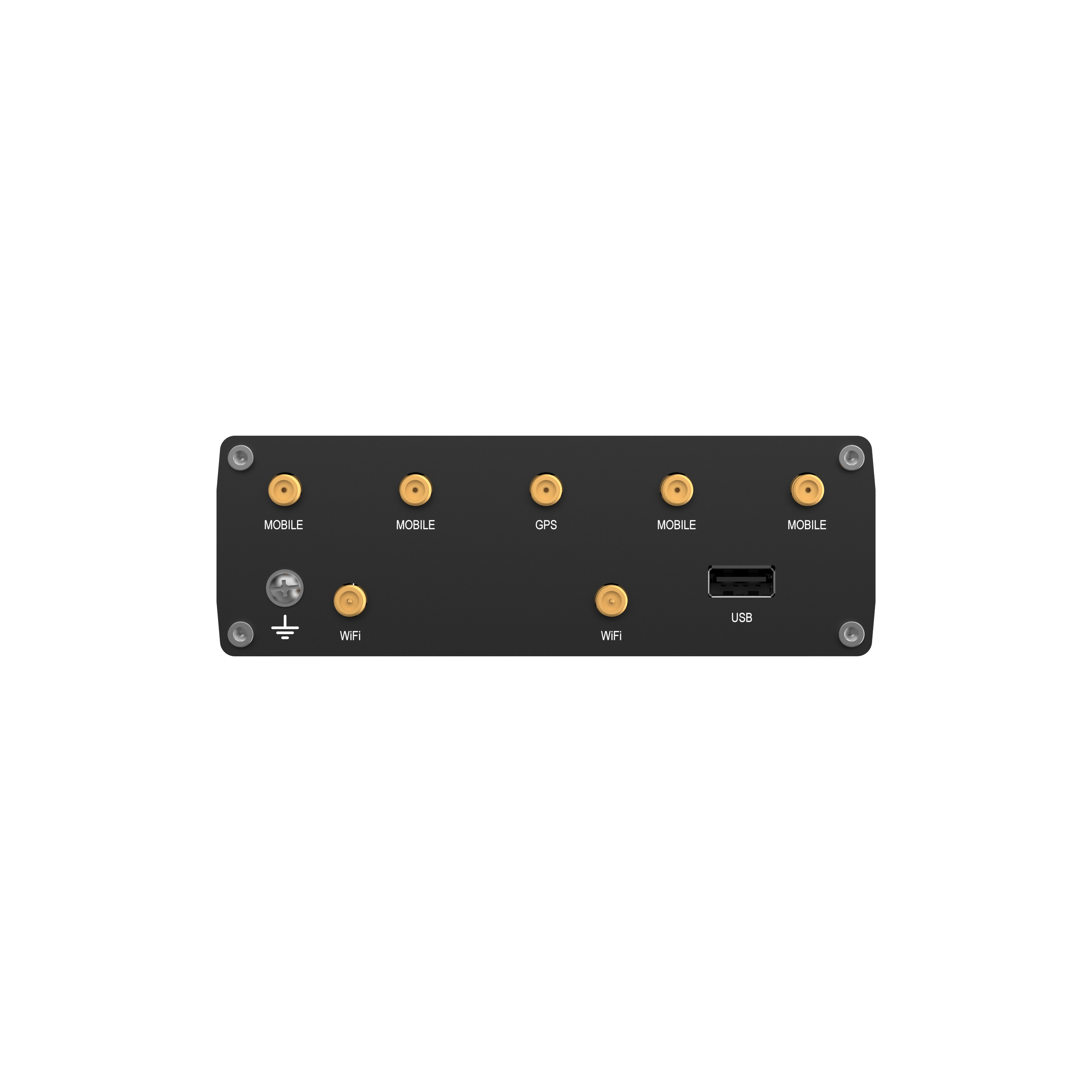

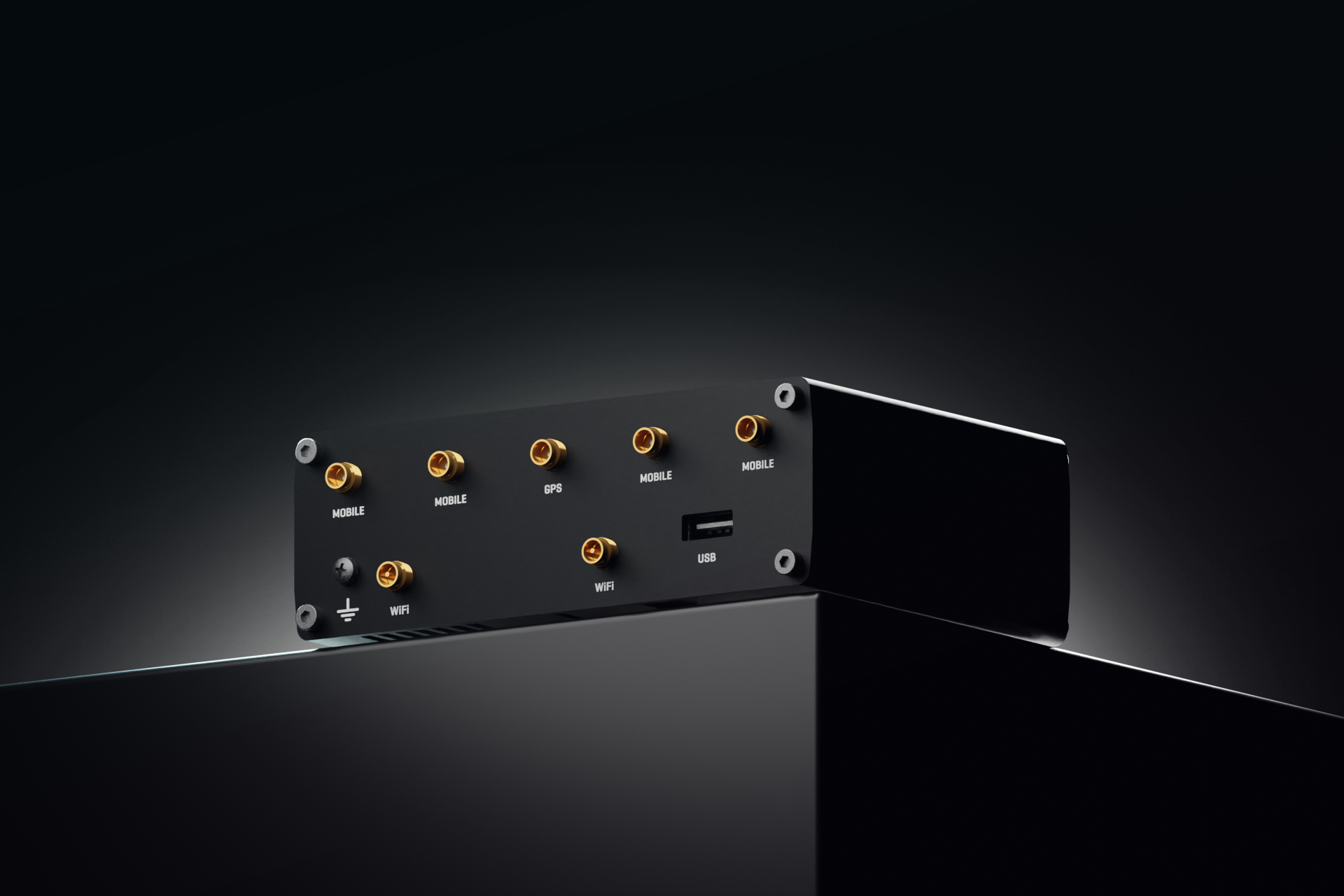

Antennas: 4 x SMA mobile, 2 x RP-SMA Wi-Fi, 1 x SMA GNSS

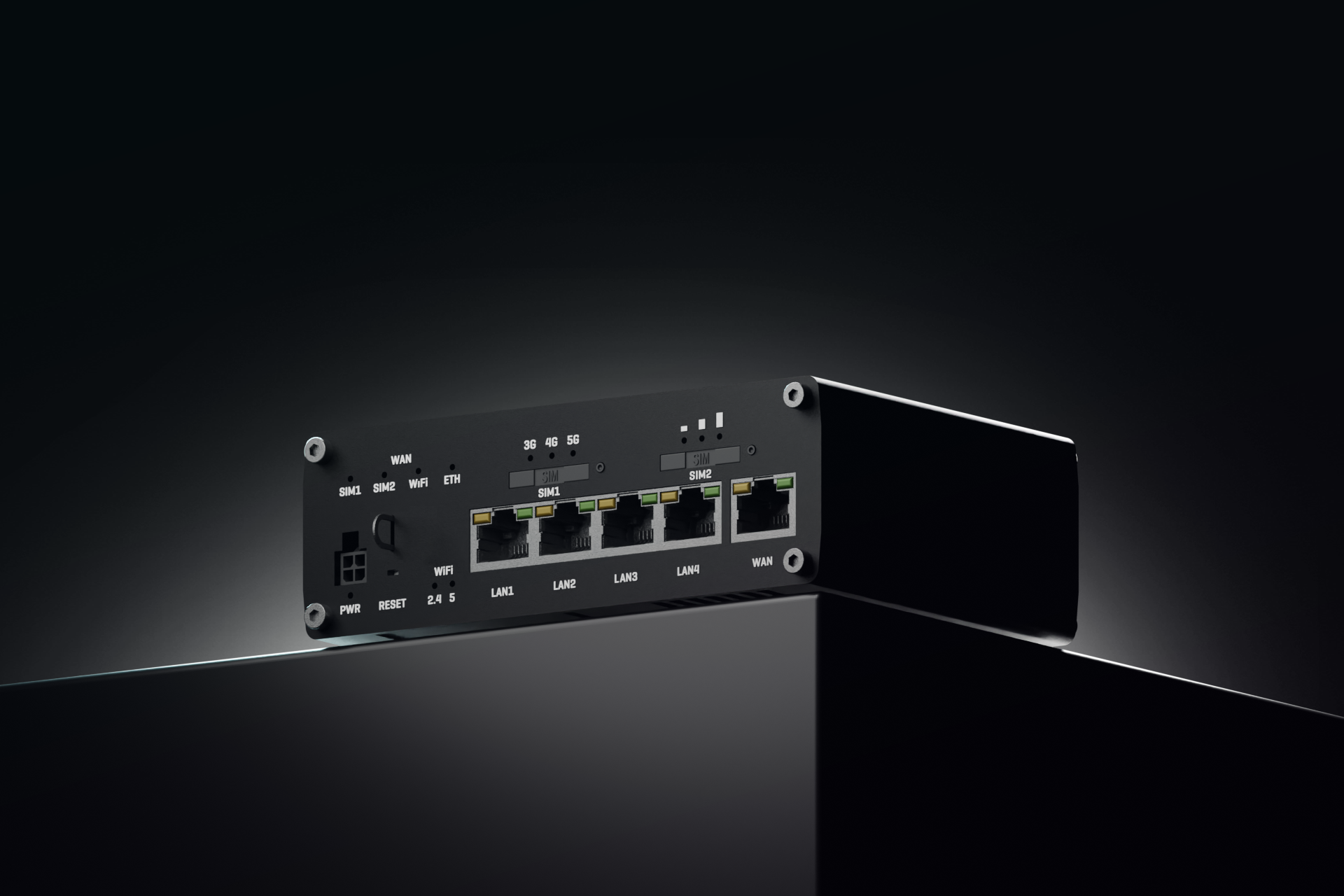

Ethernet: 5 x RJ45, 10/100/1000 Mbps
Status Leds: 4 x WAN type, 3 x mobile type, 3 x signal strength, 10 x Ethernet, 1 x power, 2 x Wi-Fi

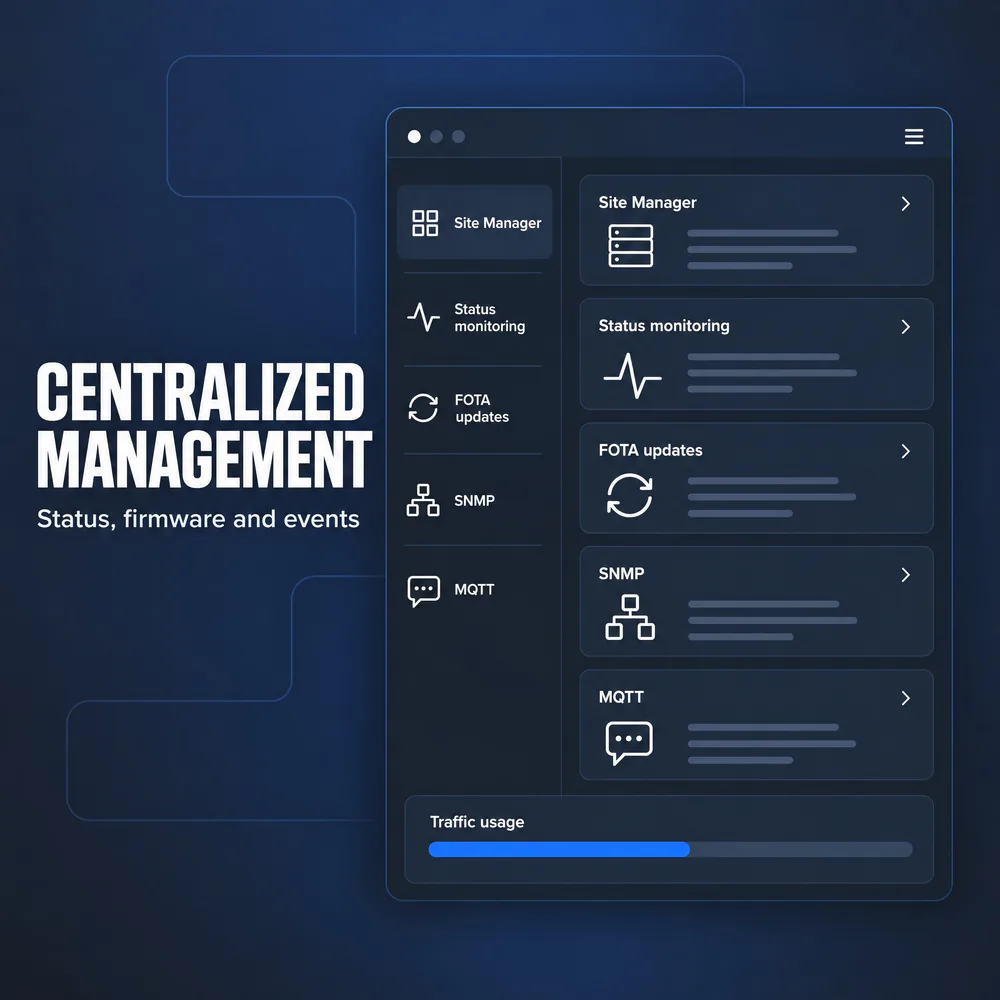

Monitoring Management

Rms: Teltonika Remote Management System
SMS: Status, configuration
Ssh: v1, v2
Call: Reboot, status, mobile data, output and Wi-Fi on/off, answer/hang-up with timer
Fota: Server updates with automatic notification
Mqtt: Broker, publisher
Snmp: v1, v2, v3, traps, brute force protection
TR 069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem
Web UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshooting, logs, Internet status
Json Rpc: Management API over HTTP/HTTPS

Operating Environment

Operating Humidity: 10% to 90% non-condensing
Operating Temperature: -40 °C to 75 °C
Ingress Protection Rating: IP30

Emc Emissions Immunity

Standards: 47 CFR Part 15 Subpart B; ICES-003: Issue 7 (October 2020)

Firmware Configuration

Rms: Bulk firmware/configuration updates
Fota: Firmware update
Web UI: FW update from file or server, configuration profiles, backup
Keep Settings: Firmware update without losing configuration
Factory Settings Reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customisation

Package Manager: Install additional software
Operating System: RutOS (OpenWrt-based Linux)
Development Tools: SDK with build environment
Gpl Customization: Custom branded firmware and web UI
Supported Languages: Busybox shell, Lua, C, C++, and Python, Java in Package manager

Physical Specification

Weight: 519 g
Casing Material: Anodised aluminium housing and panels
Mounting Options: DIN rail, wall mount, flat surface (all require additional kit)
Dimensions W X H X D: 132 x 44.2 x 95.1 mm

System Characteristics

CPU: MediaTek dual-core 880 MHz, MIPS1004Kc
RAM: 256 MB DDR3
Flash Storage: 16 MB serial NOR, 256 MB serial NAND

Regulatory Type Approvals

Operator: T-Mobile, AT&T (FirstNet), Verizon
Regulatory: FCC, IC, PTCRB, UL/CSA Safety, NOM, Giteki, MTCTE

Questions buyers ask

Does the Teltonika RUTM50 support standalone (SA) 5G?

Yes. The RUTM50 supports both 5G SA and NSA architectures on bands including n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77 and n78. It falls back to 4G LTE Cat 19/18 where 5G is unavailable.

Which market is this RUTM50000000 version for?

This order code is the North America hardware version for the U.S. and Canadian markets. It ships in the standard package with an 18 W US power supply.

How does the dual SIM failover work?

The router holds two Mini SIM (2FF) cards. It can switch automatically on weak signal, data limit, SMS limit, roaming, no network, network denial or data connection failure. SIM idle protection periodically uses the standby SIM so it is not blocked for inactivity.

What is included in the box?

The package includes the RUTM50 router and an 18 W power supply. It also includes four swivel SMA mobile antennas, two magnetic RP-SMA Wi-Fi antennas with 1.5 m cables, an adhesive GNSS antenna with a 3 m cable, a 1.5 m Ethernet cable, a SIM adapter kit and a Quick Start Guide.

Can the RUTM50 be powered over Ethernet?

Yes, through passive PoE on the LAN1 port (Mode B, 9–50 VDC). It is not compatible with IEEE 802.3af, 802.3at or 802.3bt PoE. The router can also be powered through its 4-pin industrial DC connector across a 9–50 VDC range.
