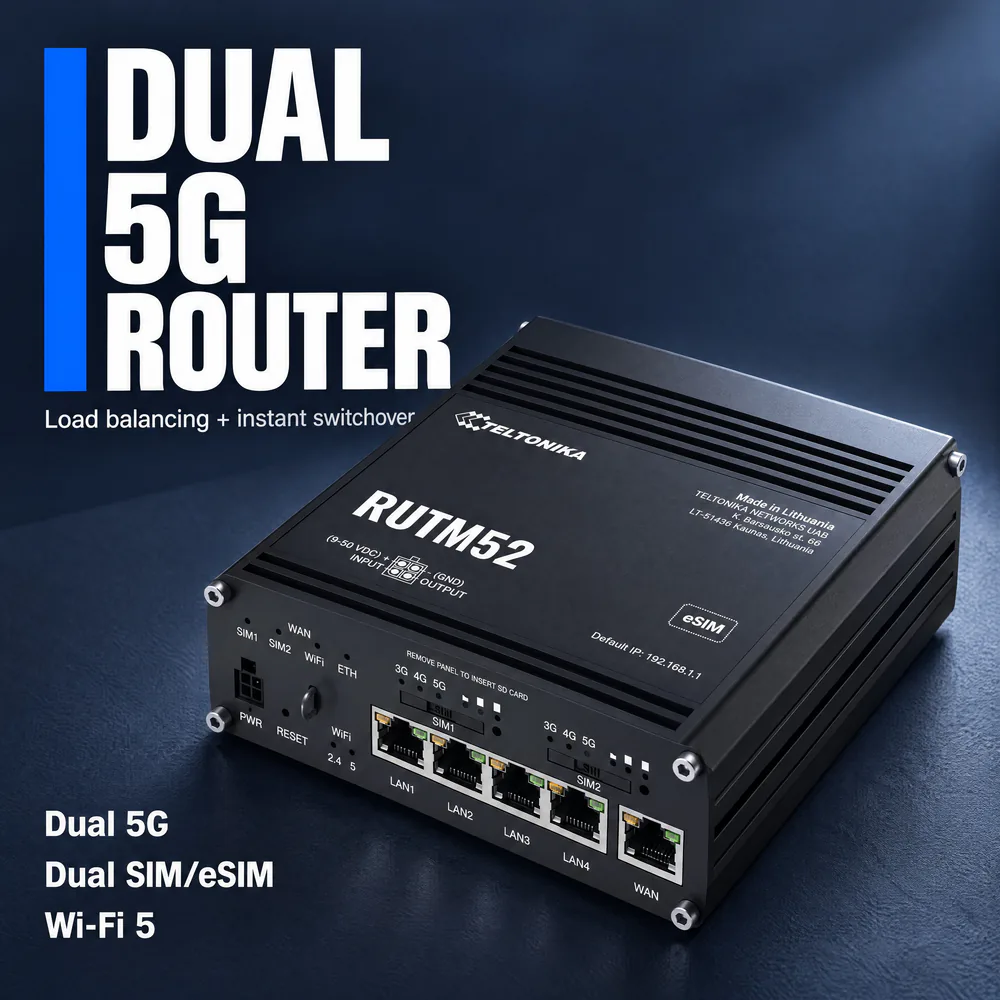

Teltonika RUTM52 Dual 5G Router with Dual SIM, eSIM and Wi-Fi 5 – North America

5GMPN RUTM52200600

Wi-Fi 5
Dual modem
eSIM
5+ × 1 Gb Ethernet

$1,225.00$1,289.00Save $64

In stock · only 2 leftShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

Request a quote · volume, multi-site or with plans

30-day returns on unopened devices
Secure checkout · pay by card
Data plans with no contract · cancel anytime

Datasheets & documents

Highlights

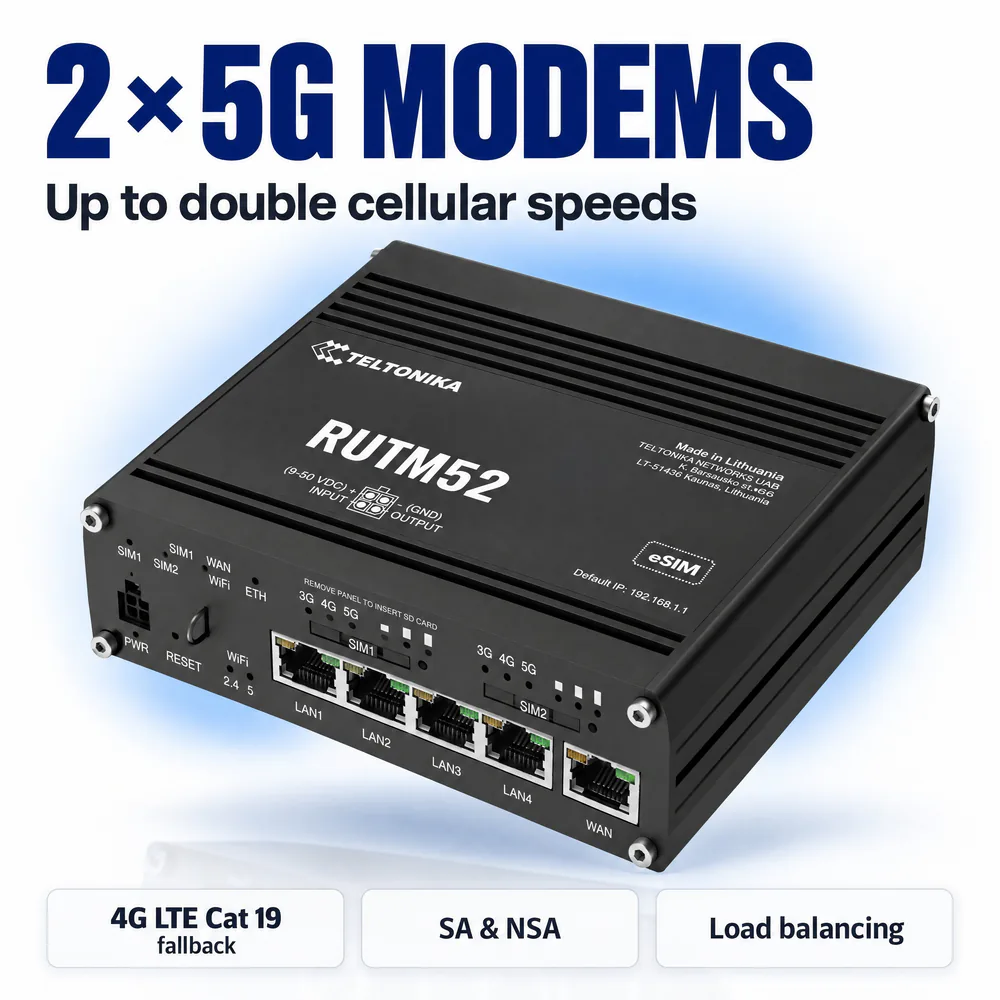

2.4/3.4 GBPS DL — 5G Sub-6 GHz SA/NSA — 2 × 5G MODEMS — 900/550 Mbps UL — 4G LTE Cat 19 FALLBACK

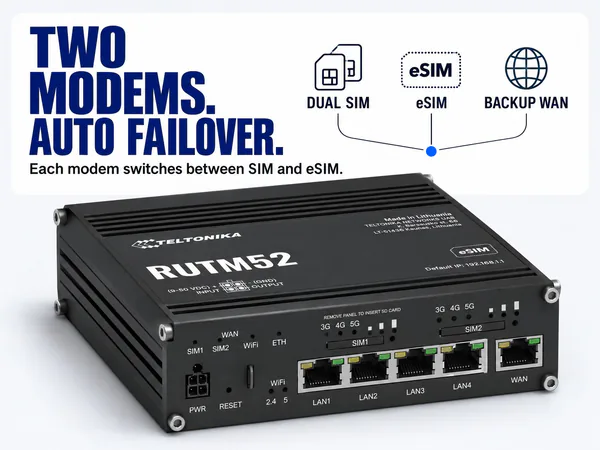

TWO MODEMS. AUTO FAILOVER. — Each modem switches between SIM and eSIM. — DUAL SIM — eSIM SUPPORT — BACKUP WAN — TELTONIKA, RUTM52, eSIM, Default IP: 192.168.1.1, SIM1, SIM2, WAN, ETH, PWR, RESET, WiFi 2.4 5, LAN1, LAN2, LAN3, LAN4 — Black Teltonika router with front ports shown

Overview

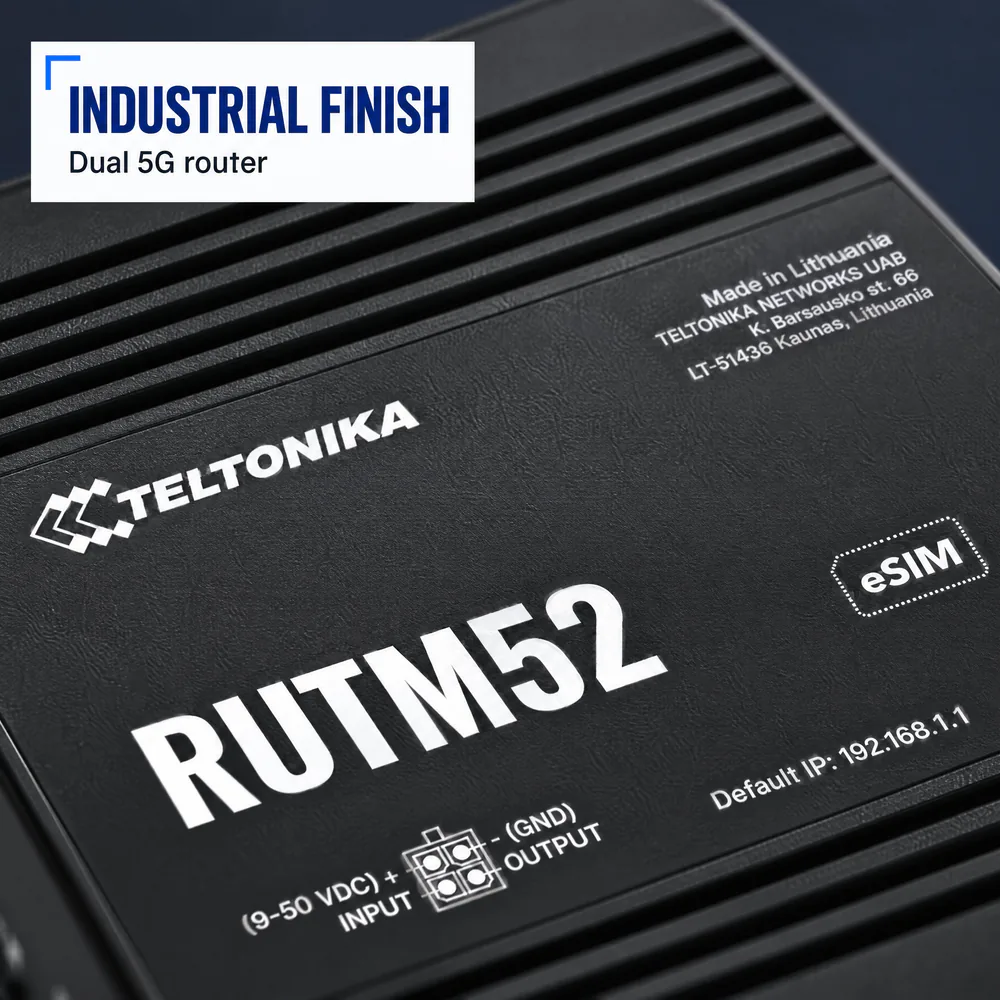

The Teltonika RUTM52 is Teltonika's first dual 5G router, built for mission-critical sites that cannot afford downtime. Two 5G Sub-6 GHz modems support SA and NSA networks with LTE Cat 19 fallback. Dual SIM slots and eSIM enable load balancing and instant switchover between carriers. It also provides Wi-Fi 5, five Gigabit Ethernet ports and RutOS with industrial protocols, VPNs and RMS remote management. This SKU (RUTM52200600) is the North America hardware version and ships with a US power supply.

The Teltonika RUTM52 is a dual-modem 5G router for branch offices, industrial sites, kiosks and other deployments where one cellular link is not enough. Each of its two 5G Sub-6 GHz modems supports both SA and NSA architectures, rated at 2.4/3.4 Gbps downlink with 4x4 MIMO, and falls back to LTE Cat 19. Both physical SIMs can run at the same time. Each modem can also switch independently between its physical SIM and an eSIM profile when the signal weakens, a data limit is reached, roaming begins or a network fails. The eSIM stores up to 7 consumer profiles. Data plans are not included.

This order code is the North America hardware version. It covers 5G NR bands n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77 and n78, plus LTE-FDD and LTE-TDD bands for the region. It ships in the standard package with an 18 W US PSU, eight magnetic 5G antennas, two Wi-Fi antennas, a GNSS antenna and an Ethernet cable.

On the local side, the router provides one Gigabit WAN port, four Gigabit LAN ports and dual-band Wi-Fi 5 with MU-MIMO for up to 150 users. Load balancing and automatic failover can combine the mobile, wired, Wi-Fi WAN and VRRP links. RutOS adds dynamic routing (BGP, OSPF, EIGRP), a firewall with DDoS and port-scan protection, and a TPM 2.0 module. VPN support includes OpenVPN, IPsec, WireGuard, DMVPN, ZeroTier and Tailscale.

For operational technology, the router supports Modbus, BACnet, OPC UA, DNP3, DLMS/COSEM and MQTT, along with a digital input and output and multi-constellation GNSS. The anodised aluminium housing is rated IP30 and operates from -40 °C to 60 °C on 9–50 VDC or passive PoE. Fleets can be managed through Teltonika RMS, SNMP, TR-069 or the Web API.

Ideal for

Branch offices and retail stores that need a second 5G carrier running at the same time for failover and load balancing
Industrial and utility sites that connect PLCs, meters and RTUs over Modbus, DNP3, DLMS or OPC UA
Building automation networks that route BACnet/IP and BACnet MS/TP traffic to the cloud
Kiosks, digital signage and remote enclosures operating from -40 °C to 60 °C on DC or passive PoE power
Public safety, events and temporary sites that need high-capacity cellular primary connectivity with GNSS location

Specifications

API

Teltonika Networks Web API: Web API (beta): Configurable endpoints to retrieve or change data
Teltonika Networks Web API Beta Support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

VPN

Gre: GRE tunnel, GRE over IPsec
Sstp: Client
Tinc: Encrypted, authenticated, compressed tunnels; client and server
Dmvpn: Scalable IPsec VPNs, Phase 2 and Phase 3, Dual Hub
Ipsec: XFRM, IKEv1, IKEv2, 14 encryption methods (3DES, DES, AES128/192/256, AES GCM8/12/16 variants)
Openvpn: Multiple clients and a server simultaneously, 27 encryption methods
Stunnel: Adds TLS encryption to existing clients and servers
Zerotier: Client
Pptp L2tp: Simultaneous client/server instances, L2TPv3, L2TP over IPsec
Tailscale: Encrypted point-to-point connections using WireGuard
Wireguard: Client and server
Openvpn Encryption: 27 methods from DES-CBC 64 through AES-256-CBC 256, including AES-128/192/256 GCM

Dnp3

Supported Modes: DNP3 Station, DNP3 Outstation
Supported Connection: TCP

Power

Connector: 4-pin industrial DC power socket
PoE Passive: Via LAN1, Mode B, 9–50 VDC; not compatible with IEEE 802.3af/at/bt
Power Consumption: Idle < 5 W, Max < 15.5 W
Input Voltage Range: 9–50 VDC, reverse polarity protection, surge protection >51 VDC 10 µs max

Bacnet

Supported Modes: Router
Configuration Options: Multiple BACnet/IP interfaces, network number assignment, preconfigured BDT entries for BBMD
Supported Connection Types: IP, RTU (RS485)

Mobile

Apn: Auto APN
SMS: Status, configuration, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, autoreply, SMPP
eSIM: Consumer type, profile download and removal, up to 7 profiles; data plans not included
Ussd: Send and read USSD messages
Bridge: Direct connection between mobile ISP and LAN device
Status: IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SIM Switch: Independent per-modem switching between physical SIM and eSIM on weak signal, data limits, roaming or network issues; both physical SIMs operate simultaneously
Passthrough: Mobile WAN IP assigned to a LAN device
3gpp Release: Release 16
Multiple Pdn: Different PDNs for multiple network access and services
LTE Fdd Bands: B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B66, B71
LTE Tdd Bands: B38, B41, B42, B43, B48
Mobile Module: 2 x 5G Sub-6 GHz SA/NSA 2.4/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); LTE Cat 19 1.6 Gbps DL, Cat 18 200 Mbps UL; 3G 42 Mbps DL, 5.76 Mbps UL
5G NR SA Bands: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77, n78
Framed Routing: Supports an IP network behind 5G UE
5G NR Nsa Bands: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77, n78
Band Management: Band lock, used band status display
Block Allow List: Operator block/allow list by country or operator
SIM Pin Code Management: SIM PIN Management: Set, change or disable SIM PIN

Modbus

Supported Modes: Server, Client
Custom Registers: Modbus TCP custom register block requests read/write to a file on the router
Supported Data Formats: 8-bit INT/UINT; 16-bit INT/UINT (MSB or LSB first); 32-bit float/INT/UINT (ABCD, DCBA, CDAB, BADC); HEX; ASCII
Supported Connection Types: TCP

Opc UA

Supported Modes: Client, Server
Supported Connection Types: TCP

General

MPN: RUTM52200600
UPC: 4779051844944
Brand: Teltonika Networks
Model: RUTM52
HS Code: 851762
Hts Code: 8517.62.00
Package Type: Standard package with US PSU
Hardware Version: RUTM52 2***** / North America

Network

Ddns: More than 77 providers supported, others configurable manually
Dhcp: Static and dynamic allocation, relay, server configuration, status, static leases (MAC with wildcards)
Sshfs: Mount remote file system via SSH
Hotspot: Captive portal, internal/external RADIUS, RADIUS MAC auth, SMS authorisation, SSO, internal/external landing page, walled garden, user scripts, URL parameters, user groups and limits, user management, 9 customisable themes plus custom theme upload/download
Qos Sqm: Priority queuing by source/destination, service, protocol or port, WMM, 802.11e
Routing: Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based
Firewall: Port forward, traffic rules, custom rules, TTL target customisation
Vrf Support: Initial VRF support
Dns Over Https: DoH proxy
Load Balancing: Across multiple WAN connections
Network Backup: Wi-Fi WAN, Mobile, VRRP, Wired – each usable as automatic failover
Port Management: View, enable/disable ports, toggle auto-configuration, change speed
Network Topology: Visual map of connected devices
Network Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
Traffic Management: Real-time monitoring, wireless signal charts, usage history
Firewall Status Page: Statistics, rules and rule counters
Connection Monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP link inspection
Voip Passthrough Support: H.323 and SIP-ALG NAT helpers

Package

Contents: In the Box: RUTM52 router, 18 W US PSU, 8 x magnetic 5G antennas (SMA), 2 x magnetic Wi-Fi antennas (RP-SMA, 1.5 m), GNSS antenna (adhesive, SMA, 3 m), 1.5 m Ethernet cable, SIM adapter kit, Quick Start Guide
Shipping Weight: 4.37 lb

Ethernet

LAN: 4 x 10/100/1000 Mbps, IEEE 802.3, 802.3u, 802.3az, auto MDI/MDIX
WAN: 1 x 10/100/1000 Mbps, IEEE 802.3, 802.3u, 802.3az, auto MDI/MDIX

Security

Tpm: TPM 2.0 identification and authentication module
Vlan: Port and tag-based separation
802 1x: Port-based network access control client
Firewall: Preconfigured rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64
Web Filter: Block list and allow list
Access Control: SSH, Web interface, CLI and Telnet
Authentication: PSK, digital and X.509 certificates, TACACS+, internal/external RADIUS, IP and login attempt blocking, time-based login blocking, random password generator
Attack Prevention: DDoS prevention (SYN flood, SSH, HTTP/HTTPS), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan)
Certificate Manager: Create CA, server, client, Let's Encrypt and SCEP certificates
Mobile Quota Control: Data limit, custom period, start time, warning limit, phone number

Wireless

Ssid Essid: Stealth mode and MAC-based access control
Travelmate: Forwards Wi-Fi hotspot landing page to a connected device
Wi-Fi Users: Up to 150 simultaneous connections
Wi-Fi Security: WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, auto-cipher, client separation, EAP-TLS with PKCS#12, disable auto-reconnect, 802.11w PMF
Wireless Mode: 802.11b/g/n/ac Wave 2 (Wi-Fi 5), up to 867 Mbps, dual band, MU-MIMO
Wireless Mac Filter: Allowlist, blocklist
Wireless QR Code Generator: Join the network by scanning, without entering credentials
Wireless Connectivity Features: Mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition (802.11v), radio resource measurement (802.11k)

Dlms Cosem

Dlms Support: Utility meter data exchange protocol
Supported Modes: Client
Supported Connection Types: TCP

Input Output

Input: 1 x digital input, 0–6 V logic low, 8–50 V logic high
Events: Email, RMS, SMS
Output: 1 x digital open collector output, max 50 V, 300 mA
I/O Juggler: I/O conditions trigger events

Mqtt Gateway

Modbus Mqtt Gateway: Commands and data to/from Modbus server via MQTT broker

Site Manager

Functionalities: Centralized management of Teltonika TAP access points and managed switches, including pairing and grouping, FOTA, status monitoring, reboot scheduling with ping/wget checks, SSID configuration and VLAN assignment
Supported Modes: Manager

Iot Platforms

Thingworx: WAN type, WAN IP, operator name, signal strength, network type
Cumulocity: Device model, revision, serial, WAN type/IP, cell ID, ICCID, IMEI, connection type, operator, signal strength; reboot and firmware upgrade actions
Aws Iot Core: AWS cloud interaction, Jobs support for device API calls
Azure Iot Hub: Data to Server integration, Direct method RutOS API calls, Plug and Play with Device Provisioning Service for zero-touch provisioning

Data TO Server

Protocol: HTTP(S), MQTT, Azure MQTT
Data TO Server: Aggregate parameters from multiple sources and protocols to a single server; custom Lua scripting

Location Tracking

GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
Nmea: NMEA 0183
Ntrip: Networked Transport of RTCM via Internet Protocol
Geofencing: Multiple configurable zones
Coordinates: Via WebUI, SMS, TAVL, RMS
Server Software: TAVL, RMS

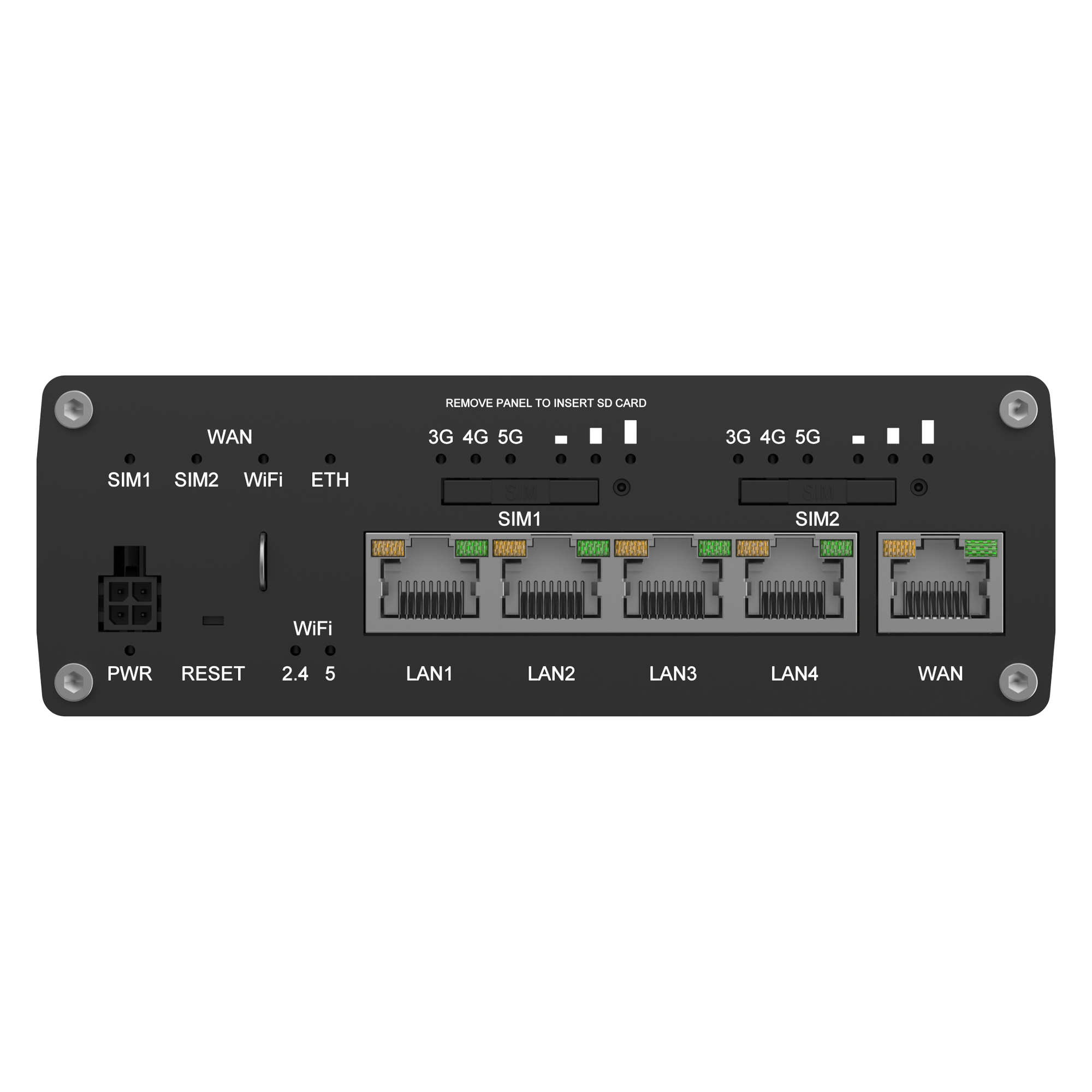

Physical Interfaces

Ios: 1 x digital input, 1 x digital output on 4-pin power connector
SIM: 2 x Mini SIM (2FF) slots, 1.8 V/3 V
Other: 1 x grounding screw
Power: 1 x 4-pin power connector
Reset: Reboot/user default/factory reset button

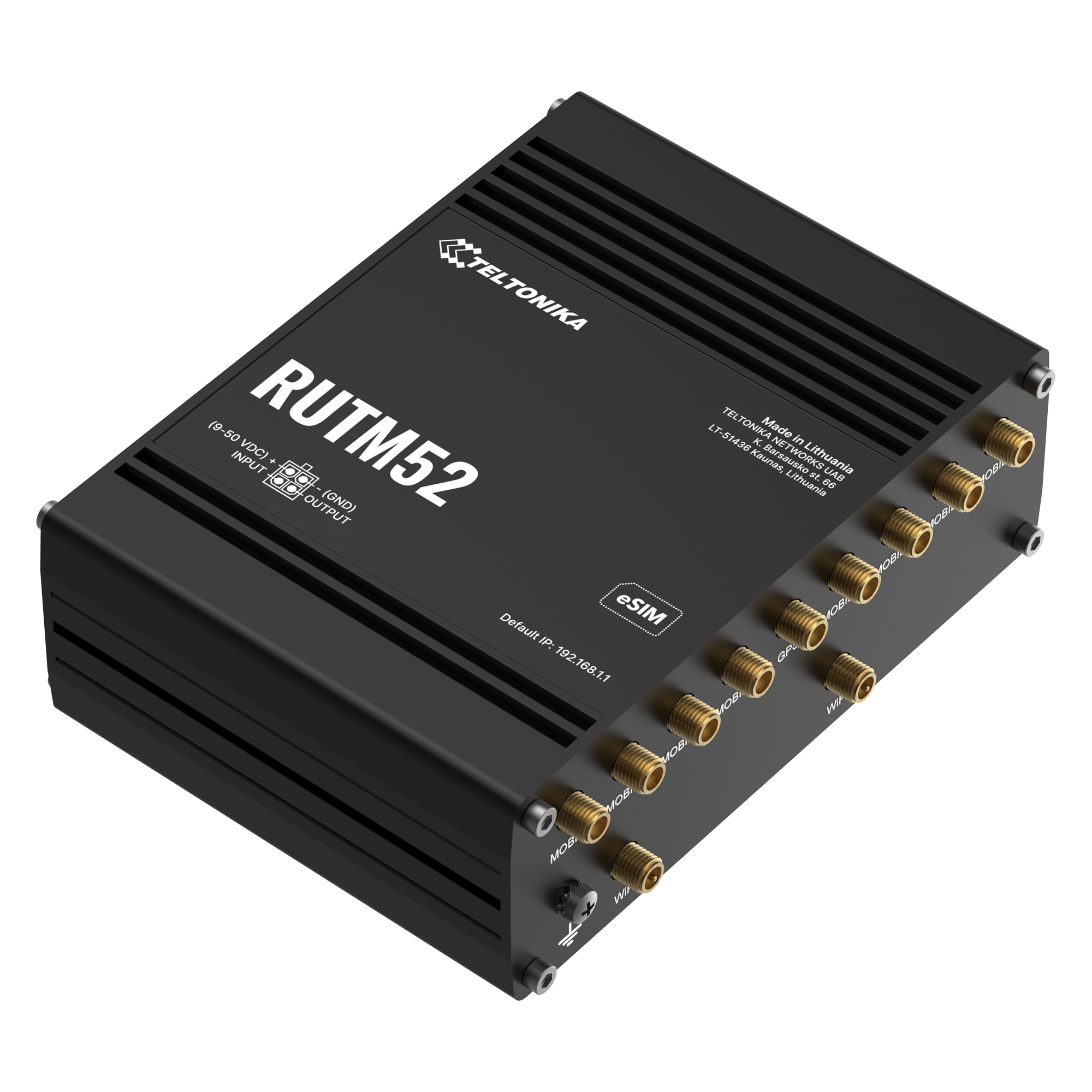

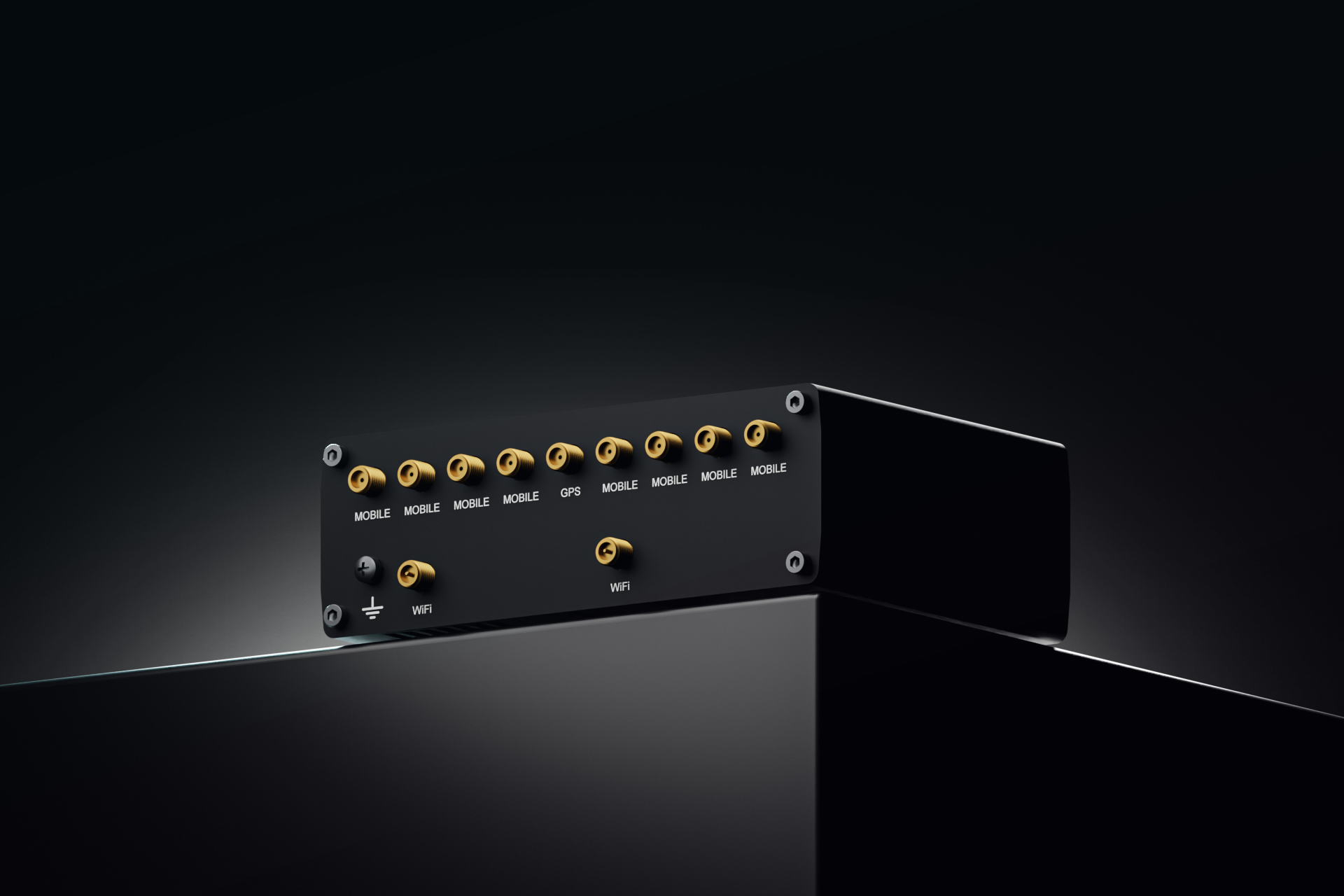

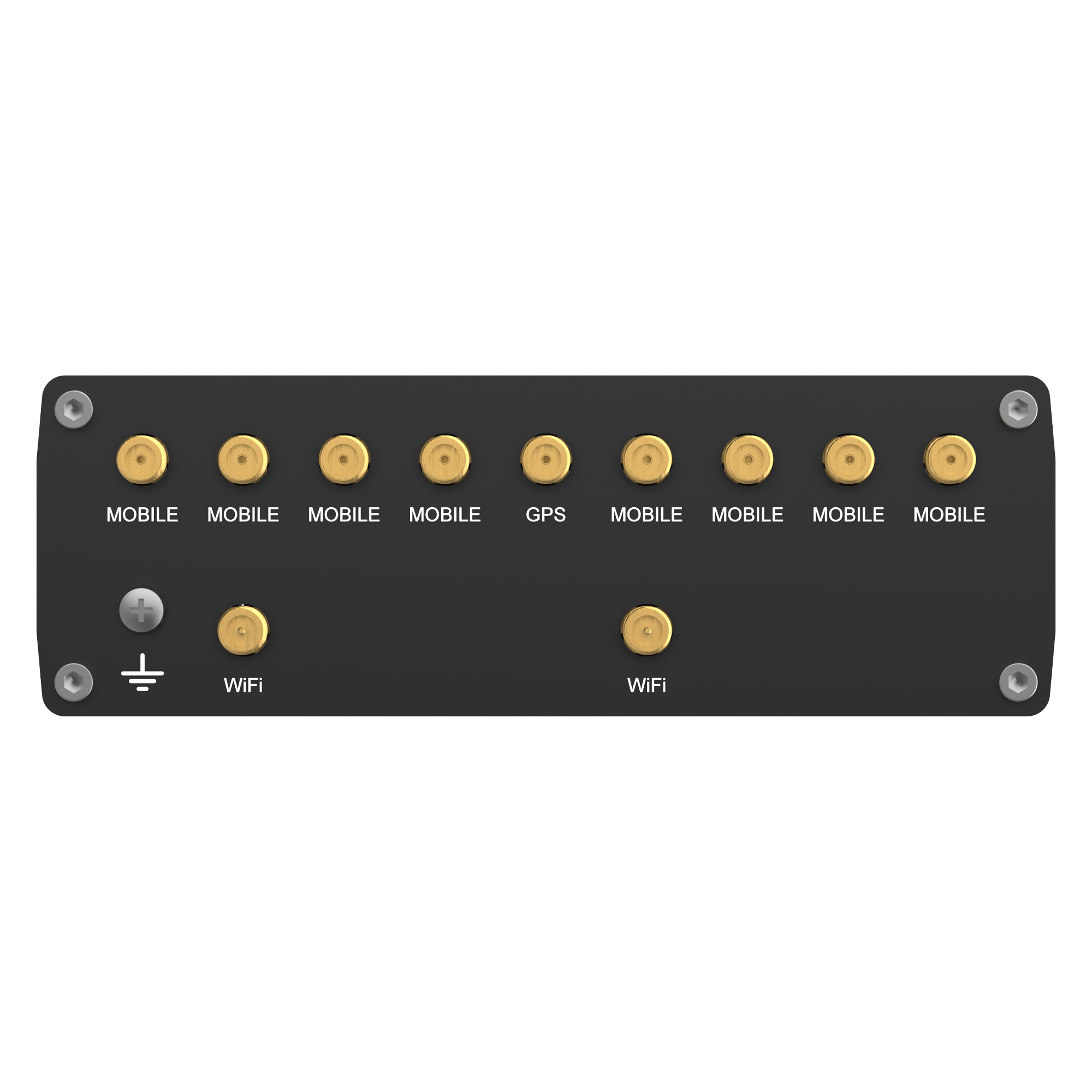

Antennas: 8 x SMA (mobile), 2 x RP-SMA (Wi-Fi), 1 x SMA (GNSS)
Ethernet: 5 x RJ45, 10/100/1000 Mbps
Status Leds: 6 x connection status, 6 x signal strength, 10 x Ethernet status, 4 x WAN status, 1 x power, 2 x Wi-Fi (2.4G/5G)

Monitoring Management

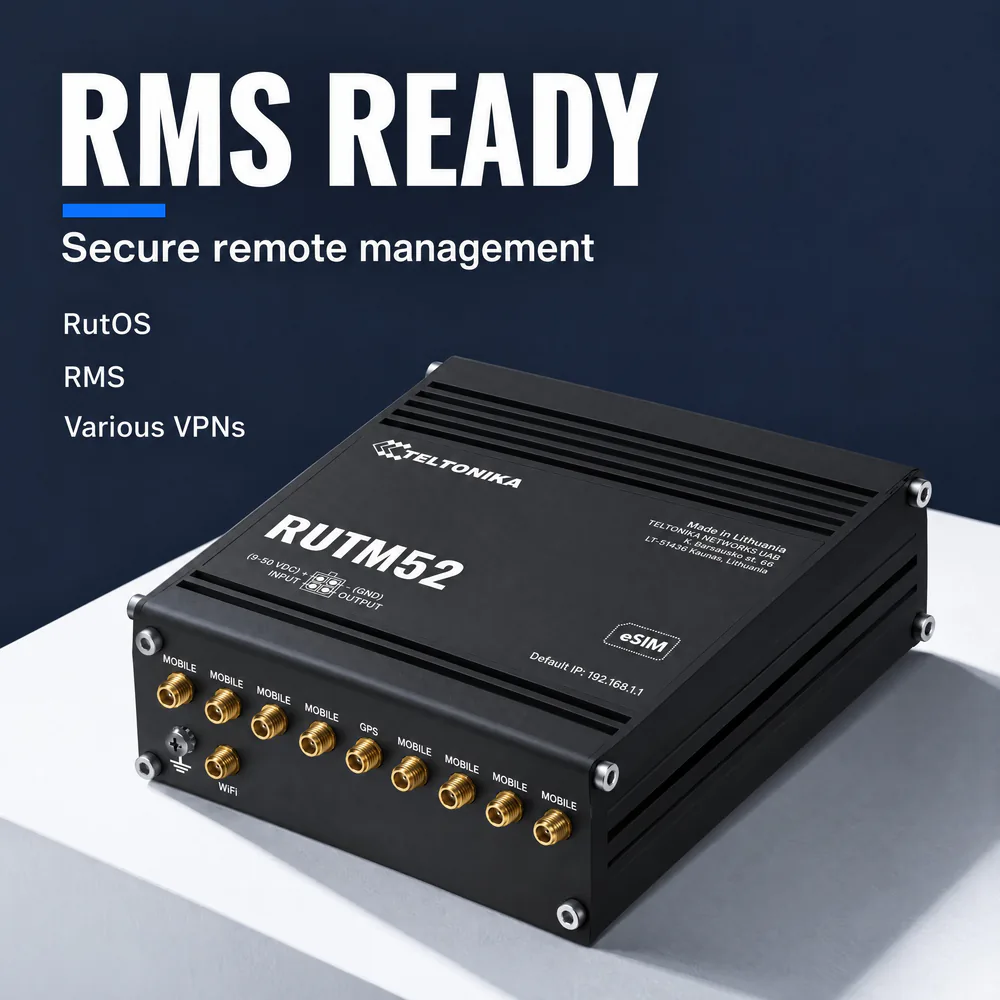

Rms: Teltonika Remote Management System
SMS: Status, configuration
Ssh: v1, v2
Call: Reboot, status, mobile data on/off, output on/off, answer/hang-up with timer, Wi-Fi on/off
Fota: Firmware update from server, automatic notification
Mqtt: Broker, publisher
Snmp: v1, v2, v3, SNMP Trap, brute force protection
Email: Status alerts for various services
TR 069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
Web UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, FW update notifications, event/system/kernel logs, Internet status
Json Rpc: Management API over HTTP/HTTPS

Operating Environment

Operating Humidity: 10% to 90% non-condensing
Operating Temperature: -40 °C to 60 °C
Ingress Protection Rating: IP30

Firmware Configuration

Rms: Bulk FW/configuration updates
Fota: Firmware update
Web UI: FW update from file, check FW on server, configuration profiles, backup
Keep Settings: FW update without losing configuration
Factory Settings Reset: Factory Reset: Restores all settings, IP address, PIN and user data to defaults

Firmware Customisation

Package Manager: Install additional software
Operating System: RutOS (OpenWrt-based Linux)
Development Tools: SDK with build environment
Gpl Customization: Custom branded firmware and web interface
Supported Languages: Busybox shell, Lua, C, C++

Physical Specification

Weight: 560 g
Dimensions: 132 x 44.2 x 95.1 mm
Casing Material: Anodised aluminium housing and panels
Mounting Options: DIN rail, wall, flat surface (additional kit required)

System Characteristics

CPU: MediaTek dual-core 880 MHz, MIPS1004Kc
RAM: 256 MB DDR3
Flash Storage: 16 MB serial NOR, 256 MB serial NAND

Regulatory Type Approvals

Regulatory: CE, UKCA, RCM, FCC, IC, EAC, UCRF, WEE, MTCTE

Questions buyers ask

Can both 5G modems be used at the same time?

Yes. The RUTM52 has two 5G modems, and both physical SIMs can operate simultaneously. You can balance traffic across both connections or use one as an automatic failover for the other.

Does the eSIM include a data plan?

No. The router supports consumer-type eSIM with profile download and removal for up to 7 profiles, but data plans are not included. Each modem can switch between its physical SIM and eSIM when the signal weakens, a data limit is reached, roaming begins or a network fails.

Is this version suitable for use in North America?

Yes. Order code RUTM52200600 is the North America hardware version. It supports 5G NR bands including n2, n5, n12, n41, n66, n71, n77 and n78 in both SA and NSA modes, and it ships with a US power supply.

How can the RUTM52 be powered and mounted?

It accepts 9–50 VDC through a 4-pin industrial power connector, or passive PoE (Mode B, 9–50 VDC) on the LAN1 port. Passive PoE is not compatible with IEEE 802.3af/at/bt. DIN rail, wall and flat-surface mounting are supported, and each requires an additional kit.

What VPN options does it support?

RutOS supports OpenVPN, IPsec (IKEv1/IKEv2), WireGuard, GRE, PPTP, L2TP, DMVPN, SSTP, ZeroTier, Tinc, Tailscale and Stunnel, and multiple VPN instances can run at the same time.
