Teltonika5G & LTE Routers

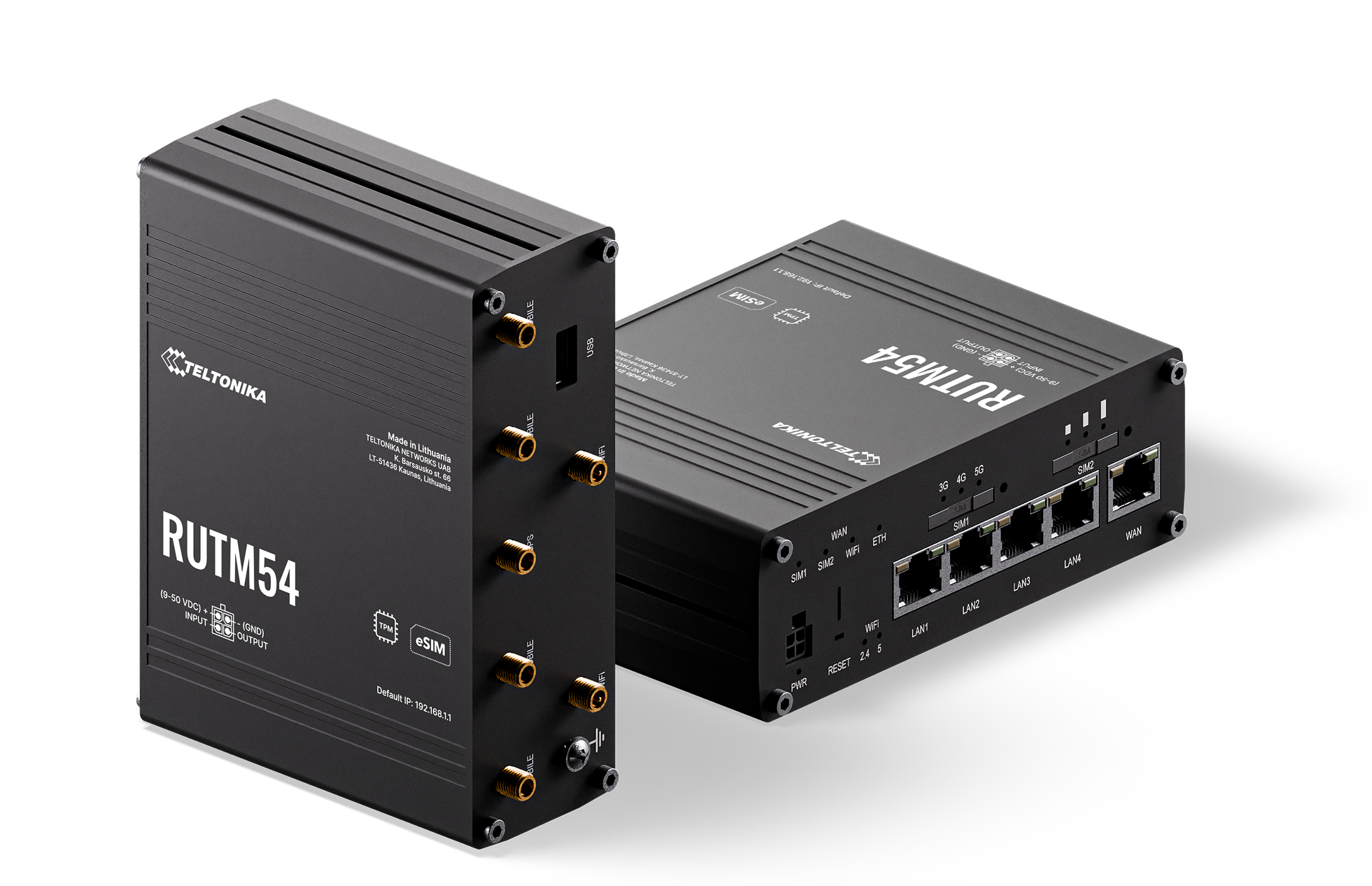

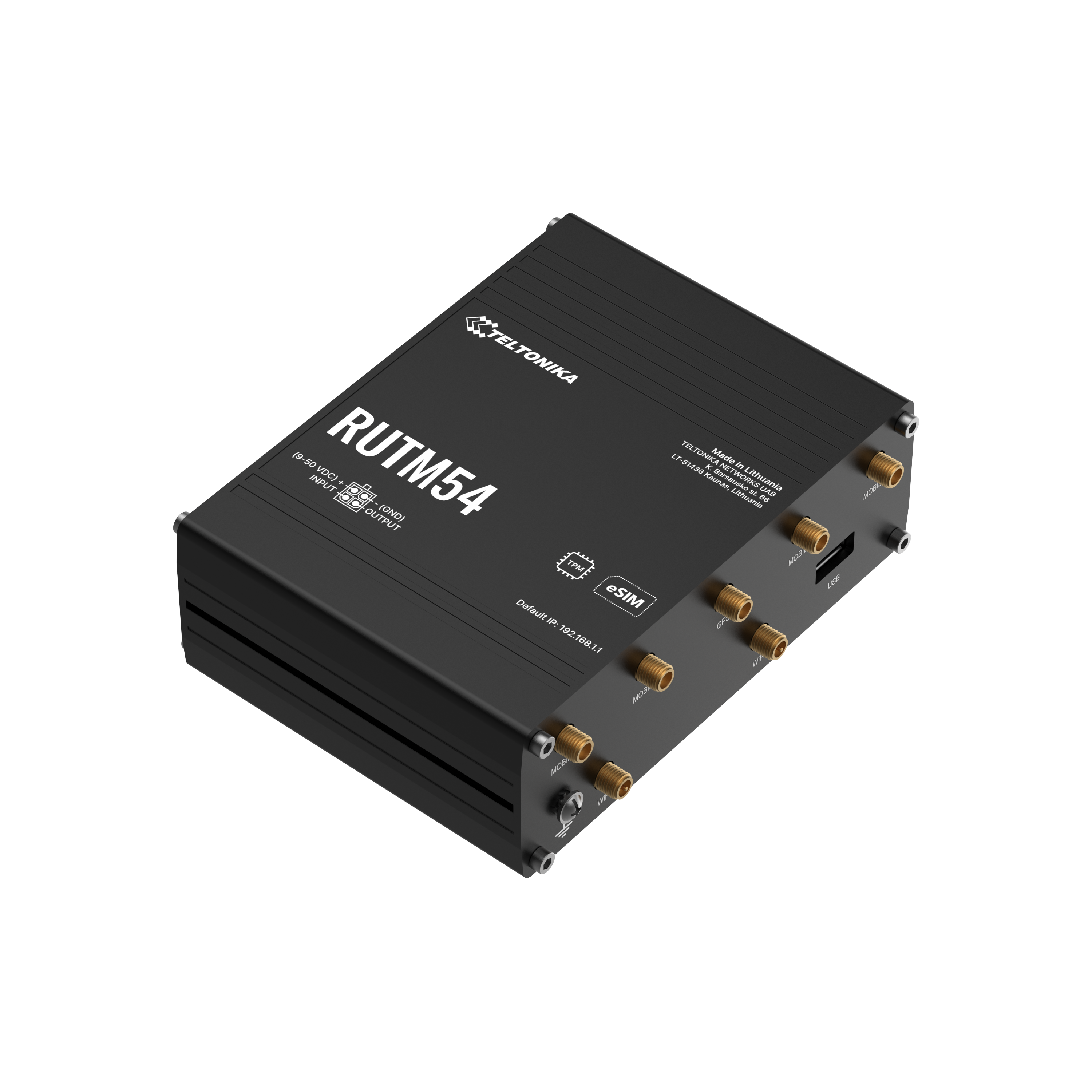

Teltonika RUTM54 5G Router with Telit Modem, Dual SIM + eSIM and 5 Gigabit Ethernet Ports

5GMPN RUTM54000000

Dual SIM
eSIM
5+ × 1 Gb Ethernet
GPS/GNSS

$693.00$729.00Save $36

In stockFree 2-day shipping

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

Request a quote · volume, multi-site or with plans

Free shipping to the US
30-day returns on unopened devices
Secure checkout · pay by card
Data plans with no contract · cancel anytime

Datasheets & documents

Highlights

Overview

The Teltonika RUTM54 is a dual-SIM and eSIM 5G router built around a US-made Telit modem. It delivers 5G SA/NSA download speeds of up to 3.4 Gbps and falls back to LTE Cat 19. Five Gigabit Ethernet ports, dual-band Wi-Fi 5 and automatic failover across mobile, wired and Wi-Fi WAN make it suited to data-intensive branch, industrial and remote sites. This order code (RUTM54000000) is the global hardware version in the standard package with a US power supply.

Telit 5G Sub-6 GHz modem (Release 16), SA and NSA, up to 3.4 Gbps downlink with 4x4 MIMO; LTE Cat 19/Cat 18 fallback
Dual Mini SIM slots plus consumer eSIM with up to 7 profiles and rule-based automatic SIM switching

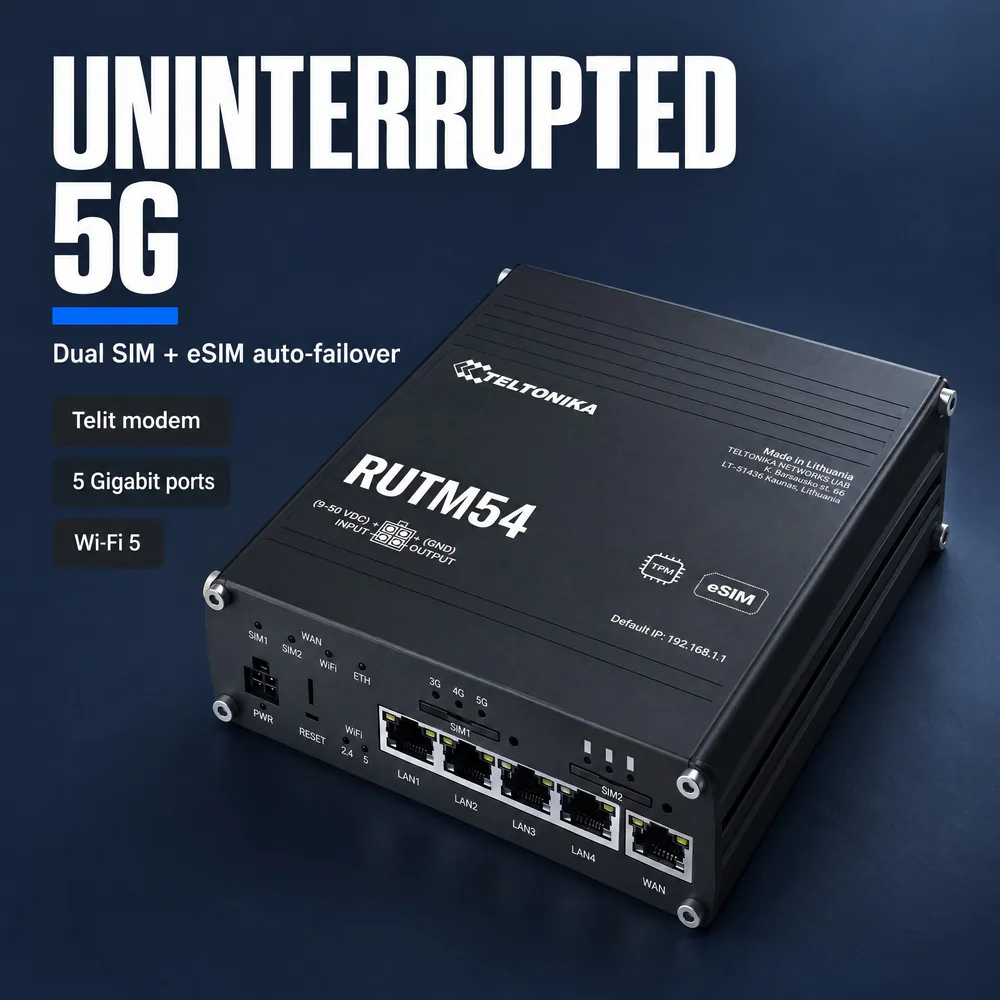

5 x Gigabit Ethernet (1 WAN, 4 LAN) with passive PoE input on LAN1
Dual-band 802.11ac Wave 2 (Wi-Fi 5) up to 867 Mbps, MU-MIMO, mesh and fast roaming, up to 150 users

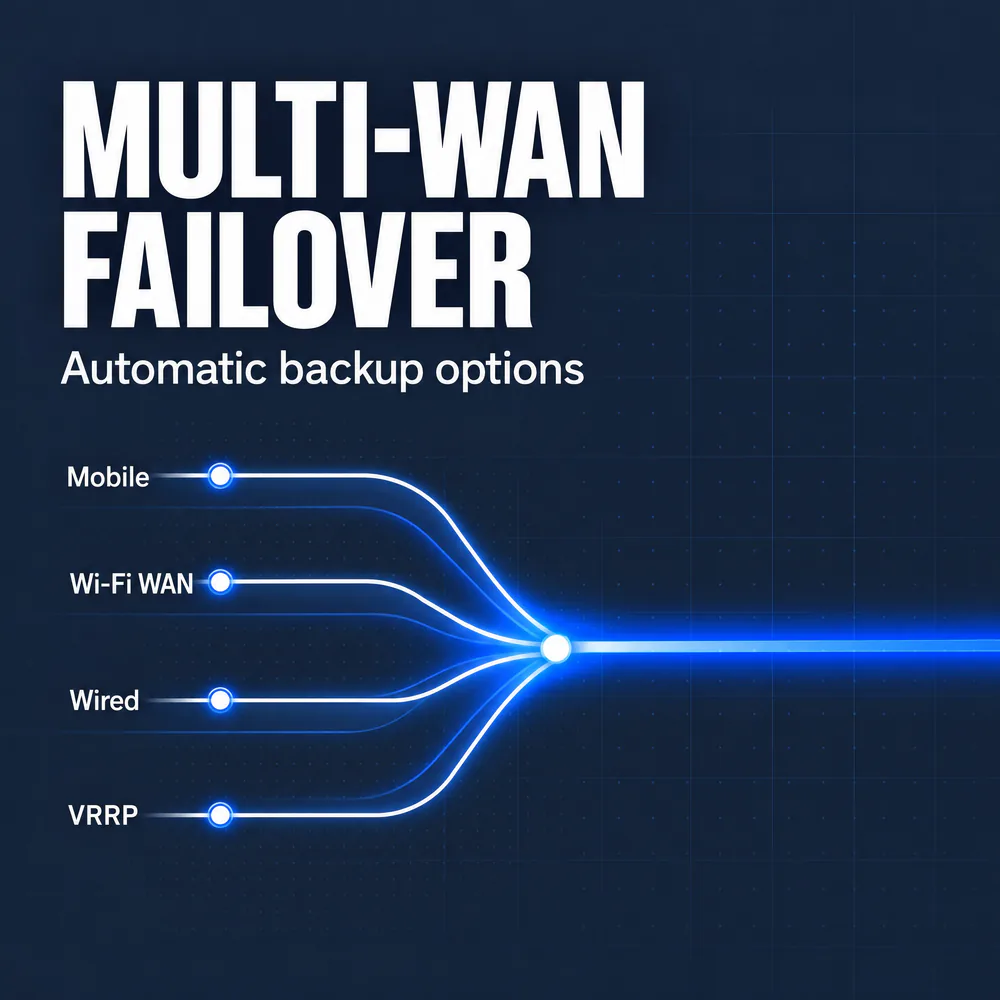

Multi-WAN failover and load balancing across mobile, wired, Wi-Fi WAN and VRRP
Broad VPN, dynamic routing, TPM 2.0 security and industrial protocol support in RutOS, with RMS remote management
GNSS (GPS, GLONASS, BeiDou, Galileo, QZSS) with geofencing; -40 °C to 75 °C operating range

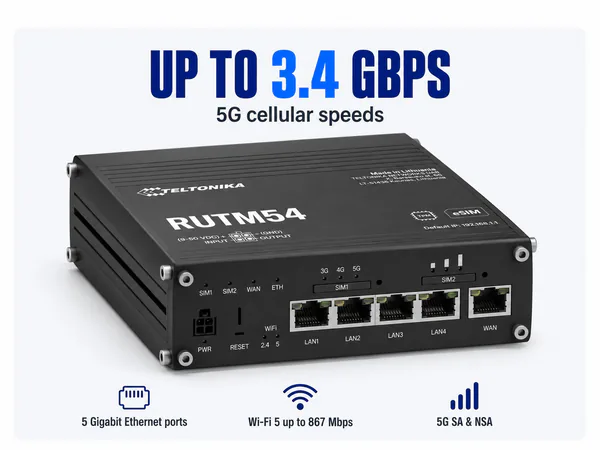

Run bandwidth-heavy sites on 5G at up to 3.4 Gbps downlink, with LTE Cat 19 fallback where 5G is not available

The Teltonika RUTM54 is a high-performance 5G router for IT and operations teams that need fast primary or backup cellular connectivity. Inside is a US-made Telit 5G Sub-6 GHz module (3GPP Release 16) that supports both SA and NSA 5G. It reaches 2.5/3.4 Gbps downlink with 4x4 MIMO and 900/550 Mbps uplink. On LTE it falls back to Cat 19 at up to 1.6 Gbps down and Cat 18 at 211 Mbps up. The global hardware version covers a broad set of 5G NR, LTE and 3G bands, including n41, n71 and n77 alongside B2, B4, B12, B13, B14, B66 and B71.

For resilience, the router has two Mini SIM slots and a consumer-type eSIM that holds up to 7 profiles. SIM switching can be triggered by weak signal, data limits, roaming, no network or a failed data connection. Network backup can also fail over between mobile, wired WAN, Wi-Fi WAN and VRRP, and load balancing spreads traffic across multiple WANs. The wired side has 1 Gigabit WAN and 4 Gigabit LAN ports. Dual-band 802.11ac Wave 2 Wi-Fi supports up to 150 users, with mesh and fast roaming.

RutOS brings an extensive routing and security toolkit: • Routing: BGP, OSPF and policy-based routing • VPN: WireGuard, OpenVPN, IPsec, DMVPN, ZeroTier and Tailscale • Security: TPM 2.0, attack prevention and VLAN separation • Industrial protocols: Modbus, BACnet, DNP3, OPC UA and DLMS • Monitoring and management: GNSS location tracking and Teltonika RMS remote management

The hardware operates from -40 °C to 75 °C and accepts 9-50 VDC or passive PoE. It has one digital input and one digital output for site automation.

The standard package includes an 18 W US power supply and four swivel mobile antennas. It also includes two magnetic Wi-Fi antennas, a GNSS antenna, an Ethernet cable and a SIM adapter kit.

Ideal for

Primary 5G or failover WAN for branch offices, retail stores and clinics
Industrial and utility sites that need Modbus, DNP3, DLMS or OPC UA data collection over cellular
Building automation networks that route BACnet over IP or RS485
Pop-up, construction and event sites that need Gigabit LAN, Wi-Fi and GNSS location from one box
Remote monitoring cabinets in unconditioned spaces from -40 °C to 75 °C

Specifications

API

Web API: Configurable endpoints to retrieve or change data
Teltonika Networks Web API Beta Support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

USB

Data Rate: USB 2.0
Applications: Samba share, USB-to-serial
Storage Formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
External Devices: HDD, flash drive, printer, USB-serial adapter

VPN

Gre: GRE tunnel, GRE over IPsec
Sstp: Client
Tinc: Client and server with encryption, authentication and compression
Dmvpn: Phase 2, Phase 3 and Dual Hub support
Ipsec: XFRM, IKEv1, IKEv2, 14 encryption methods
Openvpn: Multiple clients and a server simultaneously, 27 encryption methods
Stunnel: TLS encryption proxy for existing clients and servers
Zerotier: Client
Pptp L2tp: Simultaneous client/server, L2TPv3, L2TP over IPsec
Tailscale: Encrypted point-to-point connections over WireGuard
Wireguard: Client and server
Openvpn Encryption: DES, RC2, DES-EDE, DES-EDE3, DESX, BF, CAST5 and AES-128/192/256 (CBC, CFB, CFB1, CFB8, OFB, GCM) - 27 methods

Dnp3

Supported Modes: Station, Outstation
Supported Connection: TCP, USB

Power

Connector: 4-pin industrial DC power socket
PoE Passive: Via LAN1, Mode B, 9-50 VDC; not compatible with IEEE 802.3af/at/bt
Power Consumption: Idle < 4 W, Max < 14 W
Input Voltage Range: 9-50 VDC, reverse polarity protection, surge protection >51 VDC 10 µs max

Bacnet

Supported Modes: Router
Configuration Options: Multiple BACnet/IP interfaces, network number assignment, preconfigured BDT entries for BBMD
Supported Connection Types: IP, RTU (RS485, USB)

Mobile

Apn: Auto APN
SMS: Status, configuration, email to SMS, SMS to email, SMS to HTTP, SMS to SMS, scheduled SMS, autoreply, SMPP
eSIM: Consumer type, profile download/removal, up to 7 profiles; data plans not included
Ussd: Send and read USSD messages
Bridge: Direct connection between mobile ISP and LAN device
Status: IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SIM Switch: 2 SIM cards; auto-switch on weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Passthrough: Mobile WAN IP assigned to a LAN device
3gpp Release: Release 16
Multiple Pdn: Different PDNs for multiple network access and services
Mobile Module: 5G Sub-6GHz SA/NSA 2.5/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); LTE Cat 19 1.6 Gbps DL, Cat 18 211 Mbps UL; 3G 42 Mbps DL, 5.7 Mbps UL
Framed Routing: Supports an IP network behind 5G UE
Band Management: Band lock, used band status display
Block Allow List: Operator block/allow list by country or individual operator
SIM Pin Management: SIM PIN Code Management: Set, change or disable SIM PIN
SIM Idle Protection: Periodically activates the unused SIM to prevent it being blocked
SIM Pin Code Management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
SIM Idle Protection Service: Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked

Modbus

Supported Modes: Server, Client
Custom Registers: Modbus TCP custom register block read/write to file, extends client functionality
Supported Data Formats: 8-bit INT/UINT; 16-bit INT/UINT (MSB/LSB first); 32-bit float/INT/UINT (ABCD, DCBA, CDAB, BADC); HEX; ASCII
Supported Connection Types: TCP, USB

Opc UA

Supported Modes: Client, Server
Supported Connection Types: TCP

General

MPN: RUTM54000000
UPC: 4779051842995
Brand: Teltonika Networks
Model: RUTM54
Modem: Telit, US-made module
Package Type: Standard package with US PSU
Hardware Version: RUTM54 0***** / Global

Network

Ddns: More than 77 providers, others configurable manually
Dhcp: Static/dynamic allocation, relay, server configuration, status, static leases with MAC wildcards
Sshfs: Mount remote file system via SSH
Hotspot: Captive portal, internal/external RADIUS, RADIUS MAC auth, SMS authorisation, SSO, landing pages, walled garden, user scripts, URL parameters, user groups and limits, user management, 9 customisable themes plus custom theme upload/download
Qos Sqm: QoS / Smart Queue Management: Priority queuing by source/destination, service, protocol or port; WMM, 802.11e
Routing: Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based
Firewall: Port forward, traffic rules, custom rules, TTL target customisation
Vrf Support: Initial VRF support
Dns Over Https: Secure DNS resolution proxy
Load Balancing: Across multiple WAN connections
Network Backup: Wi-Fi WAN, mobile, VRRP, wired; each usable as automatic failover
Port Management: View, enable/disable ports, auto-configuration, transmission speed
Network Topology: Visual map of connected devices
Voip Passthrough: H.323 and SIP-ALG NAT helpers
Network Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
Traffic Management: Real-time monitoring, wireless signal charts, usage history
Firewall Status Page: Statistics, rules and rule counters
Connection Monitoring: Ping reboot, Wget reboot, periodic reboot, LCP and ICMP link inspection

Package

Contents: RUTM54 router, 18 W PSU, 4 x swivel SMA mobile antennas, 2 x magnetic RP-SMA Wi-Fi antennas (1.5 m), 1 x adhesive SMA GNSS antenna (3 m), 1.5 m Ethernet cable, SIM adapter kit, Quick Start Guide
Power Supply: 18 W, US plug
Shipping Weight: 2.50 lb

Ethernet

LAN: 4 x 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
WAN: 1 x 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX

Security

Tpm: TPM 2.0 identification and authentication module
Vlan: Port and tag-based separation
802 1x: Port-based network access control client
Firewall: Preconfigured rules via WebUI, unlimited CLI configuration, DMZ, NAT, NAT-T, NAT64
Web Filter: Block list and allow list
Access Control: SSH, web interface, CLI and Telnet
Authentication: PSK, digital and X.509 certificates, TACACS+, internal/external RADIUS, IP and login attempt blocking, time-based login blocking, random password generator
Attack Prevention: DDoS (SYN flood, SSH, HTTP/HTTPS) and port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan)
Certificate Manager: CA, server, client, Let's Encrypt, SCEP certificates
Mobile Quota Control: Data limit, custom period, start time, warning limit, phone number

Wireless

Ssid Essid: Stealth mode and MAC-based access control
Travelmate: Forwards Wi-Fi hotspot landing page to a connected device
Wi-Fi Users: Up to 150 simultaneous connections
Wi-Fi Security: WPA2-Enterprise PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, auto-cipher, client separation, EAP-TLS with PKCS#12, disable auto-reconnect, 802.11w PMF
Wireless Mode: 802.11b/g/n/ac Wave 2 (Wi-Fi 5), up to 867 Mbps, dual band, MU-MIMO, 802.11r, AP and STA
Wireless Mac Filter: Allowlist, blocklist
Wireless QR Code Generator: Join the network by scanning, no login entry needed
Wireless Connectivity Features: Mesh (802.11s), fast roaming (802.11r), Relayd, 802.11v, 802.11k

Dlms Cosem

Dlms Support: Utility meter data exchange protocol
Supported Modes: Client
Supported Connection Types: TCP

Regulatory

HS Code: 851762
Hts Code: 8517.62.00
RF Standards: CE/UKCA EN 300 328, EN 303 413, EN 300 440, EN 301 893, EN 301 908-1/-2/-13/-25 (draft); FCC/ISED 47 CFR Part 15.247 and 15.407, RSS-247, RSS-Gen, KDB 905462 D02/D04
Safety Standards: CE/UKCA EN IEC 62368-1:2020 + A11:2020; CB IEC 62368-1:2018
RF Exposure Standards: CE/UKCA EN IEC 62311:2020; FCC/ISED 47 CFR 2.1091, KDB 447498 D04, RSS-102 Issue 5 Amendment 1

Input Output

Input: 1 x digital input; 0-6 V logic low, 8-30 V logic high
Events: Email, RMS, SMS
Output: 1 x digital open collector output, max 30 V, 300 mA
I/O Juggler: I/O conditions trigger events

Mqtt Gateway

Modbus Mqtt Gateway: Commands and data to/from Modbus server via MQTT broker

Site Manager

Functionalities: Central management of Teltonika TAP access points and managed switches: pairing/grouping, FOTA, status monitoring, reboot scheduling with ping/wget checks, SSID configuration, VLAN assignment
Supported Modes: Manager

Iot Platforms

Thingworx: WAN type, WAN IP, operator name, signal strength, network type
Cumulocity: Device model, revision, serial, WAN type/IP, cell ID, ICCID, IMEI, connection type, operator, signal strength; reboot and firmware upgrade actions
Aws Iot Core: AWS cloud interaction, device API calls via AWS Jobs
Azure Iot Hub: Data to Server, Direct methods for RutOS API calls, zero-touch provisioning via DPS
Cumulocity Cloud OF Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Data TO Server

Protocol: HTTP(S), MQTT, Azure MQTT
Data TO Server: Collect parameters from multiple sources/protocols and send to one server; custom Lua scripting

Frequency Bands

3g: B1, B2, B4, B5, B6, B8, B19
LTE Fdd: B1, B2, B25, B3, B4, B66, B5, B7, B8, B12, B17, B13, B14, B18, B19, B20, B26, B28, B29, B30, B32
LTE Tdd: B34, B38, B39, B40, B41, B42, B43, B46 (SDL), B48, B71
5G NR SA Nsa: 5G NR SA and NSA: n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79

Location Tracking

GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
Nmea: NMEA 0183
Ntrip: Networked Transport of RTCM via IP
Geofencing: Multiple configurable zones
Coordinates: Via WebUI, SMS, TAVL, RMS
Server Software: TAVL, RMS

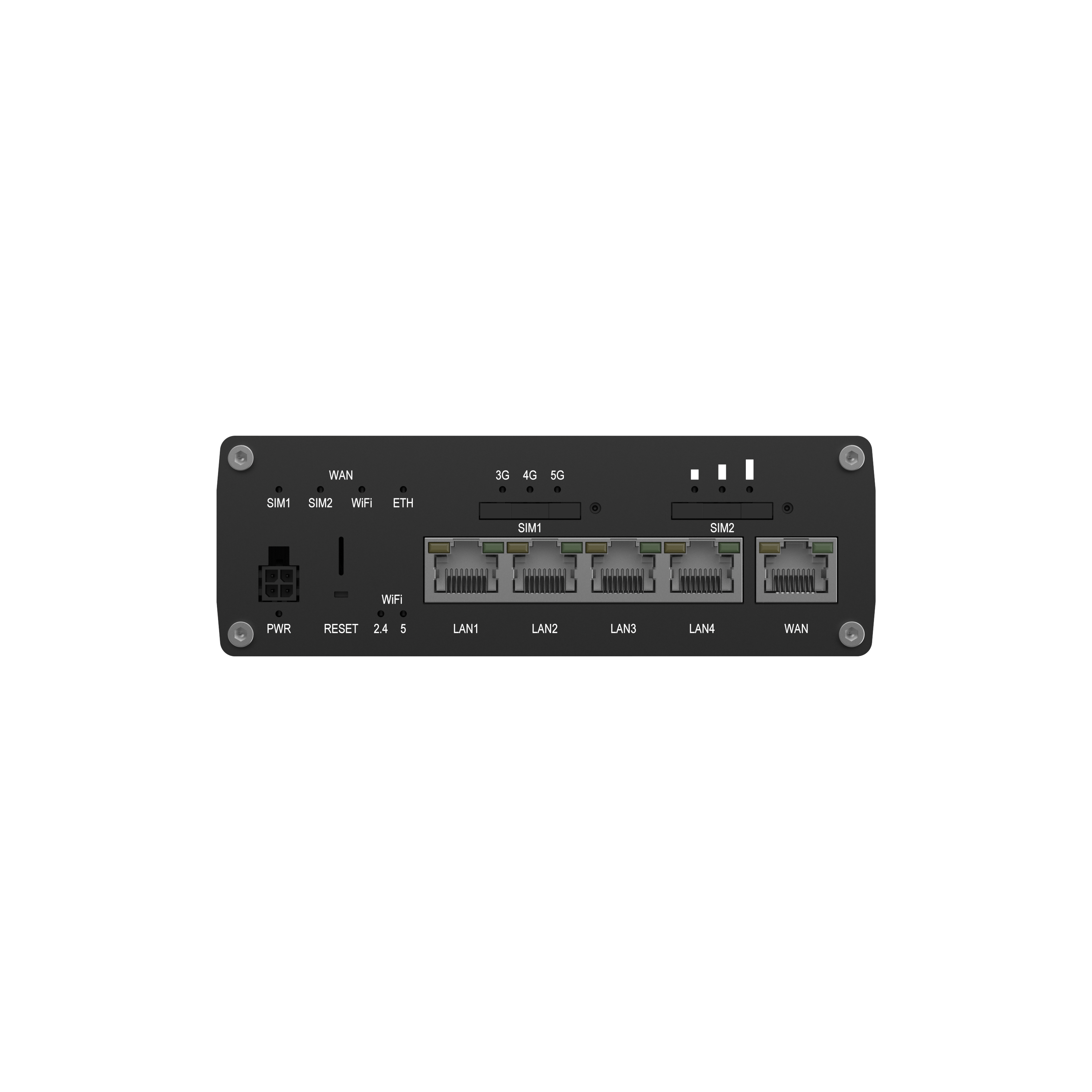

Physical Interfaces

I/O: 1 x digital input, 1 x digital output on 4-pin power connector
SIM: 2 x Mini SIM (2FF) slots, 1.8 V/3 V
USB: 1 x USB-A for external devices
Other: 1 x grounding screw
Power: 1 x 4-pin connector
Reset: Reboot / user default / factory reset button

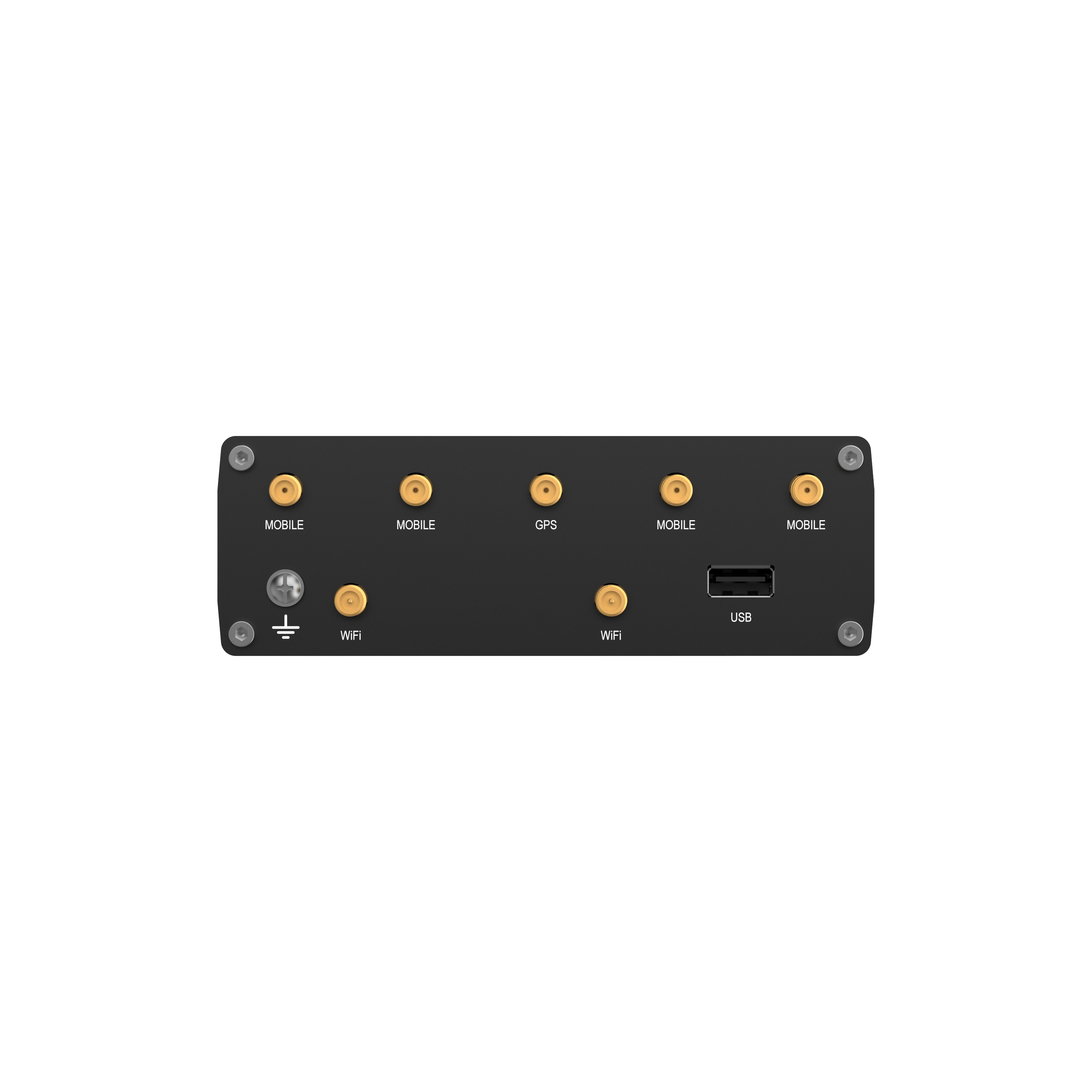

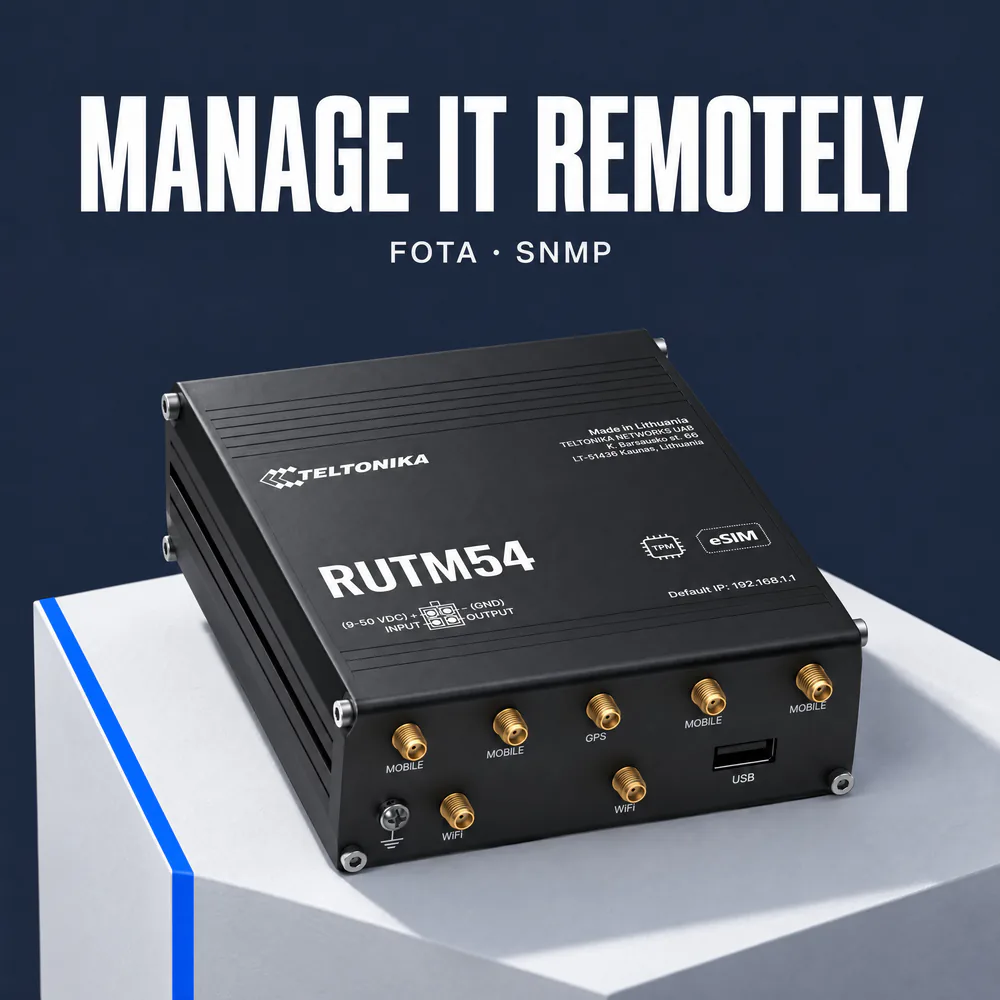

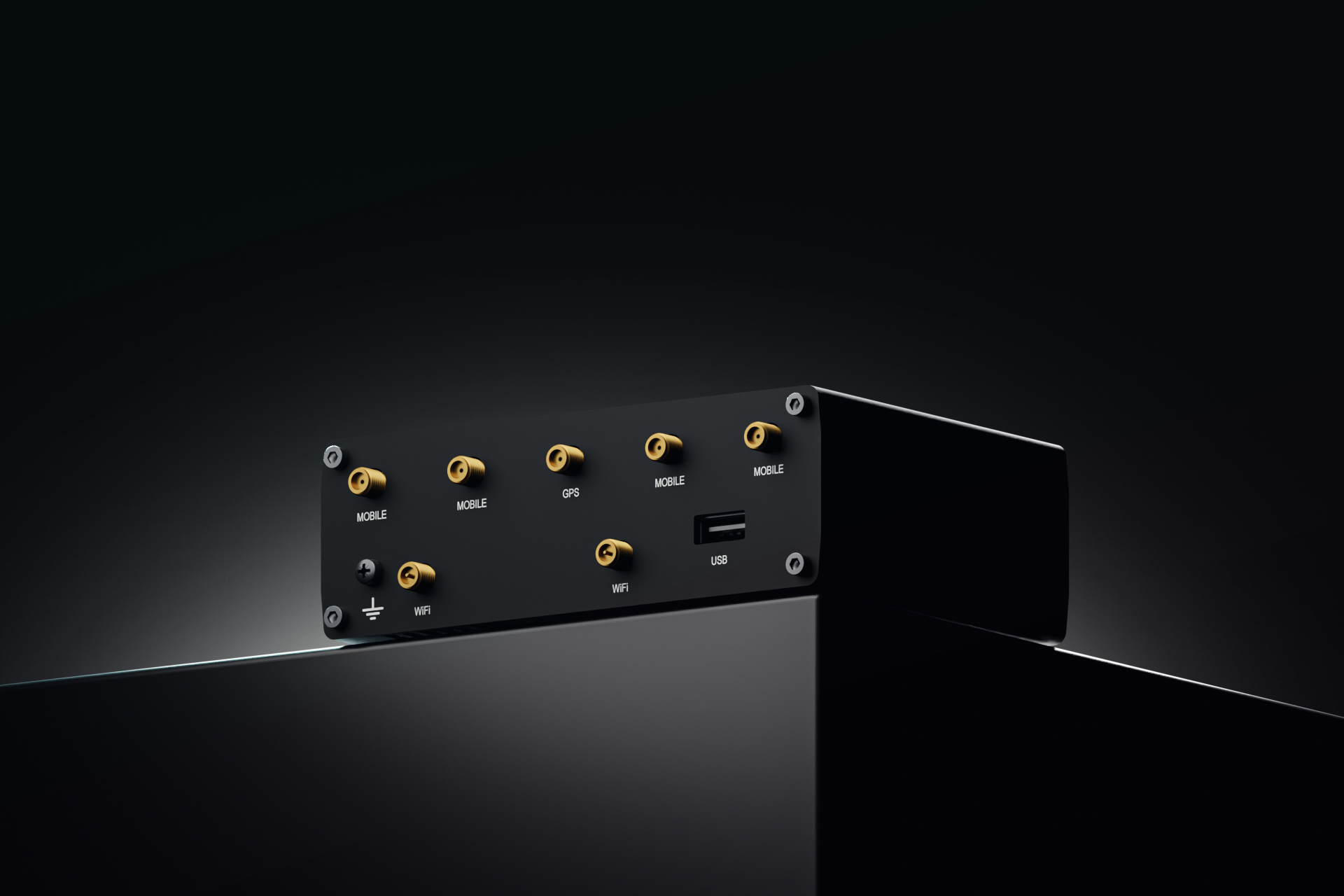

Antennas: 4 x SMA mobile, 2 x RP-SMA Wi-Fi, 1 x SMA GNSS
Ethernet: 5 x RJ45, 10/100/1000 Mbps
Status Leds: 4 x WAN type, 3 x mobile type, 3 x mobile strength, 10 x Ethernet status, 1 x power, 2 x Wi-Fi (2.4G/5G)

Monitoring Management

Rms: Teltonika Remote Management System
SMS: Status, configuration
Ssh: v1, v2
Call: Reboot, status, mobile data on/off, output on/off, answer/hang-up with timer, Wi-Fi on/off
Fota: Firmware update from server, automatic notification
Mqtt: Broker, publisher
Snmp: v1, v2, v3, traps, brute force protection
Email: Status alerts for various services
Modbus: TCP status/control
TR 069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem
Web UI: HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshooting, multiple event log servers, update notifications, event/system/kernel logs, Internet status
Json Rpc: Management API over HTTP/HTTPS

Operating Environment

Ingress Protection: IP30
Operating Humidity: 10% to 90% non-condensing
Operating Temperature: -40 °C to 75 °C

Emc Emissions Immunity

CS: EN 61000-4-6:2014
Dip: EN IEC 61000-4-11:2020
Eft: EN 61000-4-4: 2012
Esd: EN 61000-4-2: 2009
Standards: CE/UKCA: EN 55032:2015 + A11:2020 + A1:2020; EN 55035:2017 + A11:2020; EN IEC 61000-3-2:2019 + A1:2021; EN 61000-3-3:2013 + A1:2019 + A2:2021; EN 301 489-1 V2.2.3; EN 301 489-3 V2.3.2; EN 301 489-17 V3.3.1; EN 301 489-19 V2.2.1; EN 301 489-52 V1.2.1; FCC/ISED: 47 CFR Part 15 Subpart B; ICES-003: Issue 7 (October 2020)
Radiated Immunity: EN IEC 61000-4-3:2020
Surge Immunity AC Mains Power Port: EN 61000-4-5: 2014 + A1:2017

Firmware Configuration

Rms: Update FW/configuration for multiple devices at once
Fota: Update FW
Web UI: Update FW from file, check FW on server, configuration profiles, configuration backup
Keep Settings: Update FW without losing current configuration
Factory Settings Reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customisation

Package Manager: Install additional software
Operating System: RutOS (OpenWrt-based Linux)
Development Tools: SDK with build environment
Gpl Customization: Custom branded firmware and web UI
Supported Languages: Busybox shell, Lua, C, C++

Physical Specification

Weight: 530 g
Casing Material: Anodised aluminium housing and panels
Mounting Options: DIN rail, wall mount, flat surface (all require additional kit)
Dimensions W X H X D: 132 x 44.2 x 95 mm

System Characteristics

CPU: MediaTek, Dual-core, 880 MHz, MIPS1004Kc
RAM: 256 MB, DDR3
Flash Storage: 16 MB serial NOR flash, 256 MB serial NAND flash

Regulatory Type Approvals

Operator: AT&T, T-mobile
Regulatory: CE, UKCA, CB, FCC, IC, PTCRB, WEEE, RoHS, REACH, UN ECE R10 (E-mark)

Questions buyers ask

Does the RUTM54 support both 5G SA and NSA networks?

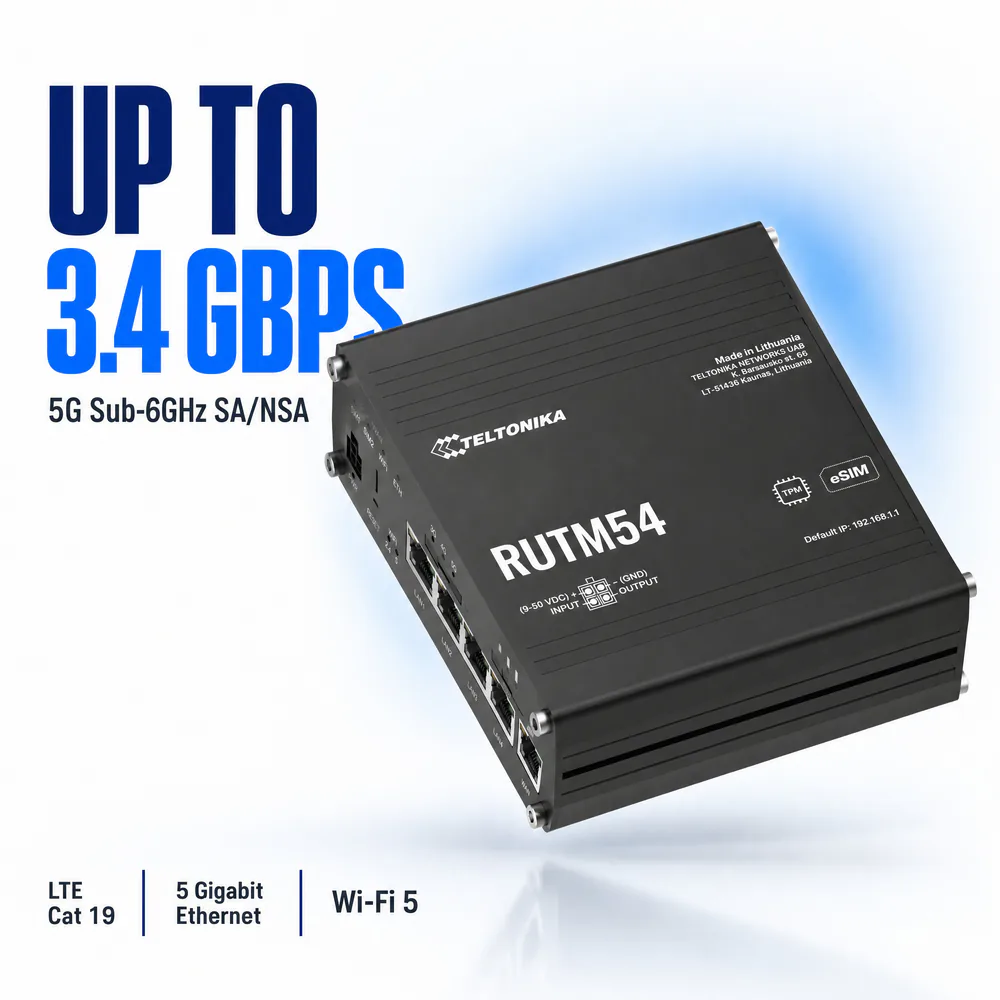

Yes. The Telit 5G Sub-6 GHz module supports both standalone and non-standalone 5G, with 2.5/3.4 Gbps downlink using 4x4 MIMO. It falls back to LTE Cat 19 (1.6 Gbps down) and 3G.

How does the eSIM work, and does it include a data plan?

The RUTM54 has a consumer-type eSIM that supports profile download and removal and stores up to 7 profiles. No data plan is included. The eSIM sits alongside two physical Mini SIM (2FF) slots.

What is included with order code RUTM54000000?

This is the global hardware version in the standard package with a US power supply. The box contains the router, an 18 W PSU, four swivel mobile antennas and two magnetic Wi-Fi antennas. It also includes an adhesive GNSS antenna, a 1.5 m Ethernet cable, a SIM adapter kit and a Quick Start Guide.

Can the RUTM54 be powered over Ethernet?

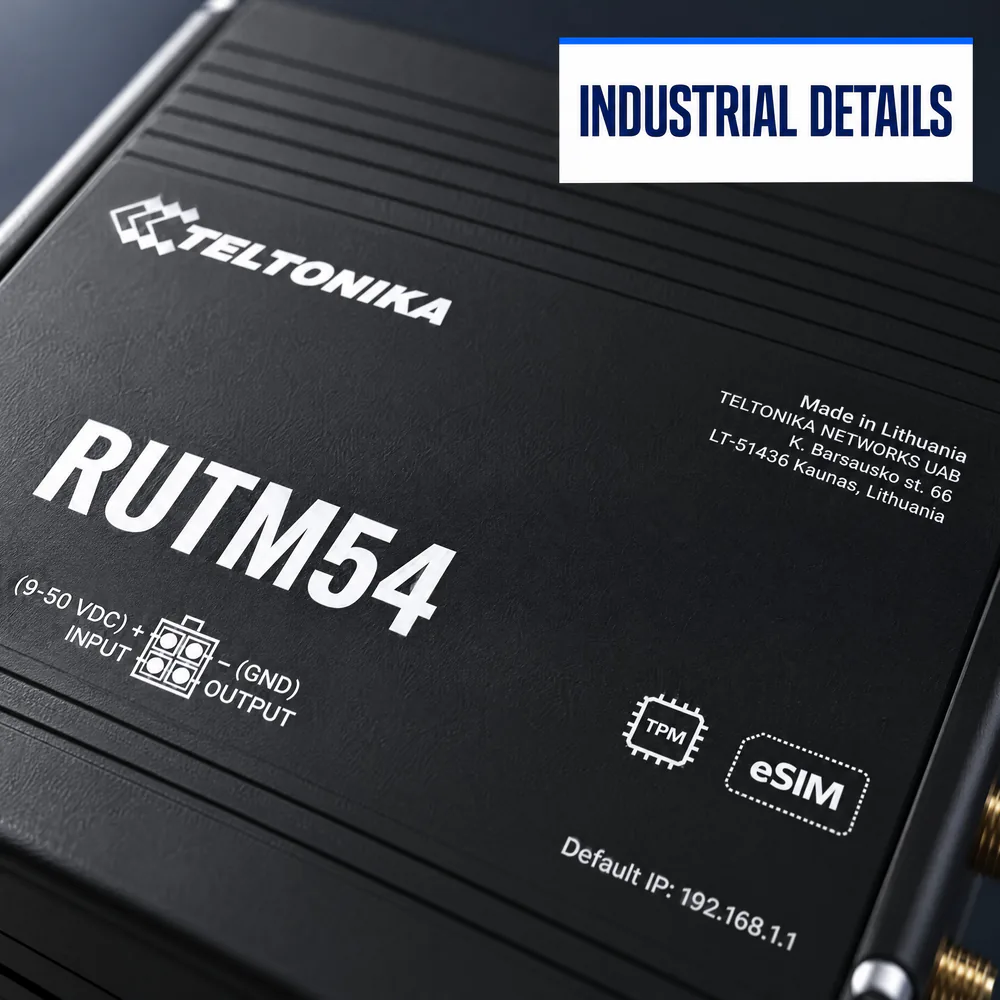

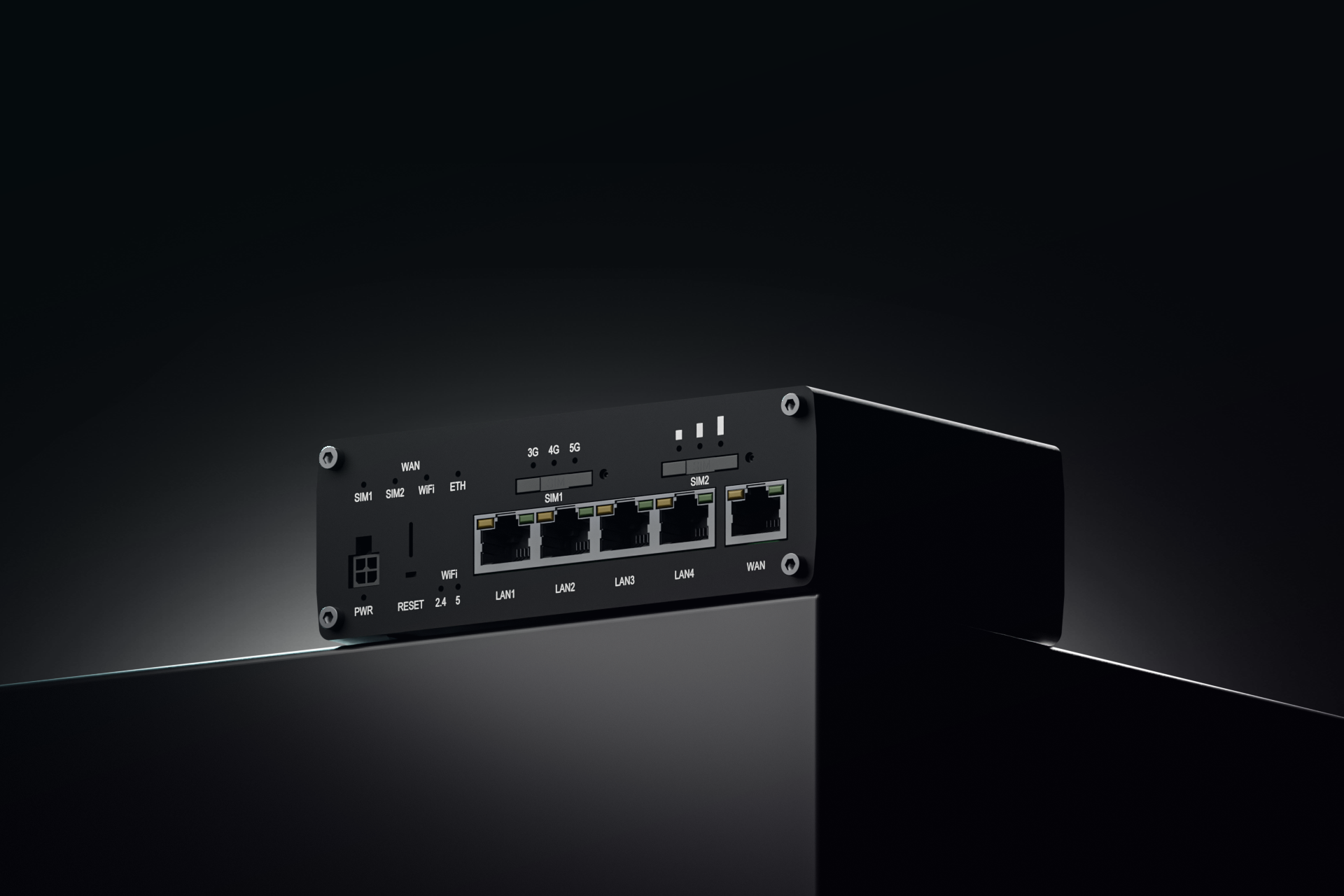

It accepts passive PoE on the LAN1 port (Mode B, 9-50 VDC). This passive PoE input is not compatible with the IEEE 802.3af, 802.3at or 802.3bt standards. It can also run from 9-50 VDC through its 4-pin industrial power connector.

Can I manage a fleet of RUTM54 routers remotely?

Yes. The router supports Teltonika RMS, TR-069, SNMP v1/v2/v3, a JSON-RPC API, SSH and over-the-air firmware updates. It also integrates with Azure IoT Hub, AWS IoT Core, ThingWorx and Cumulocity.
