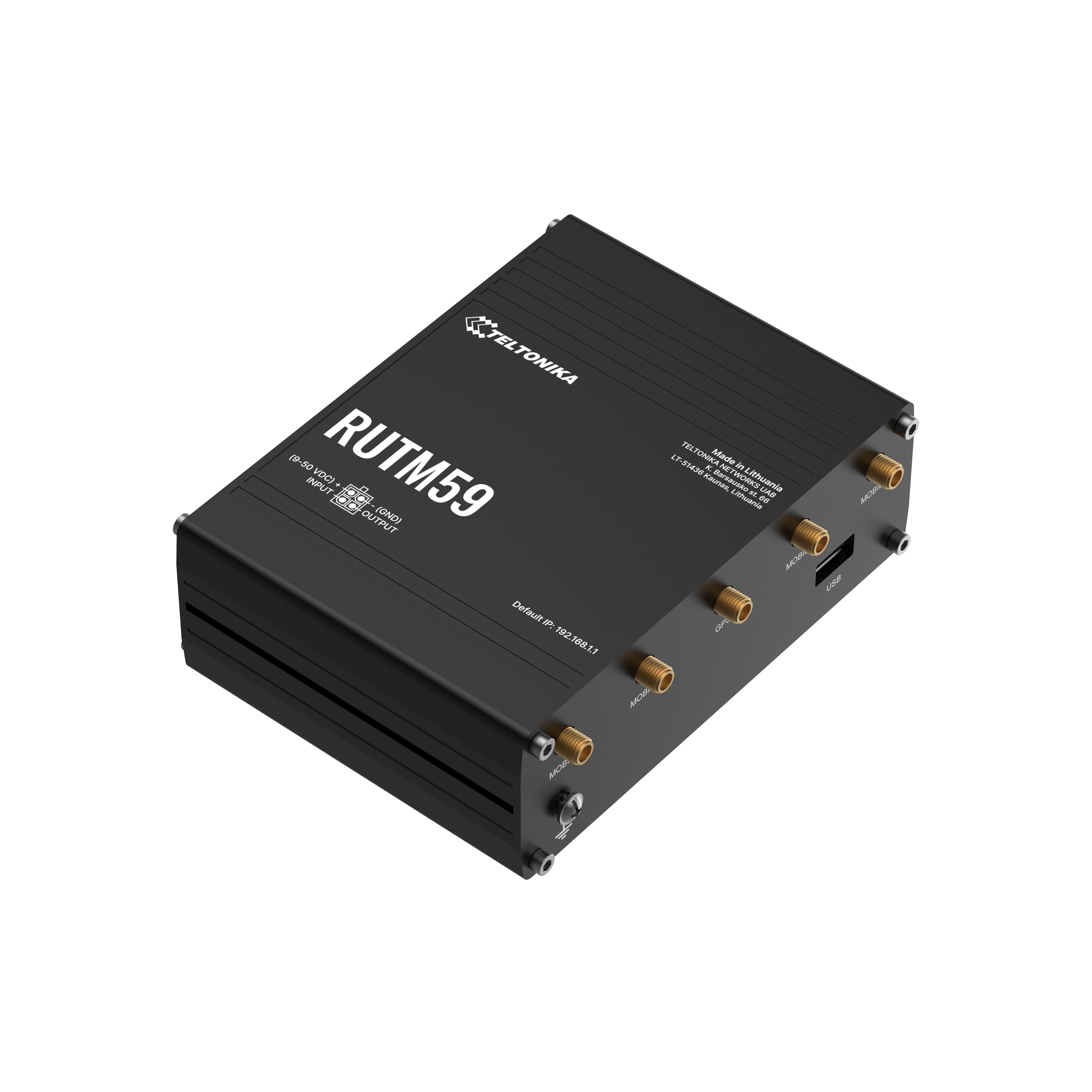

Teltonika RUTM59 5G Cellular Router with Dual SIM and 5 Gigabit Ethernet Ports (North America, No Wi-Fi)

5GMPN RUTM59000000

Dual SIM
5+ × 1 Gb Ethernet
GPS/GNSS

$512.00$539.00Save $27

In stock · only 4 leftShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

Request a quote · volume, multi-site or with plans

30-day returns on unopened devices
Secure checkout · pay by card
Data plans with no contract · cancel anytime

Datasheets & documents

Highlights

Overview

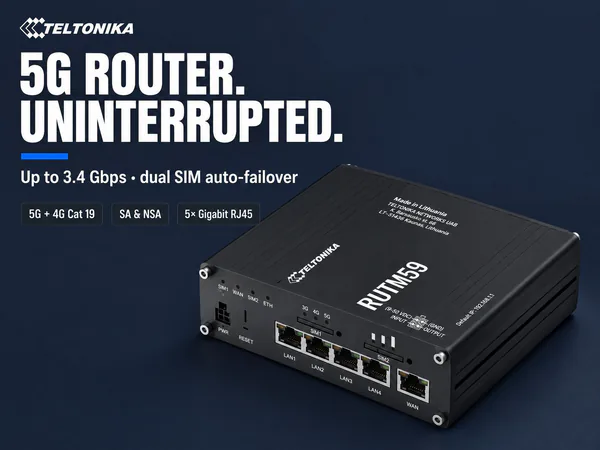

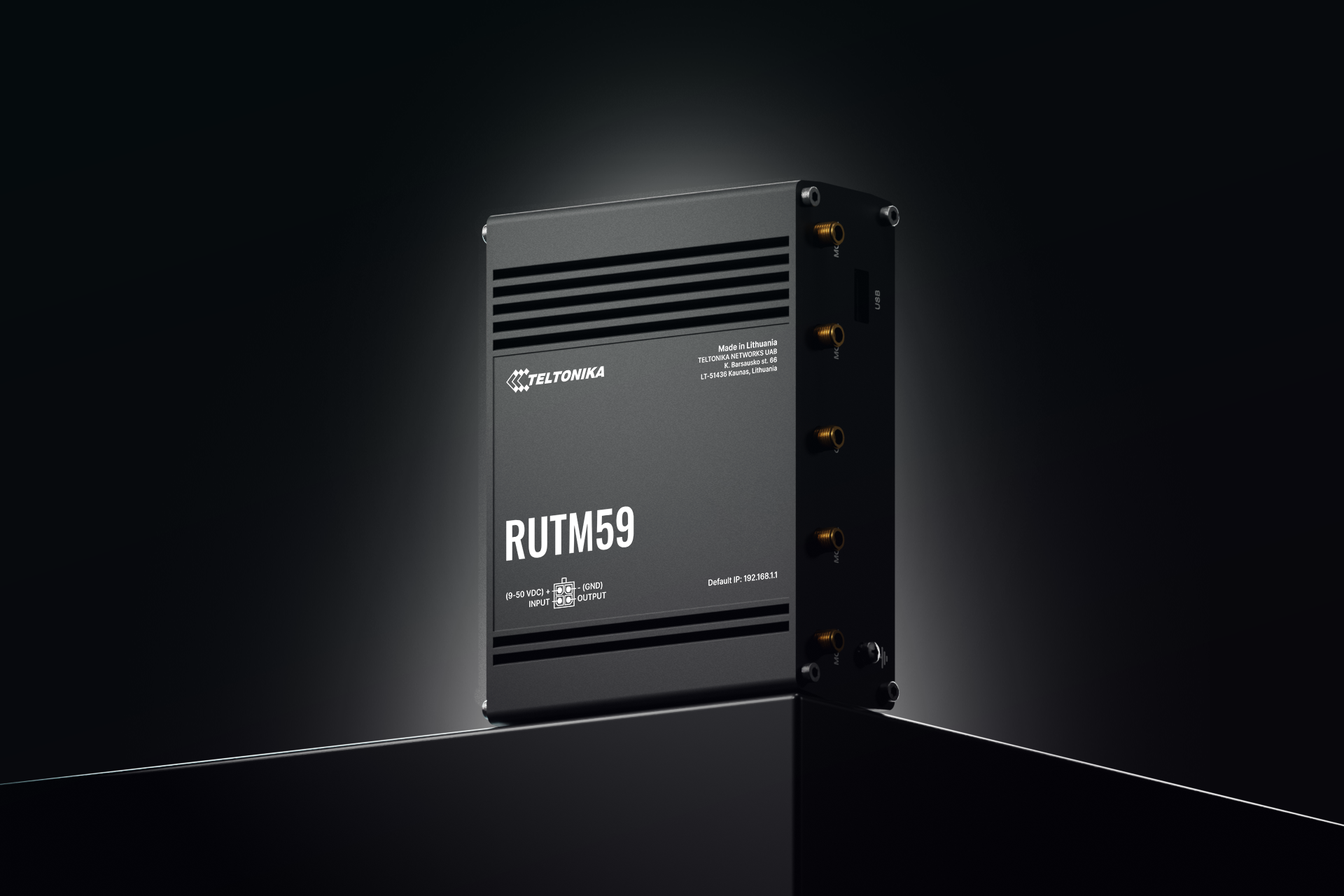

The Teltonika RUTM59 is a wired 5G cellular router built for branch, industrial and fleet sites that need fast, resilient WAN. This North American hardware version (RUTM59000000) supports 5G SA and NSA at up to 3.4 Gbps and falls back to LTE Cat 19. It has dual SIM slots with automatic failover and five Gigabit RJ45 ports. It runs RutOS with extensive VPN, routing and industrial protocol support. The standard package includes a US power supply, four mobile antennas and a GNSS antenna. This model has no Wi-Fi.

The Teltonika RUTM59 is a 5G cellular router for IT teams and field-operations leads who need high-throughput primary or backup internet without a wired carrier circuit. This SKU, RUTM59000000, is the North American hardware version in the standard package with a US PSU. It covers 5G NR bands n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77 and n78 in both SA and NSA modes. The 3GPP Release 16 modem reaches up to 3.4 Gbps downlink with 4x4 MIMO. It is backward compatible with 4G LTE Cat 19 at 1.6 Gbps downlink and Cat 18 at 200 Mbps uplink.

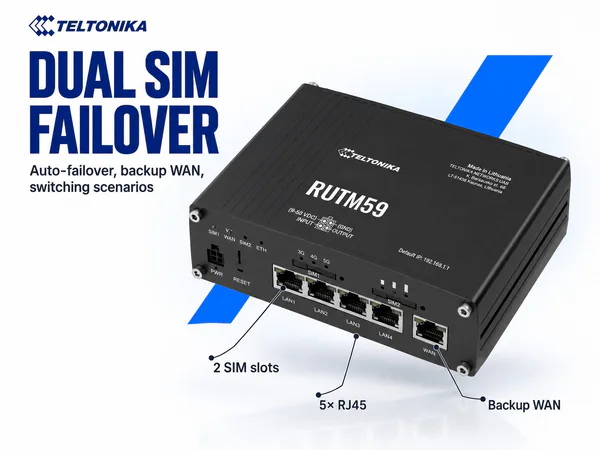

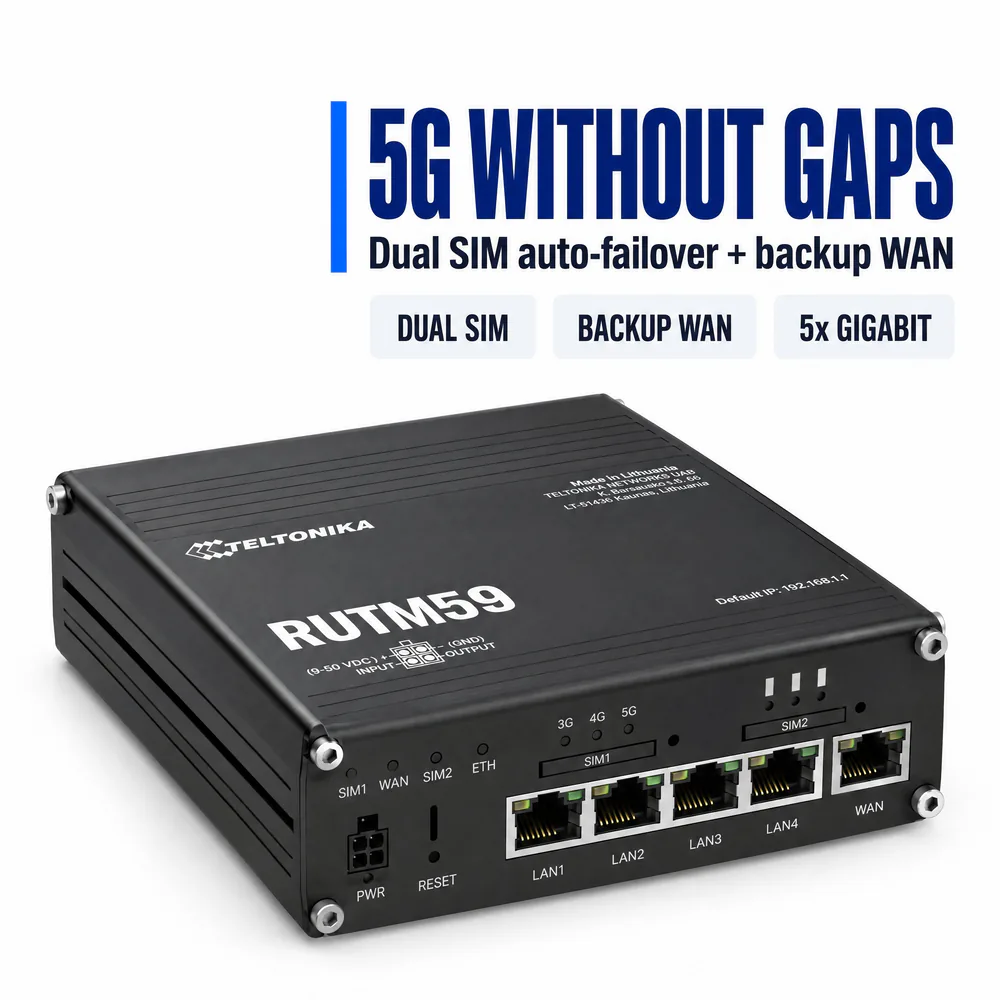

Two Mini SIM (2FF) slots switch automatically on weak signal, data or SMS limits, roaming, no network, network denial or data connection failure. The router also has one Gigabit WAN port and four Gigabit LAN ports. Mobile, VRRP and wired links can each serve as automatic failover, and load balancing spreads traffic across multiple WAN connections. The router has no built-in Wi-Fi. Its Site Manager function can centrally manage Teltonika TAP access points and managed switches.

RutOS, an OpenWrt-based Linux OS, provides: • VPN: OpenVPN, IPsec, WireGuard, DMVPN, ZeroTier, Tailscale and more • Routing: BGP, OSPF v2, RIP and EIGRP • Industrial protocols: Modbus, BACnet, OPC UA, DNP3 and DLMS • Cloud integrations: Azure IoT Hub, AWS IoT Core, Cumulocity and ThingWorx • Remote management: Teltonika RMS, SNMP v1/v2/v3, TR-069 and FOTA updates

The housing is anodised aluminium and rated IP30. The router operates from -40 °C to 75 °C and accepts 9–50 VDC through a 4-pin industrial connector. It can also take passive PoE on LAN1. A USB 2.0 port supports external storage or a USB-to-serial adapter. The router adds multi-constellation GNSS positioning, one digital input and one digital output.

Ideal for

Primary 5G or failover WAN for retail branches, clinics and offices without reliable wired internet
Industrial and utility telemetry using Modbus, DNP3, DLMS, OPC UA and BACnet over cellular
Vehicle, trailer and mobile command deployments using GNSS tracking, geofencing and wide DC input
Remote site and construction-trailer connectivity managed centrally through Teltonika RMS
Secure site-to-site networking with IPsec, DMVPN, WireGuard or Tailscale in wired-only environments

Specifications

API

Teltonika Web API: Teltonika Networks Web API (beta): Configurable endpoints to retrieve or change data
Teltonika Networks Web API Beta Support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

USB

Data Rate: USB 2.0
Applications: Samba share, USB-to-serial
Storage Formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
External Devices: HDD, flash drive, additional modem, printer, USB-serial adapter

VPN

Gre: GRE tunnel, GRE over IPsec
Sstp: Client
Tinc: Client and server with encryption, authentication and compression
Dmvpn: Phase 2, Phase 3 and Dual Hub support
Ipsec: XFRM, IKEv1, IKEv2, 14 encryption methods (3DES, DES, AES128/192/256, AES-GCM 8/12/16)
Openvpn: Multiple clients and a server simultaneously, 27 encryption methods
Stunnel: TLS encryption proxy for existing clients and servers
Zerotier: Client
Pptp L2tp: Simultaneous client/server, L2TPv3, L2TP over IPsec
Tailscale: Encrypted point-to-point connections over WireGuard
Wireguard: Client and server
Openvpn Encryption: DES, RC2, 3DES, DESX, Blowfish, CAST5, AES-128/192/256 (CBC, CFB, CFB1, CFB8, OFB, GCM)

Dnp3

Supported Modes: Station, Outstation
Supported Connection: TCP, USB

Power

Connector: 4-pin industrial DC socket
PoE Passive: Over spare pairs via LAN1, Mode B, 9–50 VDC; not IEEE 802.3af/at/bt compatible
Power Consumption: Idle < 5 W, Max < 18 W
Input Voltage Range: 9–50 VDC, reverse polarity protection, surge protection >51 VDC 10 µs max

Bacnet

Supported Modes: Router
Configuration Options: Multiple BACnet/IP interfaces, network number assignment, preconfigured BDT entries for BBMD
Supported Connection Types: IP

Mobile

Apn: Auto APN
SMS: status, configuration, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, autoreply, SMPP
Ussd: Send and read USSD messages
Bridge: Direct connection between mobile ISP and LAN device
Status: IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SIM Switch: 2 SIM cards, auto-switch on weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Passthrough: Mobile WAN IP assigned to a LAN device
3gpp Release: Release 16
Multiple Pdn: Different PDNs for multiple network access and services

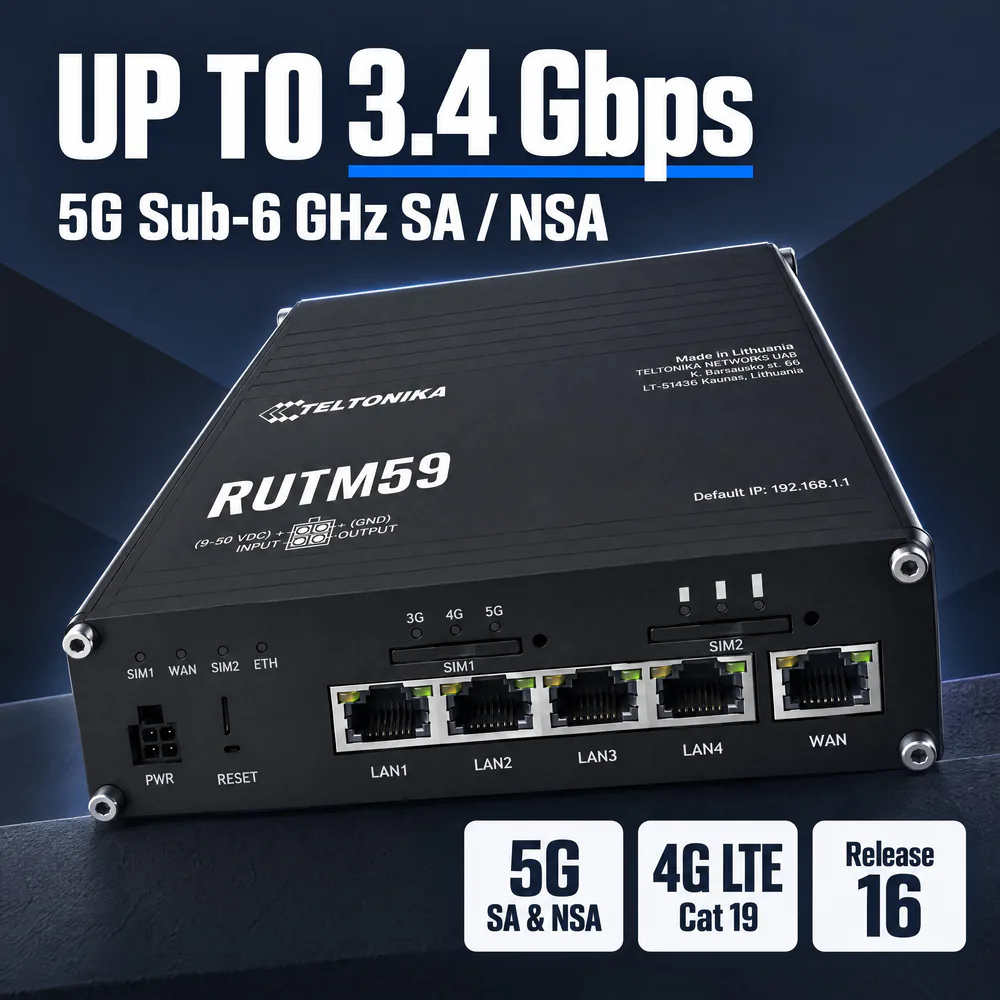

Mobile Module: 5G Sub-6 GHz SA, NSA 2.4, 3.4Gbps DL (4x4 MIMO) 900, 550Mbps UL (2x2 MIMO); 4G LTE: DL Cat 19 1.6Gbps (4x4 MIMO), UL Cat 18 200Mbps
Framed Routing: Supports an IP network behind 5G UE
Band Management: Band lock, used band status display
Block Allow List: Operator block/allow list by country or separate operators
SIM Pin Management: Set, change or disable SIM PIN
SIM Idle Protection: Periodic switch to unused SIM to prevent blocking
SIM Pin Code Management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
SIM Idle Protection Service: Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked

Modbus

Supported Modes: Server, Client
Custom Registers: Modbus TCP custom register block requests read/write to a file on the router
Supported Data Formats: 8-bit INT/UINT; 16-bit INT/UINT (MSB or LSB first); 32-bit float/INT/UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII
Supported Connection Types: TCP, USB

Opc UA

Supported Modes: Client, Server
Supported Connection Types: TCP

General

MPN: RUTM59000000
UPC: 4779051844562
Wi-Fi: Not included
Brand: Teltonika Networks
Model: RUTM59
HS Code: 851762
Hts Code: 8517.62.00
Package Type: Standard package with US PSU
Hardware Version: RUTM59 0***** / North America

Network

Ddns: More than 77 providers, others configurable manually
Dhcp: Static/dynamic allocation, relay, server configuration, status, static leases (MAC with wildcards)
Sshfs: Mount remote file system via SSH
Hotspot: Captive portal, internal/external RADIUS, RADIUS MAC auth, SMS authorisation, SSO, landing pages, walled garden, user scripts, URL parameters, user groups and limits, user management, 9 customisable themes plus upload/download
Qos Sqm: Priority queuing by source/destination, service, protocol or port, WMM, 802.11e
Routing: Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based
Firewall: Port forward, traffic rules, custom rules, TTL target customisation
Vrf Support: Initial VRF support
Dns Over Https: DoH proxy
Load Balancing: Across multiple WAN connections
Network Backup: Mobile, VRRP, wired, each usable as automatic failover
Port Management: View, enable/disable ports, auto-configuration, transmission speed
Network Topology: Visual network map
Voip Passthrough: H.323 and SIP-ALG NAT helpers
Network Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
Traffic Management: Real-time monitoring, usage history
Firewall Status Page: Statistics, rules and rule counters
Connection Monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP link inspection

Package

Contents: In the Box: RUTM59 router, 18 W US PSU, 4 x swivel SMA mobile antennas, 1 x adhesive GNSS antenna (3 m cable), 1.5 m Ethernet cable, SIM adapter kit, Quick Start Guide
Documents: Documentation: RUTM59 Datasheet, RUTM59 Flyer

Ethernet

LAN: 4 x 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
WAN: 1 x 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX

Physical

Weight: 530 g
Dimensions: 132 x 44.2 x 95 mm
Casing Material: Anodised aluminium housing and panels
Shipping Weight: 2.15 lb

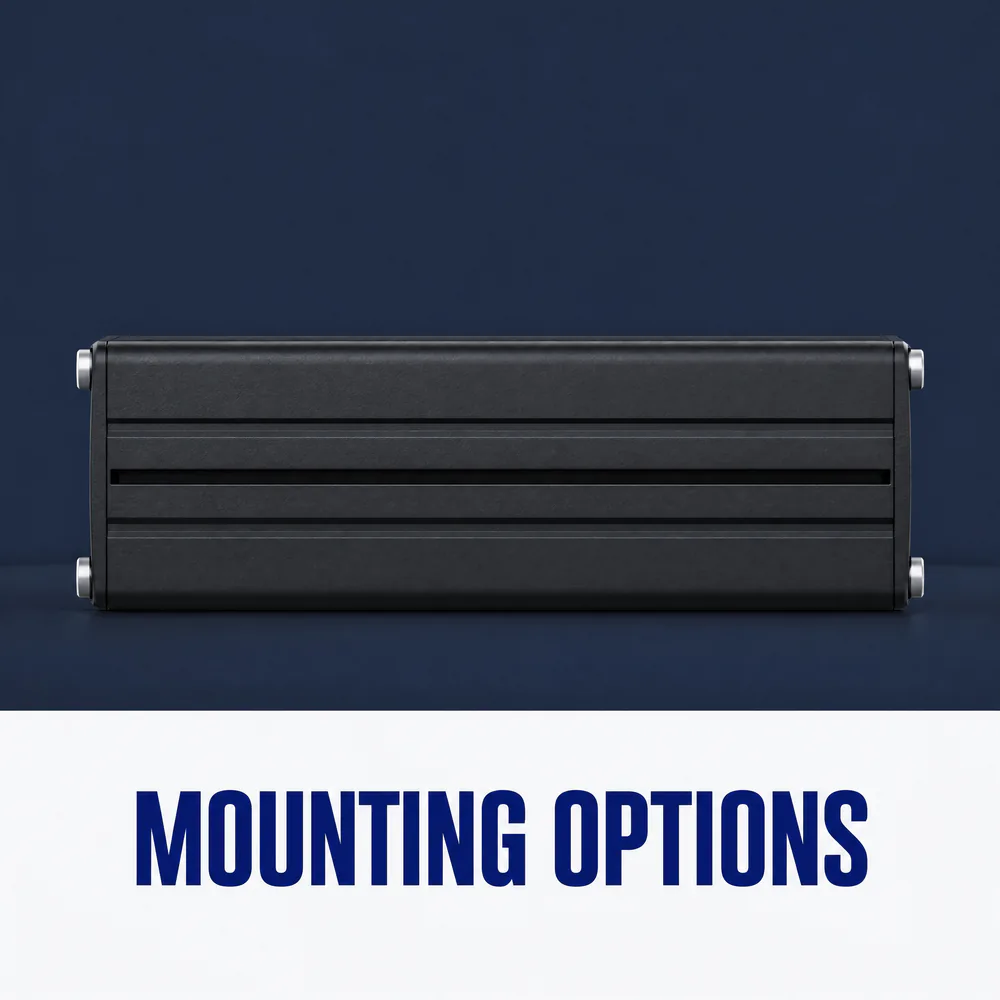

Mounting Options: DIN rail, wall, flat surface (additional kit required)

Security

Vlan: Port and tag-based separation
802 1x: Port-based network access control client
Firewall: Preconfigured rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64
Web Filter: Block list and allow list
Access Control: SSH, Web interface, CLI and Telnet
Authentication: PSK, digital and X.509 certificates, TACACS+, internal/external RADIUS, IP and login attempt blocking, time-based login blocking, random password generator
Attack Prevention: DDoS (SYN flood, SSH, HTTP/HTTPS) and port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL, FIN)
Certificate Manager: CA, server, client, Let's Encrypt, SCEP certificates
Mobile Quota Control: Data limit, custom period, start time, warning limit, phone number

Dlms Cosem

Dlms Support: Standard protocol for utility meter data exchange
Supported Modes: Client
Supported Connection Types: TCP

Regulatory

Safety: FCC/ISED 47 CFR § 2.1091; KDB 447498 D04 v01; RSS-102 Issue 5 Amendment 1
Emc Emissions Immunity: FCC/ISED 47 CFR Part 15 Subpart B; ICES-003 Issue 7 (October 2020)

Input Output

Input: 1 x digital input (0–6 V low, 8–50 V high)
Events: Email, RMS, SMS
Output: 1 x digital open collector output, max 50 V, 300 mA
I/O Juggler: I/O conditions trigger events

Mqtt Gateway

Modbus Mqtt Gateway: Commands and data to/from Modbus server via MQTT broker

Site Manager

Functionalities: Centralized management of Teltonika TAP access points and managed switches (pairing, grouping, FOTA, monitoring, reboot scheduling, SSID configuration, VLAN assignment)
Supported Modes: Manager

Iot Platforms

Thingworx: WAN type, WAN IP, operator name, signal strength, network type
Cumulocity: Device model, revision, serial number, WAN type and IP, cell ID, ICCID, IMEI, connection type, operator, signal strength; reboot and firmware upgrade actions
Aws Iot Core: AWS cloud interaction with Jobs support
Azure Iot Hub: Data to Server integration, Direct method RutOS API calls, Plug and Play with DPS zero-touch provisioning

Data TO Server

Protocol: HTTP(S), MQTT, Azure MQTT
Data TO Server: Aggregate parameters from multiple sources and protocols to a single server; custom Lua scripting

Frequency Bands

5G NR SA: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77, n78
5G NR Nsa: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77, n78
4G LTE Fdd: B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B66, B71
4G LTE Tdd: B38, B41, B42, B43, B48
5G DL 4x4 MIMO: n2, n5, n7, n12, n13*, n14, n25, n26*, n29, n30, n38, n41, n48, n66, n70, n71, n77, n78

Location Tracking

GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
Nmea: NMEA 0183
Ntrip: Networked Transport of RTCM via Internet Protocol
Geofencing: Multiple configurable zones
Coordinates: Via WebUI, SMS, TAVL, RMS
Server Software: TAVL, RMS

Physical Interfaces

I/O: 1 x digital input, 1 x digital output on 4-pin power connector
SIM: 2 x Mini SIM (2FF) slots, 1.8 V/3 V, external holders
USB: 1 x USB-A
Other: 1 x grounding screw
Power: 1 x 4-pin connector
Reset: Reboot / user default / factory reset button

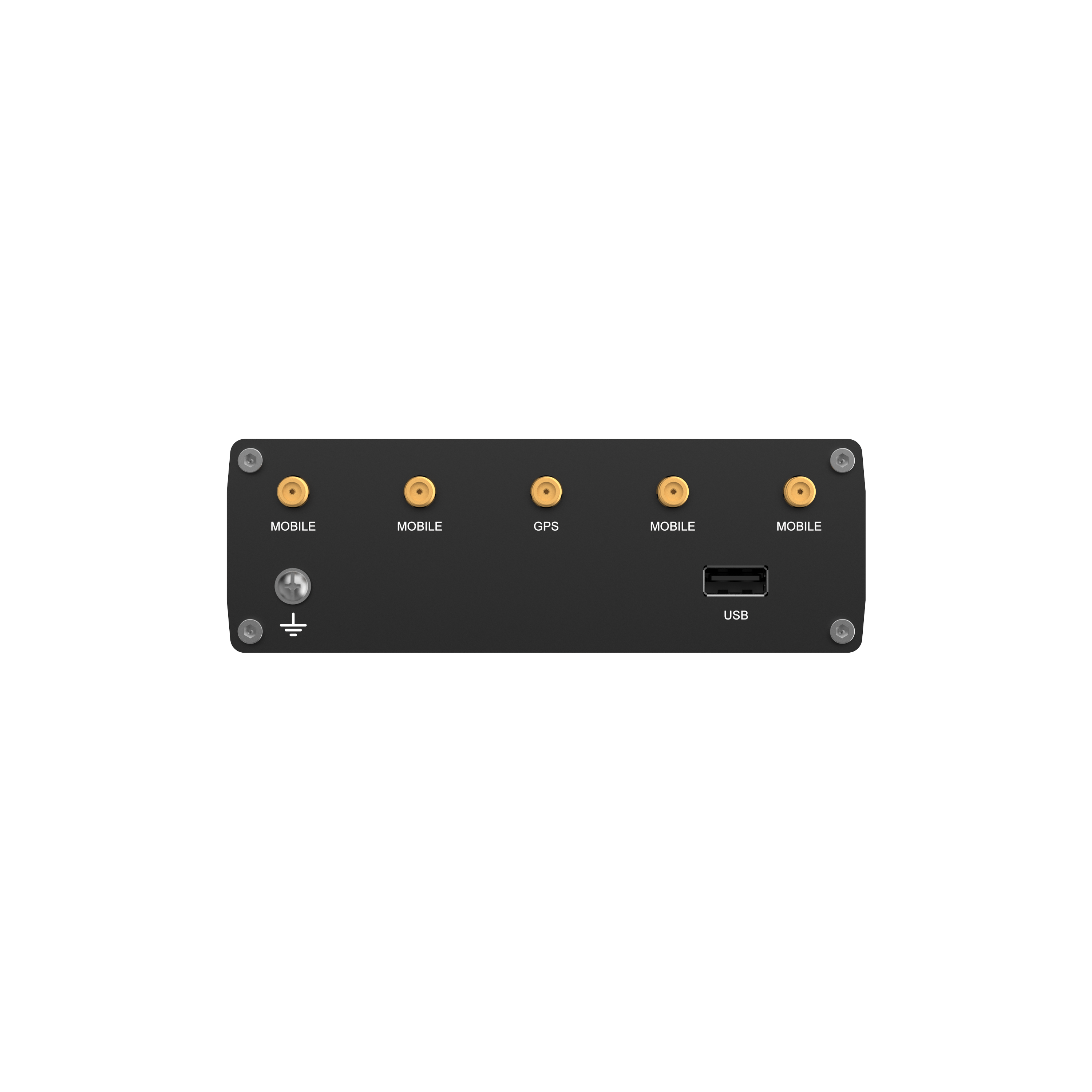

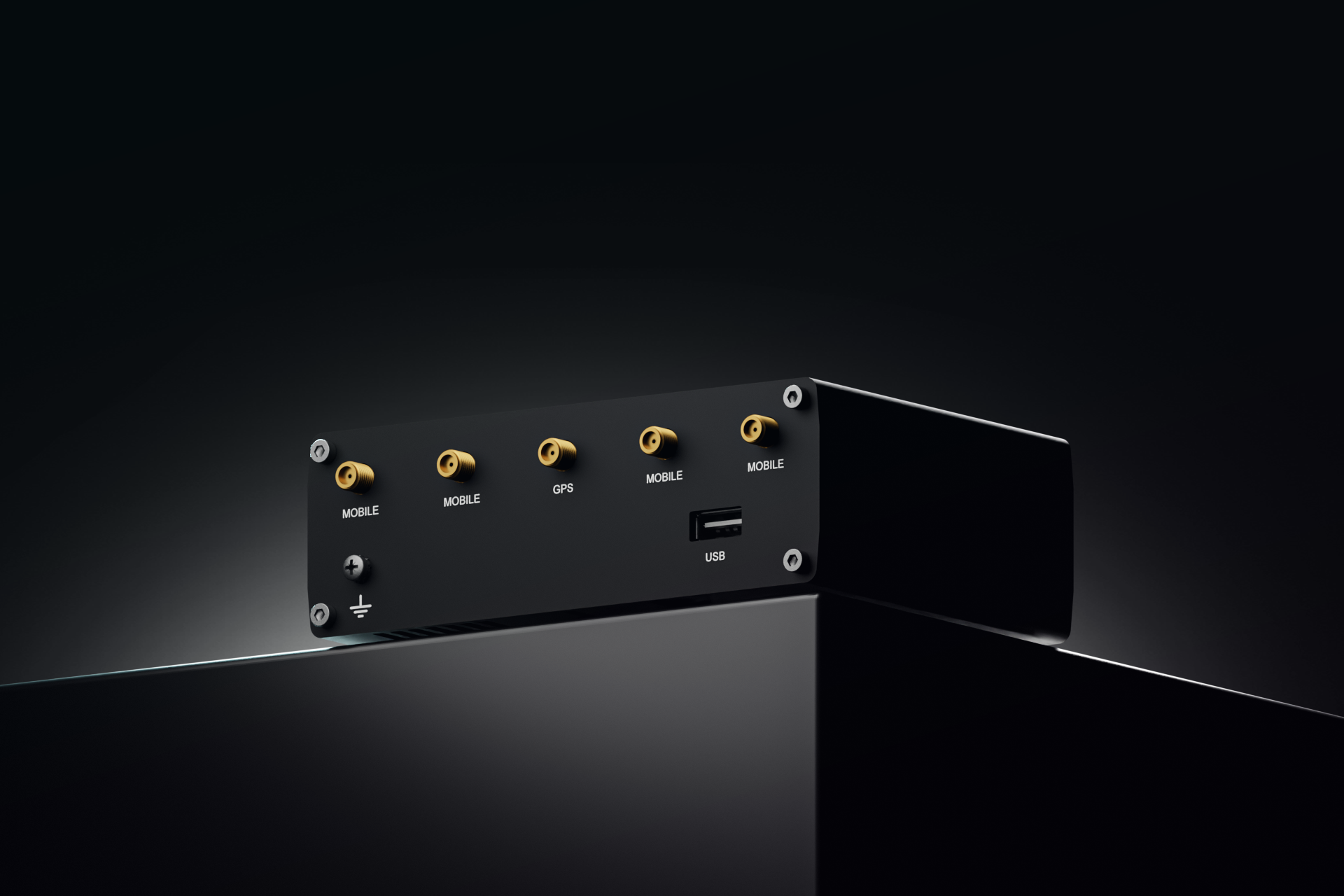

Antennas: 4 x SMA mobile, 1 x SMA GNSS

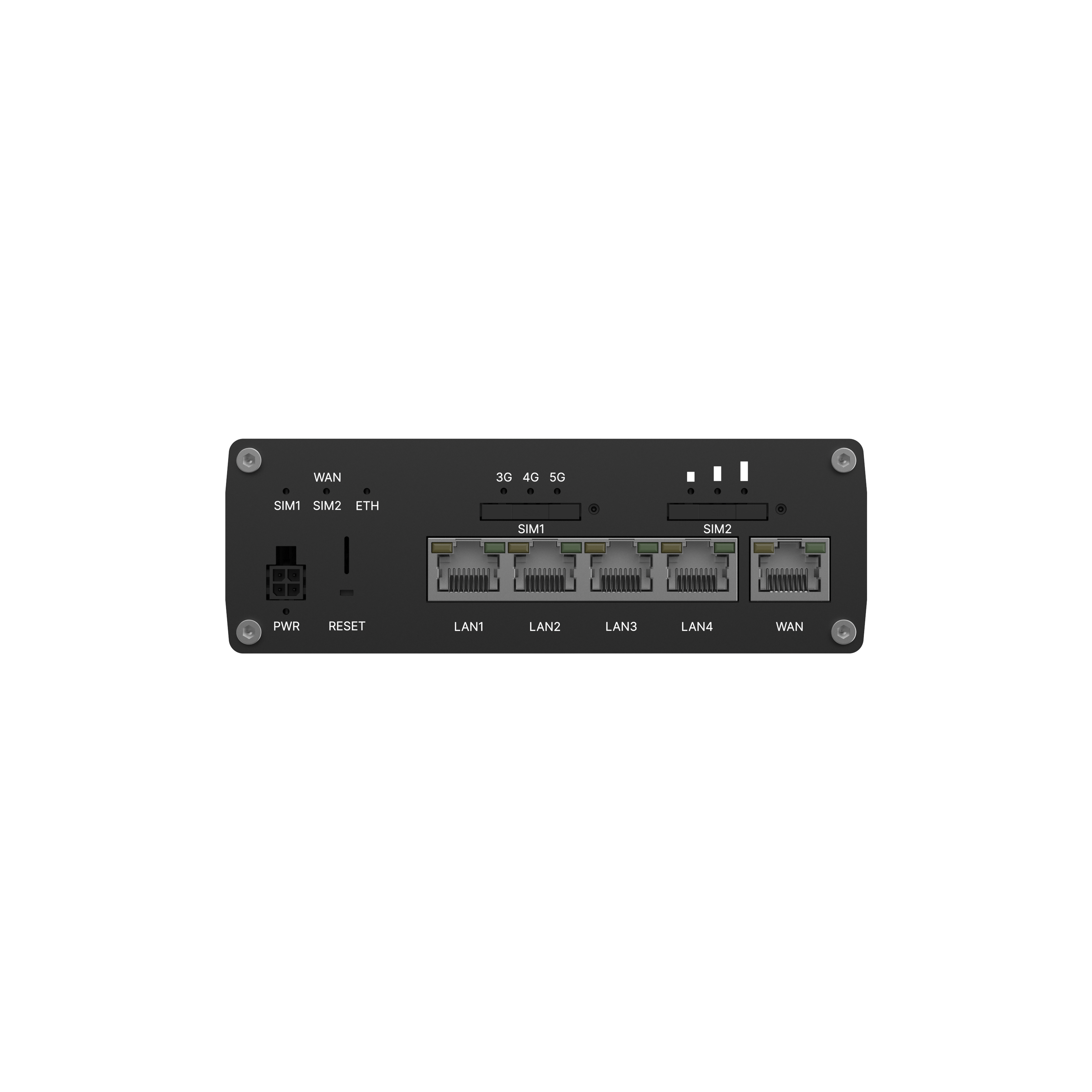

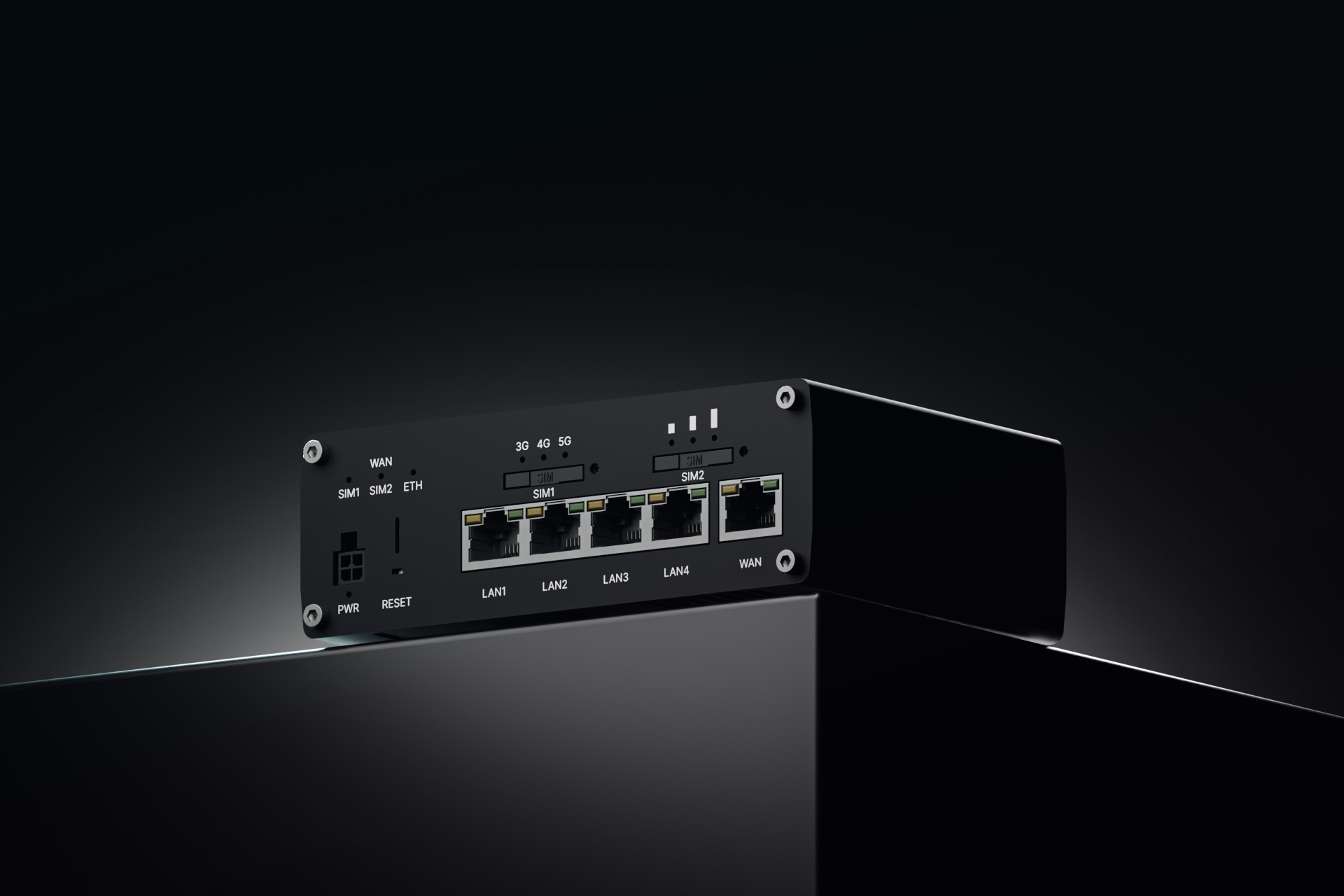

Ethernet: 5 x RJ45, 10/100/1000 Mbps
Status Leds: 3 x WAN, 3 x mobile type, 3 x mobile strength, 10 x Ethernet, 1 x power

Monitoring Management

Rms: Teltonika Remote Management System
SMS: Status, configuration
Ssh: v1, v2
Call: Reboot, status, mobile data on/off, output on/off, answer/hang-up with timer
Fota: Firmware update from server, automatic notification
Mqtt: Broker, publisher
Snmp: v1, v2, v3, SNMP Trap, brute force protection
Email: Status alerts of various services
TR 069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem
Web UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, update notifications, event/system/kernel logs, Internet status
Json Rpc: Management API over HTTP/HTTPS

Operating Environment

Ingress Protection: IP30
Operating Humidity: 10% to 90% non-condensing
Operating Temperature: -40 °C to 75 °C

Firmware Configuration

Rms: Bulk FW/configuration updates
Fota: Update FW
Web UI: FW update from file, check FW on server, configuration profiles, backup
Keep Settings: Update FW without losing configuration
Factory Settings Reset: Factory Reset: Restores all settings, IP address, PIN and user data to defaults

Firmware Customisation

Package Manager: Install additional software
Operating System: RutOS (OpenWrt-based Linux)
Development Tools: SDK with build environment
Gpl Customization: Custom branded firmware and web UI
Supported Languages: Busybox shell, Lua, C, C++, Python, Java (Package Manager)

System Characteristics

CPU: MediaTek Dual-Core 880 MHz, MIPS1004Kc
RAM: 256 MB DDR3
Flash Storage: 16 MB serial NOR, 256 MB serial NAND

Regulatory Type Approvals

Regulatory: FCC, ISED, WEEE, MTCTE

Questions buyers ask

Does the Teltonika RUTM59 have Wi-Fi?

No. The RUTM59000000 is a wired router with five Gigabit Ethernet ports. For wireless coverage, its Site Manager function can centrally manage Teltonika TAP access points and managed switches, including SSID configuration and VLAN assignment.

Which 5G and LTE bands does this North American version support?

It supports 5G NR n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77 and n78 in both SA and NSA modes. LTE-FDD coverage is B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B66 and B71. LTE-TDD coverage is B38, B41, B42, B43 and B48.

How does the dual SIM failover work?

The router holds two Mini SIM (2FF) cards. It switches automatically on weak signal, data limit, SMS limit, roaming, no network, network denied or data connection failure. SIM idle protection can periodically bring up the unused SIM so that it is not blocked.

How is the RUTM59 powered, and what is included?

The standard package includes an 18 W US power supply. The router accepts 9–50 VDC through a 4-pin industrial connector. It can also be powered by passive PoE on LAN1, which is not compatible with IEEE 802.3af/at/bt. The box also contains four swivel SMA mobile antennas, an adhesive GNSS antenna with a 3 m cable, a 1.5 m Ethernet cable, a SIM adapter kit and a Quick Start Guide.

Can the RUTM59 be DIN rail or wall mounted?

Yes. DIN rail, wall and flat surface mounting are supported, and each of these options requires an additional mounting kit.
