Teltonika5G & LTE Routers

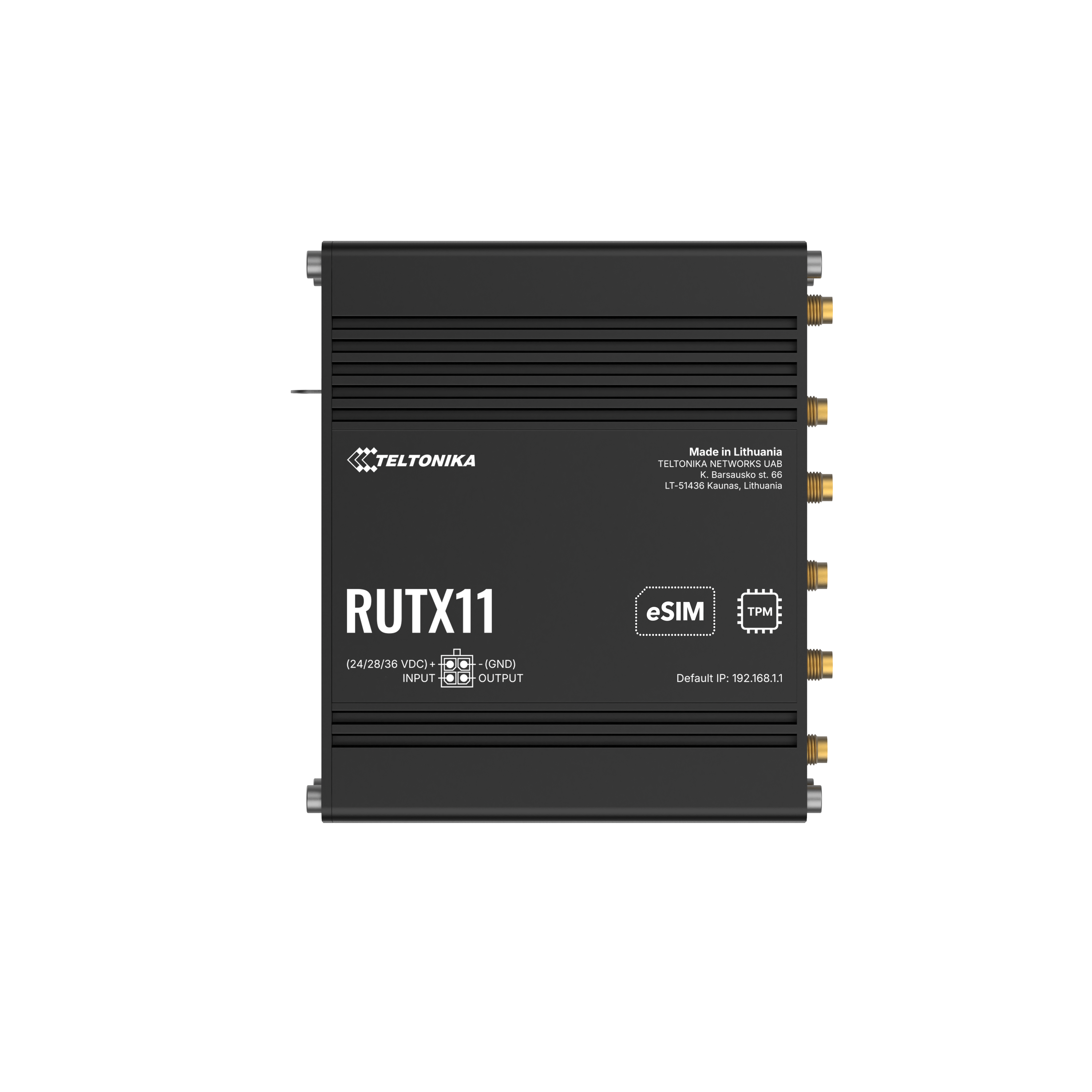

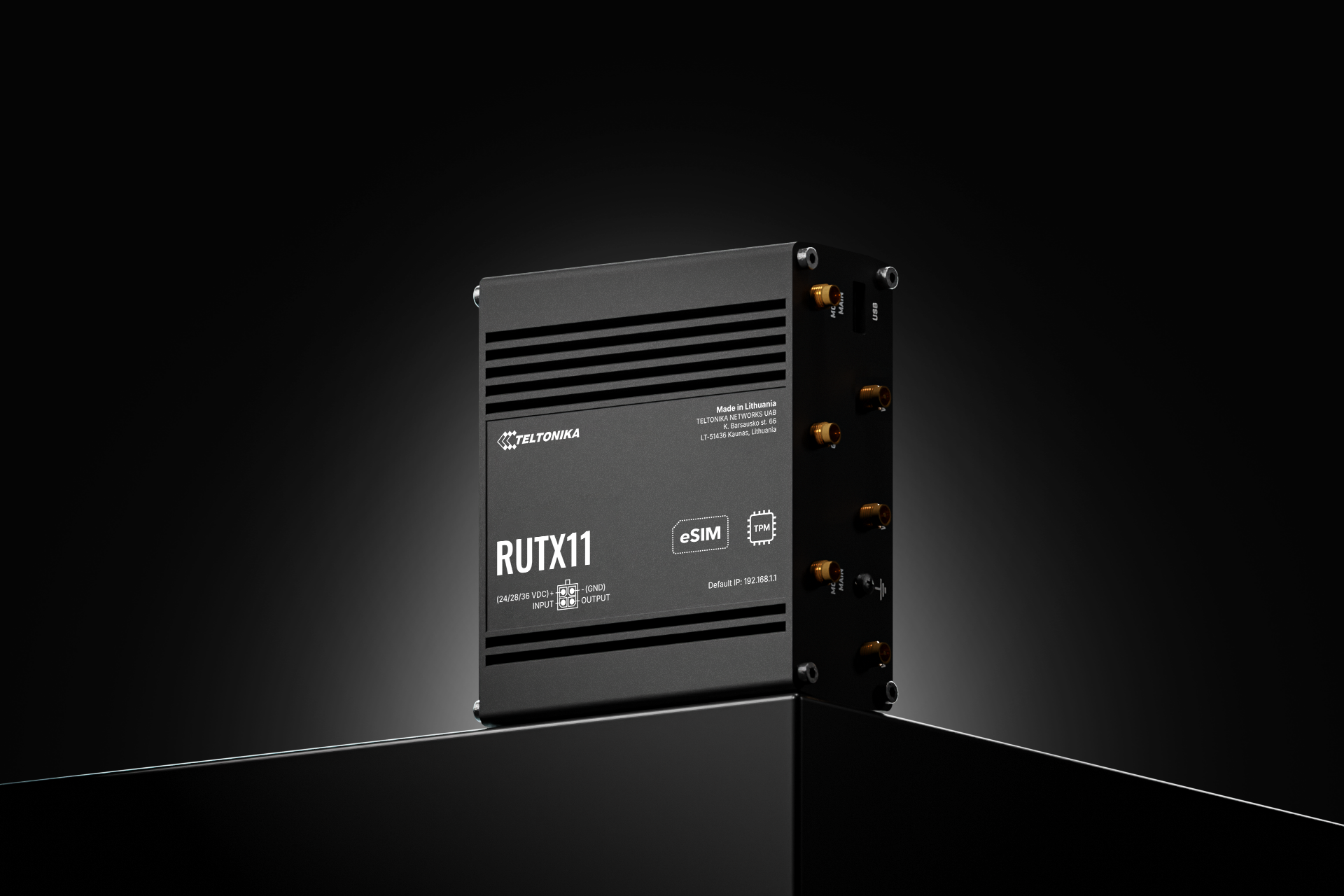

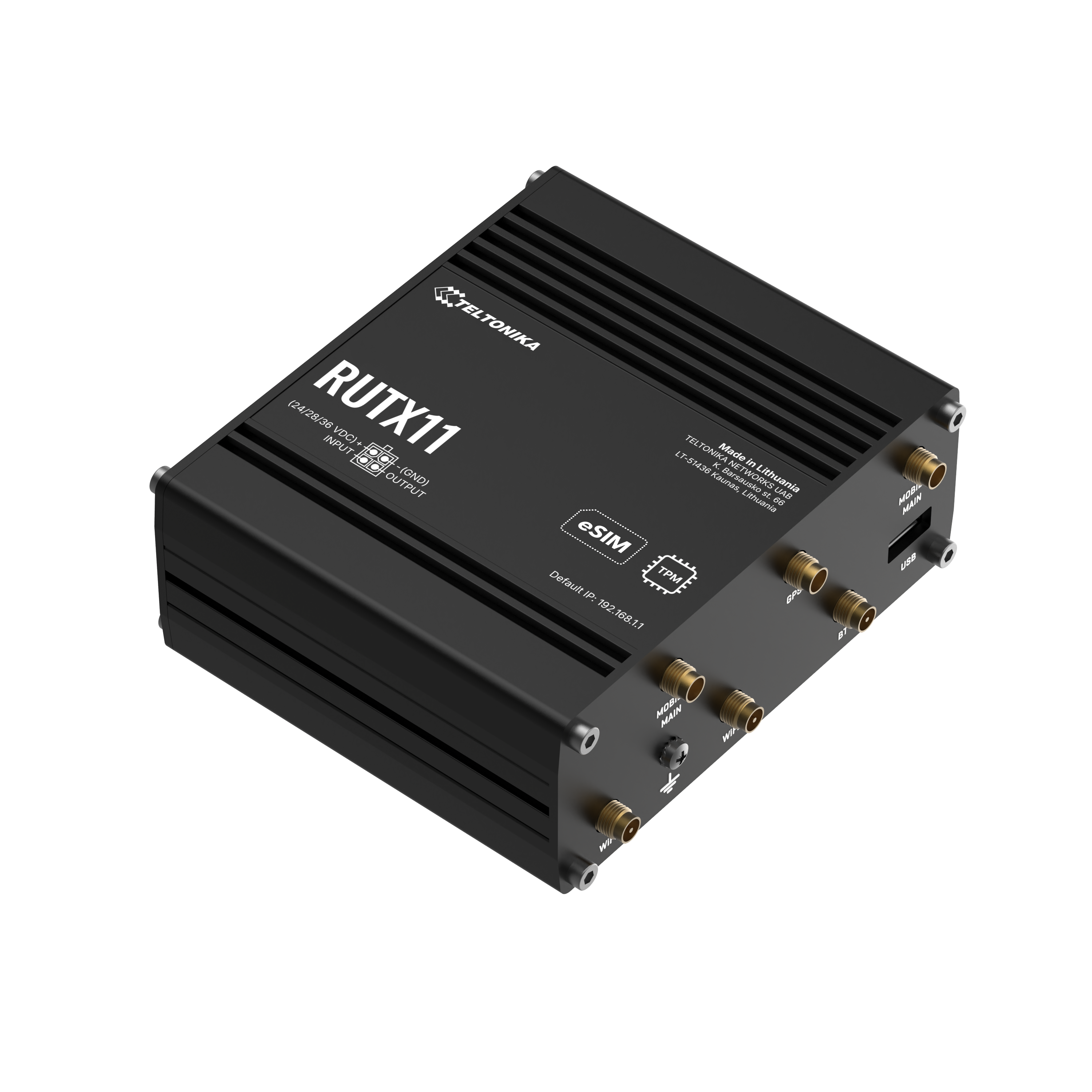

Teltonika RUTX11 4G LTE Cat 6 Dual-SIM Industrial Router, North America (RUTX11300400)

4G LTEMPN RUTX11300400
  • Wi-Fi 5
  • Dual SIM
  • 1 Gb Ethernet
  • GPS/GNSS
$398.00$419.00Save $21

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Ask Polaris AI

Datasheets & documents

Highlights

Overview

The Teltonika RUTX11 (RUTX11300400) is an industrial 4G LTE Cat 6 router for professional deployments that need a fast, dependable cellular link. This North America hardware version is T-Mobile certified. It pairs dual SIM slots with automatic failover, four Gigabit Ethernet ports, dual-band Wave 2 802.11ac Wi-Fi, Bluetooth LE and GNSS positioning. It runs RutOS with a full routing, VPN and industrial-protocol stack. The standard package includes an 18 W US power supply and a complete antenna set.

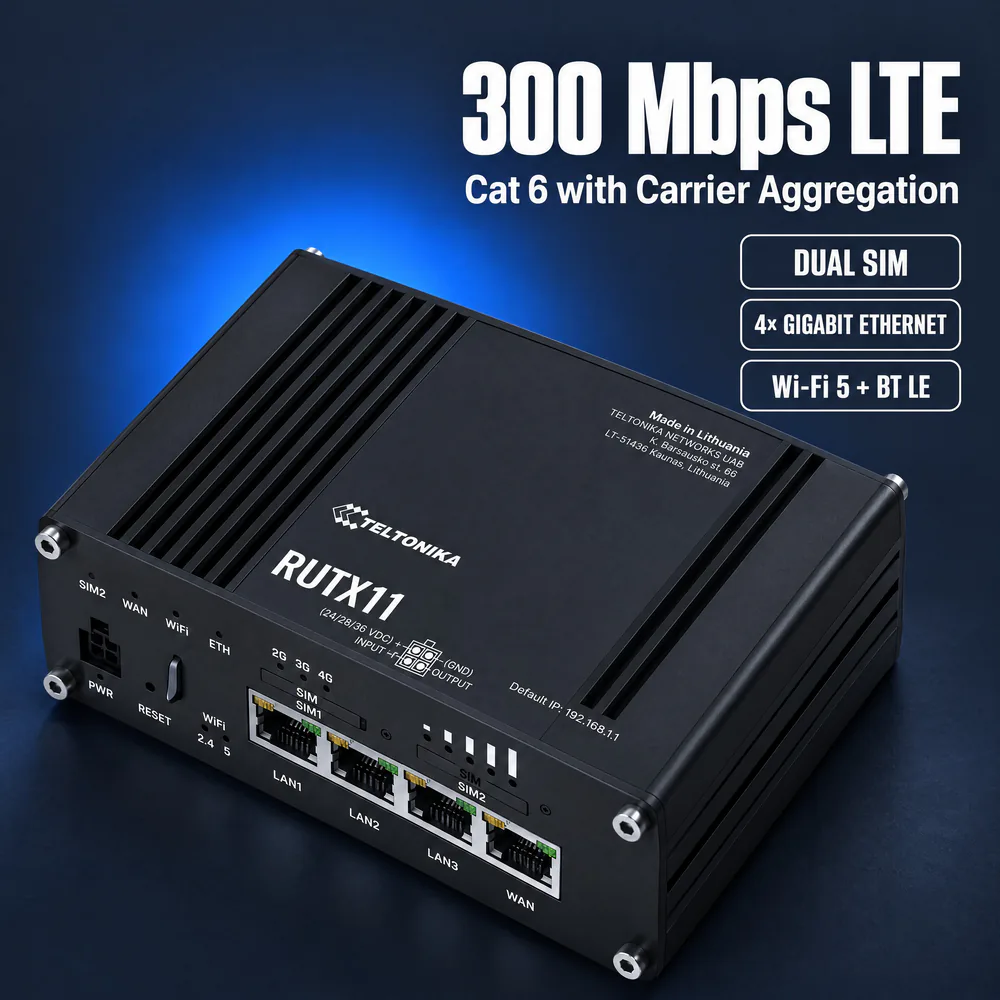

  • 4G LTE Cat 6 with carrier aggregation, up to 300 Mbps down / 50 Mbps up
  • Dual SIM with auto failover, backup WAN and SIM idle protection
  • 4 x Gigabit Ethernet ports (1 WAN, 3 LAN) with up to 128 port/tag-based VLANs
  • Wave 2 802.11ac dual-band Wi-Fi 5 up to 867 Mbps with MU-MIMO, plus Bluetooth 5.0 LE
  • GNSS positioning (GPS, GLONASS, BeiDou, Galileo, QZSS) with geofencing
  • RutOS with dynamic routing, extensive VPN support and Teltonika RMS remote management
  • North America LTE bands including B2, B4, B12, B13, B66 and B71; T-Mobile certified
  • Keep sites online with two carriers in one box: automatic SIM failover plus wired, Wi-Fi WAN and VRRP backup options

The Teltonika RUTX11 is a gigabit cellular router built for professional applications that need reliable, high-throughput connectivity. Its LTE Cat 6 module reaches up to 300 Mbps down and 50 Mbps up with carrier aggregation. This RUTX11300400 SKU is the North America hardware version and is T-Mobile certified. It covers LTE-FDD bands B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66 and B71 and LTE-TDD bands B41 and B48. This hardware version does not include TPM or eSIM.

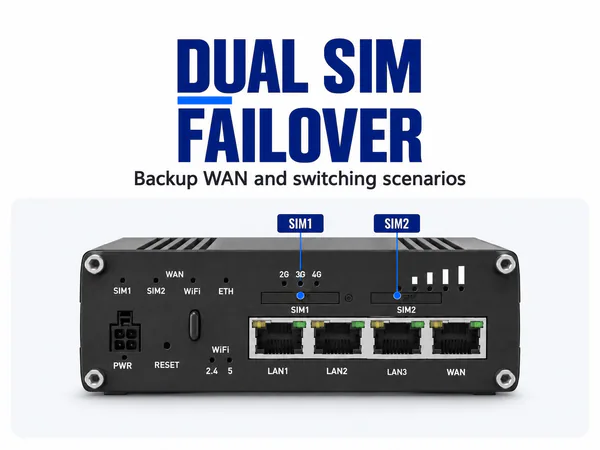

The RUTX11 has two Mini SIM slots. The router can fail over automatically between carriers, and SIM idle protection periodically brings up the unused SIM so the card is not blocked. Wired, mobile, Wi-Fi WAN and VRRP links can each serve as automatic failover, or you can load-balance traffic across multiple WANs. Four Gigabit RJ45 ports (1 WAN, 3 LAN) support port- and tag-based VLANs. Dual-band Wi-Fi 5 with MU-MIMO serves up to 150 simultaneous users, and Bluetooth 5.0 LE and multi-constellation GNSS are built in. Devices can be powered by passive PoE on LAN1 or the 4-pin 9–50 VDC industrial connector.

RutOS, which is based on OpenWrt, provides BGP, OSPF, RIP, EIGRP and policy-based routing. VPN options include OpenVPN, IPsec, WireGuard, DMVPN, ZeroTier and Tailscale. For industrial and building systems, the router supports Modbus, DNP3, OPC UA, BACnet, DLMS and MQTT. It connects to Azure IoT Hub, AWS IoT Core, ThingWorx and Cumulocity. Fleets can be managed through Teltonika RMS, TR-069, SNMP or the Web API.

The RUTX11 is rated for -40 °C to 75 °C with an IP30 housing. That makes it suited to cabinets, kiosks, vehicles and remote sites. The standard package includes the router, an 18 W PSU, two mobile antennas, two Wi-Fi antennas, a GNSS antenna, a Bluetooth antenna, an Ethernet cable, a SIM adapter kit and a quick start guide.

Ideal for

  • Primary or failover WAN for retail branches, kiosks and POS networks
  • Industrial IoT gateway for PLCs, meters and controllers using Modbus, DNP3, OPC UA or DLMS
  • Building automation connectivity via BACnet with remote RMS management
  • Vehicle, fleet and remote-site connectivity with GNSS tracking and geofencing
  • Secure site-to-site VPN for field offices, construction trailers and pop-up locations

Specifications

API

Web API
Configurable endpoints to retrieve or change data
Teltonika Networks Web API Beta Support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

USB

Data Rate
USB 2.0
Applications
Samba share, USB-to-serial
Storage Formats
FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
External Devices
HDD, flash drive, additional modem, printer, USB-serial adapter

VPN

Gre
GRE tunnel, GRE over IPsec
Sstp
Client
Tinc
Client and server
Dmvpn
Phase 2, Phase 3 and Dual Hub
Ipsec
XFRM, IKEv1, IKEv2, 14 encryption methods
Openvpn
Multiple clients and server simultaneously, 27 encryption methods
Stunnel
TLS encryption proxy
Zerotier
Client
Pptp L2tp
Client/server simultaneously, L2TPv3, L2TP over IPsec
Tailscale
Supported
Wireguard
Client and server
Openvpn Encryption
27 methods including AES-128/192/256 CBC, CFB, OFB and GCM

Dnp3

Supported Modes
Station, Outstation
Supported Connection
TCP, USB

Power

Connector
4-pin industrial DC power socket
PoE Passive
Via LAN1, Mode B, 9–50 VDC (not 802.3af/at/bt compatible)
Power Consumption
16 W max
Input Voltage Range
9–50 VDC with reverse polarity and surge/transient protection

Bacnet

Supported Modes
Router
Configuration Options
Multiple BACnet/IP interfaces, network numbers, BBMD BDT entries
Supported Connection Types
IP, RTU (USB)

Mobile

Apn
Auto APN
SMS
Status, configuration, Email to SMS, SMS to Email/HTTP/SMS, scheduled SMS, autoreply, SMPP
Ussd
Send and read USSD messages
Bridge
Direct connection between mobile ISP and LAN device
Status
IMSI, ICCID, operator, signal (RSSI, SINR, RSRP, RSRQ), CA indicator, band, cell ID and more
Passthrough
Mobile WAN IP assigned to a LAN device
3gpp Release
Release 12
Multiple Pdn
Different PDNs for multiple network access and services
Mobile Module
4G LTE Cat 6 up to 300 DL / 50 UL Mbps; 3G up to 42 DL / 5.76 UL Mbps
Band Management
Band lock, used band status display
Block Allow List
Operator block/allow list by country or operator
SIM Pin Management
Set, change or disable SIM PIN
SIM Idle Protection
Periodic data connection on unused SIM to prevent blocking
SIM Pin Code Management
SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
SIM Idle Protection Service
Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked

Modbus

Supported Modes
Server, Client
Custom Registers
Modbus TCP custom register block requests
Supported Data Formats
8/16/32-bit INT, UINT, float, HEX, ASCII
Supported Connection Types
TCP, USB

Opc UA

Supported Modes
Client, Server
Supported Connection Types
TCP

General

MPN
RUTX11300400
UPC
4779051843114
Brand
Teltonika Networks
Model
RUTX11
Tpm eSIM
Not included on this hardware version
Package Type
Standard package with US PSU
Shipping Weight
2.00 lb
Hardware Version
RUTX11 3***** / North America
Carrier Certification
T-Mobile

Network

Ddns
More than 77 providers, others configurable manually
Dhcp
Static/dynamic allocation, relay, server, static leases with MAC wildcards
Sshfs
Mount remote file systems via SSH
Hotspot
Captive portal, RADIUS, SMS/SSO auth, walled garden, user groups, 9 customisable themes
Qos Sqm
Priority queuing by source/destination, service, protocol or port, WMM, 802.11e
Routing
Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based
Firewall
Port forward, traffic rules, custom rules, TTL target customisation
Vrf Support
Initial VRF support
Dns Over Https
Supported
Load Balancing
Across multiple WAN connections

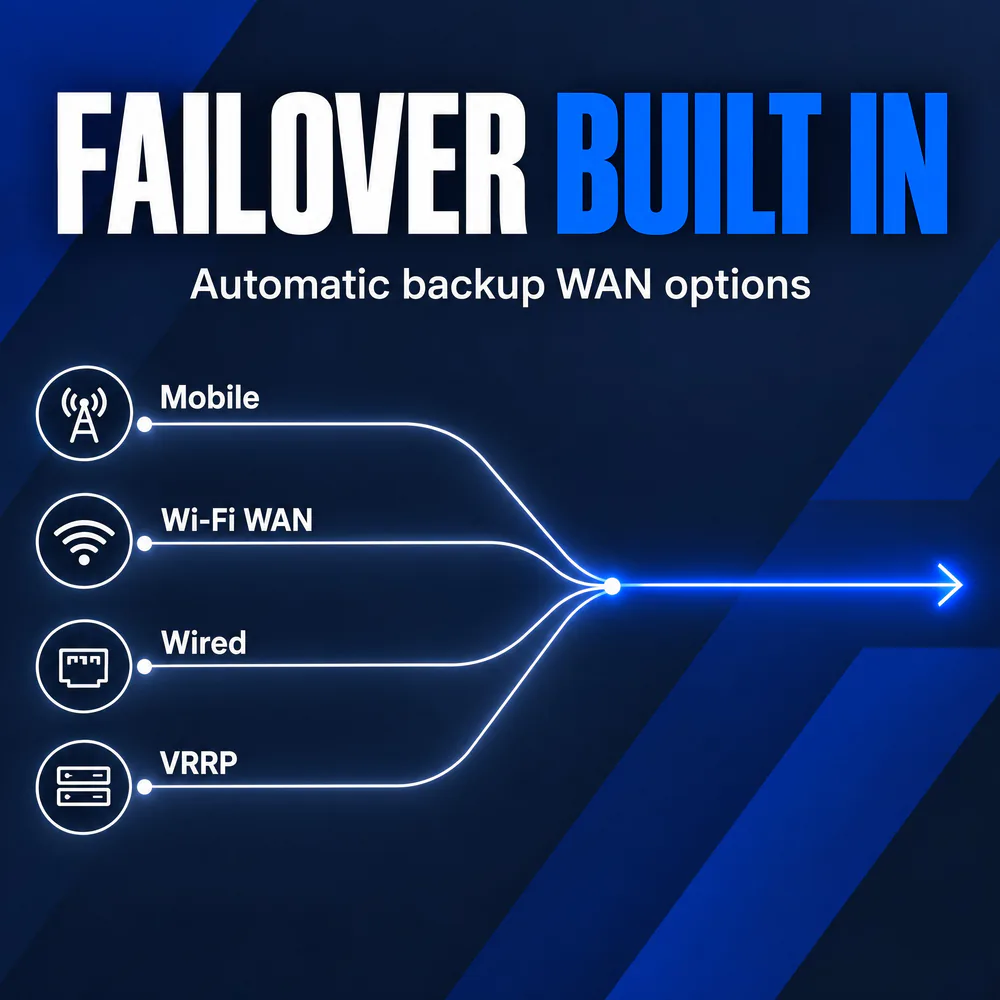

Network Backup
Wi-Fi WAN, Mobile, VRRP, Wired, each usable as automatic failover
Port Management
Enable/disable ports, auto-configuration, speed settings
Network Topology
Visual network map
Voip Passthrough
H.323 and SIP-ALG NAT helpers
Network Protocols
TCP, UDP, IPv4, IPv6, VRRP, PPPoE, SNMP, MQTT, VXLAN and more
Traffic Management
Real-time monitoring, signal charts, usage history
Firewall Status Page
Statistics, rules and rule counters
Connection Monitoring
Ping/Wget/Periodic reboot, LCP and ICMP

Package

Contents
In the Box: RUTX11, 18 W PSU, 2 mobile + 2 Wi-Fi antennas, GNSS antenna (3 m), Bluetooth antenna (1.5 m), 1.5 m Ethernet cable, SIM adapter kit, quick start guide

Ethernet

LAN
3 x 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
WAN
1 x 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX

Security

Vlan
Port- and tag-based separation
802 1x
Port-based network access control client
Firewall
Preconfigured WebUI rules, unlimited CLI configuration, DMZ, NAT, NAT-T, NAT64
Web Filter
Block list and allow list
Access Control
SSH, Web UI, CLI and Telnet
Authentication
PSK, X.509 certificates, TACACS+, RADIUS, login blocking, password generator
Attack Prevention
DDoS and port scan prevention
Certificate Manager
CA, server, client, Let's Encrypt, SCEP
Mobile Quota Control
Data limit, period, start time, warning limit

Wireless

Ssid Essid
Stealth mode, MAC-based access control
Travelmate
Forward hotspot landing page to a connected device
Wi-Fi Users
Up to 150 simultaneous connections
Wi-Fi Security
WPA2-Enterprise, WPA2/WPA3, OWE, AES-CCMP, TKIP, EAP-TLS, 802.11w PMF
Wireless Mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5), up to 867 Mbps, dual band, MU-MIMO, AP/STA
Wireless Mac Filter
Allowlist, blocklist
Wireless QR Code Generator
Join Wi-Fi by scanning a QR code
Wireless Connectivity Features
802.11s mesh, 802.11r, Relayd, 802.11v, 802.11k

Bluetooth

Bluetooth 5 0
Bluetooth LE for short-range communication

Dlms Cosem

Dlms Support
Utility meter data exchange
Supported Modes
Client
Supported Connection Types
TCP, USB

Regulatory

Safety
CE EN IEC 62368-1, EN IEC 62311; CB IEC 62368-1; RCM AS/NZS 62368.1
HS Code
851762
Hts Code
8517.62.00
RF Exposure
FCC 47 CFR § 2.1091, ISED RSS-102
RF Standards
CE/UKCA EN 300 328, EN 301 893, EN 301 908 series; RCM
RF Standards Wi-Fi
FCC Part 15.247/15.407, ISED RSS-247, RSS-Gen

RF Exposure

Standards
FCC: 47 CFR - § 2.1091; KDB 447498 D04 Interim General RF Exposure Guidance v01; IC (ISED): RSS-102 Issue 6 (December 2023)

Input Output

Input
1 x digital input (0–6 V low, 8–30 V high)
Events
Email, RMS, SMS
Output
1 x open collector digital output, max 30 V, 300 mA
I/O Juggler
I/O conditions trigger events

Mqtt Gateway

Modbus Mqtt Gateway
Modbus server commands/data via MQTT broker

Site Manager

Functionalities
Central management of Teltonika TAP access points and managed switches
Supported Modes
Manager

Iot Platforms

Thingworx
WAN and mobile status monitoring
Cumulocity
Device and mobile monitoring, reboot and firmware upgrade
Aws Iot Core
Cloud interaction with AWS Jobs support
Azure Iot Hub
Data to Server, Direct methods, zero-touch DPS provisioning

Data TO Server

Protocol
HTTP(S), MQTT, Azure MQTT
Data TO Server
Multi-source parameter collection to one server, custom Lua scripting

Location Tracking

GNSS
GPS, GLONASS, BeiDou, Galileo, QZSS
Nmea
NMEA 0183
Ntrip
Supported
Geofencing
Multiple configurable zones
Coordinates
Via WebUI, SMS, TAVL, RMS
Server Software
TAVL, RMS

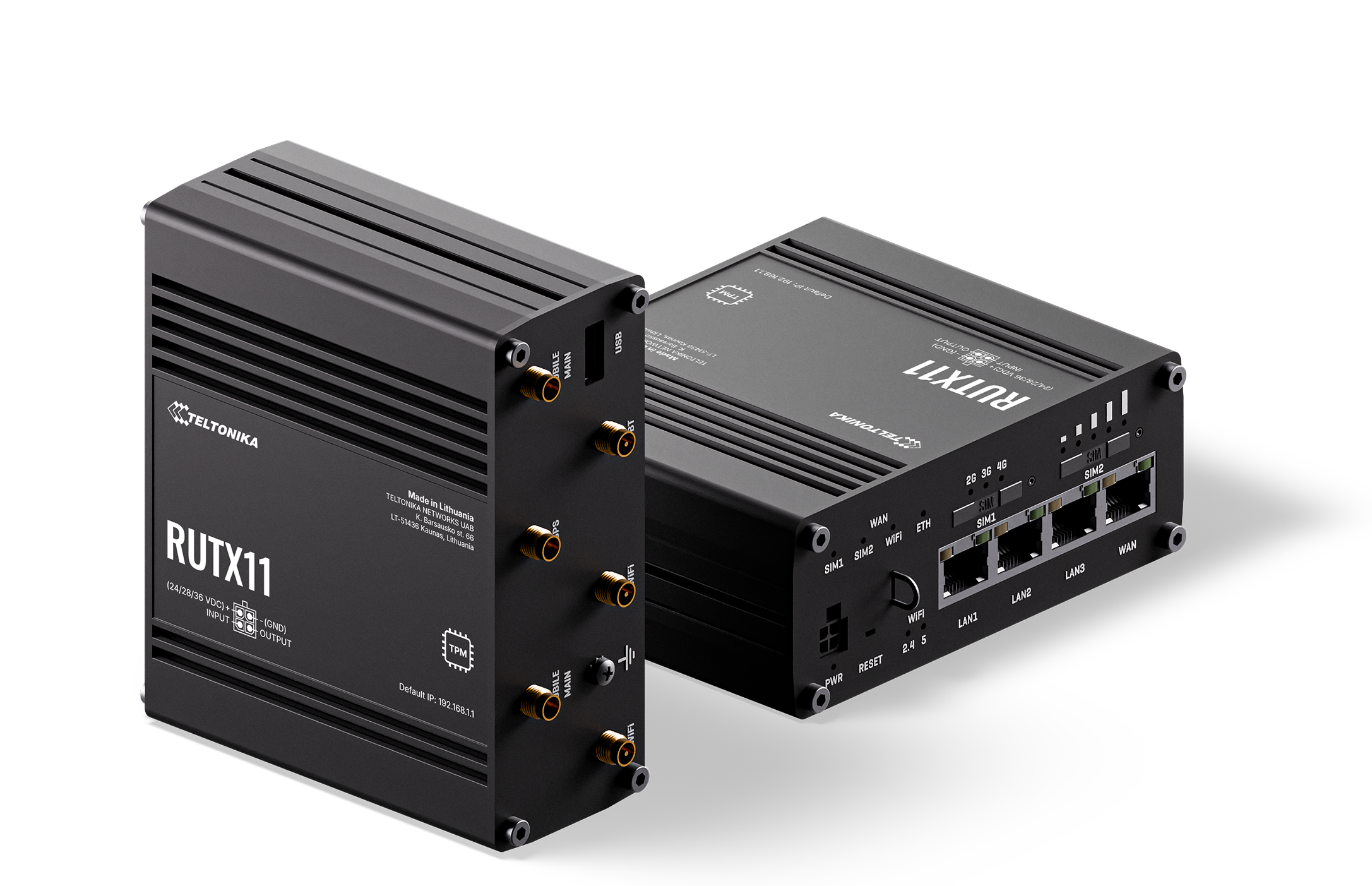

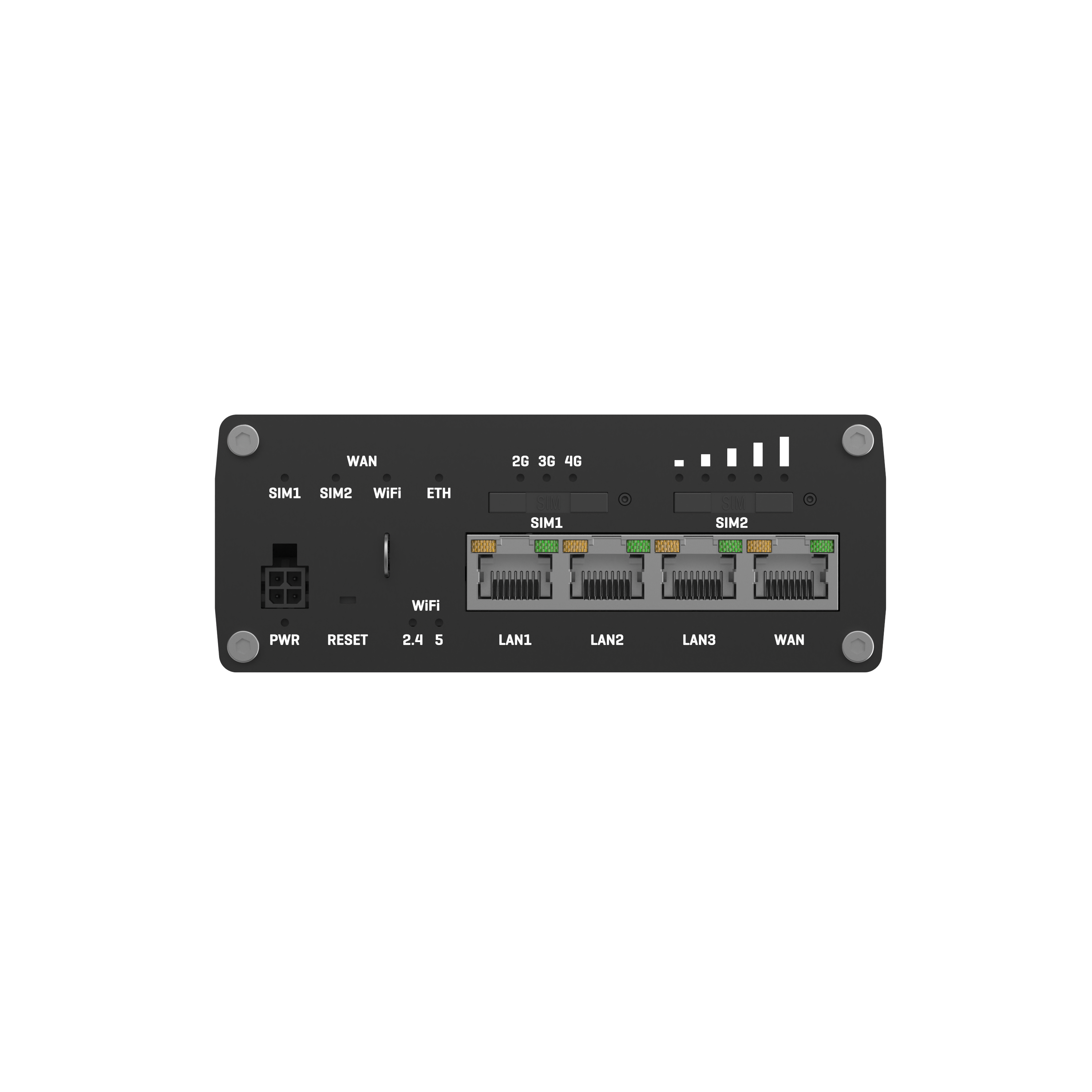

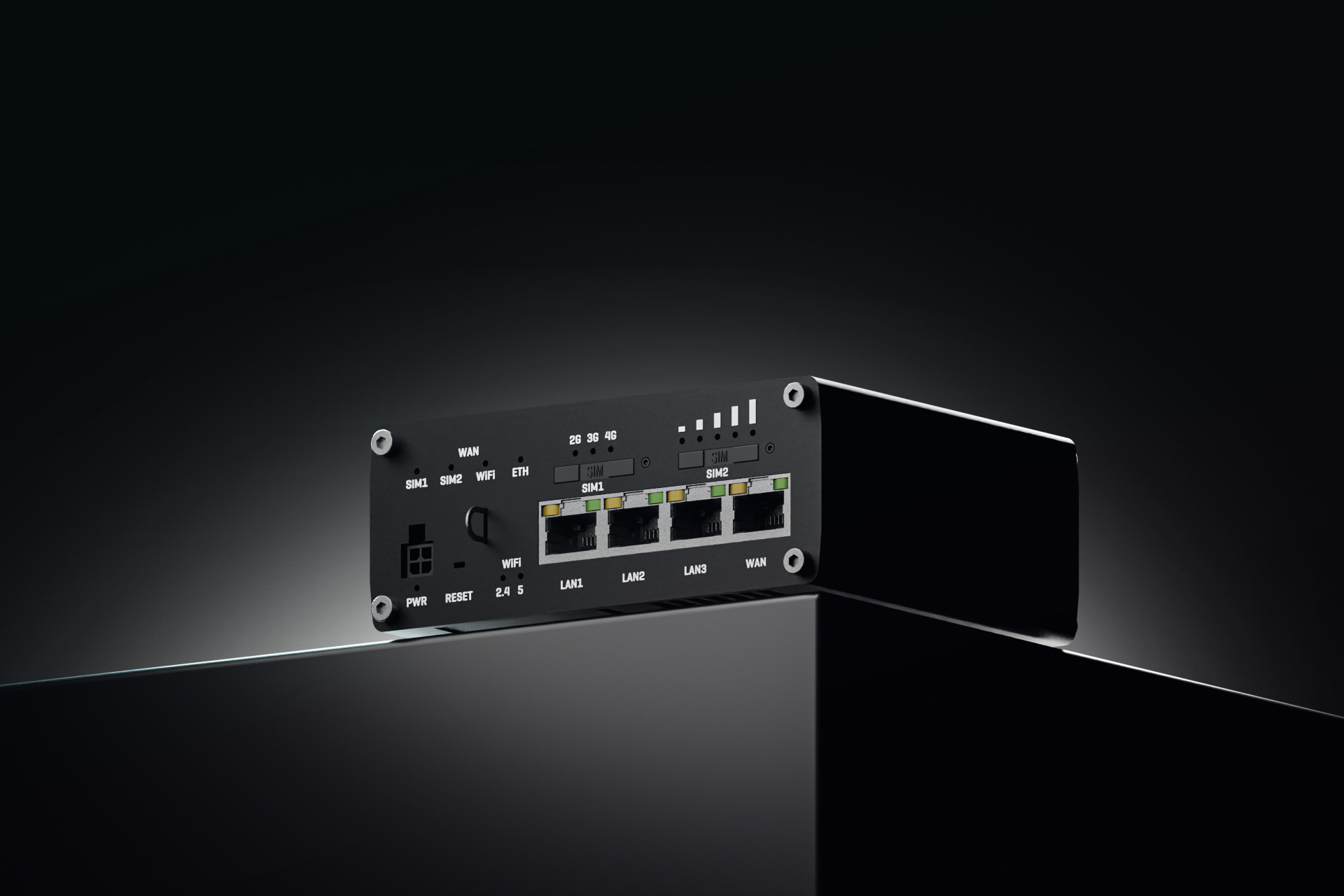

Physical Interfaces

Ios
1 x DI, 1 x DO on 4-pin power connector
SIM
2 x Mini SIM (2FF) slots, 1.8 V/3 V, external holders
USB
1 x USB A
Other
1 x grounding screw
Power
1 x 4-pin connector
Reset
Reboot / user default / factory reset button

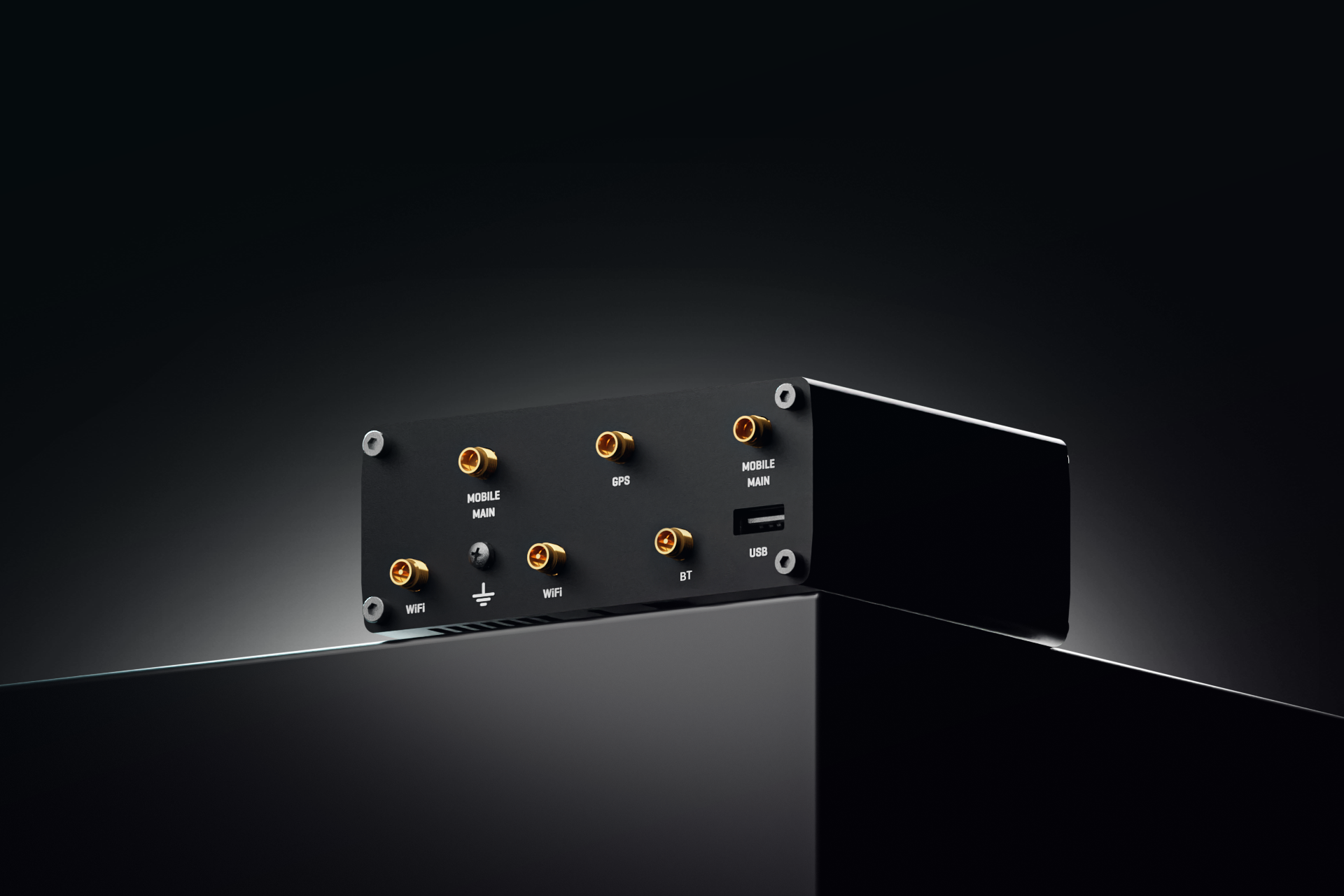

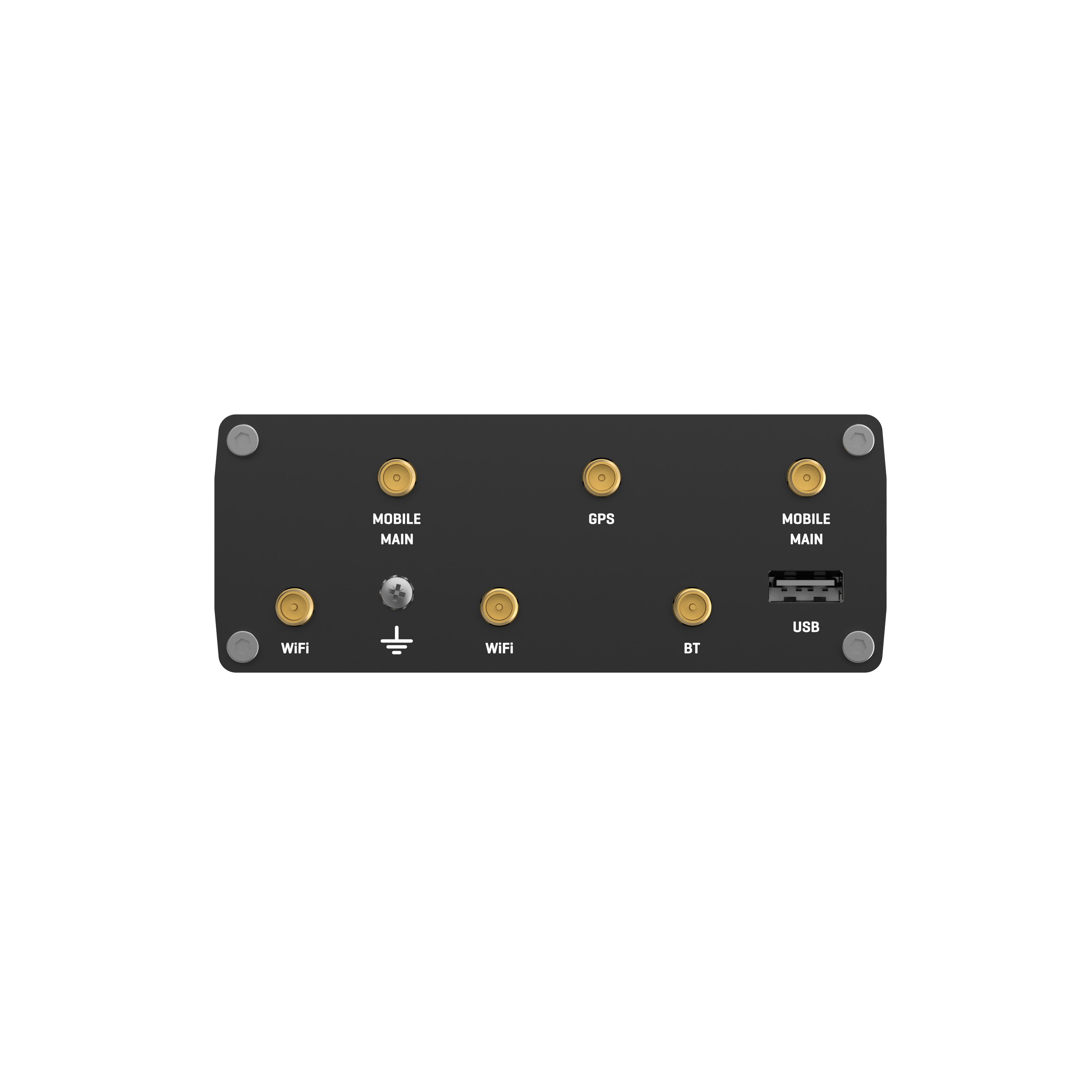

Antennas
2 x SMA mobile, 2 x RP-SMA Wi-Fi, 1 x RP-SMA Bluetooth, 1 x SMA GNSS
Ethernet
4 x RJ45, 10/100/1000 Mbps
Status Leds
WAN type, mobile type/strength, LAN, power, 2.4G/5G Wi-Fi

Monitoring Management

Rms
Teltonika Remote Management System
SMS
Status, configuration
Ssh
v1, v2
Call
Reboot, status, mobile data, output and Wi-Fi on/off

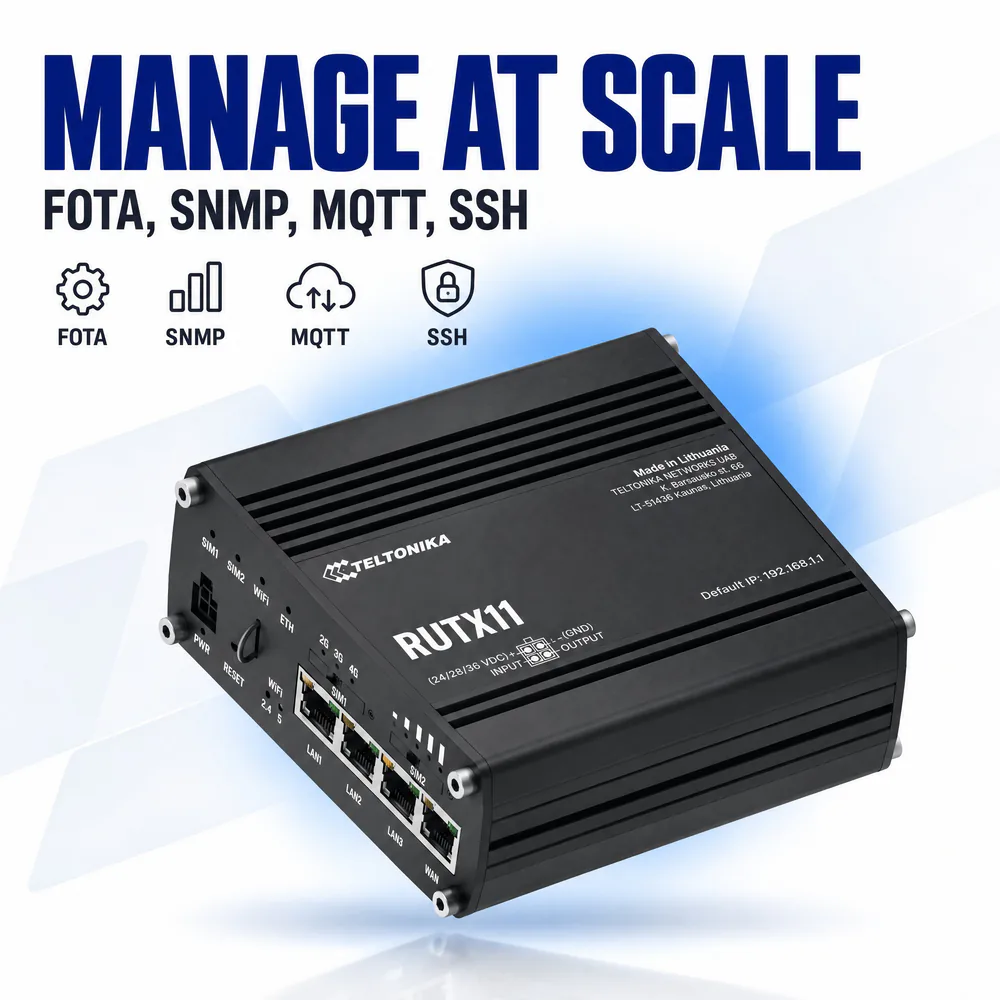

Fota
Firmware update from server, automatic notification
Mqtt
Broker, publisher
Snmp
v1, v2, v3, traps, brute force protection
TR 069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
Web UI
HTTP/HTTPS, status, configuration, FW update, CLI, logs, troubleshooting
Json Rpc
Management API over HTTP/HTTPS

Operating Environment

Ingress Protection
IP30
Operating Humidity
10% to 90% non-condensing
Operating Temperature
-40 °C to 75 °C

Supported Frequencies

LTE Fdd
B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71
LTE Tdd
B41, B48

Emc Emissions Immunity

CS
EN 61000-4-6:2014
Dip
EN 61000-4-11:2004; EN 61000-4-11:2020
Eft
EN 61000-4-4:2012
Esd
EN 61000-4-2:2009
Standards
CE/UKCA: EN 55032:2015 + A11:2020 + A1:2020; EN 55035:2017 + A11:2020; EN IEC 61000-3-2:2019 + A1:2021; EN 61000-3-3:2013 + A1:2019 + A2:2021; EN 301 489-1 V2.2.3; EN 301 489-3 V2.3.2; EN 301 489-17 V3.3.1; EN 301 489-19 V2.2.1; EN 301 489-51 V1.2.1; FCC/ISED(IC): 47 CFR Part 15 Subpart B; ICES-003: Issue 7 (October 2020); RCM: AS/NZS CISPR 32:2015 + A1
Radiated Immunity
EN IEC 61000-4-3:2006 + A1:2008 + A2:2010; EN IEC 61000-4-3:2020
Surge Immunity AC Power Line
EN 61000-4-5:2014 + A1:2017
Surge Immunity AC Mains Power Port
EN 61000-4-5:2014 + A1:2017

Firmware Configuration

Rms
Update FW/configuration for multiple devices at once
Fota
Update FW
Web UI
Update FW from file, check FW on server, configuration profiles and backup
Keep Settings
Update FW without losing current configuration
Factory Settings Reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customisation

Package Manager
Install additional software
Operating System
RutOS (OpenWrt-based Linux)
Development Tools
SDK with build environment
Gpl Customization
Custom branded firmware and web UI
Supported Languages
Busybox shell, Lua, C, C++, Python and Java (Package Manager)

Physical Specification

Weight
456 g
Casing Material
Anodised aluminium housing and panels
Mounting Options
DIN rail, wall mount, flat surface (all require additional kit)
Dimensions W X H X D
115 x 44.2 x 95.1 mm

System Characteristics

CPU
Quad-core ARM Cortex A7, 717 MHz
RAM
256 MB DDR3
Flash Storage
256 MB SPI Flash

Regulatory Type Approvals

Vehicle
ECE R10 (E-mark)
Operator
AT&T, Verizon, T-Mobile, Deutsche Telekom AG
Regulatory
CE, UKCA, FCC, EAC, UCRF, CITC, ICASA, ANRT, IC, PTCRB, RCM, IMDA, SIRIM, NTC, E-mark, Railway, UL/CSA Safety, CB, IC (ISED), RCM, ETA-WPC, MTCTE

Questions buyers ask

Is the RUTX11300400 a 5G router?

No. The RUTX11 uses an LTE Cat 6 module with carrier aggregation, delivering up to 300 Mbps down and 50 Mbps up.

Which LTE bands does this North America version support?

It supports LTE-FDD bands B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66 and B71, and LTE-TDD bands B41 and B48. This SKU is also T-Mobile certified.

Does this model include TPM or eSIM?

No. The RUTX11300400 hardware version has two physical Mini SIM (2FF) slots and does not include TPM or eSIM. Those features are offered on other RUTX11 hardware versions.

How can the RUTX11 be powered?

It accepts 9–50 VDC through a 4-pin industrial connector and can also be powered by passive PoE (Mode B, 9–50 VDC) on the LAN1 port. An 18 W power supply is included in the standard package.

What comes in the box?

The standard package contains the router, an 18 W PSU, two mobile antennas, two Wi-Fi antennas, an adhesive GNSS antenna, a magnetic Bluetooth antenna, a 1.5 m Ethernet cable, a SIM adapter kit and a quick start guide.

Antennas & accessories for Teltonika

More 5G & LTE Routers
