Cradlepoint5G & LTE Routers

Cradlepoint IBR1700 Rugged Cat 18 LTE In-Vehicle Router with 5-Year TAA NetCloud Mobile Essentials + Advanced

4G LTEMPN TAA-MAA5-1700120B-NA
  • Wi-Fi 5
  • Dual SIM
  • 5+ × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$3,256.00

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Cradlepoint IBR1700 is a ruggedized Gigabit-class LTE router for vehicles and field forces. This bundle includes a 5-year NetCloud Mobile Essentials + Advanced subscription, and the SKU is TAA compliant for U.S. Federal Government ordering. Its embedded Cat 18 modem reaches up to 1.2 Gbps down with 4x4 MIMO. The router adds five Gigabit Ethernet ports, tri-radio Wi-Fi 5, discrete GPS with dead reckoning, an RS-232 serial port and an MC400 slot for a second modem. This configuration ships without an AC power supply or antennas.

  • Embedded 1200M-B Cat 18 LTE Advanced Pro modem: up to 1.2 Gbps downlink and 150 Mbps uplink with 4x4 MIMO
  • Dual 2FF SIM slots with SIM-based auto-carrier selection
  • 5 x GbE LAN/WAN switchable ports and tri-radio, dual-band Wi-Fi (one 4x4 802.11ac Wave 2, two 2x2 802.11n)
  • Discrete active GPS with dead reckoning and an RS-232 serial port with OBD-II functionality
  • MC400 modular modem slot for dual-modem operation; can control a Cradlepoint 5G adapter
  • IP64 ruggedized metal chassis, -30 °C to 70 °C, 9-36 VDC with ignition sensing
  • 5-year NetCloud Mobile Essentials + Advanced plans in a TAA-compliant SKU
  • Carries high-bandwidth vehicle traffic such as video and mobile office data over Gigabit-class LTE

The Ericsson Cradlepoint IBR1700 is a Gigabit-class LTE networking platform for persistent in-vehicle connectivity. Part number TAA-MAA5-1700120B-NA pairs the Cat 18 1200M-B hardware with five years of NetCloud Mobile Essentials and Advanced plans. It is a TAA-compliant ordering option for the U.S. Federal Government. The hardware ships without an AC power supply or antennas.

The embedded 1200M-B modem is Cat 18 LTE Advanced Pro with 4x4 MIMO, 256 QAM and up to 5 CA downlink and 2 CA uplink. It delivers up to 1.2 Gbps down and 150 Mbps up. It has dual 2FF SIM slots with SIM-based auto-carrier selection and four SMA cellular connectors. Band support covers B14, B71 and CBRS Band 48 for private cellular. The router also has five GbE LAN/WAN switchable ports and tri-radio, dual-band Wi-Fi. One 4x4 802.11ac Wave 2 radio and two 2x2 802.11n radios can dedicate capacity to video offload and separate client groups.

The IBR1700 is built for vehicle integration. Discrete active GPS with dead reckoning supports Automatic Vehicle Location systems. The RS-232 serial port supports OBD-II with an accessory cable. GPIO, USB 2.0 and the NetCloud SDK, API and container support let teams build custom solutions. The router is 5G ready. Its MC400 modular modem slot accepts a second modem, and it can act as the controller for a Cradlepoint 5G adapter in captive mode. The IP64 metal chassis runs from -30 °C to 70 °C on 9-36 VDC. It adds ignition sensing and reverse-polarity and transient protection, and it carries MIL-STD-810G and SAE J1455 ratings.

NetCloud Mobile Advanced adds threat management, web filtering, application visibility, analytics, location tracking and cellular coverage maps. NetCloud Manager provides device management and software updates for the full five-year term. The package also includes 24x7 support and a limited lifetime warranty while the subscription is active. The Cradlepoint IBR1700 datasheet is available for full specifications.

Ideal for

  • Police, fire and EMS vehicles needing high-throughput LTE with public safety network access
  • Federal fleets procuring through a TAA-compliant SKU
  • Automatic Vehicle Location and dispatch systems using dead-reckoning GPS
  • Mobile command and video-heavy vehicles with multiple wired devices
  • Vehicle diagnostics reporting through OBD-II

Specifications

Power

Fusing
3 A inline fuse for 9-24 VDC vehicle installations; 2.5 A fuse above 24 VDC
DC Input
9-36 VDC steady state input
Features
Reverse polarity and transient voltage protection (ISO 7637-2); ignition sensing (automatic ON and time-delay OFF)
Consumption
Idle 8 W; Typical 14 W; Heavy 24 W
Optional Power Supply
Optional external power supply: 100-240 VAC input, 12 VDC 3 A output (not included in this SKU)

General

MPN
TAA-MAA5-1700120B-NA
UPC
810007809342
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint IBR1700 (1200M-B modem)
Package Plan
5-Year NetCloud Mobile Essentials + Advanced Plans
Region Market
United States Federal Government
TAA Compliant
TAA-compliant SKU
Shipping Weight
2.00 lb
Subscription Term
5 years
Manufacturer Status
Discontinued
Hardware Configuration
Cat 18 (1200 Mbps) with Wi-Fi, no AC power supply or antennas

GNSS GPS

Power
Voltage supply 3.1 V; max current 20 mA (1200M-B)
Accuracy
Horizontal: < 2 m (50%), < 5 m (95%)
Protocols
NMEA 0183
Frequencies
L5
Sensitivity
Tracking: -159 dBm (1200M-B)
Constellations
GPS, Galileo, GLONASS, BeiDou (1200M-B)
Time TO First Fix
32 seconds (cold start)

Physical

Weight
1.7 kg (3 lb 7 oz)

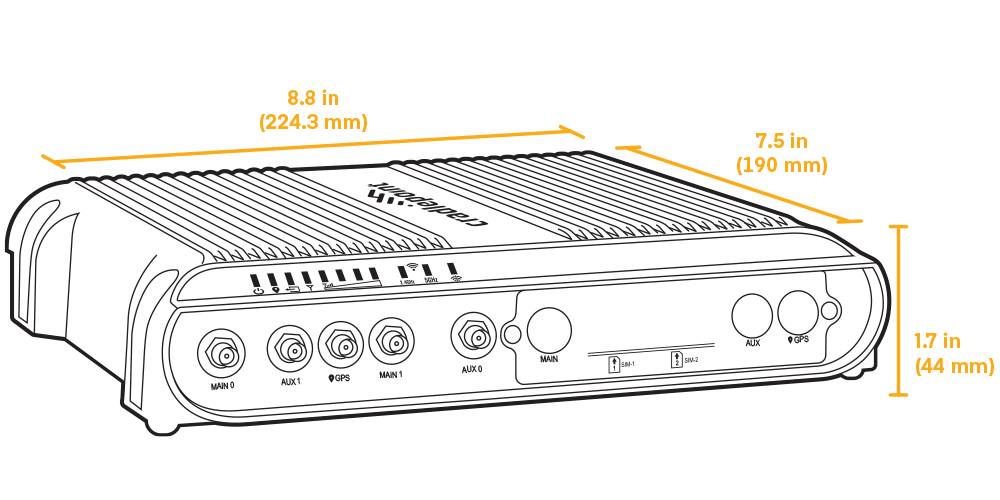

Dimensions
224.3 x 190 x 44 mm (8.8 x 7.5 x 1.7 in)

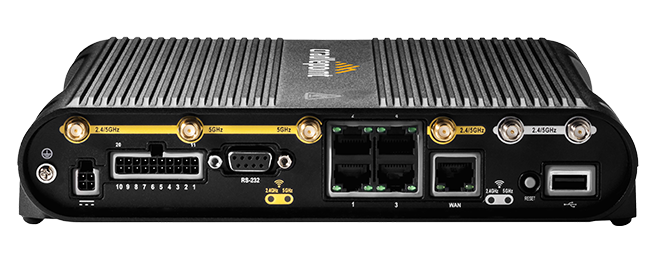

Interfaces

Wi-Fi
Tri-radio, dual-band, concurrent (2.4 GHz and 5 GHz); two 2x2 MU-MIMO 802.11n; one 4x4 MU-MIMO 802.11ac Wave 2
Modem
Embedded 1200M-B modem with 4 x SMA cellular antenna connectors; optional MC400 modular modem for dual modem
Ethernet
5 x GbE (LAN/WAN switchable)
Expansion
1 x MC400 modular modem slot (300 Mbps peak); 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W); 1 x GPIO; 1 x RS-232 serial
Wi-Fi Modes
AP, Wireless Client, and Wi-Fi as WAN
Wi-Fi Ssids
Multiple SSIDs
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, WEP Auto, Open
GNSS Connector
1 x SMA GPS antenna connector
Wi-Fi Data Rates
Silver SMAs: 574 Mbps (2.4 GHz), 1.2 Gbps (5 GHz); Gold SMAs 2x2: 574 Mbps (2.4 GHz); Gold SMAs 4x4: 1.733 Gbps (5 GHz)
Wi-Fi Certification
Wi-Fi Alliance Certified
Wi-Fi Antenna Connectors
6 x RP-SMA Wi-Fi antenna connectors

Wi-Fi Power

Fcc
2.4 GHz 29.2 dBm; 5150–5250 MHz 29.0 dBm; 5725–5850 MHz 30.0 dBm (conducted)
EU Rest OF World
2.4 GHz 17.3 dBm; 5180-5240 MHz 17.8 dBm (conducted)
Australia New Zealand
Radio 1 (2x2): 2.4 GHz 30.9, 5180-5240 MHz 19.5, 5260-5320 MHz 19.5, 5500-5700 MHz 26.3, 5745-5825 MHz 29.1 dBm; Radio 2 (4x4): 5180-5240 MHz 18.0, 5260-5320 MHz 18.0, 5500-5700 MHz 25.0, 5745-5825 MHz 30.5 dBm (conducted)

Performance

L2 L3 Vlans
Up to 64
Stateful Firewall
940 Mbps
Typical Client Count
30
Concurrent VPN Tunnels
10
Concurrent Sessions Tcp
32,000
Point TO Point Ipsec VPN
20 Mbps

Reliability

Calculated MTBF
286,853 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP64 (dust tight and splashing water)
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Cellular Modem

SMS
Yes
GNSS
Discrete active GPS with dead reckoning
MIMO
4x4 MIMO
Antennas
SMA male connectors; external 600 MHz-6 GHz cellular paddle antennas (not included in this SKU)
Modulation
Up to 256 QAM
Regulatory
FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ)
Technology
Cat 18 LTE Advanced Pro; dual 2FF SIM slots; SIM-based auto-carrier selection; 3GPP Release 12
Fallback 3g
WCDMA/DC-HSPA+
Peak Uplink
LTE 150 Mbps; DC-HSPA+ 5.76 Mbps
Wcdma Bands
1, 2, 4, 5, 8, 9, 19
LTE Fdd Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE Tdd Bands
B38, B39, B40, B41, B42, B43, B46, B48
Peak Downlink
LTE 1.2 Gbps; DC-HSPA+ 42.2 Mbps
Transmit Power
LTE 23 dBm ± 1; DC-HSPA+ 23 dBm ± 1 (typical conducted)
Carrier Aggregation
Up to 5 CA downlink, 2 CA uplink
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada), GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted, Verizon Frontline
Network Operator Certifications
AT&T, Verizon

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1, e-Mark
Security
FIPS 140-2 Inside (IBR1700-FIPS models only)
Substance Compliance
WEEE, RoHS, RoHS-2, California Prop 65
Shock Vibration Humidity
MIL-STD-810G; SAE J1455

Cloud Services

Support
Support for the full subscription term (phone 24-hour weekdays with weekend emergency response, web 24x7, chat 24x5)
Warranty
Limited lifetime warranty for as long as an active NetCloud Service plan subscription is held
Service Plans
NetCloud Service for Mobile
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Product Summary

PoE
No
Wi-Fi
Dual-band, tri-radio 802.11ac Wave 2 (Wi-Fi 5)
Category
Mobile
GPS GNSS
Active
5G Status
5G-enabled with Cradlepoint 5G Adapter
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Ruggedized Metal
VPN Tunnels
10
Serial Ports
1
Ethernet Ports
5 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Discrete GPS with Dead Reckoning and Serial Port with OBD-II functionality
Dual Modem Support
Yes
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Gigabit-Class LTE
Private Cellular Network
Yes, CBRS, 4G LTE
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Does this IBR1700 bundle include antennas or an AC power supply?

No. This configuration is Cat 18 (1200 Mbps) with Wi-Fi, with no AC power supply or antennas. The router runs from 9-36 VDC, and an external 12 VDC supply is an optional accessory.

Can the IBR1700 connect to 5G?

The IBR1700 itself uses an embedded Cat 18 LTE modem. It is 5G ready through its MC400 modular modem slot, and it can act as the controller for a Cradlepoint 5G adapter in captive mode.

What GPS capabilities does the IBR1700 have?

It has discrete active GPS with dead reckoning, tracking GPS, Galileo, GLONASS and BeiDou. Horizontal accuracy is under 2 m (50%) and under 5 m (95%), and data is output in NMEA 0183 for Automatic Vehicle Location integration.

What does the 5-year subscription include?

It includes NetCloud Mobile Essentials and Advanced plans for five years. That covers NetCloud Manager device management and software updates, 24x7 support and a limited lifetime hardware warranty while the subscription is active. The Advanced plan adds threat management, web filtering, application visibility, analytics and coverage maps.

How many devices can I connect by cable?

The IBR1700 has five Gigabit Ethernet ports, each switchable between LAN and WAN. It also has a USB 2.0 port, a GPIO connector and an RS-232 serial port.
