Cradlepoint5G & LTE Routers

Cradlepoint IBR600C LTE Cat 4 IoT Router with Wi-Fi and 3-Year NetCloud IoT Essentials + Advanced (North America)

4G LTEMPN TBA3-600C150M-NN
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
  • 3 years included

Pricing on request

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

Request a quote

or email info@cloudcarenetworks.com

Datasheets & documents

Overview

The Ericsson Cradlepoint IBR600C is a compact, semi-ruggedized, cloud-managed LTE router built for IoT and M2M deployments. This North America (U.S. and Canada) package, part number TBA3-600C150M-NN, pairs the IBR600C with an embedded Cat 4 modem (150 Mbps down, 50 Mbps up), dual SIM slots, 2.4 GHz Wi-Fi 4 and passive GNSS. It also includes a 3-year NetCloud IoT Essentials + Advanced subscription for zero-touch deployment, cloud management and support. The metal housing runs from -20 °C to 60 °C and accepts 9-33 VDC input with ignition sensing.

  • Embedded LTE Cat 4 modem: up to 150 Mbps downlink and 50 Mbps uplink, 2x2 MIMO, DC-HSPA+ fallback
  • Dual 2FF SIM slots with SIM-based auto-carrier selection
  • 2x2 MIMO 802.11b/g/n Wi-Fi 4 (2.4 GHz, 300 Mbps) with two SSIDs and WPA3 support
  • 1 x GbE and 1 x FE port (both LAN/WAN switchable), 1 x USB 2.0 and an extensibility port for a second modem via the COR Extensibility Dock
  • Passive GNSS supporting GPS, GLONASS, BeiDou and Galileo
  • Semi-ruggedized metal housing, -20 °C to 60 °C operation, 9-33 VDC input with ignition sensing, MIL-STD 810G and SAE J1455
  • 3-year NetCloud IoT Essentials + Advanced subscription for North America (U.S. & Canada)
  • Deploy and manage fleets of IoT endpoints from NetCloud Manager with zero-touch deployment and bulk configuration

The Cradlepoint IBR600C is a small, semi-ruggedized LTE router for IoT networks. It suits kiosks, digital signage, remote sensors, vending, utility cabinets and light vehicle installs where a device needs a dependable cellular link and central management. This SKU is configured for North America (U.S. and Canada) and ships as a package with 3 years of Ericsson NetCloud IoT Essentials + Advanced. That subscription covers NetCloud Manager, software and firmware updates, 24x7 support and a limited lifetime hardware warranty for as long as the subscription stays active.

The embedded LTE Cat 4 modem delivers up to 150 Mbps downlink and 50 Mbps uplink with 2x2 MIMO, and falls back to DC-HSPA+. Two 2FF SIM slots with SIM-based auto-carrier selection let you run two carriers on one router. The North American modem covers LTE bands 2, 4, 5, 12, 13, 14, 66 and 71 plus TDD bands 38, 40 and 41. It is PTCRB certified, carries AT&T and Verizon network certifications, and is FirstNet Trusted and Verizon Frontline certified for public-safety use.

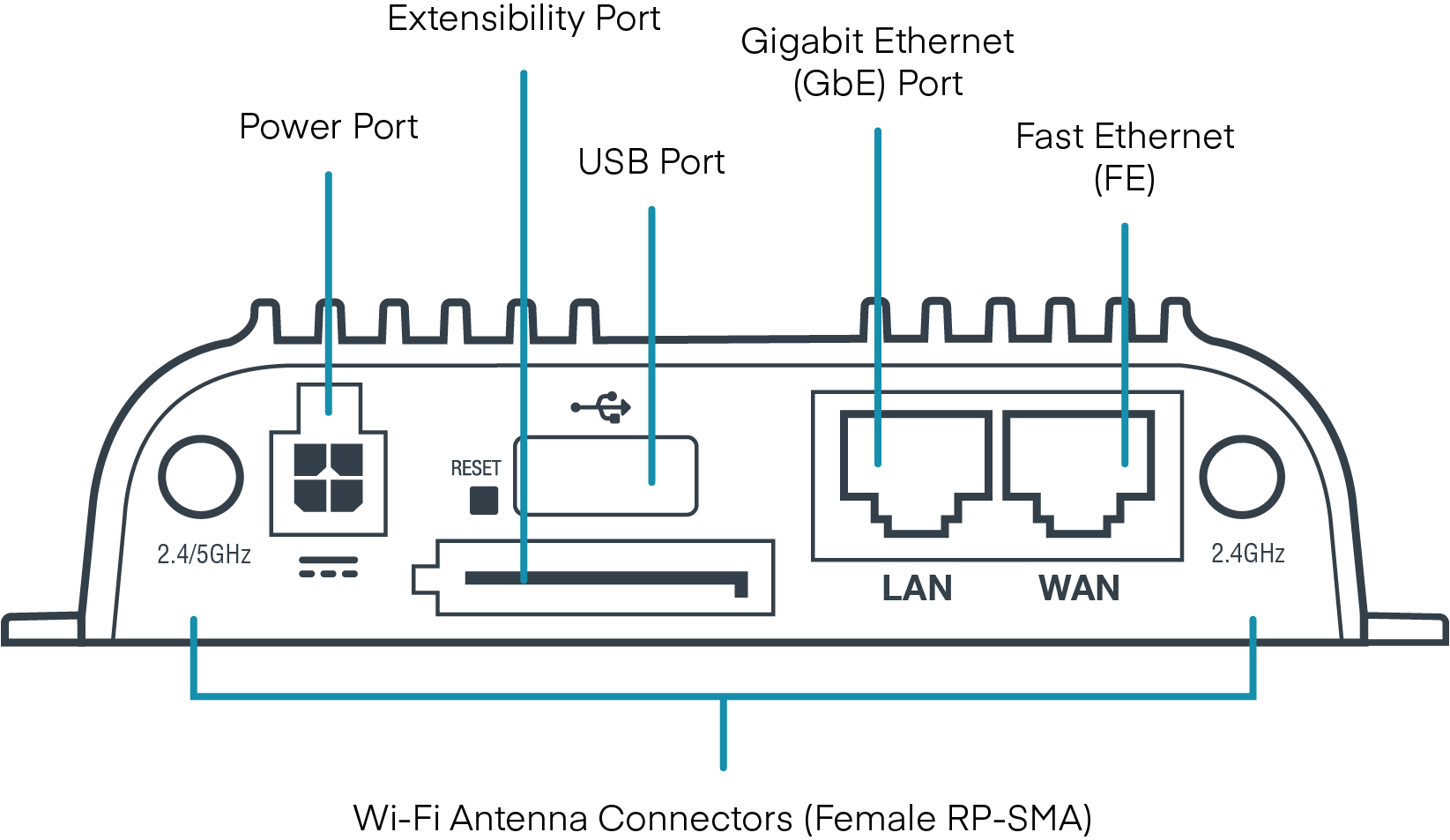

On the local side, the router has one Gigabit and one Fast Ethernet port, both LAN/WAN switchable. It also offers single-band 2.4 GHz 802.11n Wi-Fi at up to 300 Mbps with two SSIDs and WPA3, a USB 2.0 port and passive multi-constellation GNSS. An extensibility port accepts the COR Extensibility Dock, which adds a second modem (MC400) and extra GPIO.

The package includes a 12 VDC 3A AC power supply and two 600 MHz to 6 GHz paddle antennas. For vehicle installs, the 9-33 VDC input adds reverse-polarity and transient protection (ISO 7637-2) plus ignition sensing. The unit is rated to MIL-STD 810G and SAE J1455. A manufacturer datasheet is available for full technical detail.

Ideal for

  • Kiosks, digital signage and vending machines needing a managed LTE link
  • Remote sensors, SCADA and utility cabinets with M2M telemetry
  • Light vehicle and portable deployments using ignition sensing and GNSS location
  • Dual-carrier IoT endpoints where uptime matters
  • Public-safety IoT on FirstNet or Verizon Frontline

Specifications

Modem

Qam
Up to 16 QAM
SMS
SMS supported
GNSS
GPS, GLONASS, BeiDou, Galileo
MIMO
2x2 MIMO
Antennas
2 x 600 MHz-6 GHz paddle antennas (included), SMA female
Fallback
WCDMA/UMTS/HSPA+
LTE Bands
FDD B2/4/5/12/13/14/66/71; TDD B38/40/41
Regulatory
FCC, IC
Technology
LTE Cat 4 (Rel. 11), DC-HSPA+, dual 2FF SIM, auto-carrier selection
Peak Uplink
LTE 50 Mbps; WCDMA 5.76 Mbps
Wcdma Bands
WCDMA B2, B4, B5
Peak Downlink
LTE 150 Mbps; WCDMA 42.2 Mbps
Transmit Power
LTE 23 dBm ± 1; DC-HSPA+ 23 dBm ± 1
Network Operator Standards
PTCRB (U.S., Canada)
Public Safety Certifications
FirstNet Trusted, Verizon Frontline
Network Operator Certifications
AT&T, Verizon

Power

Input
9-33 VDC, or included 100-240 VAC to 12 VDC 3A power supply
Features
Reverse polarity and transient protection (ISO 7637-2); ignition sensing
Consumption
Idle 4 W; Wi-Fi TX/RX 9 W; LTE TX/RX 6.25 W

General

MPN
TBA3-600C150M-NN
Brand
Ericsson Cradlepoint
Model
IBR600C Series Router
Region
North America (U.S. & Canada)
Subscription Plan
NetCloud IoT Essentials + Advanced Plans
Subscription Term
3-year subscription
Hardware Configuration
Cat 4 (150 Mbps) with Wi-Fi

Package

Support
Phone 24h weekdays with weekend emergency response; web 24x7; chat 24x5
Contents
Router, AC power supply, 2 paddle antennas, 3-year NetCloud IoT Essentials + Advanced
Warranty
Limited lifetime warranty with active subscription

Physical

Weight
400 g (14 oz)

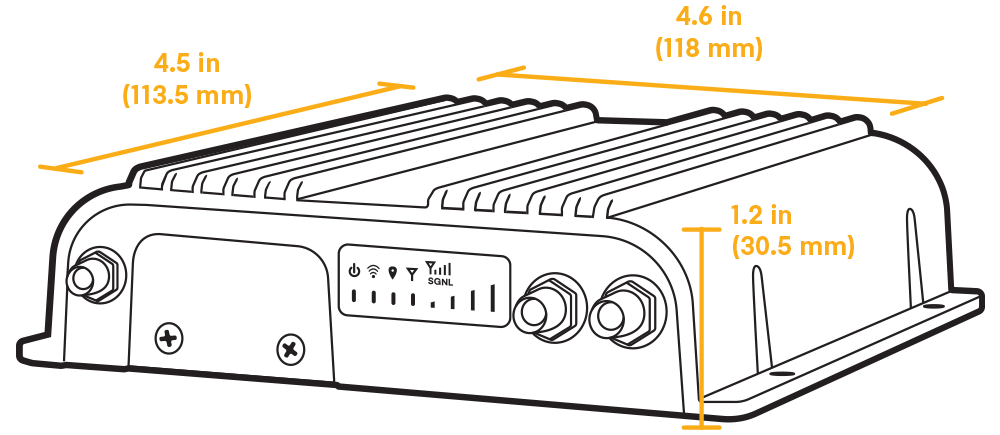

Dimensions
118 x 113.5 x 29.3 mm (4.6 x 4.5 x 1.2 in)
Form Factor
Metal, semi-ruggedized

Interfaces

Wi-Fi
2.4 GHz 2x2 MIMO Wi-Fi 4, 300 Mbps, 2 SSIDs, WPA3, Wi-Fi Alliance Certified
Modem
Embedded 150M modem, 2 x SMA cellular connectors; optional second modem (MC400) via COR Extensibility Dock
Ethernet
1 x GbE + 1 x FE, both LAN/WAN switchable
Expansion
USB 2.0 Type A (5V/500mA), Extensibility Port, Extensibility Dock, 9-wire power/GPIO cable, serial port adapter
GNSS Connector
1 x SMA GNSS antenna connector

Wi-Fi Power

Fcc
2.4 GHz: 28.1 dBm conducted
Canada
2.4 GHz: 28.1 dBm conducted
Rest OF World
2.4 GHz: 15.44 dBm conducted; 20 dBm EIRP

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Stateful Firewall
75 Mbps
Ipsec VPN Throughput
10 Mbps point-to-point IPsec VPN
Typical Client Count
5 clients
Concurrent VPN Tunnels
5 tunnels
Concurrent Tcp Sessions
16,000

Reliability

MTBF
892,499 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Operating Humidity
5% to 95%
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 60950-1, EN 62368-1, MIL-STD 810G, SAE J1455
Materials
WEEE, RoHS, REACH, California Prop 65

Product Summary

PoE
No
Wi-Fi
802.11 b/g/n (Wi-Fi 4)
GPS GNSS
Passive
USB Ports
1
Throughput
75 Mbps (Firewall)
VPN Tunnels
5
Serial Ports
0
Five G Status
None
Ethernet Ports
1 GbE, 1 FE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Second modem, semi-ruggedized form factor, extra GPIO with Extensibility Dock
Dual Modem Support
Yes, with COR Extensibility Dock
Subscription Terms
3 & 5 years
Wireless Connectivity
LTE
Private Cellular Network
Yes, 4G LTE (no CBRS)
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Does the IBR600C support 5G?

No. It uses an embedded LTE Cat 4 modem with up to 150 Mbps downlink and 50 Mbps uplink, with DC-HSPA+ fallback.

What does the TBA3-600C150M-NN package include?

The IBR600C router configured for the U.S. and Canada, a 12 VDC 3A AC power supply, two 600 MHz to 6 GHz cellular paddle antennas, and a 3-year NetCloud IoT Essentials + Advanced subscription.

Can I run two carriers?

Yes. The router has two 2FF SIM slots with SIM-based auto-carrier selection. With the COR Extensibility Dock and an MC400 modem you can also add a second modem.

Can it be powered in a vehicle?

Yes. It accepts 9-33 VDC input with reverse-polarity and transient voltage protection (ISO 7637-2) and ignition sensing for automatic on and time-delayed off.

What warranty and support come with the subscription?

NetCloud IoT Essentials packages include 24x7 support for the term and a limited lifetime hardware warranty for as long as an active Essentials or Essentials + Advanced subscription is on the router.
