Zebra TC58e 5G Rugged Mobile Computer, 6GB/64GB, SE4770 Imager, Wi-Fi 6E (TC58AE-3T1J1B1A10-FT)

5GMPN TC58AE-3T1J1B1A10-FT
  • 64 GB
  • Rugged
$3,288.99$3,855.07Save $566.08

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

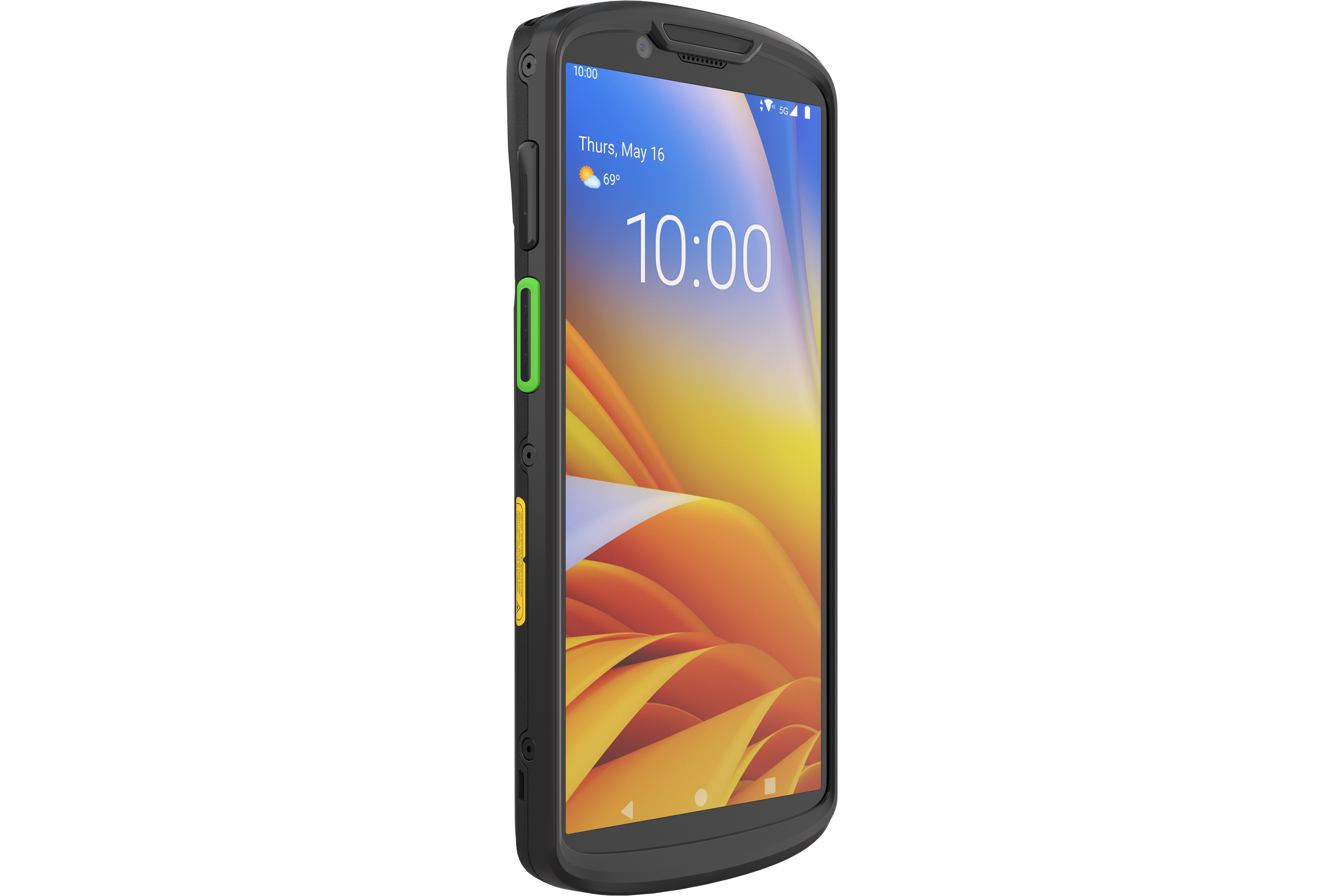

The Zebra TC58e (TC58AE-3T1J1B1A10-FT) is a rugged 5G Android mobile computer for retail, field service and delivery teams. This configuration pairs 5G FR1 with CBRS and Wi-Fi 6E, an SE4770 2D imager for indoor and bright-sunlight scanning, 6GB RAM / 64GB flash, 16 MP rear and 8 MP front cameras, a Secure Element and a warm-swappable 4680 mAh battery that works with wireless charging. It is IP68/IP65 sealed and exceeds MIL-STD-810H drop specifications.

  • 5G FR1 WWAN with CBRS, one nano SIM and one eSIM
  • Wi-Fi 6E 2x2 MU-MIMO and Bluetooth 5.3
  • SE4770 1D/2D imager with integrated NFC
  • 6GB RAM / 64GB UFS flash, microSD up to 2 TB, Qualcomm 4490 octa-core 2.4 GHz
  • 6.0-inch FHD+ 600-nit display with Corning Gorilla Glass, glove and wet touch
  • IP68/IP65 sealing and MIL-STD-810H drop performance
  • Secure Element, FIPS 140-2 and Common Criteria; warm-swap 4680 mAh battery
  • Keep workers connected on public 5G, LTE or private CBRS networks with nano SIM plus eSIM flexibility

The Zebra TC58e is the cellular model of Zebra's TC53e/TC58e family, an extension of the TC58 built for frontline workers who operate inside and outside the four walls. This part number, TC58AE-3T1J1B1A10-FT, shares its base configuration with Zebra's North America SKU TC58AE-3T1J1B1A10-NA: 5G FR1 with CBRS, 16 MP rear and 8 MP front cameras, Secure Element, warm swap and Google Mobile Services, with 6GB RAM, 64GB UFS flash, the SE4770 2D imager and integrated NFC.

A Qualcomm 4490 Kryo octa-core processor at 2.4 GHz runs Android, while second-generation 5G, Wi-Fi 6E (2x2 MU-MIMO, tri-band) and Bluetooth 5.3 keep data and voice moving. One nano SIM plus one eSIM, support for private LTE/5G networking, and dual-band GNSS suit route and delivery work. The SE4770 captures barcodes, photos and documents indoors and in direct sunlight, and NFC supports Apple VAS, Google Smart Tap and contactless payment workflows.

The 6.0-inch Full HD+ (1080 x 2160) display reaches 600 nits, is optically bonded under Corning Gorilla Glass and works with wet or gloved fingers. Three microphones with AI noise suppression and dual speakers support cellular voice, VoLTE, VoIP and push-to-talk. The device is IP68 and IP65 sealed, survives 8 ft (2.4 m) drops to concrete with the boot, and operates from -4°F to +122°F.

Security is handled by a dedicated Secure Element, FIPS 140-2 validation, Common Criteria certification and Secure Boot/Verified Boot. The standard 4680 mAh (18.01 Wh) PowerPrecision+ battery supports warm swap, fast charging and wireless charging. The box contains the mobile computer, regulatory guide and quick start guide.

Ideal for

  • Proof of pickup and delivery with photo capture for couriers and postal carriers
  • Route accounting, invoicing and mobile point of sale in the field
  • Retail price checks, inventory counts, BOPIS order fulfillment and line busting
  • Field service asset management and parts inventory
  • Staff communications with push-to-talk over Wi-Fi and cellular

Specifications

Power

Battery
4680 mAh (18.01 Wh) standard battery, wireless charging compatible
Battery Life
Up to 15 hours (standard, BLE and wireless charge batteries)
Battery Options
Standard, extended, BLE and Qi wireless charge batteries
Battery Features
PowerPrecision+, fast charging, warm swap

General

MPN
TC58AE-3T1J1B1A10-FT
Brand
Zebra Technologies
Model
TC58e Mobile Computer
Replaces
Replaces TC57, TC57x
Product Family
Zebra TC5 Series
Sku Configuration
5G FR1, CBRS, 16MP rear camera, 8MP front camera, Secure Element, warm swap, GMS
Base Configuration
Same base configuration as TC58AE-3T1J1B1A10-NA (North America only)

Package

IN The Box
Mobile computer, regulatory guide, quick start guide
Shipping Weight
2.00 lb

Sensors

Interactive Sensor Technology
Light, magnetometer, motion, pressure, proximity, gyro

Data Capture

NFC
NFC with contactless payment, Apple VAS and Google Smart Tap
Rear Camera
16 MP autofocus, LED flash, Torch mode, HDR
Scan Engine
SE4770 1D/2D imager (this SKU)
Front Camera
8 MP front camera
Scan Engine Options Family
Family options: SE55, SE4720, SE4770

Wireless LAN

Radio
Wi-Fi 6E 802.11ax, 2x2 MU-MIMO
Fast Roam
PMKID, CCKM, 802.11r, OKC
Data Rates
Up to 2402 Mbps (5 GHz and 6 GHz)
Multimedia
WMM, WMM-PS, TSPEC
Certifications
Wi-Fi CERTIFIED 6E and related Wi-Fi Alliance certifications
Operating Channels
2.4, 5 and 6 GHz channels, up to 160 MHz
Security And Encryption
WPA3 Personal/Enterprise incl. 192-bit, OWE, EAP-SIM/AKA

Wireless Pan

Bluetooth
Bluetooth 5.3, Class 1/2

Wireless WAN

GNSS
Dual-band GNSS (L1 + L5), a-GPS
Network
5G FR1 with CBRS
Private Networking
Private LTE/5G supported
Bands 3g North America
B2/4/5
Bands 4G North America
LTE: B2/4/5/7/12/13/14/17/25/26/29/30/38/41/48/66/71
Bands 5G North America
5G FR1: n2/5/7/12/13/14/25/26/29/30/38/41/48/66/71/77/78

Certifications

Epeat
EPEAT Gold Certified
Recycled Content
25% post-consumer recycled plastic
General Certifications
FIPS 140-2, Common Criteria, NFC Forum, AER
Environmental Compliance
RoHS compliant

User Environment

Esd
±15 kV air, ±8 kV direct/indirect
Sealing
IP68 and IP65
Humidity
5% to 95% non-condensing
Drop Specification
Up to 8 ft (2.4 m) to concrete with boot, MIL-STD-810H
Storage Temperature
-40°F to +158°F (-40°C to +70°C)
Tumble Specification
1,000 tumbles at 0.5 m (no boot) / 1.0 m (with boot)
Operating Temperature
-4°F to +122°F (-20°C to +50°C)

Software And Services

Warranty
1 year Zebra hardware warranty from date of shipment
Zebra Dna
Zebra DNA supported
Recommended Services
Zebra OneCare, VisibilityIQ Foresight

Physical Characteristics

SIM
1 nano SIM + 1 eSIM
Keypad
On-screen keypad and enterprise keyboard
Weight
9.9 oz (282 g) with standard battery
Buttons
Dual scan, PTT, volume, trigger-handle support
Display
6.0-inch FHD+ 1080 x 2160, 600 nits, optically bonded
Backlight
LED
Dimensions
6.48 in L x 3.04 in W x 0.66 in H (164.8 x 77.35 x 16.75 mm)
Touch Panel
Capacitive multi-mode touch, glove/stylus input, water droplet rejection, anti-smudge
Imager Window
Corning Gorilla Glass
Notifications
Audible tone, multi-color LEDs, haptic feedback
Expansion Slot
MicroSD up to 2 TB
Interface Ports
USB 2.0 back I/O (host); USB-C 3.1 bottom (host/client)
Voice And Audio
AI noise suppression mics, dual speakers, PTT headset, HD voice, VoLTE EVS, VoIP SWB
Network Connections
WLAN, Bluetooth, USB 2.0 back I/O, USB-C 3.1, WWAN 5G

Performance Characteristics

CPU
Qualcomm 4490 Kryo octa-core, 2.4 GHz
Memory
6GB RAM / 64GB UFS Flash (this SKU)
Security
FIPS 140-2, Common Criteria, Secure Boot, Verified Boot, Secure Element
Operating System
Android with Google Mobile Services
Memory Options Family
Family options: 6/64GB, 8/64GB, 8/128GB

Questions buyers ask

Does the TC58AE-3T1J1B1A10-FT support 5G and private networks?

Yes. It has a 5G FR1 WWAN radio with CBRS and supports private LTE/5G networking, with one nano SIM and one eSIM.

Which scanner does this TC58e configuration use?

It uses the SE4770 1D/2D scan engine, which captures barcodes, photos and documents indoors and outdoors, including in bright sunlight. Integrated NFC is also included.

Can the battery be changed during a shift?

Yes. The 4680 mAh (18.01 Wh) PowerPrecision+ battery supports warm swap mode, fast charging and wireless charging.

How rugged is the TC58e?

It is IP68 and IP65 sealed, exceeds MIL-STD-810H with 8 ft (2.4 m) drops to concrete when used with the boot, handles 1,000 tumbles, and operates from -4°F to +122°F.

What comes in the box?

The mobile computer, a regulatory guide and a quick start guide.
