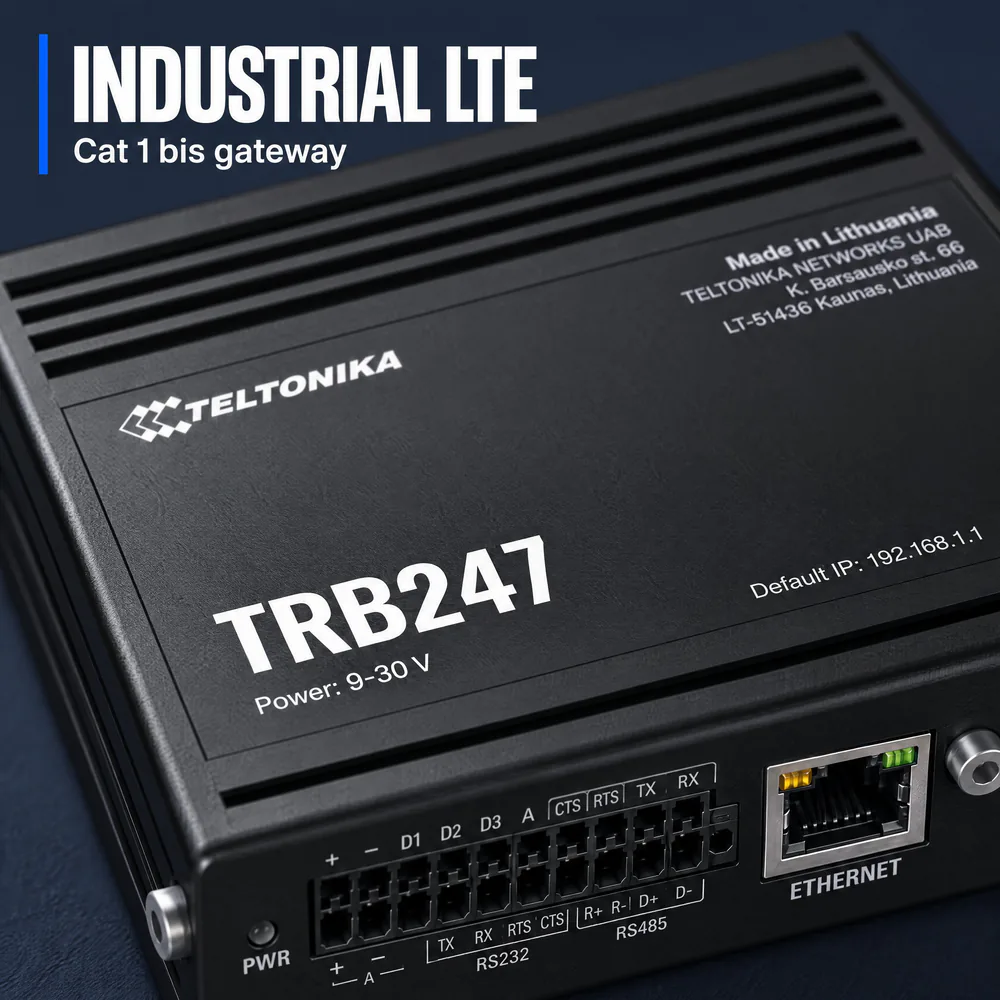

Teltonika TRB247 LTE Cat 1 bis Industrial IoT Gateway with RS232/RS485, I/O and GNSS (North America)

LTE Cat 1MPN TRB247010000

1 × 1 Gb Ethernet

$184.00$194.00Save $10

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

Request a quote · volume, multi-site or with plans

30-day returns on unopened devices
Secure checkout · pay by card
Data plans with no contract · cancel anytime

Datasheets & documents

Highlights

Overview

The Teltonika TRB247 is a compact industrial IoT gateway for the North American market. It pairs LTE Cat 1 bis connectivity (up to 10 Mbps down / 5 Mbps up) and dual Mini SIM failover with RS232, RS485, configurable digital I/O, one 10/100 Ethernet port and multi-constellation GNSS. It connects legacy equipment to cloud and SCADA platforms using Modbus, DNP3, DLMS, OPC UA, BACnet and MQTT. It runs on 9-30 VDC inside an anodised aluminium housing rated from -40 °C to 75 °C. This SKU (TRB247010000) ships without a power supply.

4G LTE Cat 1 bis (3GPP Release 14), up to 10 Mbps DL / 5 Mbps UL, on North American bands B2, B4, B5, B12, B13, B14, B66 and B71
Dual Mini SIM (2FF) slots with automatic failover and SIM idle protection
RS232 and RS485 serial interfaces, plus 3 digital inputs, 3 open-collector digital outputs and 1 analog input on a 16-pin terminal block
SCADA and IIoT protocols: Modbus RTU/TCP, DNP3, DLMS/COSEM, OPC UA, BACnet and a Modbus MQTT gateway
Data to Server over HTTP(S), MQTT and Azure MQTT, with Azure IoT Hub, AWS IoT Core, ThingWorx and Cumulocity integration
GNSS positioning (GPS, GLONASS, BeiDou, Galileo, QZSS) with geofencing and NTRIP
Anodised aluminium housing, -40 °C to 75 °C operation, 9-30 VDC input, FCC and ISED certified
Connects existing Modbus, DNP3, DLMS and BACnet equipment to cloud or SCADA systems without replacing field hardware

The Teltonika TRB247 is an LTE Cat 1 bis communicator for industrial and IIoT projects in North America. Its main job is to connect legacy equipment to modern cloud platforms. It handles serial devices on RS232 and RS485, reads sensors and switches through three digital inputs and three open-collector outputs, and offers one 10/100 Mbps Ethernet port for a local controller or HMI. The LTE module is a 3GPP Release 14 Cat 1 bis design with speeds up to 10 Mbps down and 5 Mbps up. It covers LTE-FDD bands B2, B4, B5, B12, B13, B14, B66 and B71. This hardware version uses two physical Mini SIM (2FF) slots in a stacked tray and has no eSIM. Automatic failover and SIM idle protection keep the backup SIM active.

Industrial protocols are built in. Modbus runs as server or client over RTU and TCP. DNP3 runs as station or outstation. The gateway also supports DLMS/COSEM client mode for utility meters, OPC UA client and server, and BACnet routing over IP and RS485. The Data to Server feature collects parameters from multiple sources and sends them over HTTP(S), MQTT or Azure MQTT. Integrations are available for Azure IoT Hub, AWS IoT Core, ThingWorx and Cumulocity.

The gateway runs RutOS, an OpenWrt-based Linux OS. RutOS provides the firewall with attack prevention, VLANs and 802.1x. VPN options include OpenVPN, IPsec, WireGuard, Tailscale, ZeroTier, DMVPN and more. For management, the device supports Teltonika RMS, TR-069, SNMP v1/v2/v3 and JSON-RPC. GNSS covers GPS, GLONASS, BeiDou, Galileo and QZSS, with geofencing and NTRIP support.

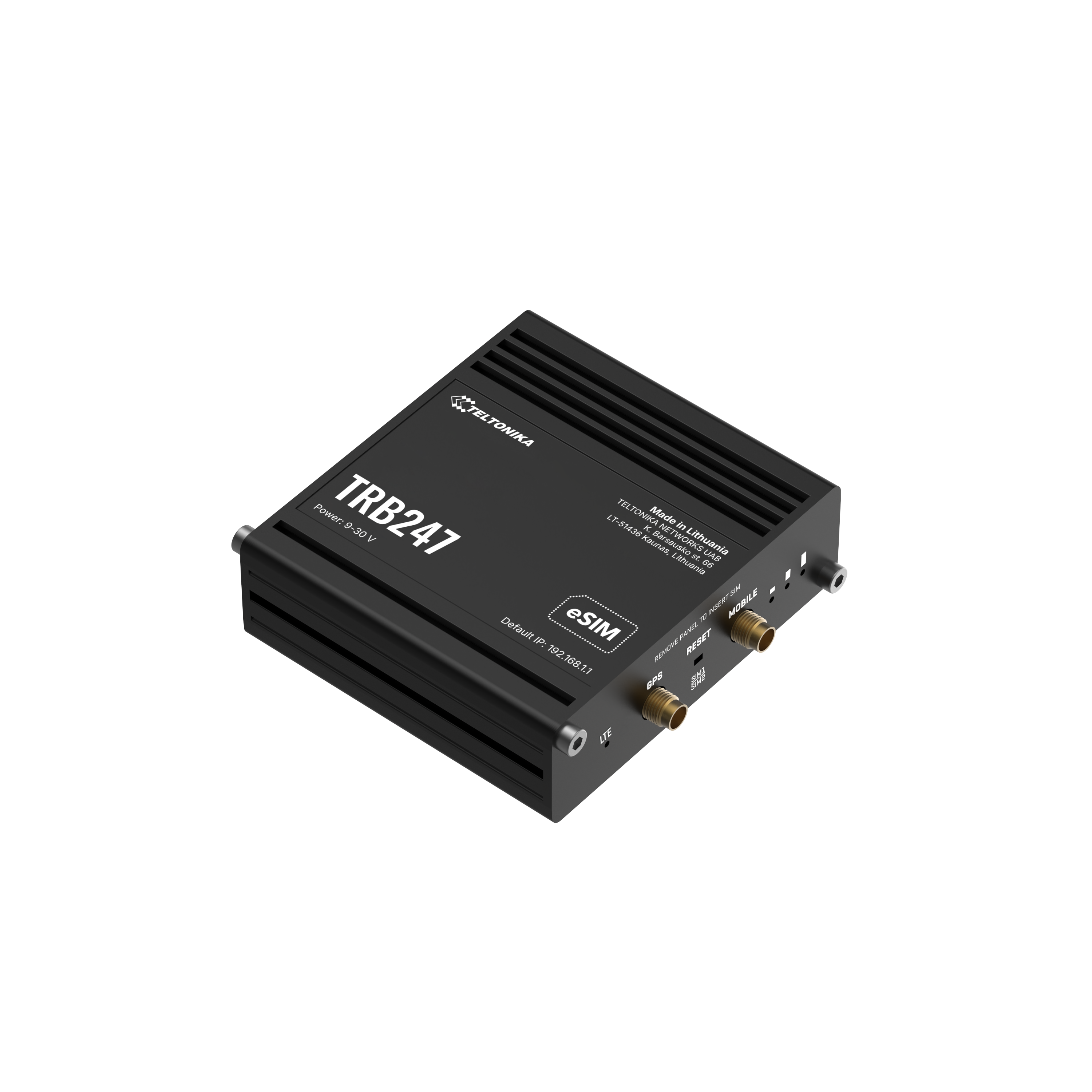

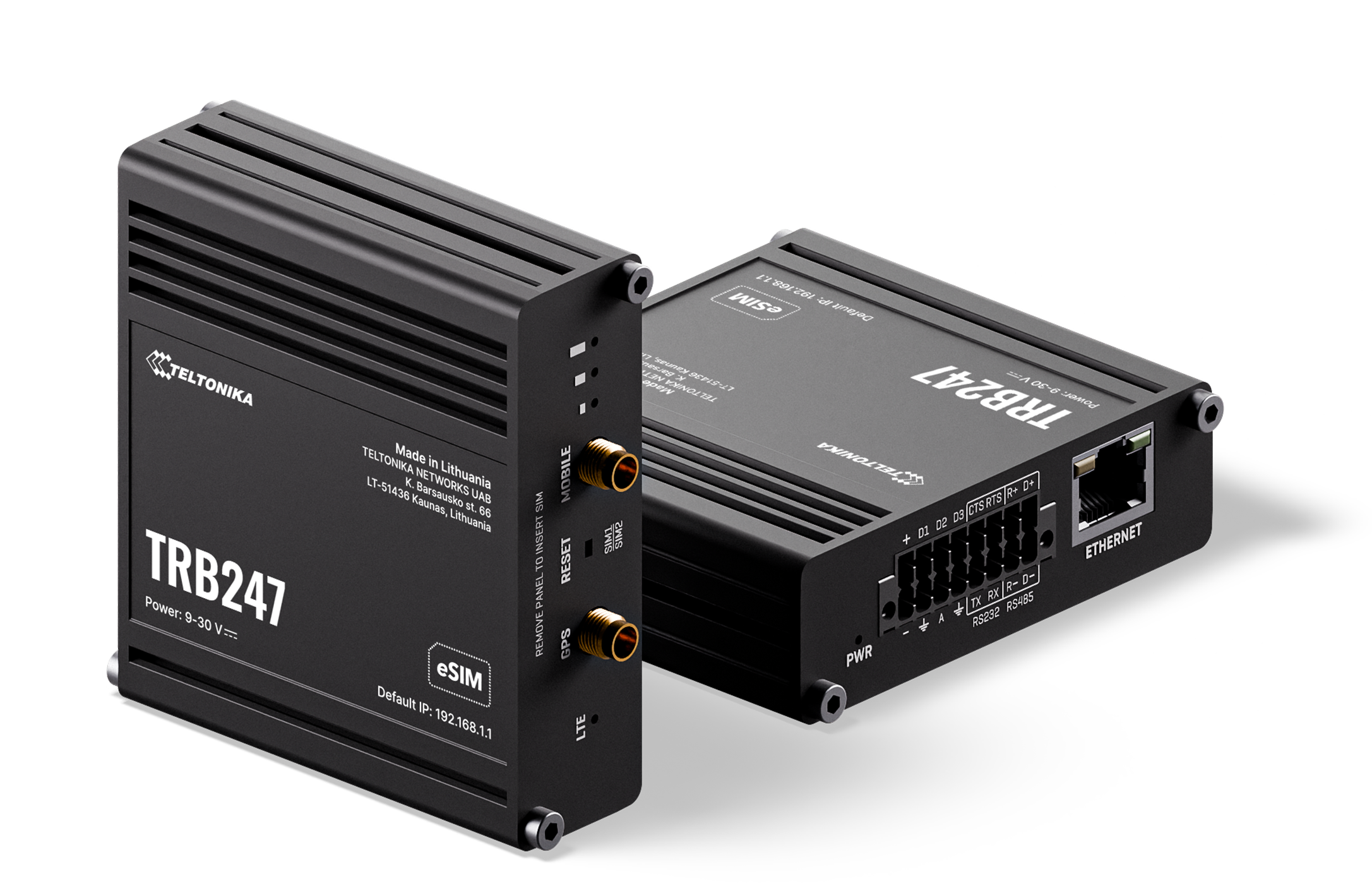

The housing is anodised aluminium, measures 83 x 25 x 82.6 mm and weighs 181 g. It carries an IP30 rating and operates from -40 °C to 75 °C. The device accepts 9-30 VDC with reverse polarity and surge protection and draws under 2.6 W at maximum. DIN rail, wall and flat-surface mounting are supported with additional kits. The unit is FCC and ISED certified.

Ideal for

Remote SCADA and RTU connectivity for utilities, water and wastewater sites using Modbus or DNP3 over LTE
Utility meter data collection via DLMS/COSEM over RS232/RS485
Building automation backhaul with BACnet routing over IP and RS485
Industrial machine and PLC telemetry to Azure IoT Hub, AWS IoT Core or MQTT brokers
Asset and vehicle tracking with GNSS positioning, geofencing and I/O-triggered alerts

Specifications

API

Teltonika Web API: Teltonika Networks Web API (beta): Configurable endpoints to retrieve or change data
Teltonika Networks Web API Beta Support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

VPN

Gre: GRE tunnel, GRE over IPsec
Sstp: Client
Tinc: Client and server with encryption, authentication and compression
Dmvpn: Phase 2, Phase 3 and Dual Hub support
Ipsec: XFRM, IKEv1, IKEv2, 14 encryption methods
Openvpn: Multiple clients and a server simultaneously, 27 encryption methods
Stunnel: TLS encryption proxy for existing clients and servers
Zerotier: Client
Pptp L2tp: Simultaneous client/server, L2TPv3, L2TP over IPsec
Tailscale: Encrypted point-to-point connections over WireGuard
Wireguard: Client and server
Openvpn Encryption: 27 methods including DES, 3DES, BF, CAST5, RC2 and AES-128/192/256 (CBC, CFB, OFB, GCM)

Dnp3

Supported Modes: Station, Outstation
Supported Connection Types: RTU (RS232, RS485), TCP

Power

Connector: 2-pin in 16-pin industrial terminal block
Power Consumption: Idle < 1.7 W, Max < 2.6 W
Input Voltage Range: 9-30 VDC, reverse polarity and surge protection

Bacnet

Supported Modes: Router
Configuration Options: Multiple BACnet/IP interfaces, network number assignment, preconfigured BDT entries for BBMD
Supported Connection Types: IP, RTU (RS485)

Mobile

Apn: Auto APN
SMS: SMS status, configuration, email to SMS, SMS to email, SMS to HTTP, SMS to SMS, scheduled SMS, autoreply, SMPP
Bridge: Direct connection between mobile ISP and device on LAN
Status: IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
Passthrough: Mobile WAN IP assigned to a LAN device
3gpp Release: Release 14
LTE Fdd Bands: B2, B4, B5, B12, B13, B14, B66, B71
Mobile Module: 4G LTE Cat 1 bis up to 10 Mbps DL / 5 Mbps UL
Band Management: Band lock, used band status display
Block Allow List: Operator block/allow list (by country or separate operators)
SIM Pin Management: SIM PIN Code Management: Set, change or disable SIM PIN
SIM Idle Protection: Periodic switch to unused SIM to prevent blocking
SIM Pin Code Management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
SIM Idle Protection Service: Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked

Modbus

Supported Modes: Server, Client
Custom Registers: Modbus TCP custom register block requests
Supported Data Formats: 8-bit INT/UINT; 16-bit INT/UINT; 32-bit float/INT/UINT (ABCD, DCBA, CDAB, BADC); HEX; ASCII
Supported Connection Types: RTU (RS232, RS485), TCP

Opc UA

Supported Modes: Client, Server
Supported Connection Types: TCP

Serial

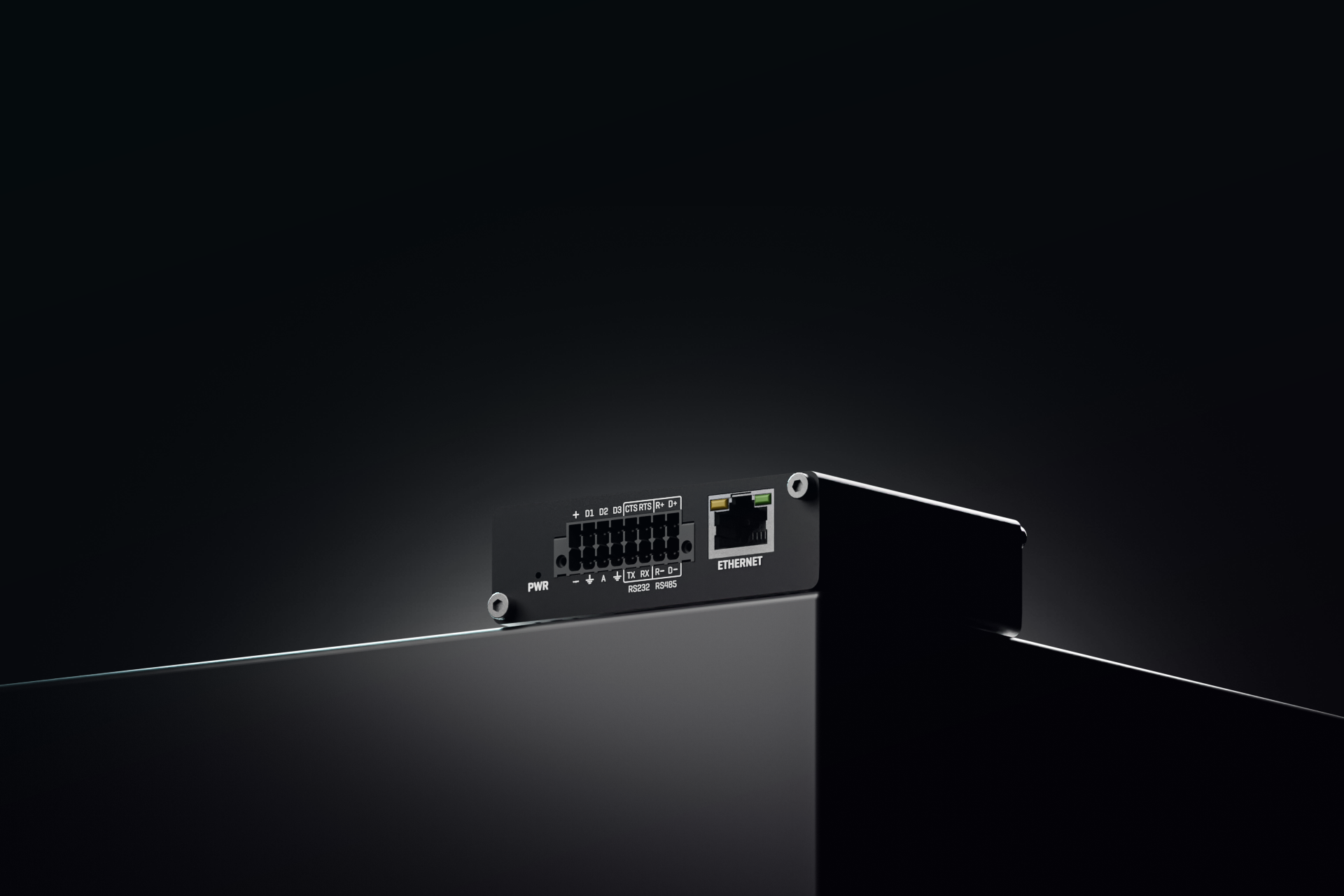

Rs232: Terminal block (TX, RX, RTS, CTS)
Rs485: Terminal block (D+, D-, R+, R-), 2 or 4 wire
Serial Functions: Console, Serial over IP, Modem, Modbus gateway, NTRIP client

General

MPN: TRB247010000
UPC: 4779051847822
eSIM: Not included on this hardware version
Brand: Teltonika Networks
Model: TRB247
HS Code: 851762
Hts Code: 8517.62.00
Device Type: LTE Cat 1 bis IoT gateway
Shipping Weight: 0.42 lb
Hardware Version: TRB247 01**** / North America

Network

Ddns: More than 77 service providers, others configurable manually
Dhcp: Static/dynamic allocation, relay, server configuration, status, static leases with MAC wildcards
Sshfs: Mount remote file system via SSH
Hotspot: Captive portal, RADIUS, MAC/SMS/SSO authentication, landing pages, walled garden, user groups and limits, 9 customisable themes
Qos Sqm: QoS / Smart Queue Management: Priority queuing by source/destination, service, protocol or port, WMM, 802.11e
Routing: Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy based
Firewall: Port forward, traffic rules, custom rules, TTL target customisation
Igmp Proxy: Multicast relay across network segments
Vrf Support: Initial VRF support
Dns Over Https: DoH proxy
Load Balancing: Across multiple WAN connections
Network Backup: Mobile, VRRP, wired, each usable as automatic failover
Port Mirroring: Ethernet traffic mirroring
Port Management: View, enable/disable ports, auto-configuration, transmission speed
Network Topology: Visual map of connected devices
Voip Passthrough: H.323 and SIP-alg NAT helpers
Network Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP(S), SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
Traffic Management: Real-time monitoring, signal charts, usage history
Firewall Status Page: Statistics, rules and rule counters
Connection Monitoring: Ping reboot, Wget reboot, periodic reboot, LCP and ICMP link inspection

Package

Contents: TRB247 Gateway, 2x8-pin connector, hex key, Quick Start Guide, packaging box
Package Type: Standard package without PSU
Power Supply Included: No

Ethernet

Ethernet: 1 x 10/100 Mbps port, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX

Security

Vlan: Port and tag-based separation
802 1x: Port-based network access control client
Firewall: Preconfigured WebUI rules, unlimited CLI configuration, DMZ, NAT, NAT-T, NAT64
Web Filter: Block list and allow list
Access Control: SSH, web interface, CLI and Telnet
Authentication: PSK, digital/X.509 certificates, TACACS+, internal and external RADIUS, IP and login-attempt blocking, time-based login blocking, random password generator
Attack Prevention: DDoS (SYN flood, SSH, HTTP/HTTPS) and port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL, FIN)
Certificate Manager: CA, server, client, Let's Encrypt, SCEP certificates
Mobile Quota Control: Data limit, period, start time, warning limit, phone number

Dlms Cosem

Dlms Support: Utility meter data exchange
Supported Modes: Client
Supported Connection Types: RTU (RS232, RS485), TCP

Input Output

Input: 3 x digital, 0-6 V logic low, 8-30 V logic high
Events: Email, RMS, SMS
Output: 3 x digital open collector, max 30 V, 300 mA
I/O Juggler: I/O conditions trigger events

Mqtt Gateway

Modbus Mqtt Gateway: Commands and data from Modbus server via MQTT broker

Iot Platforms

Thingworx: WAN type/IP, operator, signal strength, network type
Cumulocity: Device and mobile monitoring, reboot and firmware upgrade actions
Aws Iot Core: Cloud interaction, AWS Jobs support
Azure Iot Hub: Data to Server, Direct methods, zero-touch provisioning via DPS
Cumulocity Cloud OF Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Data TO Server

Protocol: HTTP(S), MQTT, Azure MQTT
Data TO Server: Multi-source collection to a single server, custom Lua scripting

Location Tracking

GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
Nmea: NMEA 0183
Ntrip: Networked Transport of RTCM via Internet Protocol
Geofencing: Multiple configurable zones
Coordinates: Via WebUI, SMS, TAVL, RMS
Server Software: TAVL, RMS

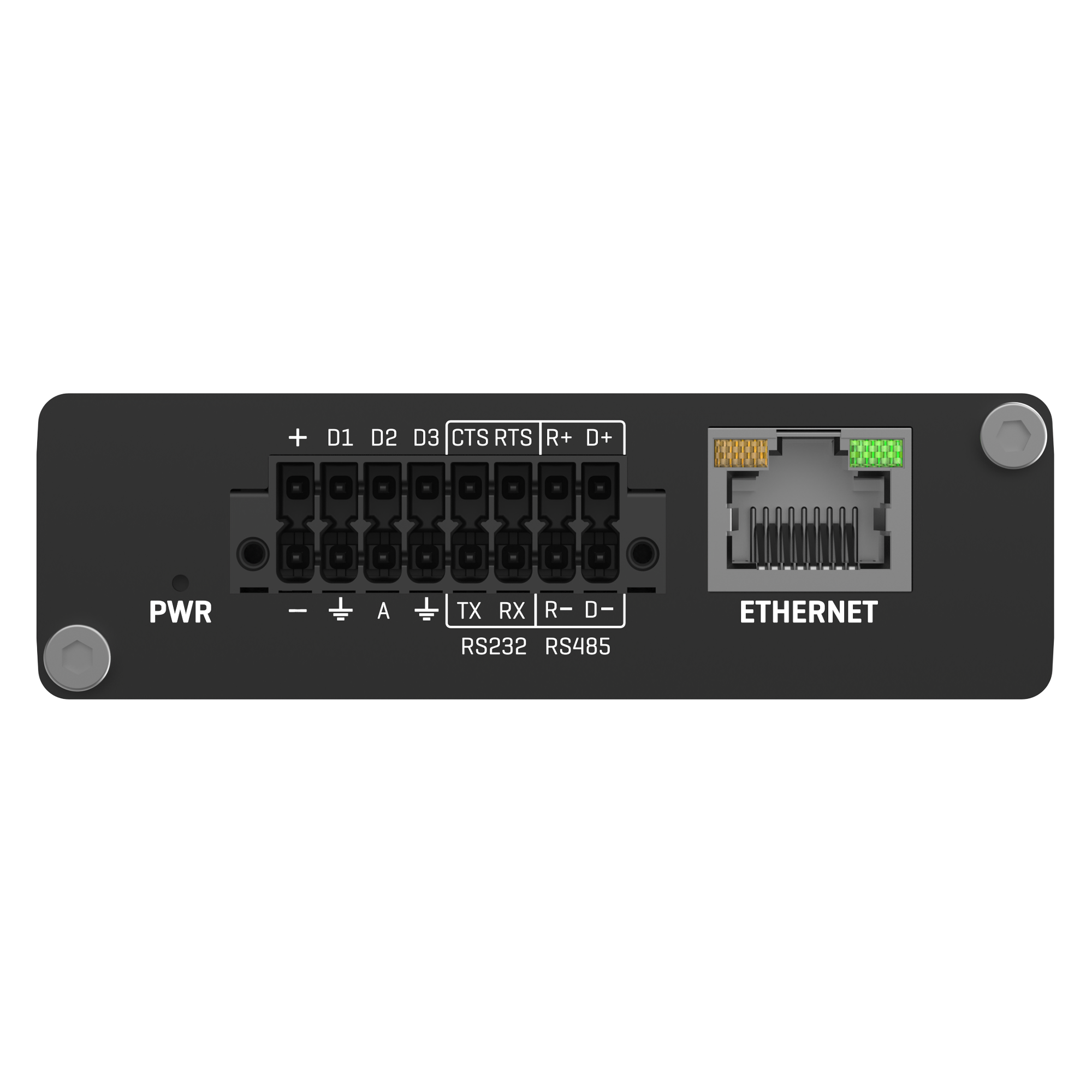

Physical Interfaces

Ios: 3 x configurable digital I/O (16-pin terminal block), 1 x analog input
SIM: 2 x Mini SIM (2FF), 1.8 V/3 V, double stacked tray
Power: 1 x 16-pin terminal block
Reset: Reboot / user default / factory reset button
Rs232: 4-pin in 16-pin terminal block
Rs485: 4-pin in 16-pin terminal block

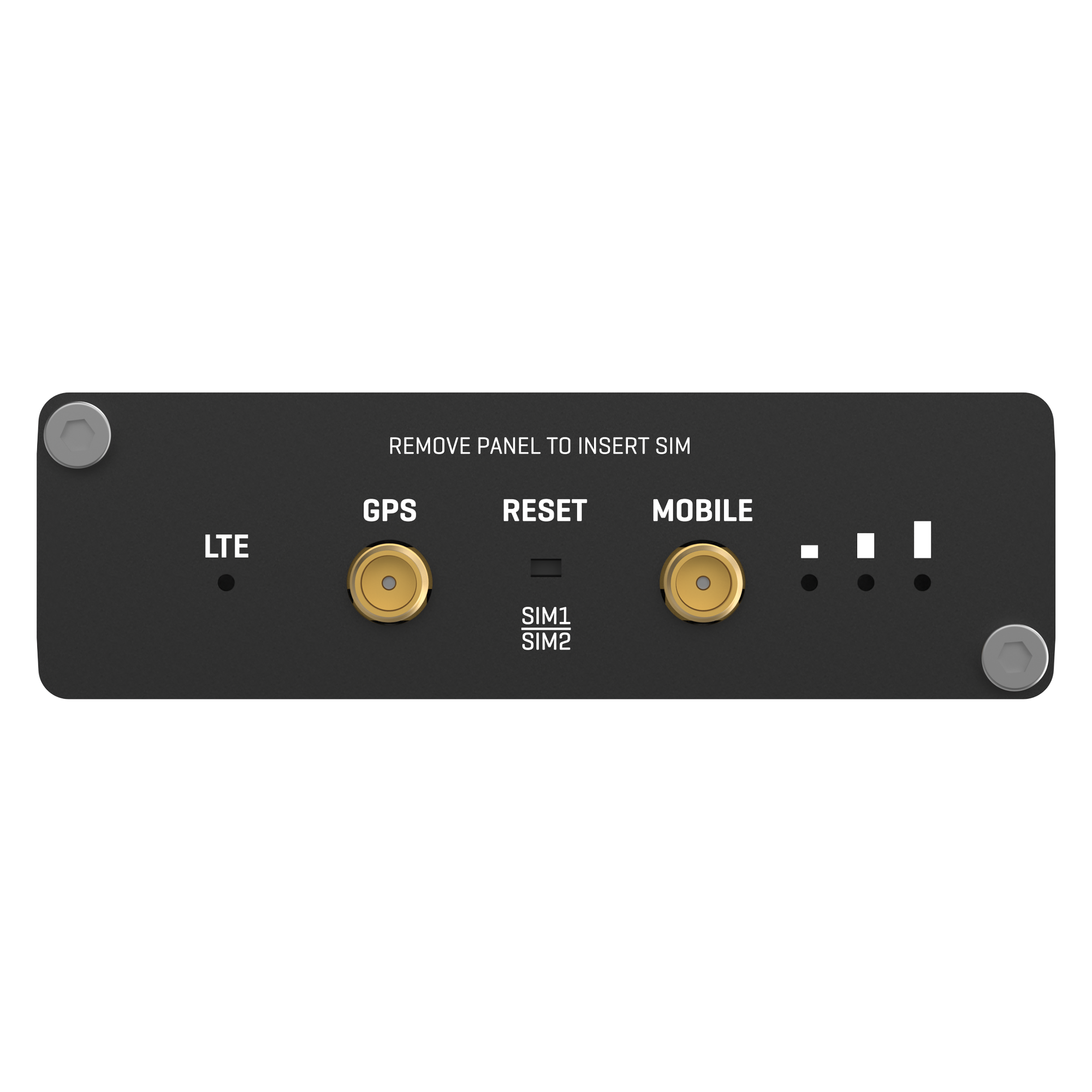

Antennas: 1 x SMA (LTE), 1 x SMA (GNSS)
Ethernet: 1 x RJ45, 10/100 Mbps
Status Leds: 1 connection status, 3 signal strength, 1 power, 1 Ethernet

Monitoring Management

Rms: Teltonika Remote Management System
SMS: Status, configuration
Ssh: v1, v2
Call: Reboot, status, mobile data on/off, output on/off, answer/hang-up with timer
Fota: Firmware update from server, automatic notification
Mqtt: Broker, publisher
Snmp: v1, v2, v3, traps, brute force protection
Email: Status alerts by email
TR 069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
Web UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event/system/kernel logs, Internet status
Json Rpc: Management API over HTTP/HTTPS

Operating Environment

Ingress Protection: IP30
Operating Humidity: 10% to 90% non-condensing
Operating Temperature: -40 °C to 75 °C

Firmware Configuration

Rms: Firmware/configuration update for multiple devices at once
Fota: Firmware update
Web UI: FW update from file, server check, configuration profiles and backup
Keep Settings: Update firmware without losing configuration
Factory Settings Reset: Full restore to manufacturer defaults

Firmware Customisation

Package Manager: Install additional software
Operating System: RutOS (OpenWrt based Linux OS)
Development Tools: SDK package with build environment
Gpl Customization: Custom branded firmware and web UI
Supported Languages: Busybox shell, Lua, C, C++

Physical Specification

Weight: 181 g
Dimensions: 83 x 25 x 82.6 mm
Casing Material: Anodised aluminium housing and panels
Mounting Options: DIN rail, wall, flat surface (additional kit required)

System Characteristics

CPU: Mediatek, 580 MHz, MIPS 24KEc
RAM: 128 MB DDR2
Flash Storage: 16 MB SPI Flash

Regulatory Type Approvals

Regulatory: FCC, ISED, WEEE
RF Standards: 47 CFR Part 15 Subpart B; ICES-003 Issue 7 (October 2020)

Questions buyers ask

Which LTE bands does the TRB247010000 support?

This North American hardware version supports LTE-FDD bands B2, B4, B5, B12, B13, B14, B66 and B71 using an LTE Cat 1 bis module with speeds up to 10 Mbps down and 5 Mbps up.

Does this SKU include a power supply?

No. TRB247010000 is the standard package without a PSU. It accepts 9-30 VDC through the industrial terminal block and draws under 2.6 W at maximum. The box contains the gateway, a 2x8-pin connector, a hex key and a Quick Start Guide.

Does the TRB247010000 have eSIM?

No. This hardware version (TRB247 01**** / North America) uses two physical Mini SIM (2FF) slots in a double stacked tray, with automatic failover between them.

What industrial protocols does the TRB247 support?

It supports Modbus RTU and TCP as server or client, DNP3 as station or outstation, DLMS/COSEM client, OPC UA client and server, and BACnet routing over IP and RS485. A Modbus MQTT gateway is also included.

How can the TRB247 be mounted?

It supports DIN rail, wall and flat-surface mounting. Each option requires an additional mounting kit.
