Digi5G & LTE Routers

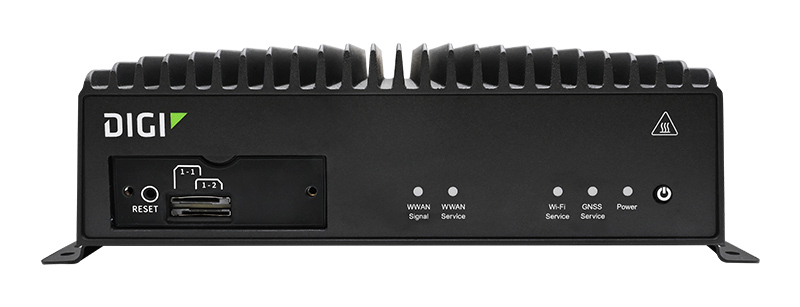

Digi TX54 Primary Responder LTE-Advanced Pro Cat 12 Router with Wi-Fi and 1-Year Digi 360 (TX54-A146)

4G LTEMPN TX54-A146
  • Wi-Fi 5
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$1,367.86$1,639.00Save $271.14

In stock · only 1 leftShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Digi TX54-A146 is the Primary Responder version of Digi's rugged TX54 transportation router, built for North America. It has a single LTE-Advanced Pro Cat 12 modem with FirstNet Trusted and Verizon Frontline support for public safety fleets. It adds Wi-Fi 5 (802.11ac), four Gigabit Ethernet ports and FIPS 140-3 security. The package includes a 1-year Digi 360 solution with SOC 2 Type 2 compliant Digi Remote Manager.

  • Single LTE-Advanced Pro Cat 12 cellular module for North America
  • Primary Responder model with FirstNet Trusted and Verizon Frontline support
  • Wi-Fi 5 (802.11ac), 2.4 GHz and 5 GHz, usable for WAN or LAN
  • Four Gigabit Ethernet ports, each configurable as an isolated LAN or combined as a Layer 2 switch
  • FIPS 140-3, cryptographic co-processor, Digi TrustFence and chip-level file system encryption
  • Digi Containers and Python for edge computing; DIN-rail mountable with USB port
  • Includes 1-year Digi 360 solution with SOC 2 Type 2 compliant Digi Remote Manager
  • Gives first responder vehicles priority-network connectivity through FirstNet Trusted and Verizon Frontline support

Digi TX54-A146 is the single-cellular Primary Responder model in the Digi TX54 family. It is designed for police, fire, EMS and other mission-critical vehicle and transportation deployments in North America. The model uses one LTE-Advanced Pro Cat 12 modem. Digi's primary responder models support FirstNet Trusted and Verizon Frontline for first responder and emergency communications. Local private subnets can be bridged across public networks to protect privacy and data integrity.

Inside the vehicle, Wi-Fi 5 (802.11ac) on 2.4 GHz and 5 GHz can serve as a LAN hotspot for laptops and tablets or as a WAN link at the station. Four Gigabit Ethernet ports connect cameras, mobile data terminals and other IP systems. Each port can be an isolated secure LAN, or all four can act as a Layer 2 switch. A USB port and DIN-rail mounting simplify installation. The industrial-grade design is built for vibration and temperature changes.

Security is central to the platform: - Meets the U.S. government FIPS 140-3 cybersecurity standard - Cryptographic co-processor with secure key generation - Digi TrustFence hardware and firmware protections - Chip-level encryption of the onboard file system

Digi Containers and Python support edge computing and custom applications.

The included Digi 360 solution provides SOC 2 Type 2 compliant Digi Remote Manager for centralized deployment, mass configuration and monitoring, along with warranty and customer care. Digi WAN Bonding and Digi Mobile VPN are available as value-added services. Mobile VPN provides persistent, encrypted sessions between vehicles and the data center.

Ideal for

  • Police, fire and EMS vehicle connectivity on FirstNet or Verizon Frontline
  • In-vehicle Wi-Fi for mobile data terminals, laptops and tablets
  • Transit and paratransit fleets connecting cameras and onboard systems
  • Secure mobile VPN links from vehicles to agency data centers

Specifications

Wi-Fi

Mode
WAN or LAN
Standard
Wi-Fi 5 (802.11ac)
Frequency Bands
2.4 / 5 GHz

General

MPN
TX54-A146
UPC
663072965235
Brand
Digi International
Region
North America
Digi 360
1-year Digi 360
Product Family
Digi TX54
Model Description
TX54 Primary Responder, single LTE-A Pro Cat 12, Wi-Fi

Network

USB
USB
Ethernet
4x Gigabit Ethernet

Package

Documents
Digi TX54 Datasheet

Cellular

Technology
LTE-A Pro Cat 12 (single)
Public Safety
FirstNet Trusted, Verizon Frontline

Physical

Depth
5.8 in
Height
2.5 in
Mounting
DIN rail

Security

FIPS
FIPS 140-3
Hardware Security
Crypto co-processor, TrustFence, encrypted file system

Software Management

Edge Computing
Digi Containers, Python
Remote Management
Digi Remote Manager
Value Added Services
Containers, WAN Bonding, Mobile VPN

Questions buyers ask

Is the TX54-A146 a 5G router?

No. This model has a single LTE-Advanced Pro Cat 12 modem. Other TX54 models offer 5G.

Is it suitable for first responder vehicles?

Yes. It is a Primary Responder model with FirstNet Trusted and Verizon Frontline support.

Does it have Wi-Fi?

Yes. It includes Wi-Fi 5 (802.11ac) on 2.4 GHz and 5 GHz, usable for WAN or LAN.

How is it managed?

It is managed through SOC 2 Type 2 compliant Digi Remote Manager, included with the 1-year Digi 360 solution, and locally through its operating system tools.
