Ubiquiti UniFi 5G Max (U5G-Max) PoE 5G Modem with Dual SIM and eSIM

5GMPN U5G-MAX
  • Dual SIM
  • eSIM
  • PoE powered
$463.60

In stockFree 2-day shipping

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Overview

The Ubiquiti UniFi 5G Max is a 5G NR and LTE modem for UniFi networks. It draws power from a single PoE input and connects over a 2.5 GbE RJ45 port. Downlink reaches 3.4 Gbps on 5G NSA networks, and it takes a Nano-SIM plus a second Nano-SIM or eSIM. It adopts through any UniFi PoE port with automatic setup and provides automatic failover, so it can serve as a primary or backup cellular WAN managed from the UniFi console.

  • 5G NR and LTE modem with peak downlink of 3.4 Gbps (5G NSA), 1.8 Gbps (5G SA) and 1.6 Gbps (LTE)

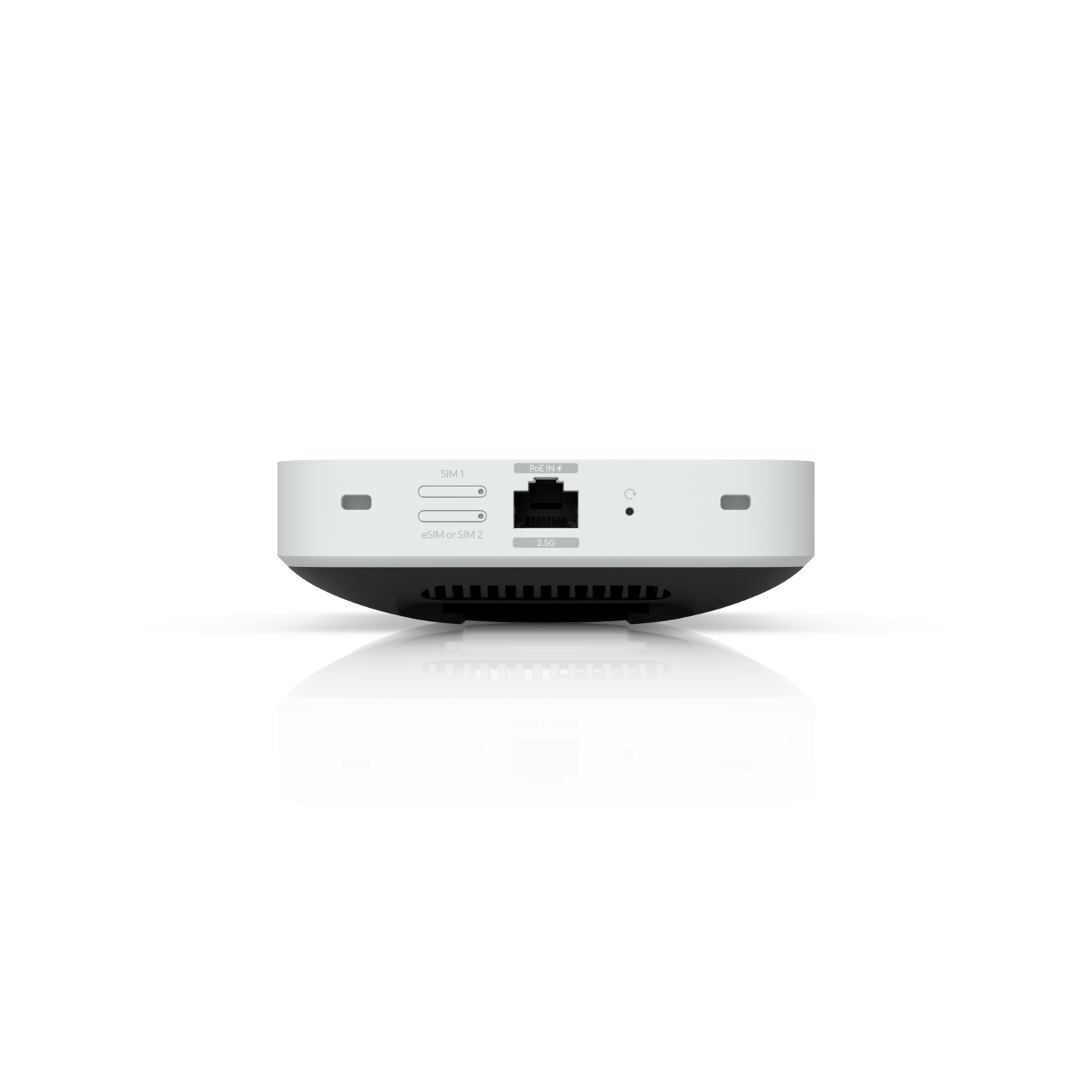

  • Single 2.5 GbE RJ45 port powered by PoE, with 14.5 W maximum consumption
  • Adopts through any UniFi PoE port with automatic setup and automatic failover
  • One Nano-SIM plus a second Nano-SIM or eSIM
  • Four embedded cellular antennas with HPUE power class 2 transmit power

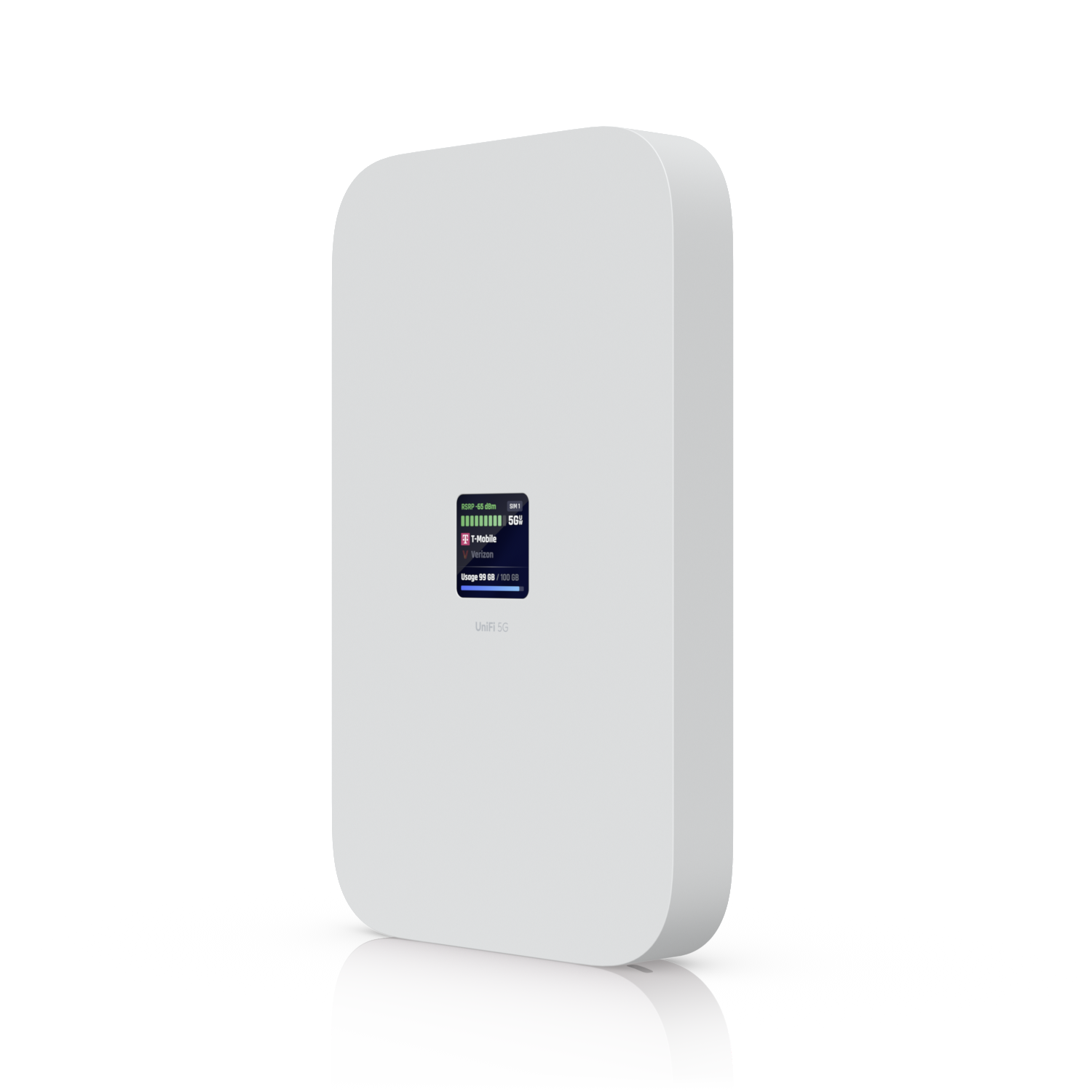

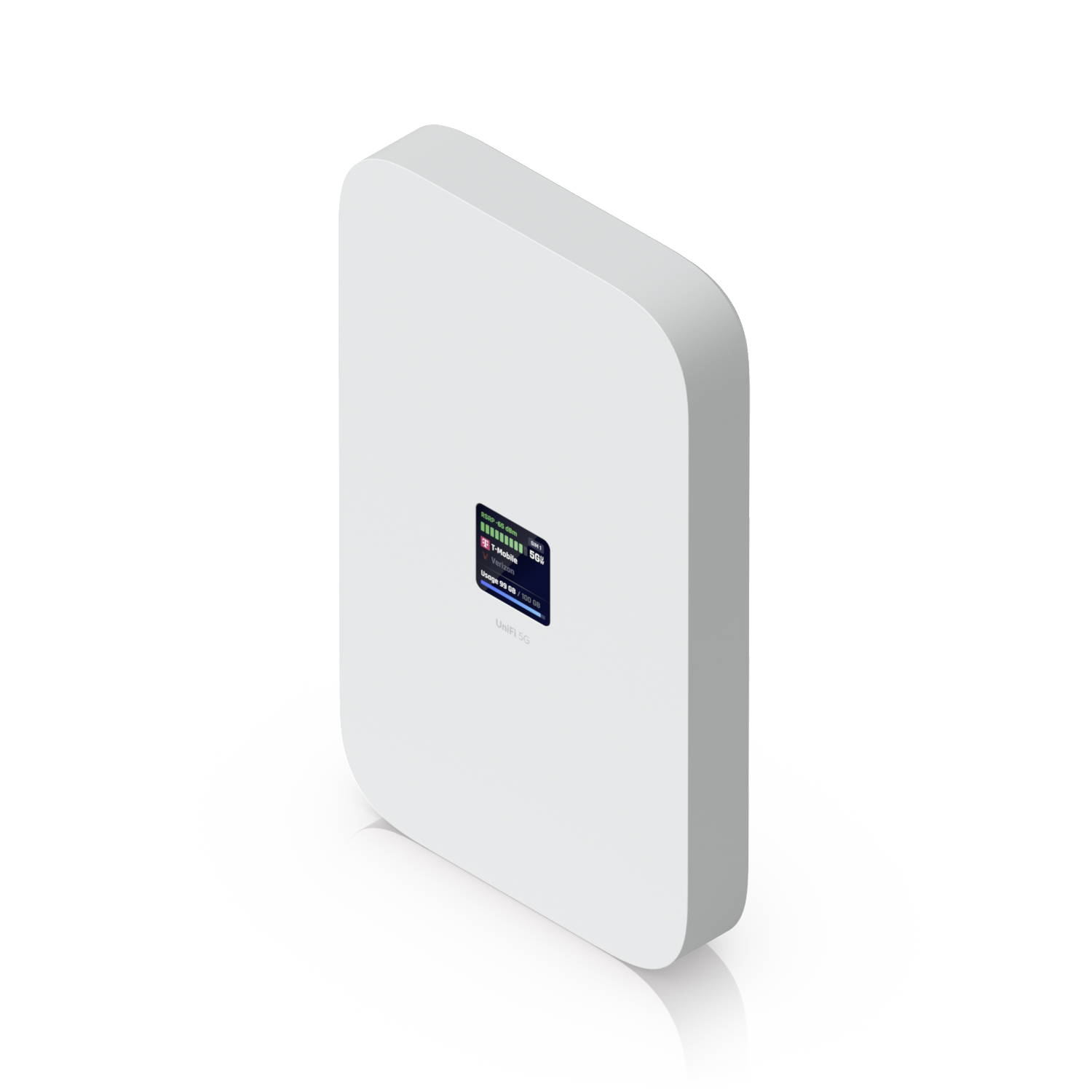

  • 1.3-inch touchscreen; desktop stand, wall mount and window mount included
  • NDAA compliant; certified for FCC, IC, CE, PTCRB, GCF, AT&T and T-Mobile
  • Adds cellular WAN to a UniFi network over one PoE cable, with no separate power adapter

The UniFi 5G Max adds cellular WAN to an existing UniFi deployment without a separate power supply or a new management platform. Connect it to any UniFi PoE port and it adopts into UniFi Network with automatic setup. From there it provides cellular internet with automatic failover. UniFi Network version 10.0.162 or later is required, and the console or Cloud Gateway must be updated over another internet connection before adoption.

The radio covers 27 5G NR bands, including n41, n71, n77 and n79, along with 31 LTE bands and 3G UMTS fallback. It uses HPUE power class 2 transmit power of 26 dBm on 5G and 25 dBm on LTE, fed by four embedded cellular antennas. Peak downlink is 3.4 Gbps on 5G NSA, 1.8 Gbps on 5G SA and 1.6 Gbps on LTE. Peak uplink is 560 Mbps on NSA, 650 Mbps on SA and 210 Mbps on LTE. Actual speed depends on coverage at the installation site. A single 2.5 GbE RJ45 port carries both data and PoE power, and maximum consumption is 14.5 W.

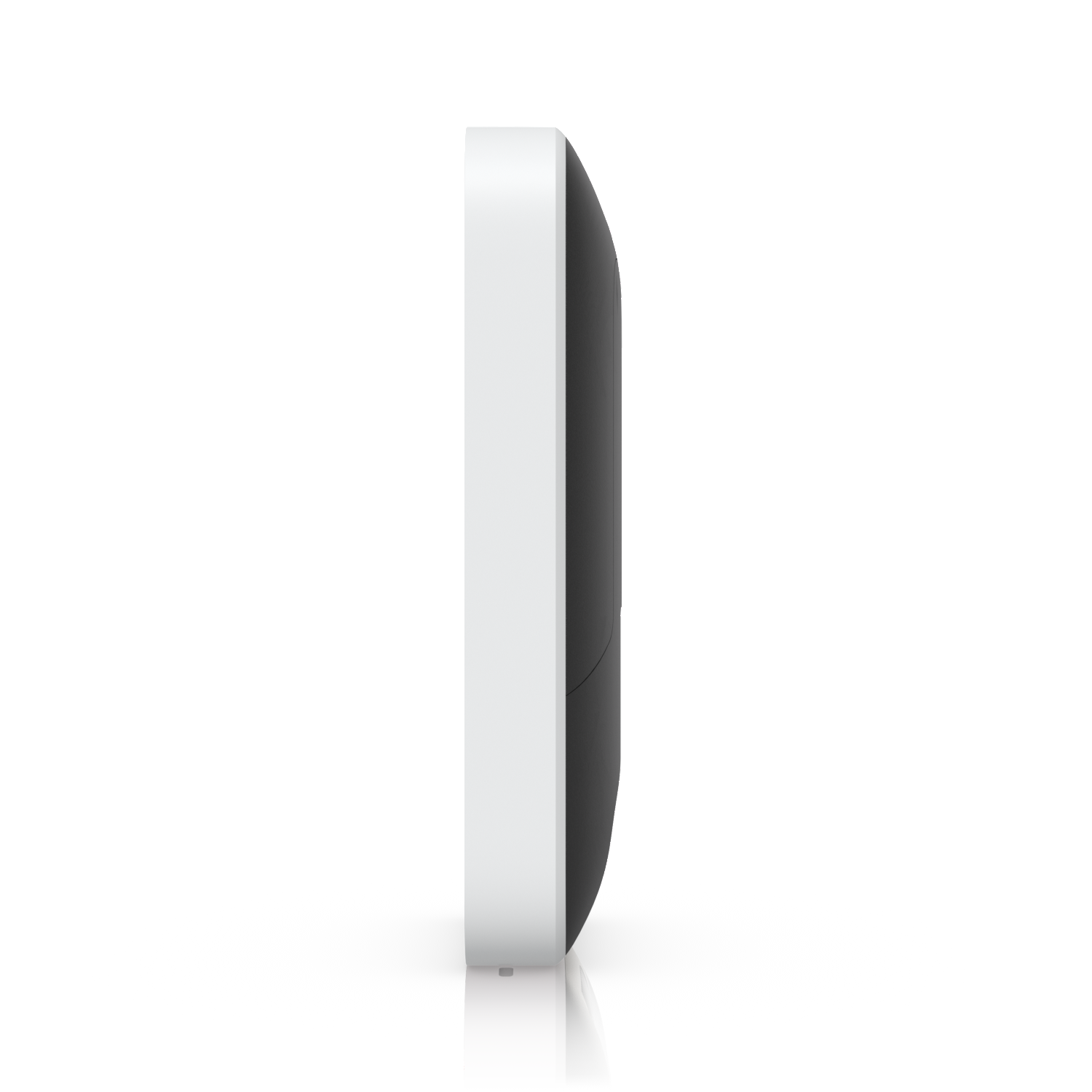

The unit measures 180 x 109 x 33.8 mm and weighs 410 g. It ships with a desktop stand, a wall mount and a window mount, so you can place it where the signal is strongest. A 1.3-inch touchscreen shows status on the device. The enclosure is IK04 tamper-resistant, and the modem is NDAA compliant and certified for FCC, IC, CE, PTCRB, GCF, AT&T and T-Mobile. It fits branch offices, retail sites and small businesses that already run UniFi and want a cellular link managed alongside the rest of the network.

Ideal for

  • Cellular failover WAN for UniFi-managed branch offices and retail stores
  • Primary 5G internet for sites without wired broadband
  • Temporary or pop-up locations that need fast UniFi-managed connectivity
  • Small businesses that want carrier diversity across two SIM profiles

Specifications

General

MPN
U5G-MAX
Brand
Ubiquiti
Model
UniFi 5G Max
Product Type
5G modem for UniFi
Manufacturer Model
U5G-Max-US

Package

Shipping Weight
2.26 lb

Hardware

Buttons
(1) factory reset
Display
1.3" touchscreen
Management
Ethernet
Antenna Type
Antennas: (4) embedded cellular antennas
Power Method
PoE
Certifications
FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile
Ndaa Compliant
Yes
NR 5G Category
5G NR Category: 5G NR
LTE Max TX Power
HPUE power class 2, 25 dBm
Peak Speed 5G SA
1.8 Gbps down / 650 Mbps up
Peak Speed 4G LTE
1.6 Gbps down / 210 Mbps up
Peak Speed 5G Nsa
3.4 Gbps down / 560 Mbps up (depends on network coverage and performance at the device location)
NR 5G Max TX Power
5G NR Max. TX Power: HPUE power class 2, 26 dBm
LTE Frequency Bands
4G LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max Power Consumption
14.5 W
NR 5G Frequency Bands
5G NR Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
Umts 3g Frequency Bands
3G UMTS Bands: B1, B2, B4, B5, B8, B19
Ambient Operating Humidity
5 to 95% noncondensing
Ambient Operating Temperature
0 to 40 °C (32 to 104 °F)

Overview

SIM
(1) Nano SIM; (1) Nano-SIM or eSIM (Nano-SIM 2 cannot be used when an eSIM is active)
Mounting
Desktop stand, wall, window mount (included)
Dimensions
180 x 109 x 33.8 mm (7.1 x 4.3 x 1.3")
PoE Interface
(1) PoE input
Tamper Resistance
IK04
Networking Interface
(1) 2.5 GbE RJ45 port; 5G NR and LTE radio

Software

Unifi Network Requirement
version 10.0.162 and later (an alternative internet connection is required to update UniFi consoles and Cloud Gateways before adoption)

Mechanical

Weight Stand
Stand Weight: 215 g (7.6 oz)
Weight Device
Device Weight: 410 g (14.5 oz)
Mount Material
Polycarbonate, silicone rubber
Weight Wall Mount
Wall Mount Weight: 7.6 g (0.3 oz)
Enclosure Material
Polycarbonate, aluminum alloy
Weight Window Mount
Window Mount Weight: 20 g (0.7 oz)

Questions buyers ask

How is the UniFi 5G Max powered?

It is powered over PoE through its single 2.5 GbE RJ45 port and draws a maximum of 14.5 W. Connect it to a UniFi PoE port and it adopts automatically.

What SIM options does it support?

It takes one Nano-SIM plus a second Nano-SIM or an eSIM. The second Nano-SIM cannot be used while an eSIM is active.

What software version does it require?

UniFi Network version 10.0.162 or later. Your UniFi console or Cloud Gateway must be updated over another internet connection, such as a standard ISP link, before you adopt the U5G-Max.

What speeds can it reach?

Peak downlink is 3.4 Gbps on 5G NSA, 1.8 Gbps on 5G SA and 1.6 Gbps on LTE. Peak uplink is 560 Mbps, 650 Mbps and 210 Mbps respectively. Real-world speed depends on coverage at the installation location.

Can it be mounted on a window or wall?

Yes. A desktop stand, a wall mount and a window mount are all included.
