Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) Weatherproof 5G Modem with Directional Antennas

5GMPN U5G-MAX-OUTDOOR
  • Dual SIM
  • 1 × 1 Gb Ethernet
$463.60$593.33Save $129.73

In stockFree 2-day shipping

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Overview

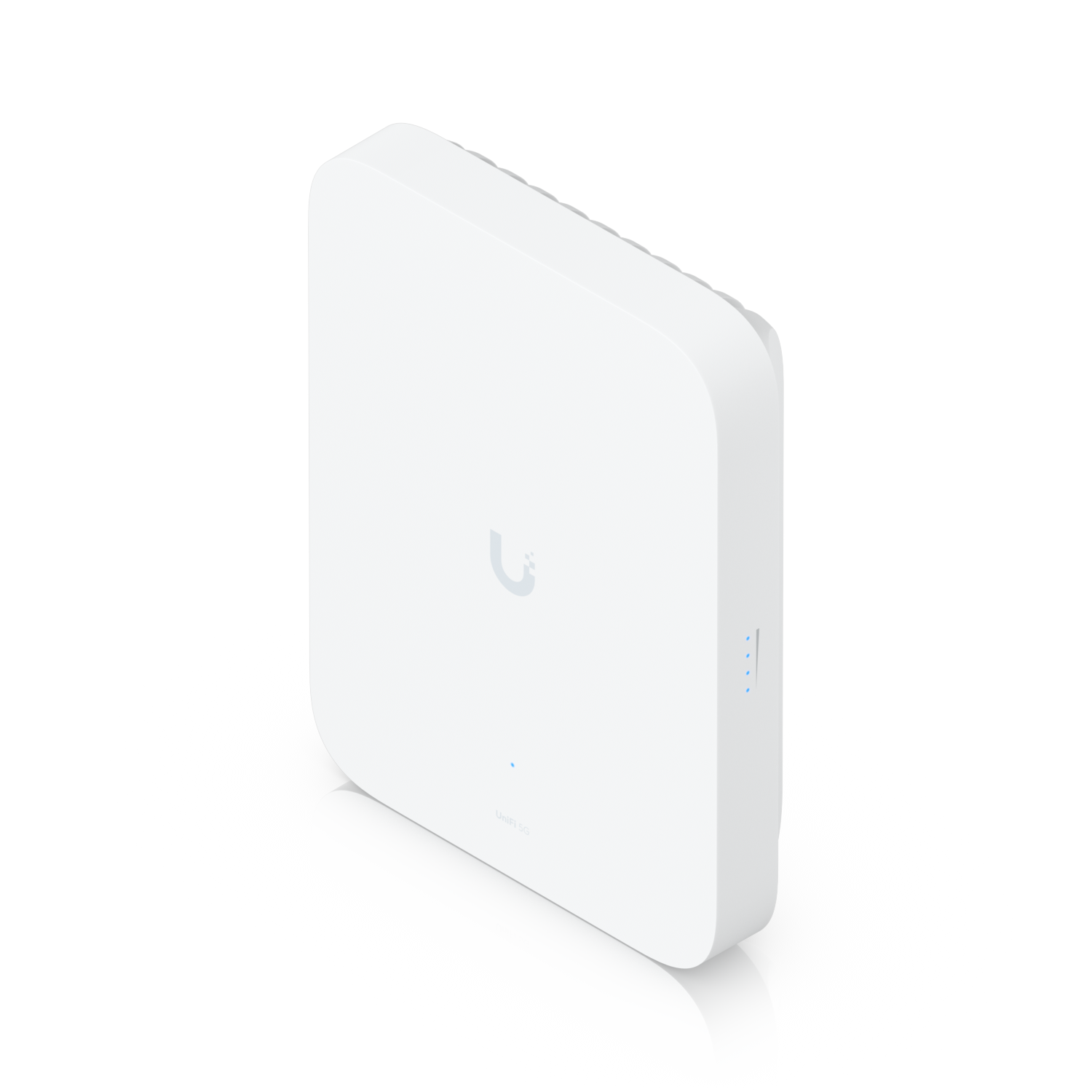

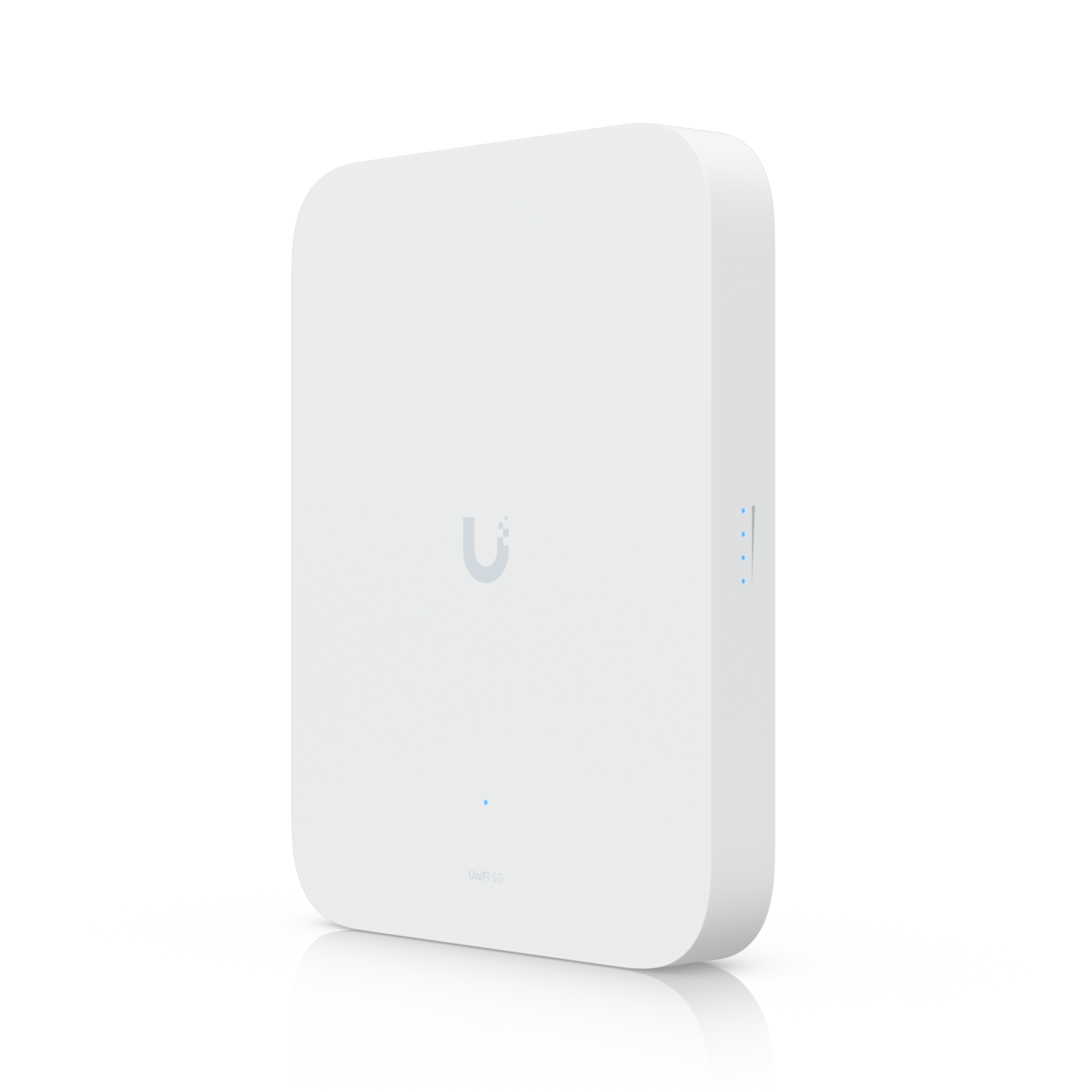

The Ubiquiti UniFi 5G Max Outdoor is a 5G NR and LTE modem for UniFi consoles and Cloud Gateways, built for exterior installation. Six embedded antennas, including two 9 dBi high-gain directional downlink antennas, deliver up to 3.4 Gbps on 5G NSA. It connects over a 2.5 GbE port with PoE and supports dual SIM/eSIM failover. The enclosure is rated IPX6, or IP67 with the cable-gland door kit, and operates from -40 to 65 °C.

  • Outdoor 5G NR and LTE modem with peak downlink of 3.4 Gbps (5G NSA), 1.8 Gbps (5G SA) and 1.6 Gbps (LTE)
  • Six embedded antennas, including two high-gain downlink antennas at 9 dBi peak, 85° x 85°
  • IPX6 weatherproofing, or IP67 with the cable-gland door kit; -40 to 65 °C operation
  • Single 2.5 GbE RJ45 port with PoE input and 14.5 W maximum consumption
  • Dual SIM: one Nano-SIM plus a second Nano-SIM or eSIM
  • Pole and wall mounts included; pole mount fits 1–2.5" (25–63.5 mm) pipe outer diameter
  • NDAA compliant; certified for FCC, IC, CE, PTCRB, GCF, AT&T and T-Mobile
  • Directional high-gain antennas pull a stronger signal where indoor reception is weak

The UniFi 5G Max Outdoor puts a full-performance 5G modem outside the building, where cellular signal is usually strongest, and brings the connection indoors over one PoE Ethernet cable. It is designed for UniFi consoles and Cloud Gateways and connects through a single 2.5 GbE RJ45 port. Maximum power draw is 14.5 W.

Six embedded cellular antennas include two high-gain downlink antennas with 9 dBi peak gain and an 85° x 85° pattern, which you aim toward the serving tower. The radio covers 27 5G NR bands, 31 LTE bands and 3G UMTS, with HPUE power class 2 transmit power. Peak downlink is 3.4 Gbps on 5G NSA, 1.8 Gbps on 5G SA and 1.6 Gbps on LTE, depending on local coverage. Dual SIM support uses one Nano-SIM plus a second Nano-SIM or eSIM. Ubiquiti states that remote SIM capability is coming in a future update.

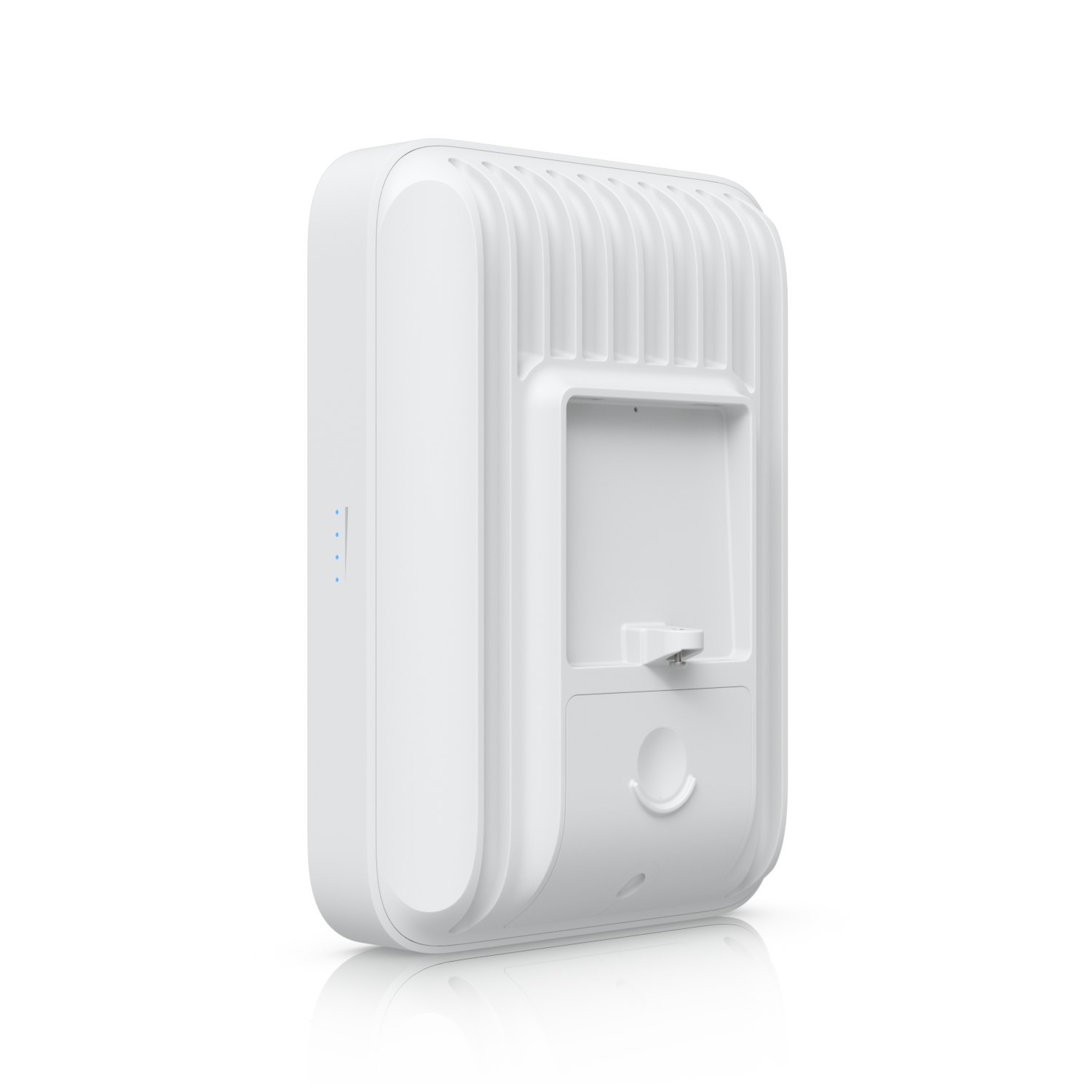

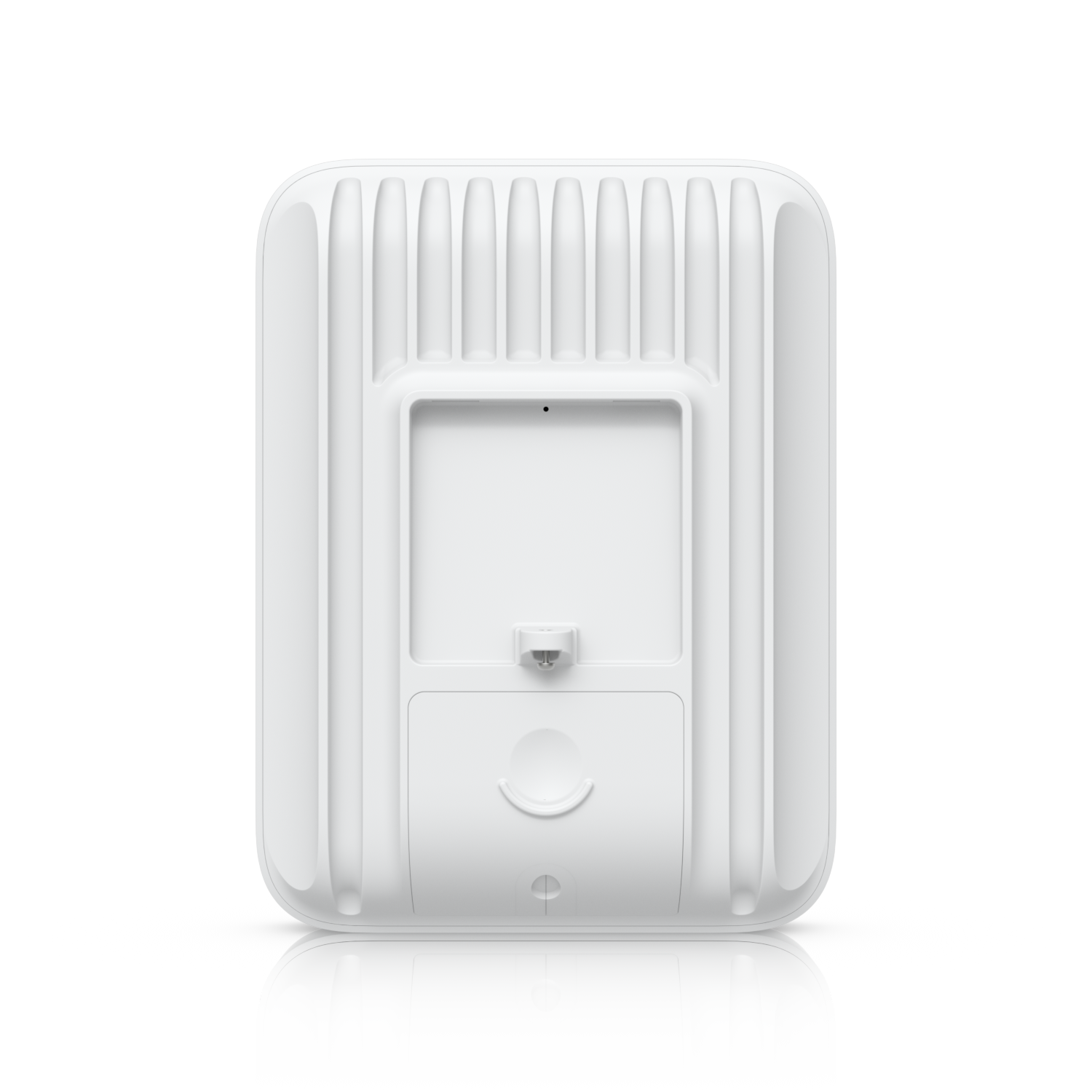

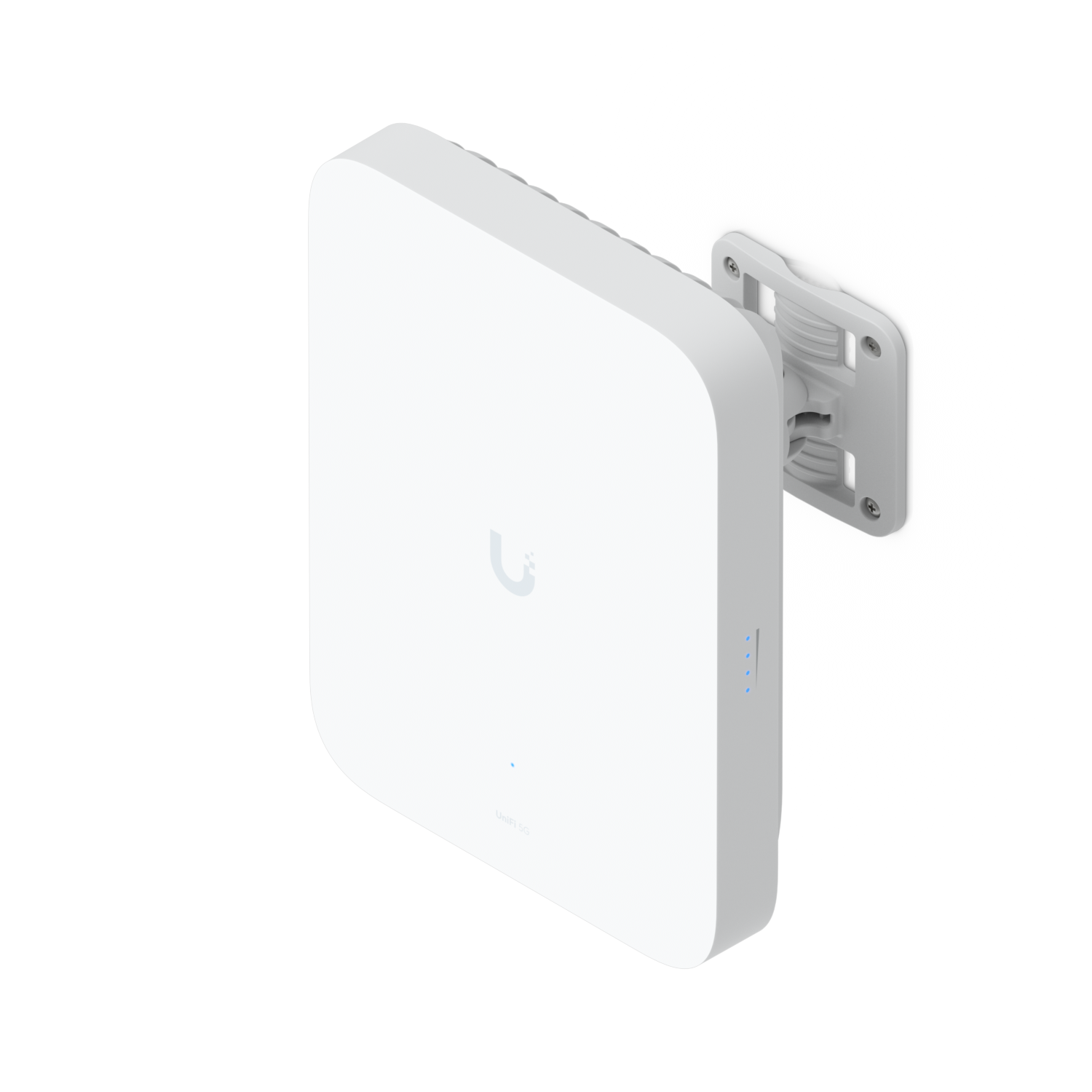

The aluminum-alloy and UV-stabilized polycarbonate enclosure is rated IPX6, or IP67 with the cable-gland door kit. It operates from -40 to 65 °C and is rated for a wind load of 91 N at 200 km/h. Pole and wall mounts are included, and the pole mount fits pipes from 1 to 2.5 inches outer diameter.

The modem is certified for AT&T and T-Mobile, and Verizon certification is listed as coming soon. T-Mobile Home Internet SIMs are not supported, and a data-only plan is required. The unit is NDAA compliant, which suits rural sites, warehouses, farms, construction yards and remote facilities where indoor reception is poor.

Ideal for

  • Rural offices, farms and ranches where indoor cellular reception is weak
  • Rooftop or mast-mounted primary 5G internet for warehouses and yards
  • Cellular failover for UniFi Cloud Gateway sites with poor indoor signal
  • Construction sites and remote facilities that need a weatherproof cellular WAN

Specifications

General

MPN
U5G-MAX-OUTDOOR
Brand
Ubiquiti
Model
UniFi 5G Max Outdoor
Product Type
Outdoor 5G modem for UniFi consoles and Cloud Gateways
Manufacturer Model
U5G-Max-Outdoor-US

Package

Shipping Weight
4.4 lb

Hardware

Leds
Yes
Buttons
(1) factory reset
Management
Ethernet
Antenna Type
Antennas: (6) embedded cellular antennas, including (2) high-gain downlink antennas, peak 9 dBi, 85° x 85°
Power Method
PoE
Certifications
FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile
Ndaa Compliant
Yes
NR 5G Category
5G NR Category: 5G NR
LTE Max TX Power
HPUE power class 2, 25 dBm
Peak Speed 5G SA
1.8 Gbps down / 650 Mbps up
Peak Speed 4G LTE
1.6 Gbps down / 210 Mbps up
Peak Speed 5G Nsa
3.4 Gbps down / 560 Mbps up (depends on network coverage and performance at the device location)
NR 5G Max TX Power
5G NR Max. TX Power: HPUE power class 2, 26 dBm
LTE Frequency Bands
4G LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max Power Consumption
14.5 W
NR 5G Frequency Bands
5G NR Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
Umts 3g Frequency Bands
3G UMTS Bands: B1, B2, B4, B5, B8, B19
Ambient Operating Humidity
5 to 95% noncondensing
Ambient Operating Temperature
-40 to 65 °C (-40 to 149 °F)

Overview

SIM
(1) Nano SIM; (1) Nano-SIM or eSIM (Nano-SIM 2 cannot be used when an eSIM is active)
Mounting
Pole mount, wall mount (included)
PoE Interface
(1) PoE input
Weatherproofing

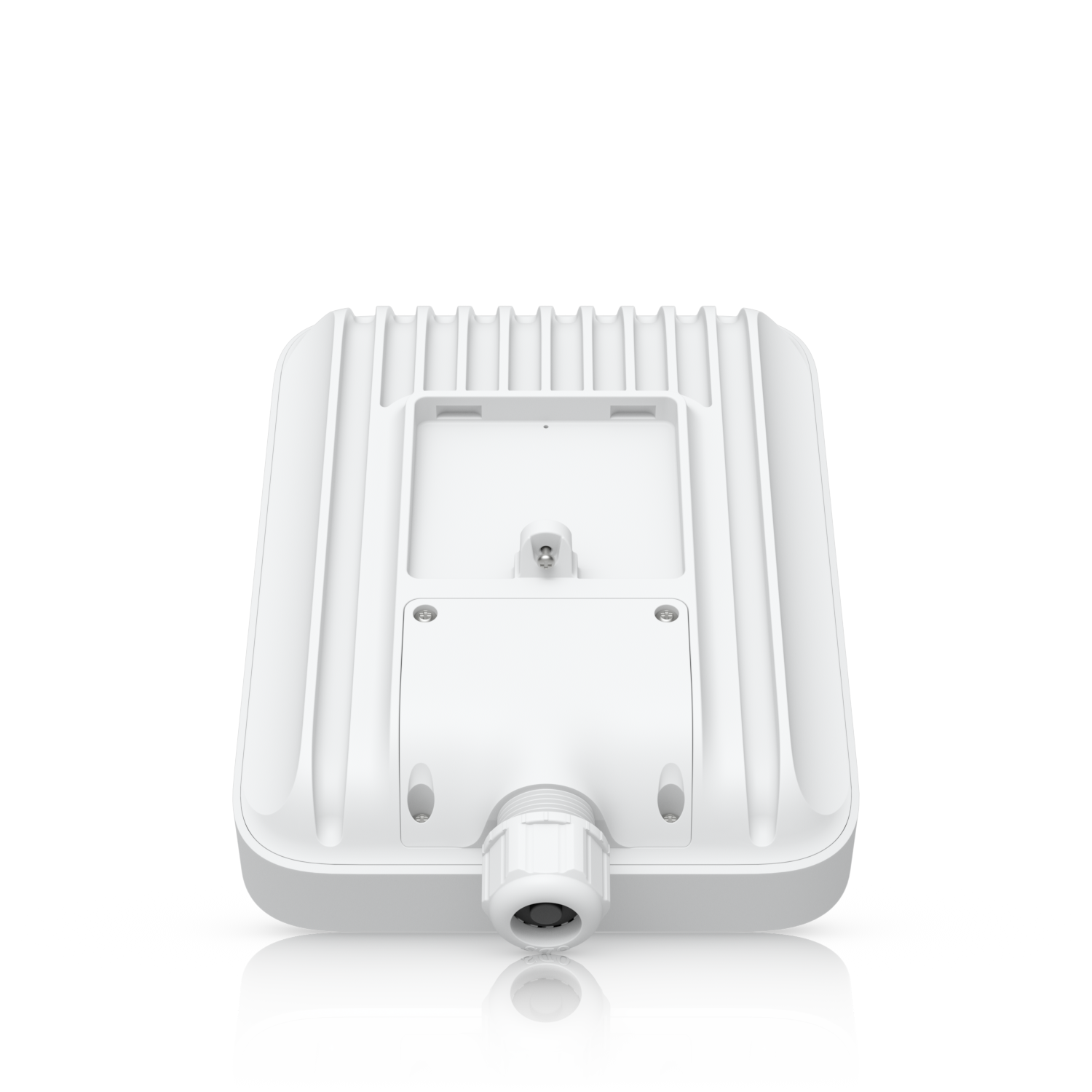

IPX6; IP67 with cable-gland door kit
Dimensions Device
Device Dimensions: 220 x 165 x 66.9 mm (8.7 x 6.5 x 2.6")
Networking Interface
(1) 2.5 GbE RJ45 port; 5G NR and LTE radio
Dimensions With Mount
220 x 165 x 122 mm (8.7 x 6.5 x 4.8")

Mechanical

Weight Mount
Mount Weight: 130 g (4.6 oz)
Wind Loading
91 N at 200 km/h (20.45 lbf at 125 mph)
Weight Device
Device Weight: 1.2 kg (2.6 lb)
Mount Material
UV-stabilized polycarbonate
Enclosure Material
Aluminum alloy, UV-stabilized polycarbonate
Pole Mount Diameter
1–2.5" (25–63.5 mm) pipe outer diameter

Questions buyers ask

Which carriers is it certified with?

It is certified with AT&T and T-Mobile. Ubiquiti lists Verizon certification as coming soon, for Verizon Business fixed 5G and gateway data plans. T-Mobile Home Internet SIMs are not supported, and a data-only plan is required.

Does it support remote SIM?

Remote SIM is planned for a future update. Today it supports one Nano-SIM plus a second Nano-SIM or eSIM. The second Nano-SIM cannot be used while an eSIM is active.

How weatherproof is it?

The enclosure is rated IPX6, or IP67 with the cable-gland door kit. It operates from -40 to 65 °C and is rated for 91 N wind loading at 200 km/h.

What mounting hardware is included?

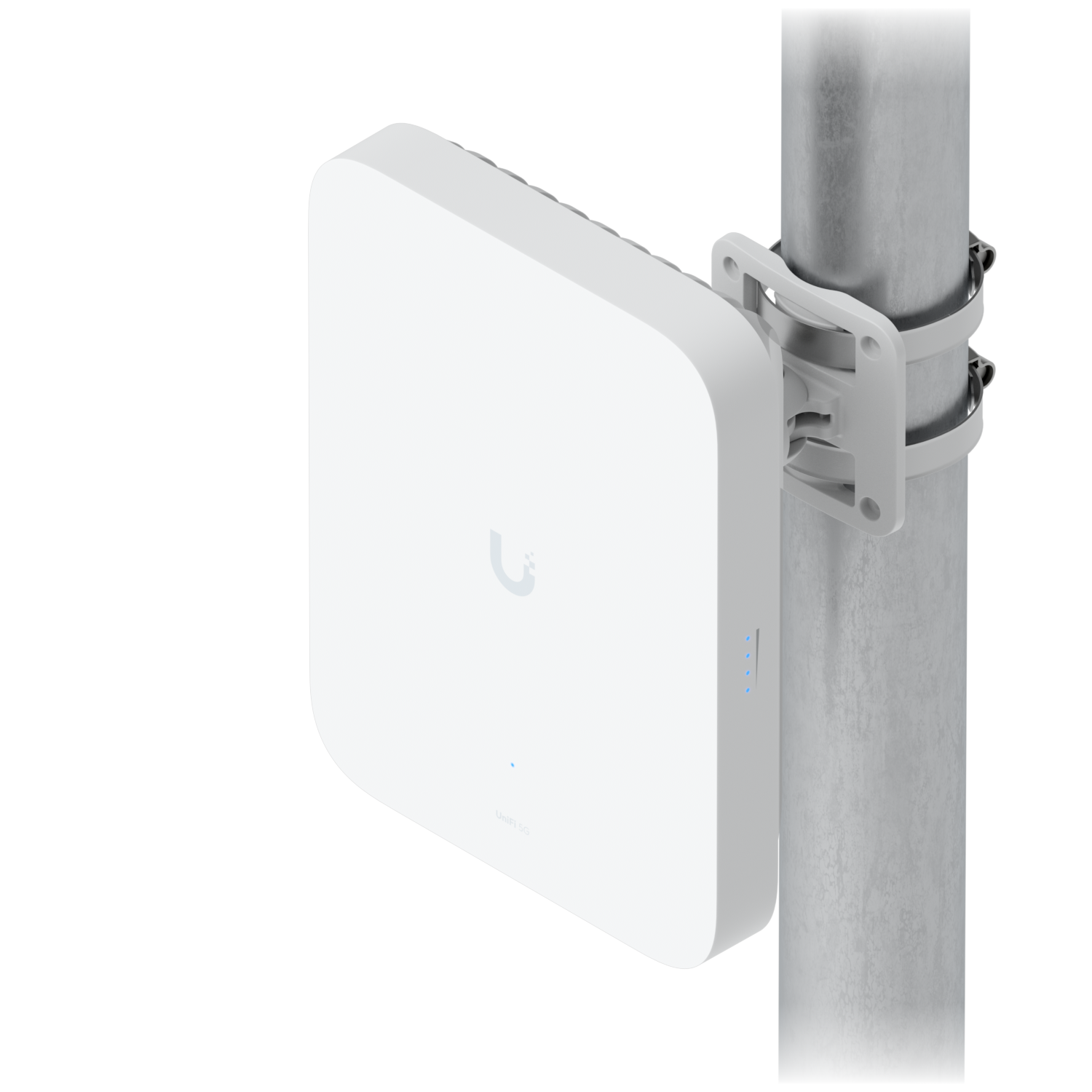

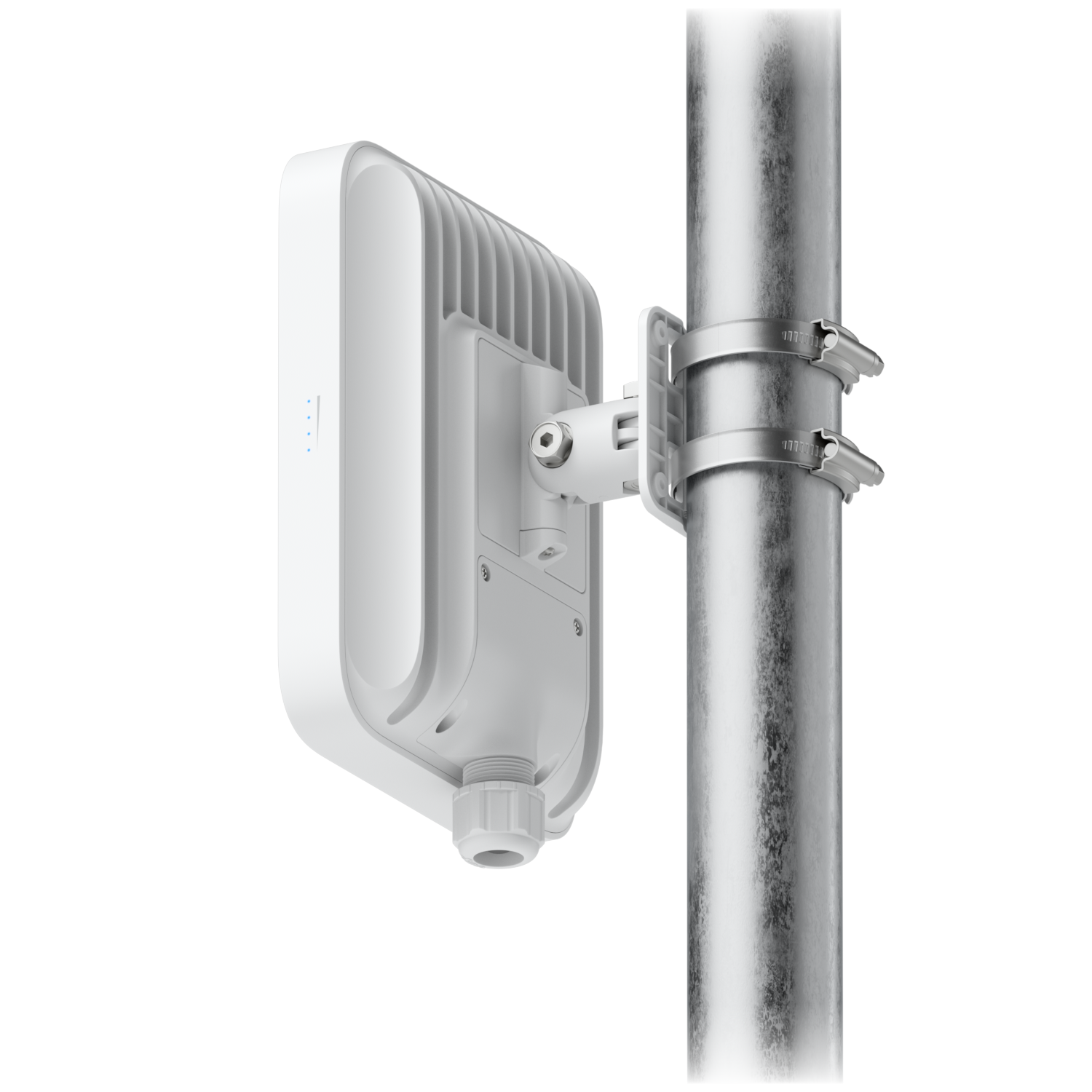

Pole and wall mounts are included. The pole mount fits pipes from 1 to 2.5 inches (25–63.5 mm) outer diameter.

How does it connect to the indoor network?

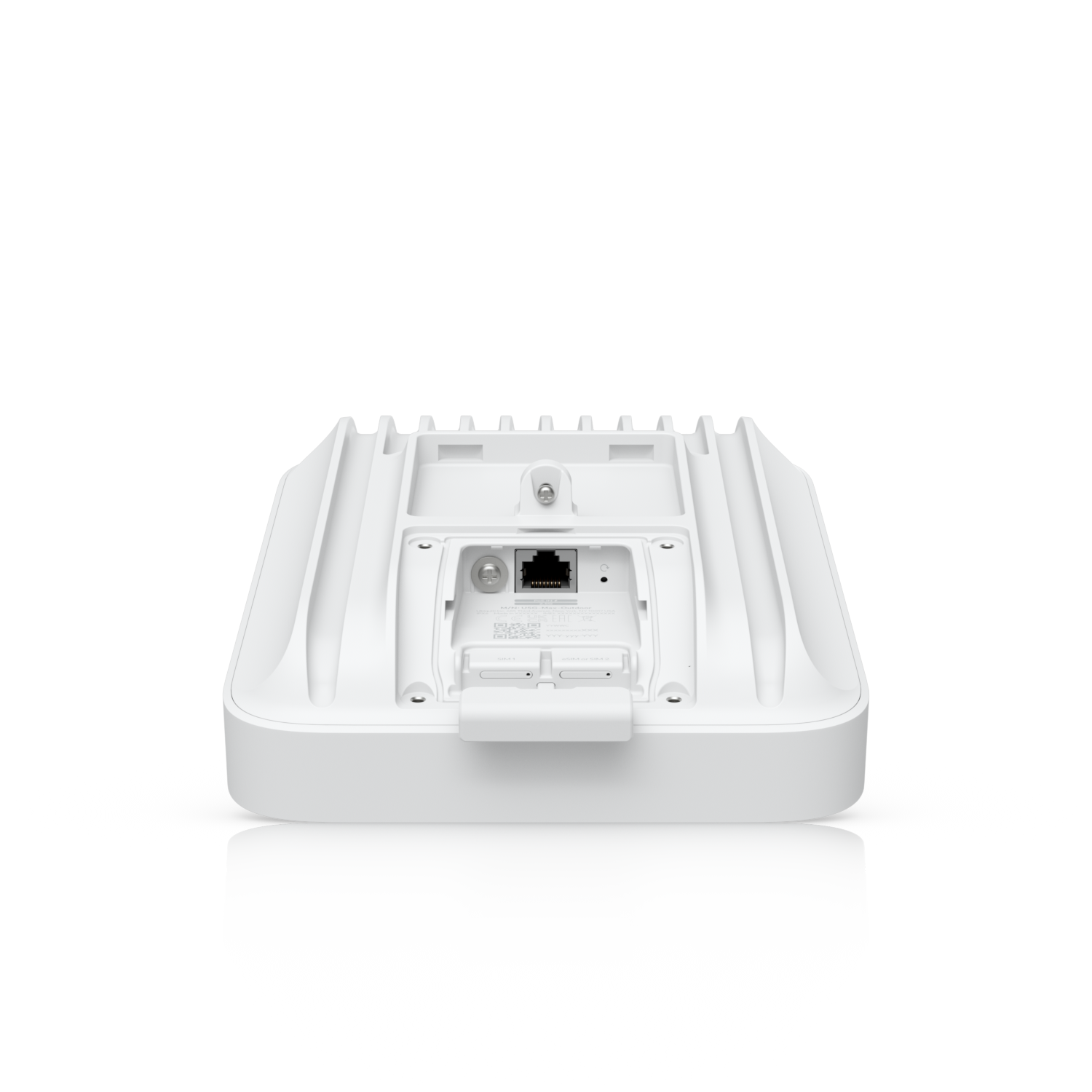

A single 2.5 GbE RJ45 port carries data and receives PoE power, with a maximum draw of 14.5 W.
