Ubiquiti Dream Router 5G Max (UDR-5G-Max-US) Cloud Gateway with 5G and Wi-Fi 7

5GMPN UDR-5G-MAX-US
  • Wi-Fi 7
  • 5+ × 2.5 Gb+ Ethernet
  • PoE out
$602.73

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Overview

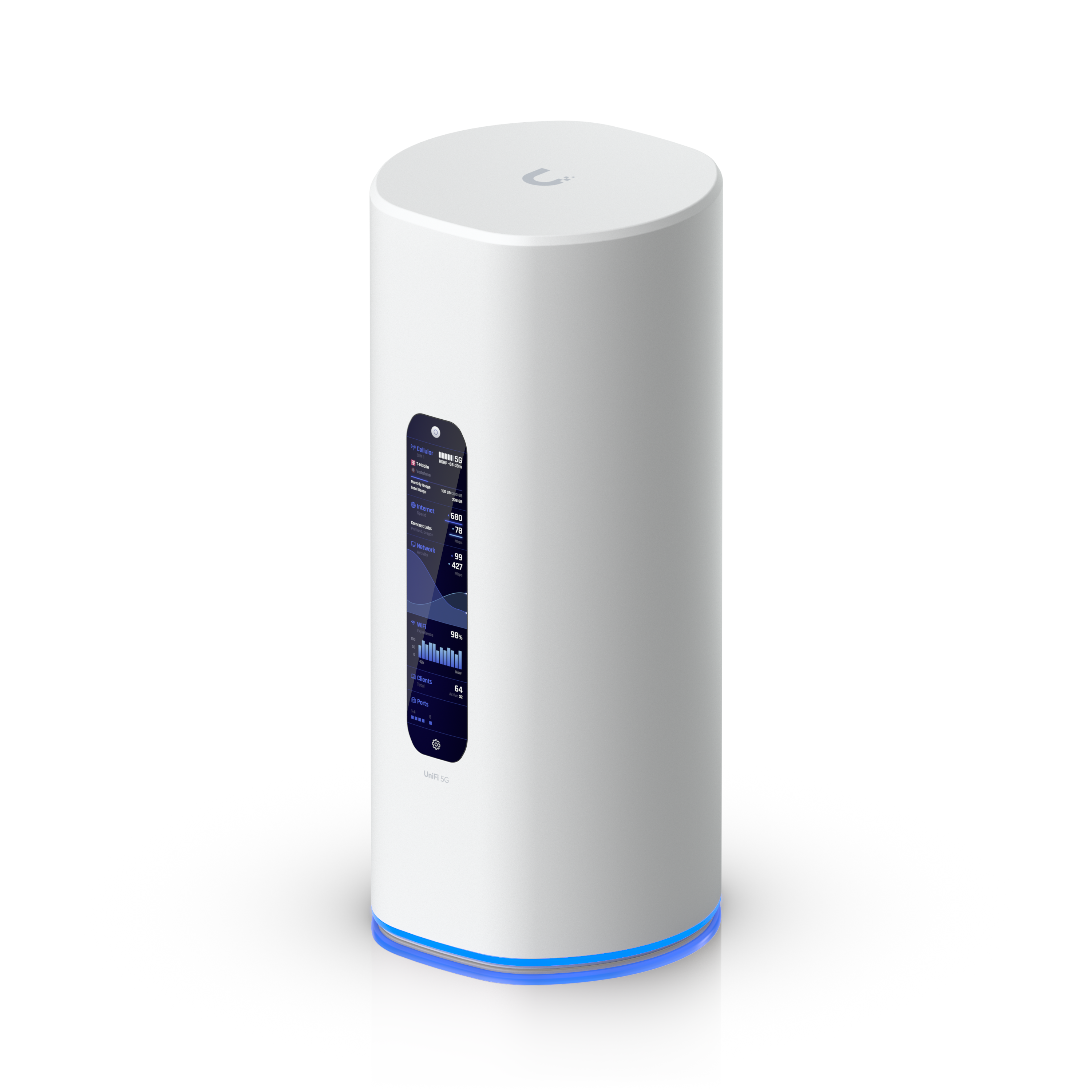

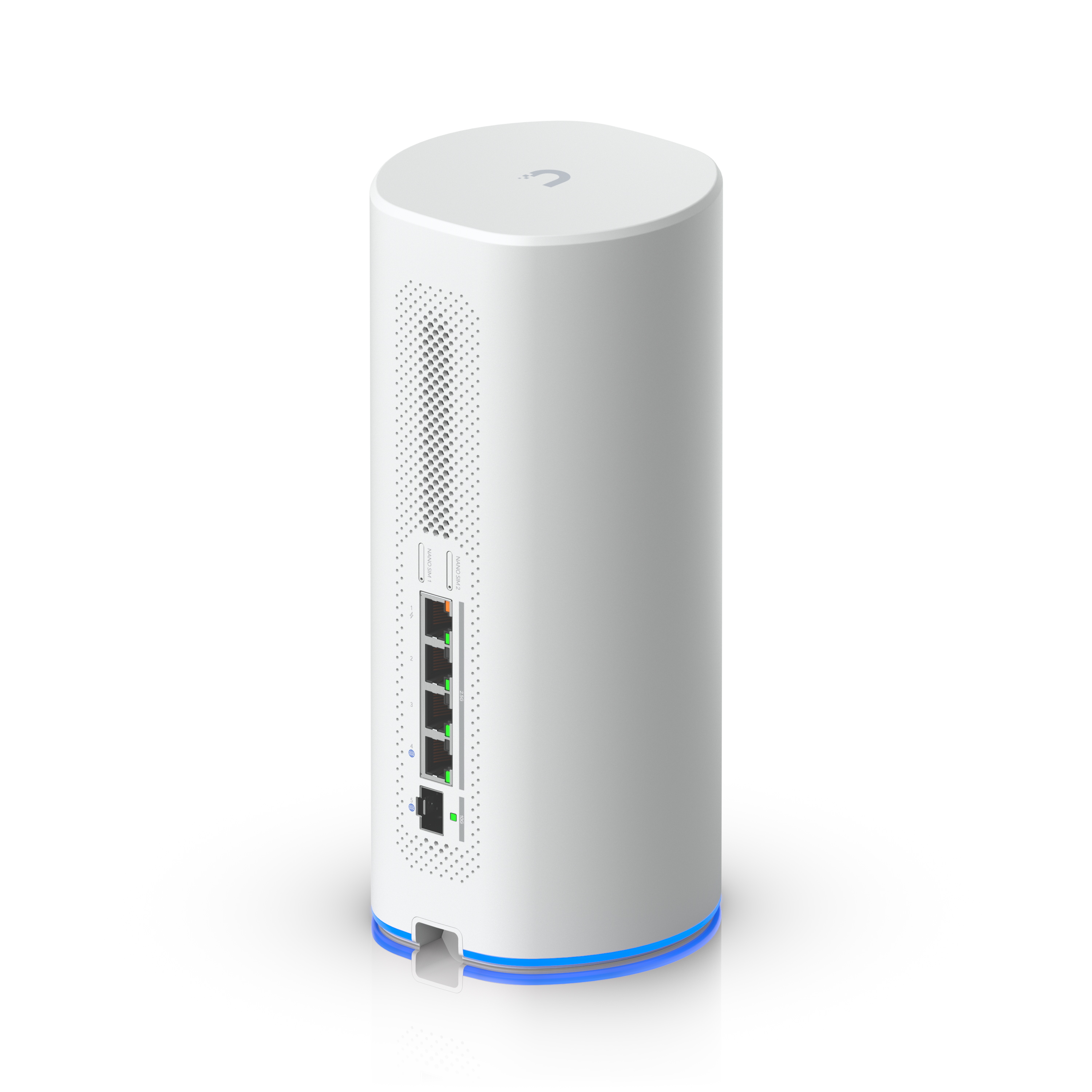

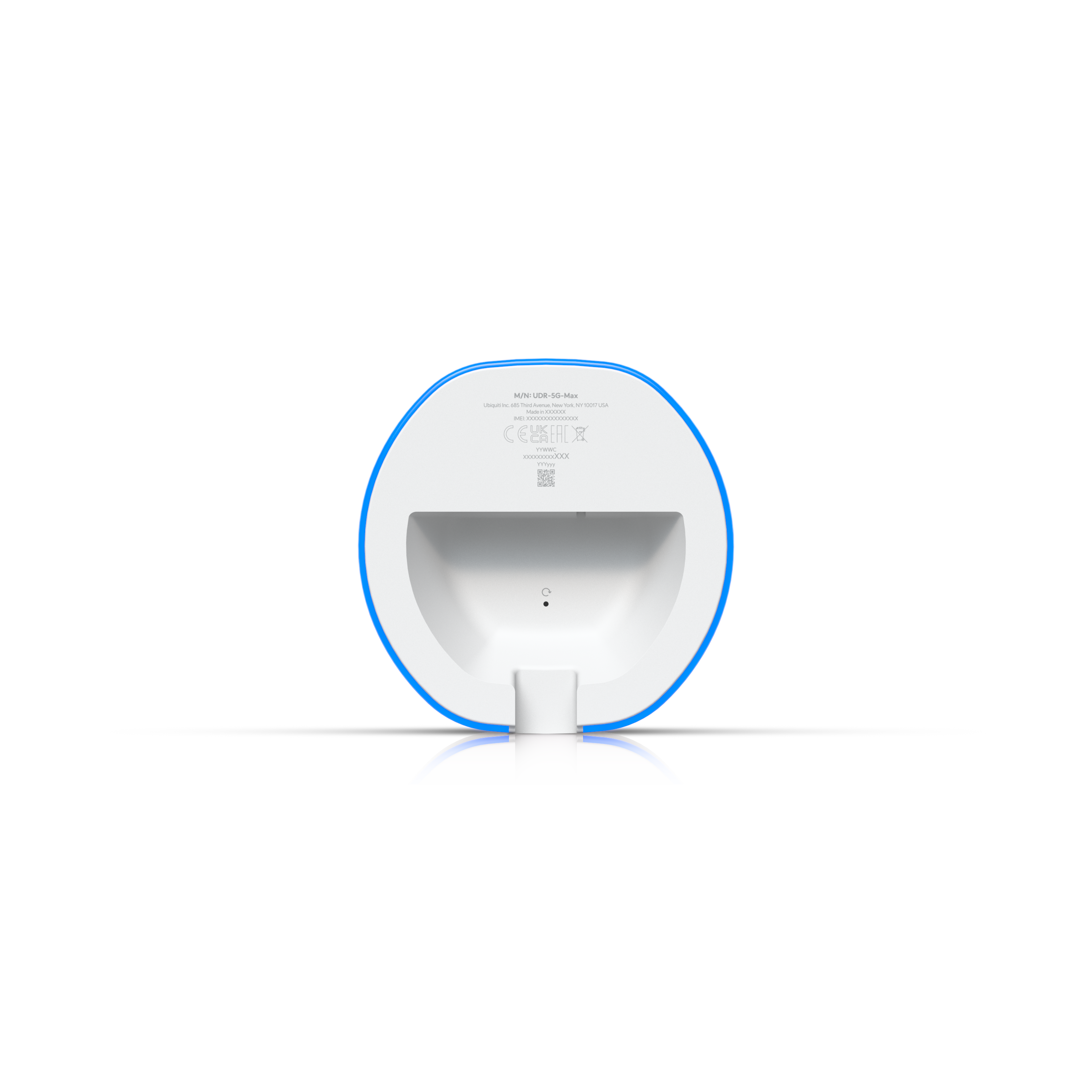

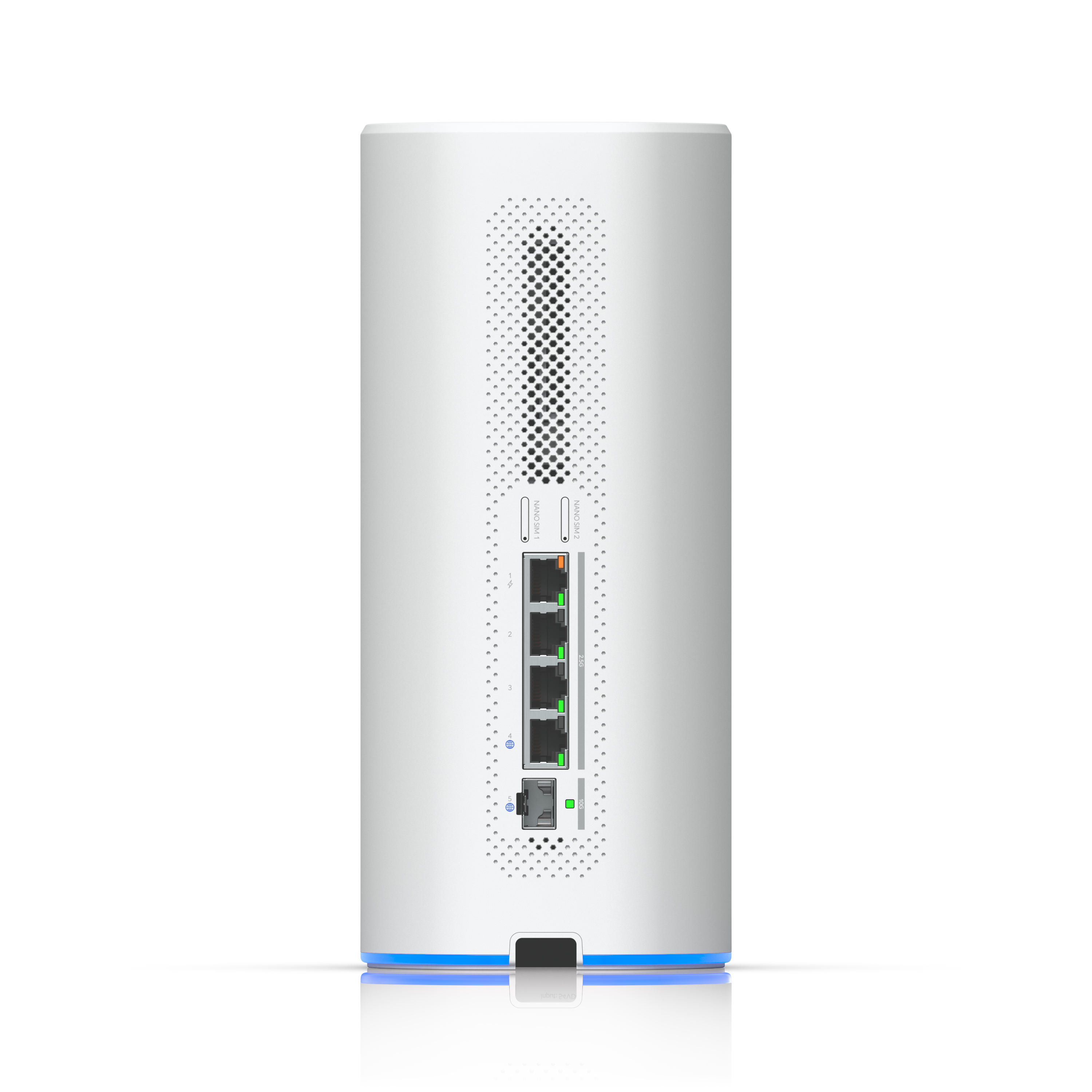

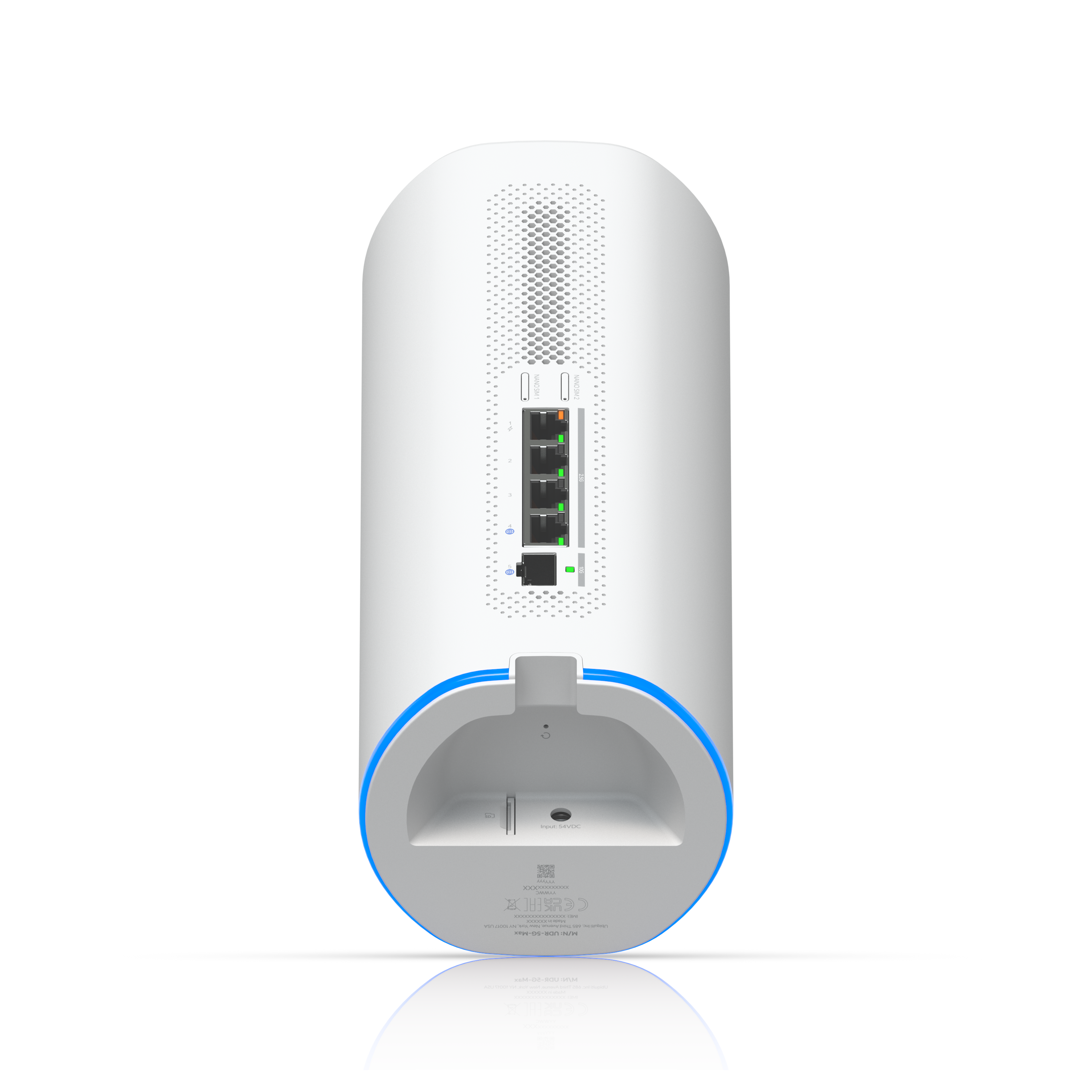

The Ubiquiti Dream Router 5G Max (UDR-5G-Max-US) is a desktop UniFi Cloud Gateway with an integrated full-performance 5G modem rated up to 3.4 Gbps. It combines tri-band Wi-Fi 7, a 10G SFP+ port, a four-port 2.5 GbE switch with one PoE port, and a pre-installed 64 GB microSD card for NVR recording. It runs the UniFi Network, Protect, Access, Talk and Connect applications, supports 30+ UniFi devices and 300+ users, and delivers 2.3 Gbps IDS/IPS throughput.

  • Integrated 5G NR Sub-6 modem with peak downlink of 3.4 Gbps (5G NSA), 1.8 Gbps (5G SA) and 1.6 Gbps (LTE)
  • Tri-band Wi-Fi 7 (2x2 on 2.4/5/6 GHz) with up to 5.7 Gbps on 6 GHz and 160 m² coverage
  • One 10G SFP+ port and a four-port 2.5 GbE switch with one PoE port (15.4 W budget)
  • 2.3 Gbps IDS/IPS throughput with Layer 7 firewall, content filtering and ad blocking
  • Runs UniFi Network, Protect, Access, Talk and Connect; manages 30+ UniFi devices and 300+ users
  • Pre-installed 64 GB microSD card for NVR recording
  • 4.7-inch touchscreen; quad-core ARM Cortex-A53 1.5 GHz with 3 GB memory
  • Replaces a separate gateway, switch, access point, NVR and cellular modem at small sites

The Dream Router 5G Max puts a complete UniFi site in one desktop enclosure: gateway, firewall, Wi-Fi 7 access point, 2.5 GbE switch, camera NVR and 5G modem. It suits small offices, retail locations, clinics and remote sites that want 5G as a primary or failover WAN without separate hardware. The US model is certified with AT&T and T-Mobile. T-Mobile Home Internet SIMs are not supported and a data-only plan is required, and Verizon is not supported at this time.

The cellular modem is 5G NR Sub-6, with 28 5G bands, 31 LTE bands and 3G UMTS. Peak downlink is 3.4 Gbps on 5G NSA, 1.8 Gbps on 5G SA and 1.6 Gbps on LTE. It supports dual Nano-SIM with an eSIM option. Wired WAN is handled by default through one 10G SFP+ and one 2.5 GbE port, with up to four WAN ports, multi-WAN load balancing and OSPF.

The tri-band Wi-Fi 7 radio (2x2 on 2.4, 5 and 6 GHz) reaches up to 5.7 Gbps on 6 GHz and covers about 160 m² (1,750 ft²). Security includes a stateful and Layer 7 application-aware firewall, zone-based filtering, content filtering, ad blocking and IDS/IPS at 2.3 Gbps, with 20,000+ signatures available through CyberSecure. VPN options include license-free SD-WAN, Site Magic, IPsec, WireGuard, OpenVPN, L2TP and Teleport.

A quad-core ARM Cortex-A53 at 1.5 GHz with 3 GB of memory runs the UniFi application suite, which manages up to five HD, two 2K or one 4K camera through Protect. A 4.7-inch touchscreen, the included 54 V power adapter and NDAA compliance complete the package.

Ideal for

  • All-in-one network for small offices, clinics and retail stores with 5G primary or failover WAN
  • Remote or rural sites where 5G is the main internet connection
  • Branch locations that need Wi-Fi 7, camera recording and access control from one device
  • Multi-site businesses linking locations through license-free SD-WAN and Site Magic VPN

Specifications

General

MPN
UDR-5G-MAX-US
Brand
Ubiquiti
Model
Dream Router 5G Max (UDR-5G-Max)
Region
United States
Product Type
Desktop Cloud Gateway with integrated 5G

Cellular

SIM
(2) Nano SIM; (1) Nano-SIM or eSIM (Nano-SIM 2 cannot be used when an eSIM is active)
Antenna Gain
617-960 MHz 3 dBi; 1710-2700 MHz 7 dBi; 3300-5000 MHz 8 dBi; 5150-5925 MHz 8 dBi
NR 5G Category
5G NR Category: 5G NR Sub-6
LTE Max TX Power
HPUE power class 2, 25 dBm
Peak Speed 5G SA
1.8 Gbps down / 650 Mbps up
Peak Speed 4G LTE
1.6 Gbps down / 210 Mbps up
Peak Speed 5G Nsa
3.4 Gbps down / 560 Mbps up (depends on network coverage and performance at the device location)
NR 5G Max TX Power
5G NR Max. TX Power: HPUE power class 2, 26 dBm
LTE Frequency Bands
4G LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
NR 5G Frequency Bands
5G NR Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
Umts 3g Frequency Bands
3G UMTS Bands: B1, B2, B4, B5, B8, B19

Hardware

Button
(1) factory reset
Weight
1.4 kg (3.1 lb)
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
Management
Ethernet; Bluetooth
PoE Budget
15.4 W
Lcm Display
4.7" touchscreen
Leds System
Yes
Nvr Storage
Pre-installed 64 GB microSD for NVR
Power Method
DC jack (54 V DC/1.1 A)
Power Supply
54 V DC/1.1 A (adapter included)
Leds Ethernet
Yes
Leds SFP Plus
Yes
System Memory
3 GB
Certifications
FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance®
Expansion Slot
MicroSD card (64 GB pre-installed)
Ndaa Compliant
Yes
Heat Dissipation
115 BTU/hr (excluding PoE output)
Max PoE Per Port
Max. PoE Wattage per Port by PSE, PoE: 15.4 W
Enclosure Material
Polycarbonate
Esd Emp Protection
Air ± 8 kV, contact ± 4 kV
Max Power Consumption
34.5 W (excluding PoE output)
Voltage Range PoE Mode
44–57 V
Supported Voltage Range
100–240 V AC
Ambient Operating Humidity
5 to 95% noncondensing
Ambient Operating Temperature
0 to 40 °C (32 to 104 °F)

Overview

Dimensions
110 x 110 x 250 mm (4.3 x 4.3 x 9.8")
Unifi Talk
Yes (plug-and-play VoIP system with call routing and automations)
Form Factor
Desktop
Unifi Access
Yes (Ethernet-based access control for doors, gates and elevators)
Coverage Area
160 m² (1,750 ft²)
Unifi Connect
Yes (digital signage, EV chargers and Lutron lighting management)
Unifi Network
Yes (gateways, Wi-Fi access points and switches with security and scalable SD-WAN)
Unifi Protect
Yes (AI-powered camera system with alarm integrations and smart detections)
Managed Cameras
(5) HD; (2) 2K; (1) 4K
Default WAN Ports
(1) 10G SFP+; (1) 2.5 GbE RJ45
Ids Ips Throughput
2.3 Gbps
Max WAN Port Count
4
Simultaneous Users
300+
Managed Unifi Devices
30+
Port Layout 2 5gbe Rj45
2.5 GbE RJ45 Ports: 4 (1 PoE); 2.5G/1G/100M
Port Layout 10g SFP Plus
10G SFP+ Ports: 1; 10G/1G

Security

AD Blocking
Yes
Layer7 Firewall
Yes
Content Filtering
Yes
Stateful Firewall
Yes
Ids Ips Signatures
20,000+ with CyberSecure
Intrusion Prevention
Yes
Dpi Traffic Identification
Yes
Zone Based Firewall Filtering
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): Yes

Software

Mobile App Requirement
UniFi iOS version 10.33.0 and later; UniFi Android version 10.36.1 and later

Networking

Mdns
Yes
Radsec
Yes
Advanced Nat
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): Yes
Advanced Qos
Yes
LTE Backup Failover
Additional Internet Failover with UniFi LTE Backup: Yes
Dynamic Routing Ospf
Yes
Mac Address Table Size
2,000
Integrated Radius Server
Yes
Multi WAN Load Balancing
Yes
Virtual Network Override
Yes
Internet Quality Outage Reporting
Internet Quality and Outage Reporting: Yes

VPN SD WAN

VPN Server L2tp
Yes
Site TO Site Ipsec
Site-to-Site VPN, IPsec: Yes
VPN Client Openvpn
Yes
VPN Server Openvpn
Yes
License Free SD WAN
Yes
VPN Server Teleport
VPN Server, Teleport Zero-Configuration VPN: Yes
Site TO Site Openvpn
Site-to-Site VPN, OpenVPN: Yes
VPN Client Wireguard
Yes
VPN Server Wireguard
Yes
Site TO Site Site Magic
Site-to-Site VPN, Site Magic: Yes
VPN Server Identity Endpoint
VPN Server, Identity Endpoint One-Click VPN: Yes
Site Magic Single Tunnel Throughput
Site-to-Site VPN Single Tunnel Throughput, Site Magic: 20
Openvpn Client Single Tunnel Throughput
VPN Client Single Tunnel Throughput, OpenVPN: 8
Wireguard Client Single Tunnel Throughput
VPN Client Single Tunnel Throughput, WireGuard: 8

Integrated Wi-Fi

MIMO 5ghz
2 x 2 (DL/UL MU-MIMO)
MIMO 6ghz
2 x 2 (DL/UL MU-MIMO)
Max Bssids
4 per radio
MIMO 2 4ghz
2 x 2 (DL/UL MU-MIMO)
Wi-Fi Standard
802.11a/b/g/n/ac/ax/be (Wi-Fi 6/6E, Wi-Fi 7)
Throughput 5ghz
4.3 Gbps
Throughput 6ghz
5.7 Gbps
Antenna Gain 5ghz
5 dBi
Antenna Gain 6ghz
8 dBi
Max TX Power 5ghz
26 dBm
Max TX Power 6ghz
22 dBm
Throughput 2 4ghz
688 Mbps
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Data Rates 802 11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
Data Rates 802 11b
1, 2, 5.5, 11 Mbps
Data Rates 802 11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
Data Rates 802 11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Antenna Gain 2 4ghz
4 dBi
Data Rates 802 11ac
802.11ac (Wi-Fi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
Data Rates 802 11ax
802.11ax (Wi-Fi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Data Rates 802 11be
802.11be (Wi-Fi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Max TX Power 2 4ghz
23 dBm

Questions buyers ask

Which carriers does the Dream Router 5G Max support?

It is certified with AT&T and T-Mobile. T-Mobile Home Internet SIMs are not supported, and a data-only plan is required. Verizon is not supported at this time; Ubiquiti expects direct SIM/eSIM activation for Verizon in a future update.

What wired ports does it have?

One 10G SFP+ port (10G/1G) and four 2.5 GbE RJ45 ports (2.5G/1G/100M), one of which supplies PoE with a 15.4 W budget. By default, the SFP+ port and one 2.5 GbE port act as WAN ports, and up to four WAN ports are supported.

Can it record security cameras?

Yes. It runs UniFi Protect with a pre-installed 64 GB microSD card for NVR recording, and manages up to five HD, two 2K or one 4K camera.

What Wi-Fi does it provide?

Tri-band Wi-Fi 7 (802.11be) with 2x2 MU-MIMO on 2.4, 5 and 6 GHz. Throughput reaches up to 5.7 Gbps on 6 GHz, and coverage is about 160 m² (1,750 ft²).

How is it powered?

Through a DC jack using the included 54 V DC/1.1 A adapter, which accepts 100–240 V AC. Maximum consumption is 34.5 W, excluding PoE output.
