Ubiquiti5G & LTE Routers

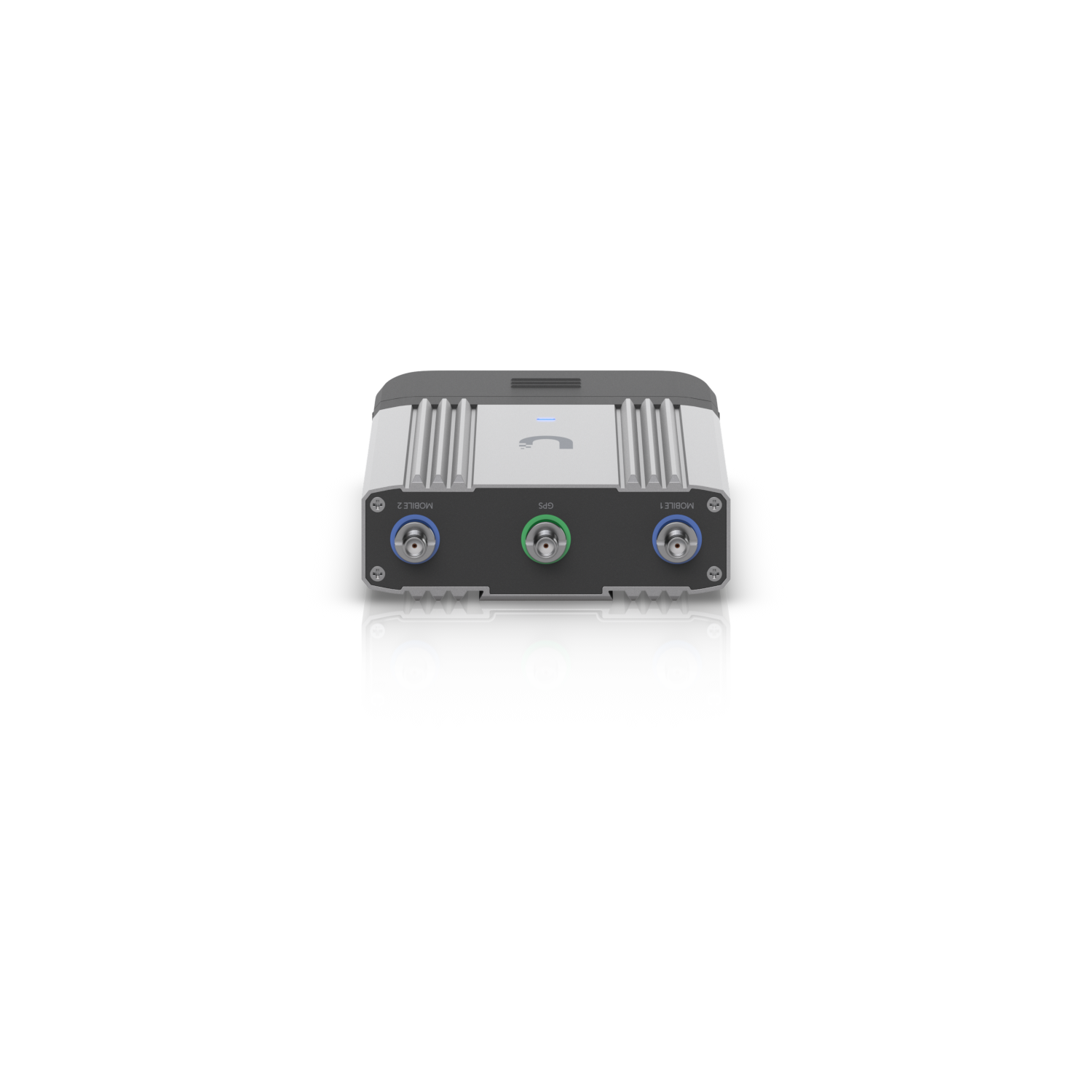

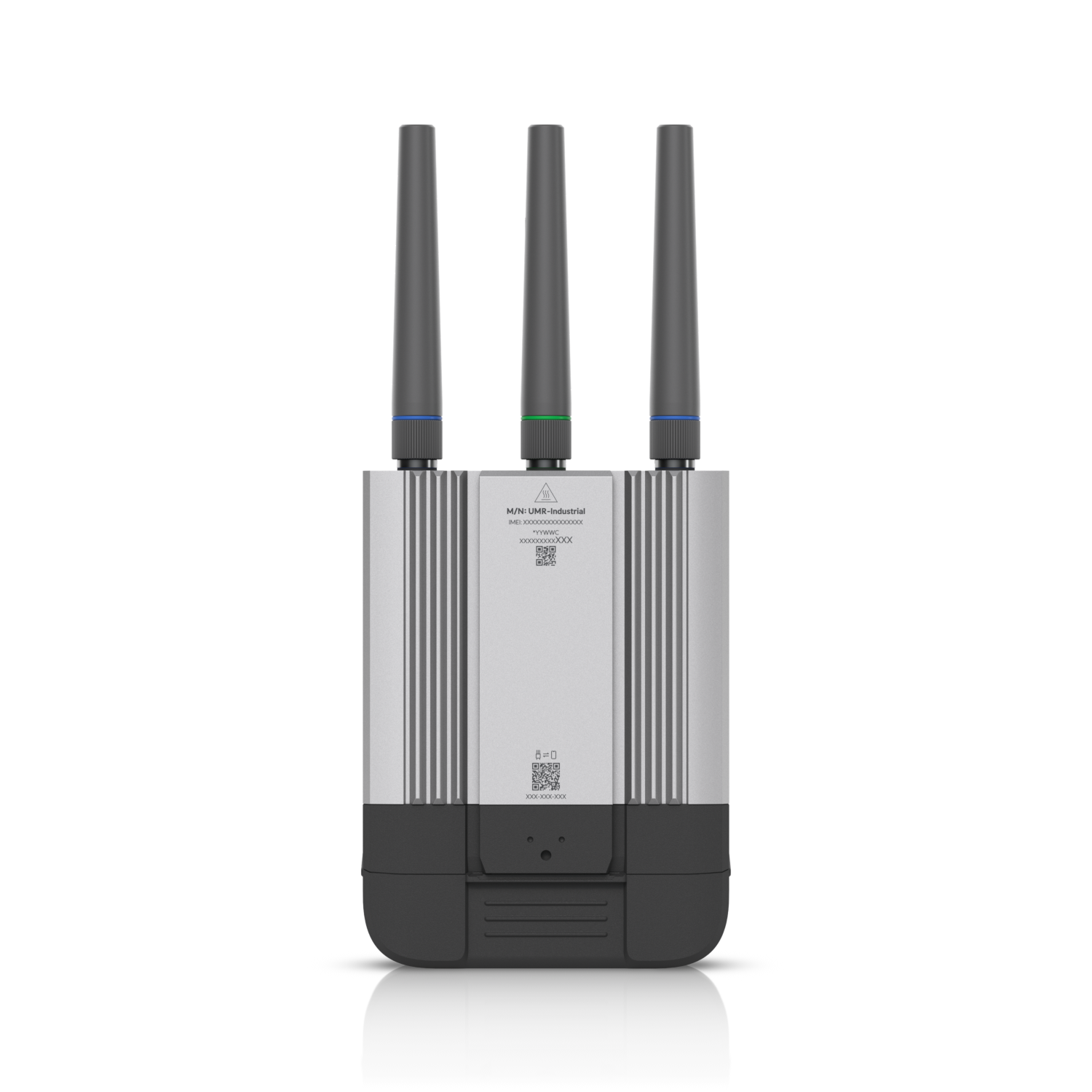

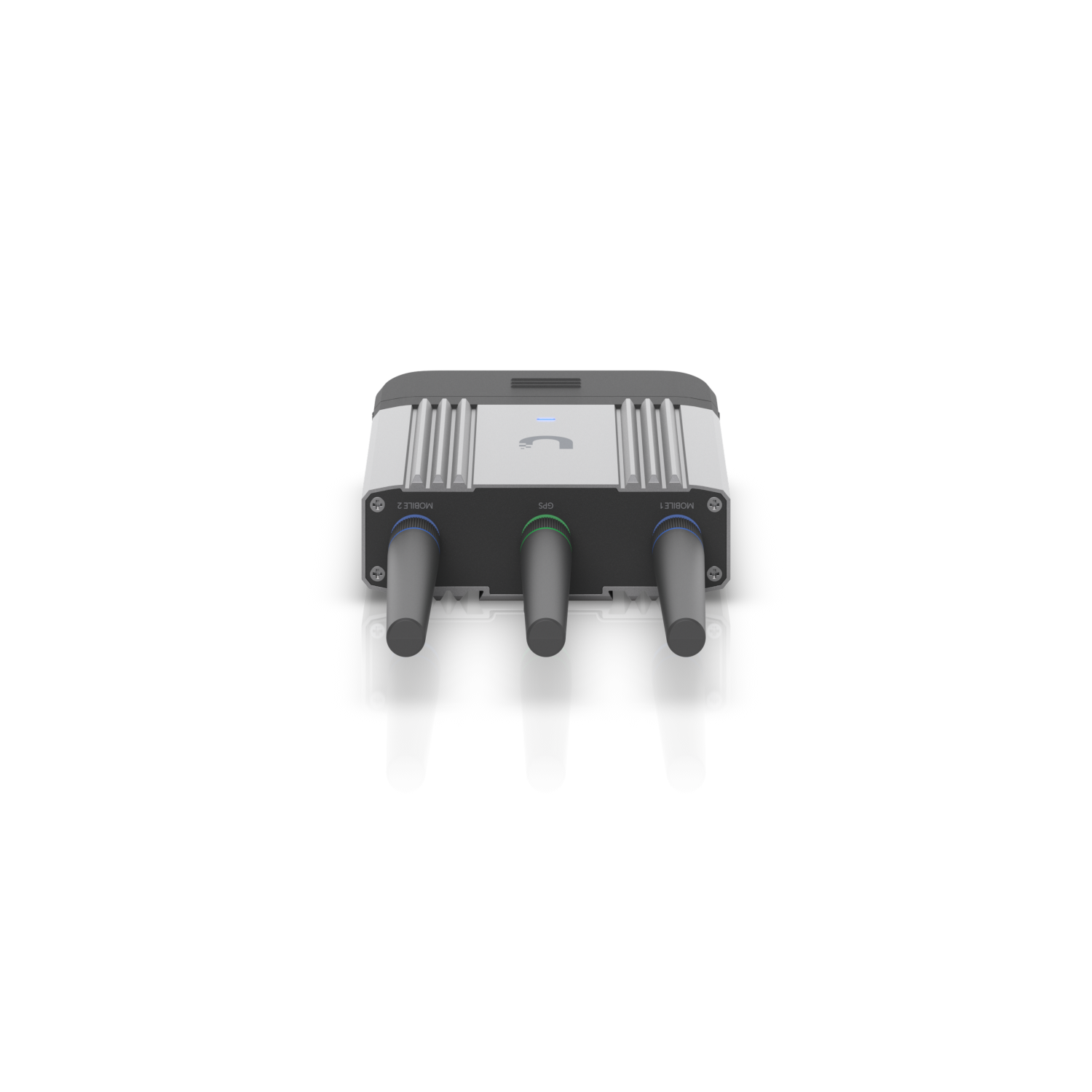

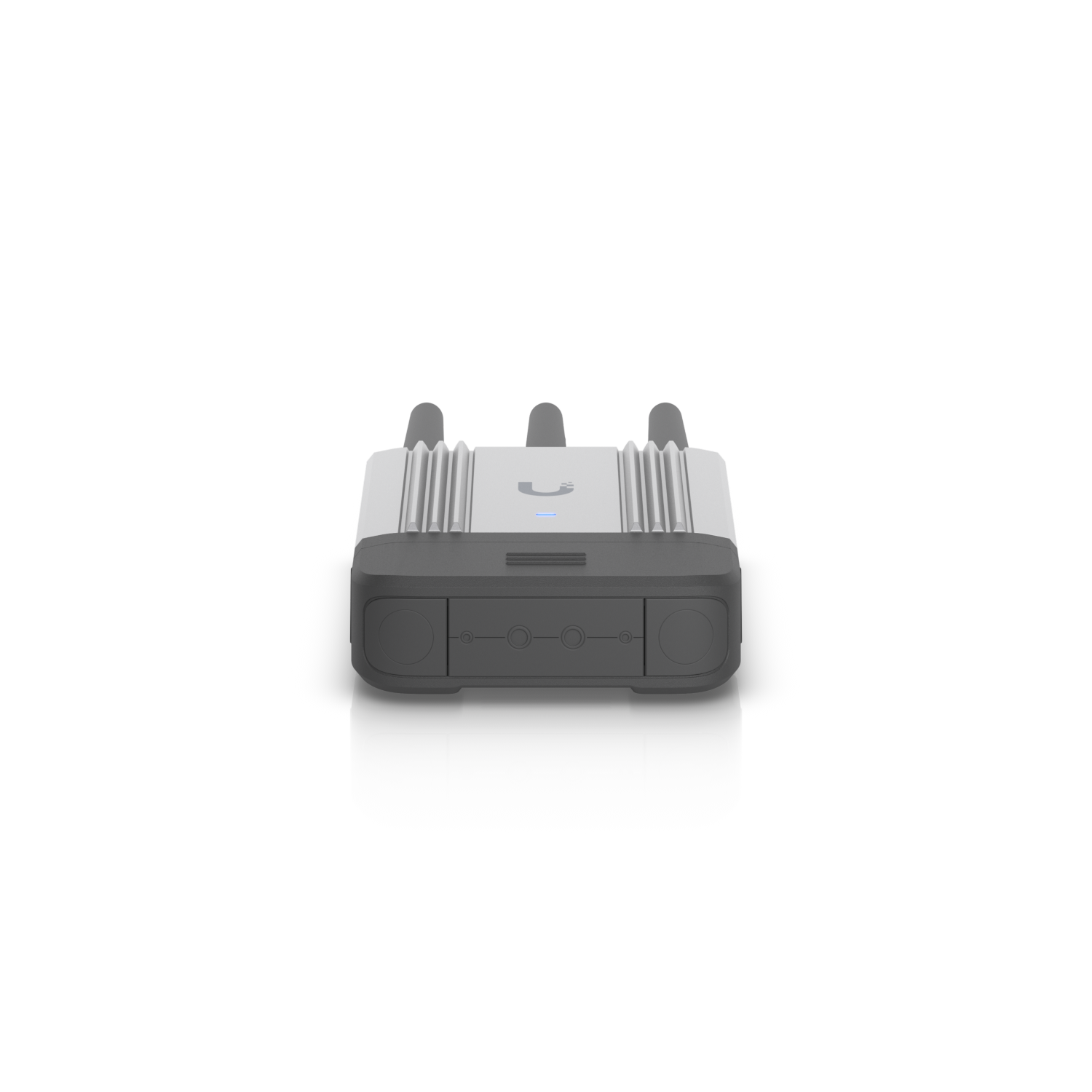

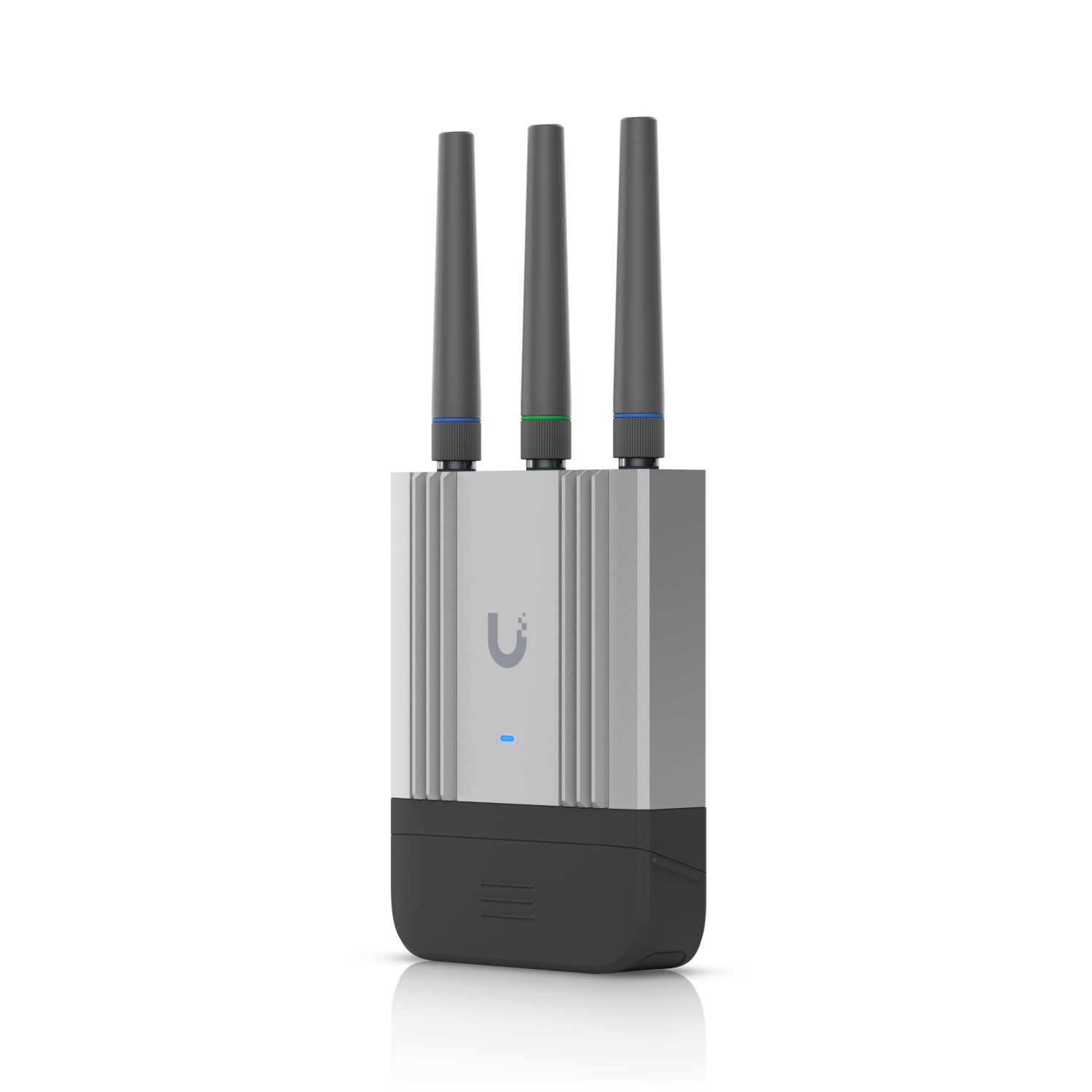

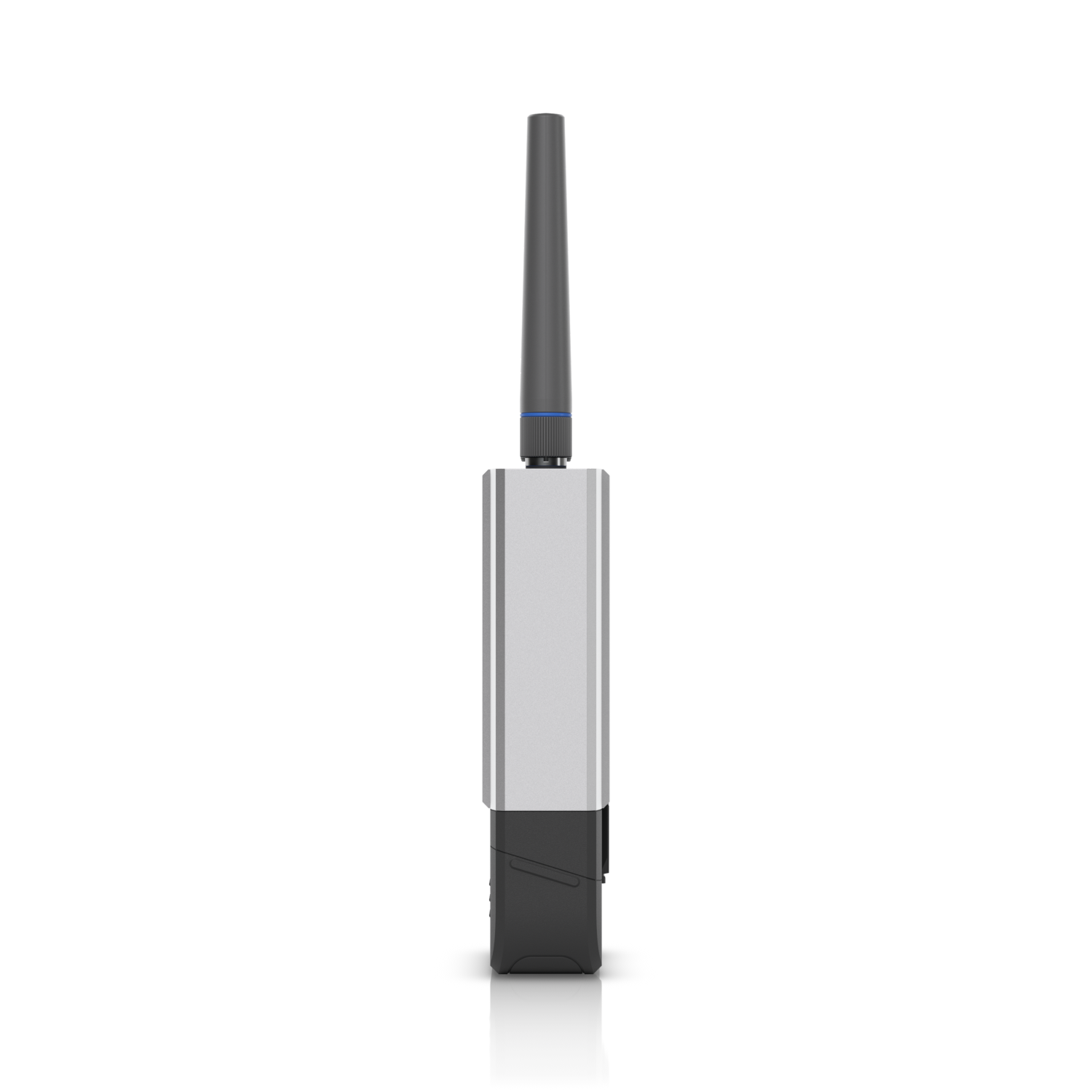

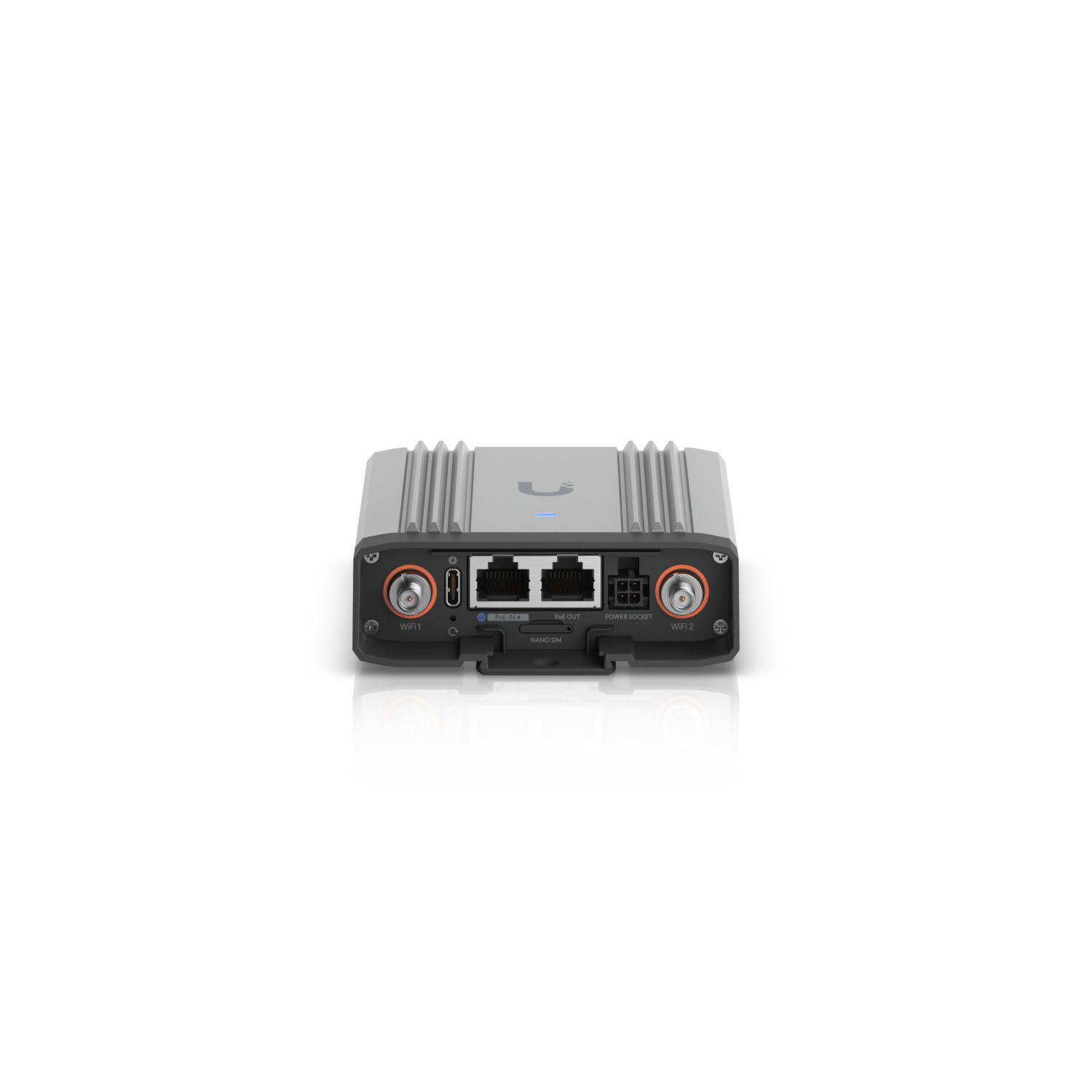

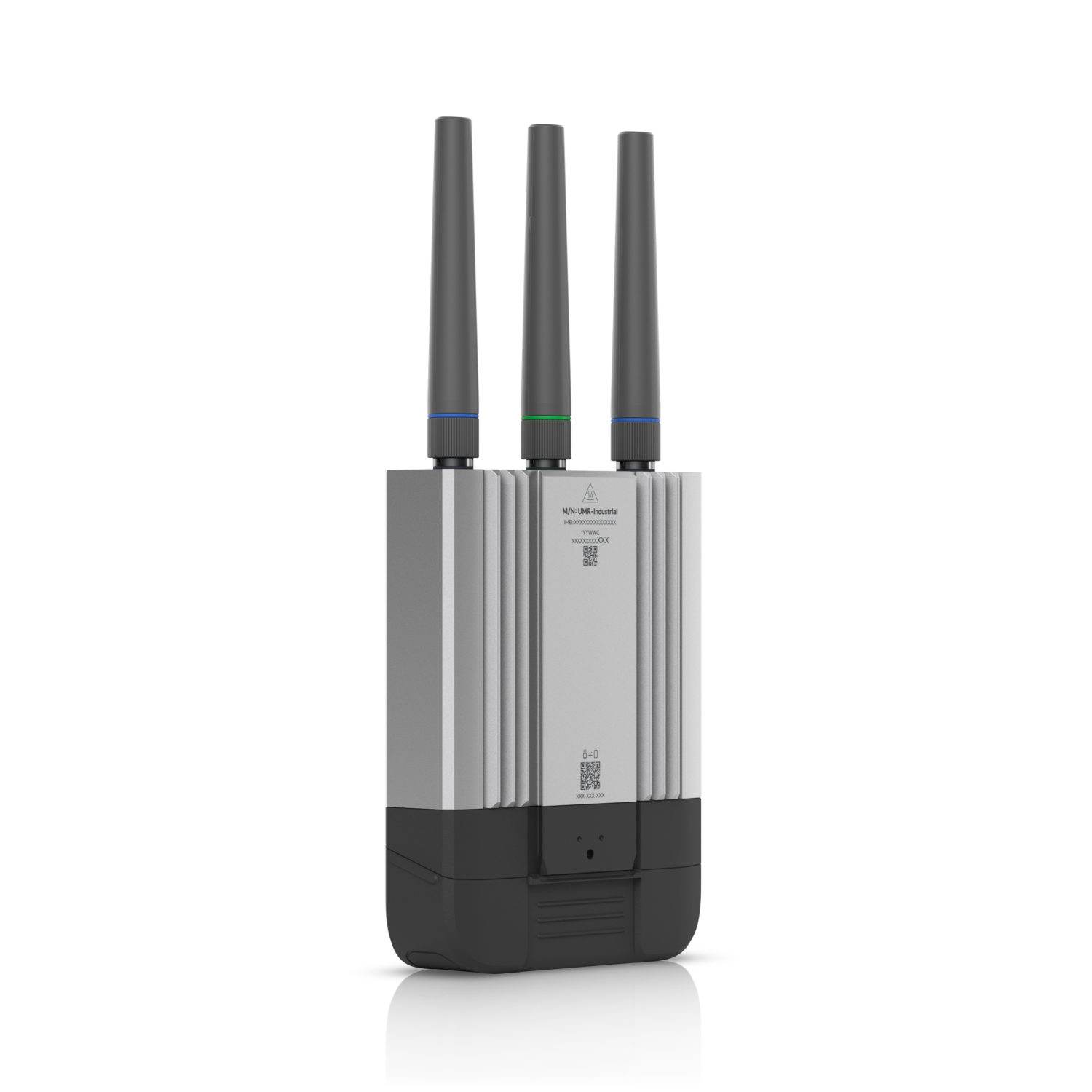

Ubiquiti Mobile Router Industrial (UMR-Industrial-US) Rugged LTE Cat 4 IoT Router with GPS

4G LTEMPN UMR-INDUSTRIAL-US
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • PoE out
  • Rugged
$224.07

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Overview

The Ubiquiti Mobile Router Industrial (UMR-Industrial-US) is a compact, ruggedized, carrier-unlocked LTE Cat 4 router for indoor and outdoor IoT deployments. It combines cellular, Ethernet and Wi-Fi WAN with priority fallback, IPsec and WireGuard site-to-site VPN, GPS, two GbE ports with PoE output, and three power options including 9-30V DC. With its outdoor cover it is IP66 rated, and it operates from -40 to 70 °C.

  • Carrier-unlocked LTE Cat 4 radio, bands B2/B4/B5/B12/B13/B14/B25/B26/B66/B71, rated 150/50 Mbps
  • Certified by AT&T, T-Mobile and Verizon plus FCC, IC, PTCRB, GCF and Wi-Fi Alliance
  • Multi-WAN (cellular, Ethernet, Wi-Fi) with priority and fallback; LTE passthrough and bridge modes
  • OpenVPN and WireGuard clients; IPsec and WireGuard site-to-site VPN; firewall and static routes
  • Built-in GPS and 2x2 Wi-Fi 4 (2.4 GHz, up to 300 Mbps)
  • Two GbE ports with PoE input and PoE output (max 10W, PoE+ switch required)
  • IP66 with outdoor cover, -40 to 70 °C; PoE+, USB-C or 9-30V DC power; DIN rail, wall and pole mounts included
  • Choose among major US carriers on a single unlocked, carrier-certified router

The Mobile Router Industrial is Ubiquiti's rugged LTE router for IoT, remote infrastructure and outdoor installations. It is carrier unlocked and certified by AT&T, T-Mobile and Verizon, alongside FCC, IC, PTCRB, GCF and Wi-Fi Alliance certification, giving field-operations teams flexibility in carrier choice across the US.

The LTE Cat 4 radio covers bands B2, B4, B5, B12, B13, B14, B25, B26, B66 and B71 with rated throughput of 150 Mbps down and 50 Mbps up. Cellular, Ethernet and Wi-Fi can each serve as WAN with priority and fallback, and the router also supports LTE passthrough and Ethernet bridge modes. Security and connectivity tools include OpenVPN and WireGuard clients, IPsec and WireGuard site-to-site VPN, firewall, port forwarding and static routes. Built-in GPS supports location tracking, and 2x2 Wi-Fi 4 on 2.4 GHz serves local devices at up to 300 Mbps.

All antennas are external: two LTE (SMA), one GPS (SMA) and two Wi-Fi (RP-SMA), so they can be swapped for remote-mounted antennas. Two GbE RJ45 ports include one PoE input and one PoE output of up to 10W when powered from a PoE+ switch. Power can also come from USB Type-C (5V, adapter included) or a 4-pin ATX DC input accepting 9-30V DC, suiting vehicles, solar and cabinet installs.

The polycarbonate and aluminum body measures 114.5 x 93.6 x 32 mm without antennas and weighs 360 g. DIN rail, wall and pole mounts are included (1-2 in pole diameter), and with the outdoor cover it reaches IP66 with a -40 to 70 °C operating range. It is NDAA compliant.

Ideal for

  • Connecting outdoor IoT sensors, cameras and telemetry on poles or in cabinets
  • Primary or backup WAN for remote utility, oil and gas, and agricultural sites
  • Vehicle and mobile installations powered from 9-30V DC with GPS tracking
  • Secure site-to-site VPN links for distributed industrial equipment
  • DIN rail installs inside control panels and kiosks

Specifications

General

MPN
UMR-INDUSTRIAL-US
Brand
Ubiquiti
Model
Mobile Router Industrial (UMR-Industrial)
Region
US
Carrier Lock
Carrier unlocked

Package

Contents
Router, USB-C 5V/3A adapter, DIN rail/wall/pole mount

Features

Firewall
Yes
WAN Wi-Fi
Yes
WAN Cellular
Yes
WAN Ethernet
Yes
Static Routes
Yes
Wi-Fi Standard
Wi-Fi 4 (2.4 GHz, 20/40 MHz)
Port Forwarding
Yes
VPN Client Openvpn
Yes
Ethernet Bridge Mode
Yes
LTE Passthrough Mode
Yes
VPN Client Wireguard
Yes
Site TO Site VPN Ipsec
Yes
WAN Priority And Fallback
Yes
Site TO Site VPN Wireguard
Yes

Hardware

GPS
Yes
Buttons
(1) Factory reset
Wi-Fi MIMO
2 x 2
Management
Ethernet; Wi-Fi
Antenna Type
(2) external LTE; (2) external Wi-Fi; (1) external GPS
Max TX Power
22 dBm
Power Method
PoE+ (48-54V DC); USB-C (5V DC); 4-pin ATX DC (9-30V DC)
Power Supply
USB-C 5V DC, 3A adapter (included)
Antenna Ports
Mobile 1 SMA-F (1Tx/1Rx); Mobile 2 SMA-F (1Rx); GPS SMA-F; (2) Wi-Fi RP-SMA-F
Certifications
FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance
Ndaa Compliant
Yes
LTE Throughput Speed
150 Mbps down / 50 Mbps up
Max Power Consumption
12.5W
Ambient Operating Humidity
5 to 95% noncondensing
Ambient Operating Temperature
-40 to 70 °C (-40 to 158 °F)

Overview

SIM
Nano SIM
Mounting
DIN rail, wall, pole (mounts included)
LTE Bands
B2, B4, B5, B12, B13, B14, B25, B26, B66, B71
Dimensions
114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3 in) bare; 213 x 93.6 x 32 mm (8.4 x 3.7 x 1.3 in) with antennas; 217 x 94 x 32 mm (8.5 x 3.7 x 1.3 in) with antennas and cover
PoE Interface
(1) PoE in; (1) PoE out (max 10W, requires PoE+ switch)
Weatherproofing
IP66 with outdoor cover
Networking Interface
(2) GbE RJ45, LTE Cat 4 radio, Wi-Fi 4

Mechanical

Weight
360 g device; 395 g with outdoor cover; 25 g mounts
Wind Loading
38.8 N at 200 km/h (8.7 lbf at 125 mph)
Mount Material
Polycarbonate (wall, pole, DIN rail mounts)
Enclosure Material
Polycarbonate, aluminum
Pole Mount Diameter
25-50 mm (1-2 in) pipe OD

Networking

Data Rates 802 11b
1, 2, 5.5, 11 Mbps
Data Rates 802 11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
Data Rates 802 11n
6.5-300 Mbps (MCS0-MCS7, HT 20/40)

Questions buyers ask

Is the Mobile Router Industrial carrier unlocked?

Yes. Ubiquiti describes it as carrier unlocked, and it holds AT&T, T-Mobile and Verizon certifications.

Can it be installed outdoors?

Yes. With its outdoor cover it is rated IP66 and operates from -40 to 70 °C, with wind loading rated at 38.8 N at 200 km/h.

What power options does it support?

PoE+ (48-54V DC), USB Type-C at 5V (a 5V, 3A adapter is included) or a 4-pin ATX DC input accepting 9-30V DC.

Which VPN types are supported?

OpenVPN and WireGuard as VPN clients, plus IPsec and WireGuard for site-to-site VPN.

Can I replace the antennas?

Yes. All antennas are external, on SMA female connectors for LTE and GPS and RP-SMA female connectors for Wi-Fi.
