Panorama WMM8G-7-38-03NJ 2x2 MIMO 4G/5G LTE Directional Antenna with 0.3 m N-Female Cable

5GMPN WMM8G-7-38-03NJ
  • 2x2 MIMO
  • 9 dBi and up
  • Up to 1 m
$144.57$199.00Save $54.43

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

The Panorama WMM8G-7-38-03NJ is a compact 2x2 MIMO directional panel antenna for 4G/5G LTE routers in fringe coverage areas. It covers 698-960 MHz at 6 dBi and 1710-2170, 2396-2700 and 3400-3800 MHz at 9 dBi, in a UV-stable IP65 housing. This version has 0.3 m leads terminated in N-type female connectors for connecting your own low-loss cable run. It mounts on a wall, a mast or a desk.

  • 2x2 MIMO with two separately fed wideband elements
  • 698-960 MHz at 6 dBi; 1710-2170, 2396-2700 and 3400-3800 MHz at 9 dBi
  • Supports 2G/3G/4G/5G LTE, including 3.4-3.8 GHz
  • 0.3 m CS29 leads with N-type female connectors
  • UV-stable IP65-rated housing, -45°C to +80°C

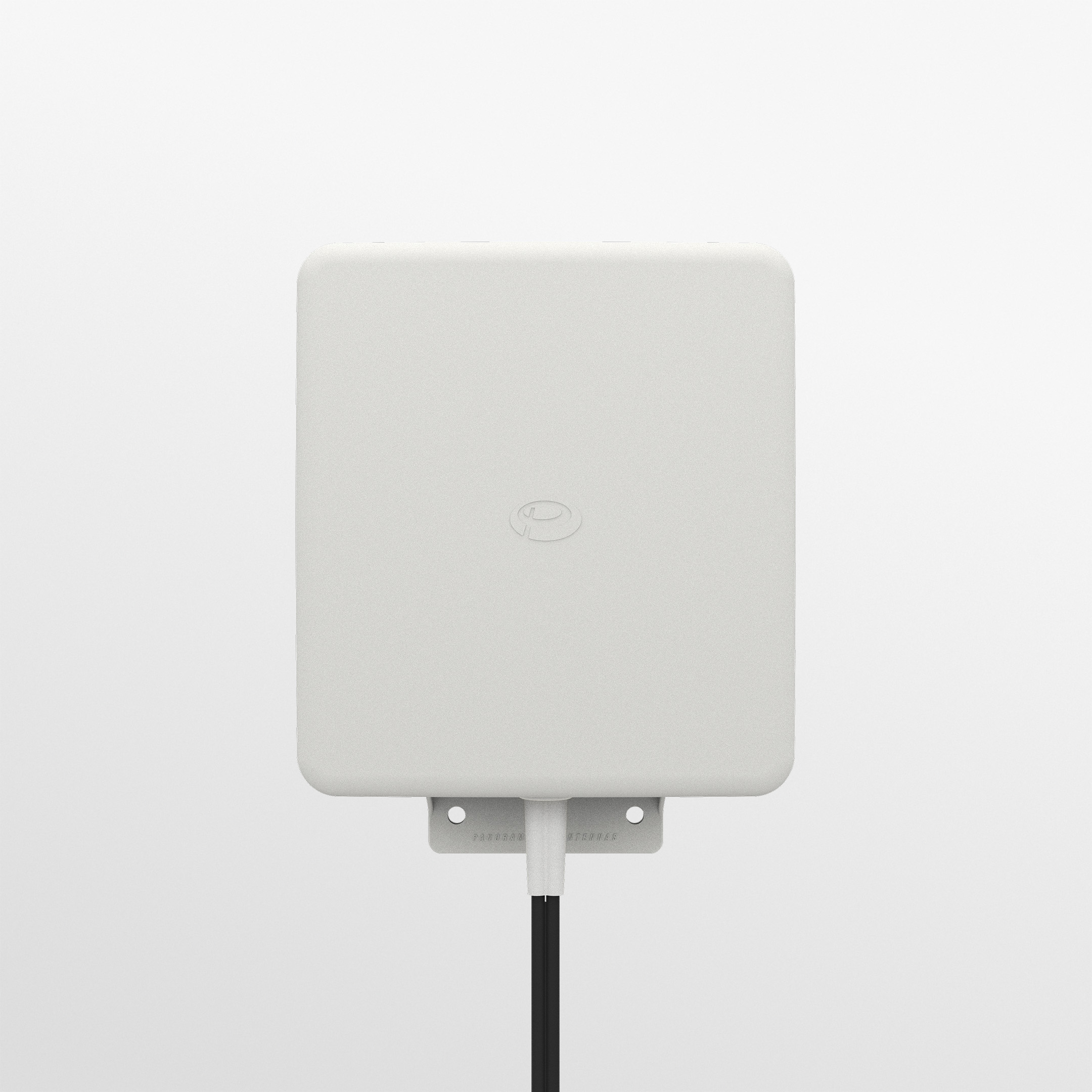

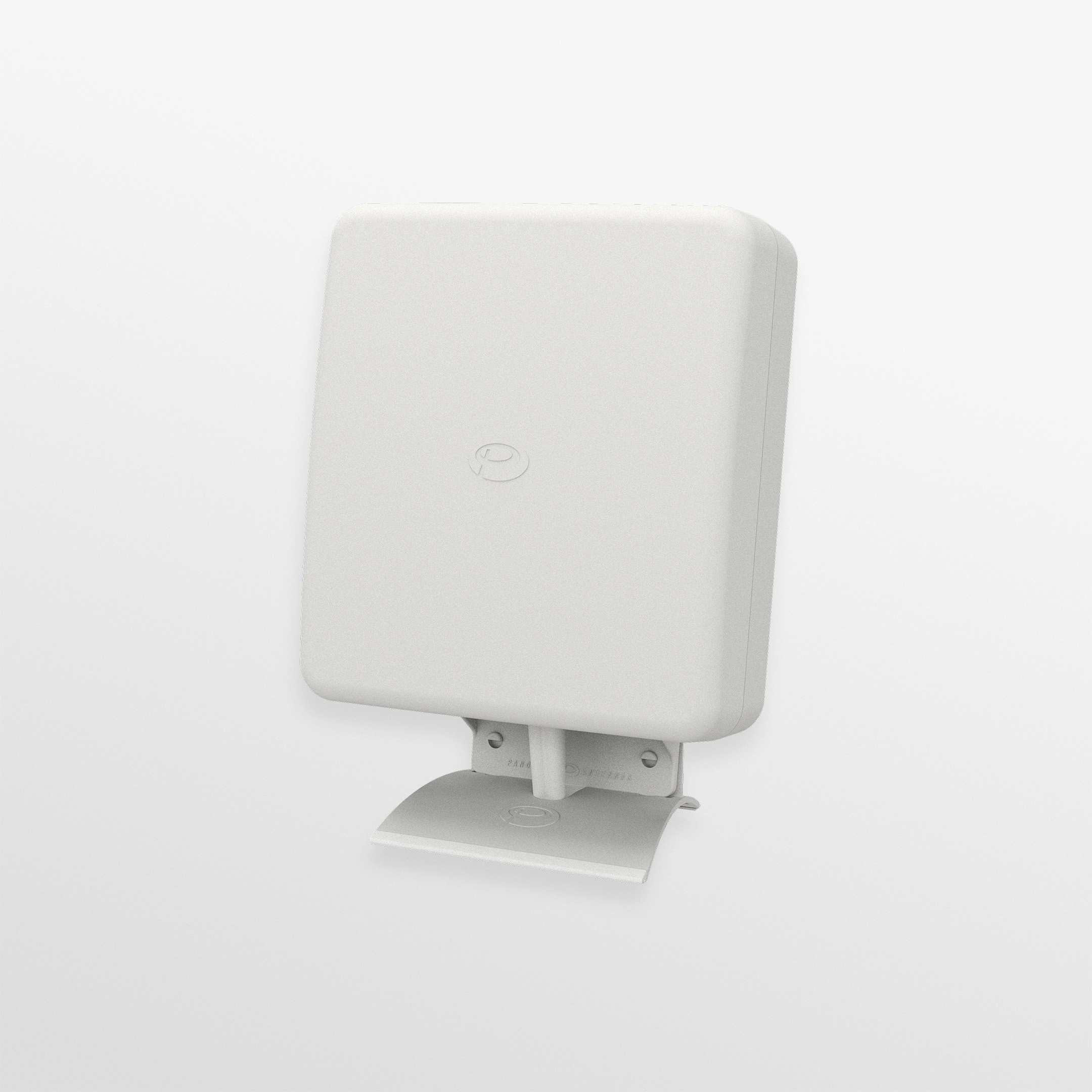

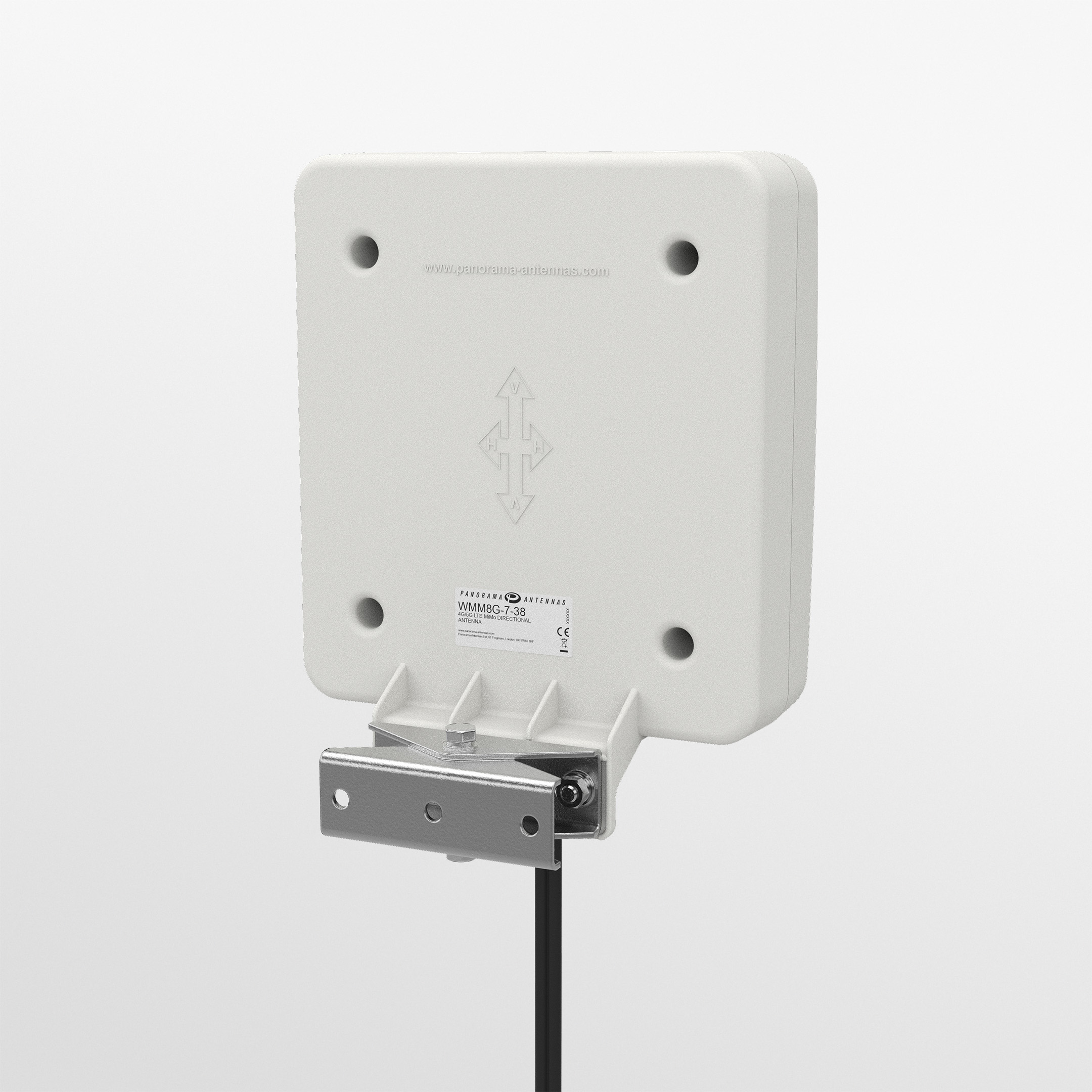

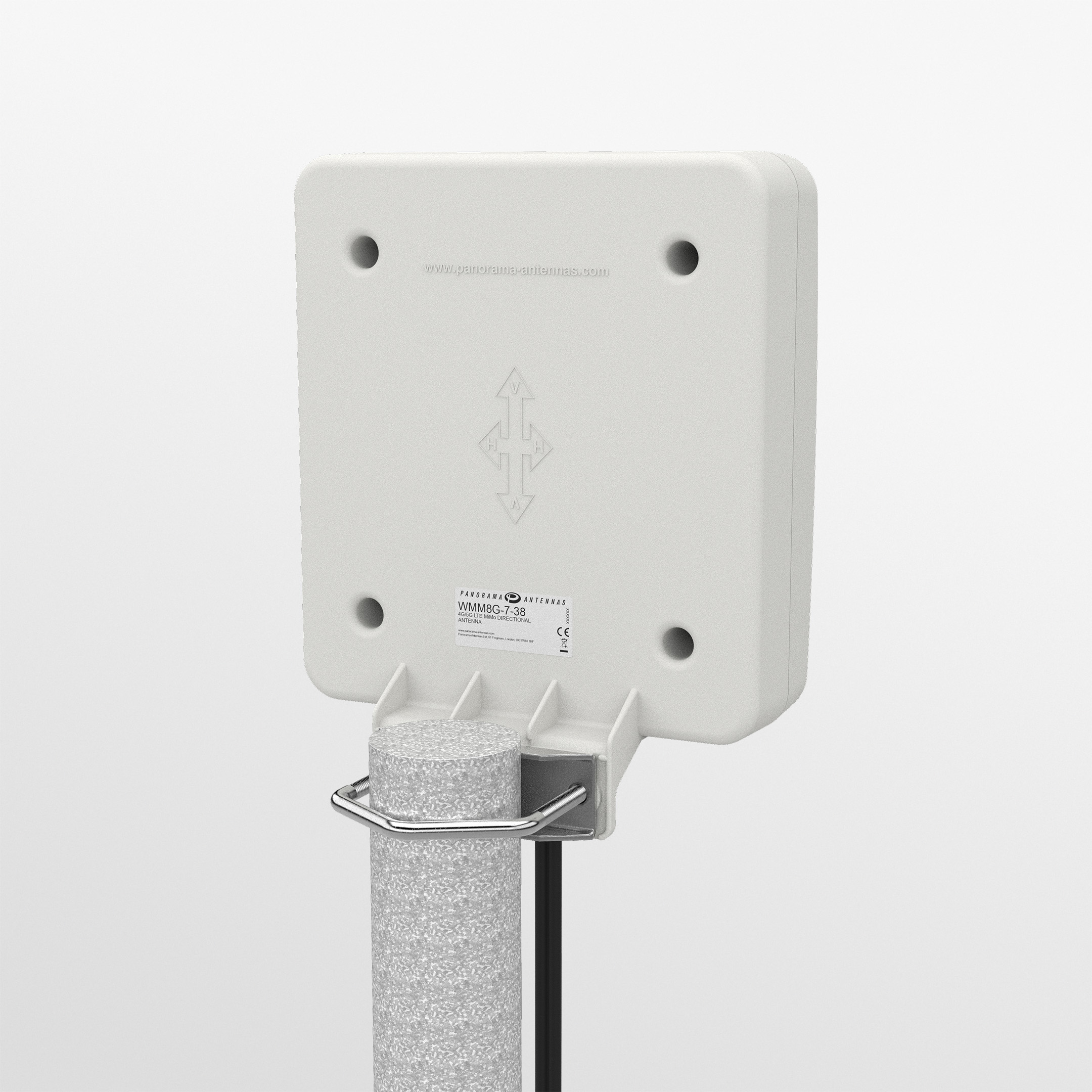

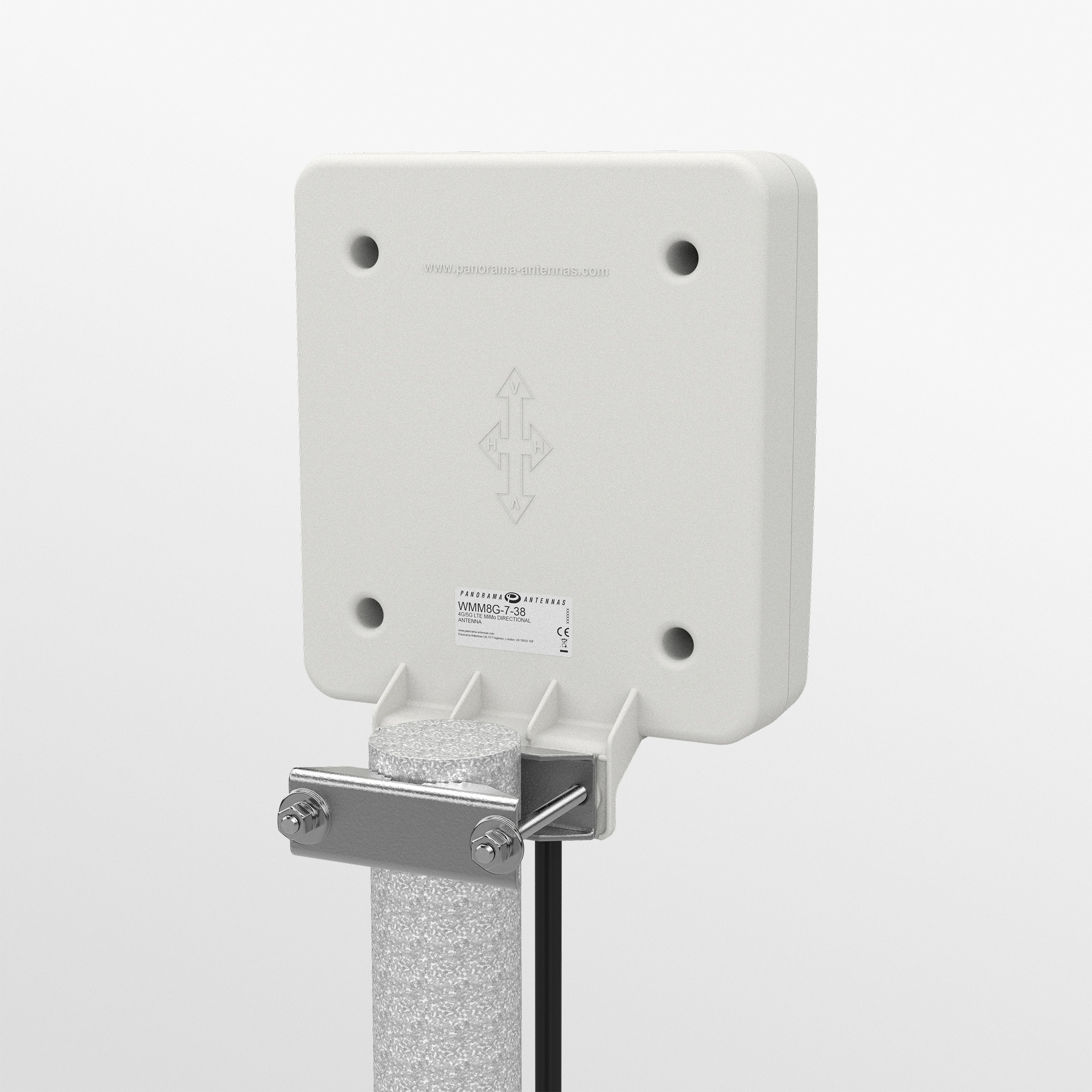

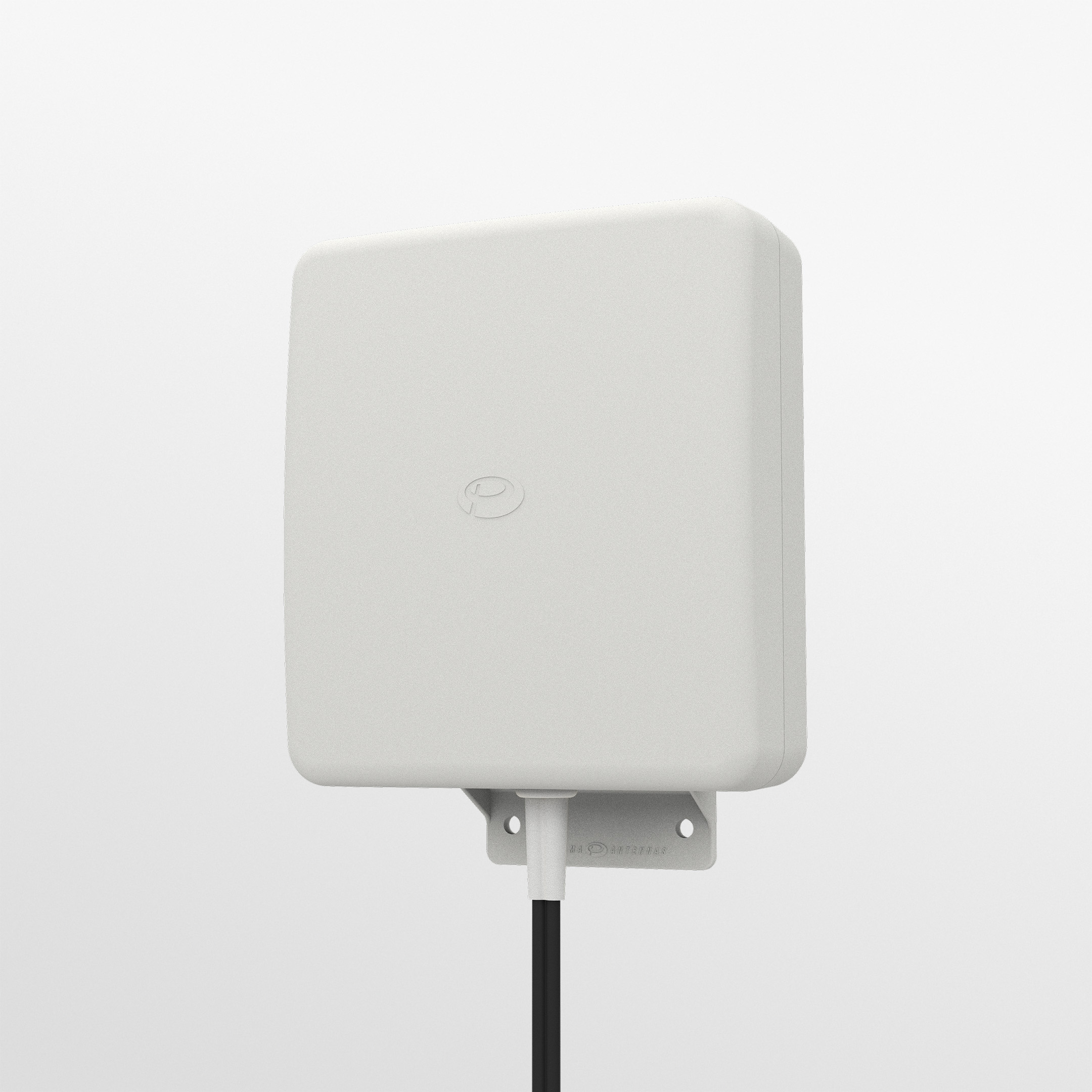

  • Wall, mast or desk mounting; wall and mast brackets provided
  • Up to 9 dBi of directional gain for dependable service in fringe coverage areas
  • Adds 3.4-3.8 GHz coverage compared with the earlier WMM8G-7-27

The Panorama WMM8G-7-38-03NJ is a high-gain directional 2x2 MIMO antenna for 4G/5G LTE. It houses two separately fed wideband elements, which gives the router client-side MIMO and diversity from a single outdoor panel. Panorama recommends it for rural broadband and fringe network areas where a standard router antenna cannot hold a stable link.

Gain is specified per band: 6 dBi at 698-960 MHz, and 9 dBi at 1710-2170 MHz, 2396-2700 MHz and 3400-3800 MHz. The WMM8G-7-38 is Panorama's upgrade of the WMM8G-7-27, adding the 3.4-3.8 GHz bands used for 5G. The antenna supports 2G, 3G, 4G and 5G LTE technologies.

The -03NJ variant has short 0.3 m CS29 leads ending in N-type female connectors. Mount the panel outside and run a low-loss N-terminated cable to the router. Panorama lists its CS240 (6.1 mm, double screened) and CS400 (10.3 mm, double screened) ultra-low-loss cables as compatible accessories for longer runs.

The rugged, UV-stable, IP65-rated housing measures 230 x 180 x 98 mm, handles up to 20 W input power, and operates from -45°C to +80°C. Wall and mast mounting brackets are provided, and the family also supports desk mounting. Panorama publishes a datasheet and installation instructions (SW3-665) for this antenna.

Ideal for

  • Rural broadband with 2x2 MIMO 4G/5G routers
  • Fringe-coverage homes, farms and small offices
  • Outdoor antenna with a custom-length low-loss cable run
  • Upgrading WMM8G-7-27 installs to cover 3.4-3.8 GHz

Specifications

GPS

Number OF GPS Elements
No

Cable

Cable Type LTE
CS29
Cable Length LTE
0.3 m (0.98 ft) on this model; family range 0.3-5 m

General

MPN
WMM8G-7-38-03NJ
UPC
5055416000422
Brand
Panorama Antennas
Colour
White
Family
WMM8G-7-38 4G/5G LTE MiMo Directional Antenna

Package

Documents
Datasheet, installation instructions (SW3-665)
Shipping Weight
2.70 lb

Mounting

Mounting Methods
Desk, Mast, Wall
Brackets Supplied
Wall and mast brackets provided
Mounting Type Fixed
Desk, Mast, Wall

Approvals

IP Rating
IP65, UV stable
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Electrical

Pattern
Directional
Uhf Elements
No
Wi-Fi Elements
No
Max Input Power
20 W
Frequency Range Gain
698-960 MHz: 6 dBi; 1710-2170 MHz: 9 dBi; 2396-2700 MHz: 9 dBi; 3400-3800 MHz: 9 dBi
Cellular LTE Elements
2 x 2 MIMO

Mechanical

Width
98 mm (3.86 in)
Height
230 mm (9.06 in)
Length
180 mm (7.09 in)
Operating Temperature
-45°C to +80°C (-49°F to +176°F)

Technology

Technology
2G/3G/4G/5G LTE

Termination

Connector LTE
N-type female (family options: N (f), SMA (m))

Compatibility

Compatible Cables
Panorama CS240 (6.1 mm, double screened, FRZH) and CS400 (10.3 mm, double screened) ultra-low-loss cable

Questions buyers ask

What frequencies and gain does the WMM8G-7-38-03NJ offer?

It offers 6 dBi at 698-960 MHz and 9 dBi at 1710-2170 MHz, 2396-2700 MHz and 3400-3800 MHz.

What cable should I use to reach the router?

The antenna has 0.3 m leads with N-type female connectors. Panorama lists its CS240 and CS400 ultra-low-loss double-screened cables as compatible accessories.

How does it differ from the WMM8G-7-27?

The WMM8G-7-38 is Panorama's upgraded version and adds coverage of the 3.4-3.8 GHz bands.

Is it suitable for outdoor use?

Yes. It has a UV-stable IP65-rated housing and operates from -45°C to +80°C.
