Wilson (weBoost)Antennas & Signal

Wilson Electronics 304412 4G Dome Ceiling Antenna, 698-960/1710-2700 MHz, 50 Ohm N-Female

4G LTEMPN 304412
  • Single (SISO)
  • 3–5 dBi
  • Up to 1 m
$37.60$69.99Save $32.39

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

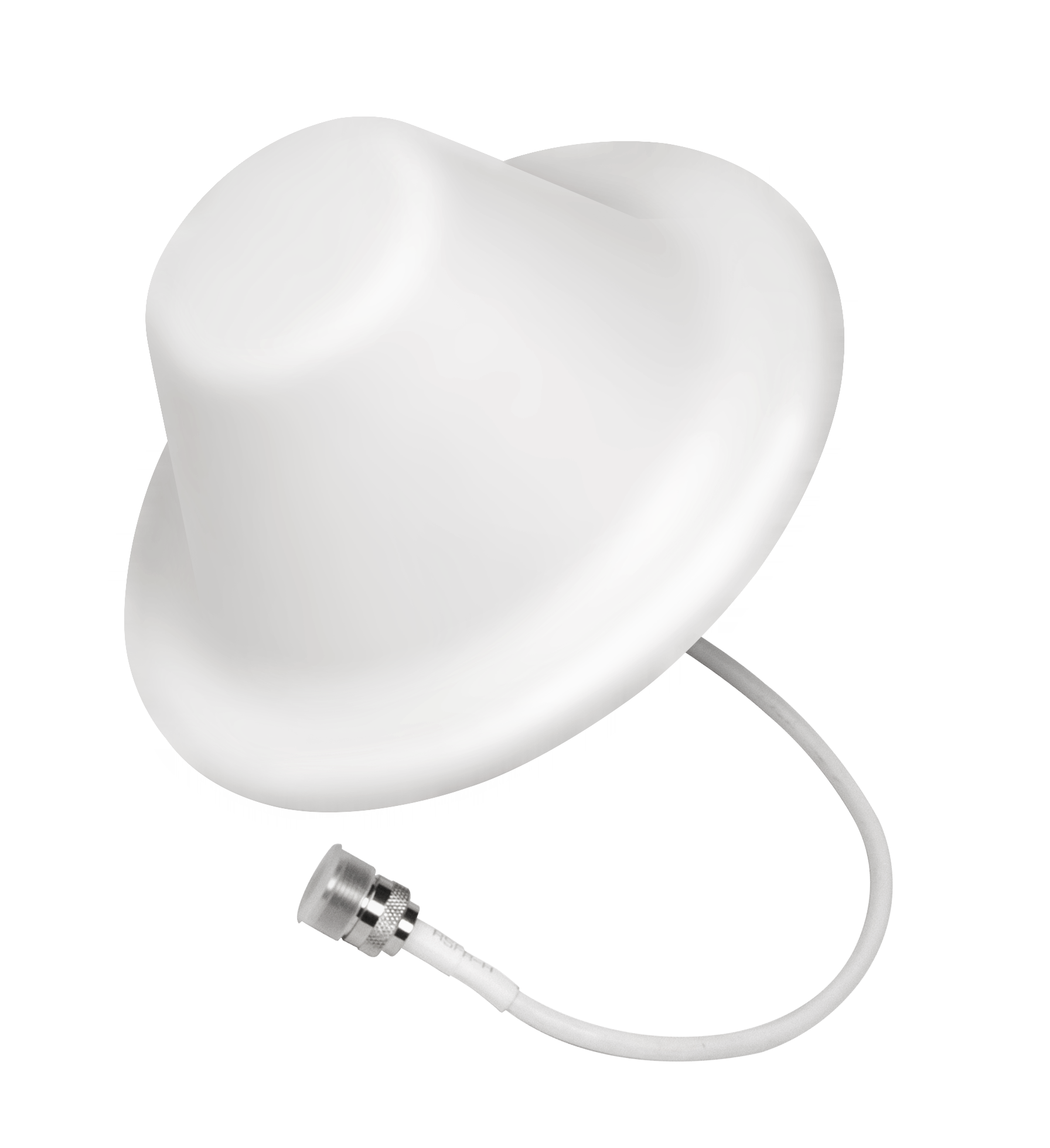

The Wilson Electronics 304412 is a white, 50 Ohm indoor dome antenna that mounts on the ceiling and rebroadcasts boosted cellular signal in a 360-degree pattern. It covers 698-960 MHz and 1710-2700 MHz for 4G LTE and 3G voice and data. It connects through an N-Female pigtail and is designed for fixed installations in homes, offices and open commercial spaces.

  • Omni-directional 360° ceiling-mount dome antenna
  • Covers 698-960 MHz (2 dBi) and 1710-2700 MHz (4 dBi)
  • 50 Ohm impedance with N-Female pigtail connector
  • Built-in ground plane and DC-ground lightning protection
  • 50 W maximum input power
  • White ABS radome, 7.3 x 3.3 in.
  • Spreads boosted signal evenly across open office and commercial spaces
  • Supports 4G LTE and 3G voice and data on all U.S. and Canada carriers

The Wilson Electronics 304412 4G Dome Ceiling Antenna is the inside antenna in a building signal booster system. Mounted on the ceiling, it takes the amplified signal from a weBoost or WilsonPro booster and spreads it through the room in an omni-directional, 360-degree pattern. That makes it well suited to general coverage in open-plan offices and commercial interiors. The manufacturer states that it works for all U.S. and Canada cell carriers.

The antenna covers two wide frequency ranges: 698-960 MHz at 2 dBi and 1710-2700 MHz at 4 dBi. It is vertically polarized, with a 60-degree vertical beamwidth, VSWR below 2 and a 50 W maximum input power rating. A built-in ground plane and DC-ground lightning protection are included. A 300 mm (11.9 in.) pigtail ends in an N-Female connector for standard 50 Ohm building coax.

The white ABS radome measures 7.3 inches (185 mm) in diameter by 3.3 inches (85 mm) high and weighs 0.63 lb. It is rated from -40 to 65 °C and is RoHS compliant. For systems built on 75 Ohm coax, Wilson offers the F-Female 304419 version. The 304412 carries a 2-year manufacturer warranty, and a spec sheet is available.

Ideal for

  • Open-plan office signal booster installations
  • Retail and commercial interiors
  • Home building booster systems
  • Adding coverage zones to an existing 50 Ohm booster

Specifications

General

MPN
304412
Brand
Wilson Electronics
Color
White
Warranty
2 Years
Product Name
4G Dome Ceiling Antenna (50 Ohm)

Electrical

Gain
2 dBi (698-960 MHz) / 4 dBi (1710-2700 MHz)
Vswr
<2
Impedance
50 Ohm
Polarization
Vertical
Frequency Range
698-960 / 1710-2700 MHz
Vertical Beamwidth
60°
Maximum Input Power
50 W
Horizontal Beamwidth
360°
Lightning Protection
DC Ground

Mechanical

Rohs
Compliant
Weight
0.63 lb / 0.28 kg
Connector
N-Female
Dimensions
7.3 x 3.3 in / 185 x 85 mm
Cable Length
11.9 in / 300 mm
Ground Plane
Built-in
Radome Material
ABS
Operating Temperature
-40 to 65 °C (-40 to 149 °F)

Wilson Connectivity Listing

Weight
0.63 lb
Frequency
700-2700 MHz
Impedance
50 Ohm
Dimensions
6.38 x 6.38 x 6.38

Questions buyers ask

Which boosters does the 304412 work with?

It is a 50 Ohm antenna with an N-Female connector, designed to connect to building cell phone signal boosters and modems such as weBoost and WilsonPro 50 Ohm systems.

What is the difference between the 304412 and the 304419?

The 304412 is 50 Ohm with an N-Female connector. The 304419 is the 75 Ohm version with an F-Female connector.

Which carriers does it support?

The manufacturer states that it works for all U.S. and Canada cell carriers across 698-960 and 1710-2700 MHz.

Is there a warranty?

Yes. The manufacturer provides a 2-year warranty.
