Cradlepoint5G & LTE Routers

Cradlepoint R920 Ruggedized Cat 7 LTE Router with Wi-Fi 6, 1-Year NetCloud Mobile Essentials + Advanced, Global

4G LTEMPN MAA1-0920-C7B-GA
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • 1 year included
$1,092.00

In stockShips from the US

Included subscription · 1 year
1 year3 years+$331.835 years+$396.79
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 5 configurations

Datasheets & documents

Overview

The Ericsson Cradlepoint R920 (MAA1-0920-C7B-GA) is the Rest of World version of Cradlepoint's ruggedized LTE router for vehicles and IoT. It is built for Australia, the European Union, Malaysia, New Zealand, Singapore, South Africa and the United Kingdom, not for the U.S. or Canada. It combines a Cat 7 LTE modem (300 Mbps down, 150 Mbps up) and dual 4FF SIM slots with Wi-Fi 6, two GbE ports, active GNSS, IP64 protection and 9–36 VDC ignition-sensing power. It includes a 1-year NetCloud Mobile Essentials + Advanced plan and ships without an AC power supply or antennas.

  • Embedded Cat 7 LTE modem for Rest of World markets: 300 Mbps down, 150 Mbps up, 2x2 MIMO, dual 4FF SIM
  • LTE FDD B1/B3/B7/B8/B20/B28/B32, TDD B38/B40/B41/B42/B43 and WCDMA 1/5/8
  • Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with AP, client and Wi-Fi-as-WAN modes
  • 2 x GbE (LAN/WAN switchable), screw-lock USB 2.0, GPIO and Bluetooth LE 5.1
  • Active multi-constellation GNSS for NetCloud location and coverage mapping
  • IP64 metal chassis, -30 °C to 75 °C, 9–36 VDC with ignition sensing, E-Mark and EN 61373 rail
  • Second LTE or 5G modem and serial port available through the RX20 Managed Accessory
  • Deploy one router model across fleets in the EU, UK, Australia, New Zealand, Malaysia, Singapore and South Africa

The Ericsson Cradlepoint R920 is a ruggedized LTE networking platform for fleets, transit, emergency services and IoT deployments that want one standard router across many installs. This SKU (MAA1-0920-C7B-GA) is the global variant for Australia, the European Union, Malaysia, New Zealand, Singapore, South Africa and the United Kingdom. U.S. and Canadian deployments use the North America (C7A) model instead. The package includes a 1-year Ericsson NetCloud Mobile Essentials + Advanced plan, covering NetCloud Manager cloud management, software updates and support for the full term.

The embedded Cat 7 LTE modem uses 2x2 MIMO and two-carrier aggregation for 300 Mbps downlink and 150 Mbps uplink. It covers LTE FDD bands B1, B3, B7, B8, B20, B28 and B32, TDD bands B38, B40, B41, B42 and B43, and WCDMA bands 1, 5 and 8. The modem meets GCF standards. Dual 4FF SIM slots provide SIM-based auto-carrier selection. With the RX20 Managed Accessory you can add a second LTE or 5G modem and a serial port.

For on-board users and equipment, the R920 offers dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 (up to 1.2 Gbps at 5 GHz) with AP, client and Wi-Fi-as-WAN modes. It also has two GbE LAN/WAN ports, a screw-lock USB 2.0 port, GPIO and Bluetooth LE 5.1. Active GNSS tracks GPS, Galileo, GLONASS, BeiDou and QZSS for NetCloud coverage maps and location history. Firewall and IPS throughput reach 940 Mbps, with 20 concurrent IPsec VPN tunnels.

The IP64 metal chassis operates from -30 °C to 75 °C. It carries E-Mark, EN 61373 rail, MIL-STD-810G, SAE J1455 and Class I Div 2 certifications. A dual-core 64-bit ARM processor runs Docker containers at the edge. This configuration does not include an AC power supply or antennas.

Ideal for

  • Bus, coach and rail fleets in the UK, EU, Australia and New Zealand
  • Emergency service and utility vehicles in supported Rest of World markets
  • Field-service and logistics vehicles needing Wi-Fi 6 and GNSS tracking
  • Ruggedized IoT, kiosks and remote equipment, including Class I Div 2 hazardous locations
  • Multinational fleets standardizing on the R920 outside North America

Specifications

Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
2x2 MIMO
3g Bands
WCDMA bands 1, 5, 8
Antennas
SMA female; external 600 MHz–6 GHz paddle antennas (qty 2, IoT packages only); external multi-band 2x2 MIMO antenna system
GNSS GPS
Active GNSS
TX Power
LTE 22.5 dBm ± 1; DC-HSPA+ 23 dBm ± 1
Modulation
Up to 64 QAM DL / UL
Regulatory
FCC (U.S.), IC (Canada), CE (EU)
Technology
Cat 7 LTE; dual 4FF SIM slots; SIM-based auto-carrier selection; 3GPP Release 11
Peak Uplink
LTE 150 Mbps; WCDMA 5.76 Mbps
LTE Fdd Bands
B1, B3, B7, B8, B20, B28, B32
LTE Tdd Bands
B38, B40, B41, B42, B43
Peak Downlink
LTE 300 Mbps; WCDMA 42.2 Mbps
Carrier Aggregation
DL Cat 7, 2CA, 64 QAM = 300 Mbps; UL Cat 13, 2CA, 64 QAM = 150 Mbps
Private Cellular Network
Not applicable
Network Operator Standards
GCF (worldwide)
Public Safety Network Certifications
Not applicable

Power

Features
Ignition sensing (automatic on, time-delay off)
Required
9–36 VDC; 3 A fuse for 9–12 VDC, 2 A fuse for > 24 VDC
Consumption
Sleep 15 mW; idle 9 W; typical 14.5 W; heavy 15.2 W

General

MPN
MAA1-0920-C7B-GA
UPC
840292703506
Brand
Ericsson Cradlepoint
Model
Cradlepoint R920
Region
Rest of World (Australia, EU, Malaysia, New Zealand, Singapore, South Africa, UK)
Package Plan
1-Year NetCloud Mobile Essentials + Advanced
Subscription Term
1 year
Hardware Configuration
Cat 7 with Wi-Fi (300 Mbps); no AC power supply or antennas

GNSS GPS

Power
3.05–3.25 VDC supply; 100 mA max current
Accuracy
Horizontal < 5 m (50%), < 9 m (95%)
Protocols
NMEA 0183
Frequencies
L1
Sensitivity
Acquisition -145 dBm; tracking -160 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou, QZSS (simultaneous tracking)
Time TO First Fix
32 seconds (cold start)

Physical

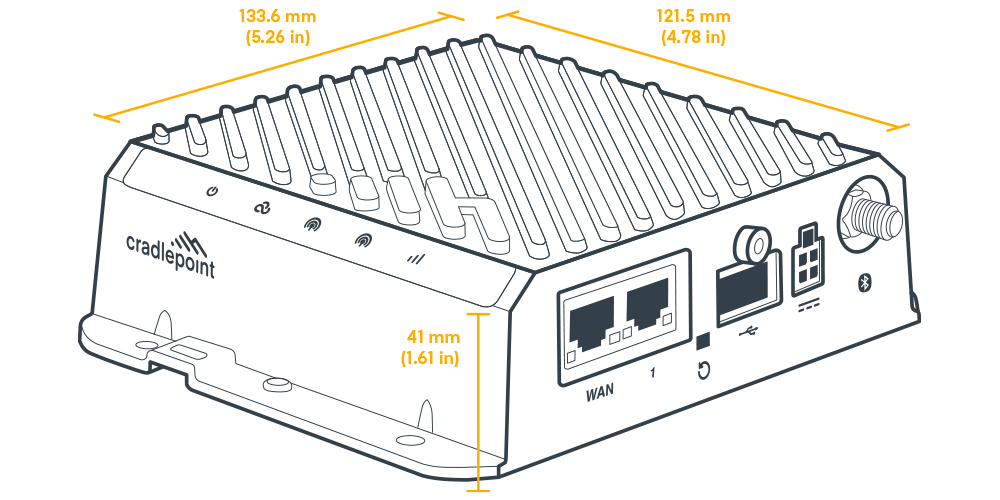

Size
133.6 x 121.5 x 41 mm (5.26 x 4.78 x 1.61 in)
Weight
595 g (1 lb 5 oz)

Interfaces

Wi-Fi
Dual-radio concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; AP, client, Wi-Fi as WAN; 574 Mbps (2.4 GHz) / 1.2 Gbps (5 GHz); 2 x RP-SMA; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k (AP only), 802.11v; Wi-Fi Alliance Certified
Modem

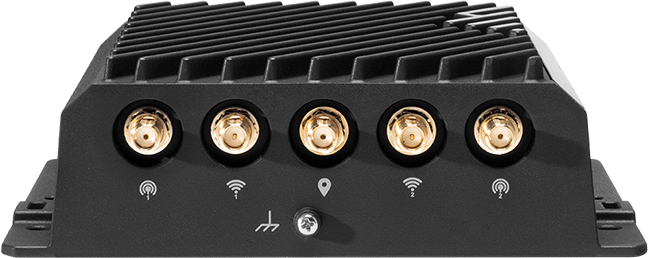

Embedded Cat 7 LTE modem; 2 x SMA cellular antenna connectors

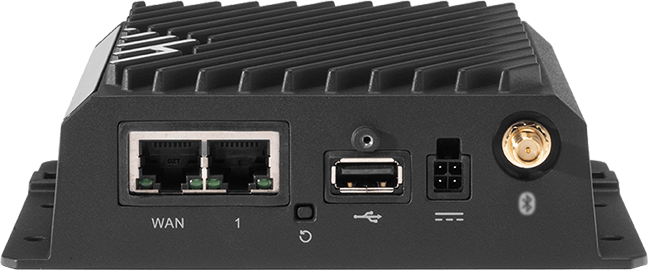

Ethernet
2 x GbE (LAN/WAN switchable)
GNSS GPS
1 x SMA GNSS antenna connector
Bluetooth
Bluetooth LE 5.1, 10 dBm max TX, 1 x RP-SMA connector
Expansion
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) with screw lock; 1 x 2-pin GPIO (shared with DC power connector); 2x2 Molex Micro-Fit (3 mm locking)

Wi-Fi Power

IC
2.4 GHz 23.18; 5150–5250 MHz 22.7; 5250–5350 MHz 17.16; 5470–5725 MHz 20.9; 5725–5850 MHz 22.17 dBm conducted
Fcc
2.4 GHz 23.18; 5150–5250 MHz 21.73; 5250–5350 MHz 22.17; 5470–5725 MHz 20.79; 5725–5850 MHz 20.97 dBm conducted
Europe
2.4 GHz 14.23; 5150–5250 MHz 17.03; 5250–5350 MHz 17.12; 5500–5700 MHz 22.05 dBm conducted
Australia New Zealand
2.4 GHz 14.23; 5150–5250 MHz 17.03; 5250–5350 MHz 17.12; 5500–5700 MHz 22.05; 5475–5825 MHz 22.18 dBm conducted

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Stateful Firewall
940 Mbps
Typical Client Count
30
Concurrent VPN Tunnels
20
Concurrent Sessions Tcp
130,000
Point TO Point Ipsec VPN
200 Mbps
Ips Application Aware Client Analytics
940 Mbps

Reliability

Calculated MTBF
637,911 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP64 (dust tight and splashing water)
Operating Humidity
10% to 90%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)

Certifications

Rail
EN 61373 Category 1, Class B (railway rolling stock)
Safety
UL/cUL, CB Scheme, EN 62368-1
Vehicle
E-Mark; SAE J1455 Operating Sinusoidal Vibe, Category 2
Security
FIPS 140-3 Level 1 module in process (R920 FIPS models only)
Shock Vibration
MIL-STD-810G Method 514.6, Annex C-2.1, Cat. 4 (vibration); MIL-STD-810G Section 2.2.2 Procedure 1 (shock, vibration)
Hazardous Locations
Class I Div 2
Substance Compliance
WEEE, RoHS, RoHS-2, California Prop 65

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty while an active NetCloud Service plan is licensed
Service Plans
NetCloud Service for Mobile; NetCloud Service for Ruggedized IoT
Service Add Ons
NetCloud Exchange; NetCloud Advanced
Software Updates
Via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Edge Computing

CPU
Dual-core ARMv8 64-bit
Memory
Up to 921 MB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
No
Wi-Fi
Dual-band, dual-concurrent Wi-Fi 6 (802.11ax)
GPS GNSS
Active
5G Status
5G Ready with RX20
Bluetooth
Yes, embedded
USB Ports
1
Throughput
940 Mbps (firewall)
Form Factor
Ruggedized metal
VPN Tunnels
20
Serial Ports
0
Ethernet Ports
2 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Add second modem and serial port with RX20 Managed Accessory
Dual Modem Support
Yes, with RX20
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity
LTE

Questions buyers ask

Can this R920 be used in the United States?

This SKU is for Australia, the European Union, Malaysia, New Zealand, Singapore, South Africa and the United Kingdom. Its LTE bands target those markets. For the U.S. and Canada, Cradlepoint offers the North America C7A version (MAA1-0920-C7A-NA).

Which LTE bands does the C7B modem support?

LTE FDD bands B1, B3, B7, B8, B20, B28 and B32; LTE TDD bands B38, B40, B41, B42 and B43; and WCDMA bands 1, 5 and 8. Peak rates are 300 Mbps down and 150 Mbps up.

Are antennas and a power supply included?

No. This configuration ships without an AC power supply or antennas. The router has SMA connectors for cellular and GNSS, and RP-SMA connectors for Wi-Fi and Bluetooth.

Does the R920 support 5G?

The R920 itself is LTE Cat 7. Cradlepoint lists it as 5G Ready with the RX20 Managed Accessory, which adds a second LTE or 5G modem.

What does the NetCloud plan cover?

The 1-year NetCloud Mobile Essentials + Advanced plan includes NetCloud Manager cloud management, software updates and support for the full term. The hardware carries a limited lifetime warranty while an active NetCloud plan is licensed.
