Teltonika RUT241 Industrial 4G LTE Cat 4 Router with Wi-Fi, Global Version (RUT241033000)

4G LTEMPN RUT241033000
  • 2–4 × 100 Mb Ethernet
$179.05$219.00Save $39.95

In stockShips from the US

Region · Global
North America+$24.53Global
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 3 configurations

Datasheets & documents

Highlights

Overview

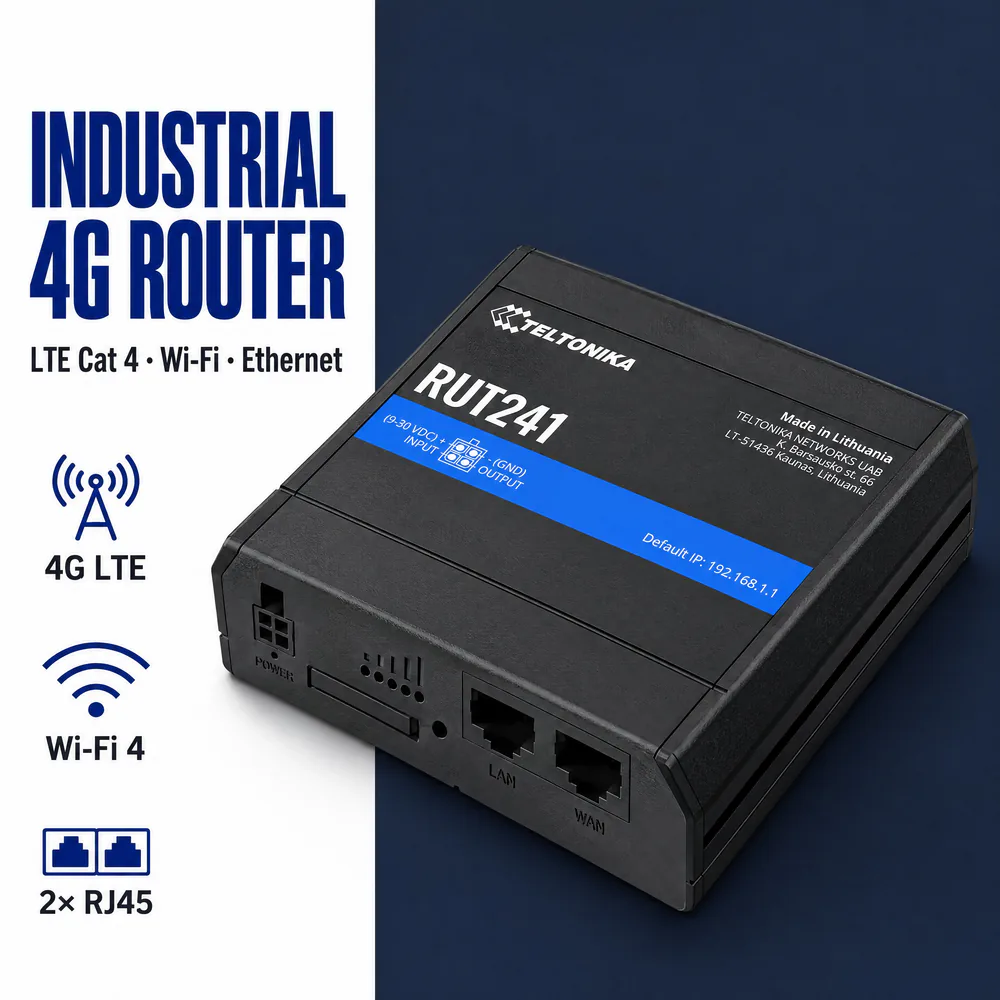

The Teltonika RUT241 is a compact, industrial 4G LTE Cat 4 router for IoT and M2M deployments. It delivers up to 150 Mbps down and 50 Mbps up, with 3G and 2G fallback, Wi-Fi 4 access point and hotspot functions, one WAN and one LAN Ethernet port, and a digital input and output. Order code RUT241033000 is the Global hardware version with a single Mini SIM slot and no eSIM, supplied in the standard package with a universal 9 W power supply, antennas and an Ethernet cable.

The Teltonika RUT241 is a compact, industrial-grade cellular router built for IoT and M2M connectivity. Order code RUT241033000 is the Global hardware version in the standard package with a universal power supply. It uses one physical Mini SIM (2FF) slot. It is not one of the eSIM variants, which Teltonika sells under separate order codes.

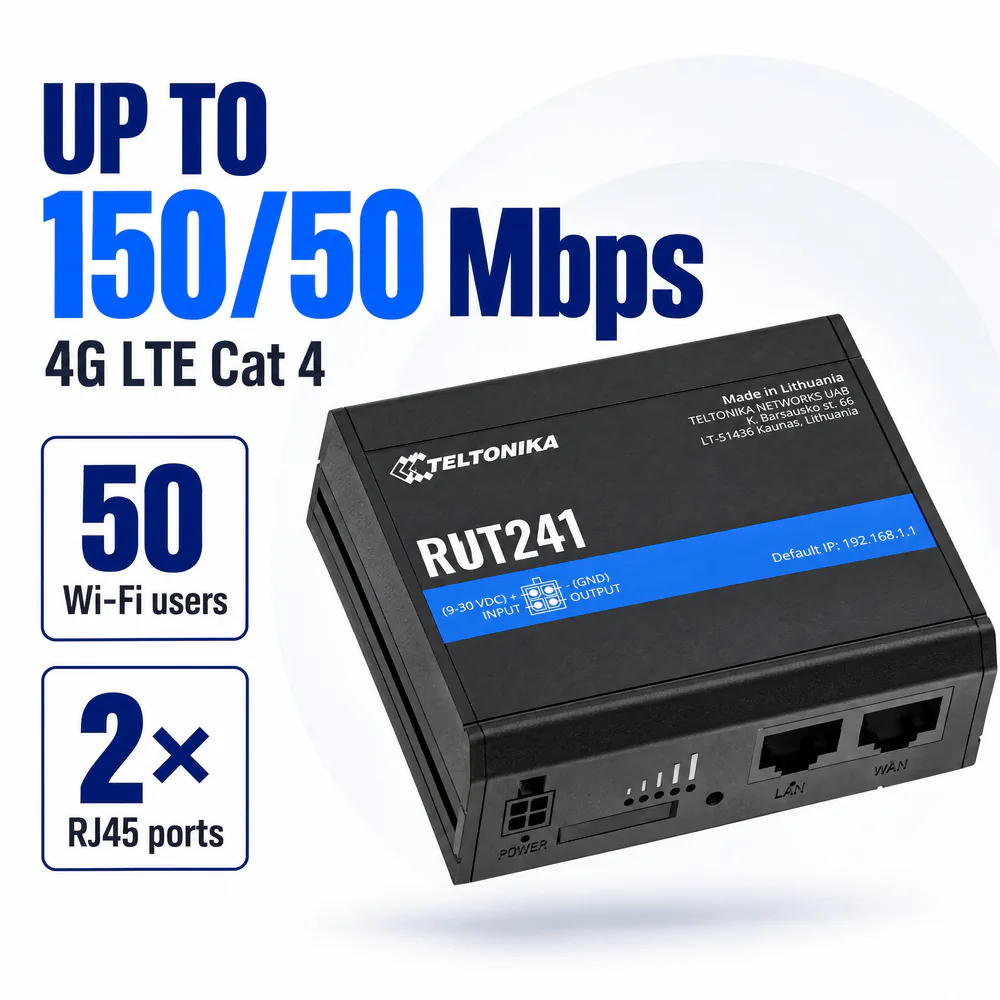

The LTE Cat 4 module supports up to 150 Mbps downlink and 50 Mbps uplink, with fallback to 3G (up to 21 Mbps down) and 2G. This hardware version covers LTE-FDD bands B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26 and B28, and LTE-TDD bands B38 to B41. Two SMA connectors take the included LTE antennas. Local devices connect over 802.11b/g/n (Wi-Fi 4), with up to 50 simultaneous users, or over the 10/100 Mbps WAN and LAN ports. Mobile, wired, Wi-Fi WAN and VRRP links can each act as an automatic failover, and load balancing spreads traffic across multiple WANs.

RutOS, Teltonika's OpenWrt-based Linux OS, provides a stateful firewall, VLANs, 802.1x, a captive-portal hotspot, and dynamic routing with BGP, OSPF, RIP and EIGRP. VPN options include OpenVPN, IPsec, WireGuard, ZeroTier, DMVPN, GRE, L2TP, SSTP and Tinc. For industrial and building systems it supports Modbus TCP, MQTT, BACnet/IP, OPC UA, DNP3 and DLMS. Data can be pushed to AWS IoT Core, Azure IoT Hub, Cumulocity and ThingWorx. Fleets are managed through Teltonika RMS, TR-069, SNMP or the Web API.

The aluminium housing measures 83 x 25 x 74 mm and weighs 125 g. The router operates from -40 °C to 75 °C and is rated IP30. It runs on 9 to 30 VDC through a 4-pin connector, or on passive PoE via LAN1, and draws under 6.5 W. DIN rail, wall and flat-surface mounting are available with an additional kit.

Ideal for

  • Primary or backup cellular WAN for kiosks, ATMs, digital signage and vending machines
  • Remote monitoring of PLCs, meters and sensors over Modbus TCP, DNP3, DLMS or MQTT
  • Building automation gateways bridging BACnet/IP and OPC UA systems to the cloud
  • Secure VPN connectivity for small remote sites, cabinets and field equipment
  • Guest Wi-Fi hotspot with captive portal for small venues and vehicles

Specifications

RF

Standards
EN 300 328, EN 301 511, EN 301 908-1/-2/-13

API

Teltonika Networks Web API
Teltonika Networks Web API (beta)
Teltonika Networks Web API Beta Support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

VPN

Gre
GRE tunnel, GRE over IPsec
Sstp
SSTP client
Tinc
Tinc client and server with encryption, authentication and compression
Dmvpn
Scalable IPsec VPNs, Phase 2 and 3, Dual Hub
Ipsec
XFRM, IKEv1, IKEv2, 14 encryption methods (3DES, DES, AES128/192/256, AES-GCM variants)
Openvpn
Multiple clients and a server simultaneously, 27 encryption methods
Stunnel
TLS encryption proxy for existing clients and servers
Zerotier
ZeroTier VPN client
Pptp L2tp
Simultaneous client/server, L2TPv3, L2TP over IPsec
Wireguard
WireGuard client and server
Openvpn Encryption
27 ciphers including DES, 3DES, Blowfish, CAST5, RC2 and AES-128/192/256 in CBC, CFB, OFB and GCM modes

Dnp3

Supported Modes
Station, Outstation
Supported Connection
TCP

Power

Connector
4-pin industrial DC power socket
PoE Passive
Passive PoE via LAN1 (Mode B, 9-30 VDC), not 802.3af/at/bt compatible
Power Consumption
< 6.5 W max
Input Voltage Range

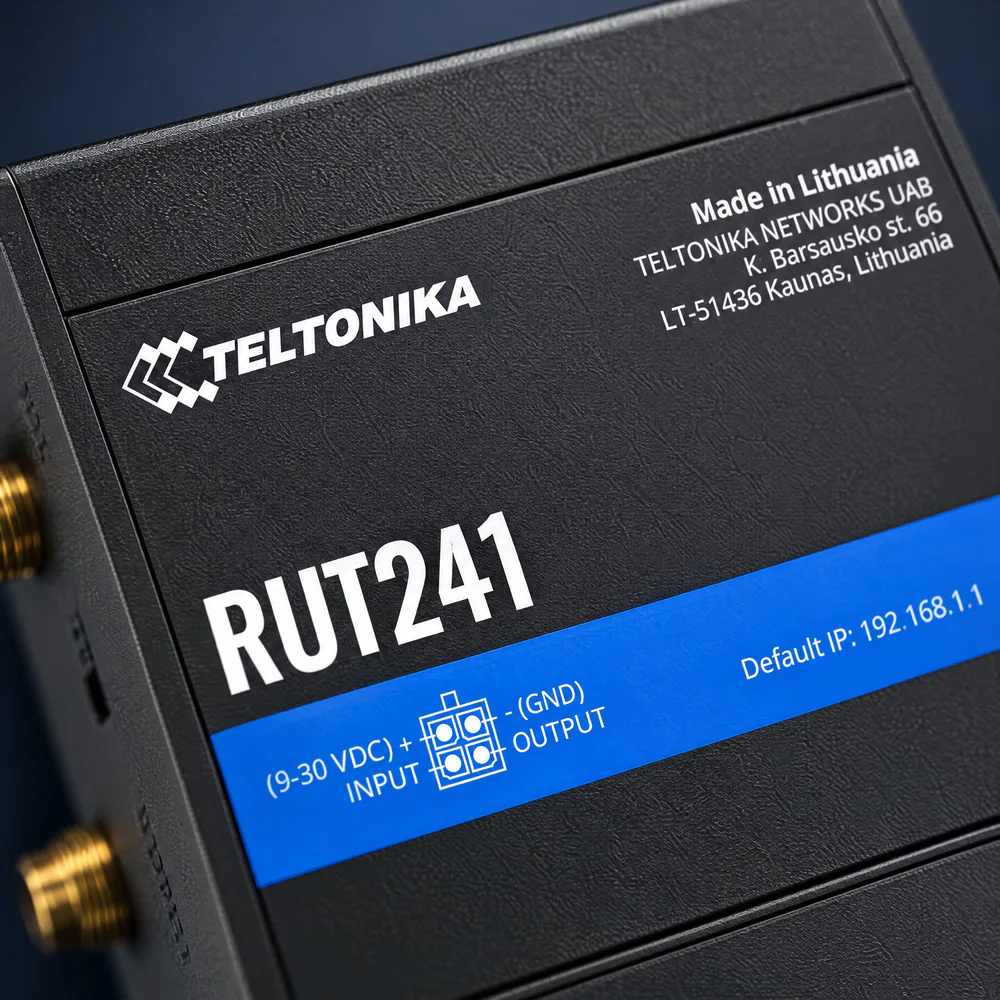

9-30 VDC, reverse polarity protection, surge protection >31 VDC 10 µs max

Bacnet

Supported Modes
Router
Configuration Options
Multiple BACnet/IP interfaces, network number assignment, preconfigured BDT entries for BBMD
Supported Connection Types
IP

Mobile

Apn
Auto APN
SMS
SMS status and configuration, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, autoreply, SMPP
Ussd
Send and read USSD messages
Bridge
Bridge between mobile ISP and LAN device
Status
IMSI, ICCID, operator, network type, band, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data usage, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
Passthrough
Mobile WAN IP passed to LAN device
3gpp Release
Release 10/11 depending on the hardware version
Multiple Pdn
Different PDNs for multiple network access and services
Mobile Module
4G LTE Cat 4 up to 150/50 Mbps; 3G up to 21/5.76 Mbps; 2G up to 236.8/236.8 kbps
Band Management
Band lock, used band status display
Block Allow List
Operator block/allow list by country or operator
SIM Pin Code Management
Set, change or disable SIM PIN

Modbus

Supported Modes
Server, Client
Custom Registers
Custom register block requests read/write to a file on the router
Supported Data Formats
8-bit INT/UINT; 16-bit INT/UINT; 32-bit float/INT/UINT (ABCD, DCBA, CDAB, BADC); HEX; ASCII
Supported Connection Types
TCP

Opc UA

Supported Modes
Client, Server
Supported Connection Types
TCP

Safety

Standards
CE (EN IEC 62368-1, EN IEC 62311, EN 50665), RCM, CB, UL/CSA 62368-1

General

MPN
RUT241033000
UPC
4779051840151
Brand
Teltonika Networks
Model
RUT241
Package
Standard package with Universal PSU
Hardware Version
RUT241 *3**** / Global (non-eSIM)

Network

Ddns
More than 77 providers, others configurable manually
Dhcp
Static/dynamic allocation, DHCP relay, server configuration, static leases with MAC wildcards
Sshfs
Mount remote file system via SSH
Hotspot
Captive portal, internal/external RADIUS, MAC auth, SMS and SSO authentication, landing pages, walled garden, user groups and limits, 9 customisable themes
Routing
Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based routing
Firewall
Port forward, traffic rules, custom rules, TTL target customisation
Dns Over Https
DNS over HTTPS proxy
Load Balancing
Balance traffic over multiple WAN connections
Network Backup
Wi-Fi WAN, Mobile, VRRP, Wired, each usable as automatic failover
Port Management
View, enable/disable ports, auto-configuration, speed settings
Network Topology
Visual network topology map
Network Protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP(S), SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
Traffic Management
Real-time monitoring, signal charts, usage history
Firewall Status Page
Firewall statistics, rules and rule counters
Connection Monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP link inspection
Voip Passthrough Support
H.323 and SIP-ALG NAT helpers
Qos Smart Queue Management
Priority queuing by source/destination, service, protocol or port; WMM, 802.11e

Package

Contents
RUT241, 9 W PSU, 2 x LTE antennas, 1 x Wi-Fi antenna, 1.5 m Ethernet cable, SIM adapter kit, Quick Start Guide
Shipping Weight
1.19 lb

Ethernet

LAN
1 x LAN 10/100 Mbps, IEEE 802.3/802.3u, auto MDI/MDIX
WAN
1 x WAN 10/100 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX

Security

Vlan
Port and tag-based VLAN separation
802 1x
Port-based network access control server
Firewall
Preconfigured rules via WebUI, unlimited CLI configuration, DMZ, NAT, NAT-T, NAT64
Web Filter
Website block list and allow list
Access Control
Access control for SSH, Web interface, CLI and Telnet
Authentication
PSK, digital and X.509 certificates, TACACS+, internal/external RADIUS, login attempt blocking, password generator
Attack Prevention
DDoS prevention (SYN flood, SSH, HTTP/HTTPS) and port scan prevention
Certificate Manager
Create CA, server, client, Let's Encrypt and SCEP certificates
Mobile Quota Control
Mobile data limit, period, start time, warning limit, phone number

Wireless

Ssid Essid
SSID stealth mode, MAC-based access control
Travelmate
Forward hotspot landing page to connected device
Wi-Fi Users
Up to 50 simultaneous connections
Wi-Fi Security
WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, client separation, EAP-TLS, 802.11w PMF
Wireless Mode
802.11b/g/n (Wi-Fi 4), AP and STA modes
Wireless Mac Filter
Allowlist, blocklist
Wireless QR Code Generator
QR code for password-free network join
Wireless Connectivity Features
802.11s mesh, 802.11r fast roaming, Relayd, 802.11v, 802.11k

Dlms Cosem

Dlms Support
DLMS utility meter data exchange
Supported Modes
Client
Supported Connection Types
TCP

Input Output

Input
1 x digital input (0-6 V low, 8-30 V high)
Events
Email, RMS, SMS
Output
1 x digital open collector output, max 30 V, 300 mA
I/O Juggler
I/O conditions trigger events

Mqtt Gateway

Modbus Mqtt Gateway
Send commands to and receive data from Modbus server via MQTT broker

Iot Platforms

Thingworx
Monitors WAN type and IP, operator, signal strength, network type
Aws Iot Core
AWS cloud interaction with AWS Jobs support
Azure Iot Hub
Data to Server integration, Direct method RutOS API calls, zero-touch provisioning via DPS
Cumulocity Cloud OF Things
Monitors device, WAN, cell ID, ICCID, IMEI, operator, signal; reboot and firmware upgrade actions

Classification

Hts
8517.62.00
HS Code
851762

Data TO Server

Protocol
HTTP(S), MQTT, Azure MQTT
Data TO Server
Collect parameters from multiple sources and protocols and send to one server; custom Lua scripting

Frequency Bands

2g
B2, B3, B5, B8
3g
B1, B2, B4, B5, B6, B8, B19
LTE Fdd
B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28
LTE Tdd
B38, B39, B40, B41

Physical Interfaces

Ios

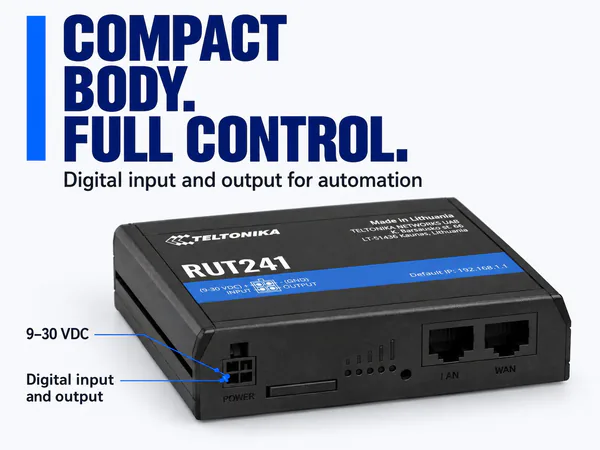

1 x DI, 1 x DO on 4-pin power connector
SIM
1 x Mini SIM (2FF), 1.8 V/3 V, external holder
Power
1 x 4-pin power connector
Reset
Reboot / user default / factory reset button
Antennas

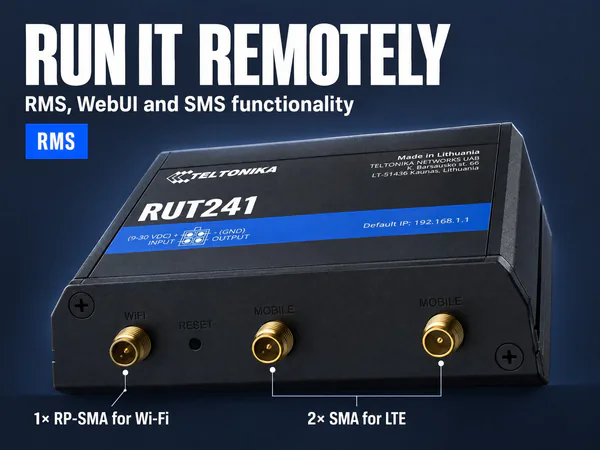

2 x SMA (LTE), 1 x RP-SMA (Wi-Fi)
Ethernet

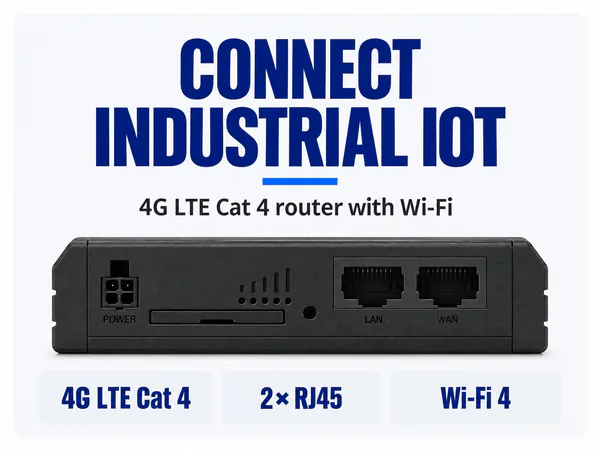

2 x RJ45, 10/100 Mbps
Status Leds
3 x connection type, 5 x signal strength, 2 x LAN, 1 x power LED

Monitoring Management

Rms

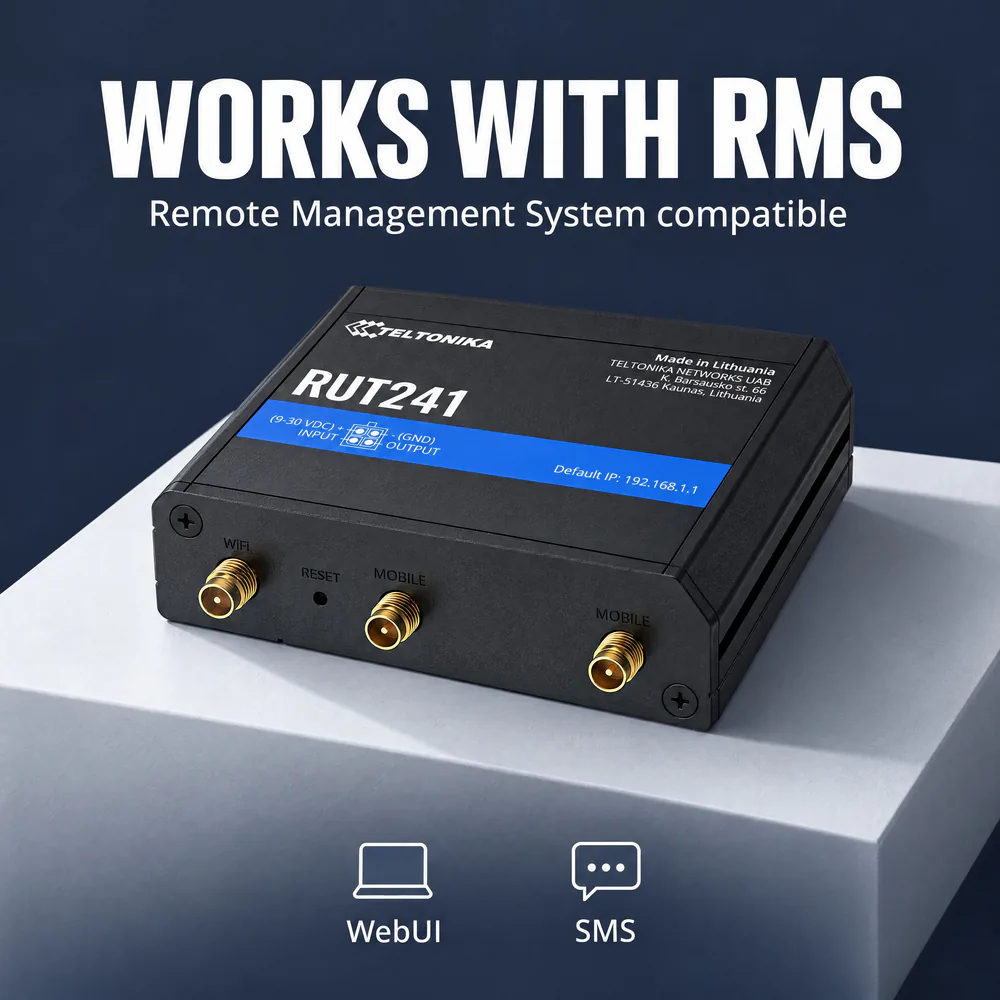

Teltonika Remote Management System (RMS)
SMS
SMS status and configuration
Ssh
SSH v1, v2
Call
Reboot, status, mobile data on/off, output on/off, answer/hang-up timer, Wi-Fi on/off
Fota
Firmware update from server, automatic notification
Mqtt
MQTT broker, MQTT publisher
Snmp
SNMP v1/v2/v3, SNMP Trap, brute force protection
TR 069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
Web UI
HTTP/HTTPS WebUI with status, configuration, FW update, CLI, troubleshooting, event/system/kernel logs
Json Rpc
Management API over HTTP/HTTPS

Operating Environment

Operating Humidity
10% to 90% non-condensing
Operating Temperature
-40 °C to 75 °C
Ingress Protection Rating
IP30

Emc Emissions Immunity

CS
EN 61000-4-6:2014
Dip
EN 61000-4-11:2020
Eft
EN 61000-4-4:2012
Esd
EN 61000-4-2:2009
Standards
EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 301 489-1/-17/-52
Radiated Immunity
EN IEC 61000-4-3:2020
Surge Immunity AC Mains Power Port
EN 61000-4-5:2014 + A1:2017

Firmware Configuration

Rms
Bulk FW/configuration updates
Fota
Update FW
Web UI
FW update from file or server, configuration profiles and backup
Keep Settings
Update FW without losing configuration
Factory Settings Reset
Full factory reset to default configuration

Firmware Customisation

Package Manager
Install additional software packages
Operating System
RutOS (OpenWrt-based Linux OS)
Development Tools
SDK package with build environment
Gpl Customization
Custom branded firmware and WebUI
Supported Languages
Busybox shell, Lua, C, C++

Physical Specification

Weight
125 g
Casing Material
Aluminium housing, plastic panels
Dimensions W H D
83 x 25 x 74 mm
Mounting Options
DIN rail, wall, flat surface (additional kit required)

System Characteristics

CPU
Mediatek 580 MHz MIPS 24KEc
RAM
128 MB DDR2
Flash Storage
16 MB SPI Flash

Regulatory Type Approvals

Operator
AT&T, Verizon (Global eSIM support), T-Mobile, UScellular
Regulatory
CE, UKCA, ANRT, Kenya, ICASA, FCC, IC, PTCRB, NOM, RCM, KC, Giteki, IMDA, E-mark, CB, UL/CSA Safety, RoHS, REACH, R118, ETA-WPC, MTCTE

Questions buyers ask

Does the RUT241033000 support eSIM?

No. RUT241033000 is the Global hardware version without eSIM and uses one physical Mini SIM (2FF) slot. Teltonika offers eSIM versions of the RUT241 under separate order codes.

What LTE bands does this version support?

LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26 and B28, plus LTE-TDD B38, B39, B40 and B41. It also supports 3G on B1, B2, B4, B5, B6, B8 and B19, and 2G on B2, B3, B5 and B8.

How can the RUT241 be powered?

It accepts 9 to 30 VDC through a 4-pin industrial power connector, and the universal 9 W PSU is included. It can also be powered by passive PoE through the LAN1 port (Mode B, 9-30 VDC). That PoE input is not compatible with IEEE 802.3af, 802.3at or 802.3bt.

Can it be DIN rail mounted?

Yes. DIN rail, wall and flat-surface mounting are supported, and each requires an additional mounting kit.

What operating conditions is it rated for?

The router operates from -40 °C to 75 °C at 10% to 90% non-condensing humidity. It has an IP30 ingress protection rating.
