Cradlepoint5G & LTE Routers

Cradlepoint S750 Semi-Ruggedized LTE Cat 4 IoT Router with 3-Year TAA NetCloud IoT Essentials + Advanced

4G LTEMPN TAA-TBA3-0750C4D-NA
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
  • 3 years included
$809.00

In stockShips from the US

Included subscription · 3 years
3 years5 years+$310
Compliance · TAA compliant
Standard−$180TAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 12 configurations

Datasheets & documents

Overview

The Cradlepoint S750 is a semi-ruggedized, cloud-managed Cat 4 LTE router for light industrial, IoT, vehicle and portable deployments. It is the S700-series configuration without Wi-Fi. This TAA-compliant package for U.S. Federal Government ordering includes 3 years of Ericsson NetCloud IoT Essentials and Advanced plans. It pairs a dual-SIM LTE modem rated up to 150 Mbps down with two Gigabit Ethernet ports and active GNSS. The IP30 aluminum housing is rated to MIL-STD-810H and EN 61373 vibration and shock standards.

  • Embedded Cat 4 LTE modem with 150 Mbps downlink and 50 Mbps uplink peak rates
  • Dual 4FF SIM slots with SIM-based auto-carrier selection
  • 2 x Gigabit Ethernet RJ45 (LAN/WAN switchable) and 1 x USB 2.0 Type A
  • Active GNSS with GPS, GLONASS, BeiDou and Galileo
  • IP30 aluminum housing with MIL-STD-810H, EN 61373 and SAE J1455 ratings
  • 9-33 VDC input with ignition sensing and ISO 7637-2 transient protection
  • 3-year TAA-compliant NetCloud IoT Essentials + Advanced plans with NetCloud Manager
  • Fits federal procurement requirements with a TAA-compliant part number built for U.S. Federal Government ordering

The Cradlepoint S750 is part of Ericsson Cradlepoint's S700 series of semi-ruggedized routers for IoT networks. It is built for light industrial, IoT and portable applications where security is a foundational requirement. Part number TAA-TBA3-0750C4D-NA is the TAA-compliant U.S. Federal Government ordering option. It combines the S750 hardware, a Cat 4 (150 Mbps) configuration without Wi-Fi, with a 3-year NetCloud IoT Essentials plan and NetCloud IoT Advanced plan.

Connectivity comes from an embedded Cat 4 LTE modem with dual 4FF SIM slots and SIM-based auto-carrier selection. Peak LTE rates are 150 Mbps down and 50 Mbps up, with DC-HSPA+ fallback. The North American modem configuration covers LTE bands 2, 4, 5, 12, 13, 14, 66 and 71. It lists AT&T, T-Mobile and Verizon certification plus FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications. Two Gigabit Ethernet ports switch between LAN and WAN. A USB 2.0 port supports a locking USB RS232 adapter connection. Active GNSS supports GPS, GLONASS, BeiDou and Galileo for asset tracking and geofencing.

The aluminum housing is rated IP30. It operates from -20 °C to 60 °C and accepts 9-33 VDC. Power protection covers reverse polarity and transients (ISO 7637-2), and ignition sensing handles vehicle installs. The unit is certified to SAE J1455 vehicle vibration, EN 61373 rail and MIL-STD-810H vibration and shock standards. Calculated MTBF for the S750-C4D is 483,373 hours.

NetCloud Manager provides cloud-based device management and software updates for the full 3-year term. Essentials includes 24x7 support and a limited lifetime warranty that applies while an active NetCloud subscription is in place. The Advanced plan and NetCloud SDK and API extend the platform for custom IoT workflows. The Cradlepoint S700 datasheet documents the full specification.

Ideal for

  • Federal and public-sector IoT deployments requiring TAA-compliant hardware
  • Vehicle and rail telemetry with ignition sensing and active GNSS asset tracking
  • Light industrial sensor, kiosk and equipment connectivity over LTE
  • Portable or temporary sites that need cloud-managed LTE with dual SIM
  • Serial-connected legacy equipment via a locking USB RS232 adapter

Specifications

Power

Input
9-33 VDC steady state input
Protection
Reverse polarity and transient voltage protection (ISO 7637-2)
Consumption Idle
9 W idle
Ignition Sensing
Ignition sensing (automatic ON, time-delay OFF)
Consumption Heavy
14.5 W heavy
Consumption Typical
13 W typical

General

MPN
TAA-TBA3-0750C4D-NA
UPC
840292705814
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint S750 (S700 series)
Form Factor
Metal
Five G Status
No 5G
Product Status
Active
Cloud Management
Cloud managed
Wireless Connectivity
LTE

Package

Plan
3-Year NetCloud IoT Essentials + Advanced Plans
Market
United States Federal Government ordering option
FIPS Model
Non-FIPS model
TAA Compliant
TAA compliant
Shipping Weight
1.60 lb
Subscription Term
3 years
Hardware Configuration
Cat 4 (150 Mbps) without Wi-Fi

Cellular

SIM
Dual 4FF SIM slots with SIM-based auto-carrier selection
SMS
SMS supported
GNSS
GPS, GLONASS, BeiDou, Galileo
MIMO
2x2 MIMO
Three G
WCDMA/UMTS/HSPA+
Antennas
SMA female; 600 MHz - 6 GHz paddle antennas included only with certain packages
LTE Bands
LTE FDD B2, B4, B5, B12, B13, B14, B66, B71
Modulation
Up to 16 QAM
Regulatory
FCC (U.S.), IC (Canada)
Technology
Cat 4 LTE (3GPP Rel. 11), DC-HSPA+
Three G Bands
3G bands 2, 4, 5
Transmit Power
LTE 23 dBm ± 2; DC-HSPA+ 23 dBm ± 1 (typical conducted)
LTE Peak Uplink
50 Mbps LTE uplink
LTE Peak Downlink
150 Mbps LTE downlink
Wcdma Peak Uplink
5.76 Mbps WCDMA uplink
Dual Modem Support
Single modem
Wcdma Peak Downlink
42.2 Mbps WCDMA downlink
Private Cellular Network
Private 4G LTE (no CBRS)
Network Operator Standards
PTCRB (U.S., Canada)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline
Network Operator Certifications
AT&T, T-Mobile, Verizon

Physical

Weight
516 g (18.2 oz)
Dimensions

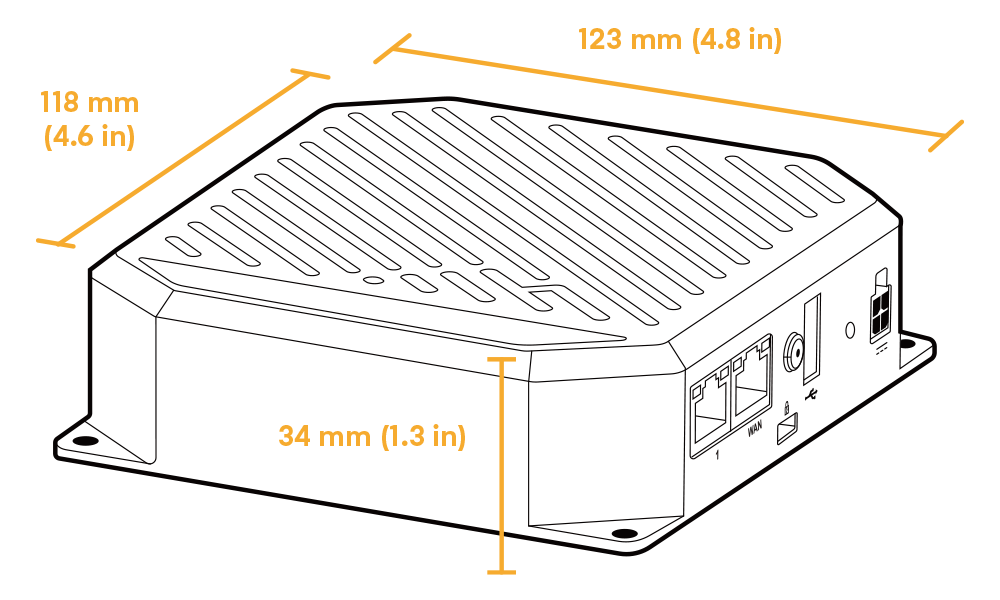

123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in)
Construction
Aluminum housing

Interfaces

PoE
No PoE
Modem
Embedded Cat 4 LTE modem; 2 x SMA cellular antenna connectors
WI FI
No Wi-Fi (S750 configuration)
Ethernet
2 x 1 GbE RJ45 (LAN/WAN switchable)
Expansion
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W output)
USB Ports
1 USB port
Serial Ports
0 serial ports
GNSS Connector
1 x SMA GNSS antenna connector
Special Features
Active GNSS/GPS, locking USB RS232 adapter connection, IP30 rated aluminum housing

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Ipsec VPN
50 Mbps point-to-point IPsec VPN
Stateful Firewall
480 Mbps stateful firewall
Concurrent Sessions
100,000 concurrent sessions (TPC)
VPN Tunnels Summary
5 VPN tunnels (product summary)
Typical Client Count
20 typical clients
Concurrent VPN Tunnels
10 concurrent VPN tunnels
Ips App Aware Client Analytics
480 Mbps IPS / application-aware services / client analytics

Reliability

MTBF
S750-C4D: 483,373 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP30
Operating Humidity
10% to 90%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Rail
EN 61373 Category 1, Class B (railway rolling stock)
Safety
UL/cUL, CB Scheme, EN 62368-1
Vehicle
SAE J1455-2006 Operating Sinusoidal Vibe, Cat 2 Sec 4.10.4.1
Security
FIPS 140-3 Level 1 in process (S700/S705 FIPS models only; not this SKU)
Shock Vibration
EN 61373 Cat 2; MIL-STD-810H 514.8 Cat 4 vibration; MIL-STD-810H 516.8 Proc. I and V shock
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
24x7 support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
Ericsson NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full subscription term

Questions buyers ask

Does the Cradlepoint S750 have Wi-Fi?

No. The S750 is the Cat 4 (150 Mbps) configuration of the S700 series without Wi-Fi. It connects devices through its two Gigabit Ethernet ports and its USB port.

What subscription is included with TAA-TBA3-0750C4D-NA?

This part number includes 3 years of Ericsson NetCloud IoT Essentials and NetCloud IoT Advanced plans. The plans cover NetCloud Manager device management, software updates and 24x7 support for the full term.

Can the S750 be installed in a vehicle?

Yes. It accepts 9-33 VDC with reverse polarity and ISO 7637-2 transient protection. It also has ignition sensing with automatic on and time-delay off, and it meets SAE J1455 vehicle and EN 61373 rail vibration standards.

Is this router 5G?

No. The S750 uses an embedded Cat 4 LTE modem with peak rates of 150 Mbps down and 50 Mbps up.

Are antennas included?

Cradlepoint includes antennas and a power adapter only with certain packages. The router uses SMA female connectors for its two cellular antennas and one GNSS antenna.
