Cradlepoint5G & LTE Routers

Cradlepoint S700 LTE Cat 4 IoT Router with Wi-Fi 6 and 3-Year NetCloud IoT Essentials, Global Modem

4G LTEMPN TB03-0700C4E-GM
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • 3 years included
$580.00$615.00Save $35

In stockShips from the US

Included subscription · 3 years
3 years5 years+$239
Compliance · Standard
StandardTAA compliant+$375
Region · Global
Global
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 12 configurations

Datasheets & documents

Overview

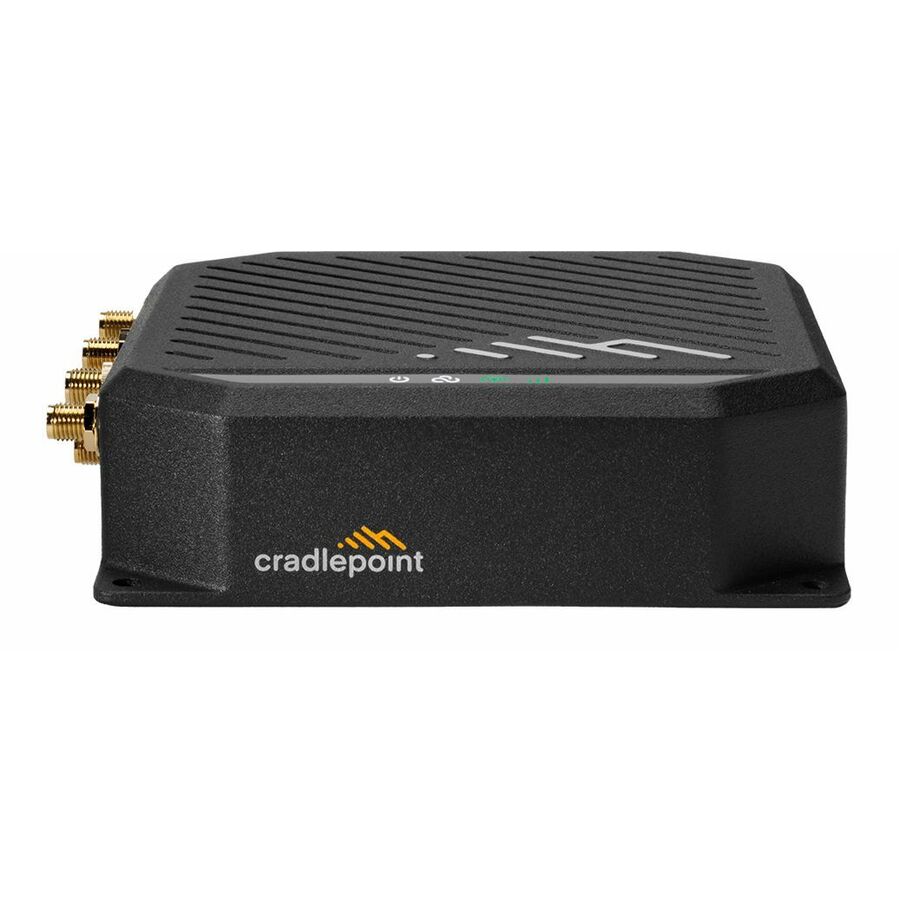

The Cradlepoint S700 (TB03-0700C4E-GM) is a semi-ruggedized, cloud-managed LTE router for IoT, light industrial and portable deployments. It pairs an embedded Cat 4 modem (150 Mbps down, 50 Mbps up) and dual 4FF SIM slots with dual-band concurrent Wi-Fi 6, two switchable Gigabit Ethernet ports and active multi-constellation GNSS in an IP30 aluminum housing. This package uses the global modem variant, ships with an AC power supply and antennas, and includes a 3-year Ericsson NetCloud IoT Essentials Plan with NetCloud Manager, software updates and 24x7 support.

  • Embedded Cat 4 LTE modem, 150 Mbps down / 50 Mbps up, 2x2 MIMO, dual 4FF SIM slots with SIM-based auto-carrier selection
  • Global modem variant with LTE FDD/TDD bands for North America, Europe and Asia-Pacific markets (FCC, IC, CE, RCM)
  • Dual-radio, dual-band concurrent 802.11ax Wi-Fi 6 with WPA3 Personal and Enterprise
  • 2 x Gigabit Ethernet (LAN/WAN switchable), 1 x USB 2.0 and active GNSS (GPS, GLONASS, BeiDou, Galileo)
  • IP30 aluminum housing, 9-33 VDC input with ignition sensing, tested to MIL-STD-810H, EN 61373 and SAE J1455
  • 3-year NetCloud IoT Essentials Plan with NetCloud Manager, software updates and 24x7 support; AC power supply and antennas included
  • Deploy one SKU across North America and listed international markets with a global Cat 4 LTE modem
  • Keep IoT sites and vehicles online with dual SIM slots and automatic SIM-based carrier selection

The Ericsson Cradlepoint S700 is a semi-ruggedized, cloud-managed LTE router built for light industrial, IoT and portable applications where security is a foundational requirement. This TB03-0700C4E-GM package combines the S700 with Wi-Fi, an AC power supply, antennas and a 3-year NetCloud IoT Essentials Plan. It is listed for North America (U.S., Canada and Mexico) and for Australia, the European Union, the Philippines, Singapore, New Zealand and the United Kingdom.

Connectivity comes from an embedded Cat 4 LTE modem with 2x2 MIMO, peak rates of 150 Mbps downlink and 50 Mbps uplink, and dual SIM slots with SIM-based auto-carrier selection. The global modem covers LTE FDD bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 25, 26 and 28 plus LTE TDD bands 38, 39, 40 and 41, with 3G and GSM/EDGE fallback. It carries FCC, IC, CE and RCM regulatory approvals and PTCRB and GCF operator standards. Locally, the S700 provides dual-radio, concurrent 2.4 GHz and 5 GHz Wi-Fi 6 with WPA3, two Gigabit Ethernet ports switchable between LAN and WAN, a USB 2.0 port and an SMA connector for active GNSS covering GPS, GLONASS, BeiDou and Galileo.

The hardware is built for vehicles, rail and the field: 9-33 VDC input with reverse polarity and transient protection, ignition sensing, a -20 °C to 60 °C operating range, and vibration and shock testing to MIL-STD-810H, EN 61373 and SAE J1455. Performance ratings include 480 Mbps stateful firewall and IPS throughput and 50 Mbps IPsec VPN.

The included NetCloud IoT Essentials Plan provides NetCloud Manager device management and software updates for the full 3-year term, 24x7 support, and a limited lifetime hardware warranty while the subscription remains active. NetCloud Advanced and NetCloud Exchange can be added later. The Cradlepoint S700 datasheet is available for full details.

Ideal for

  • Vehicle and fleet connectivity with ignition sensing and GNSS asset tracking
  • Light industrial IoT gateways for sensors, kiosks and controllers
  • Portable or pop-up connectivity for field teams and temporary sites
  • Multinational IoT rollouts spanning North America, Europe and Asia-Pacific
  • Rail and transit deployments requiring EN 61373 compliance

Specifications

Power

Input
9–33 VDC steady state input
Features
Reverse polarity and transient protection (ISO 7637-2); ignition sensing
Consumption
Idle 9 W; typical 13 W; heavy 14.5 W

General

MPN
Part number: TB03-0700C4E-GM
UPC
810007805887
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint S700
Region
North America (U.S., Canada, Mexico); Australia, EU, Philippines, Singapore, New Zealand, UK
TAA Sku
No
FIPS Model
No
Manufacturer
Ericsson Enterprise Wireless
Service Plan
3-Year NetCloud IoT Essentials Plan
Product Status
Manufacturer status: Active
Subscription Term
3-year subscription term
Hardware Configuration
Cat 4 (150 Mbps) with Wi-Fi, AC power supply and antennas

Package

Contents
S700 router, AC power supply, antennas, 3-year NetCloud IoT Essentials
Shipping Weight
3.00 lb

Cellular

3g
UMTS/HSPA+
SMS
Yes
GNSS
GPS, GLONASS, BeiDou, Galileo
MIMO
2x2 MIMO
Power
LTE 23 dBm ± 2; DC-HSPA+ 23 dBm ± 1 (typical conducted)
3g Bands
3G bands 1, 2, 4, 5, 6, 8, 19
Antennas
SMA female; external 600 MHz–6 GHz cellular paddle antennas
Gsm Edge
GSM/EDGE B2, B3, B5, B8
LTE Bands
LTE FDD B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28; LTE TDD B38/39/40/41
Modulation
Up to 16 QAM
Regulatory
FCC, IC, CE, RCM
Technology
Cat 4 LTE (Rel. 11), DC-HSPA+; dual 4FF SIM; SIM-based auto-carrier selection
Peak Rates LTE
150 Mbps down / 50 Mbps up
Peak Rates Wcdma
42.2 Mbps down / 5.76 Mbps up
Network Operator Standards
PTCRB (U.S., Canada), GCF (worldwide)
Network Operator Certifications
Verizon

Physical

Weight
516 g (18.2 oz)
Dimensions

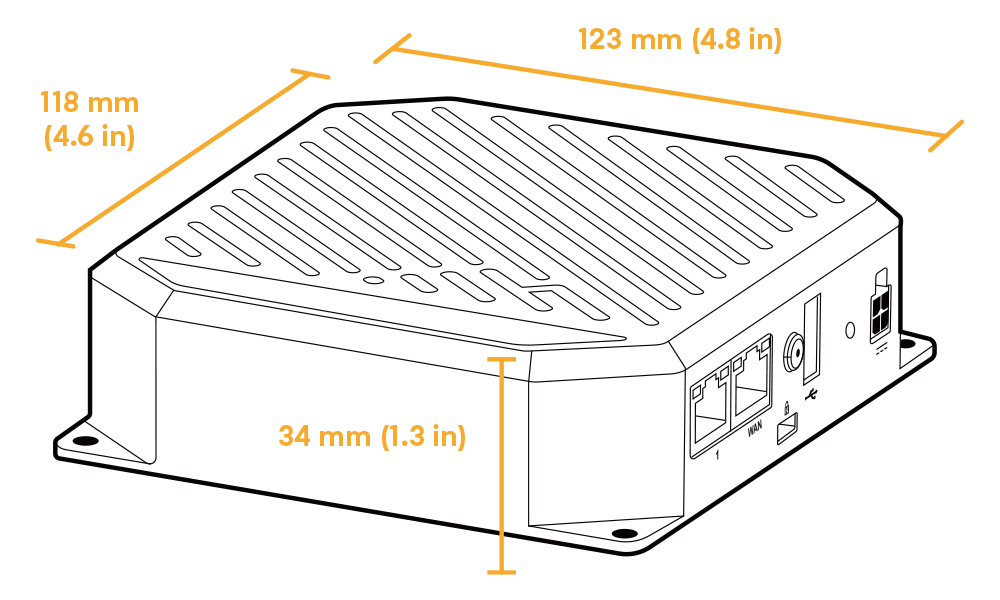

123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in)
Construction
Aluminum housing

Interfaces

Wi-Fi
Concurrent 2.4/5 GHz 2x2 Wi-Fi 6; 574 Mbps + 1.2 Gbps; 2 x RP-SMA; WPA3; Wi-Fi Alliance Certified
Modem
Embedded Cat 4 LTE modem; 2 x SMA cellular antenna connectors
Ethernet
2 x 1 GbE RJ45, LAN/WAN switchable
Expansion
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W)
GNSS Connector
1 x SMA GNSS antenna connector

Wi-Fi Power

Fcc
2.4 GHz 35.66; 5150–5250 26.59; 5250–5350 25.33; 5470–5725 25.15; 5750–5825 26.22 dBm EIRP
Rest OF World
2.4 GHz 19.99; 5180–5240 22.38; 5260–5320 22.32; 5500–5700 27.45 dBm EIRP

Performance

Vlans
up to 64
Ipsec VPN
50 Mbps
Stateful Firewall
480 Mbps
Concurrent Sessions
100,000
Typical Client Count
20
Concurrent VPN Tunnels
10
Ips App Aware Client Analytics
IPS / application aware services / client analytics: 480 Mbps

Reliability

MTBF
423,399 hours (Telcordia SR332 at 25 °C)

Environmental

Humidity
10–90% operating; 5–95% storage
Ingress Protection
IP30
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Rail
EN 61373 Category 1, Class B (rolling stock)
Safety
UL/cUL; CB Scheme; EN 62368-1
Vehicle
SAE J1455-2006 operating sinusoidal vibration, Cat. 2
Security
FIPS 140-3 Level 1 in process (FIPS models only; not this SKU)
Shock Vibration
EN 61373 Cat. 2; MIL-STD-810H 514.8 (vibration) and 516.8 (shock)
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
24x7 support for the full term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
Ericsson NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates for the full term
Device Management
NetCloud Manager for the full term

Product Summary

PoE
No
Wi-Fi
Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)
GPS GNSS
Active
5G Status
None
USB Ports
1
Throughput
480 Mbps (firewall)
Form Factor
Metal
VPN Tunnels
5
Serial Ports
0
Ethernet Ports
2 x GbE
Cloud Management
Yes
Special Features
Active GNSS/GPS, locking USB RS232 adapter connection, IP30 aluminum housing
Dual Modem Support
No
Subscription Terms
3 or 5 years (IoT products)
Wireless Connectivity
LTE
Private Cellular Network
4G LTE (no CBRS)
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Which regions is this S700 package intended for?

Cradlepoint lists this part for North America (U.S., Canada and Mexico) and for Australia, the European Union, the Philippines, Singapore, New Zealand and the United Kingdom. Its modem carries FCC, IC, CE and RCM approvals.

What is included in the box?

The package configuration is the S700 router with Cat 4 LTE and Wi-Fi, an AC power supply, antennas, and a 3-year NetCloud IoT Essentials Plan.

Can the S700 be powered from a vehicle?

Yes. It accepts 9–33 VDC with reverse polarity and transient voltage protection (ISO 7637-2) and supports ignition sensing with automatic on and time-delay off.

What does the NetCloud IoT Essentials Plan cover?

It includes NetCloud Manager device management and software updates for the full 3-year term, 24x7 support, and a limited lifetime hardware warranty while the subscription is active. NetCloud Advanced can be added at any time.

Is this a 5G router?

No. The S700 uses an embedded Cat 4 LTE modem with peak rates of 150 Mbps downlink and 50 Mbps uplink.
