Ubiquiti UniFi LTE Backup Pro (U-LTE-Backup Pro-US) LTE Failover Gateway for UniFi

4G LTEMPN U-LTE-BACKUP PRO-US
  • 2–4 × 1 Gb Ethernet
  • PoE out
$318.06

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

The Ubiquiti UniFi LTE Backup Pro (U-LTE-Backup Pro-US) is an LTE Cat 4 internet failover device for UniFi gateways. You insert your own AT&T data-only nano-SIM, and when the primary ISP link drops, the site stays online over LTE at up to 150 Mbps down and 50 Mbps up, depending on location and network. It is PoE-powered, has two GbE ports with PoE passthrough, and is managed in UniFi Network 7.2.85 or later.

  • LTE Category 4 radio with 2x2 MIMO, rated up to 150 Mbps download / 50 Mbps upload
  • Internet failover for UniFi gateways, managed in UniFi Network 7.2.85 and later

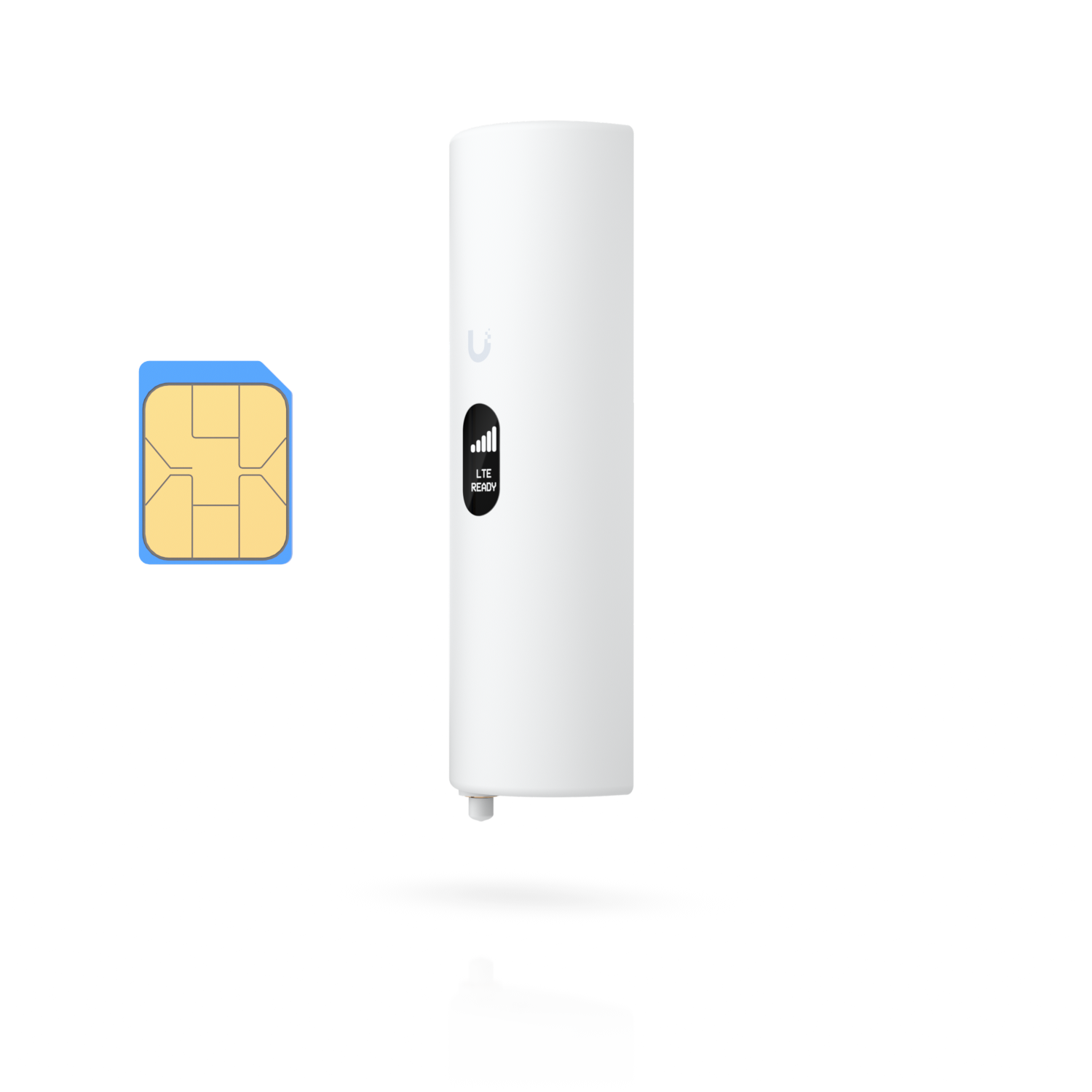

  • Works on the AT&T network in the US with a user-supplied data-only nano-SIM

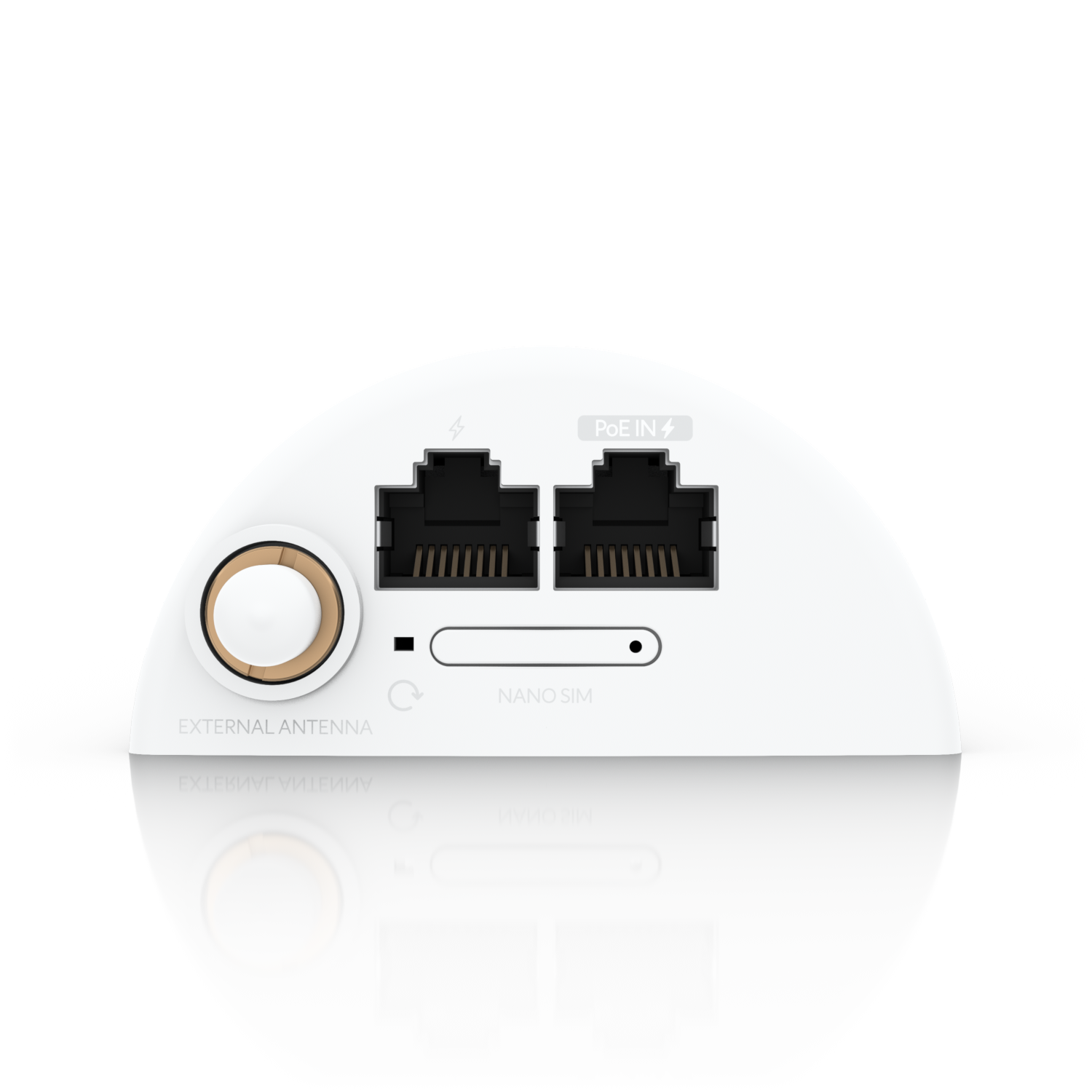

  • Two GbE RJ45 ports: PoE input plus PoE passthrough output up to 15.4W (PoE+ switch required)
  • Two internal LTE antennas plus a female RP-SMA port for an optional external antenna (max 6 dBi)

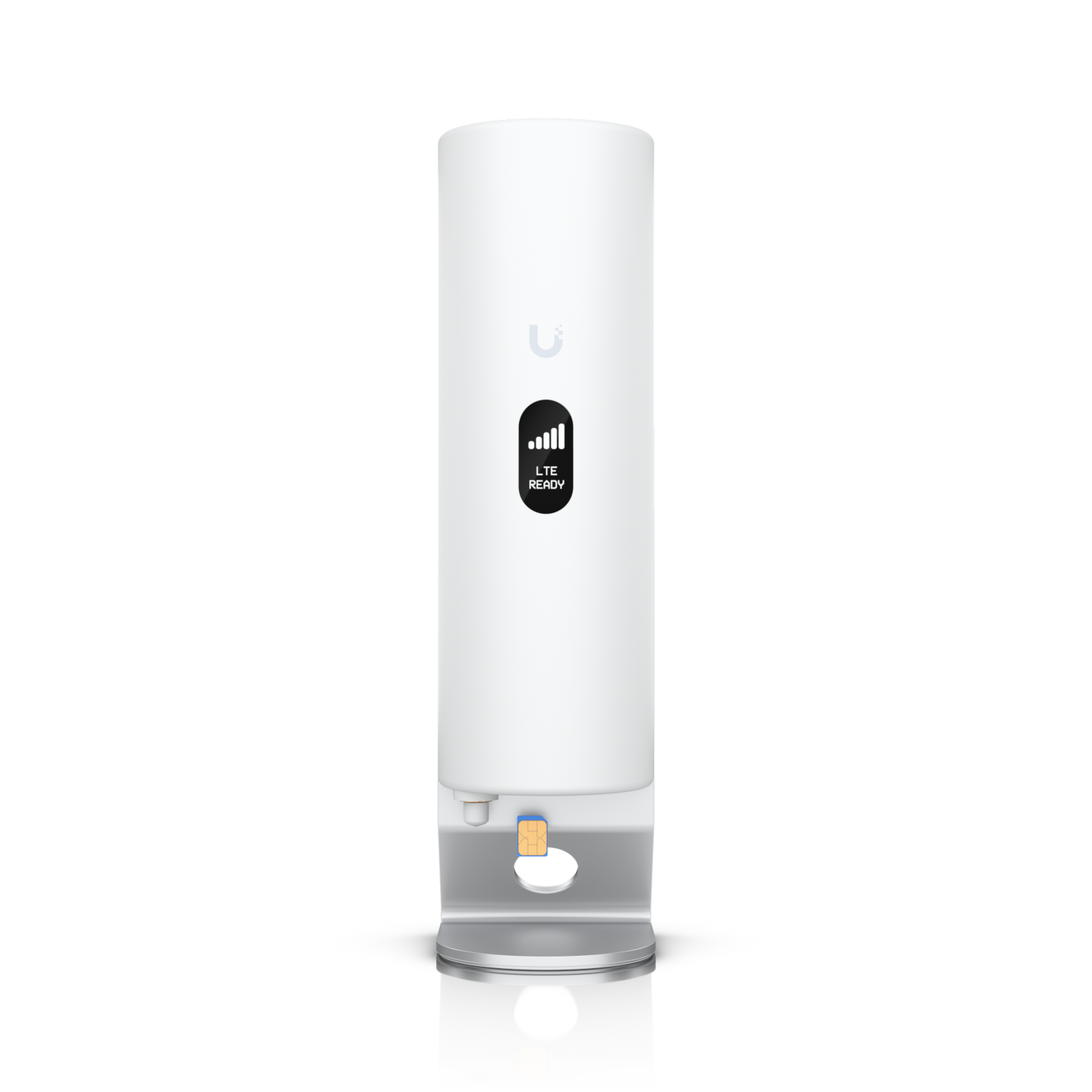

  • 1.54-inch LCM status display; wall mount and foot stand included
  • NDAA compliant; FCC and IC certified
  • Keeps a UniFi site online over LTE when the wired ISP connection fails

The UniFi LTE Backup Pro gives UniFi gateway deployments an independent cellular path to the internet. It is built for IT managers and small businesses that run UniFi and need to keep point-of-sale, VoIP, cameras or remote management online during an ISP outage. This US model works on the AT&T network with a data-only nano-SIM you supply, and it is managed from the UniFi Network application (version 7.2.85 and later).

Inside is a 2x2 MIMO LTE Category 4 radio covering bands B2, B4, B5, B12, B14 and B66, with rated throughput of up to 150 Mbps download and 50 Mbps upload; actual speed and coverage depend on location and network performance. Two internal LTE antennas handle most installations, and a female RP-SMA connector accepts an optional external antenna of up to 6 dBi gain for weak-signal sites.

The unit draws power over Ethernet from a UniFi PoE switch or a 48V, 0.5A PoE adapter (44-57V DC supported) and consumes a maximum of 8.5W excluding passthrough. Its second GbE port provides PoE passthrough of up to 15.4W when fed by a PoE+ switch, so it can share a drop with another device. A 1.54-inch LCM display shows status at a glance.

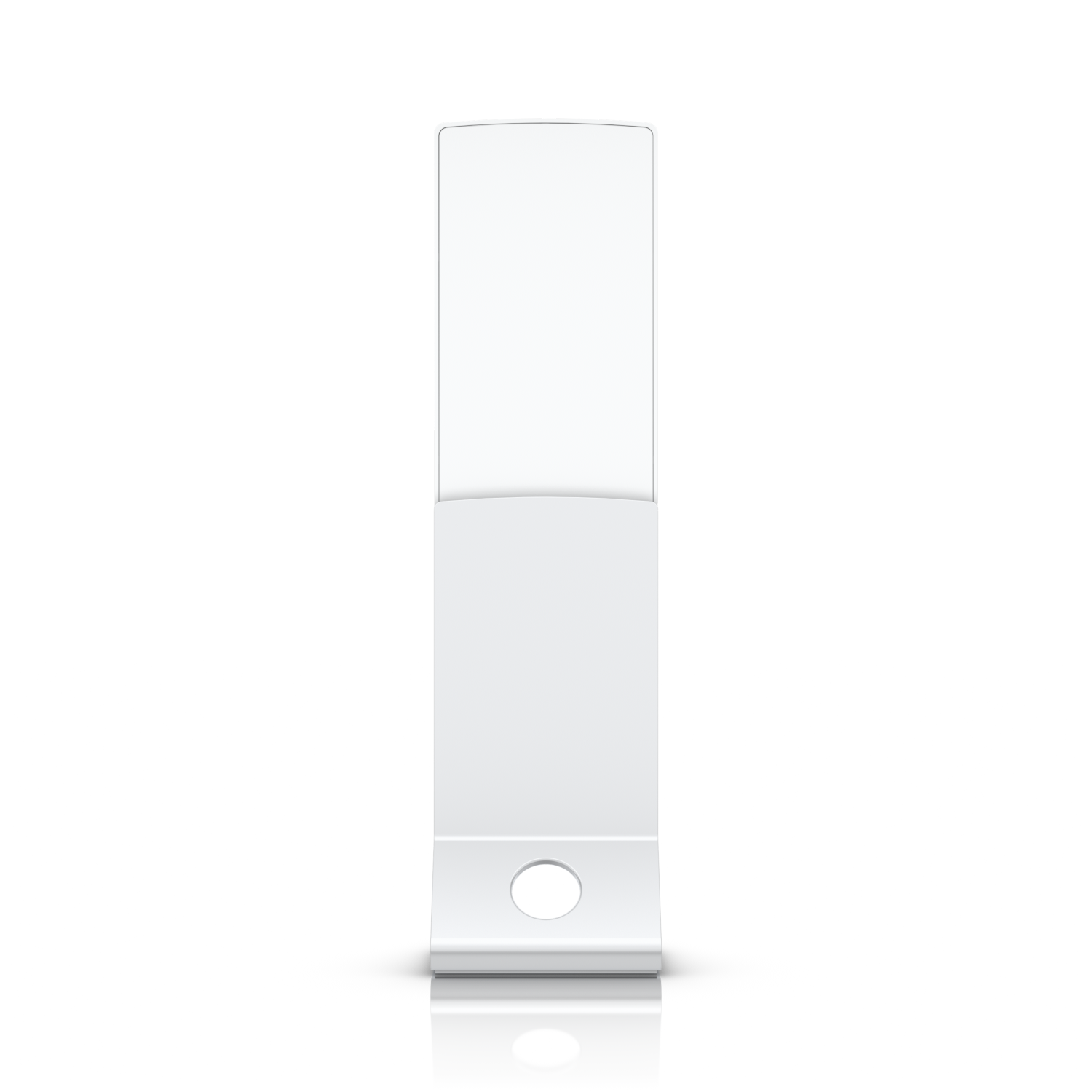

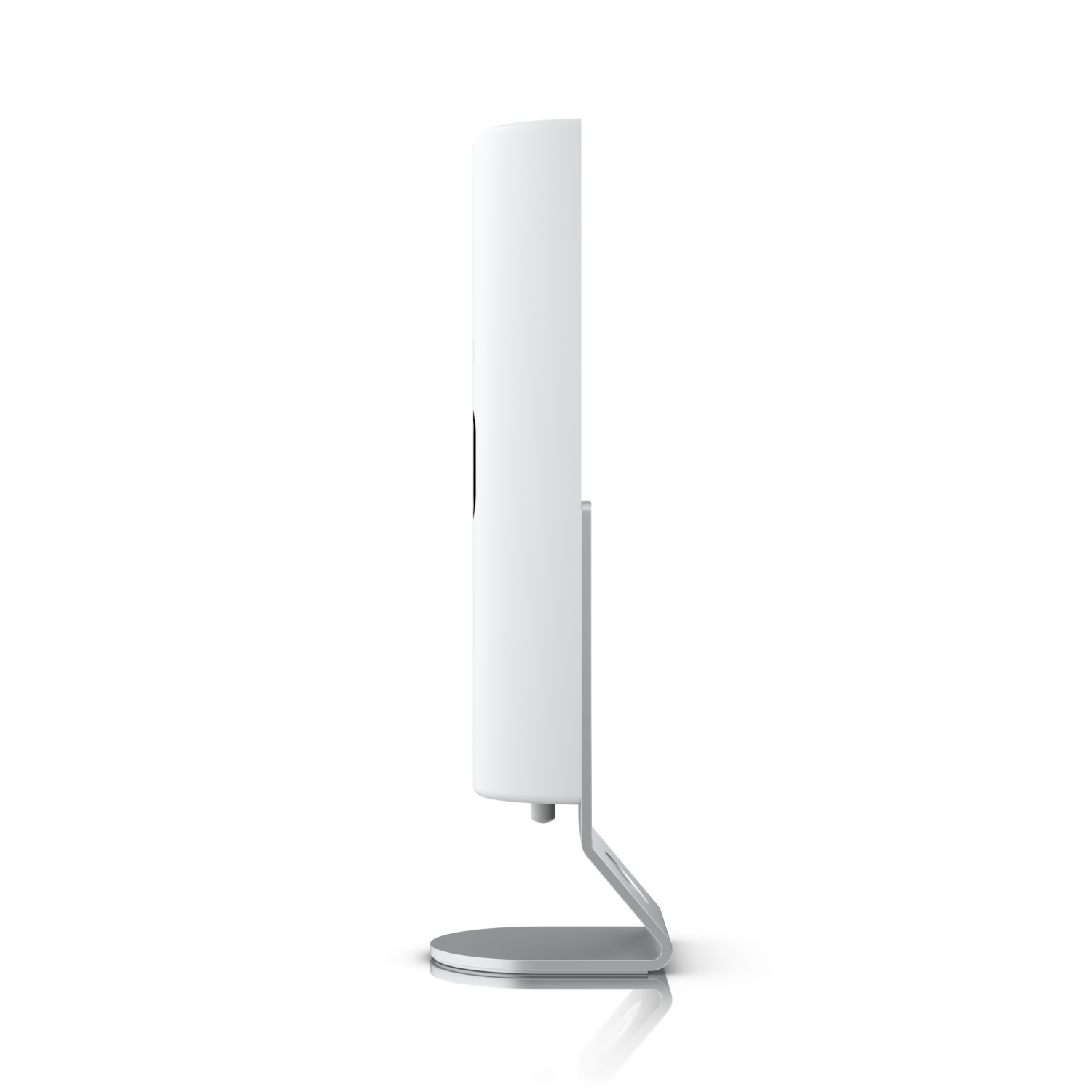

The polycarbonate enclosure measures 66 x 202 x 32 mm and ships with both an aluminium foot stand and a polycarbonate wall mount. It operates from -10 to 60 °C, carries FCC and IC certification, and is NDAA compliant. The Ubiquiti datasheet covers full specifications.

Ideal for

  • Automatic LTE failover for retail and branch sites running UniFi gateways
  • Keeping VoIP, payment terminals and cloud apps online during ISP outages
  • Maintaining remote management access to UniFi networks when the primary WAN fails
  • Small offices on AT&T coverage that need a PoE-powered backup link

Specifications

General

MPN
U-LTE-BACKUP PRO-US
Brand
Ubiquiti
Model
UniFi LTE Backup Pro (U-LTE-Backup Pro)
Region
US

Hardware

SIM
Nano-SIM (data-only)
MIMO
2 x 2 LTE Category 4
Button
Factory reset
Memory
128 MB DDR2
Antenna
(2) internal LTE antennas; (1) RP-SMA female for optional external antenna (max 6 dBi)
Mounting
Wall mount or foot stand (included)
Operator
AT&T network (US only)
LTE Bands
B2, B4, B5, B12, B14, B66
Processor
74 Kc MIPS processor at 775 MHz
Lcm Display
1.54 in screen
Power Supply
UniFi PoE switch or 48V, 0.5A PoE adapter
PoE Interface
(1) PoE in; (1) PoE passthrough output (requires PoE+ switch)
Certifications
FCC, IC
Ndaa Compliant
Yes
Throughput Speeds
150 Mbps down / 50 Mbps up (depends on location and network performance)
Management Interface
Ethernet
Networking Interface
(2) GbE RJ45 ports; LTE Category 4 radio
External Antenna Port
Female RP-SMA (use male RP-SMA antennas)
Max Power Consumption
8.5W (excluding PoE passthrough output)
Supported Voltage Range
44-57V DC
Ambient Operating Humidity
5 to 95% noncondensing
Ambient Operating Temperature
-10 to 60 °C (-14 to 140 °F)
Max PoE Passthrough Wattage Per Port
15.4W (requires PoE+ switch)

Software

Management Application
UniFi Network 7.2.85 and later

Mechanical

Weight
223 g (7.9 oz) without stand; 336 g (11.9 oz) with stand
Dimensions
66 x 202 x 32 mm (2.6 x 8 x 1.3 in)
Mount Material
Stand: aluminium; Wall mount: polycarbonate
Enclosure Material
Polycarbonate

Questions buyers ask

Which carrier does the UniFi LTE Backup Pro work with?

This US model works on the AT&T network with a data-only nano-SIM that you supply.

How is it powered?

It is powered over Ethernet from a UniFi PoE switch or a 48V, 0.5A PoE adapter, with a supported range of 44-57V DC.

Can I connect an external antenna?

Yes. It has a female RP-SMA connector for an optional external antenna using a male RP-SMA plug; maximum antenna gain is 6 dBi.

What software manages it?

It is managed in the UniFi Network application, version 7.2.85 and later.

How fast is the LTE connection?

The LTE Cat 4 radio is rated for up to 150 Mbps download and 50 Mbps upload; actual speed depends on location and network performance.
