Ubiquiti UniFi 5G Backup (U5G-US) PoE 5G RedCap Internet Backup Modem

5G RedCapMPN U5G-US
  • PoE powered
$111.02

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Overview

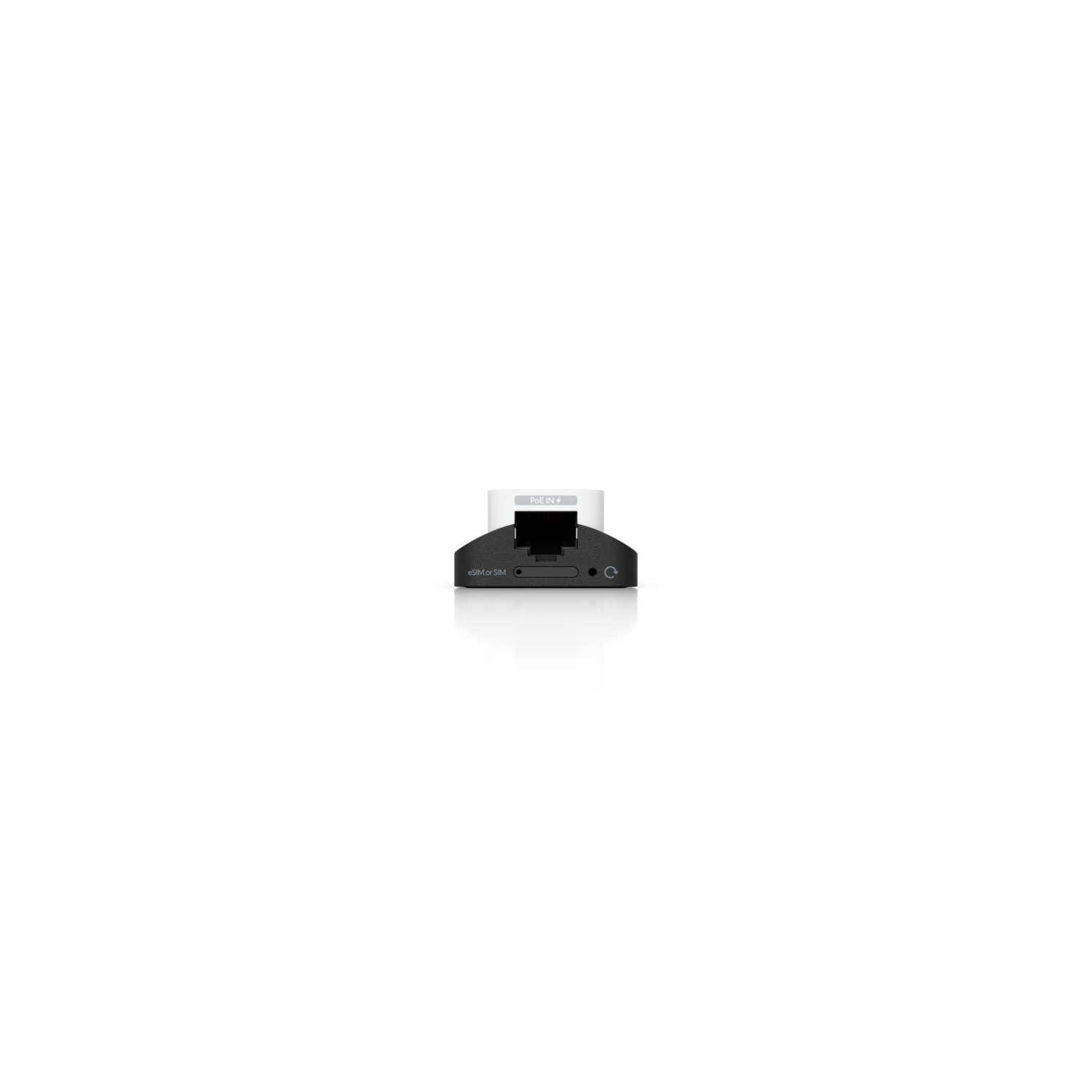

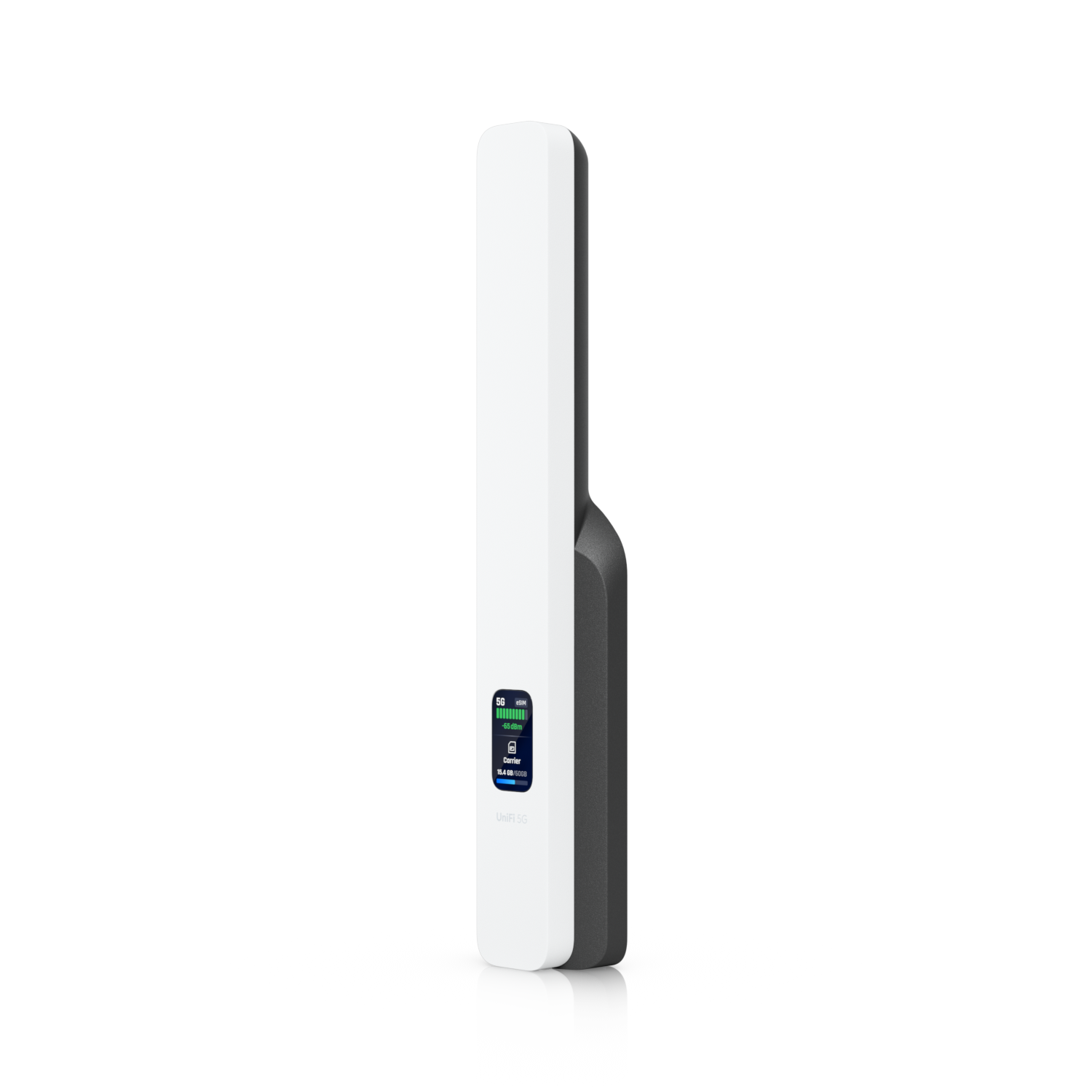

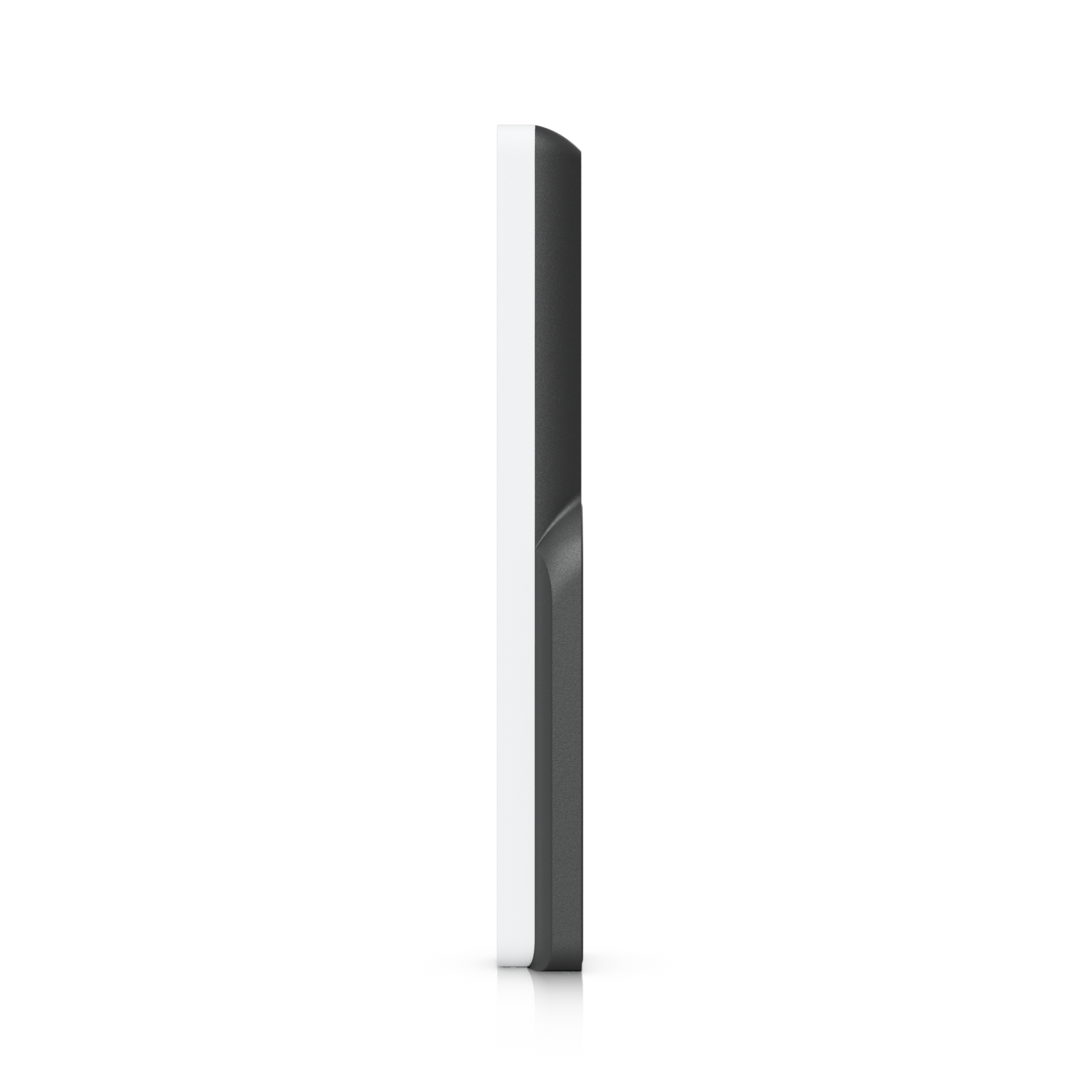

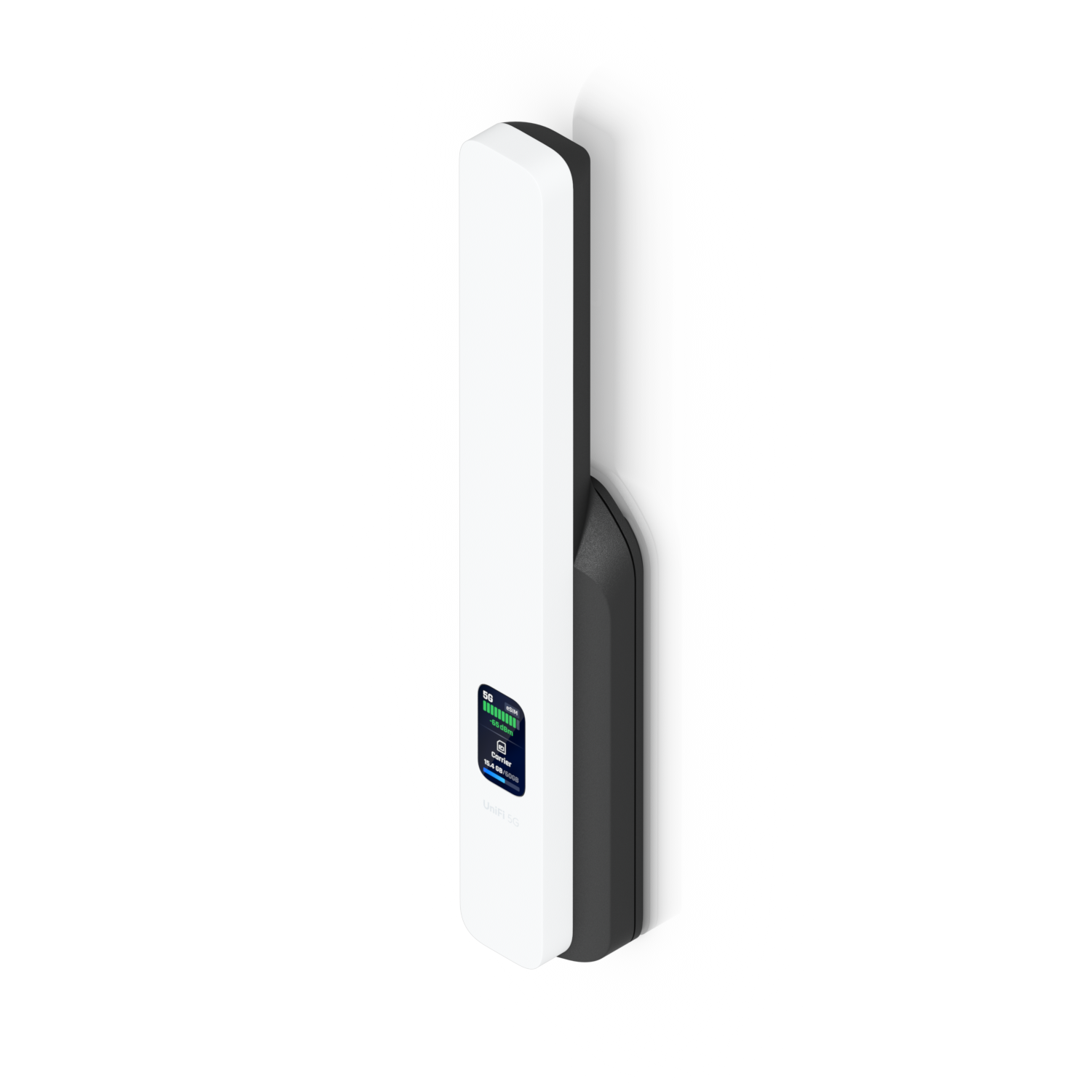

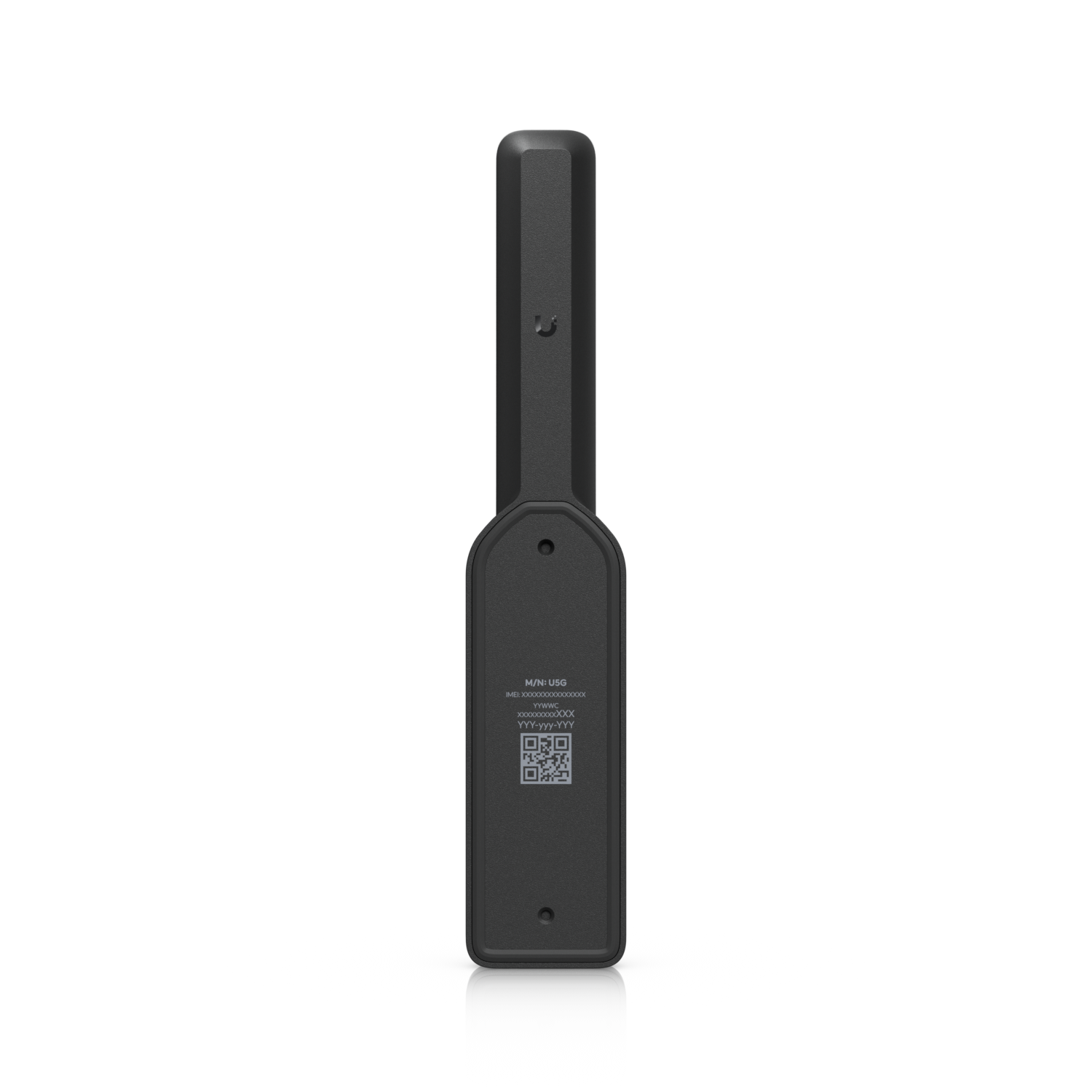

The Ubiquiti UniFi 5G Backup (U5G-US) is a compact 5G RedCap and LTE modem that provides automatic internet backup for UniFi networks. It is powered by IEEE 802.3af PoE and connects to any UniFi PoE port through a single GbE RJ45 port. It offers up to 220 Mbps downlink on 5G SA, one Nano-SIM and one eSIM, and a 1.14-inch status display. A desktop stand, wall mount and window mount are included.

  • 5G RedCap modem (5G SA only) with LTE fallback
  • Peak speeds of 220/120 Mbps on 5G SA and 195/100 Mbps on LTE
  • Powered by IEEE 802.3af PoE through a single GbE RJ45 port
  • Provides automatic internet backup when plugged into any UniFi PoE port
  • One Nano-SIM (4FF) and one eSIM
  • 1.14-inch status display; desktop stand, wall mount and window mount included
  • NDAA compliant; certified for FCC, IC, PTCRB, GCF, AT&T and T-Mobile
  • Keeps payments, voice and cloud tools running when the primary ISP goes down

The UniFi 5G Backup is a straightforward way to keep a UniFi site online when the wired connection fails. It is a slim 5G RedCap device, 200 x 38 x 20.2 mm and 122 g, that plugs into any UniFi PoE port and provides automatic internet backup. It needs no separate power supply, drawing IEEE 802.3af PoE over its single GbE RJ45 port.

The modem supports 5G RedCap in 5G Standalone (SA) mode only. 5G Non-Standalone (NSA) is not supported. Where a compliant 5G SA or RedCap network is not available, it falls back to LTE. Peak speeds are 220 Mbps down and 120 Mbps up on 5G SA, and 195 Mbps down and 100 Mbps up on LTE. That is ample for backup traffic such as payment terminals, VoIP, cloud management and remote access. It covers 16 5G NR bands and 17 LTE bands through two embedded omni-directional antennas. Band n41 is currently not supported on the T-Mobile network for 5G RedCap devices.

It accepts one Nano-SIM (4FF) and one eSIM. A 1.14-inch status display shows the connection state at a glance. The included desktop stand, wall mount and window mount let you place it where reception is best. It requires UniFi Network 10.4.57 or later, UniFi iOS 10.35.0 or later, or UniFi Android 10.38.2 or later. The U5G-US is NDAA compliant and certified for FCC, IC, PTCRB, GCF, AT&T and T-Mobile.

Ideal for

  • Automatic internet backup for UniFi-managed retail and restaurant sites
  • Keeping point-of-sale, VoIP and cloud services online during ISP outages
  • Small offices and home offices that need low-cost cellular failover
  • Multi-site UniFi deployments that standardize on a compact backup link

Specifications

General

MPN
U5G-US
Brand
Ubiquiti
Model
UniFi 5G Backup (U5G)
Region
United States
Product Type
PoE-powered 5G RedCap internet backup modem

Hardware

Buttons
(1) factory reset
Display
1.14" status display
Management
Ethernet
Antenna Type
Antennas: (2) embedded omni-directional cellular antennas
Power Method
PoE (IEEE 802.3af)
Certifications
FCC, IC, PTCRB, GCF, AT&T, T-Mobile
Ndaa Compliant
Yes
NR 5G Category
5G NR Category: 5G RedCap (5G SA mode only; 5G NSA not supported)
LTE Max TX Power
HPUE power class 2, 26 dBm
Peak Speed 5G SA
220 Mbps down / 120 Mbps up
Peak Speed 4G LTE
195 Mbps down / 100 Mbps up
NR 5G Max TX Power
5G NR Max. TX Power: 23 dBm
LTE Frequency Bands
4G LTE Bands: B2, B4, B5, B7, B12, B13, B14, B25, B26, B30, B38, B41, B42, B43, B48, B66, B71 (LTE fallback when compliant 5G SA or RedCap networks are unavailable)
NR 5G Frequency Bands
5G NR Bands: n2, n5, n7, n12, n13, n14, n25, n26, n30, n38, n41*, n48, n66, n71, n77, n78 (*n41 currently not supported on T-Mobile for 5G RedCap devices)
Ambient Operating Humidity
5 to 95% noncondensing
Ambient Operating Temperature
0 to 40 °C (32 to 104 °F)

Overview

SIM
(1) Nano-SIM (4FF); (1) eSIM
Mounting

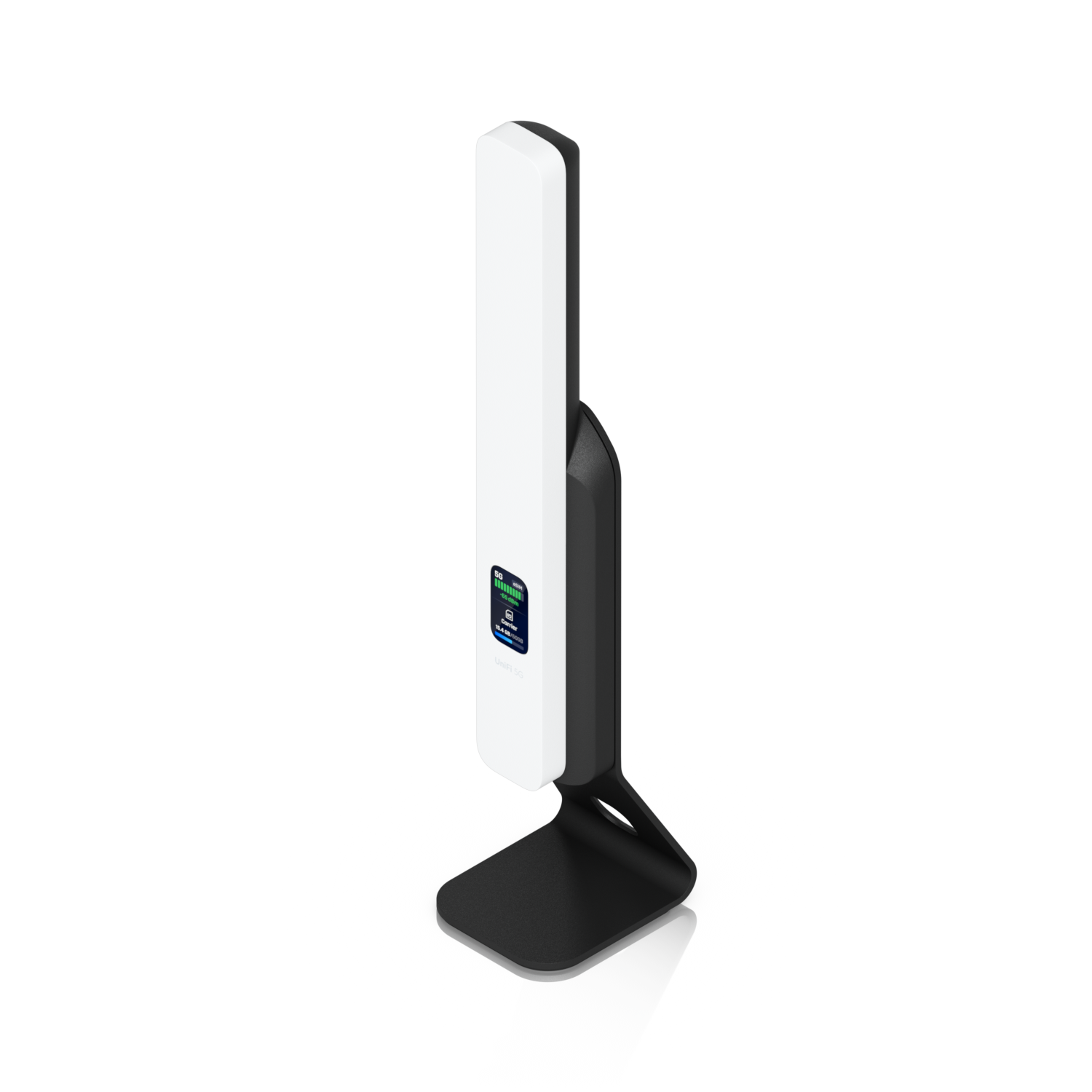

Desktop stand, wall, window mount (included)
PoE Interface
(1) PoE input
Dimensions Device
Device Dimensions: 200 x 38 x 20.2 mm (7.9 x 1.5 x 0.8")
Networking Interface
(1) GbE RJ45 port; 5G RedCap and LTE
Dimensions Table Stand
Table Stand Dimensions: 48.1 x 48 x 55.2 mm (1.9 x 1.9 x 2.2")

Software

Mobile App Requirement
UniFi iOS 10.35.0 and later; UniFi Android 10.38.2 and later
Unifi Network Requirement
version 10.4.57 and later

Mechanical

Weight Stand
Stand Weight: 138 g (4.9 oz)
Weight Device
Device Weight: 122 g (4.3 oz)
Mount Material
Galvanized steel, silicone rubber
Weight Wall Mount
Wall Mount Weight: 66 g (2.3 oz)
Enclosure Material
Polycarbonate, aluminum alloy

Questions buyers ask

What is 5G RedCap, and does this support 5G NSA?

5G RedCap is a reduced-capability 5G mode suited to lower-bandwidth connections such as backup links. The U5G supports 5G RedCap in 5G Standalone (SA) mode only; 5G NSA is not supported. It falls back to LTE when a compliant 5G SA or RedCap network is unavailable.

How fast is it?

Peak speeds are 220 Mbps down and 120 Mbps up on 5G SA, and 195 Mbps down and 100 Mbps up on LTE.

What power does it need?

It is powered by IEEE 802.3af PoE through its single GbE RJ45 port. Plug it into any UniFi PoE port.

Which UniFi software versions are required?

UniFi Network 10.4.57 or later, UniFi iOS 10.35.0 or later, or UniFi Android 10.38.2 or later.

Is band n41 supported on T-Mobile?

n41 is in the supported band list, but it is currently not supported on the T-Mobile network for 5G RedCap devices.
