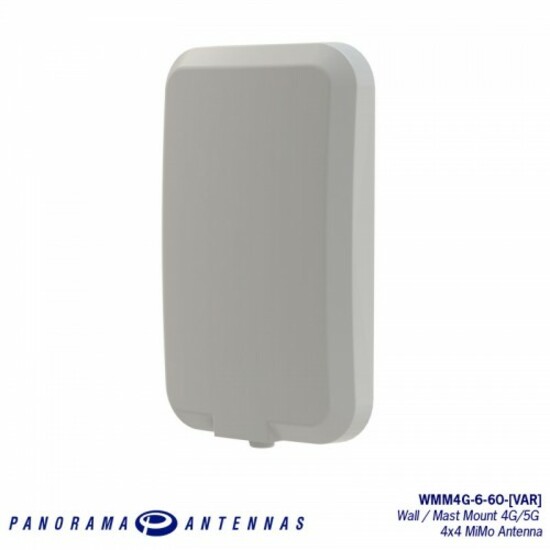

Panorama WMM4G-6-60-05NJ 4x4 MIMO 4G/5G Directional Antenna with 0.5 m N-Female Cable

5GMPN WMM4G-6-60-05NJ
  • 4x4 MIMO
  • 9 dBi and up
  • Up to 1 m
$370.35$507.15Save $136.80

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans
Compare all 7 configurations

Datasheets & documents

Overview

The Panorama WMM4G-6-60-05NJ is a high-gain directional 4x4 MIMO antenna for 4G and 5G routers at branch sites, failover links and rural broadband installs. Four separately fed wideband elements in one weather-resistant white housing deliver 6 dBi peak gain at 617-960 MHz and 9 dBi at 1710-6000 MHz. This version ships with 0.5 m of fitted low-loss FR CS32 cable terminated in N-type female connectors, ready for your own extension cable run. Wall and mast brackets are included.

  • 4x4 MIMO with four separately fed wideband element assemblies in one housing
  • 6 dBi peak gain at 617-960 MHz and 9 dBi peak gain at 1710-6000 MHz
  • Supports 2G/3G/4G/5G, Band 71 600 MHz ready
  • 0.5 m fitted low-loss double-shielded FR CS32 cable with N-type female connectors
  • Weather-resistant IP-rated outdoor housing, -45°C to +80°C operating range

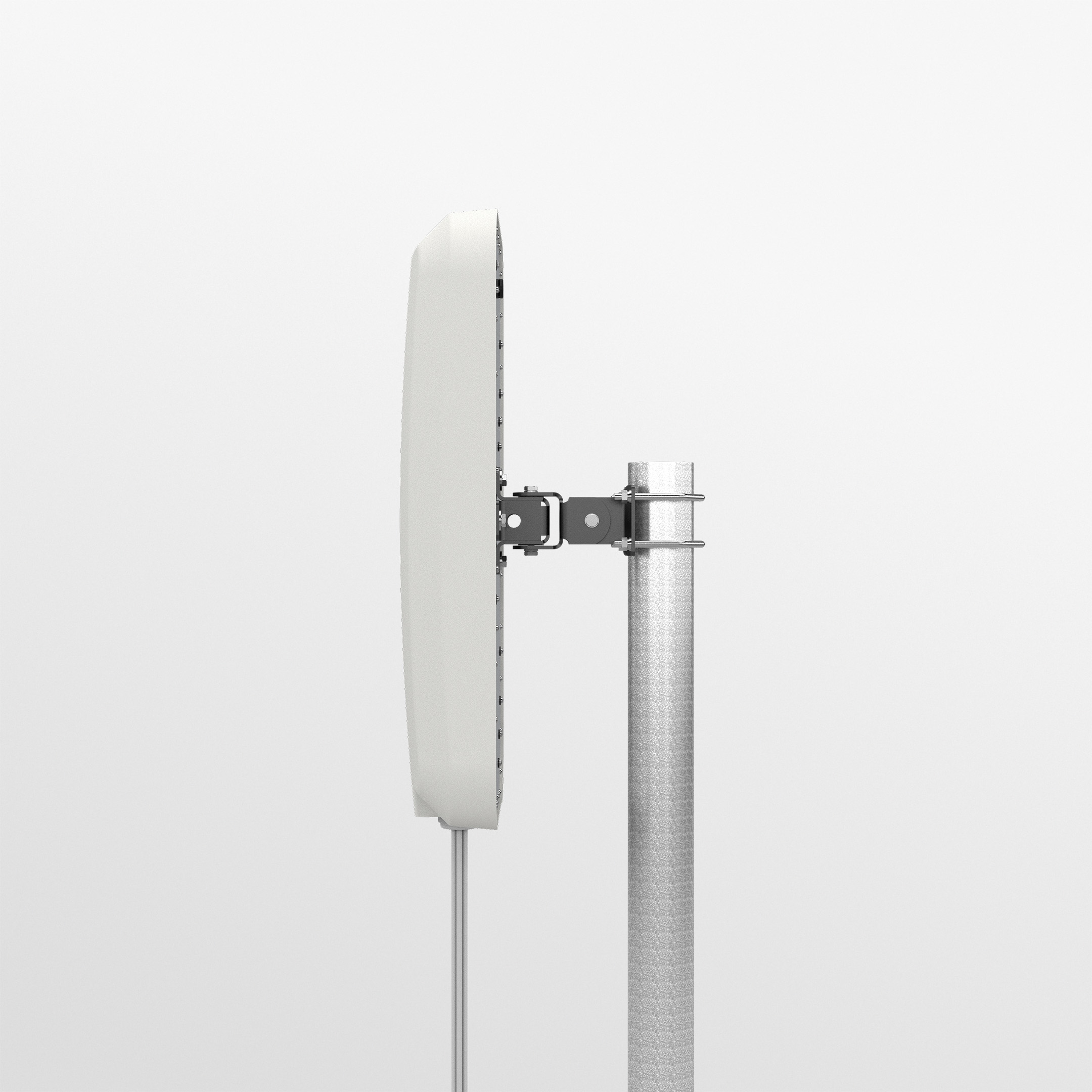

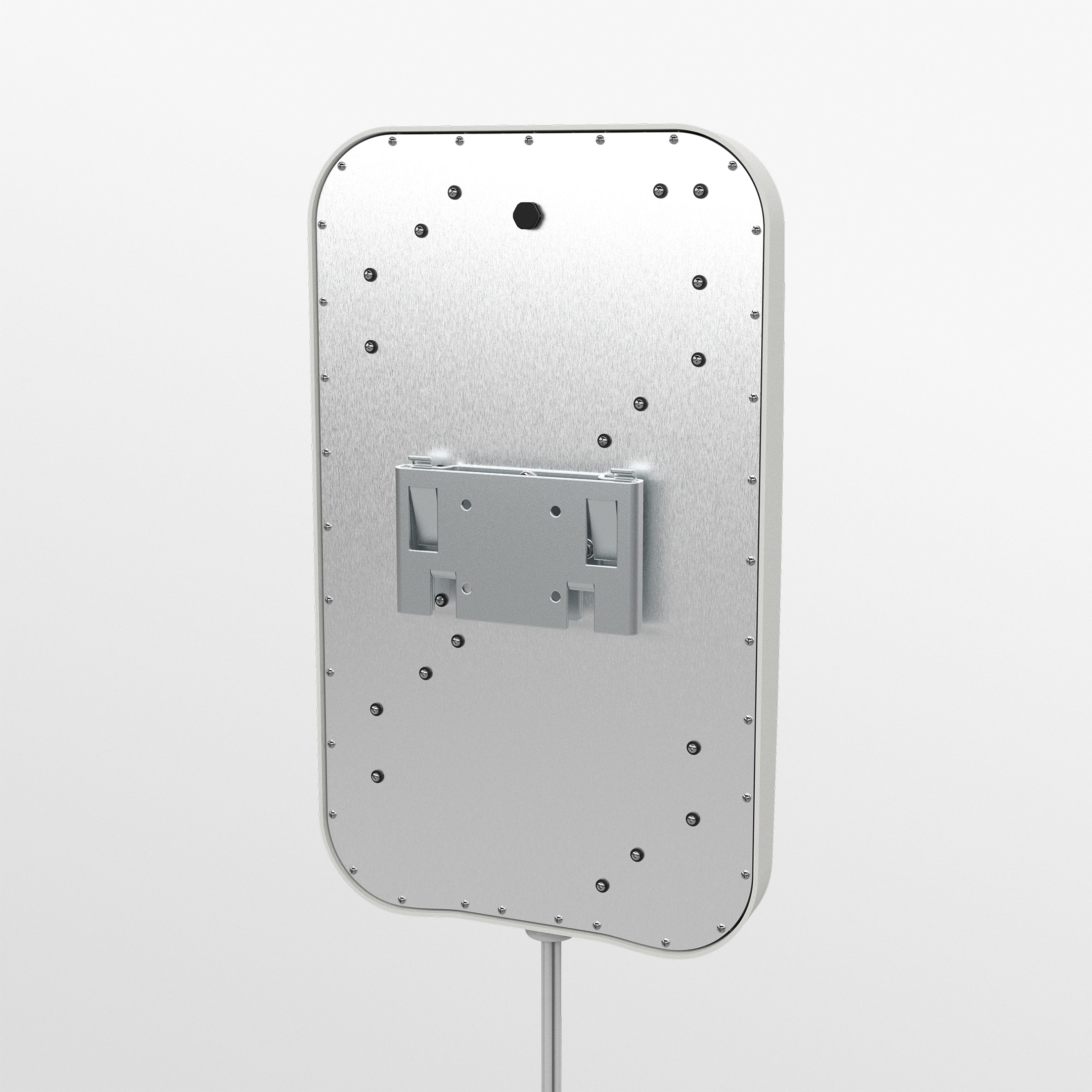

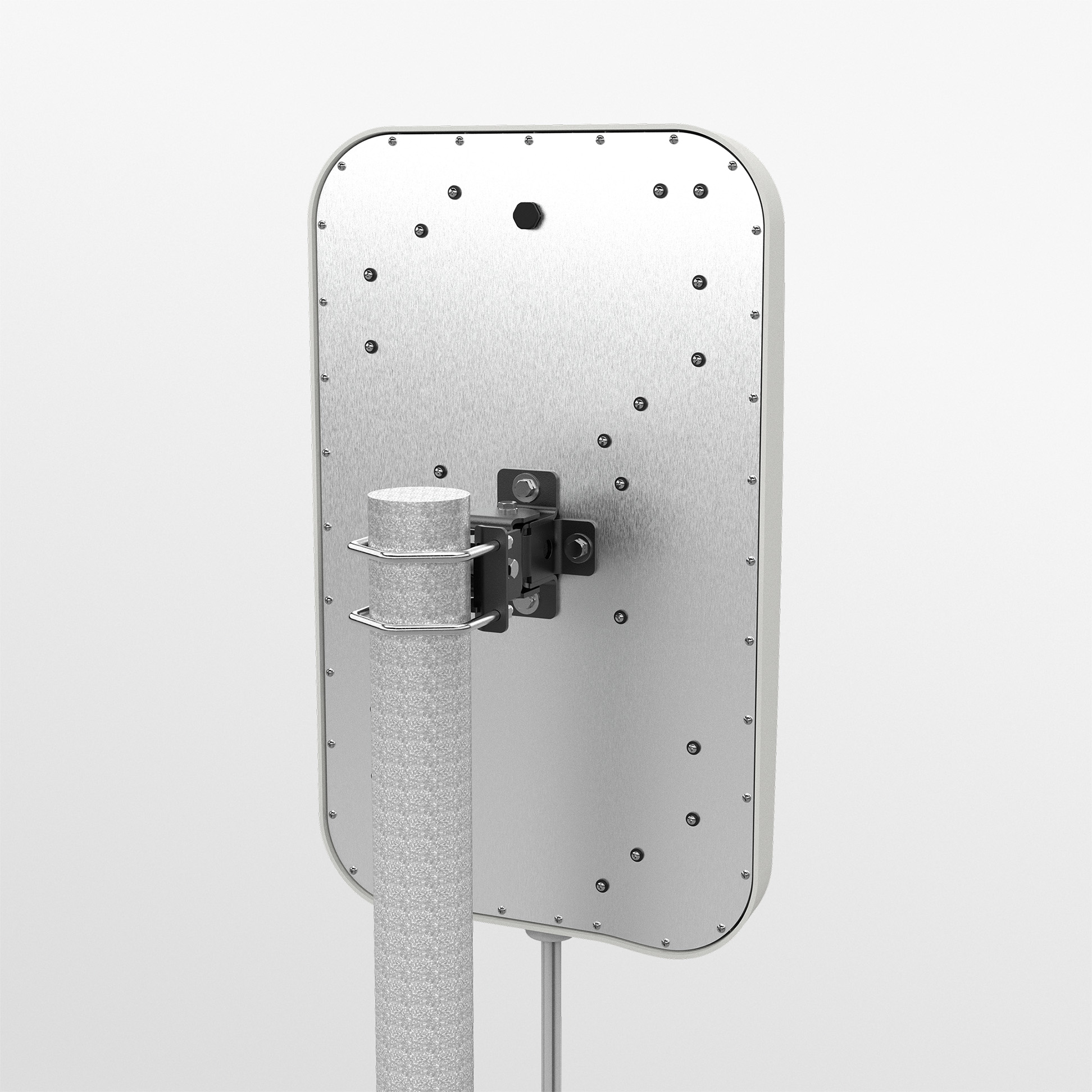

  • Wall or mast mounting with both brackets supplied
  • Directional gain of up to 9 dBi pulls in usable signal at fringe and rural sites
  • Full 4x4 MIMO lets Cat18/20 routers use all four antenna ports

The Panorama WMM4G-6-60-05NJ is a fixed-site directional panel antenna built to strengthen cellular links for 4G and 5G routers. It houses four separately fed wideband element assemblies, which gives the router client-side 4x4 MIMO on 4G and 5G networks. Panorama rates it for LTE Cat18/20 routers, which makes it a strong match for branch networks, failover circuits and rural broadband where the tower is distant or the signal is marginal.

Coverage runs from 617 to 960 MHz at 6 dBi peak gain, including Band 71 600 MHz, and from 1710 to 6000 MHz at 9 dBi peak gain. That span covers low-band 4G/5G, mid-band LTE and 5G sub-6 GHz spectrum up to 6 GHz, as well as 2G/3G. Because the pattern is directional, you aim the panel at the serving tower and concentrate gain where it counts.

The -05NJ variant has short 0.5 m fitted leads of low-loss, double-shielded FR CS32 cable ending in N-type female connectors. This suits installs where the antenna sits on an outside wall or mast and you run your own low-loss N-terminated cable to the router. Fitted cable keeps exposed connector joints to a minimum and simplifies cable management.

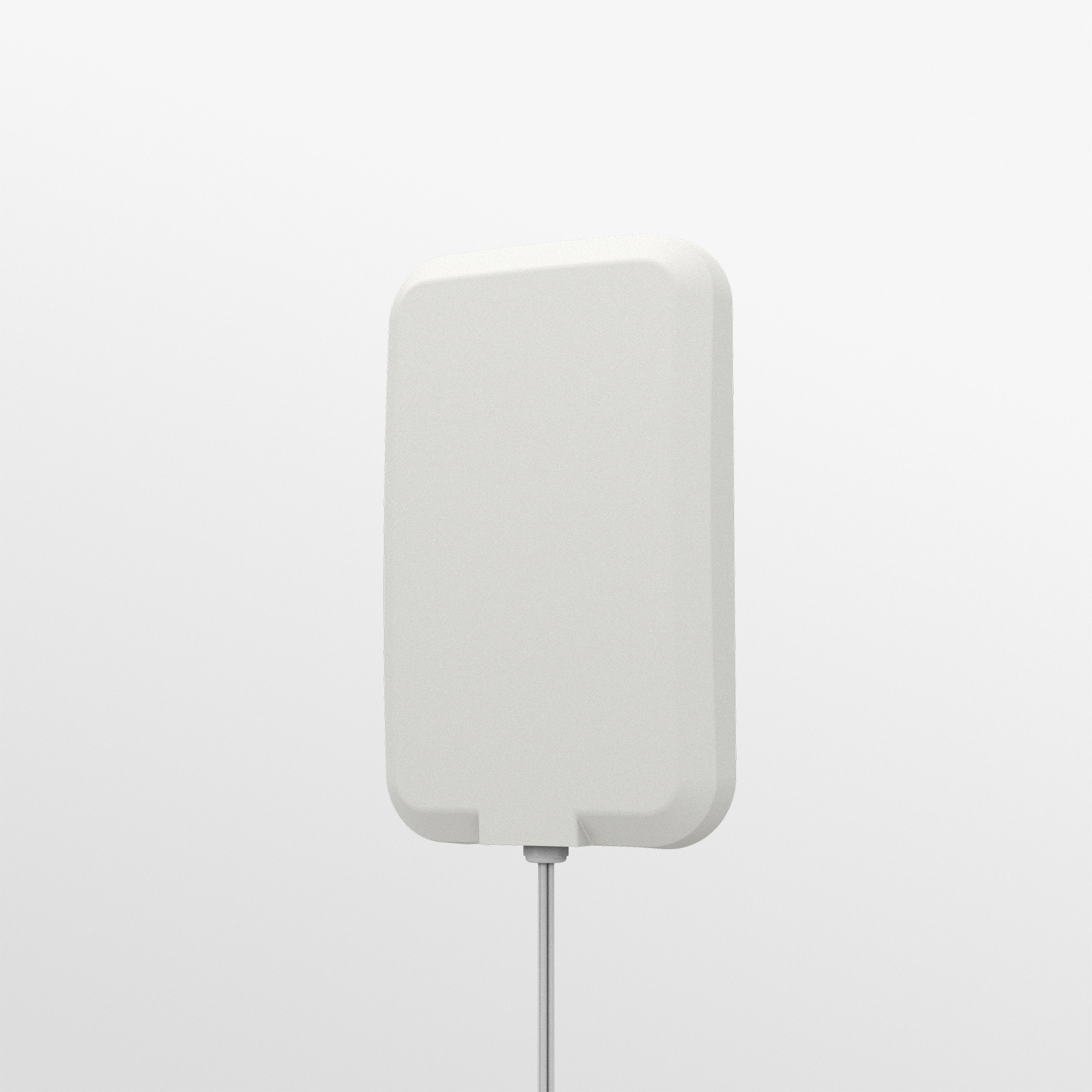

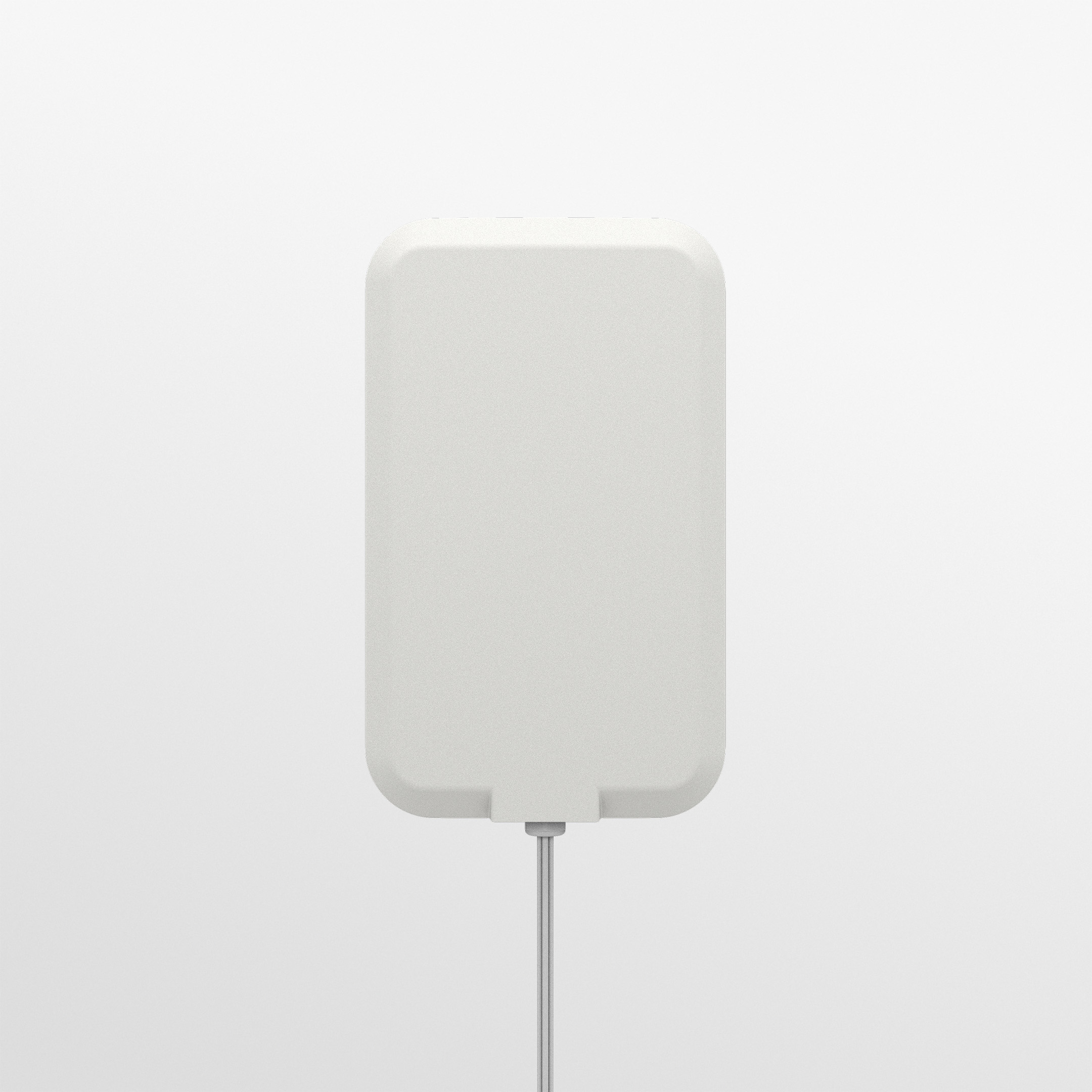

The white housing measures 507 x 307 x 85 mm, operates from -45°C to +80°C, and is built for outdoor wall or mast mounting. Wall and mast brackets come in the box. Panorama publishes a datasheet, installation instructions (SW3-091) and an IP test certificate for this family.

Ideal for

  • Primary 4G/5G connectivity for branch offices
  • Cellular failover for wired WAN circuits
  • Rural broadband at fringe-coverage sites
  • Fixed enterprise sites feeding 4x4 MIMO Cat18/20 routers

Specifications

GPS

Lna Gain
26 dB (WMM4GG variants only)
GPS Frequency Range
1560-1612 MHz (WMM4GG variants only)
Number OF GPS Elements
No (1 GPS module on WMM4GG variants only)

Cable

Cable Type GPS
CS29 (WMM4GG variants only)
Cable Type LTE
FR CS32 low-loss double-shielded
Cable Length GPS
5 m (16.40 ft) (WMM4GG variants only)
Cable Length LTE
0.5 m (1.64 ft) on this model; family range 0.5-5 m

General

MPN
WMM4G-6-60-05NJ
UPC
5055416037671
Brand
Panorama Antennas
Colour
White
Family
WMM4G[G]-6-60 4x4 MiMo 4G/5G Directional Antenna

Package

Documents
Datasheet, installation instructions (SW3-091), IP test certificate
Shipping Weight
9.85 lb

Mounting

Mounting Methods
Desk, Mast, Wall
Brackets Supplied
Wall and mast brackets provided
Mounting Type Fixed
Desk, Mast, Wall

Approvals

IP Rating
IP65 (spec table); IP66 per product features and IP test certificate
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Electrical

Pattern
Directional
Uhf Elements
No
Wi-Fi Elements
No
Max Input Power
50 W
Frequency Range Gain
617-960 MHz: 6 dBi peak; 1710-6000 MHz: 9 dBi peak
Cellular LTE Elements
4 x 4 MIMO

Mechanical

Width
85 mm (3.35 in)
Height
507 mm (19.96 in)
Length
307 mm (12.09 in)
Operating Temperature
-45°C to +80°C (-49°F to +176°F)

Technology

Technology
2G/3G/4G/5G, Band 71 600 MHz ready (GPS/GNSS on WMM4GG variants)
Router Support
Supports LTE Cat18/20 routers

Termination

Connector GPS
N (f), FAKRA D, SMA (m) (WMM4GG variants only)
Connector LTE
N-type female (family options: N (f), FAKRA D, N (m), SMA (m))

Questions buyers ask

What frequencies does the WMM4G-6-60-05NJ cover?

It covers 617-960 MHz at 6 dBi peak gain and 1710-6000 MHz at 9 dBi peak gain, including Band 71 600 MHz.

What connectors does this version use?

It has 0.5 m of fitted FR CS32 low-loss cable terminated in N-type female connectors. You connect your own extension cable from there to the router.

Does it include GPS?

No. The WMM4G-6-60-05NJ is cellular only. The WMM4GG-6-60 variants add a GPS module.

How is it mounted?

It mounts on a wall or mast, and both wall and mast brackets are provided.

What routers is it suited for?

Panorama designed it for LTE Cat18/20 routers and other 4G/5G routers with four cellular antenna ports, giving them full 4x4 MIMO.
