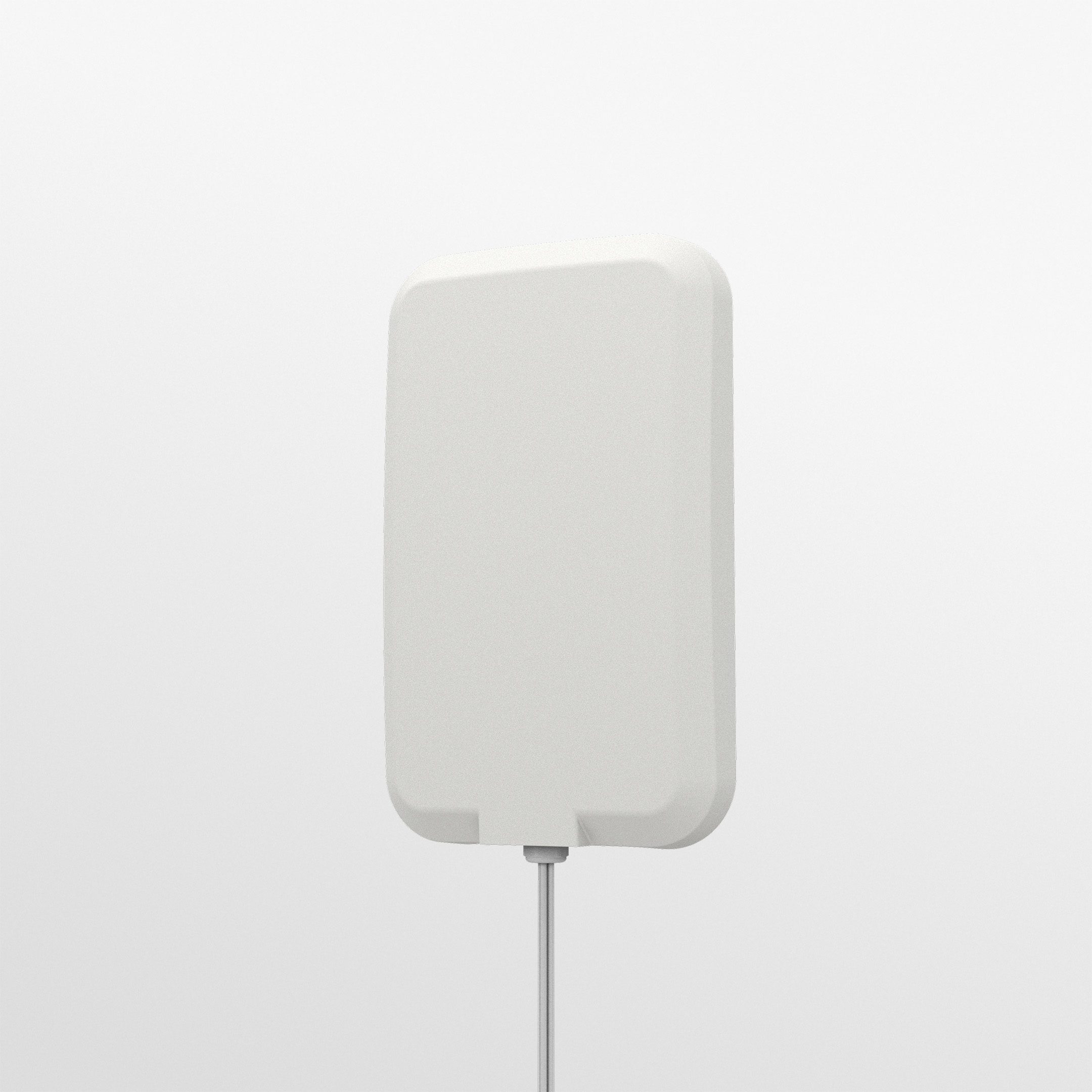

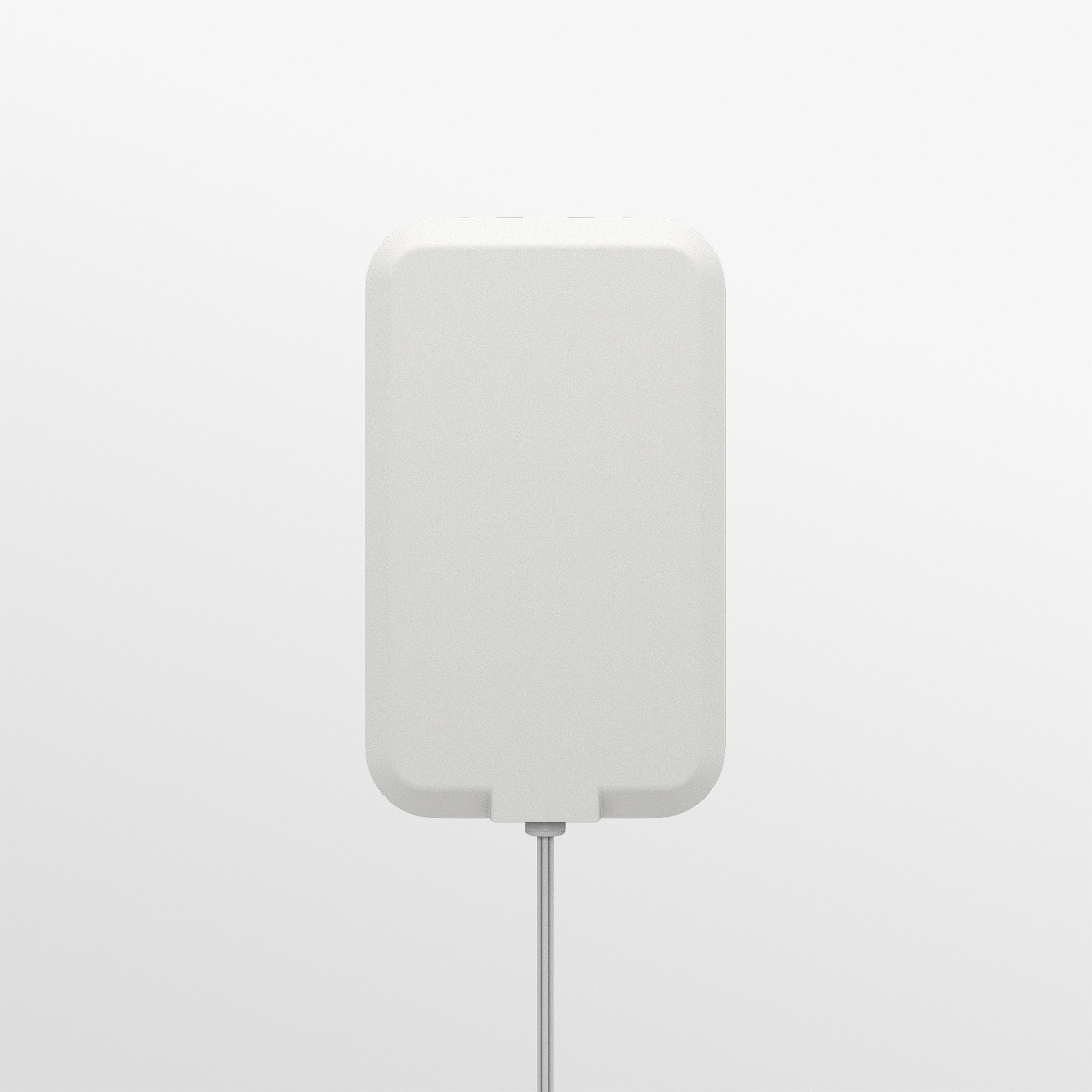

Panorama WMM4G-6-60-05NP 4x4 MIMO 4G/5G Directional Wall Antenna with 0.5 m N-Male Cable

5GMPN WMM4G-6-60-05NP
  • 4x4 MIMO
  • 9 dBi and up
  • Up to 1 m
$365.29$507.15Save $141.86

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans
Compare all 7 configurations

Datasheets & documents

Overview

The Panorama WMM4G-6-60-05NP is a 4x4 MIMO directional antenna for 4G and 5G routers at branch offices, failover sites and rural locations. It packs four wideband elements into one weather-resistant housing and delivers 6 dBi peak gain at 617-960 MHz and 9 dBi at 1710-6000 MHz. This variant has 0.5 m fitted leads with N-type male connectors, and it mounts on a wall or mast with the brackets supplied.

  • 4x4 MIMO from four separately fed wideband element assemblies
  • 6 dBi peak gain at 617-960 MHz; 9 dBi peak gain at 1710-6000 MHz
  • 2G/3G/4G/5G coverage, Band 71 600 MHz ready
  • 0.5 m fitted cable leads with N-type male connectors
  • Weather-resistant outdoor housing rated -45°C to +80°C
  • Wall or mast mounting with brackets provided
  • Raises signal quality at fringe and rural sites with up to 9 dBi of directional gain
  • Feeds all four antenna ports on Cat18/20 4G/5G routers

The Panorama WMM4G-6-60-05NP is a wall-mount directional panel antenna from Panorama's WMM4G-6-60 family. It gives 4G and 5G routers client-side 4x4 MIMO from a single housing. Inside are four separately fed wideband element assemblies, so a router with four cellular ports can run full MIMO through one outdoor unit. Panorama positions the family for LTE Cat18/20 routers, branch networks, failover and rural broadband.

The antenna covers 617-960 MHz with 6 dBi peak gain, including Band 71 600 MHz, and 1710-6000 MHz with 9 dBi peak gain. That range spans 2G/3G, 4G LTE and 5G sub-6 GHz bands. The directional pattern lets you aim the panel at the serving cell to strengthen a weak or distant signal.

This variant has 0.5 m fitted cable leads terminated in N-type male connectors. Pair it with a female-terminated extension run or an in-line device that accepts N-male plugs. The family uses low-loss, double-shielded fitted cable to reduce exposed joints and keep installation tidy.

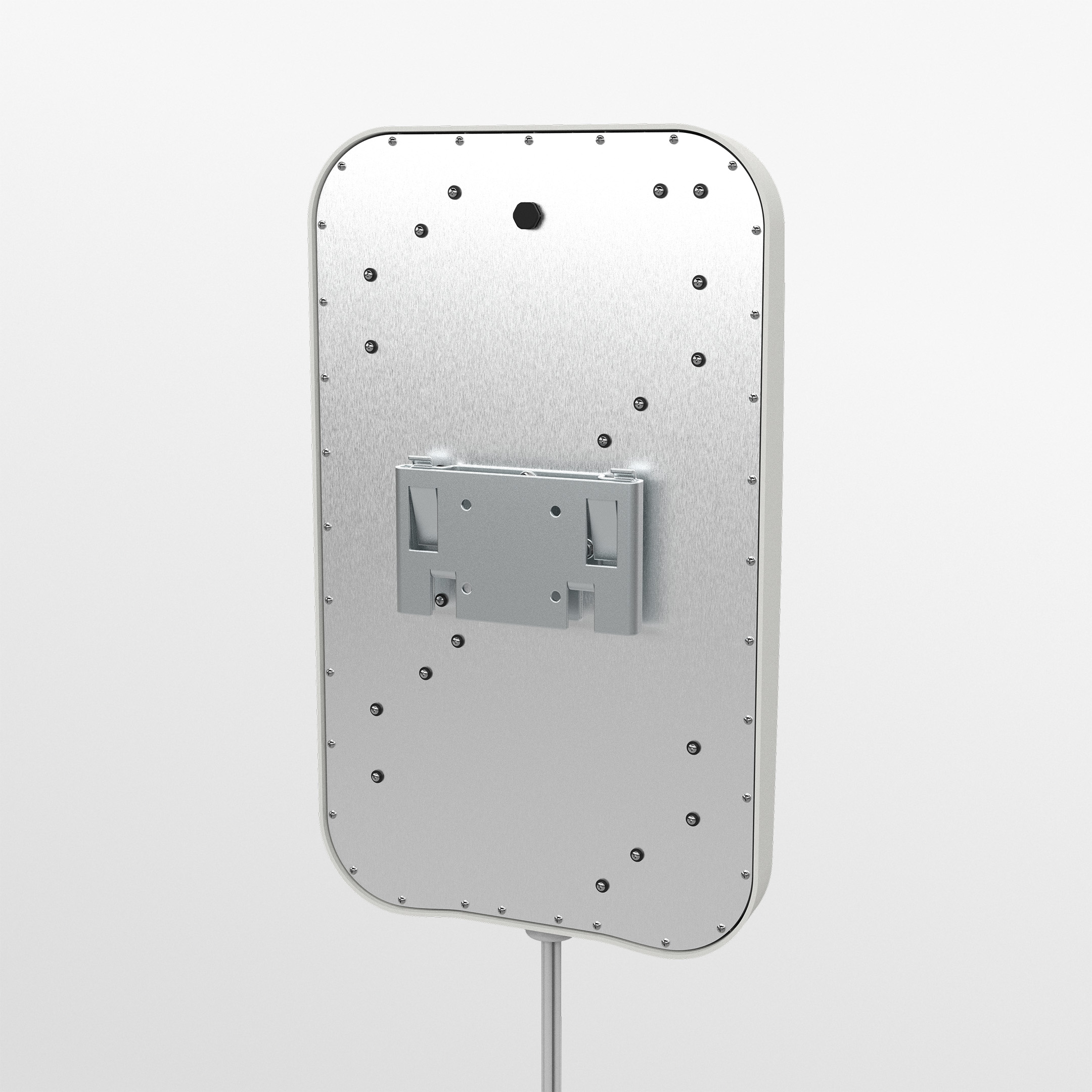

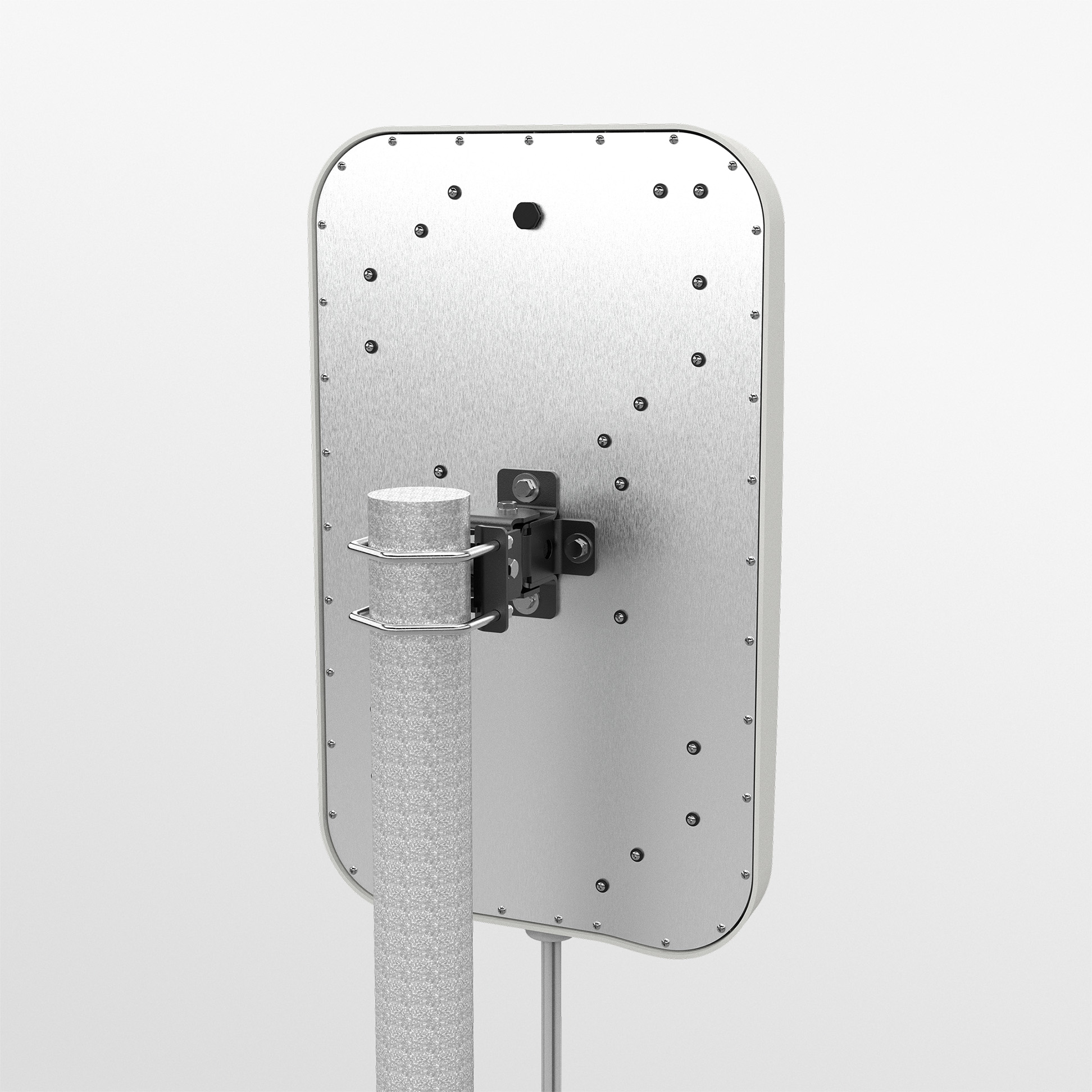

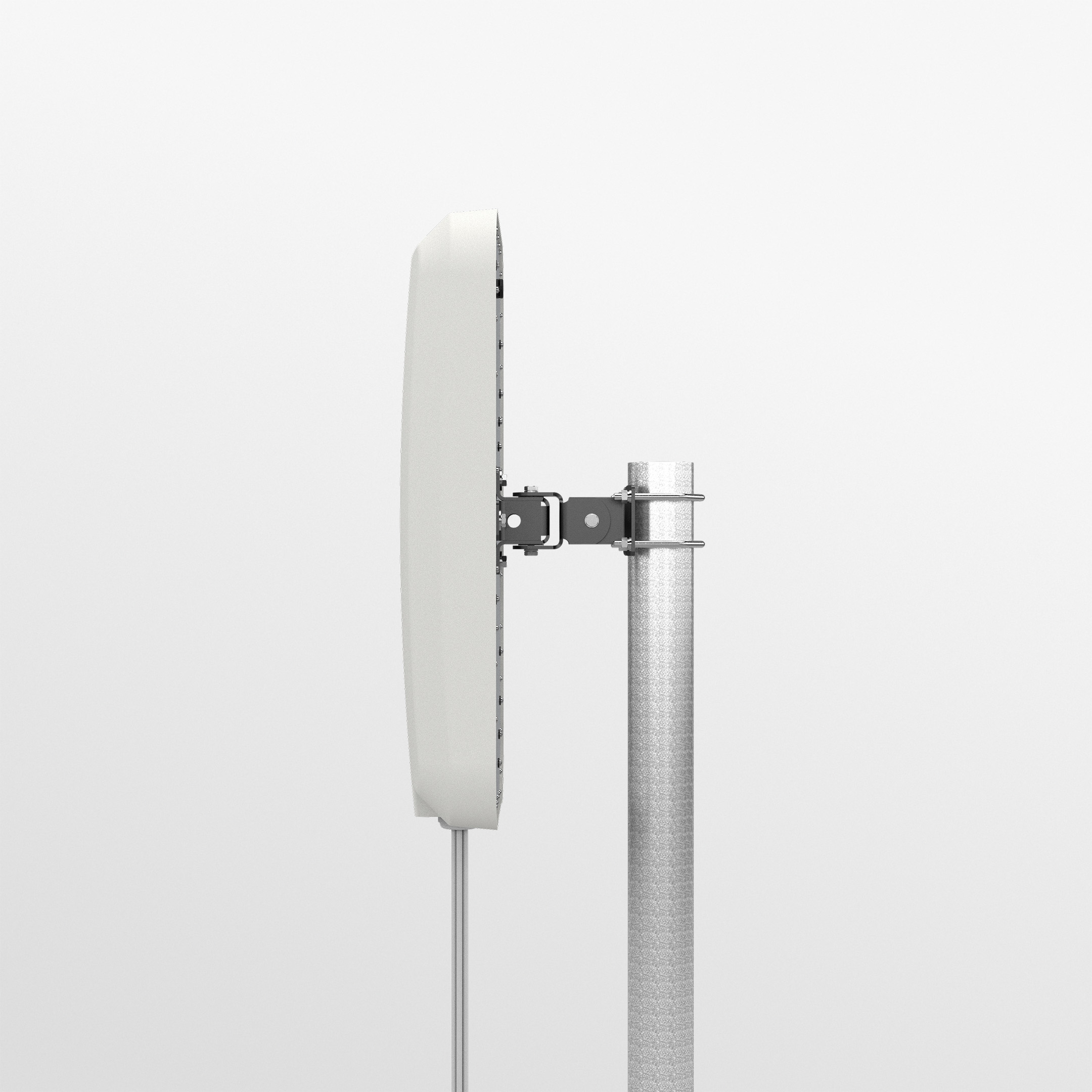

The weather-resistant white housing measures 507 x 307 x 85 mm, operates from -45°C to +80°C, and handles up to 50 W of input power. It is designed for wall mounting, and both wall and mast brackets are provided. Panorama publishes a datasheet, installation instructions (SW3-091) and an IP test certificate for the family.

Ideal for

  • Branch-office 4G/5G WAN connectivity
  • Cellular failover behind a wired primary circuit
  • Rural broadband where the serving tower is distant
  • Fixed enterprise sites running 4x4 MIMO routers

Specifications

GPS

Lna Gain
26 dB (WMM4GG variants only)
GPS Frequency Range
1560-1612 MHz (WMM4GG variants only)
Number OF GPS Elements
No (1 GPS module on WMM4GG variants only)

Cable

Cable Type GPS
CS29 (WMM4GG variants only)
Cable Type LTE
FR CS32 low-loss double-shielded
Cable Length GPS
5 m (16.40 ft) (WMM4GG variants only)
Cable Length LTE
0.5 m (1.64 ft) on this model; family range 0.5-5 m

General

MPN
WMM4G-6-60-05NP
Brand
Panorama Antennas
Colour
White
Family
WMM4G[G]-6-60 4x4 MiMo 4G/5G Directional Antenna

Package

Documents
Datasheet, installation instructions (SW3-091), IP test certificate
Shipping Weight
2.00 lb

Mounting

Mounting Methods
Desk, Mast, Wall
Brackets Supplied
Wall and mast brackets provided
Mounting Type Fixed
Desk, Mast, Wall

Approvals

IP Rating
IP65 (spec table); IP66 per product features and IP test certificate
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Electrical

Pattern
Directional
Uhf Elements
No
Wi-Fi Elements
No
Max Input Power
50 W
Frequency Range Gain
617-960 MHz: 6 dBi peak; 1710-6000 MHz: 9 dBi peak
Cellular LTE Elements
4 x 4 MIMO

Mechanical

Width
85 mm (3.35 in)
Height
507 mm (19.96 in)
Length
307 mm (12.09 in)
Operating Temperature
-45°C to +80°C (-49°F to +176°F)

Technology

Technology
2G/3G/4G/5G, Band 71 600 MHz ready (GPS/GNSS on WMM4GG variants)
Router Support
Supports LTE Cat18/20 routers

Termination

Connector GPS
N (f), FAKRA D, SMA (m) (WMM4GG variants only)
Connector LTE
N-type male (family options: N (f), FAKRA D, N (m), SMA (m))

Questions buyers ask

What is the difference between the -05NP and the -05NJ?

Both have 0.5 m leads. The -05NP ends in N-type male connectors and the -05NJ ends in N-type female connectors.

What gain does it provide?

It provides 6 dBi peak gain at 617-960 MHz and 9 dBi peak gain at 1710-6000 MHz.

Is it suitable for outdoor installation?

Yes. It has a weather-resistant housing rated for -45°C to +80°C and is designed for outdoor wall or mast mounting.

How many router ports does it connect to?

It is a 4x4 MIMO antenna with four separately fed elements, so it is intended for routers with four cellular antenna ports.
