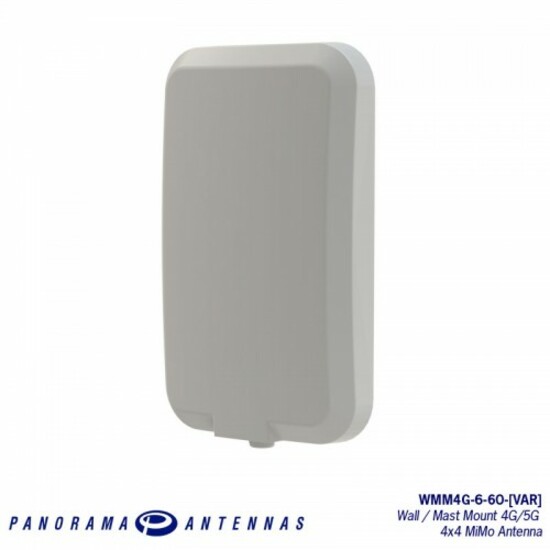

Panorama WMM4G-6-60-5SP 4x4 MIMO 4G/5G Directional Antenna with 5 m SMA-Male Cables

5GMPN WMM4G-6-60-5SP
  • 4x4 MIMO
  • 9 dBi and up
  • 3–5 m
$386.83$529.20Save $142.37

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans
Compare all 7 configurations

Datasheets & documents

Overview

The Panorama WMM4G-6-60-5SP is a directional 4x4 MIMO antenna that connects straight to 4G/5G routers with SMA ports. Four separately fed wideband elements deliver 6 dBi peak gain at 617-960 MHz and 9 dBi at 1710-6000 MHz. The antenna comes fitted with 5 m of low-loss, double-shielded FR CS32 cable ending in SMA-male connectors, so no extension cable is needed. Wall and mast brackets are included, making it a clean choice for branch, failover and rural broadband installs.

  • 4x4 MIMO with four separately fed wideband element assemblies
  • 6 dBi peak gain at 617-960 MHz; 9 dBi peak gain at 1710-6000 MHz
  • 2G/3G/4G/5G coverage, Band 71 600 MHz ready
  • 5 m fitted low-loss double-shielded FR CS32 cable with SMA-male connectors
  • Weather-resistant outdoor housing rated -45°C to +80°C

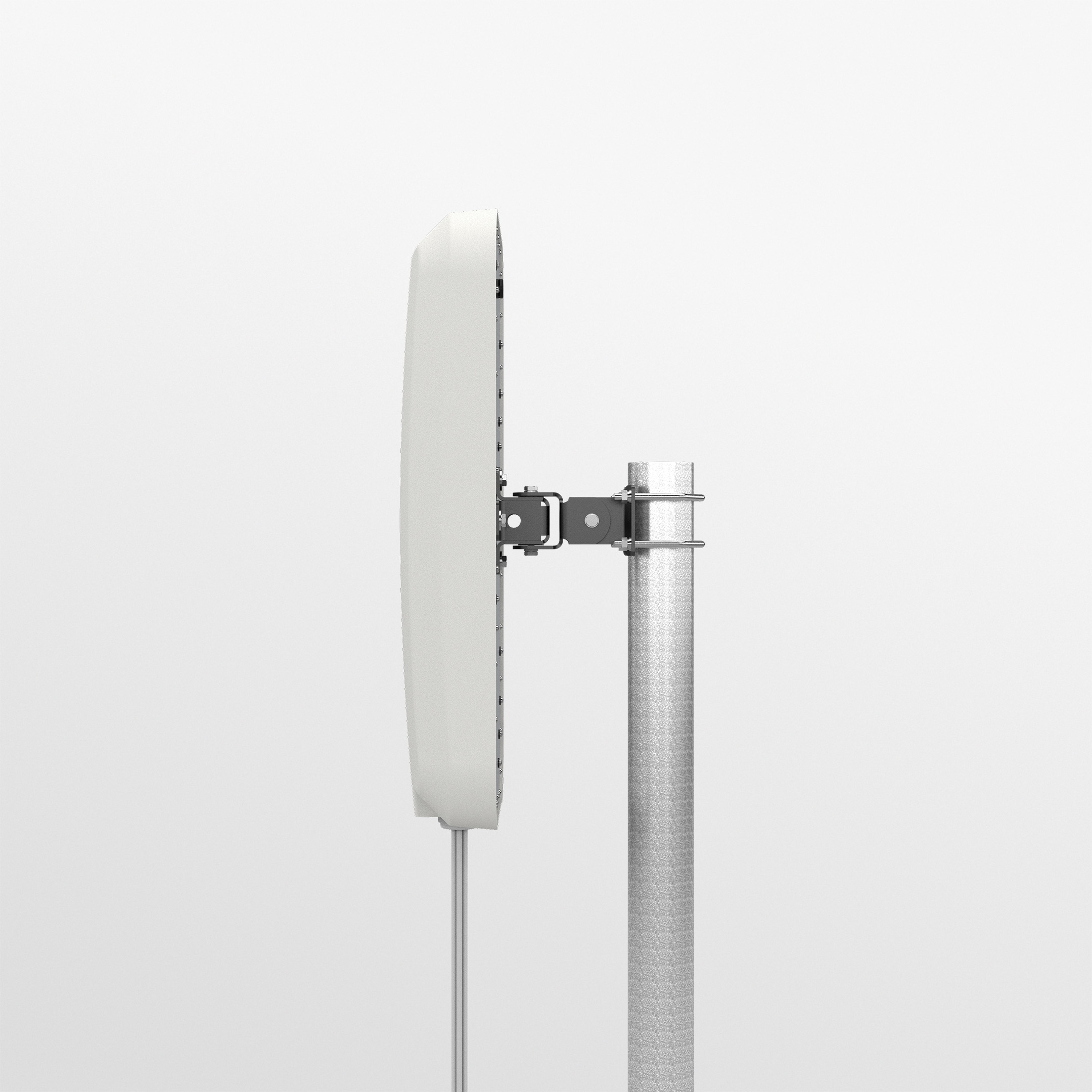

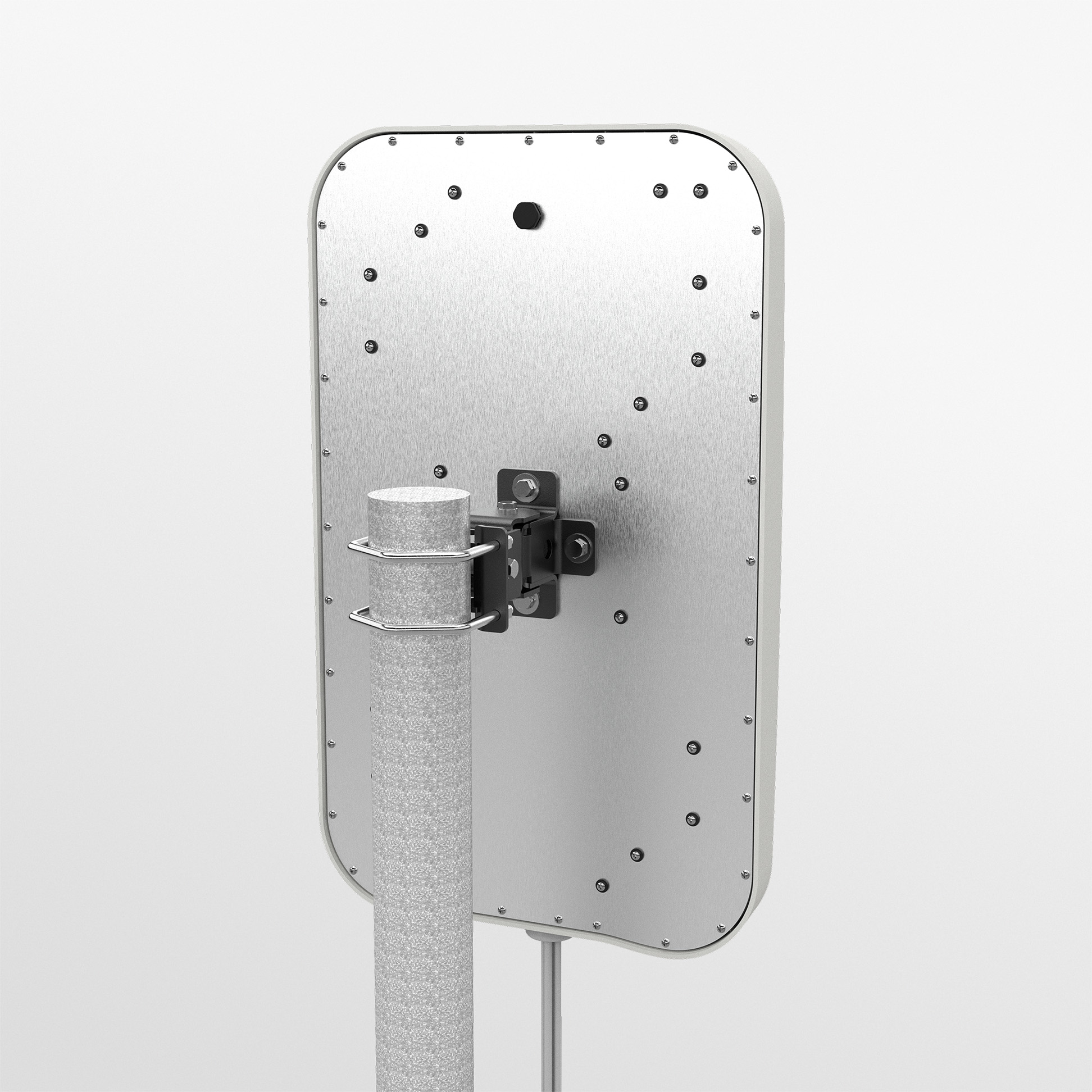

  • Wall or mast mounting with brackets provided
  • Connects directly to router SMA ports with no extension cable or adapters
  • 5 m cable run allows mounting outside while the router stays indoors

The Panorama WMM4G-6-60-5SP is a high-gain directional panel antenna for 4G and 5G routers. It provides client-side 4x4 MIMO from four separately fed wideband element assemblies in one weather-resistant housing. Panorama designed it for LTE Cat18/20 routers and recommends it for branch networks, failover and rural broadband.

Frequency coverage is 617-960 MHz at 6 dBi peak gain, including Band 71 600 MHz, and 1710-6000 MHz at 9 dBi peak gain. That covers 2G/3G, 4G LTE and 5G sub-6 GHz bands. Aim the directional pattern at the serving tower to lift throughput and stability where the signal is weak.

The -5SP variant is the plug-and-play option. It ships with 5 m of fitted low-loss, double-shielded FR CS32 cable terminated in SMA-male connectors, which suits the SMA-female antenna ports common on cellular routers. With no intermediate joints between antenna and router, installation is quicker and there are fewer points of loss or water ingress.

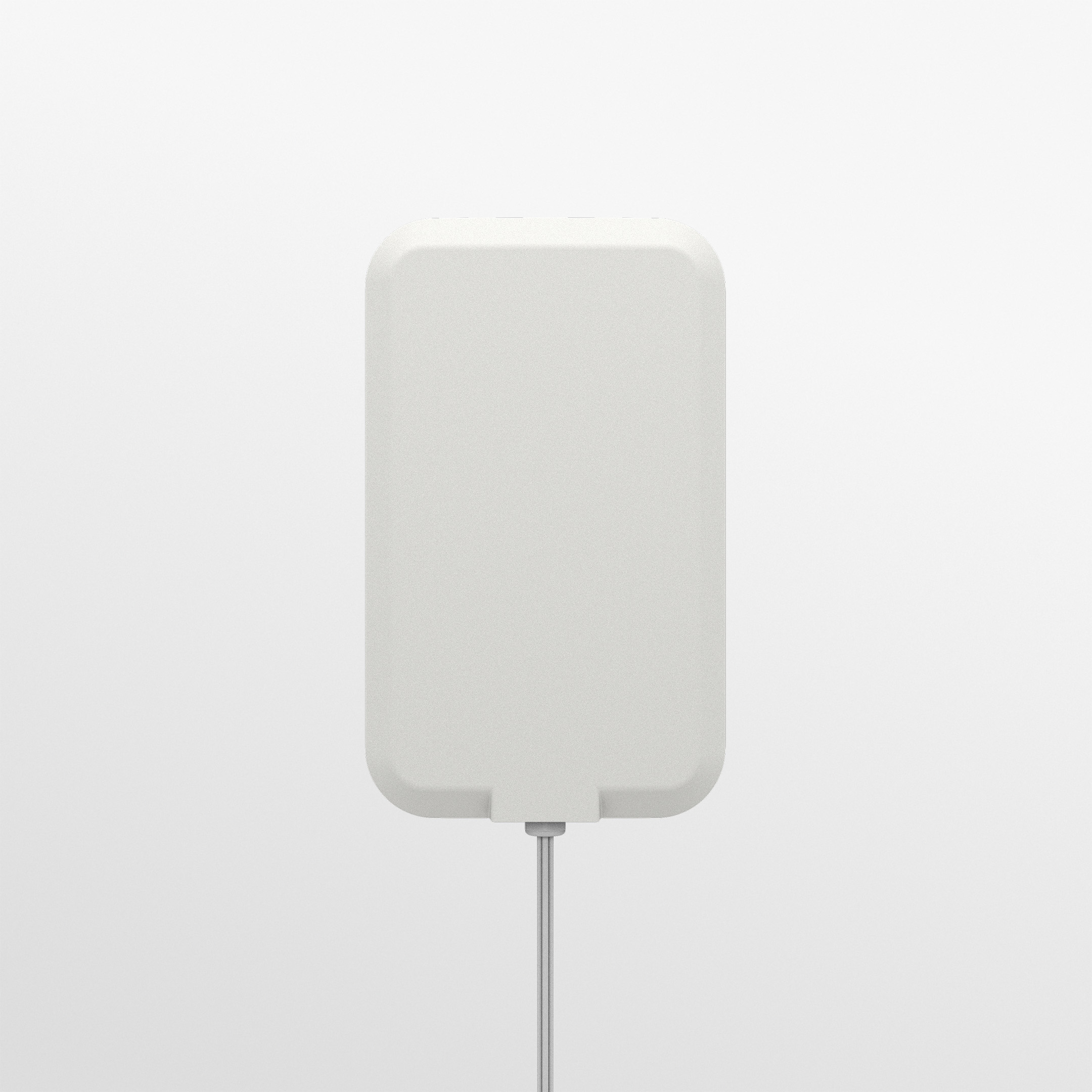

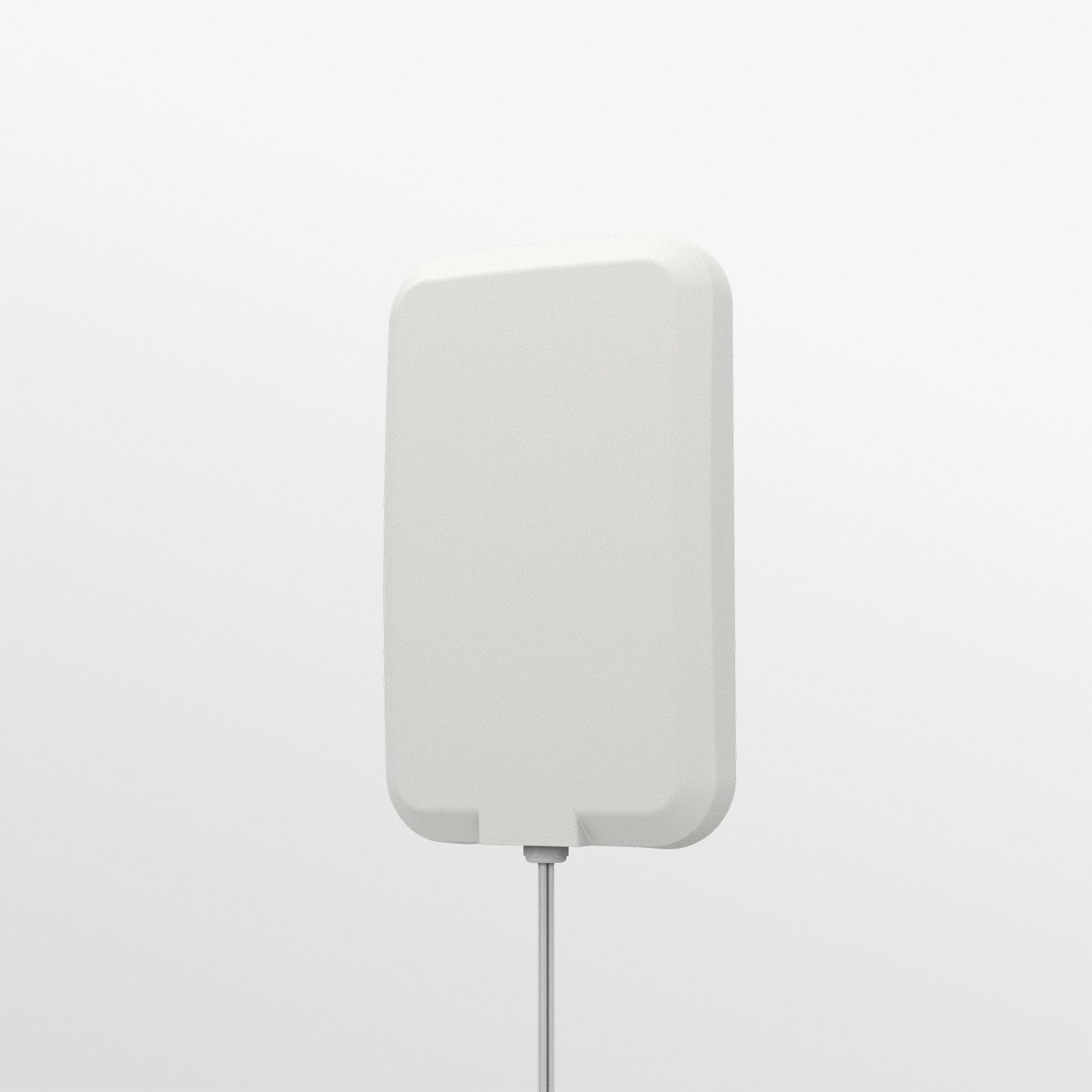

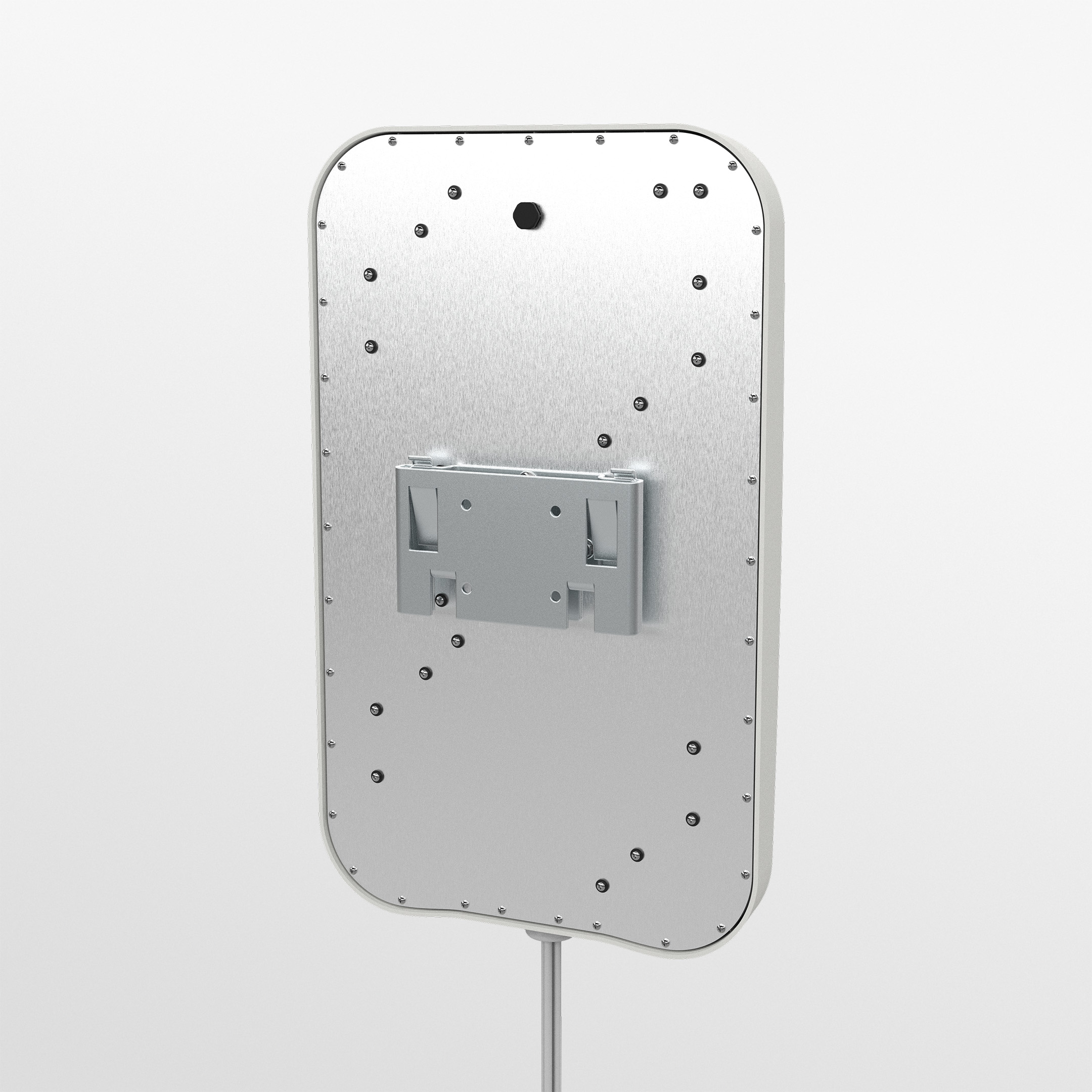

The white housing measures 507 x 307 x 85 mm, operates from -45°C to +80°C, and accepts up to 50 W input power. It is designed for wall mounting, and wall and mast brackets are provided. Panorama publishes a datasheet, installation instructions (SW3-091) and an IP test certificate for this family.

Ideal for

  • Direct connection to SMA-port 4G/5G branch routers
  • Cellular failover for retail and office sites
  • Rural broadband with the antenna outdoors and the router indoors
  • Fixed enterprise and kiosk sites needing 4x4 MIMO

Specifications

GPS

Lna Gain
26 dB (WMM4GG variants only)
GPS Frequency Range
1560-1612 MHz (WMM4GG variants only)
Number OF GPS Elements
No (1 GPS module on WMM4GG variants only)

Cable

Cable Type GPS
CS29 (WMM4GG variants only)
Cable Type LTE
FR CS32 low-loss double-shielded
Cable Length GPS
5 m (16.40 ft) (WMM4GG variants only)
Cable Length LTE
5 m (16.4 ft) on this model; family range 0.5-5 m

General

MPN
WMM4G-6-60-5SP
UPC
5055416036612
Brand
Panorama Antennas
Colour
White
Family
WMM4G[G]-6-60 4x4 MiMo 4G/5G Directional Antenna

Package

Documents
Datasheet, installation instructions (SW3-091), IP test certificate
Shipping Weight
10.85 lb

Mounting

Mounting Methods
Desk, Mast, Wall
Brackets Supplied
Wall and mast brackets provided
Mounting Type Fixed
Desk, Mast, Wall

Approvals

IP Rating
IP65 (spec table); IP66 per product features and IP test certificate
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Electrical

Pattern
Directional
Uhf Elements
No
Wi-Fi Elements
No
Max Input Power
50 W
Frequency Range Gain
617-960 MHz: 6 dBi peak; 1710-6000 MHz: 9 dBi peak
Cellular LTE Elements
4 x 4 MIMO

Mechanical

Width
85 mm (3.35 in)
Height
507 mm (19.96 in)
Length
307 mm (12.09 in)
Operating Temperature
-45°C to +80°C (-49°F to +176°F)

Technology

Technology
2G/3G/4G/5G, Band 71 600 MHz ready (GPS/GNSS on WMM4GG variants)
Router Support
Supports LTE Cat18/20 routers

Termination

Connector GPS
N (f), FAKRA D, SMA (m) (WMM4GG variants only)
Connector LTE
SMA male (family options: N (f), FAKRA D, N (m), SMA (m))

Questions buyers ask

Can I connect this antenna directly to my router?

Yes, if the router has SMA-female antenna ports. The -5SP is supplied with 5 m of fitted cable ending in SMA-male connectors.

What bands does it support?

It covers 617-960 MHz at 6 dBi and 1710-6000 MHz at 9 dBi, supporting 2G/3G/4G/5G and Band 71 600 MHz.

Does it need to be aimed?

Yes. It is a directional antenna, so point it toward the serving cell tower for best results.

What mounting hardware is included?

Wall and mast brackets are provided.
