Cradlepoint R980 5G Rugged Router with eSIM and 6-Year NetCloud Mobile Essentials Plan

5GMPN 590GBL001675
  • Wi-Fi 6
  • Dual SIM
  • eSIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
$1,826.96$1,902.00Save $75.04

In stockShips from the US

Included subscription · 6 years
1 year−$866.153 years−$673.995 years−$481.836 years
Compliance · Standard
StandardTAA compliant−$866.15
Region
Global
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 28 configurations

Datasheets & documents

Overview

This Trade Up package pairs the Ericsson Cradlepoint R980 ruggedized 5G router with a 6-year NetCloud Mobile Essentials plan. The R980 has a 5G NR SA/NSA modem with Cat 19 LTE fallback and support for 5G network slicing. It also offers dual 4FF SIM slots, embedded eSIM hardware, dual-band Wi-Fi 6 and two GbE ports. The unit is rated IP64 and certified for Class I Div 2 and E-Mark. It is packaged for the U.S., Canada, EU, UK, Australia and New Zealand. The hardware ships without an AC power supply or antennas.

  • 3GPP Release 16 5G NR modem (NSA and SA, 600 MHz–6 GHz) with LTE Advanced Pro Cat 19 fallback and 4x4 MIMO
  • 5G network slicing with up to four DNN/PDN instances
  • Dual 4FF SIM slots plus MFF2 eSIM hardware supporting up to eight carrier profiles
  • Dual-band 2x2 MU-MIMO Wi-Fi 6 with AP, client and Wi-Fi-as-WAN modes; two LAN/WAN-switchable GbE ports
  • Active GNSS (GPS, Galileo, GLONASS, BeiDou) and Docker container support on a dual-core ARMv8 CPU
  • IP64, MIL-STD-810H, E-Mark, SAE J1455, NFPA 130 and Class I Div 2 certified; 9–36 VDC with ignition sensing
  • 6-year NetCloud Mobile Essentials plan with NetCloud Manager and support for the full term
  • Keeps priority traffic protected on supported carriers through 5G network slicing and Verizon Frontline Network Slice certification.

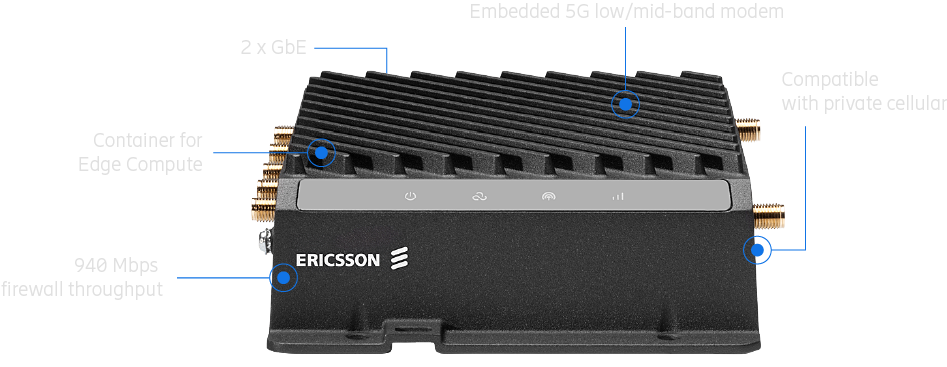

The Ericsson Cradlepoint R980 is a compact, ruggedized 5G router and security appliance. It is built for vehicles, critical communications and IoT deployments that need 5G speed in harsh or hazardous environments. This SKU (Cradlepoint TU-MB06-R980-5GD-A, Getac 590GBL001675) is a Cradlepoint Trade Up package. It combines the R980 with 6 years of NetCloud Mobile Essentials for the U.S., Australia, Canada, the European Union, New Zealand and the United Kingdom. The router ships without an AC power supply or antennas.

The embedded 5G modem is 3GPP Release 16. It covers 600 MHz to 6 GHz on both standalone and non-standalone networks, with LTE Advanced Pro Cat 19 fallback. Peak rates reach 3.4 Gbps down and 550 Mbps up on NSA. The modem supports up to four network slicing instances, so you can isolate and prioritize traffic. Dual 4FF SIM slots sit alongside MFF2 eSIM hardware that holds up to eight carrier profiles. Over-the-air eSIM carrier switching will be functional in future NetCloud OS releases. Carrier certifications include AT&T, T-Mobile and Verizon. Public safety certifications include FirstNet Trusted, T-Mobile T-Priority and Verizon Frontline Network Slice.

Local connectivity includes two LAN/WAN-switchable GbE ports, 2x2 MU-MIMO Wi-Fi 6 and a screw-lock USB port. Active GNSS covers GPS, Galileo, GLONASS and BeiDou. Firewall and IPS throughput is rated at 940 Mbps, and a dual-core ARMv8 CPU runs Docker containers. The chassis weighs 601 g and runs on 9–36 VDC with ignition sensing. It meets IP64, MIL-STD-810H shock and vibration, SAE J1455, NFPA 130 and Class I Div 2 requirements.

NetCloud Mobile Essentials covers cloud management, software updates and 24x7 support for the full term. The hardware carries a limited lifetime warranty while the subscription is active. A Cradlepoint R980 datasheet is available.

Ideal for

  • Public safety vehicles using FirstNet, T-Priority or Verizon Frontline Network Slice
  • Compact in-vehicle installs for field service and utility fleets
  • Ruggedized IoT and critical-infrastructure sites in Class I Div 2 hazardous locations
  • Deployments that need carrier flexibility through dual SIM and eSIM
  • Transit applications requiring NFPA 130 and BSS 7239 compliance

Specifications

Power

Fuse
3 A fuse for 9–24 VDC; 2 A fuse for > 24 VDC
Features
ISO 7637-2 reverse polarity and transient protection; ignition sensing (auto ON, time-delay OFF)
Connector
4-pin 2x2 Molex micro-fit
Light Rail
24 VDC nominal for light rail applications
Consumption
Sleep 15 mW; Idle 8 W; Typical 11 W; Heavy 13 W
Input Voltage
9–36 VDC steady state (requires in-line fuse for vehicle installations)

General

MPN
590GBL001675 (Getac part number)
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint R980
Region
U.S., Australia, Canada, European Union, New Zealand, United Kingdom
Package Plan
6-Year NetCloud Mobile Essentials Plan
Package Type
Cradlepoint Trade Up package
Product Status
Active
Subscription Term
6 years
Hardware Configuration
R980 with Wi-Fi, 5G modem, 4FF SIM slots and embedded eSIM; no AC power supply or antennas
Manufacturer Part Number
TU-MB06-R980-5GD-A

Cellular

3g
WCDMA/UMTS/HSPA+
SMS
Yes
eSIM
Up to eight carrier profiles (over-the-air carrier switching functional with future NetCloud OS releases)
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 8, 19
Antennas
SMA female connectors; external 600 MHz–6 GHz paddle antennas (not included)
GNSS GPS
Active GNSS: GPS, Galileo, GLONASS, BeiDou
LTE Bands
FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48
Modulation
5G FR1: up to 256 QAM downlink and uplink
Peak Rates
NSA up to 3.4 Gbps / 550 Mbps; SA up to 2.4 Gbps / 450 Mbps; LTE up to 1.6 Gbps / 200 Mbps
Regulatory
FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ); UKCA (UK)
Technology
5G NR low/mid-band and 4G LTE; 600 MHz–6 GHz; NSA and SA; LTE Adv Pro Cat 19 fallback; dual 4FF SIM; MFF2 eSIM; network slicing; 3GPP Release 16
5G NR Bands
NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n13 (746-756), n14 (758-768), n18 (860-875), n20 (800), n25 (1900), n26 (850), n28 (700), n29 (717-728), n30 (2300), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n75 (1500), n76 (1427-1432), n77 (3700), n78 (3500), n79 (4900)
Transmit Power
5G NR PC3 23 dBm ± 2; PC1.5 29 dBm ± 2; LTE PC3 23 dBm ± 2; PC2 26 dBm ± 2 (typical conducted)
Network Slicing
Up to four DNN/PDN instances
Carrier Aggregation
5G NR: DL 2 CA / UL 1 CA; ENDC: DL 4 LTE + 1 NR / UL 2 LTE + 2 NR; LTE: DL 5 CA / UL 2 CA
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
ESN (4G); FirstNet Trusted™; T-Mobile Connecting Heroes; T-Mobile T-Priority; Verizon Frontline Verified; Verizon Frontline Network Slice
Network Operator Certifications
AT&T, T-Mobile, Verizon

GNSS GPS

Power
2.9–3.15 VDC supply; 100 mA max current
Accuracy
Autonomous 1 meter
Protocols
NMEA 0183; TAIP
Frequencies
L1
Sensitivity
Acquisition -148 dBm; Tracking -161 dBm; Cold start -146 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou (concurrent reception)
Time TO First Fix
30 seconds (cold start)

Physical

Weight
601 g (1 lb 5.2 oz)
Dimensions

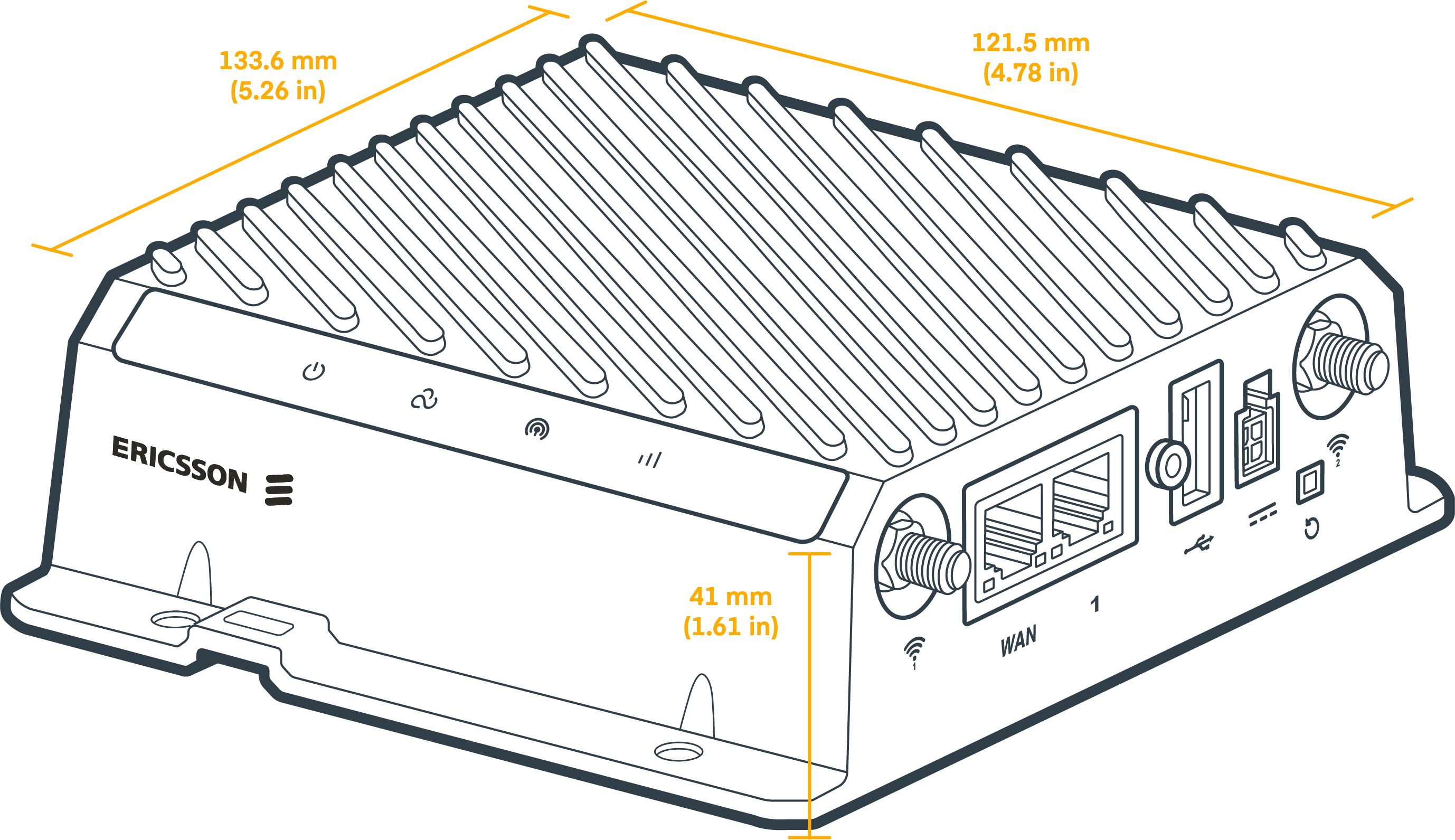

133.6 x 121.5 x 41 mm (5.26 x 4.78 x 1.61 in)

Interfaces

Wi-Fi
Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; AP, client and Wi-Fi-as-WAN modes; 574 Mbps (2.4 GHz) and 1.2 Gbps (5 GHz); 2 x RP-SMA; WPA/WPA2/WPA3; 802.11k/v; Wi-Fi Alliance Certified
Modem

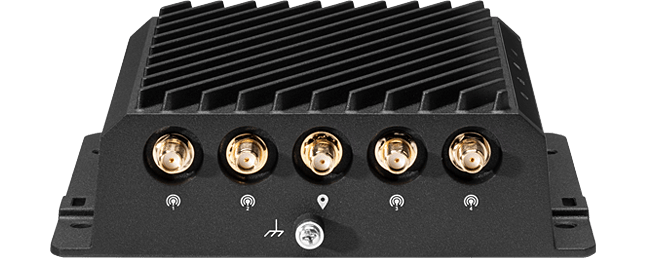

Embedded 5G NR FR1 and 4G LTE modem; 4 x SMA cellular connectors; 2 x 4FF SIM slots; 1 x MFF2 eSIM

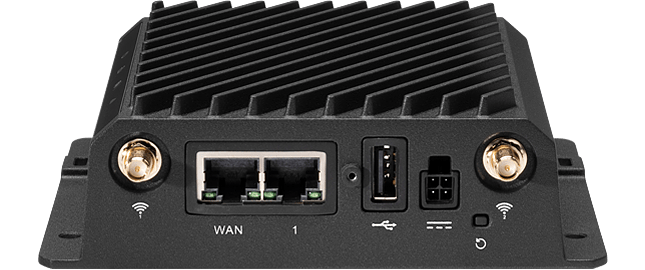

Ethernet
2 x GbE RJ45 (LAN/WAN switchable)
Expansion
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) with screw lock
GNSS Connector
1 x SMA GNSS antenna connector

Wi-Fi Power

IC
2.4 GHz 26.42; 5180–5250 16.48; 5250–5350 18.33; 5470–5725 22.17; 5725–5835 23.14 dBm (conducted)
Fcc
2.4 GHz 26.42; 5180–5250 21.63; 5250–5350 21.20; 5470–5725 22.17; 5725–5835 23.14 dBm (conducted)
Rcm
2.4 GHz 13.91; 5180–5250 18.04; 5250–5320 17.92; 5500–5700 21.48; 5725–5835 23.14 dBm (conducted)
CE Ukca
2.4 GHz 13.91; 5180–5250 18.04; 5250–5320 17.92; 5500–5700 21.48 dBm (conducted)

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Stateful Firewall
940 Mbps
Typical Client Count
50
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
32,000
Client Traffic Analytics
100 Mbps
Point TO Point Ipsec VPN
200 Mbps
Sase Secure Connect SD WAN
85 Mbps
Ips Application Aware Services
940 Mbps

Reliability

Calculated MTBF
1,407,191 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP64 (dust tight and splashing water)
Operating Humidity
10% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety
UL/cUL; CB Scheme; EN 62368-1
Vehicle
E-Mark; SAE J1455
Security
FIPS 140-3 Level 1 module in process (FIPS models only; this SKU is not a FIPS model)
Shock Vibration
MIL-STD-810H Method 514.8 Annex C-1 Cat 4 (Vibration); Method 516.8 Procedures I and V (Shock)
Hazardous Locations
Class I Div 2
Flame Smoke Toxicity
BSS 7239
Substance Compliance
WEEE; RoHS; REACH; California Prop 65
North American Fire Safety
NFPA 130

Cloud Services

Support
Support for the full subscription term (phone 24-hour weekdays with weekend emergency response; web 24x7; chat 24x5)
Warranty
Limited lifetime warranty while an active NetCloud Service plan is licensed
Service Plans
Ericsson NetCloud Service for Mobile; Ericsson NetCloud Service for Ruggedized IoT
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Edge Computing

CPU
Dual-core ARMv8 64-bit
Memory
Up to 921 MB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
No
Wi-Fi
Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
Category
Mobile, IoT
GPS GNSS
Active
5G Status
5G Embedded
Bluetooth
No
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Ruggedized Metal
VPN Tunnels
20
Serial Ports
Yes — with adapter
Ethernet Ports
2 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Container, SDK, serial port with accessory cable
Dual Modem Support
Yes — with captive modem
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
5G & Cat 19 LTE
Private Cellular Network
Yes – CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)
Standard Subscription Terms
1, 3 & 5 years (standard catalog; this SKU is a 6-year term)

Questions buyers ask

What does this SKU include?

It is a Cradlepoint Trade Up package: an R980 router with Wi-Fi, a 5G modem, dual 4FF SIM slots and embedded eSIM, plus a 6-year NetCloud Mobile Essentials plan. It does not include an AC power supply or antennas.

Which regions is this package for?

The manufacturer lists it for the U.S., Australia, Canada, the European Union, New Zealand and the United Kingdom.

Can I switch carriers with the eSIM today?

The R980 has MFF2 eSIM hardware that supports up to eight carrier profiles. Cradlepoint states that over-the-air eSIM carrier switching will be functional with future NetCloud OS releases. The two physical 4FF SIM slots work alongside it.

What is 5G network slicing used for?

Slicing lets the router segment and isolate applications or devices and prioritize traffic on supported 5G networks. The R980 supports up to four DNN/PDN instances and is certified for Verizon Frontline Network Slice.

Can I upgrade to the Advanced plan later?

Yes. A NetCloud Mobile Advanced plan can be added to the Essentials package at any time.
