Cradlepoint5G & LTE Routers

Cradlepoint R980 Ruggedized 5G Mobile Router with Wi-Fi 6 and 1-Year NetCloud Mobile Essentials Plan (TAA)

5GMPN TAA-MB01-R980-5GD-A
  • Wi-Fi 6
  • Dual SIM
  • eSIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
$960.81$1,050.00Save $89.19

In stockShips from the US

Included subscription · 1 year
1 year3 years+$192.165 years+$384.326 years+$866.15
Compliance · TAA compliant
StandardTAA compliant
Region · Global
Global
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 28 configurations

Datasheets & documents

Overview

The Cradlepoint R980 is a ruggedized 5G router for vehicles, transit and hazardous-location deployments. This TAA-compliant U.S. Federal Government SKU (TAA-MB01-R980-5GD-A) pairs the R980 with a 1-year NetCloud Mobile Essentials plan. The R980 has an embedded 5G NR SA/NSA modem with Cat 19 LTE fallback, dual 4FF SIM slots plus eSIM hardware, 2x2 Wi-Fi 6, two Gigabit Ethernet ports, active multi-constellation GNSS and an IP64 metal enclosure. The package does not include an AC power supply or antennas.

  • Embedded 5G NR modem (SA and NSA, 600 MHz-6 GHz) with LTE Advanced Pro Cat 19 fallback, up to 3.4 Gbps peak downlink
  • Dual 4FF SIM slots plus embedded MFF2 eSIM hardware supporting up to eight carrier profiles
  • Public safety certifications: FirstNet Trusted, Verizon Frontline Verified and Network Slice, T-Mobile T-Priority and Connecting Heroes
  • Ruggedized IP64 metal enclosure rated -30 °C to 70 °C, MIL-STD-810H shock/vibration, Class I Div 2, E-Mark and NFPA 130
  • 2x2 MU-MIMO dual-band Wi-Fi 6, 2 x GbE LAN/WAN ports, USB 2.0 with screw lock, and active GPS/Galileo/GLONASS/BeiDou GNSS
  • 940 Mbps stateful firewall and IPS throughput, 20 IPsec VPN tunnels, up to 64 VLANs, and Docker container edge computing
  • TAA-compliant U.S. Federal Government SKU with a 1-year NetCloud Mobile Essentials plan
  • Meets federal procurement needs with a TAA-compliant part number built for U.S. Federal Government ordering

The Ericsson Cradlepoint R980 is a ruggedized 5G router and security appliance built for mobile, in-vehicle and IoT networks that have to keep running through temperature extremes, vibration and hazardous locations. This part number, TAA-MB01-R980-5GD-A, is the TAA-compliant U.S. Federal Government ordering option. It bundles the R980 with Wi-Fi, a 5G modem, two 4FF SIM slots and embedded eSIM with a 1-year NetCloud Mobile Essentials plan. The plan includes NetCloud Manager device management, software updates, 24x7 support and a limited lifetime warranty for as long as the subscription is active. The package does not include an AC power supply or antennas.

The embedded 3GPP Release 16 modem covers 5G NR low- and mid-band from 600 MHz to 6 GHz on both non-standalone and standalone networks, with LTE Advanced Pro Category 19 fallback. Peak rates reach 3.4 Gbps down and 550 Mbps up on NSA. The R980 is certified on AT&T, T-Mobile and Verizon. It carries FirstNet Trusted, Verizon Frontline and T-Mobile T-Priority public safety certifications, and it supports 5G network slicing with up to four DNN/PDN instances. CBRS Band 48 support also covers private cellular networks.

The hardware is sized for vehicle installation. It accepts a 9-36 VDC input with ignition sensing and ISO 7637-2 transient protection, and it operates from -30 °C to 70 °C. The enclosure is rated IP64 and tested to MIL-STD-810H shock and vibration methods, with Class I Div 2, E-Mark, SAE J1455, NFPA 130 and BSS 7239 ratings. Active GNSS tracks GPS, Galileo, GLONASS and BeiDou concurrently for location tracking.

On the network side, the R980 delivers 940 Mbps stateful firewall and IPS throughput, 20 concurrent VPN tunnels, up to 64 VLANs and dual-concurrent 802.11ax Wi-Fi 6. It also supports Docker containers on a dual-core 64-bit ARM platform, plus NetCloud Exchange and SASE add-ons for zero-trust and SD-WAN capabilities.

Ideal for

  • Federal, law enforcement and public safety vehicles that need FirstNet Trusted or Verizon Frontline connectivity under TAA-compliant procurement
  • Light rail, transit and bus fleets needing NFPA 130, BSS 7239 and 24 VDC nominal installation support
  • Industrial and utility sites classified as Class I Div 2 hazardous locations
  • Mobile command posts and field-operations vehicles that share Wi-Fi 6 and Ethernet with onboard laptops, cameras and sensors
  • Private CBRS/5G networks and IoT edge deployments running Docker containers on the router

Specifications

Sku

MPN
TAA-MB01-R980-5GD-A
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint R980
Region
United States: Federal Government
FIPS Model
Standard (non-FIPS) model
Manufacturer
Ericsson Enterprise Wireless (Ericsson Cradlepoint)
Service Plan
1-Year NetCloud Mobile Essentials Plan
TAA Compliant
TAA-compliant SKU (U.S. Federal Government ordering option)
Product Status
Active
Shipping Weight
2.28 lb
Subscription Term
1 year
Essentials Support
24x7 support (phone 24-hour weekdays with weekend emergency response, web 24x7, chat 24x5)
Hardware Configuration
R980 Router with Wi-Fi, 5G modem, 4FF SIM slots and embedded eSIM; no AC power supply or antennas
Ordering Guide Part Pattern
TAA-MB0x-R980-5GD-A (Mobile TAA Compliant NC — Essentials)

Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
eSIM
Up to eight carrier profiles
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 8, 19
Antennas
SMA female connectors; external 600 MHz-6 GHz cellular paddle antennas (not included)
GNSS GPS
Active GNSS: GPS, Galileo, GLONASS, BeiDou
Modulation
5G FR1: up to 256 QAM downlink and uplink
Regulatory
FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ); UKCA (UK)
Technology
5G NR low/mid-band and 4G LTE, 600 MHz-6 GHz, NSA and SA, Cat 19 LTE fallback, dual 4FF SIM, MFF2 eSIM, network slicing, 3GPP Release 16
5G NR Bands
NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n13 (746-756), n14 (758-768), n18 (860-875), n20 (800), n25 (1900), n26 (850), n28 (700), n29 (717-728), n30 (2300), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n75 (1500), n76 (1427-1432), n77 (3700), n78 (3500), n79 (4900)
LTE Fdd Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
LTE Tdd Bands
B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Peak Rates SA
up to 2.4 Gbps down / 450 Mbps up
Peak Rates LTE
up to 1.6 Gbps down / 200 Mbps up
Peak Rates Nsa
up to 3.4 Gbps down / 550 Mbps up
Network Slicing
Up to four DNN/PDN instances
Transmit Power LTE
LTE Power Class 3 bands 23 dBm ± 2; Power Class 2 bands 26 dBm ± 2 (typical conducted)
Gcf Global Operators
GCF member operators list (globalcertificationforum.org)
Transmit Power 5G NR
5G NR Power Class 3 bands 23 dBm ± 2; Power Class 1.5 bands 29 dBm ± 2 (typical conducted)
Carrier Aggregation Endc
LTE + 5G NR EN-DC: DL up to 4 CA LTE + 1 CA NR; UL up to 2 CA LTE + 2 CA NR
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Carrier Aggregation LTE Only
DL up to 5 CA; UL up to 2 CA
Public Safety Certifications
ESN (4G); FirstNet Trusted™; T-Mobile Connecting Heroes; T-Mobile T-Priority; Verizon Frontline Verified; Verizon Frontline Network Slice
Ptcrb North America Operators
PTCRB North America operators (ptcrb.com)
Carrier Aggregation 5G NR Only
DL up to 2 CA; UL 1 CA
Network Operator Certifications
AT&T; T-Mobile; Verizon

Power

Features
ISO 7637-2 reverse polarity and transient voltage protection; ignition sensing (automatic ON, time-delay OFF)
Connector
4-pin 2x2 Molex micro-fit
DC Input Range
9–36 VDC steady state (in-line fuse required for vehicle installations)
Consumption Idle
8 W
Fuse 9 TO 24 Vdc
3 A fuse for 9–24 VDC installations
Fuse Over 24 Vdc
2 A fuse for > 24 VDC installations
Consumption Heavy
13 W
Consumption Sleep
15 mW
Light Rail Nominal
24 VDC nominal for light rail applications
Consumption Typical
11 W

GNSS GPS

Power
Voltage supply 2.9-3.15 VDC; max current 100 mA
Accuracy
Autonomous 1 meter
Protocols
NMEA 0183; TAIP
Frequencies
L1
Sensitivity
Acquisition -148 dBm; Tracking -161 dBm; Cold start -146 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou (concurrent reception)
Time TO First Fix
30 seconds (cold start)

Physical

Weight
601 g (1 lb 5.2 oz)

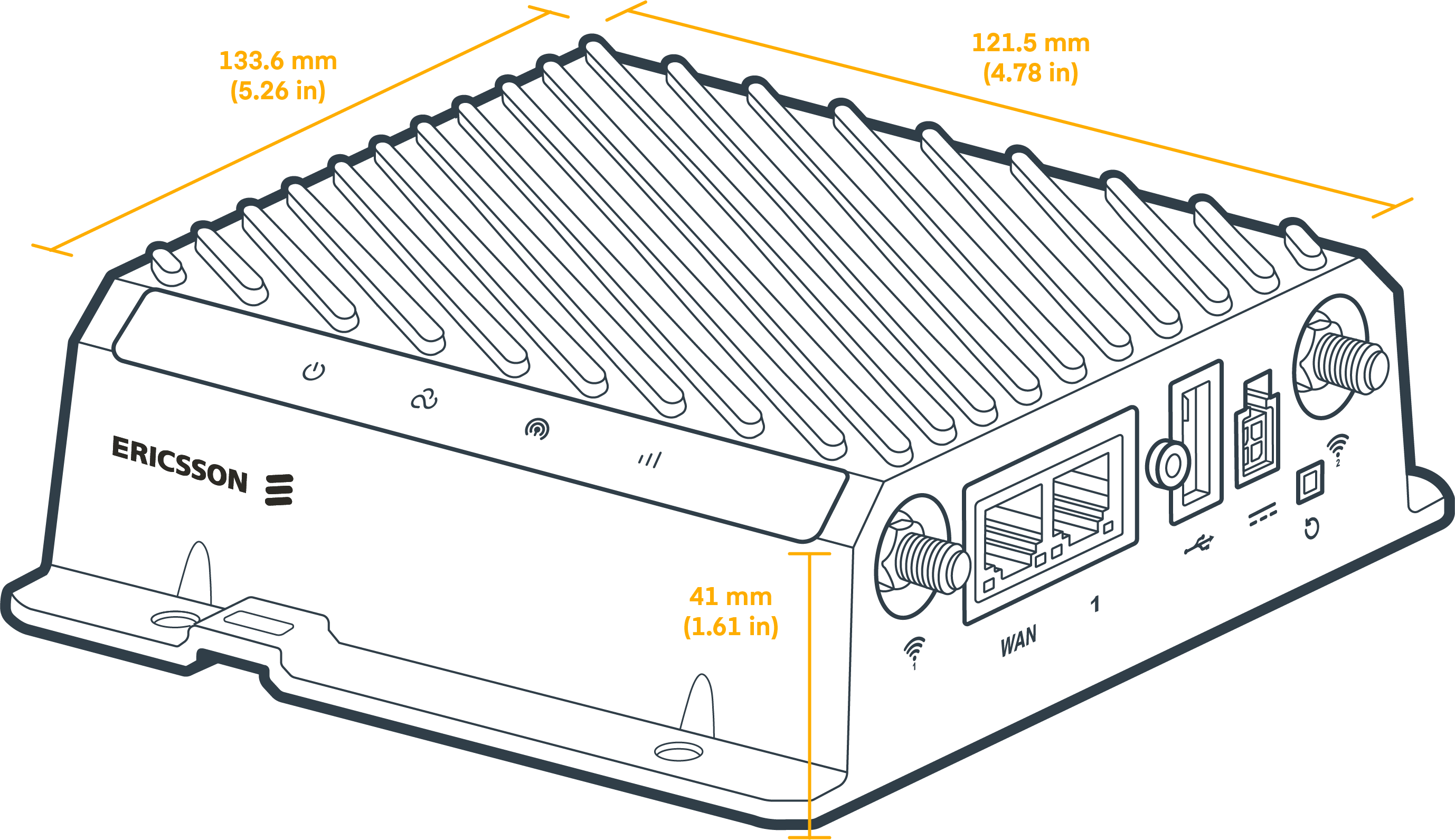

Dimensions
133.6 x 121.5 x 41 mm (5.26 x 4.78 x 1.61 in)

Interfaces

Modem
Embedded 5G NR FR1 and 4G LTE modem; 4 x SMA cellular antenna connectors; 2 x 4FF SIM slots; 1 x MFF2 eSIM hardware
Ethernet
2 x GbE RJ45 (LAN/WAN switchable)
Expansion
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W output) with screw lock for mechanically secure connections
Wi-Fi Modes
AP, Wireless Client, and Wi-Fi as WAN
Wi-Fi Radio
Dual-radio, dual-band, concurrent (2.4 GHz and 5 GHz); 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
GNSS Connector
1 x SMA GNSS antenna connector
Wi-Fi Data Rates
574 Mbps (2.4 GHz) and 1.2 Gbps (5 GHz)
Wi-Fi Regulatory
Global Optimized Wi-Fi and International SDR
Wi-Fi Certification
Wi-Fi Alliance Certified
Wi-Fi Roaming Standards
802.11k, 802.11v
Wi-Fi Antenna Connectors
2 x RP-SMA Wi-Fi antenna connectors

Wi-Fi Power

IC
2.4 GHz 26.42 dBm; 5180–5250 MHz 16.48 dBm; 5250–5350 MHz 18.33 dBm; 5470–5725 MHz 22.17 dBm; 5725–5835 MHz 23.14 dBm (conducted)
Fcc
2.4 GHz 26.42 dBm; 5180–5250 MHz 21.63 dBm; 5250–5350 MHz 21.20 dBm; 5470–5725 MHz 22.17 dBm; 5725–5835 MHz 23.14 dBm (conducted)
Rcm
2.4 GHz 13.91 dBm; 5180–5250 MHz 18.04 dBm; 5250–5320 MHz 17.92 dBm; 5500–5700 MHz 21.48 dBm; 5725–5835 MHz 23.14 dBm (conducted)
CE Ukca
2.4 GHz 13.91 dBm; 5180–5250 MHz 18.04 dBm; 5250–5320 MHz 17.92 dBm; 5500–5700 MHz 21.48 dBm (conducted)

Performance

L2 L3 Vlans
Up to 64
Stateful Firewall
940 Mbps
Typical Client Count
50
Ips Application Aware
940 Mbps
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
32,000
Client Traffic Analytics
100 Mbps
Point TO Point Ipsec VPN
200 Mbps
Sase Secure Connect SD-WAN
85 Mbps

Reliability

Calculated MTBF
1,407,191 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP64 (dust tight and splashing water)
Operating Humidity
10% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety
UL/cUL; CB Scheme; EN 62368-1
Vehicle
E-Mark; SAE J1455
Security
FIPS 140-3 Level 1 Module in Process (R980 FIPS models only)
Shock Vibration
MIL-STD-810H Method 514.8 Annex C-1 Cat 4 (vibration); Method 516.8 Procedures I and V (shock)
Hazardous Locations
Class I Div 2
Flame Smoke Toxicity
BSS 7239
Substance Compliance
WEEE; RoHS; REACH; California Prop 65
North American Fire Safety
NFPA 130

Cloud Services

Support
Ericsson NetCloud packages include support for the full subscription term
Warranty
Limited lifetime warranty for as long as the device has an active Ericsson NetCloud Service plan subscription
Service Plans
Ericsson NetCloud Service for Mobile; Ericsson NetCloud Service for Ruggedized IoT
Service Add Ons
NetCloud Exchange; Ericsson NetCloud Advanced
Software Updates
NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Edge Computing

CPU
Dual-core ARMv8 64-bit
Memory
Up to 921 MB (for NetCloud Container Orchestrator)
Applications
Docker containerized applications
Flash Storage
Up to 8 GB (for NetCloud Container Orchestrator)

Product Summary

PoE
No
Wi-Fi
Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
Category
Mobile, IoT
GPS GNSS
Active
5G Status
5G Embedded
Bluetooth
No
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Ruggedized Metal
VPN Tunnels
20
Serial Ports
Yes — with adapter
Ethernet Ports
2 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Container, SDK, Serial port with accessory cable
Dual Modem Support
Yes — with captive modem
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
5G & Cat 19 LTE
Private Cellular Network
Yes – CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Are antennas and a power supply included with TAA-MB01-R980-5GD-A?

No. This configuration includes the R980 router with Wi-Fi, 5G modem, 4FF SIM slots and embedded eSIM, but no AC power supply or antennas. The router uses SMA female connectors for external 600 MHz-6 GHz cellular antennas, RP-SMA connectors for Wi-Fi and an SMA GNSS connector. It runs on a 9–36 VDC input through a 4-pin 2x2 Molex Micro-Fit connector.

What does the 1-year NetCloud Mobile Essentials plan include?

It includes NetCloud Manager device management and software updates for the full term. It also includes 24x7 support (phone 24 hours on weekdays with weekend emergency response, web 24x7, chat 24x5) and a limited lifetime warranty for as long as the router has an active NetCloud Service plan. You can add a NetCloud Mobile Advanced plan at any time for additional capabilities.

Is this router certified for public safety networks?

Yes. The R980 carries FirstNet Trusted, Verizon Frontline Verified, Verizon Frontline Network Slice, T-Mobile T-Priority, T-Mobile Connecting Heroes and ESN (4G) certifications. It is also certified on AT&T, T-Mobile and Verizon.

How many SIMs does the R980 support?

It has two 4FF physical SIM slots plus embedded MFF2 eSIM hardware that supports up to eight carrier profiles. Cradlepoint notes that over-the-air eSIM carrier switching will be enabled in future NetCloud OS releases.

Can the R980 be installed in vehicles and hazardous locations?

Yes. It supports ignition sensing and ISO 7637-2 reverse polarity and transient protection, and it carries E-Mark and SAE J1455 vehicle certifications. It is rated IP64, operates from -30 °C to 70 °C and is certified for Class I Div 2 hazardous locations. Vehicle installations require an in-line fuse: 3 A for 9–24 VDC or 2 A above 24 VDC.
